MSD | SKU:
8201

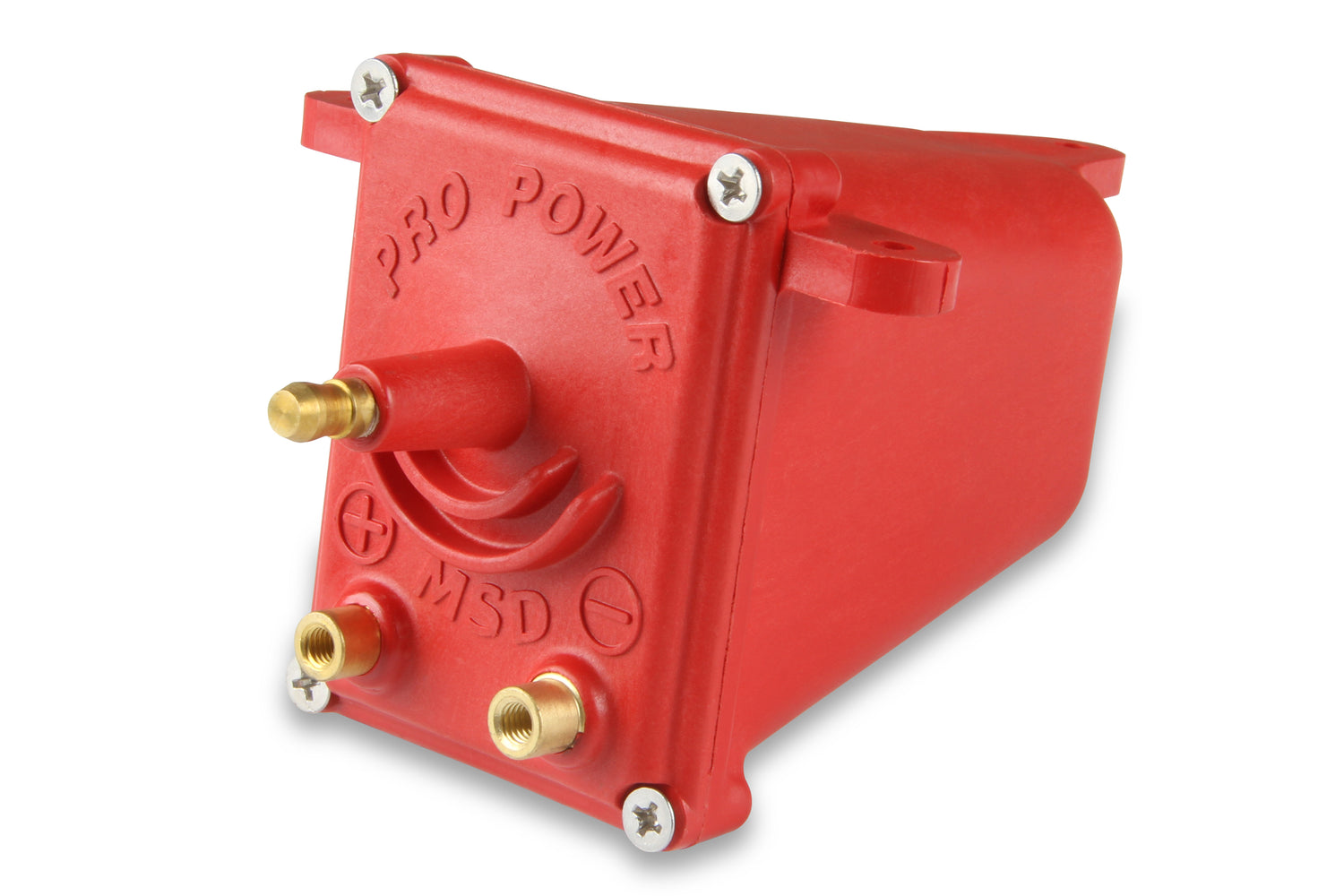

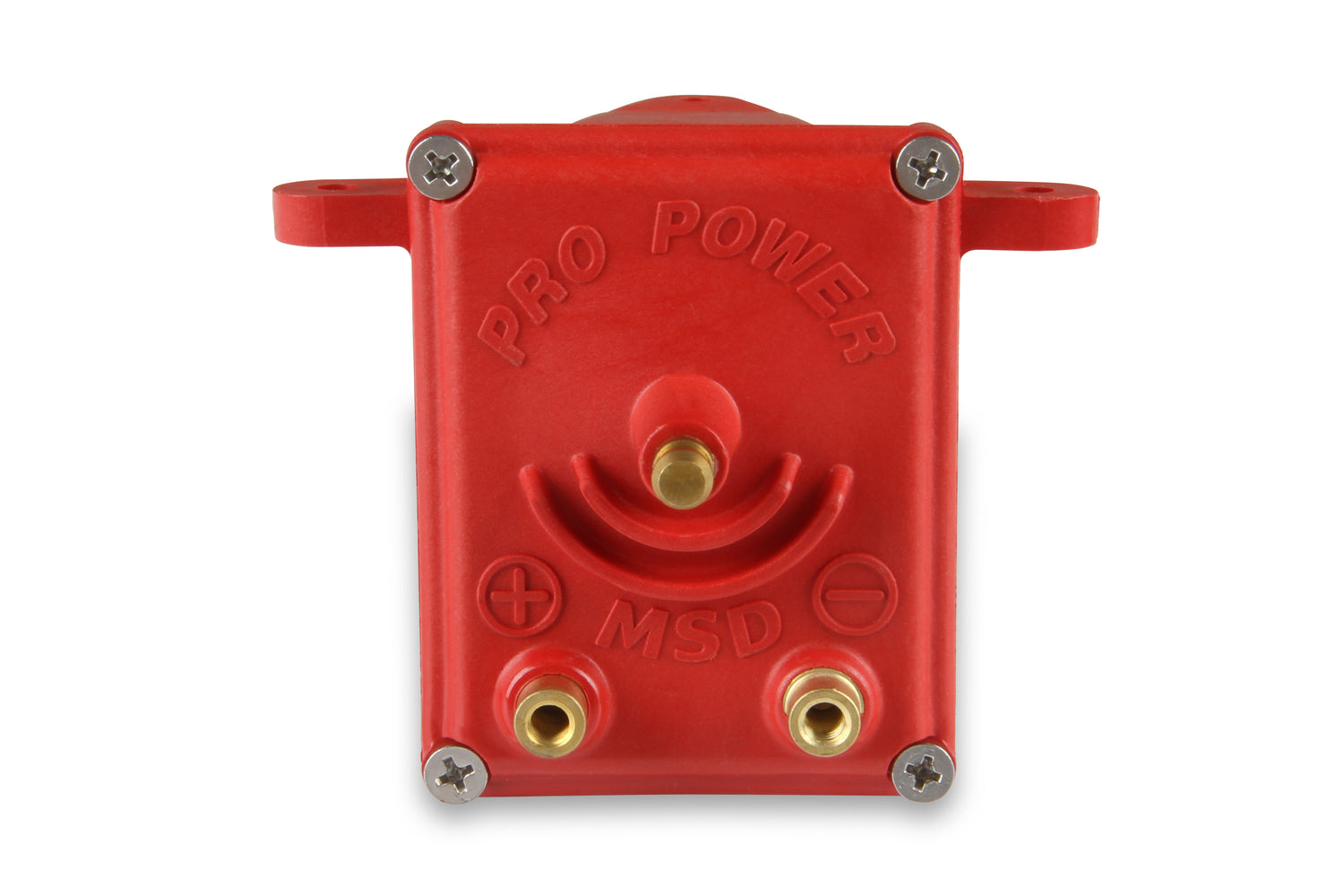

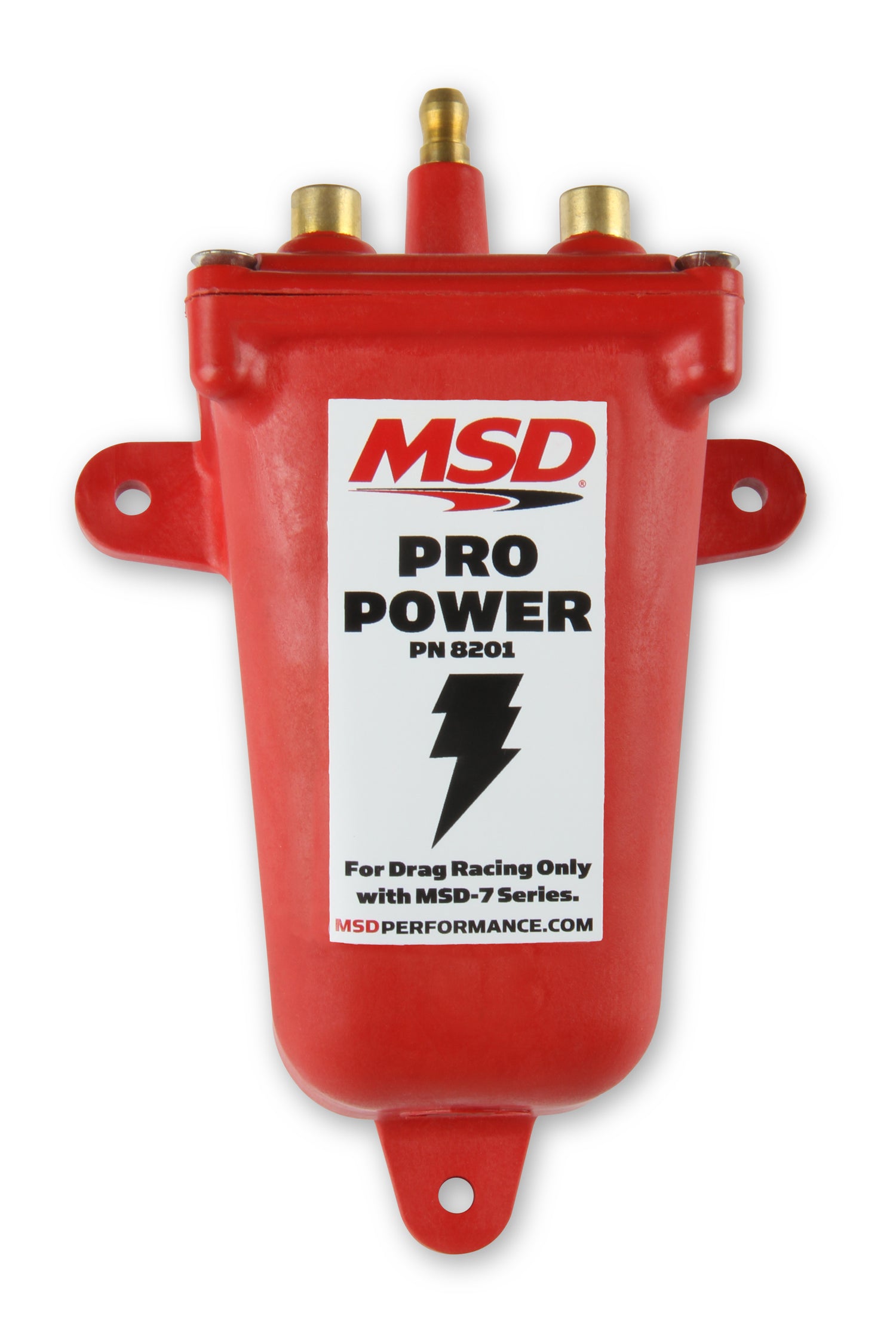

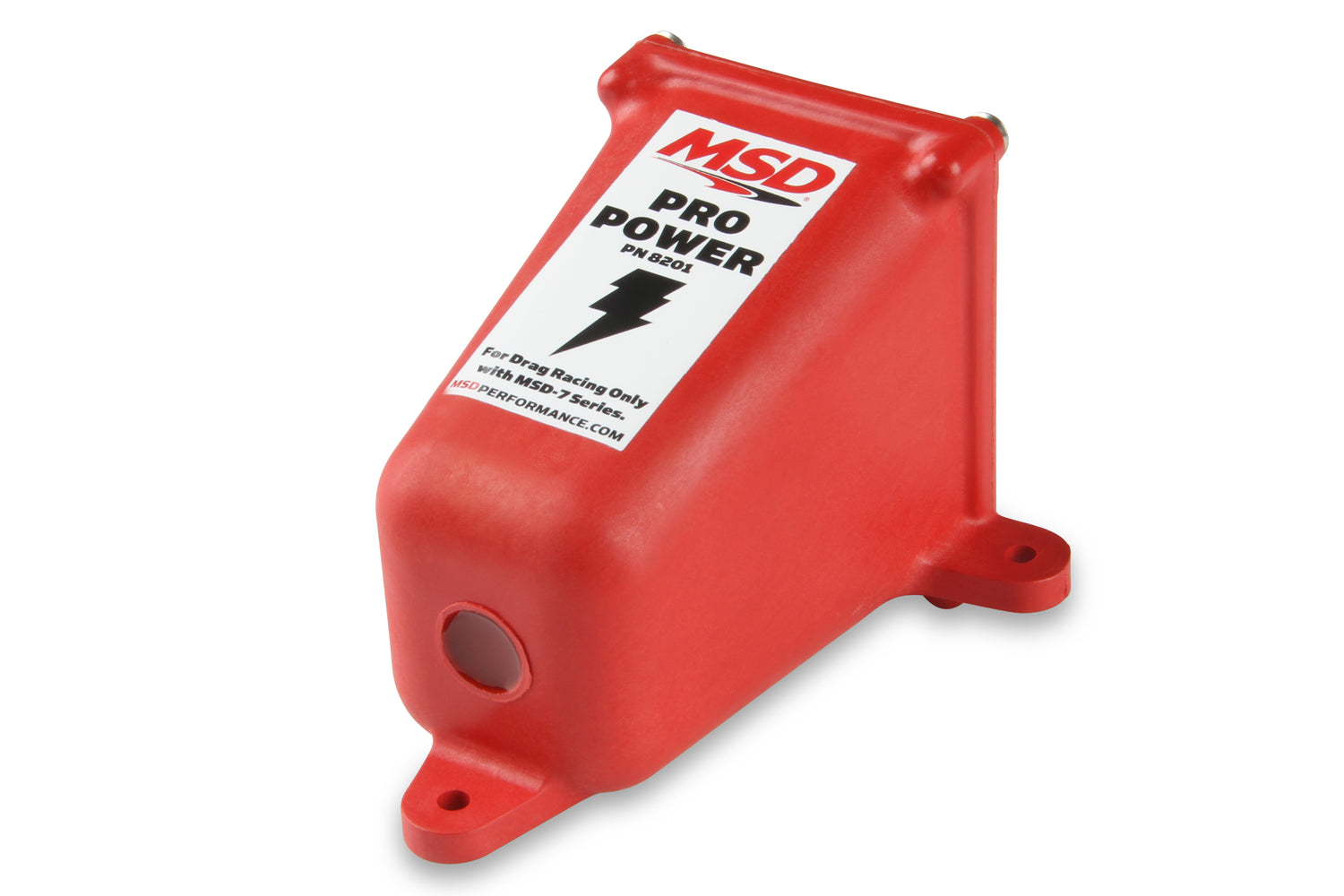

MSD Ignition Coil - Pro Power Series - Red - 8201
Use with MSD 7 and 8 Series Ignitions ONLY - Short-Duration Applications
Regular price
$408.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Ignition Coil - Pro Power Series - Red - 8201 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
MSD Ignition Coil - Pro Power Series - Red - 8201
Regular price
$408.50 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Use with MSD 7 and 8 Series Ignitions ONLY - Short-Duration Applications
Part Number: 8201
This Coil is designed for use with an MSD 7AL-2 (#7220), 7AL-2 Plus (#7222), 7AL-3 (#7230), and MSD 8 (7805) Ignitions only. The special windings of the Pro Power Coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 Series Ignition Control. The MSD Pro Power Coil is a great choice for short-duration applications such as drag racing. Sold Individually.
Features and Benefits
• For MSD 7 and 8 ignitions only, not for use on street vehicles
• Extremely low primary resistance

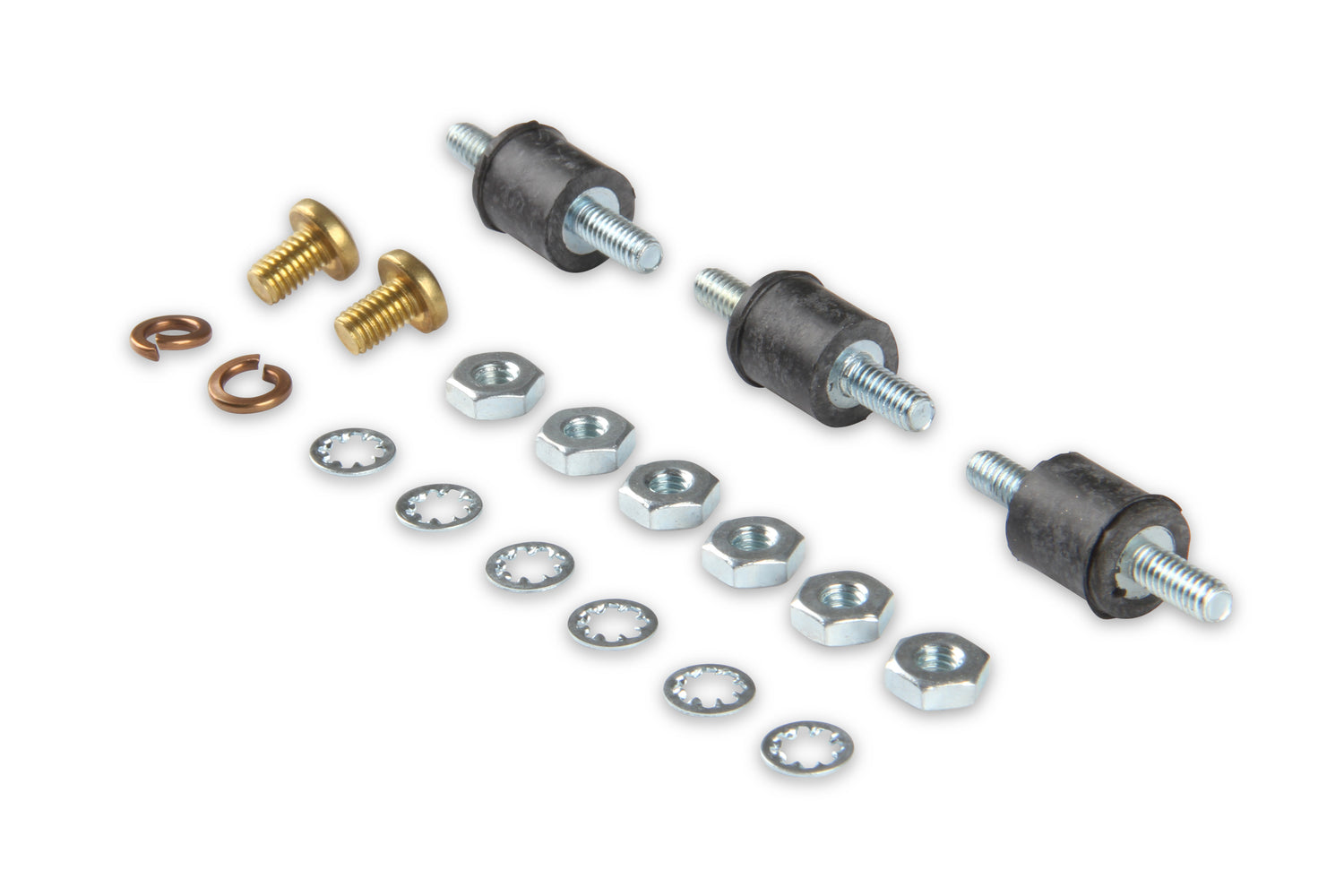

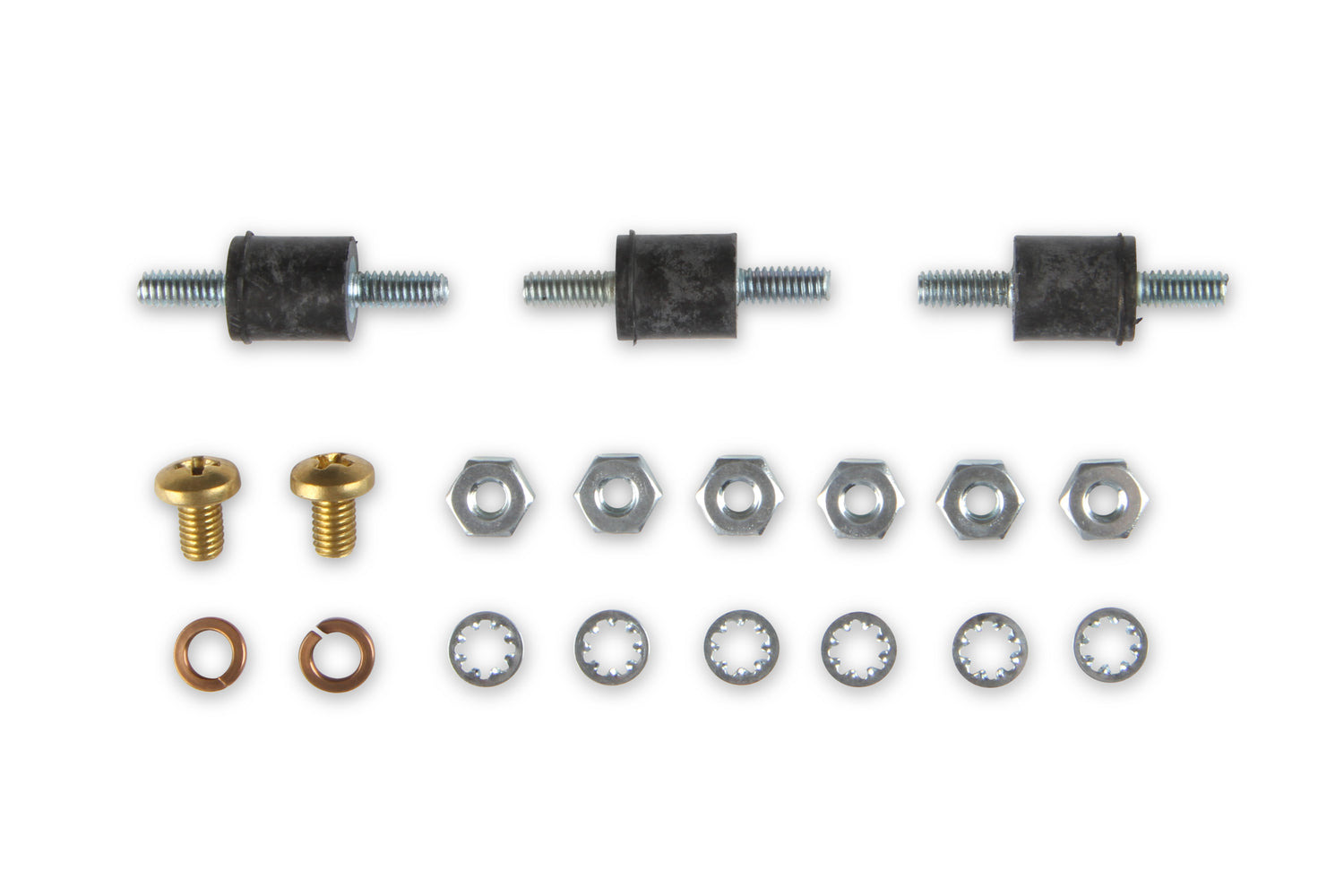

• Supplied with rubber shock mounts
• Housing is molded from a durable and high dielectric polyester
• High voltage coil designed for short duration applications only
• Primary and secondary windings are encased in Ciba polyurethane for vibration protection
Part Number: 8201
This Coil is designed for use with an MSD 7AL-2 (#7220), 7AL-2 Plus (#7222), 7AL-3 (#7230), and MSD 8 (7805) Ignitions only. The special windings of the Pro Power Coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 Series Ignition Control. The MSD Pro Power Coil is a great choice for short-duration applications such as drag racing. Sold Individually.
Features and Benefits
• For MSD 7 and 8 ignitions only, not for use on street vehicles
• Extremely low primary resistance
• Supplied with rubber shock mounts
• Housing is molded from a durable and high dielectric polyester
• High voltage coil designed for short duration applications only
• Primary and secondary windings are encased in Ciba polyurethane for vibration protection
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Red Emission Code 4 Inductance (mH) 1 Maximum Voltage 43,000 part type Ignition Coil Peak Current 800 Primary Resistance 0.03 Product Type Ignition Coil Secondary Resistance 240 Spark Duration 0.18 Sub Category Ignition Coil Turns Ratio 4.17 Type Drag Race / Short Duration Use Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
