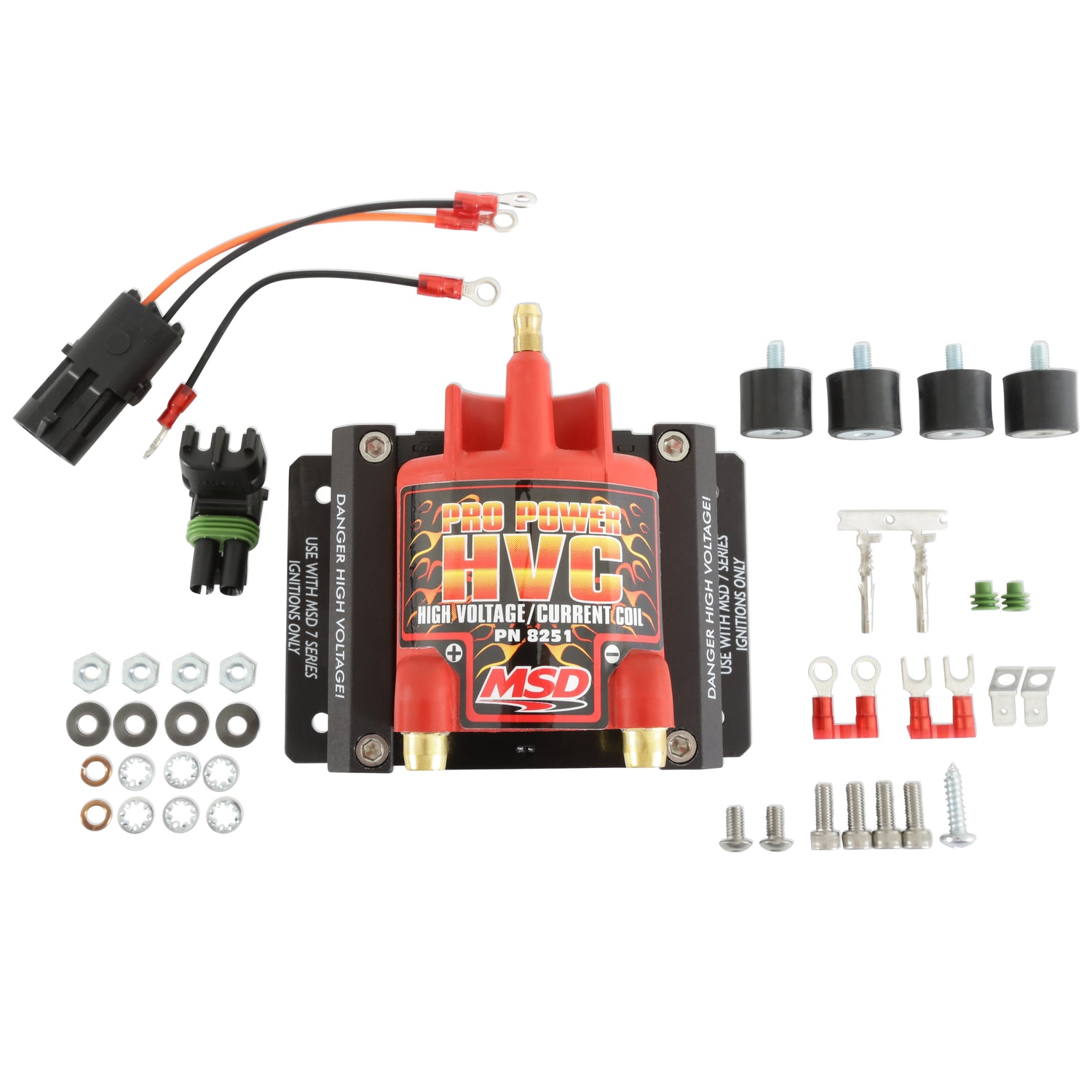

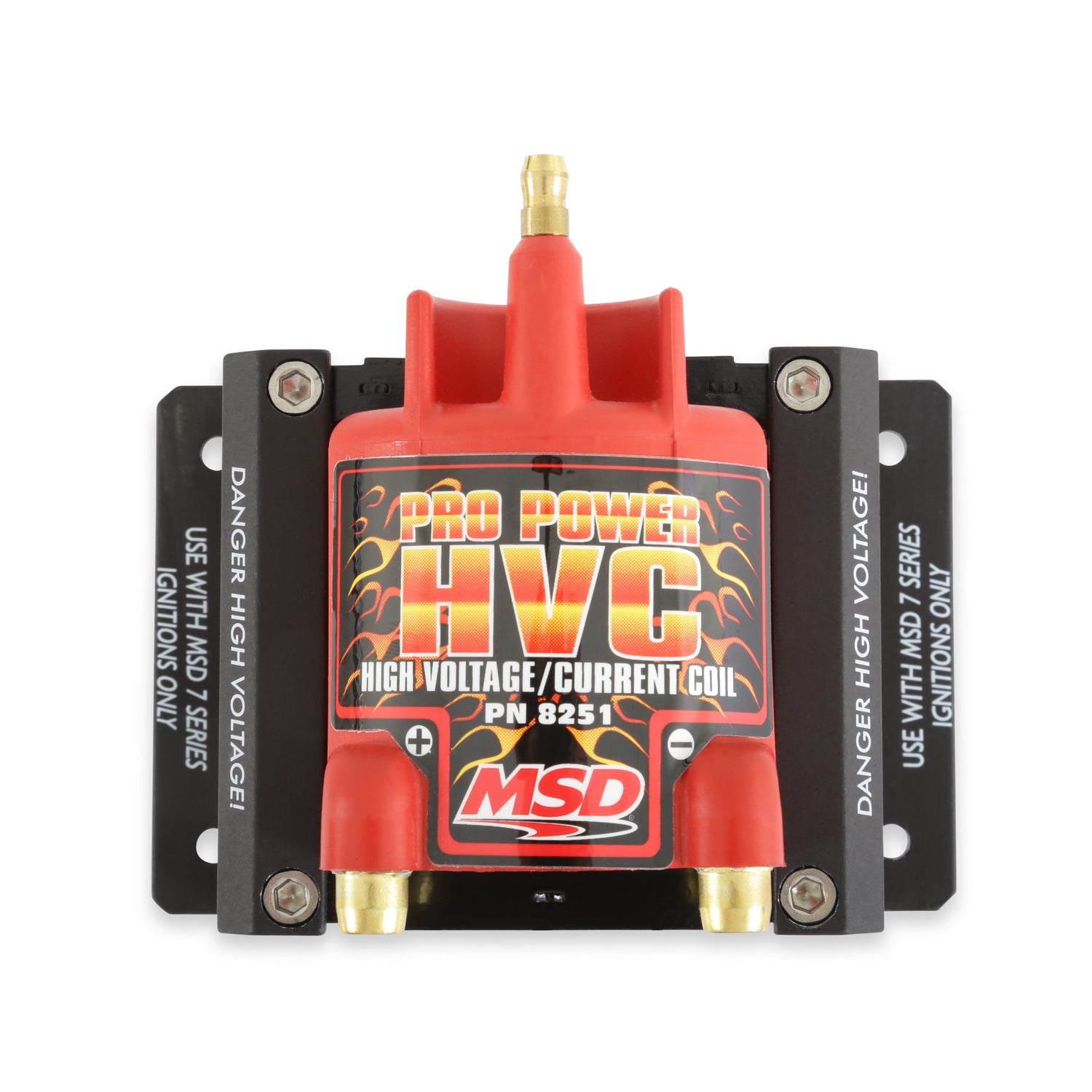

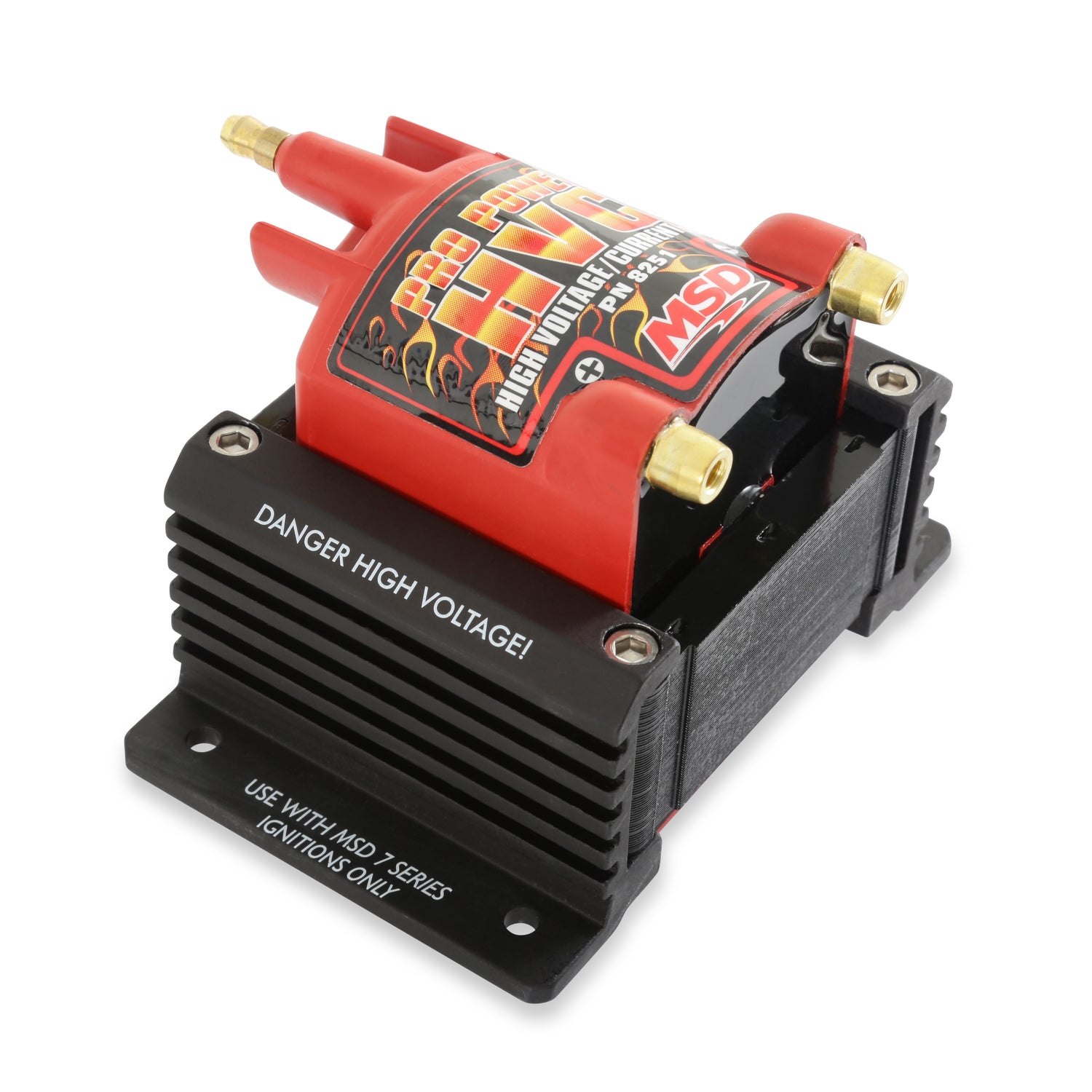

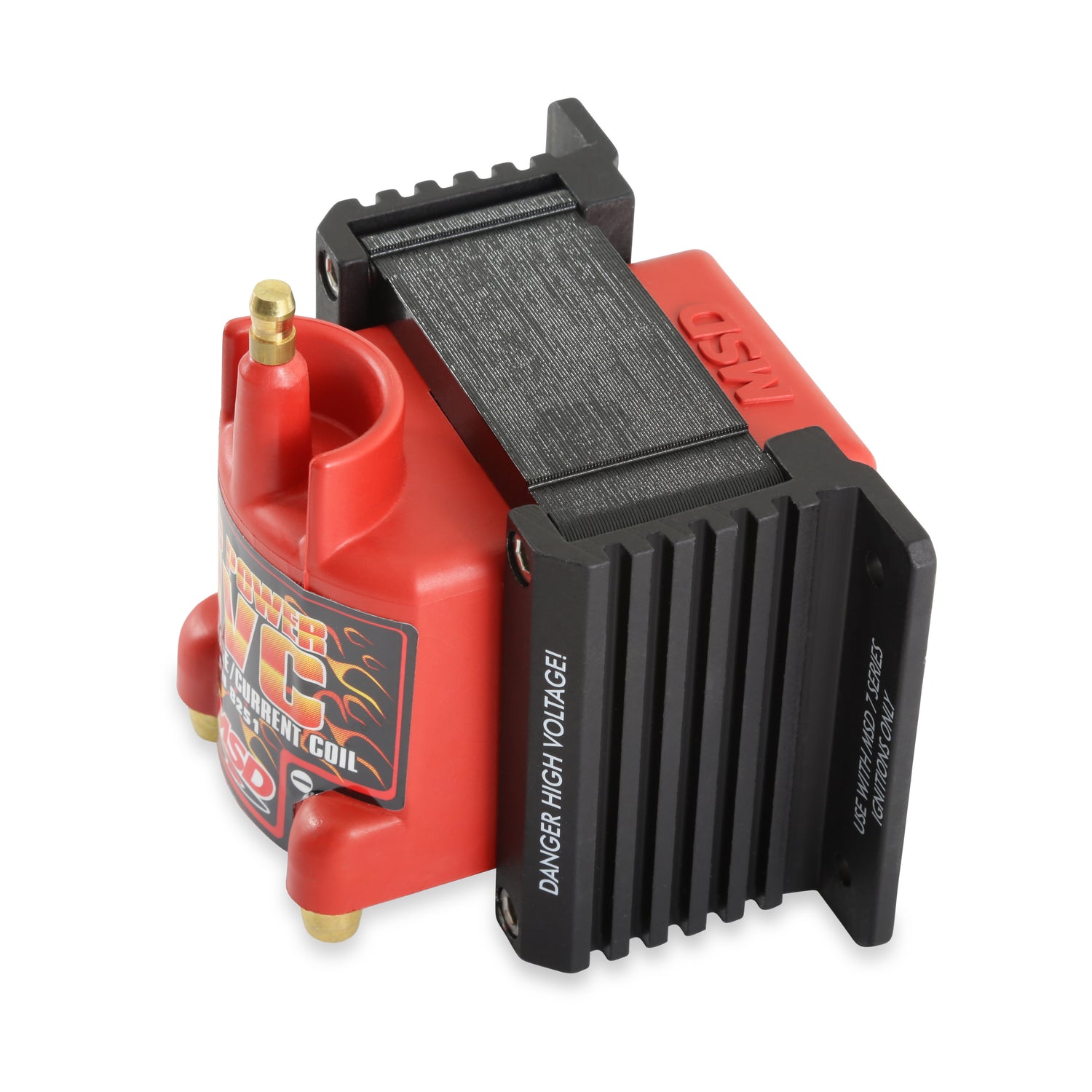

MSD Ignition Coil - Pro Power HVC - Red - 8251
Universal - Use with MSD 7 or 8 Series Ignition Control
Regular price
$430.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Ignition Coil - Pro Power HVC - Red - 8251 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Universal - Use with MSD 7 or 8 Series Ignition Control
Part Number: 8251
Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy!
Features and Benefits
• Spark plug style terminal and threaded brass primary studs
• No CARB Exemption Order Number
• 85:1 turns ratio and lower primary resistance produce high voltage output
• Designed for racing applications with an MSD 7 Series Ignition Control
• Supplied with rubber shock mounts
• Windings are encased in red epoxy and secured with extruded brackets
• Efficient E-core winding design produces more voltage and current
Part Number: 8251
Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy!
Features and Benefits
• Spark plug style terminal and threaded brass primary studs
• No CARB Exemption Order Number
• 85:1 turns ratio and lower primary resistance produce high voltage output
• Designed for racing applications with an MSD 7 Series Ignition Control
• Supplied with rubber shock mounts
• Windings are encased in red epoxy and secured with extruded brackets
• Efficient E-core winding design produces more voltage and current
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Red Emission Code 4 Inductance (mH) 1 Maximum Voltage 45,000 part type Ignition Coil Peak Current 1.1 Primary Resistance 0.04 Product Type Ignition Coils Secondary Resistance 86 Spark Duration 0.15 Sub Category Ignition Coil Turns Ratio 3.54 Type Drag Race / Long Duration Use Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight N/A -
