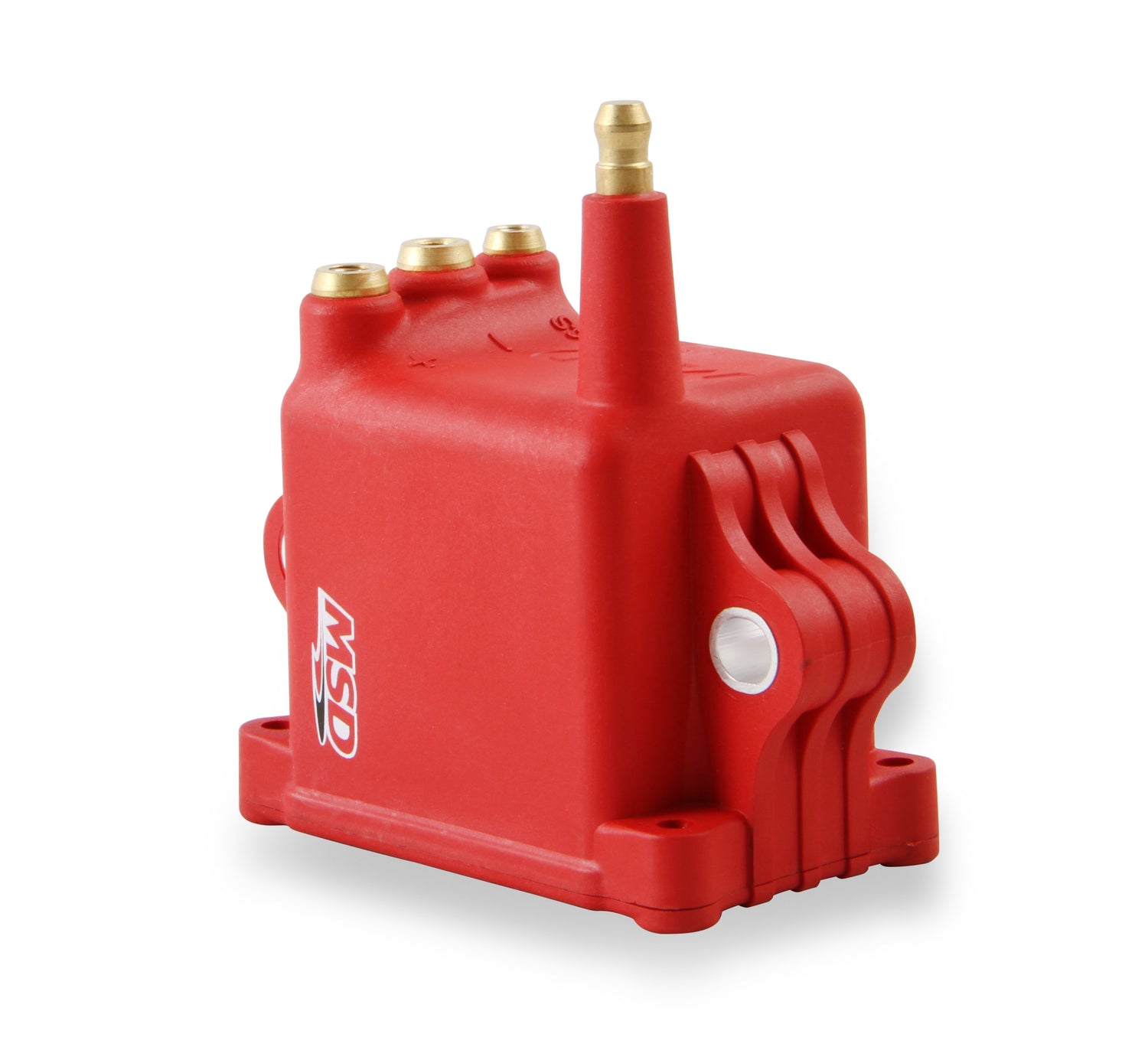

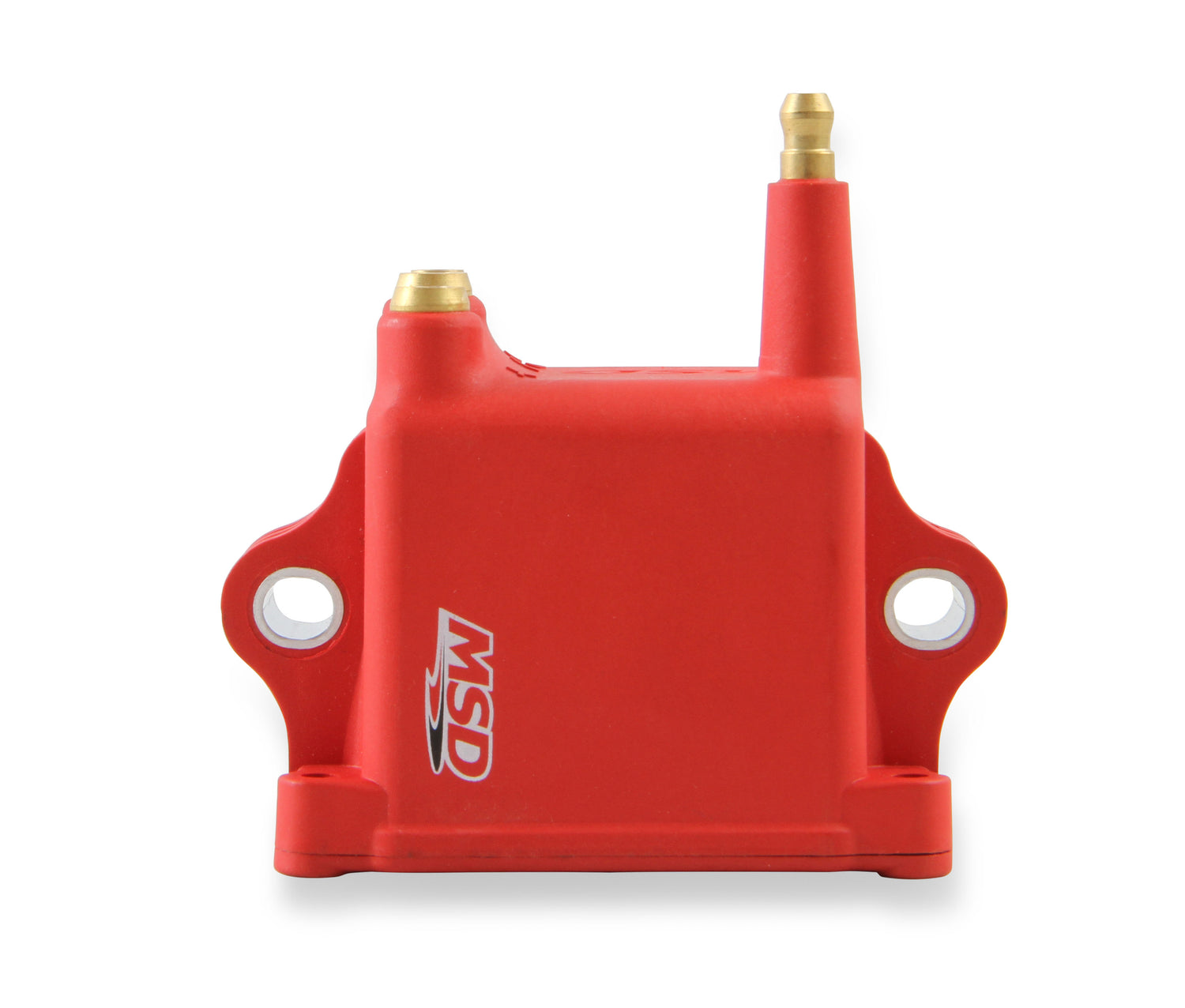

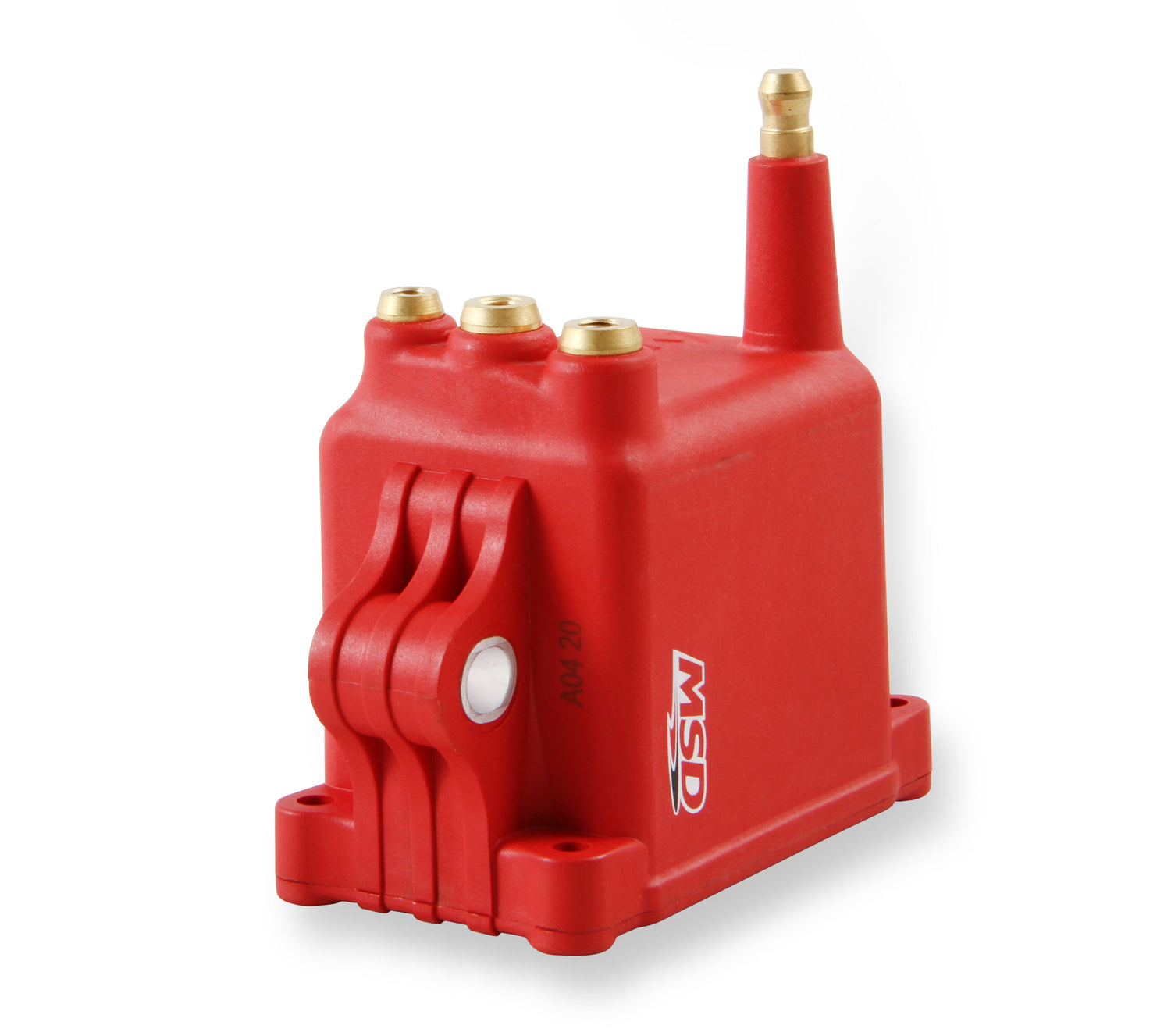

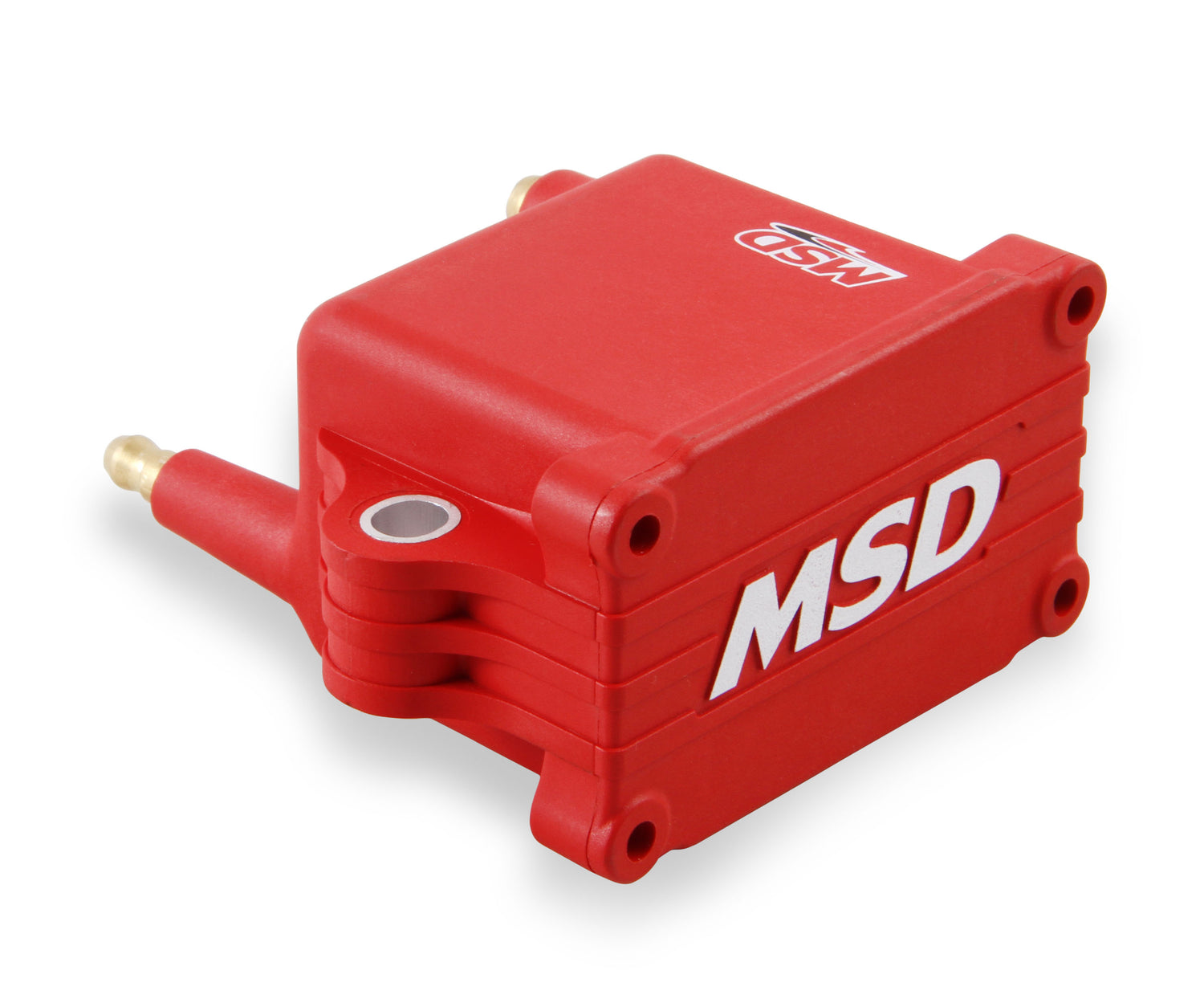

MSD Ignition Coil - High Output - Red - 8280

Use with Pro 600 Ignition - Coil-Per-Cylinder Engines

Part Number: 8280

When you're making extreme cylinder pressure with boost or nitrous on an inductive coil-per-plug ignition, lack of spark energy means you are leaving horsepower on the table. To answer this need, MSD developed this powerful coil for the PRO 600 Capacitive Discharge Ignition to provide unrivaled spark energy and dependability. With the unrivaled output of the Pro 600 CDI, combined with these High-Output coils, everything from Pro Mod to Pulling Trucks can perform at a whole new level! If you've made the step up to the industry-leading MSD Pro 600 Ignition, you'll want to equip it with the best coils on the market. The Pro 600 (Capacitive Discharge Ignition) coil is the solution with the highest current and voltage available in a small compact design. This high output coil is meant to be used with MSD's Pro 600 CDI (PN 8000). The coil will be wired to the Pro 600 CDI harness.

Features and Benefits

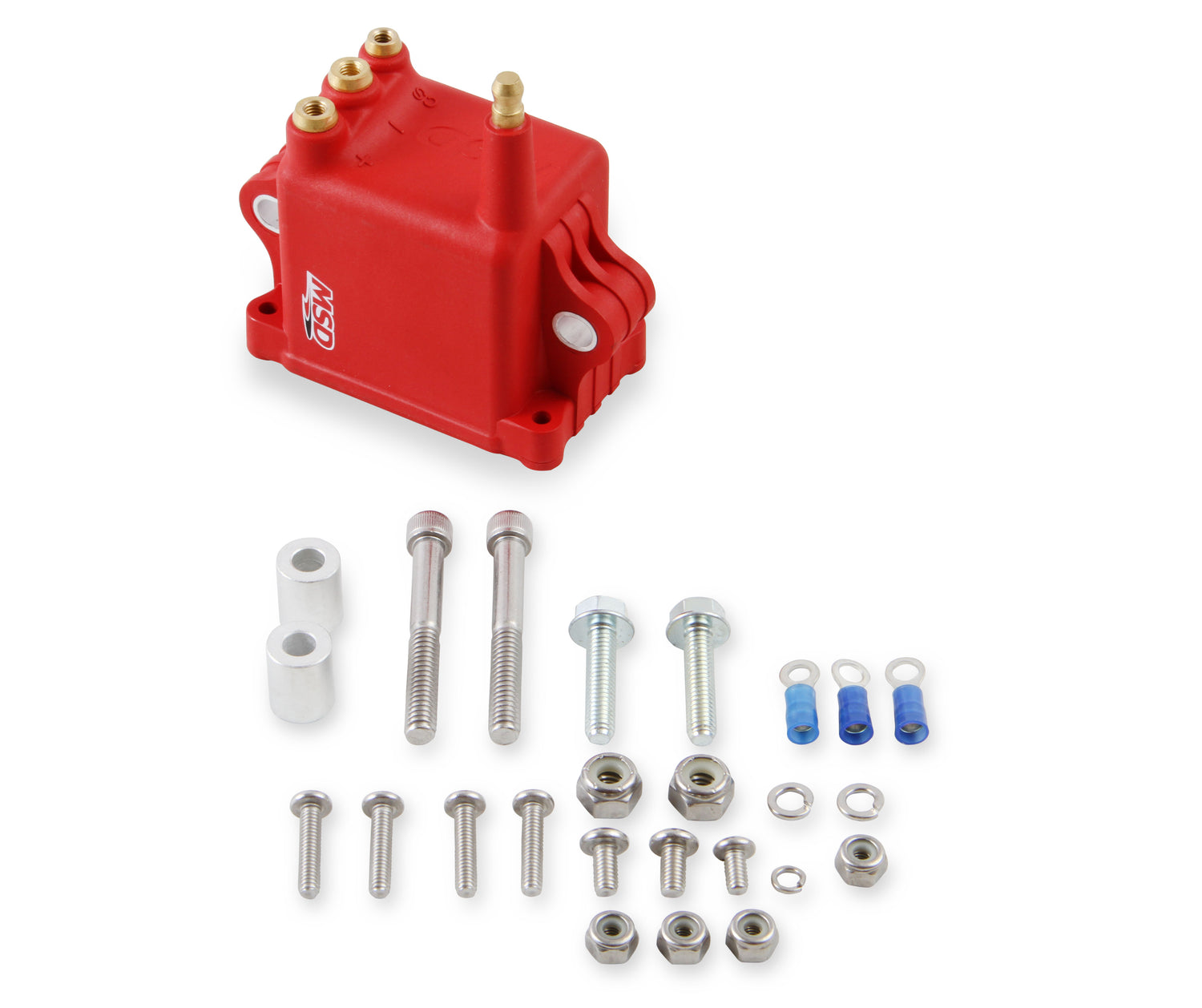

• Supplied with hardware to mount horizontal or vertical position
• Over 200 millijoules of spark energy makes them ideal for use with methanol, ethanol, E85 and forced induction and power adder combinations
• Designed for extreme racing for the Pro 600 Capacitive Discharge Ignition, PN 8000
• Coils are designed to be mounted on Holley’s LS valve covers, or Original Equipment LS passenger car coil brackets using 72mm bolt spacing

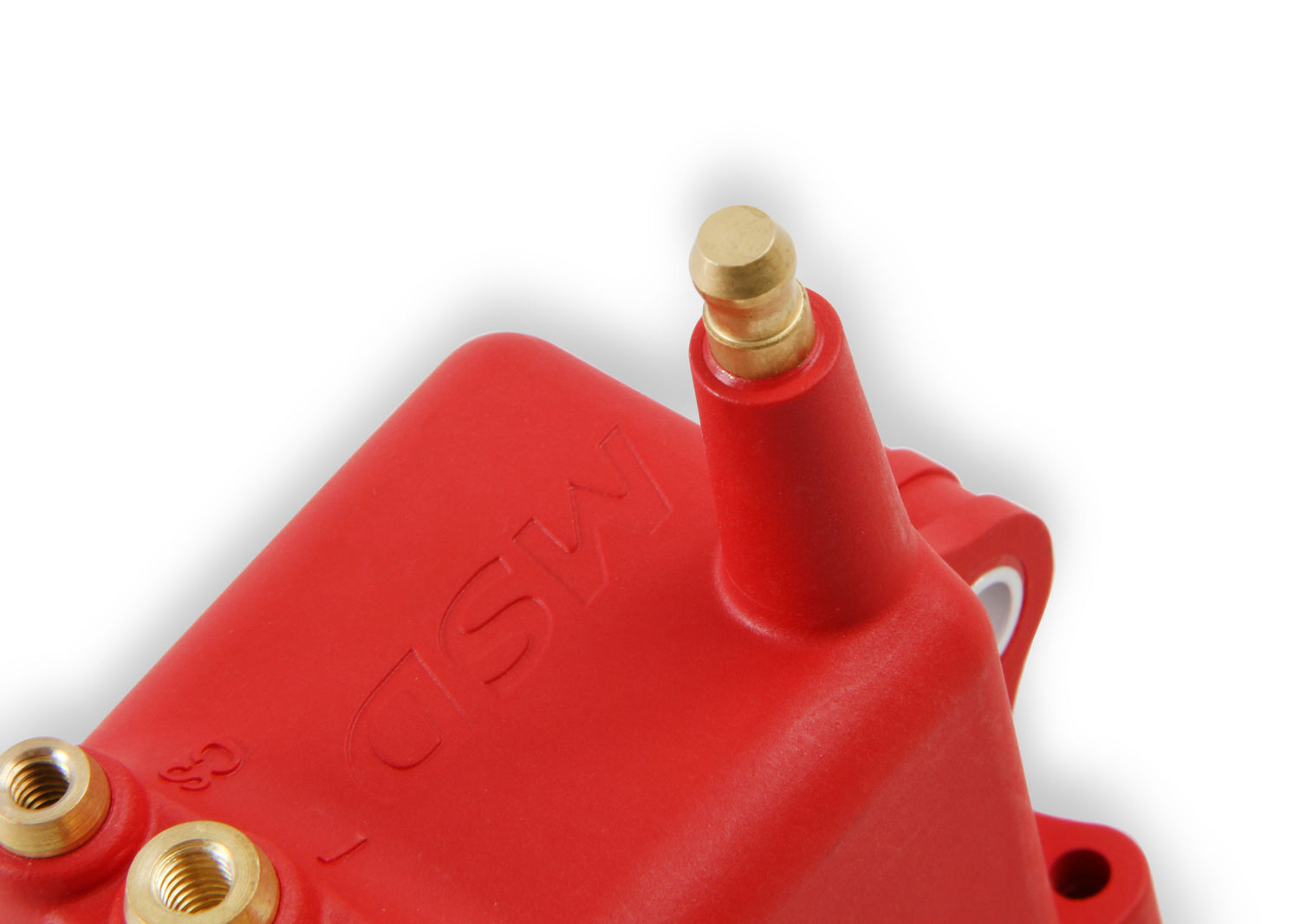

• HEI style secondary tower for secure coil wire connection
• Capable of up to 50,000 Volts to ignite extreme cylinder pressures

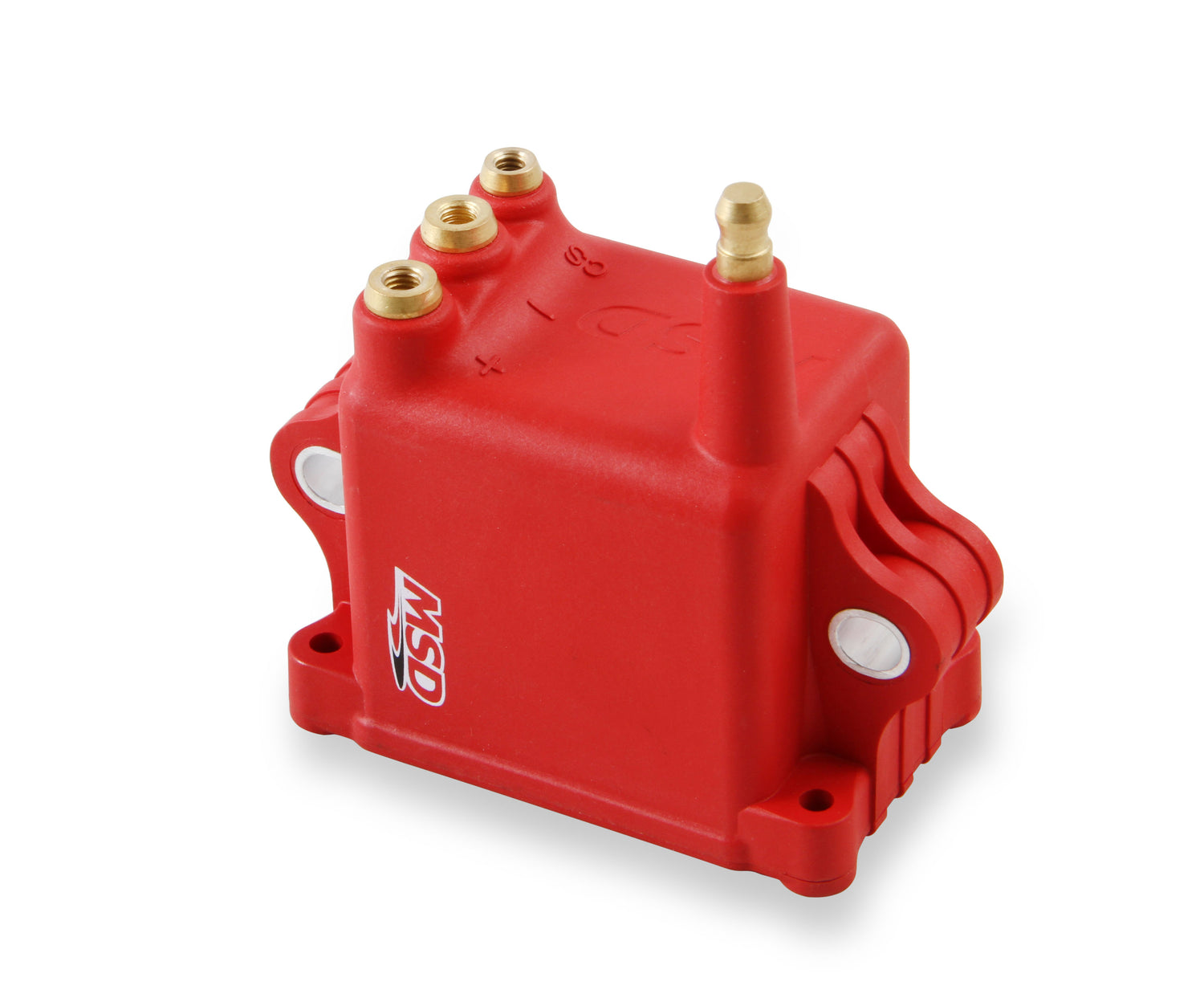

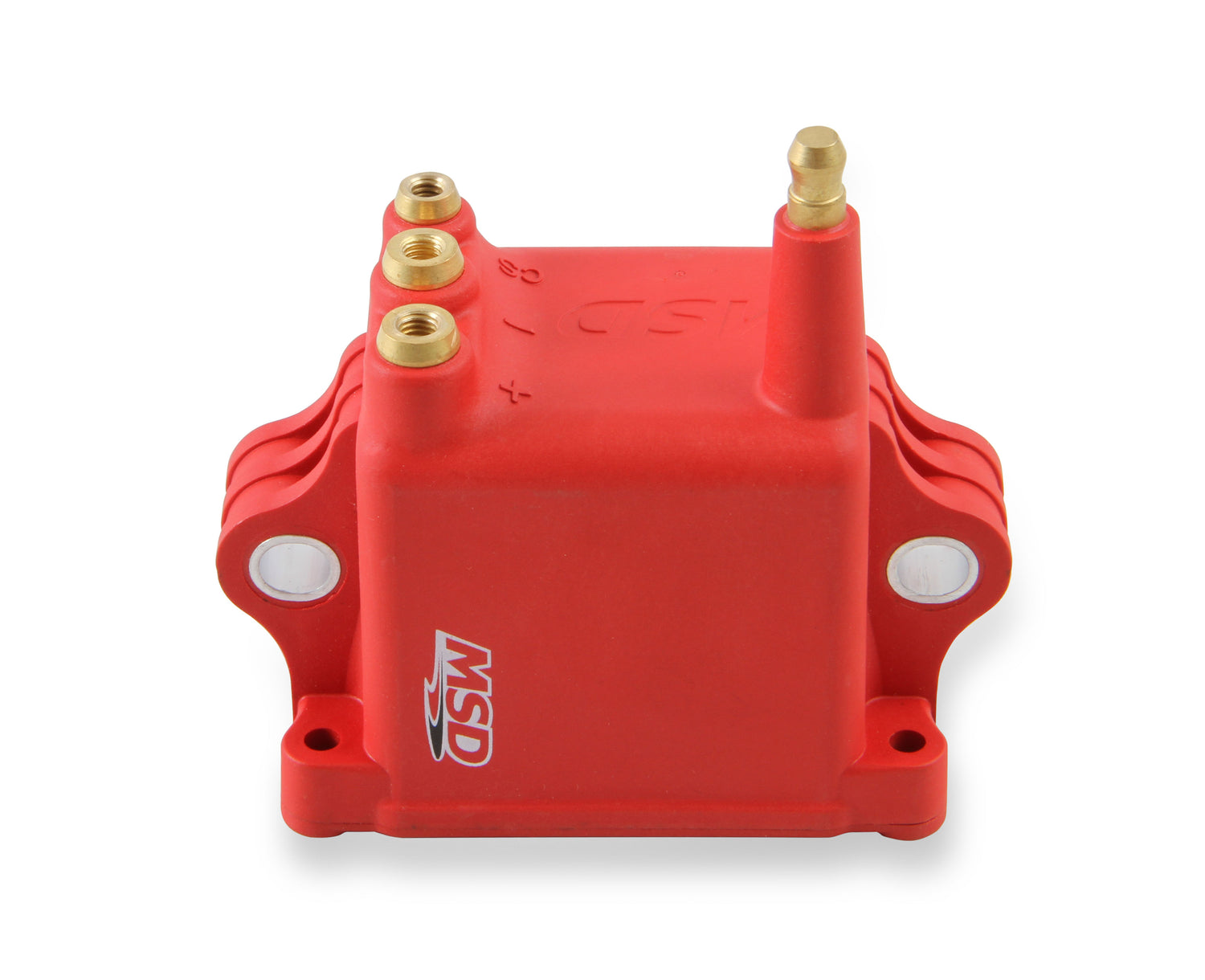

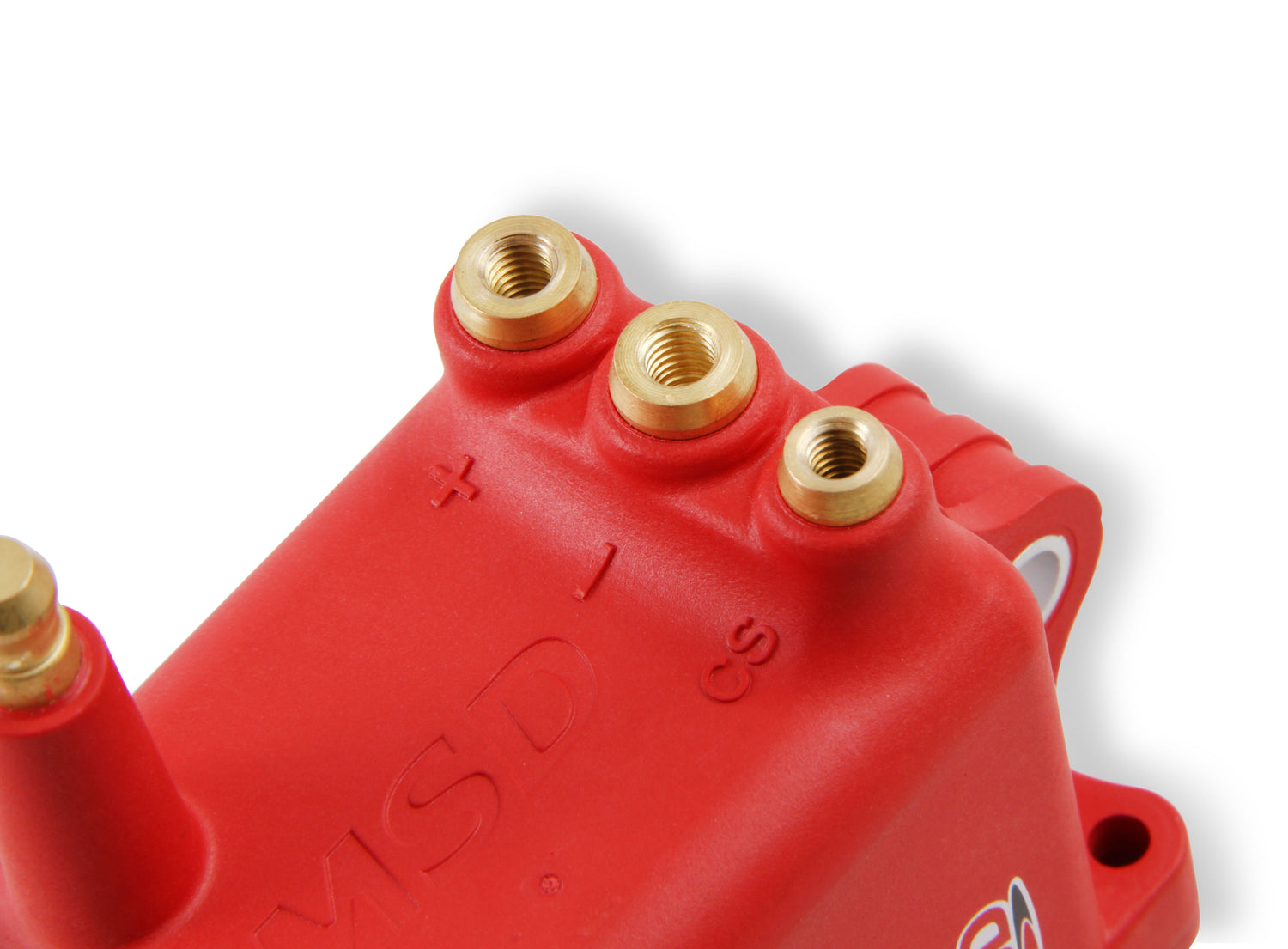

***This coil comes with a 3rd terminal, and highly recommended to ground to cylinder heads, failure to properly ground can result in Ignition unit failure***
