MSD | SKU:
8226

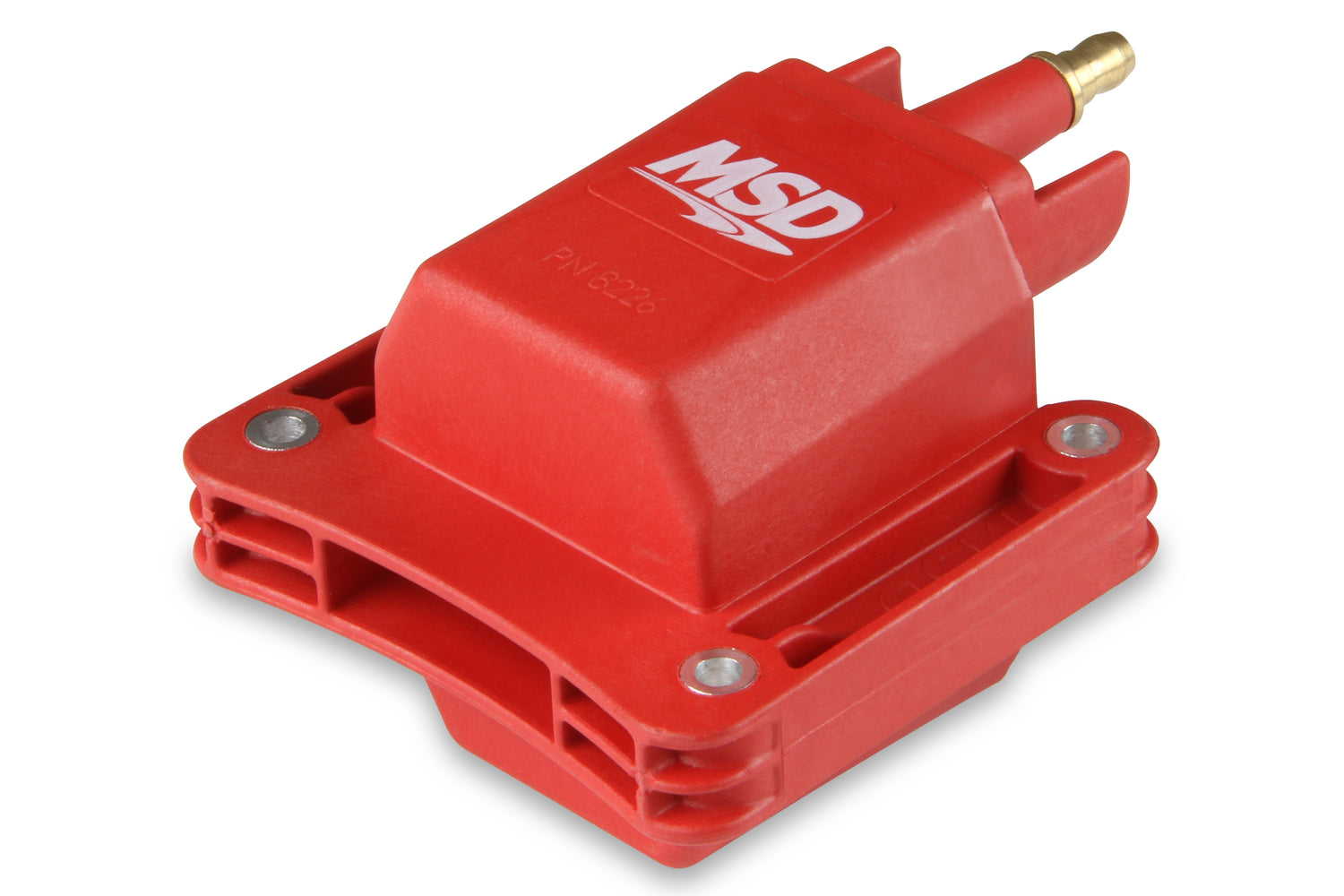

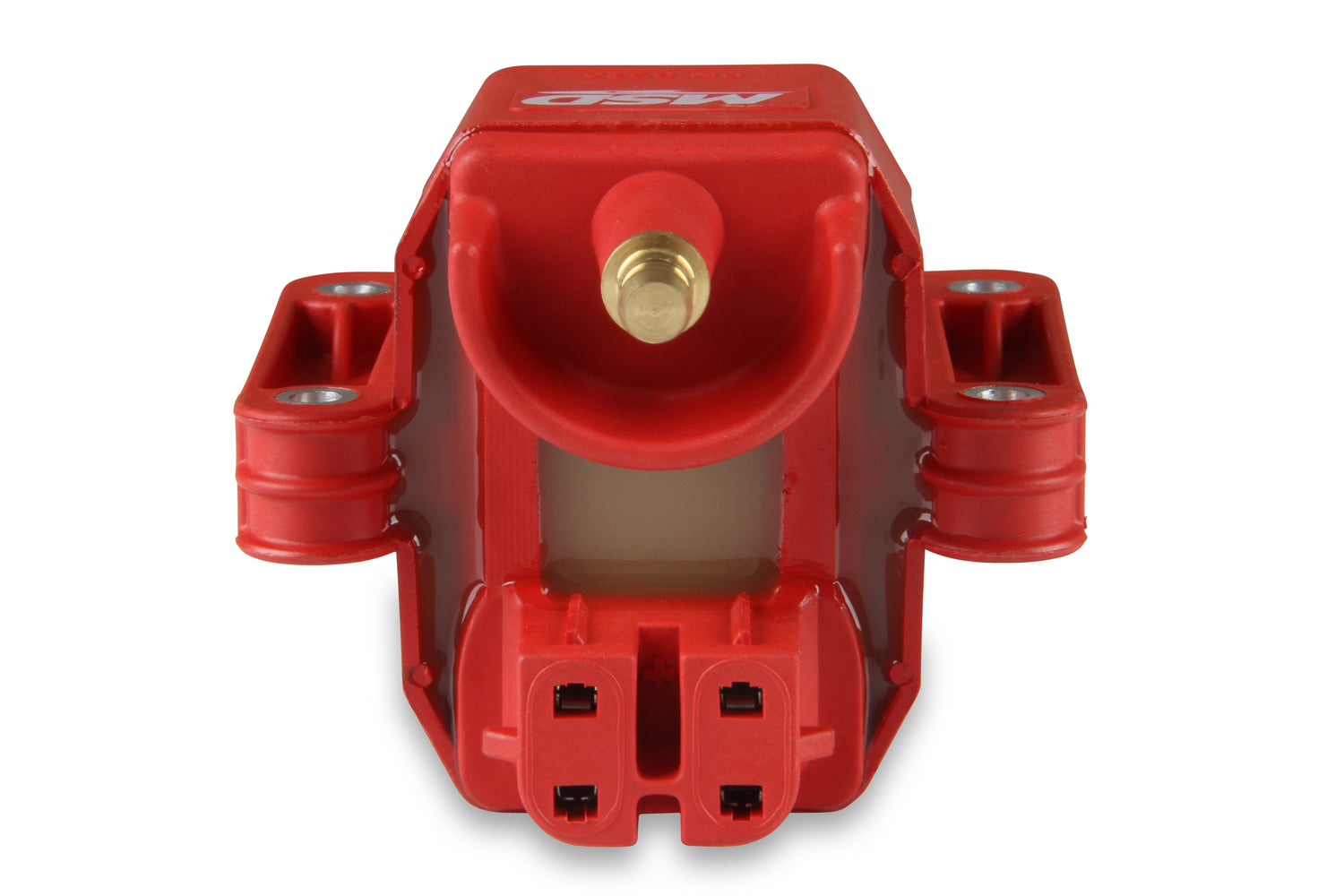

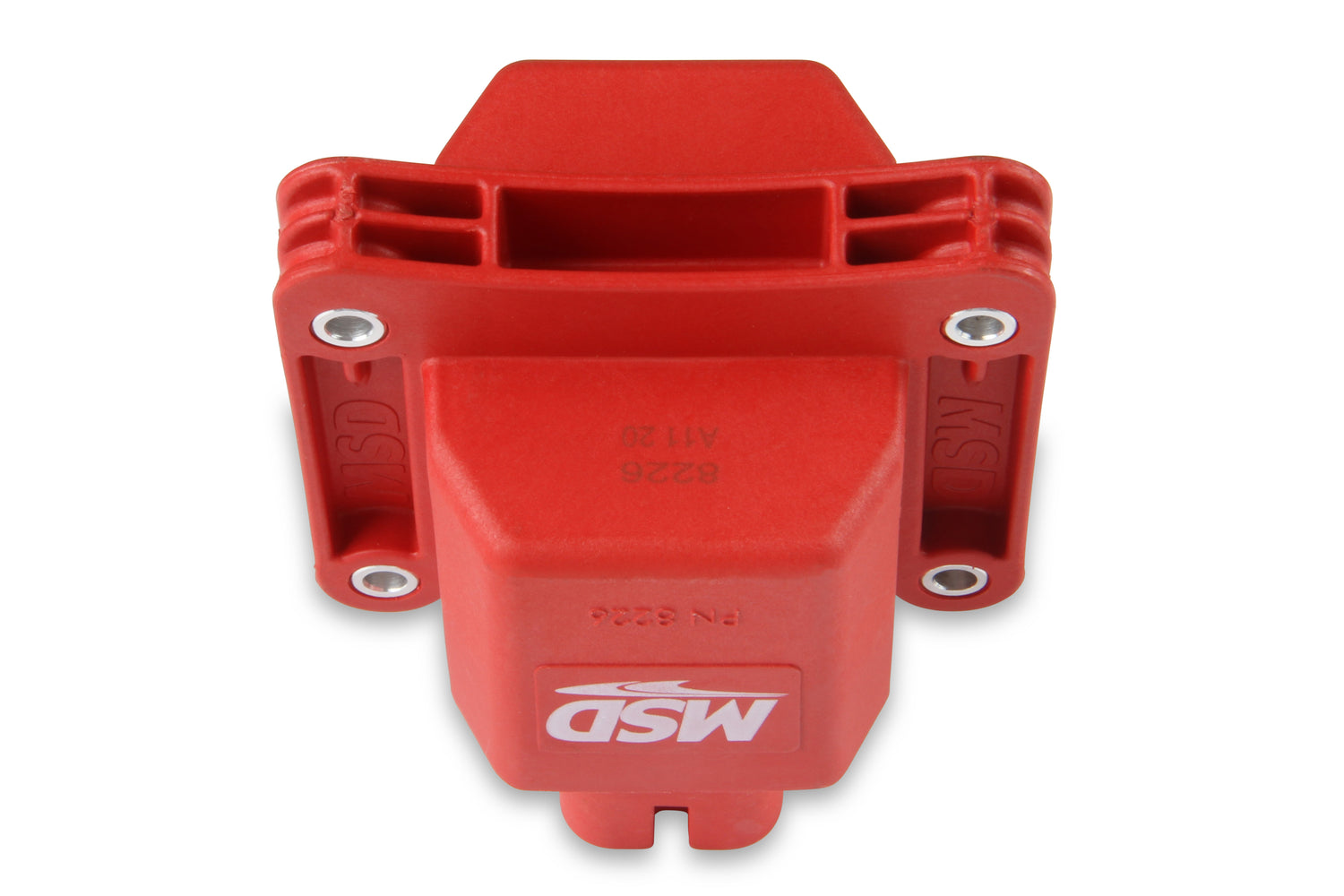

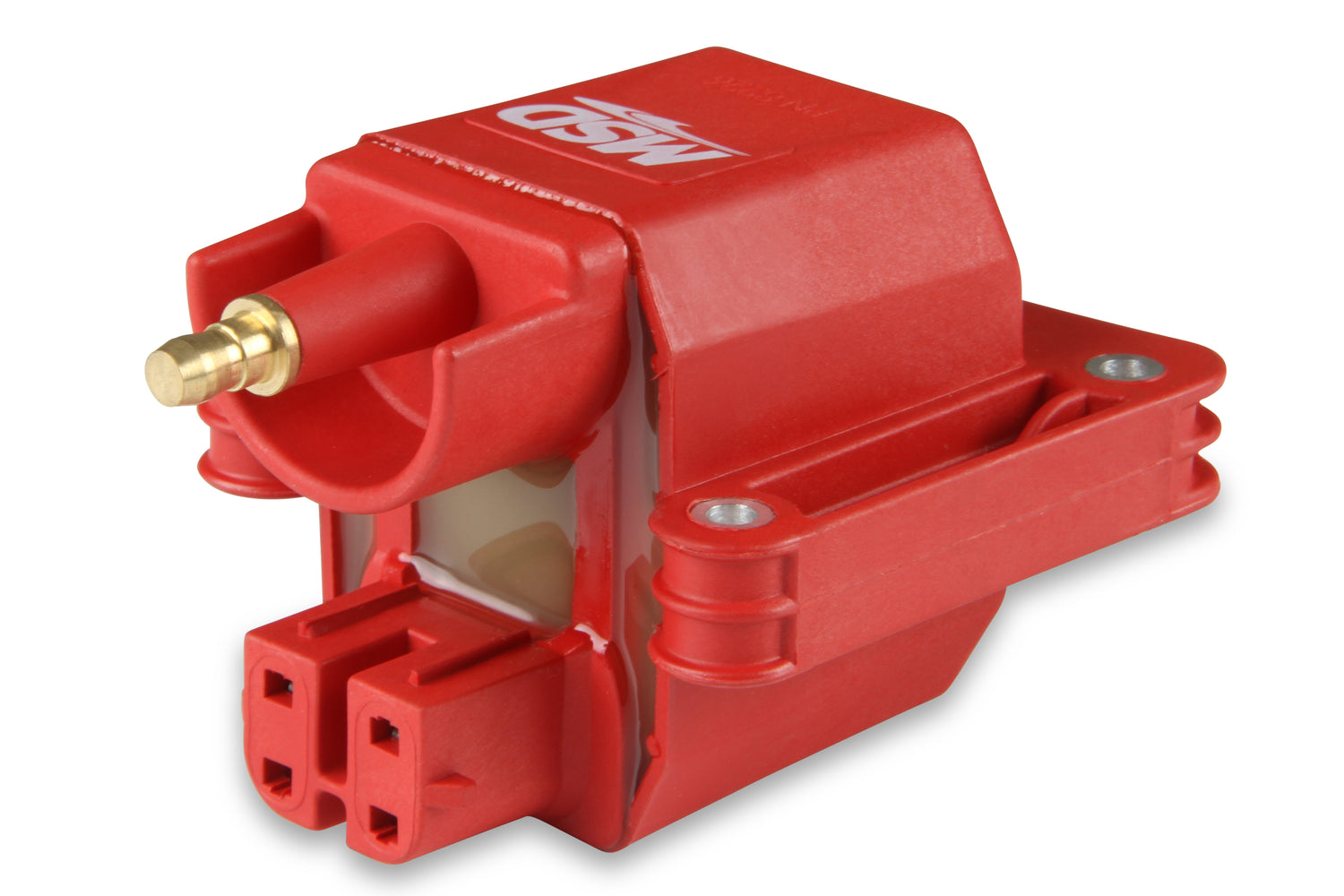

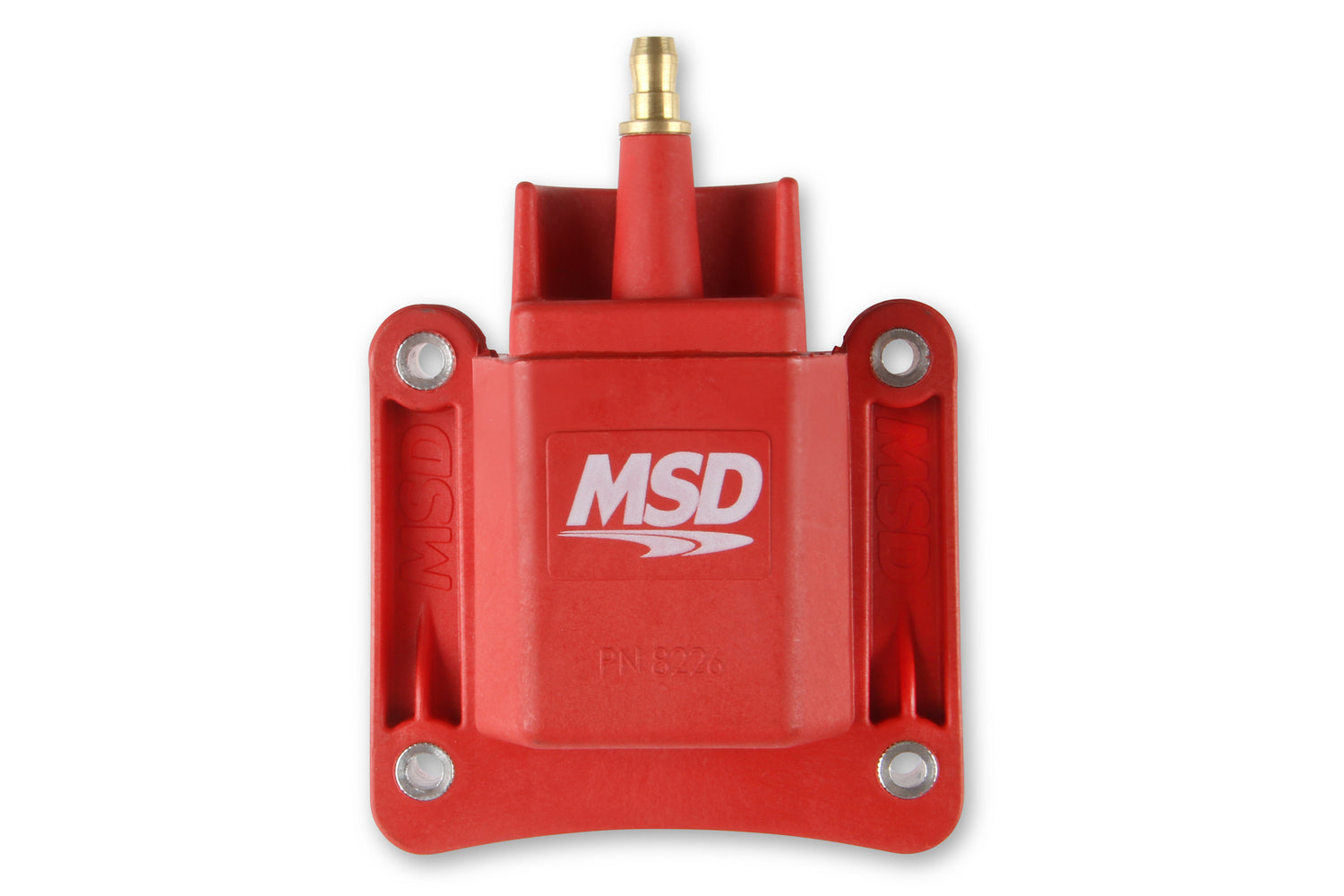

MSD Ignition Coil - Dual Connector - 8226
GM - Factory Style Housing
Regular price
$181.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Ignition Coil - Dual Connector - 8226 is not in stock at Fast Lane Spares and will ship direct from supplier.
ā Special Order Item ā ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7ā20 days shipping.
Stock Status:
Description
Description
GM - Factory Style Housing
Part Number: 8226
Top off your GM Ignition system with these great new replacement coils. The GM Coils have MSD performance in factory-style housings! MSD designed these Coils by combining our Blaster Coil experience with E-core coil efficiency. Each coil has a unique turns ratio plus there is lower primary resistance than the stock coil. This all amounts to a bolt-in replacement coil that produces more output voltage. The Coils will work with stock ignition systems as well as MSD equipped cars and trucks. The MSD Blaster GM Coil is designed to produce increased voltage and energy over the stock GM Coil. To get even more ignition performance, install an MSD Ignition Control with a PN 8876 Harness for a direct plug-in installation.
Features and Benefits
ā¢ CARB E.O. Approved
ā¢ Works with stock ignition as well as MSD Ignitions
ā¢ Direct performance replacement for GM dual connector coil
ā¢ 100:1 turns ratio and lower primary resistance produce high voltage output
**Direct Plug in Harness use PN 8876 when installing CD Ignition Unit**
Part Number: 8226
Top off your GM Ignition system with these great new replacement coils. The GM Coils have MSD performance in factory-style housings! MSD designed these Coils by combining our Blaster Coil experience with E-core coil efficiency. Each coil has a unique turns ratio plus there is lower primary resistance than the stock coil. This all amounts to a bolt-in replacement coil that produces more output voltage. The Coils will work with stock ignition systems as well as MSD equipped cars and trucks. The MSD Blaster GM Coil is designed to produce increased voltage and energy over the stock GM Coil. To get even more ignition performance, install an MSD Ignition Control with a PN 8876 Harness for a direct plug-in installation.
Features and Benefits
ā¢ CARB E.O. Approved
ā¢ Works with stock ignition as well as MSD Ignitions
ā¢ Direct performance replacement for GM dual connector coil
ā¢ 100:1 turns ratio and lower primary resistance produce high voltage output
**Direct Plug in Harness use PN 8876 when installing CD Ignition Unit**
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Emission Code 1 Inductance (mH) 5.6 Maximum Voltage 44,000 part type Ignition Coil Peak Current 220 Primary Resistance 0.68 Product Type Ignition Coils Secondary Resistance 4.8K Spark Duration 0.3 Sub Category Ignition Coil Turns Ratio 4.17 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight N/A -
