MSD | SKU:
8207

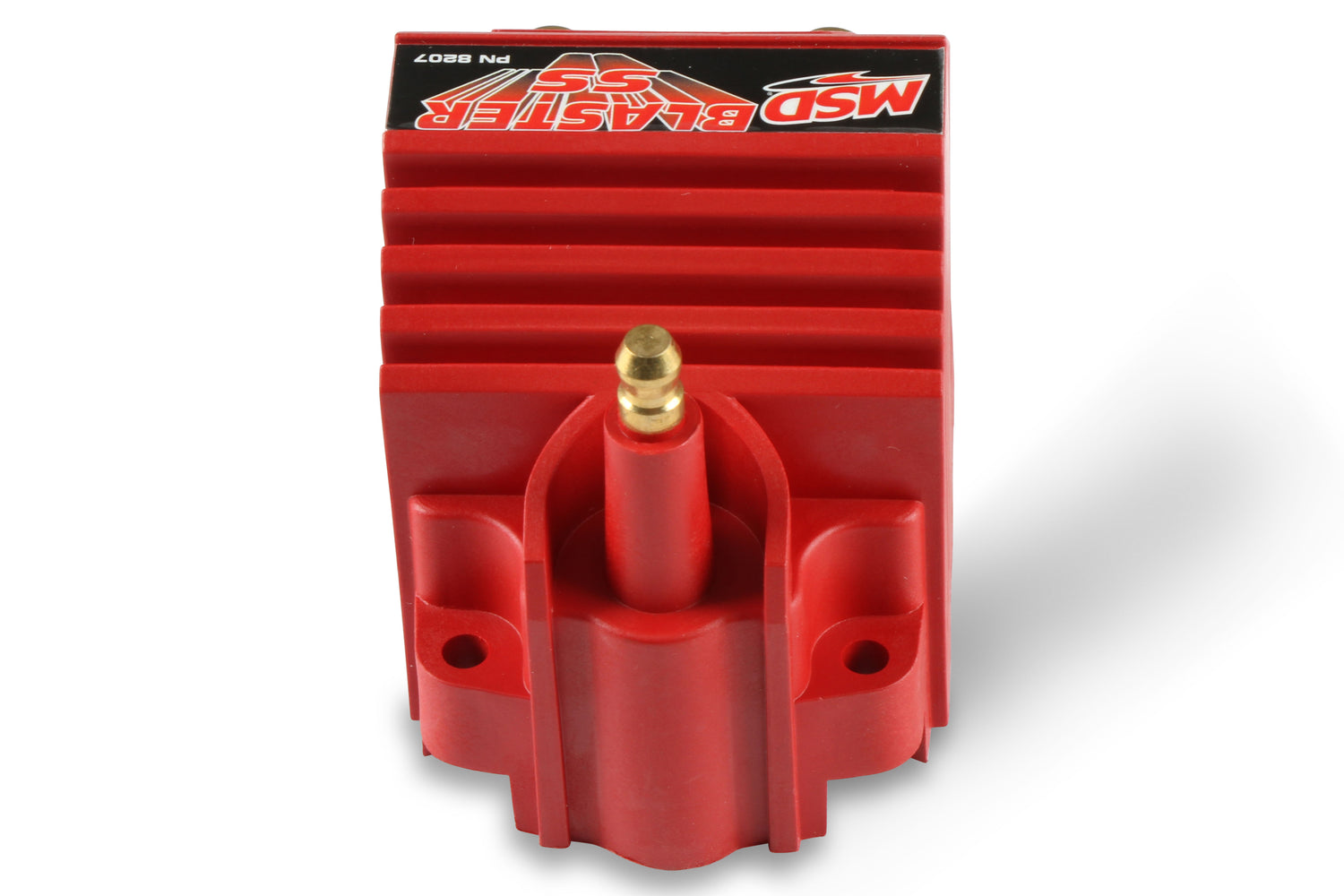

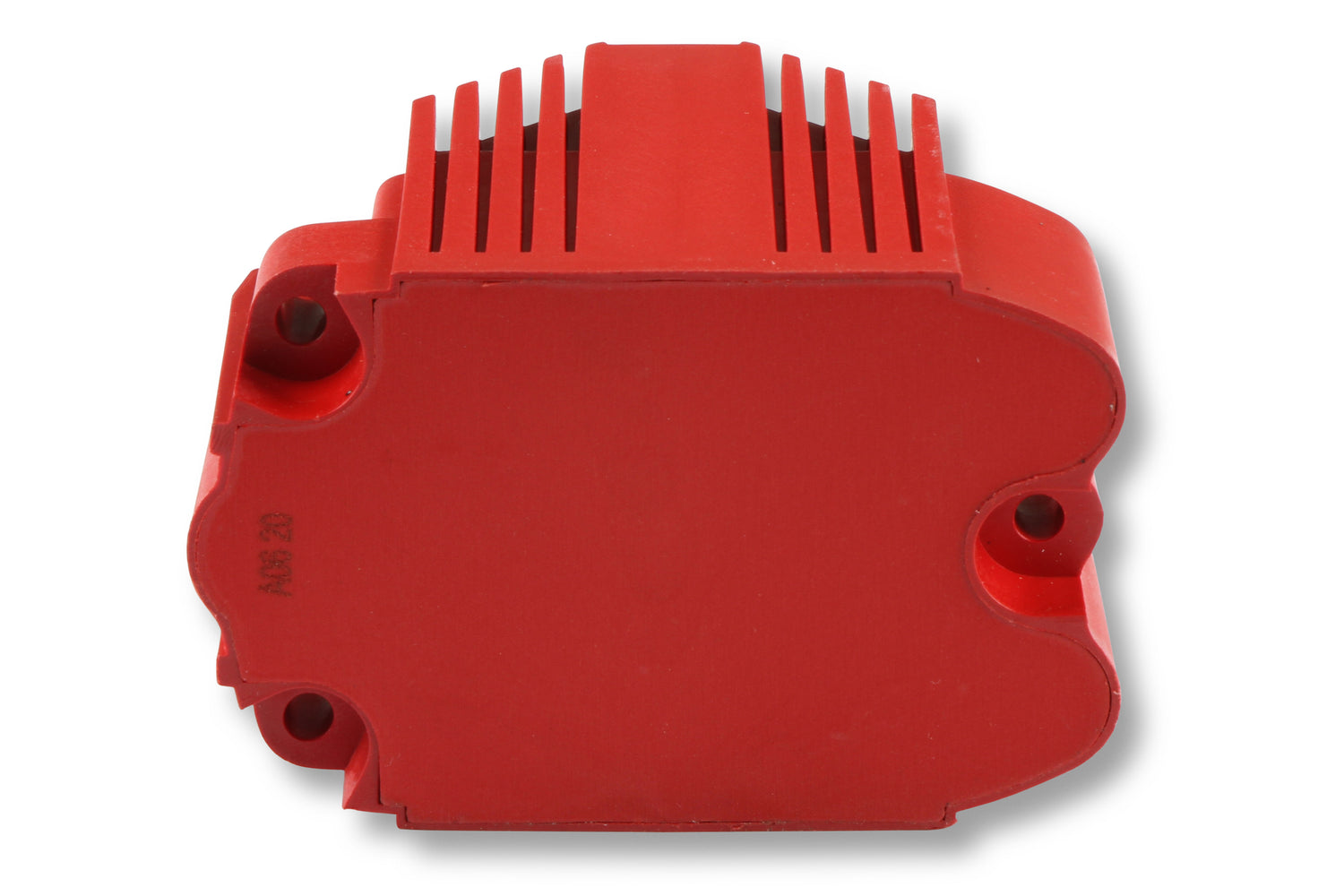

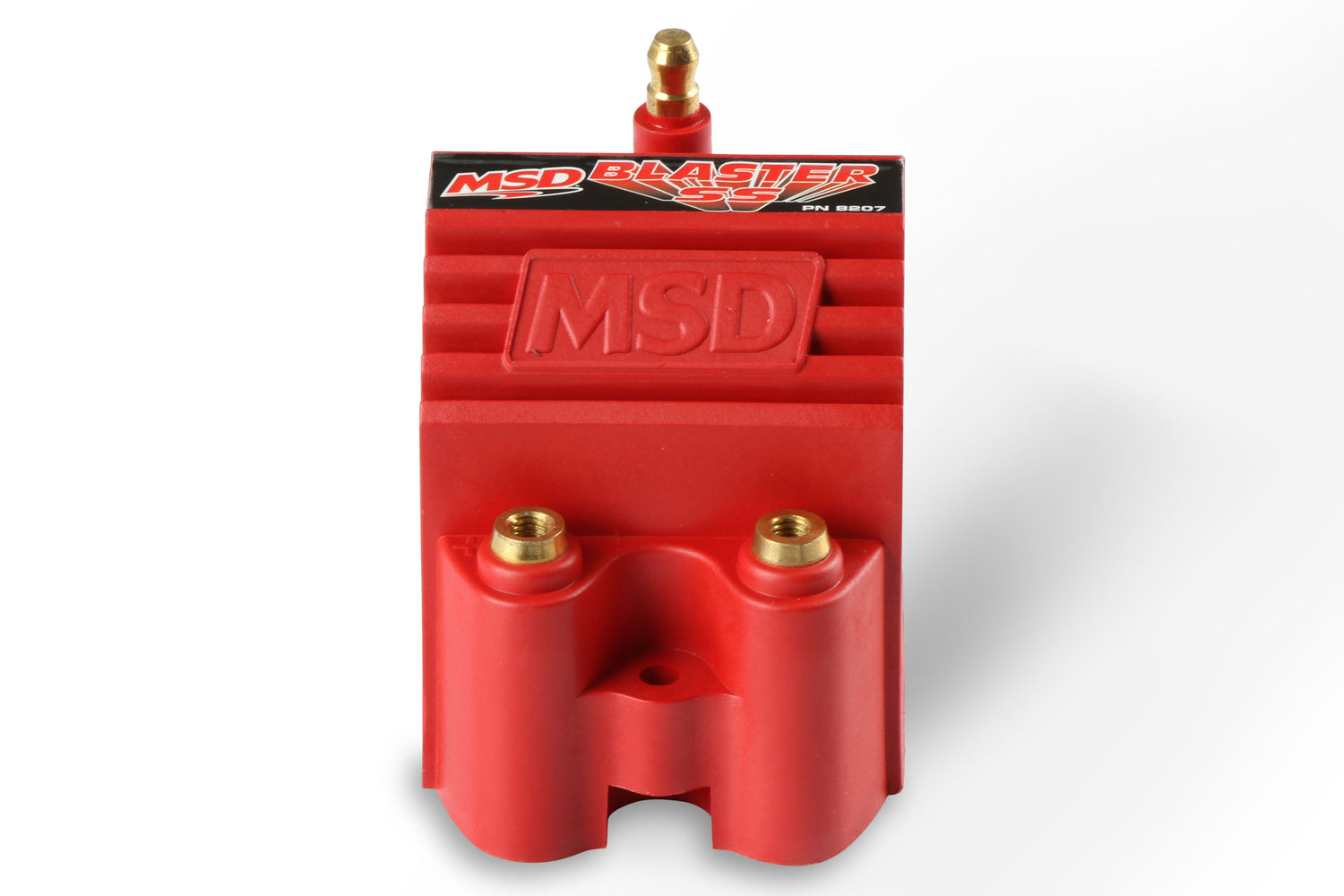

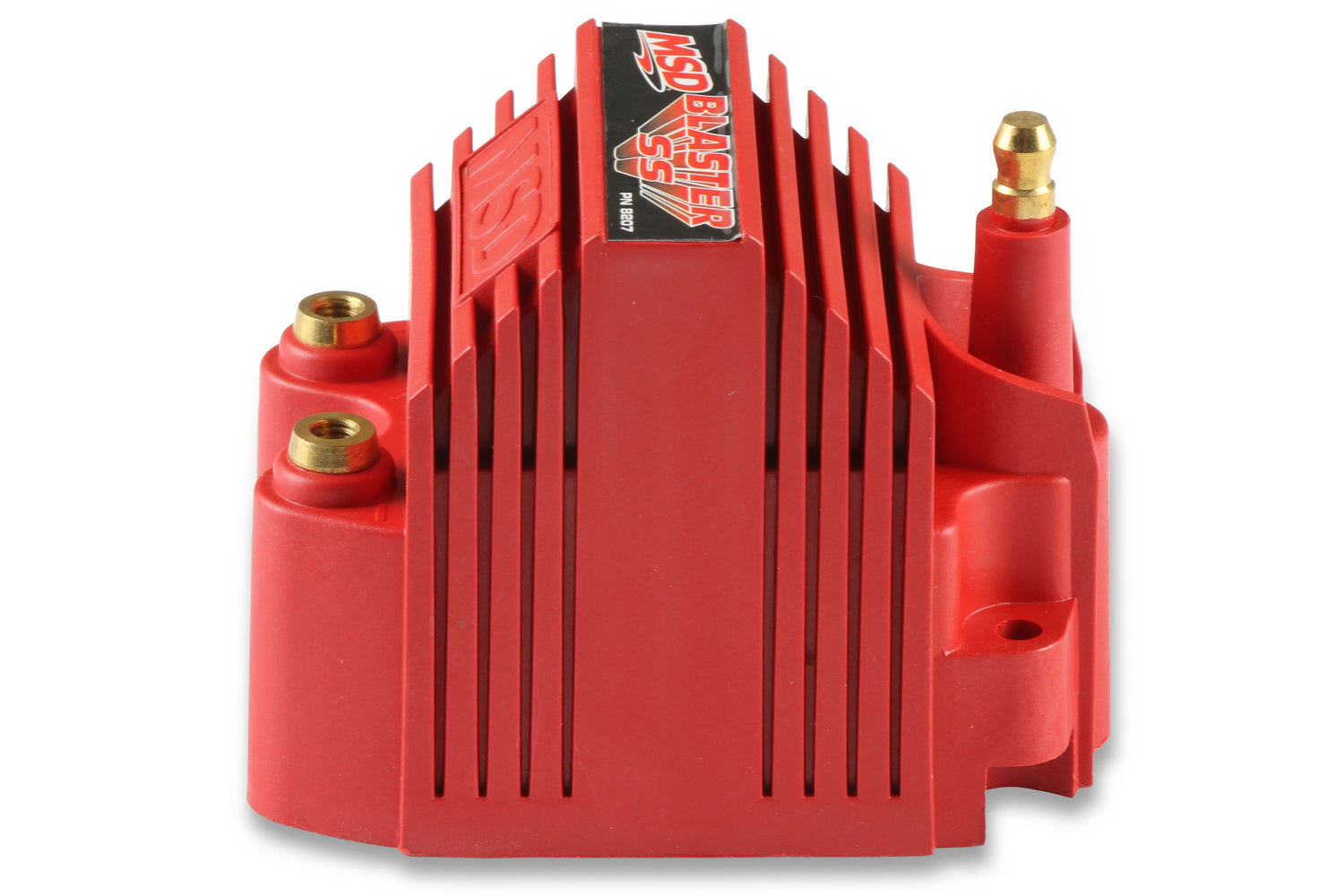

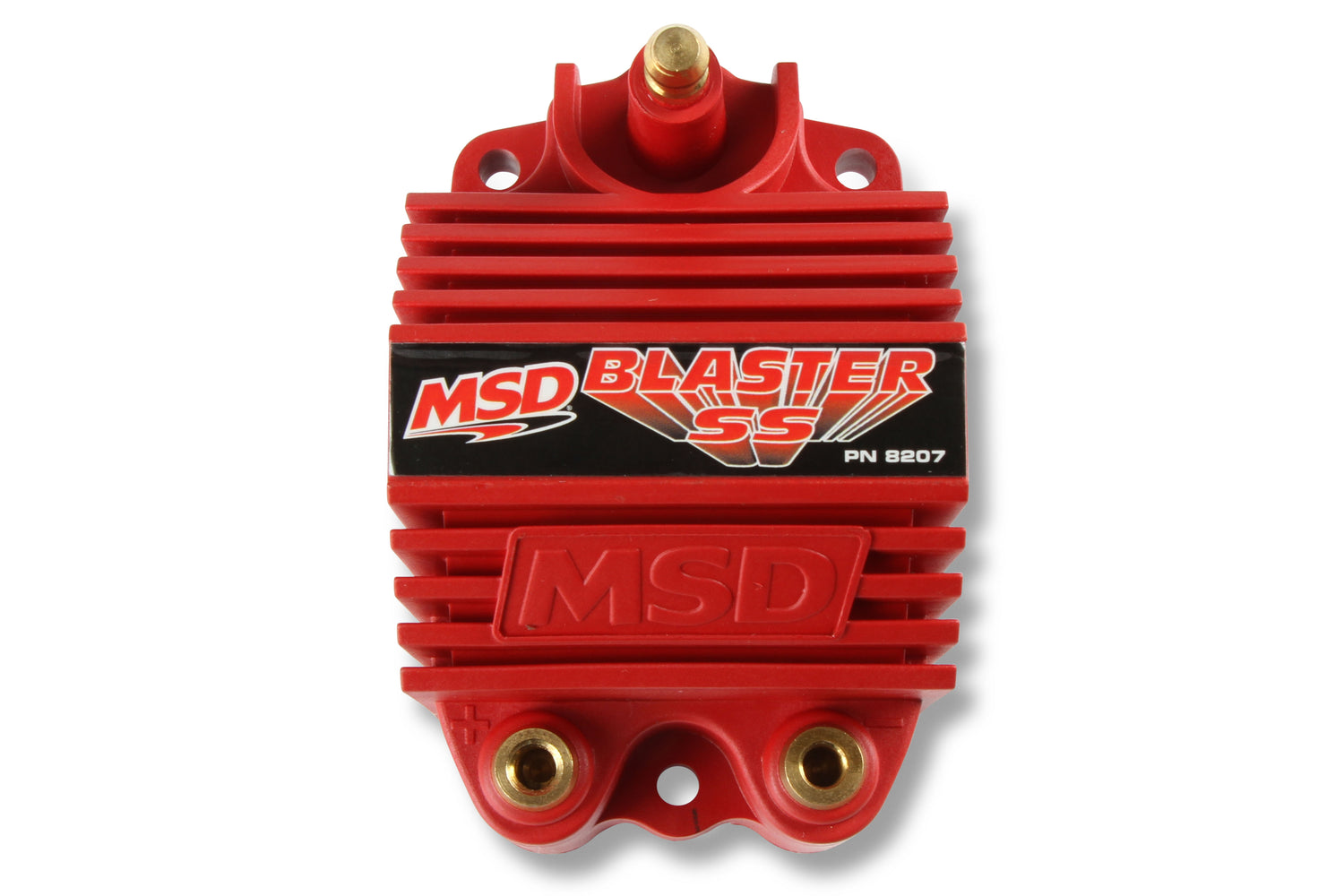

MSD Ignition Coil - Blaster SS - Red - 8207
Universal - Add To Any MSD 6-Series Ignition
Regular price
$166.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Ignition Coil - Blaster SS - Red - 8207
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Universal - Add To Any MSD 6-Series Ignition
Part Number: 8207
Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.
Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and maximum voltage output of 40,000 volts!
Features and Benefits
• Premium epoxy-filled, compact performance Blaster SS ignition coil from MSD Ignition!
• Compatible with MSD 6 & 7 series ignitions and electronic ignitions
• Tough, rigid housing with a tall tower and brass primary terminals
• 70:1 turns ratio and lower primary resistance produce high voltage output
• Efficient winding design and assembly creates a compact housing with powerful punch
• Primary and secondary windings are encased in Ciba polyurethane
Part Number: 8207
Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.
Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and maximum voltage output of 40,000 volts!
Features and Benefits
• Premium epoxy-filled, compact performance Blaster SS ignition coil from MSD Ignition!
• Compatible with MSD 6 & 7 series ignitions and electronic ignitions
• Tough, rigid housing with a tall tower and brass primary terminals
• 70:1 turns ratio and lower primary resistance produce high voltage output
• Efficient winding design and assembly creates a compact housing with powerful punch
• Primary and secondary windings are encased in Ciba polyurethane
Specifications
Specifications
-
Specifications

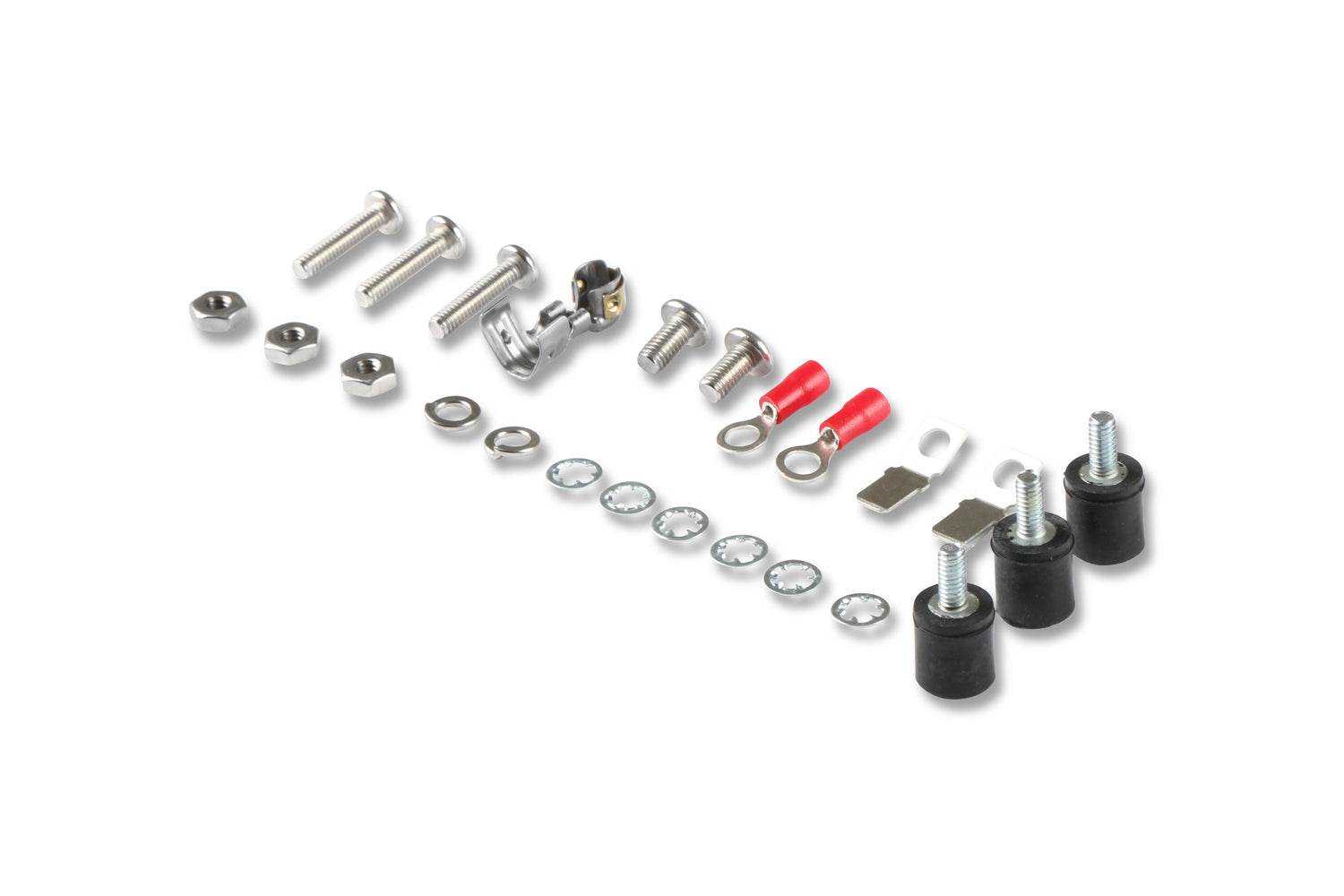

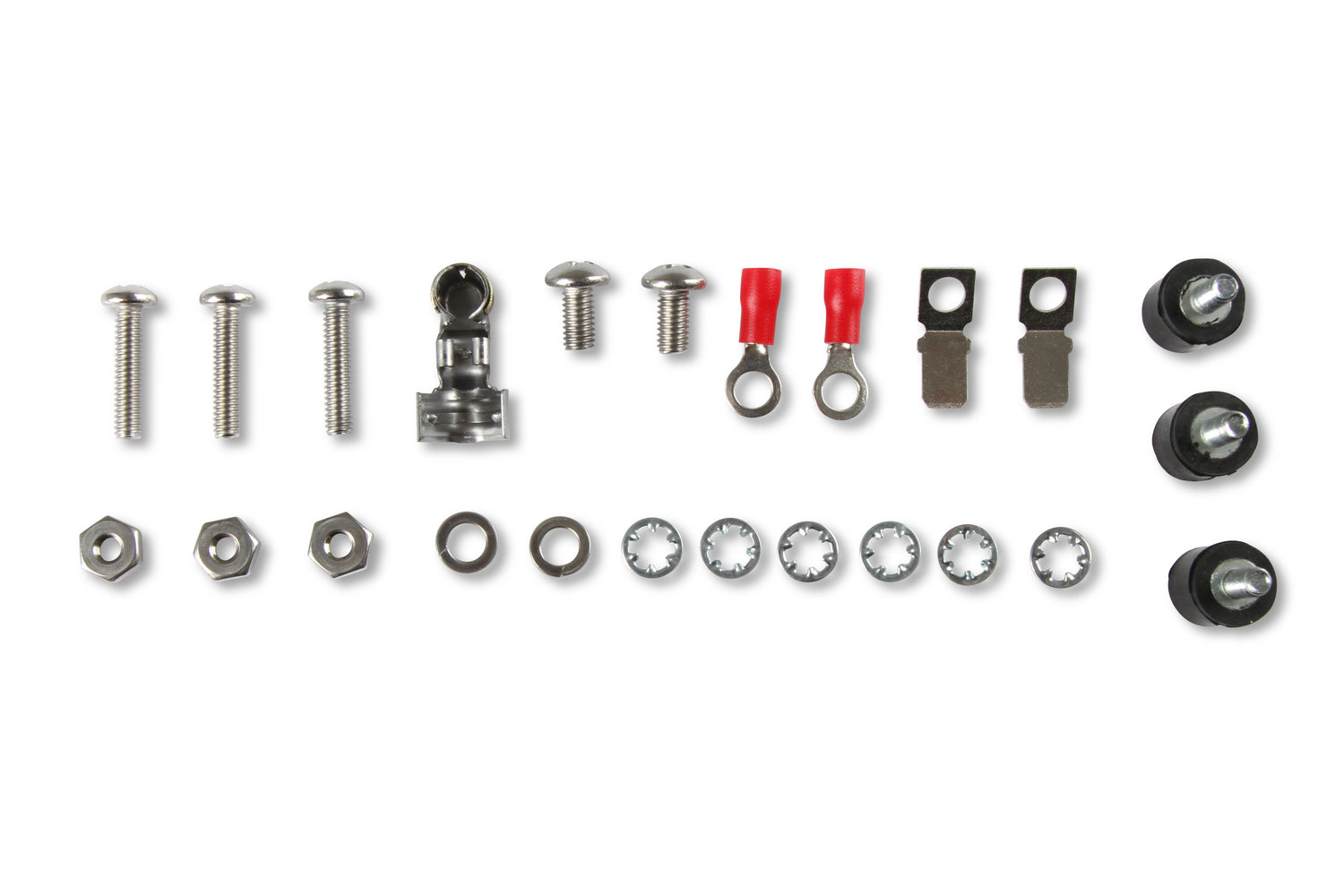

Application Universal Brackets Included No Brand MSD C.A.R.B. EO # D-40-37 Category Ignition Coil Type Blaster Coil Wire Included No Color Red Connector Shape Rectangular Pyramid Emission Code 1 Engine Universal V8 Grade Type Performance Inductance (mH) 6.9 Maximum Voltage 40,000 Mount Type Surface Mounting Bracket Included No Mounting Hardware Included Yes part type Ignition Coil Peak Current 300 Primary Resistance 0.355 Product Type Ignition Coil Quantity 1 Secondary Resistance 4.4K Spark Duration 0.22 Sub Category Ignition Coil Turns Ratio 2.92 Universal Or Specific Fit Universal Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight 1.08 -
