MSD | SKU:
8253

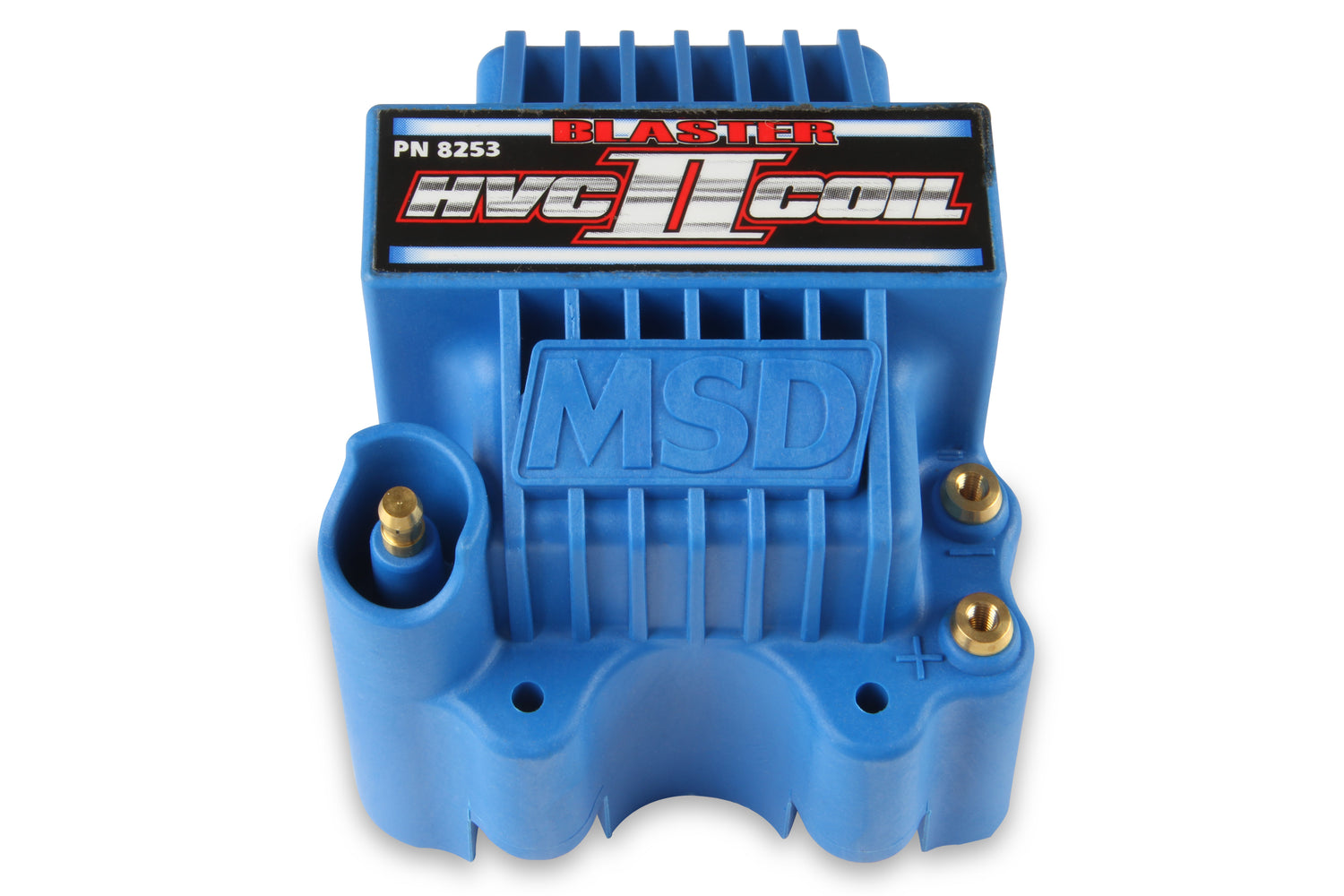

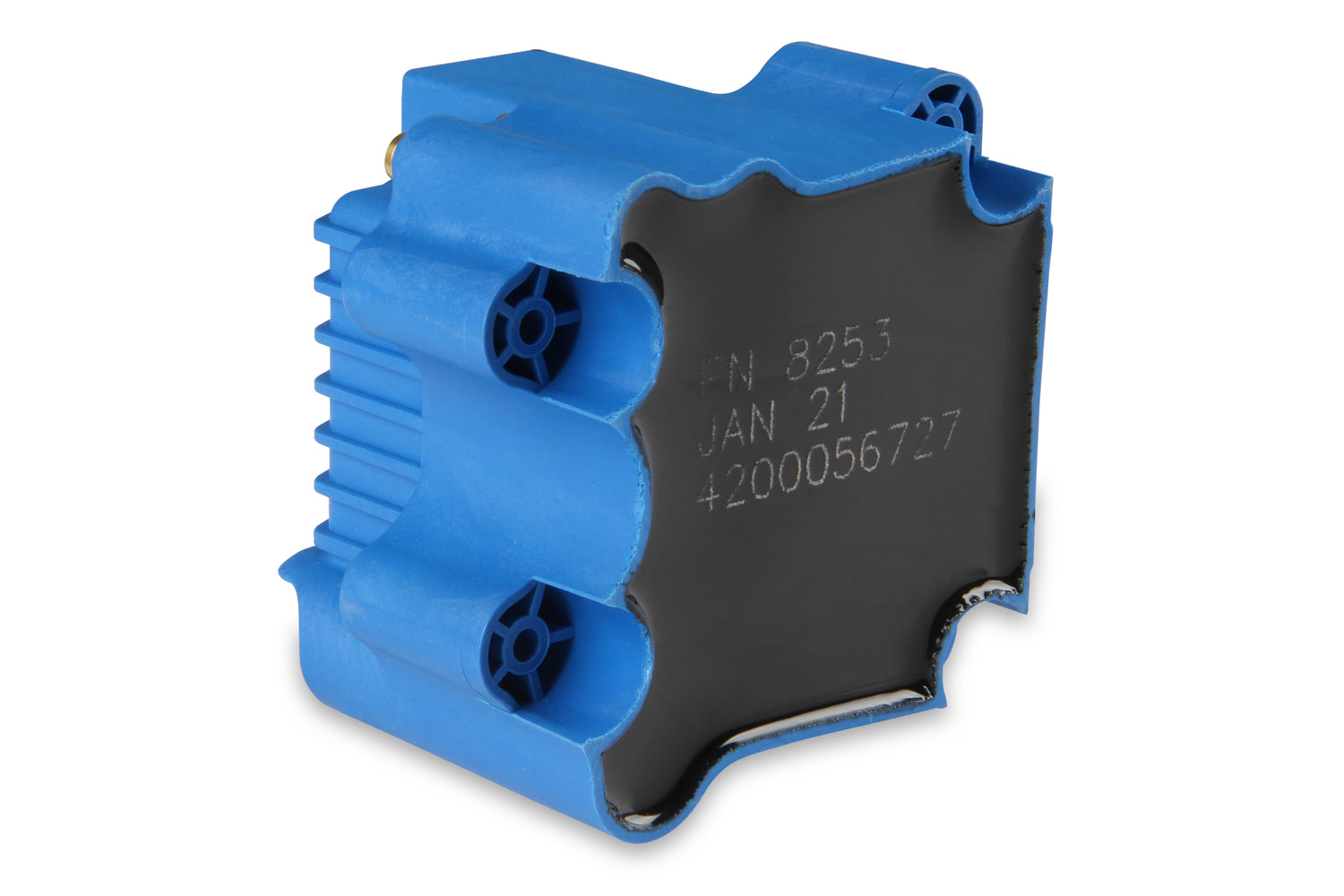

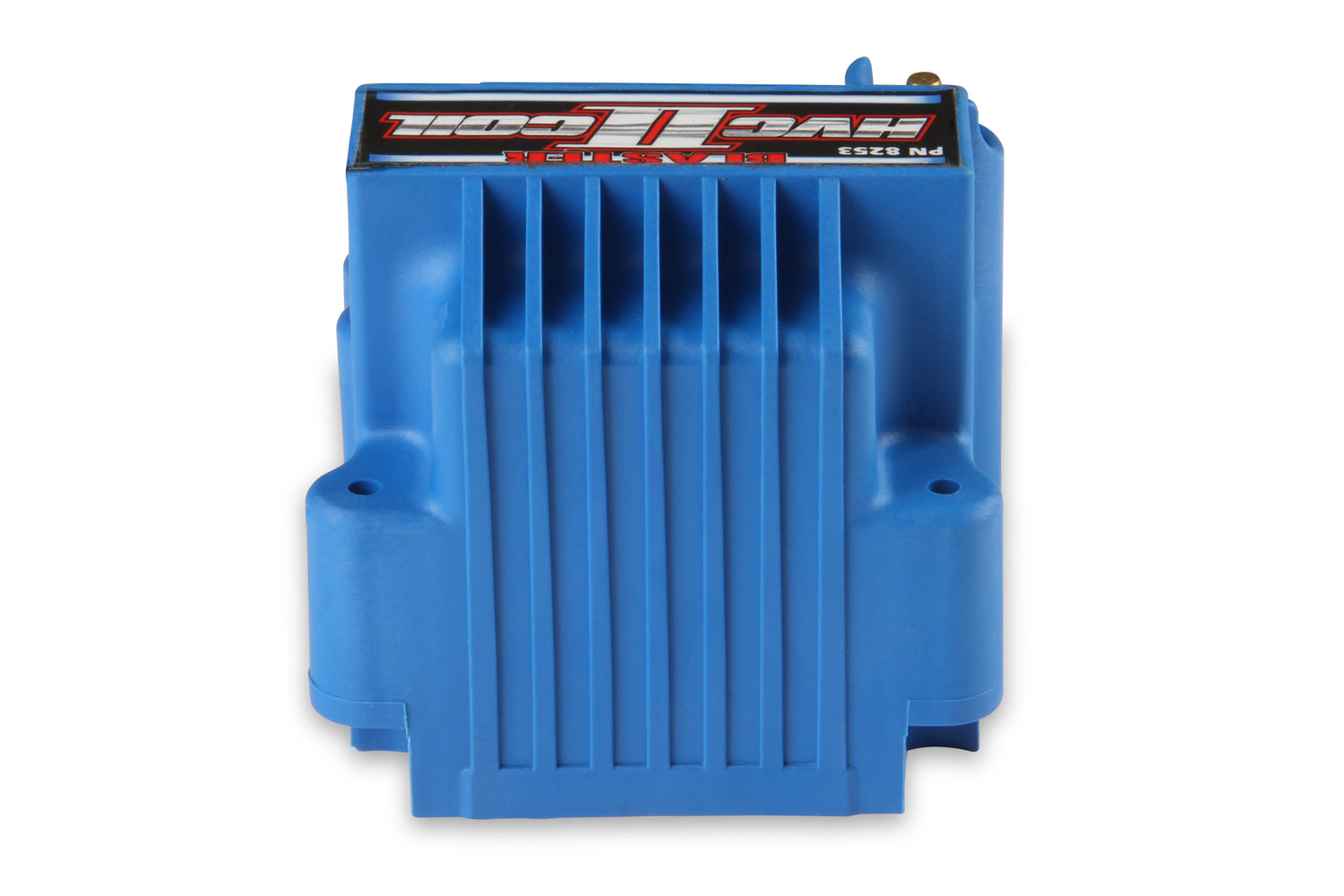

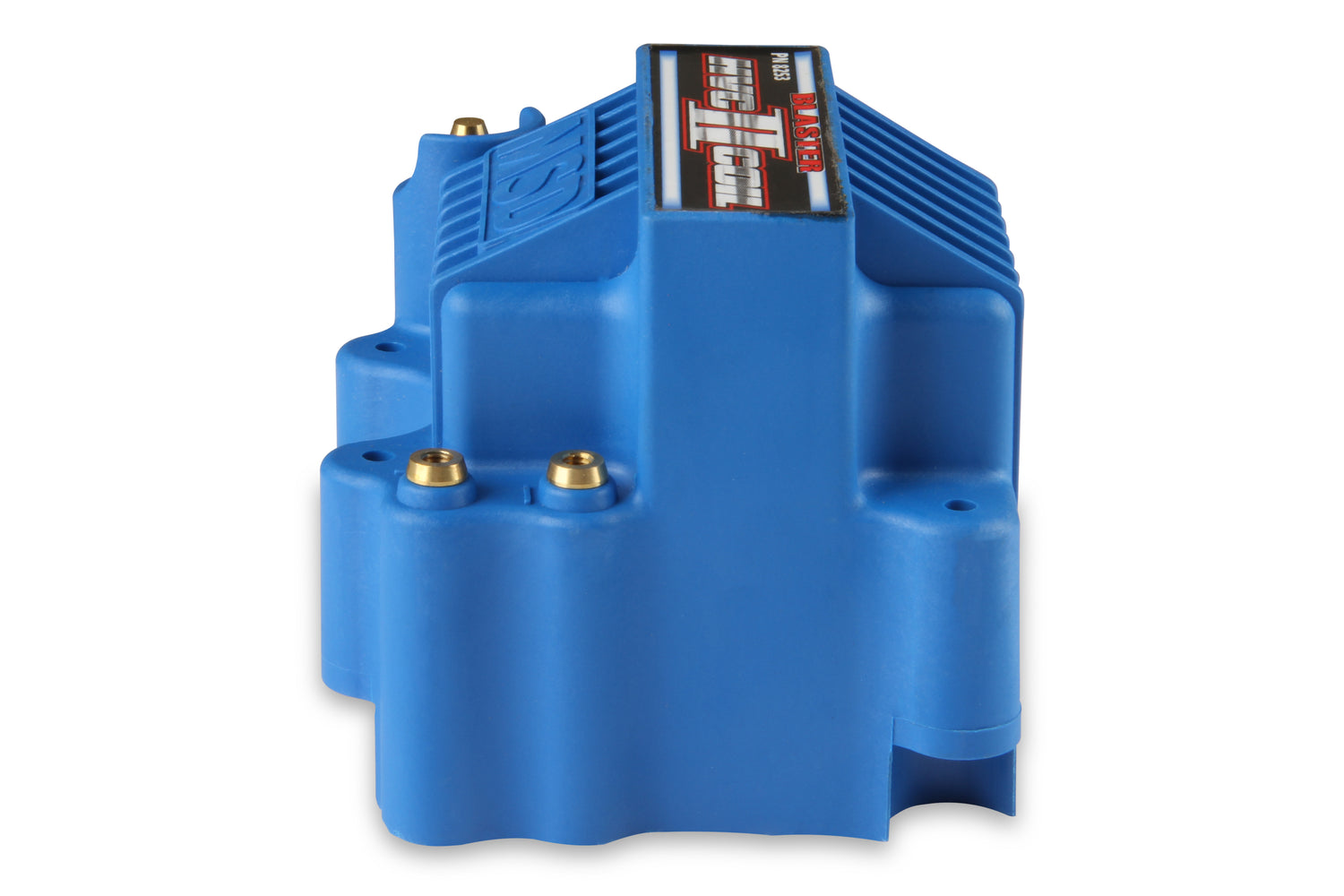

MSD Ignition Coil - Blaster Series - HVC-2 - Blue - 8253
Universal - Add To Any MSD 6-Series Ignition
Sold out
Regular price
$686.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Ignition Coil - Blaster Series - HVC-2 - Blue - 8253 is not in stock at Fast Lane Spares and will ship direct from supplier.
Stock Status:
Description
Description
Universal - Add To Any MSD 6-Series Ignition
Part Number: 8253
The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.
Features and Benefits

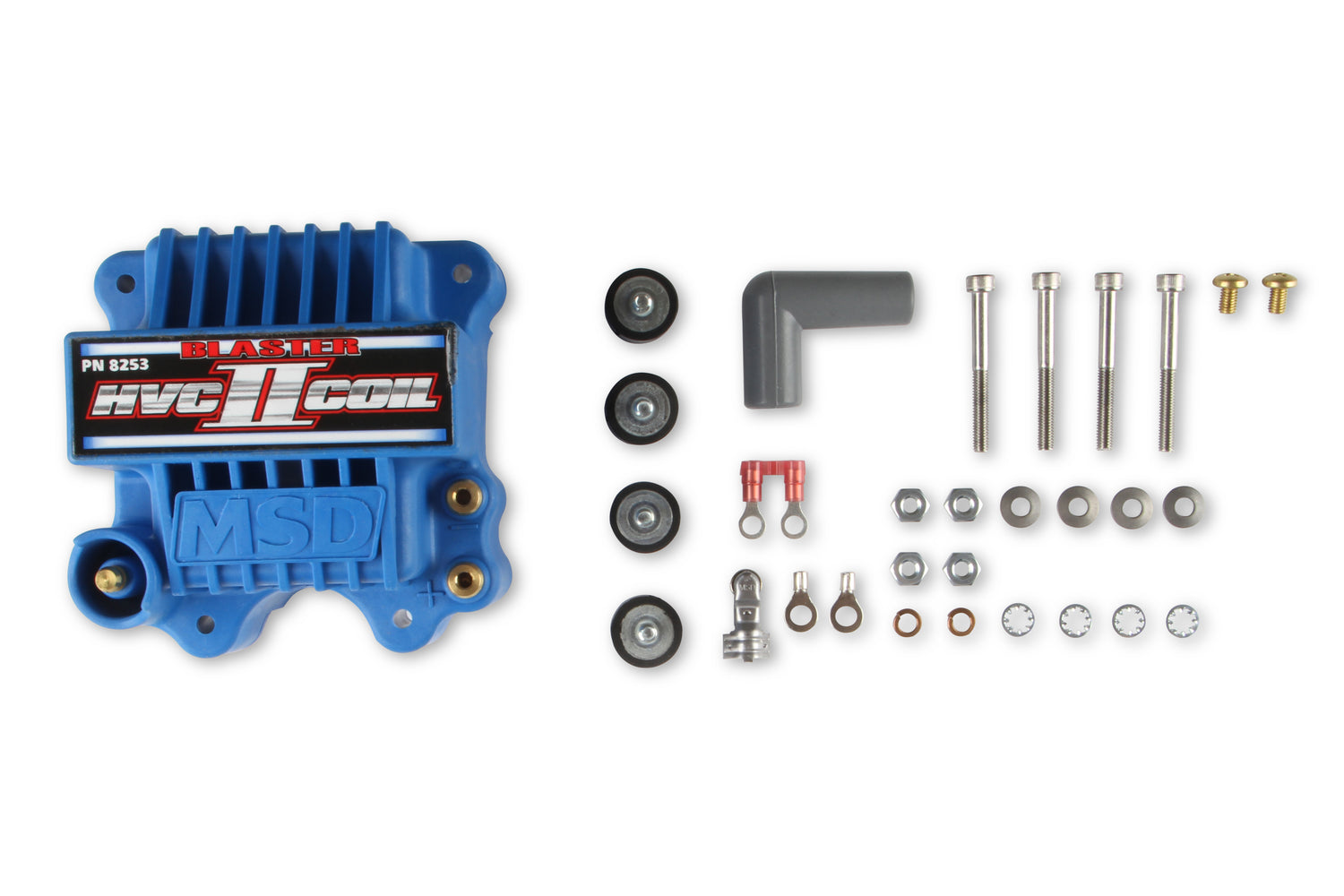

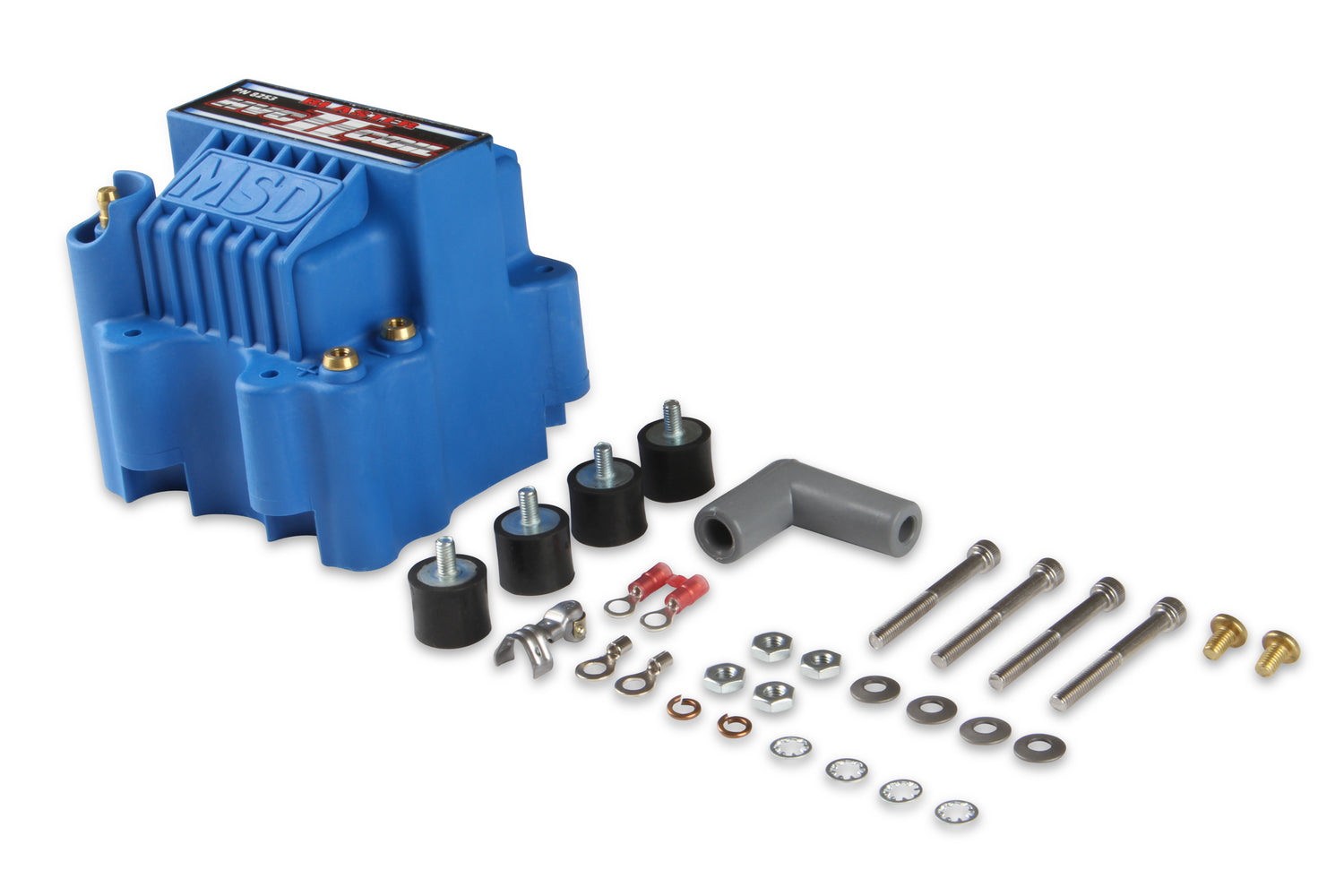

• Supplied with rubber shock mounts
• No CARB Exemption Order Number
• Dupont Rynite housing with isolated tower and brass primary terminals
• New U-core winding design produces more voltage and current
• Windings are encased in fracture resistant compound for vibration resistance
• 100:1 turns ratio and lower primary resistance produce high voltage output
• Designed for high rpm, long duration applications using MSD 6 Series Ignitions
Part Number: 8253
The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.
Features and Benefits
• Supplied with rubber shock mounts
• No CARB Exemption Order Number
• Dupont Rynite housing with isolated tower and brass primary terminals
• New U-core winding design produces more voltage and current
• Windings are encased in fracture resistant compound for vibration resistance
• 100:1 turns ratio and lower primary resistance produce high voltage output
• Designed for high rpm, long duration applications using MSD 6 Series Ignitions
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Emission Code 4 Inductance (mH) 3.5 Maximum Voltage 44,000 part type Ignition Coil Peak Current 450 Primary Resistance 0.16 Product Type Ignition Coil Secondary Resistance 630 Spark Duration 0.45 Sub Category Ignition Coil Turns Ratio 4.17 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight 3.75 -
