MSD | SKU:
8222

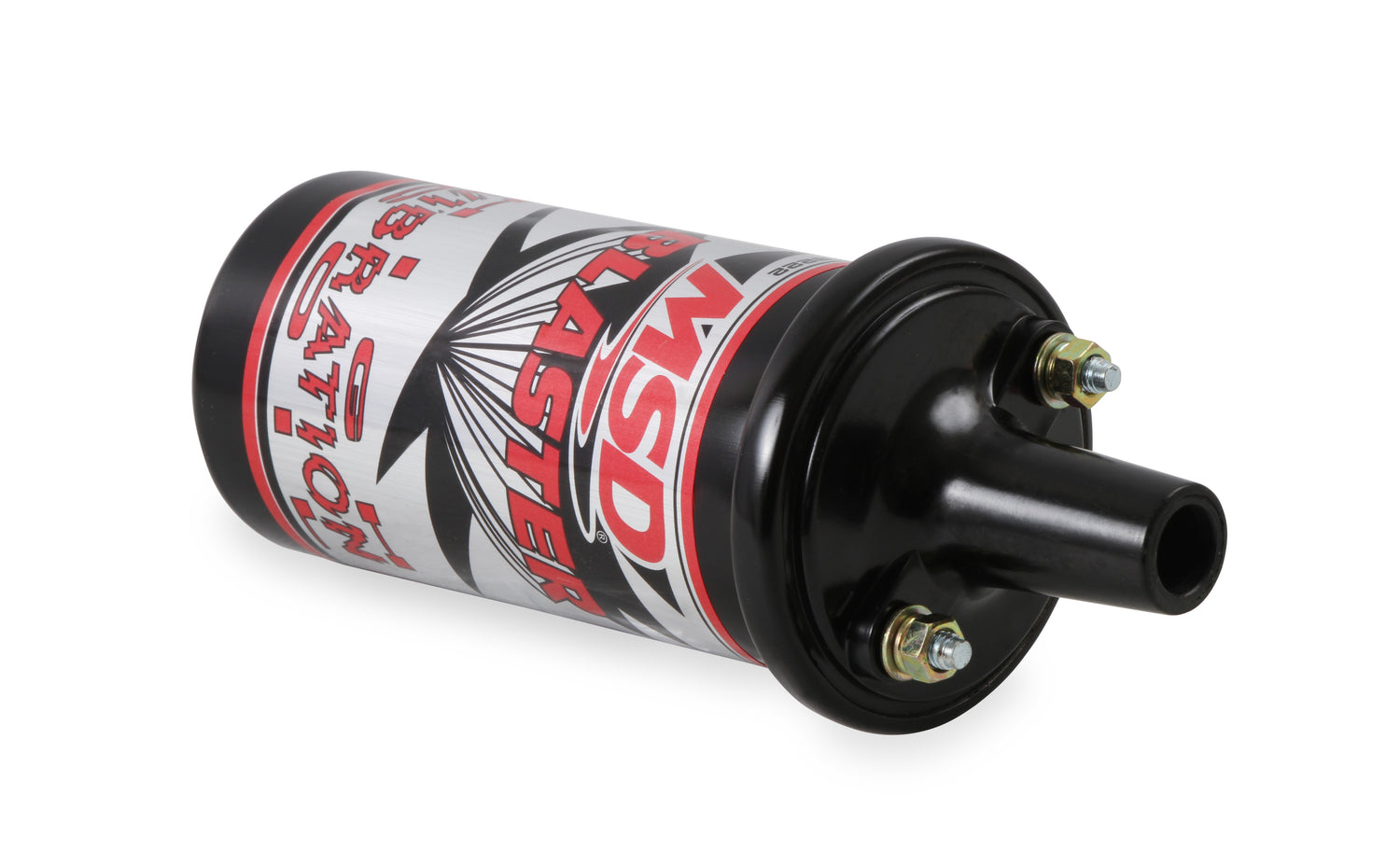

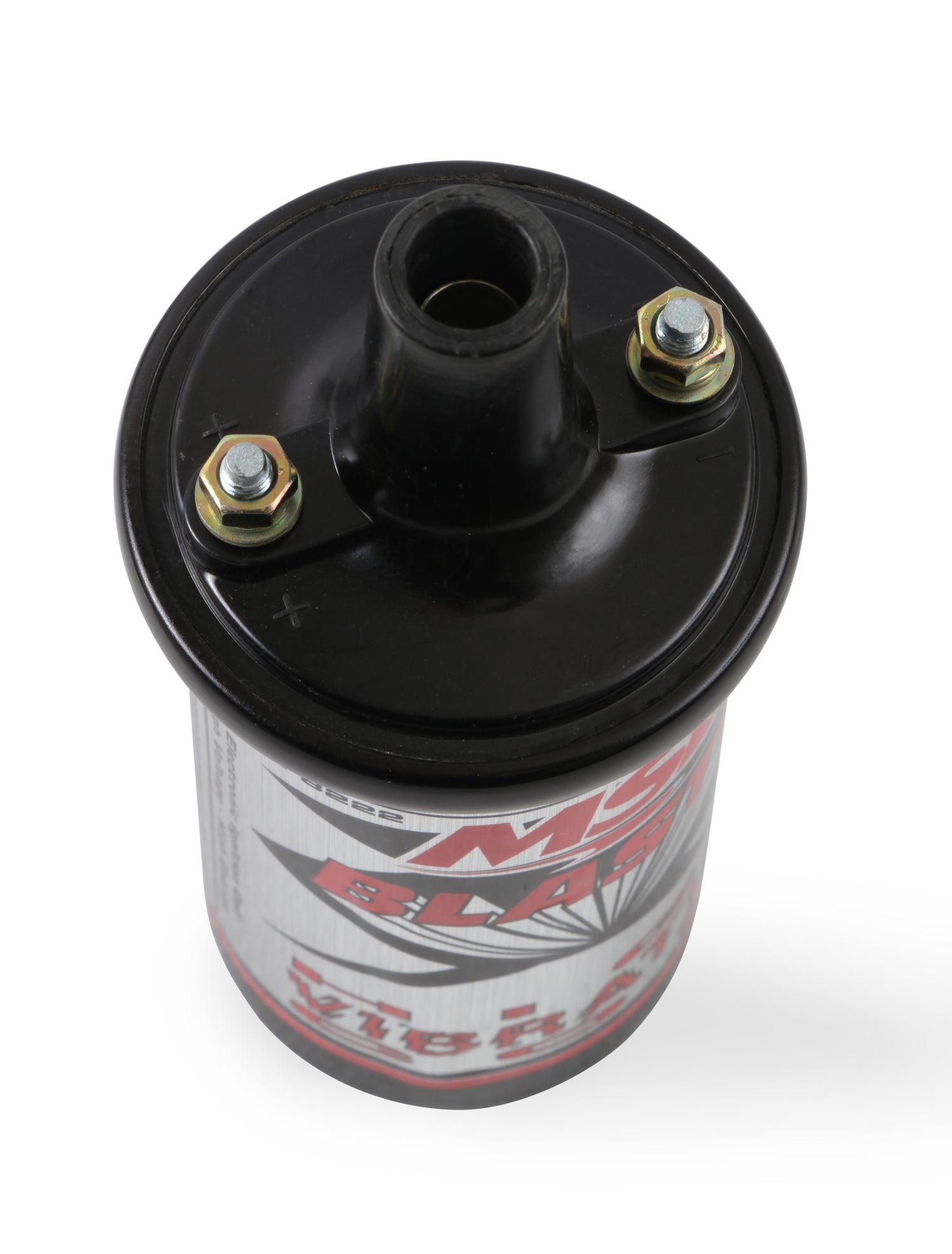

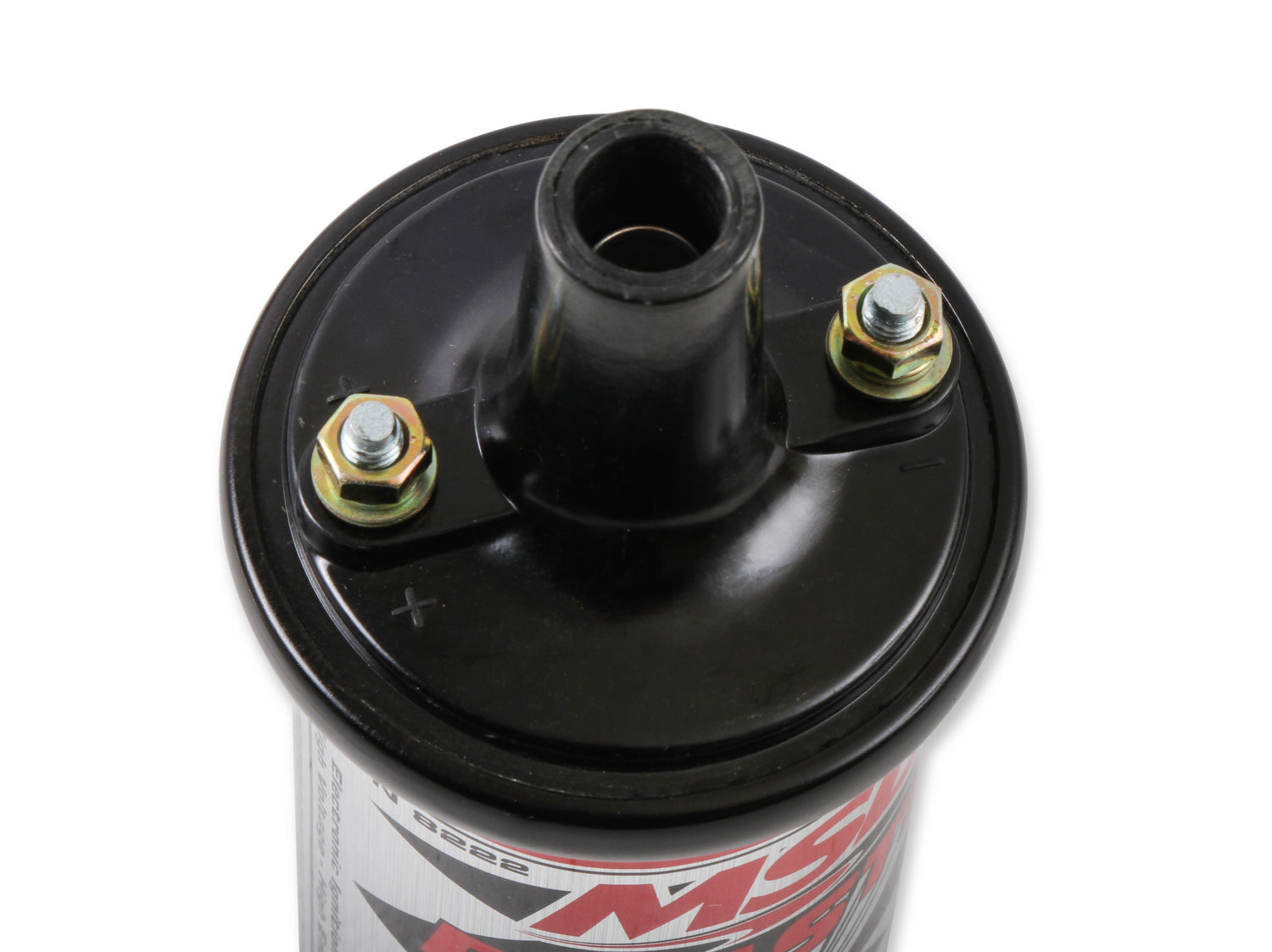

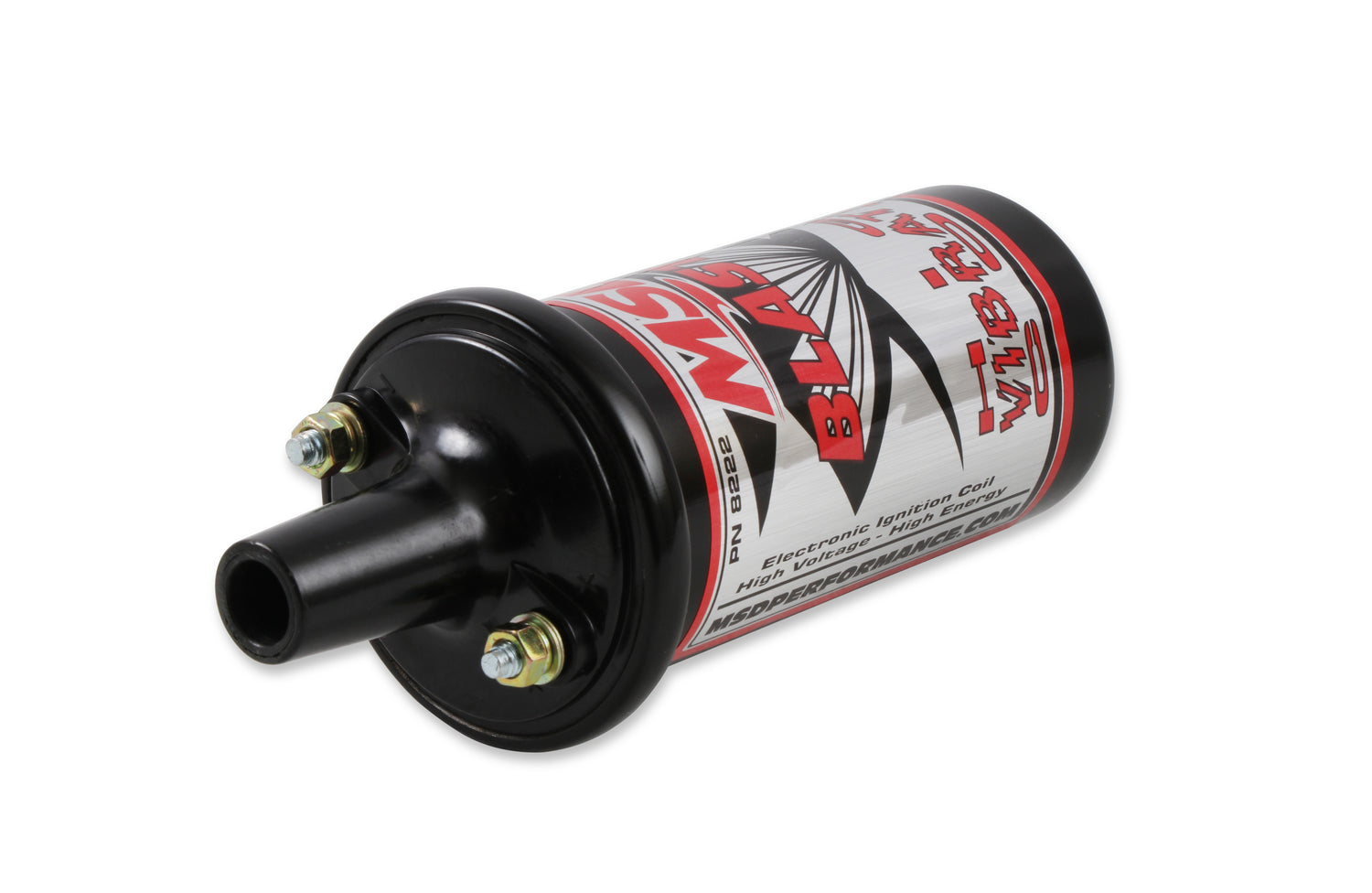

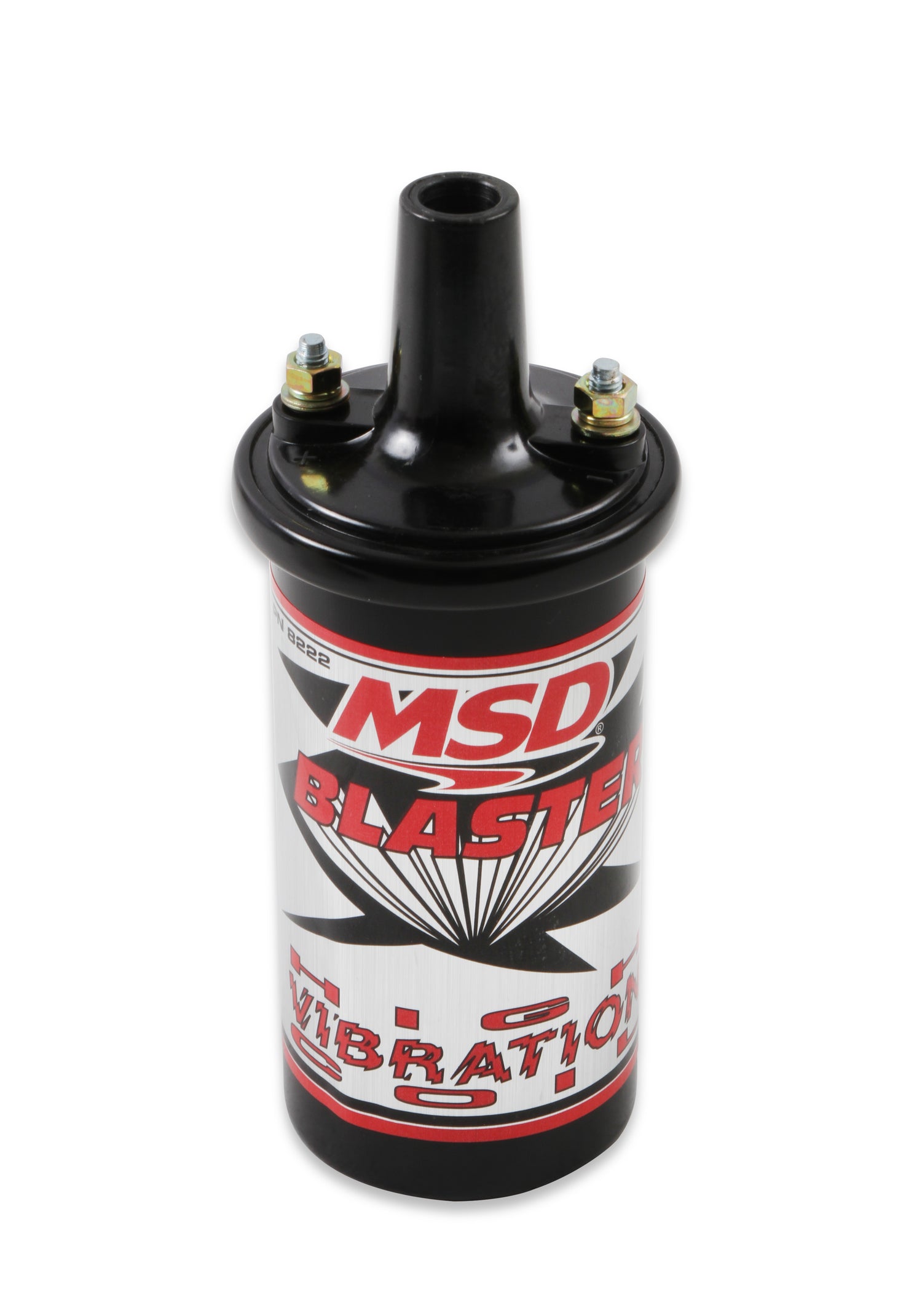

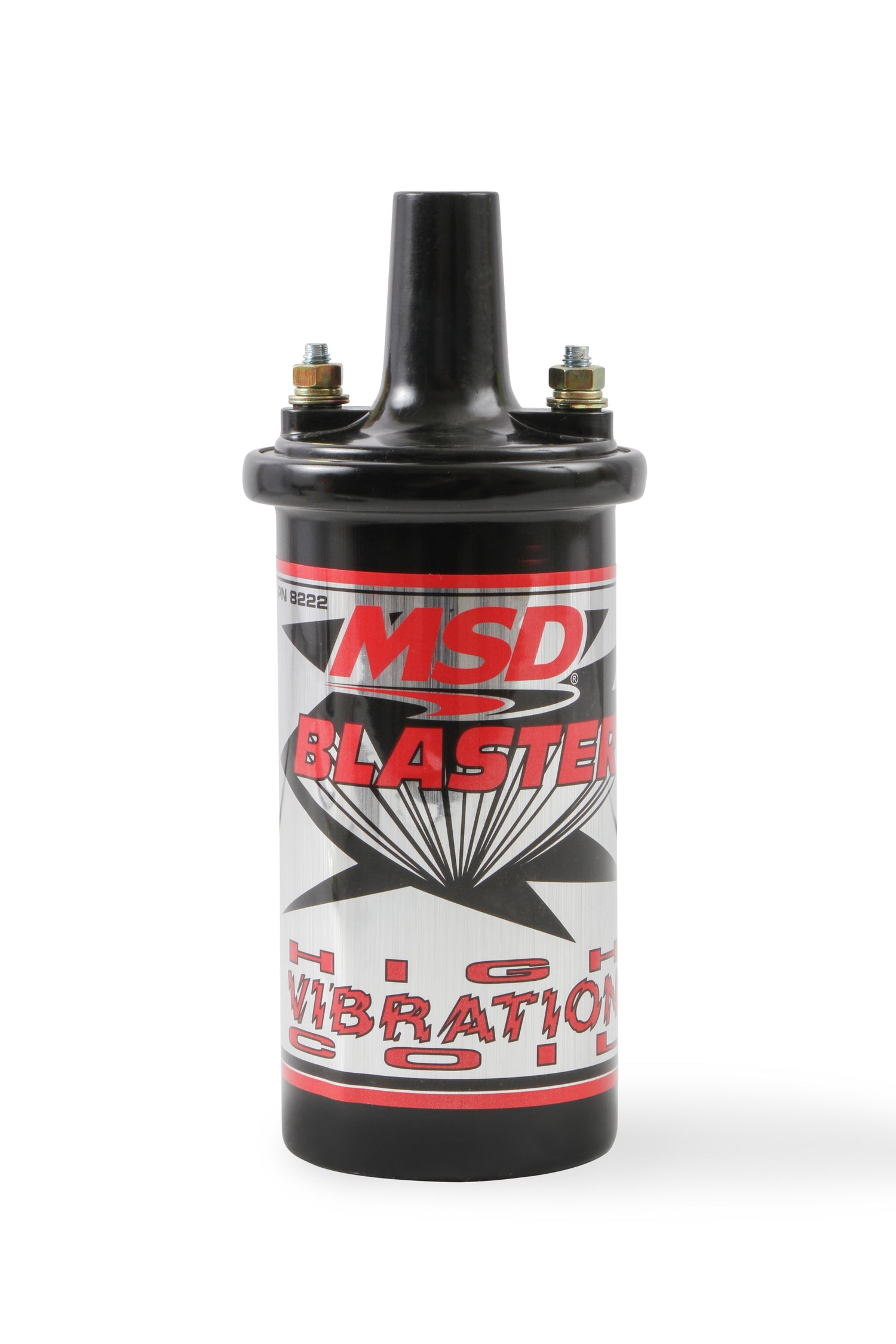

MSD Ignition Coil - Blaster Series - High Vibration - Black - 8222
Universal - Add To Any MSD 6-Series Ignition
Regular price
$150.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Ignition Coil - Blaster Series - High Vibration - Black - 8222 is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
Universal - Add To Any MSD 6-Series Ignition
Part Number: 8222
The Blaster Coil is designed to mount in most factory canister coil mounts. MSD also offers a Chrome Coil Bracket, PN 8213. It is recommended to mount the PN 8202, PN 82023, and 8223 coils in an upright position. The High Vibration Coil, PN 8222, can be mounted in any position due to its epoxy potting compound. In applications such as off-road, marine, or other harsh conditions, the MSD Blaster High Vibration Coil is the best choice. This protects the coil's internal components from high and low-frequency vibrations that are commonly experienced in racing. The sturdy metal housing of the High Vibration Coil is completely potted with a premium grade epoxy to completely encase the coil's primary and secondary windings.
Features and Benefits
ā¢ Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)
ā¢ Metal canister is encased with epoxy to protect the windings from high vibration applications
ā¢ CARB E.O. Approved
ā¢ 100:1 turns ratio and lower primary resistance produce high voltage output
CARB EO: D-40-37
Part Number: 8222
The Blaster Coil is designed to mount in most factory canister coil mounts. MSD also offers a Chrome Coil Bracket, PN 8213. It is recommended to mount the PN 8202, PN 82023, and 8223 coils in an upright position. The High Vibration Coil, PN 8222, can be mounted in any position due to its epoxy potting compound. In applications such as off-road, marine, or other harsh conditions, the MSD Blaster High Vibration Coil is the best choice. This protects the coil's internal components from high and low-frequency vibrations that are commonly experienced in racing. The sturdy metal housing of the High Vibration Coil is completely potted with a premium grade epoxy to completely encase the coil's primary and secondary windings.
Features and Benefits
ā¢ Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)
ā¢ Metal canister is encased with epoxy to protect the windings from high vibration applications
ā¢ CARB E.O. Approved
ā¢ 100:1 turns ratio and lower primary resistance produce high voltage output
CARB EO: D-40-37
Specifications
Specifications
-
Specifications
Brand MSD C.A.R.B. EO # D-40-37 Category Ignition Color Black Emission Code 1 Inductance (mH) 8 Maximum Voltage 45,000 part type Ignition Coil Peak Current 140 Primary Resistance 0.7 Product Type Ignition Coil Secondary Resistance 4.5K Spark Duration 0.35 Sub Category Ignition Coil Turns Ratio 4.17 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight 2 -
