MSD | SKU:
8252

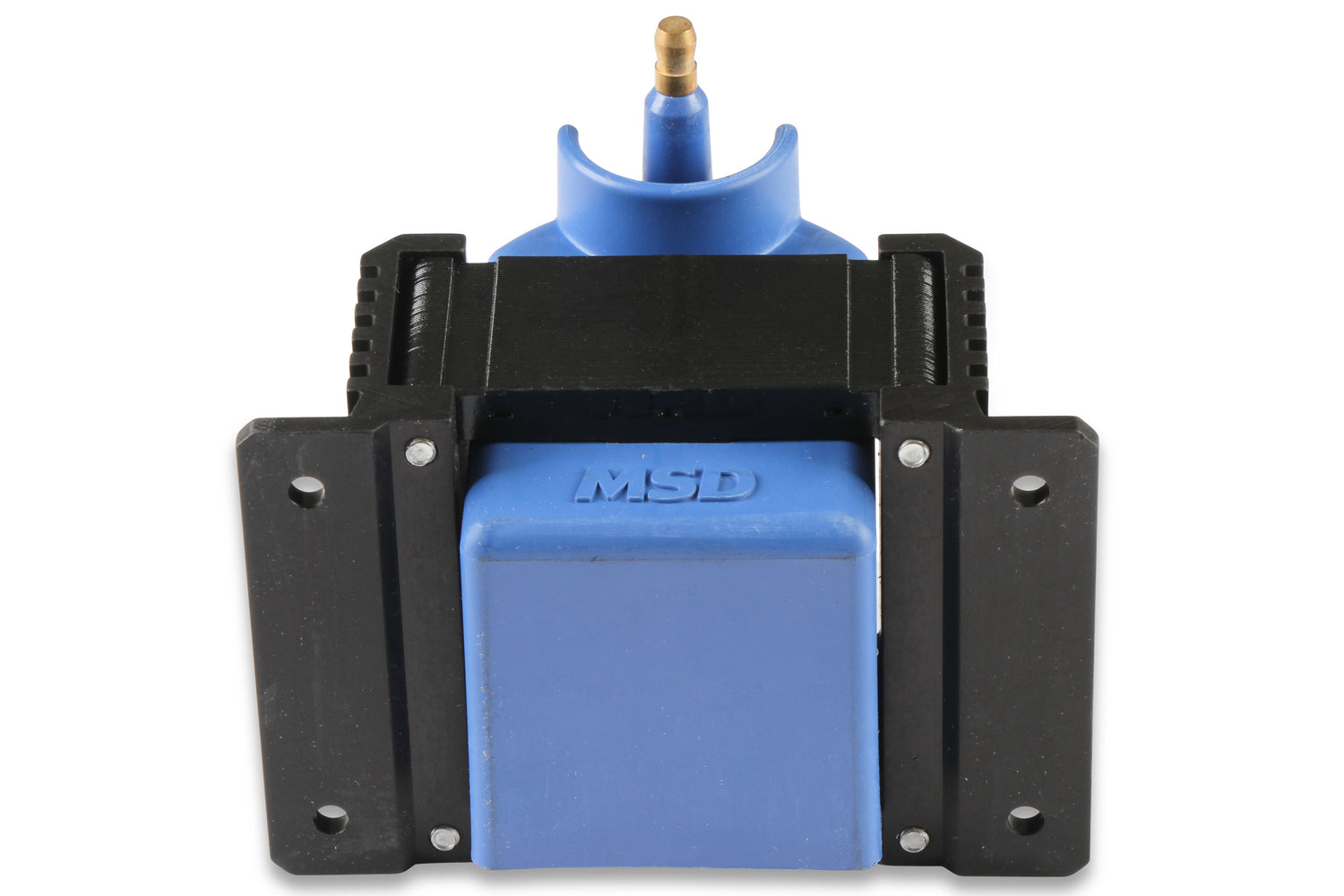

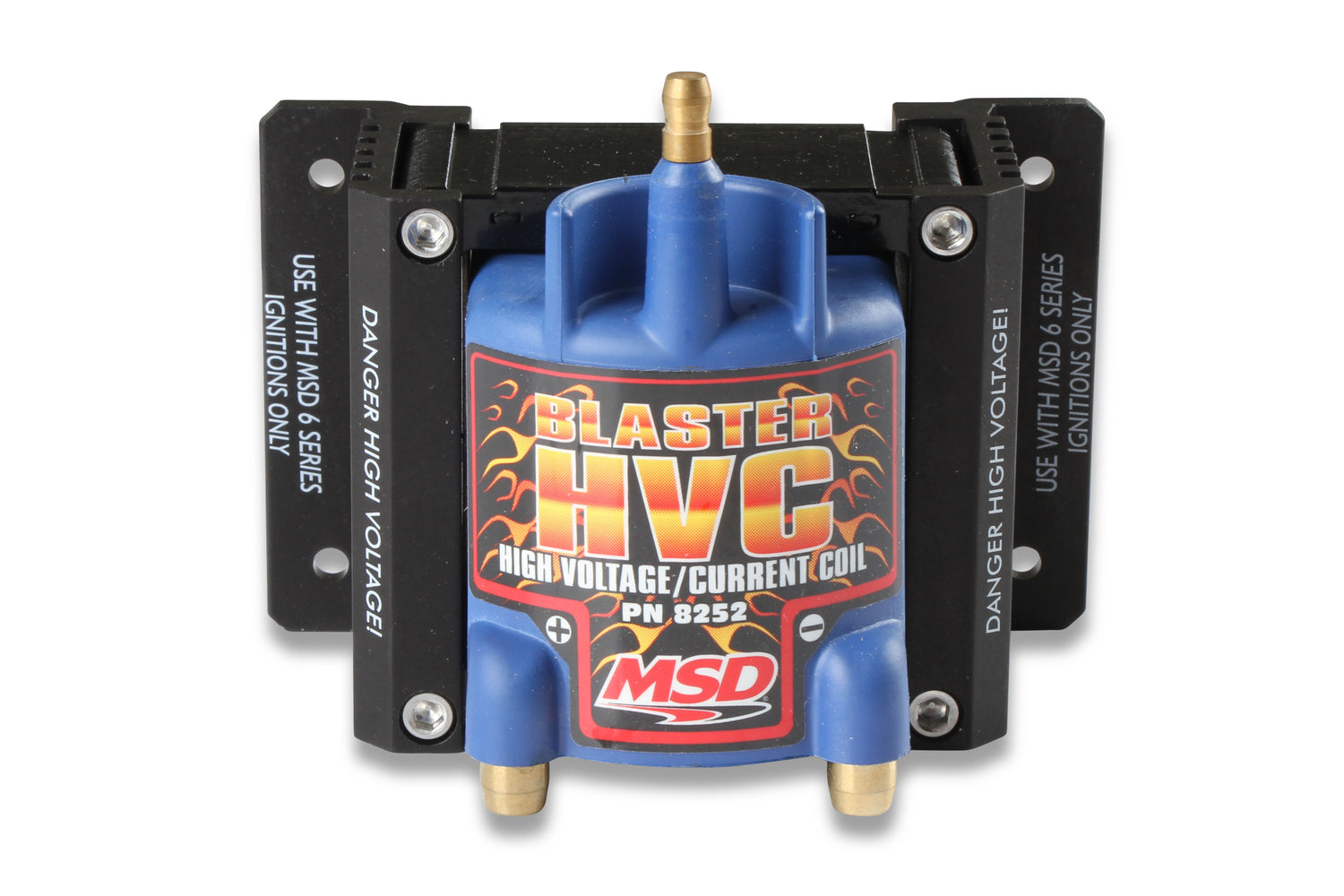

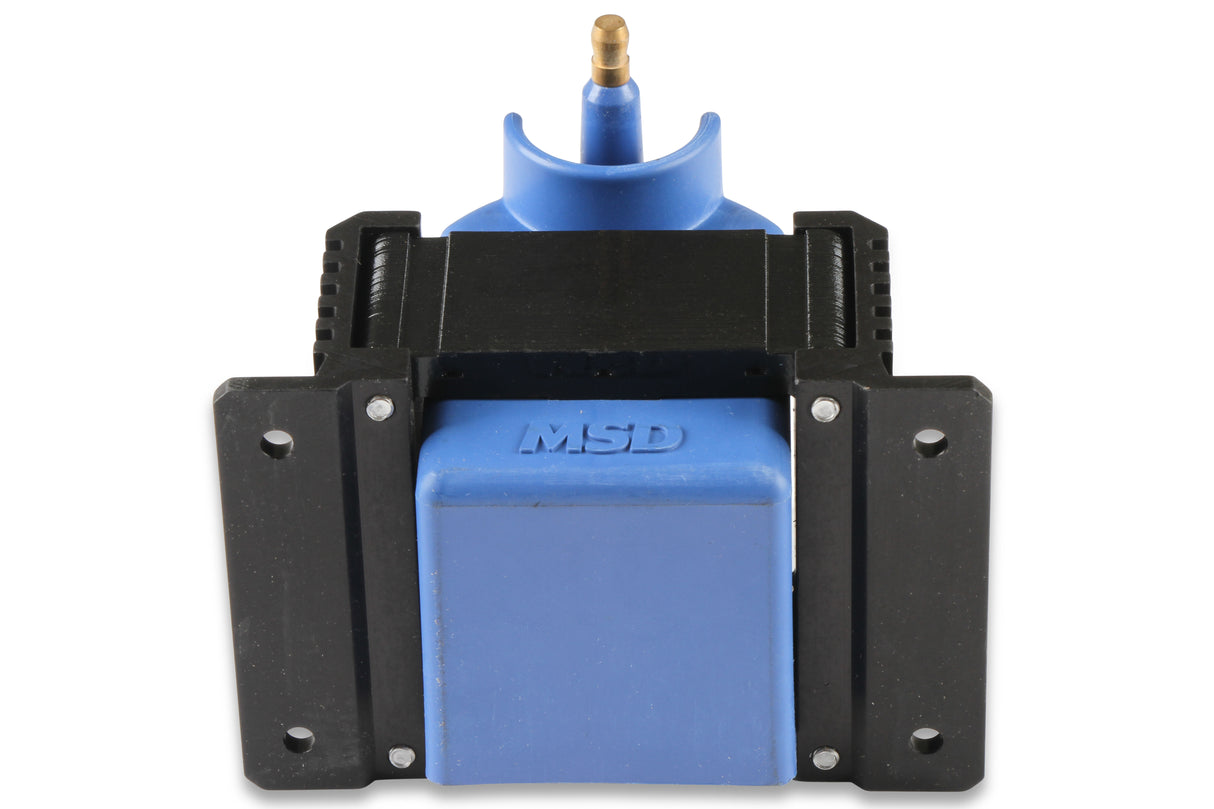

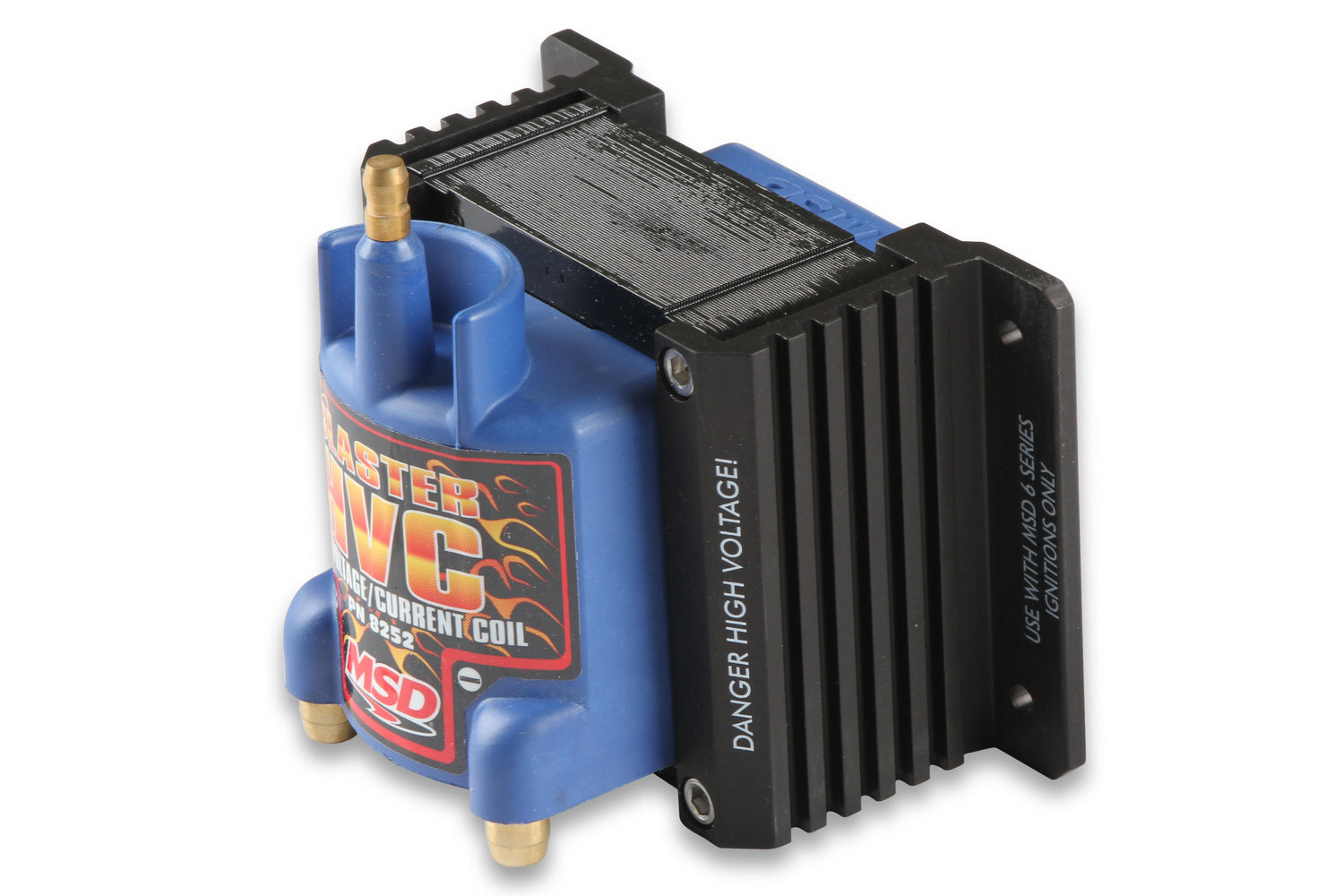

MSD Ignition Coil - Blaster HVC - Blue - 8252
Universal - Add To Any MSD 6-Series Ignition
Regular price
$419.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Ignition Coil - Blaster HVC - Blue - 8252 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
MSD Ignition Coil - Blaster HVC - Blue - 8252
Regular price
$419.10 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Universal - Add To Any MSD 6-Series Ignition
Part Number: 8252
Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy!
Features and Benefits
• CARB E.O. Approved
• Spark plug style terminal and threaded brass primary studs
• Works with electronic ignitions and MSD Ignition Controls (ballast resistor required for points systems)
• Designed for high rpm, long duration applications
• 100:1 turns ratio and lower primary resistance produce high voltage output

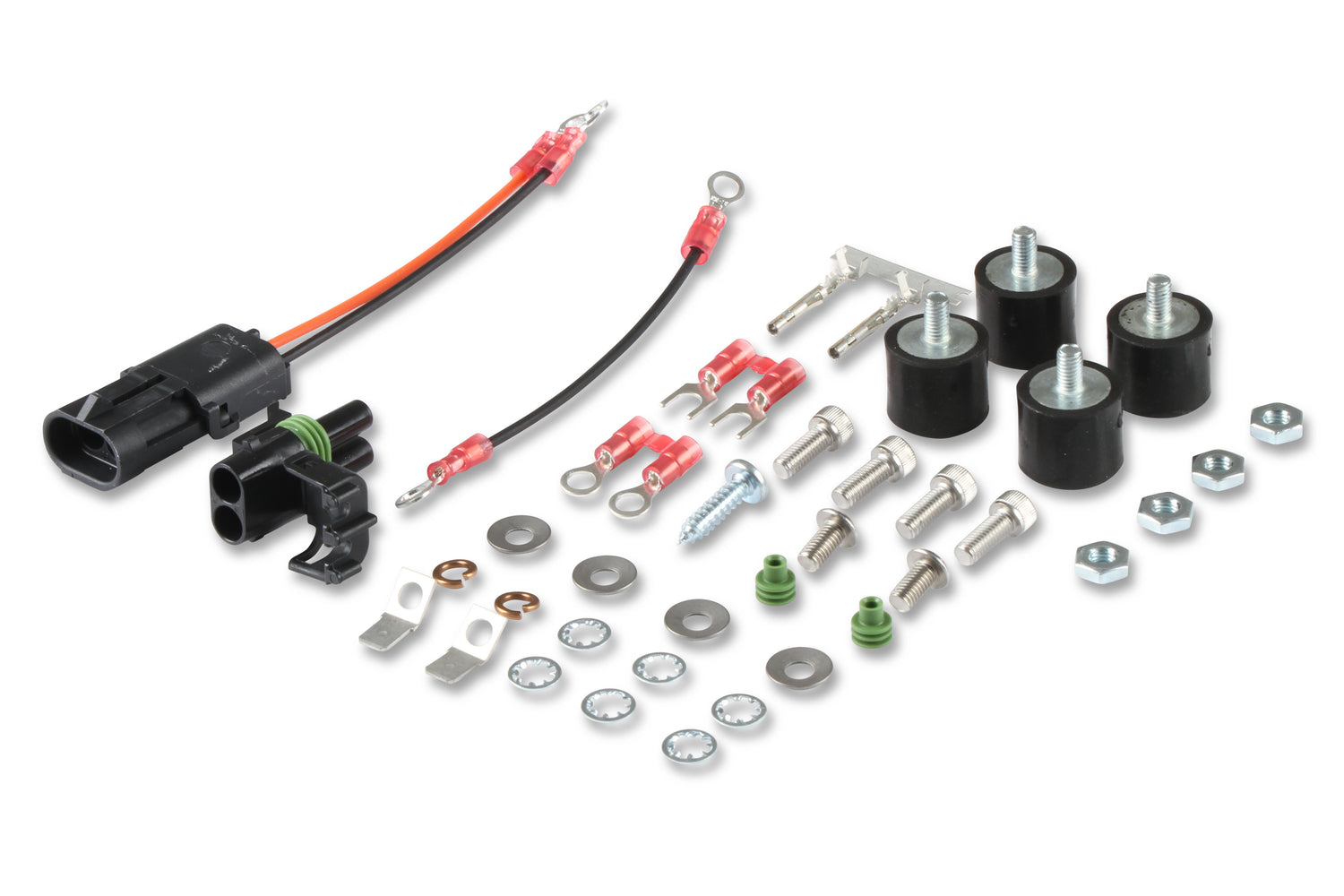

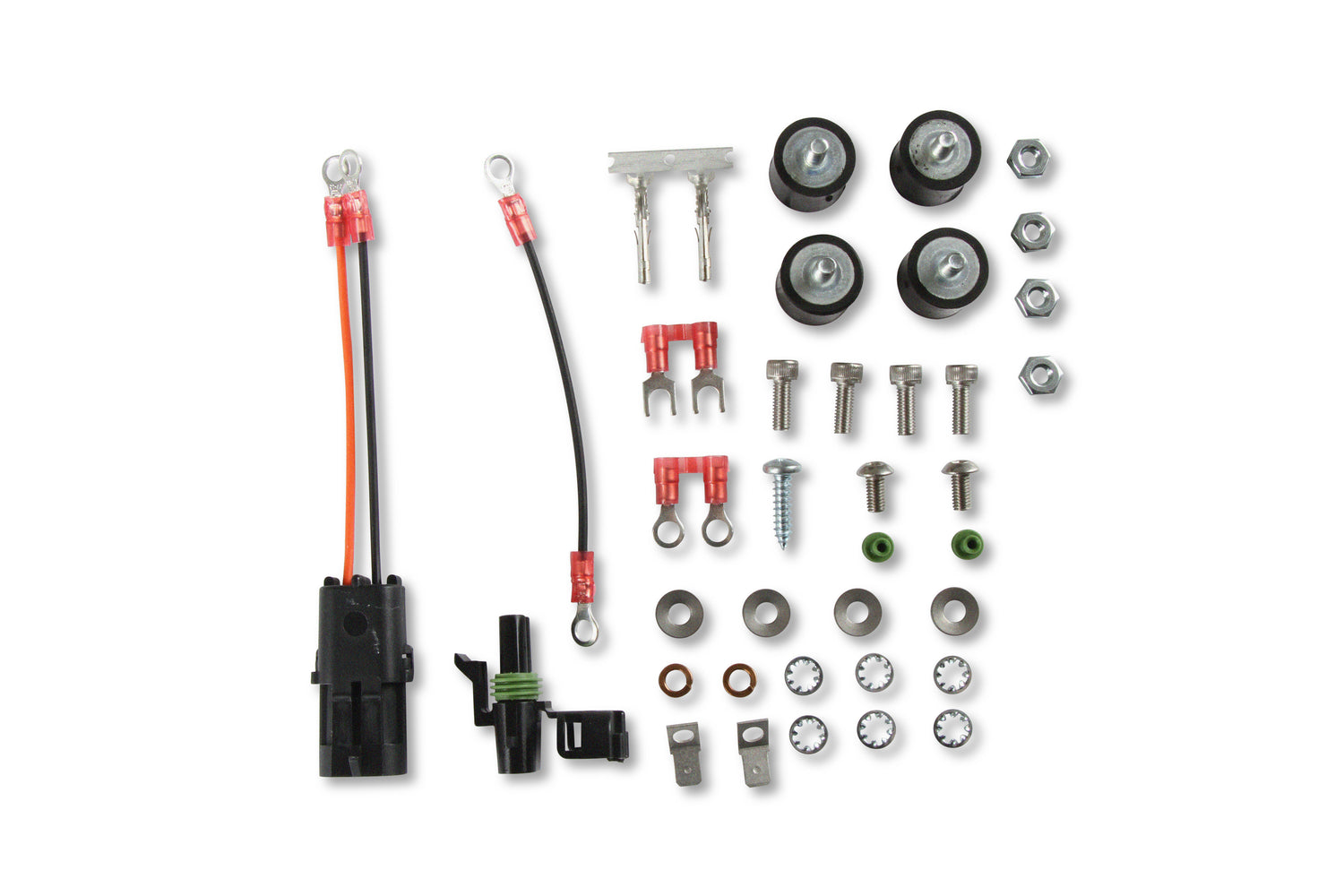

• Supplied with rubber shock mounts

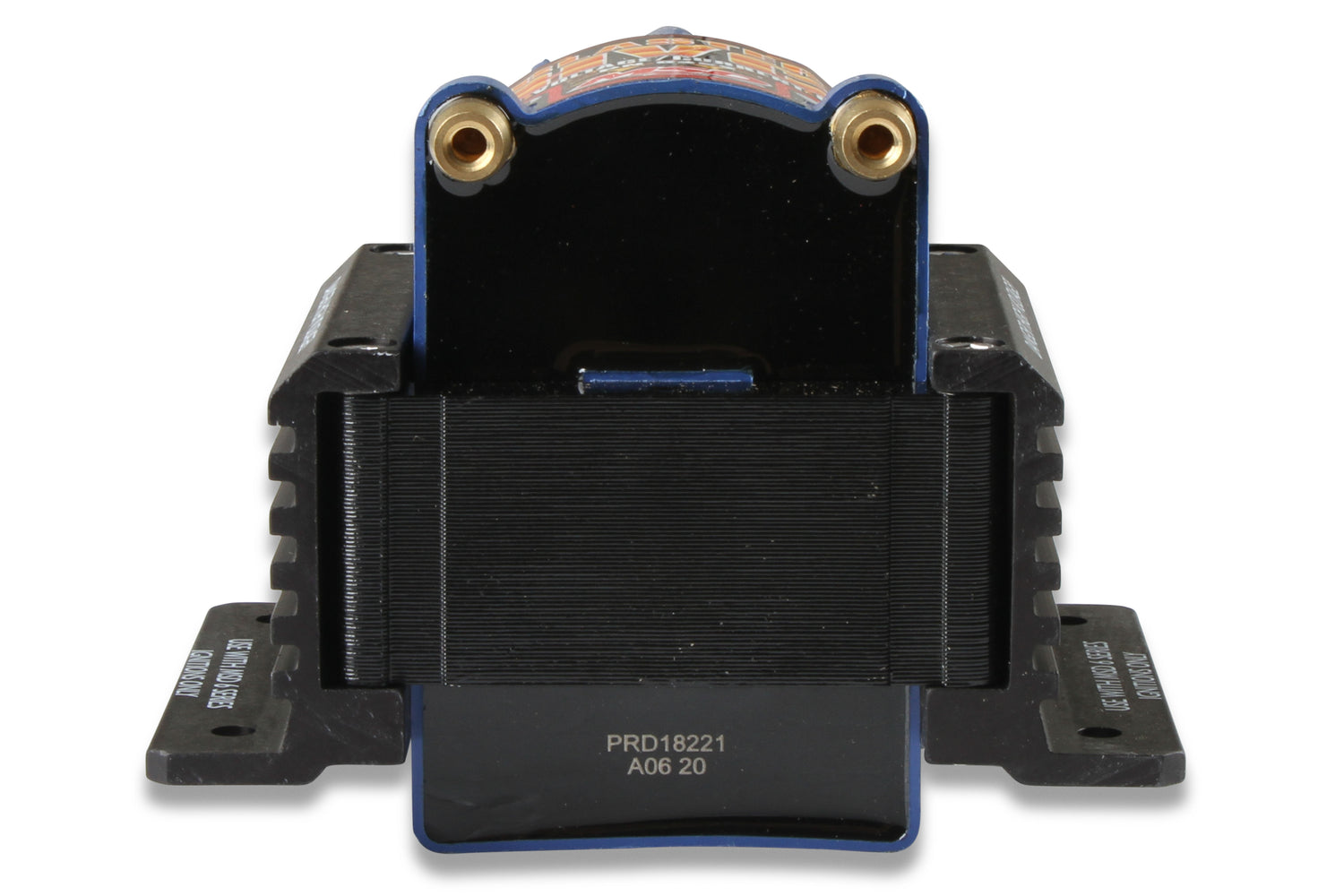

• Windings are encased in blue epoxy and secured with extruded brackets
Part Number: 8252
Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy!
Features and Benefits
• CARB E.O. Approved
• Spark plug style terminal and threaded brass primary studs
• Works with electronic ignitions and MSD Ignition Controls (ballast resistor required for points systems)
• Designed for high rpm, long duration applications
• 100:1 turns ratio and lower primary resistance produce high voltage output
• Supplied with rubber shock mounts
• Windings are encased in blue epoxy and secured with extruded brackets
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Blue Emission Code 1 Inductance (mH) 7 Maximum Voltage 42,000 part type Ignition Coil Peak Current 300 Primary Resistance 0.02 Product Type Ignition Coil Secondary Resistance 1.38K Spark Duration 0.2 Sub Category Ignition Coil Type Drag Race / Long Duration Use Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
