MSD | SKU:
8223
MSD Ignition Coil - Blaster 3 - Extra-Tall Tower - 8223
Universal - Use with MSD Ignition Box - 90 Degree Terminal and Boot Included
Regular price
$149.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Ignition Coil - Blaster 3 - Extra-Tall Tower - 8223 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Universal - Use with MSD Ignition Box - 90 Degree Terminal and Boot Included
Part Number: 8223

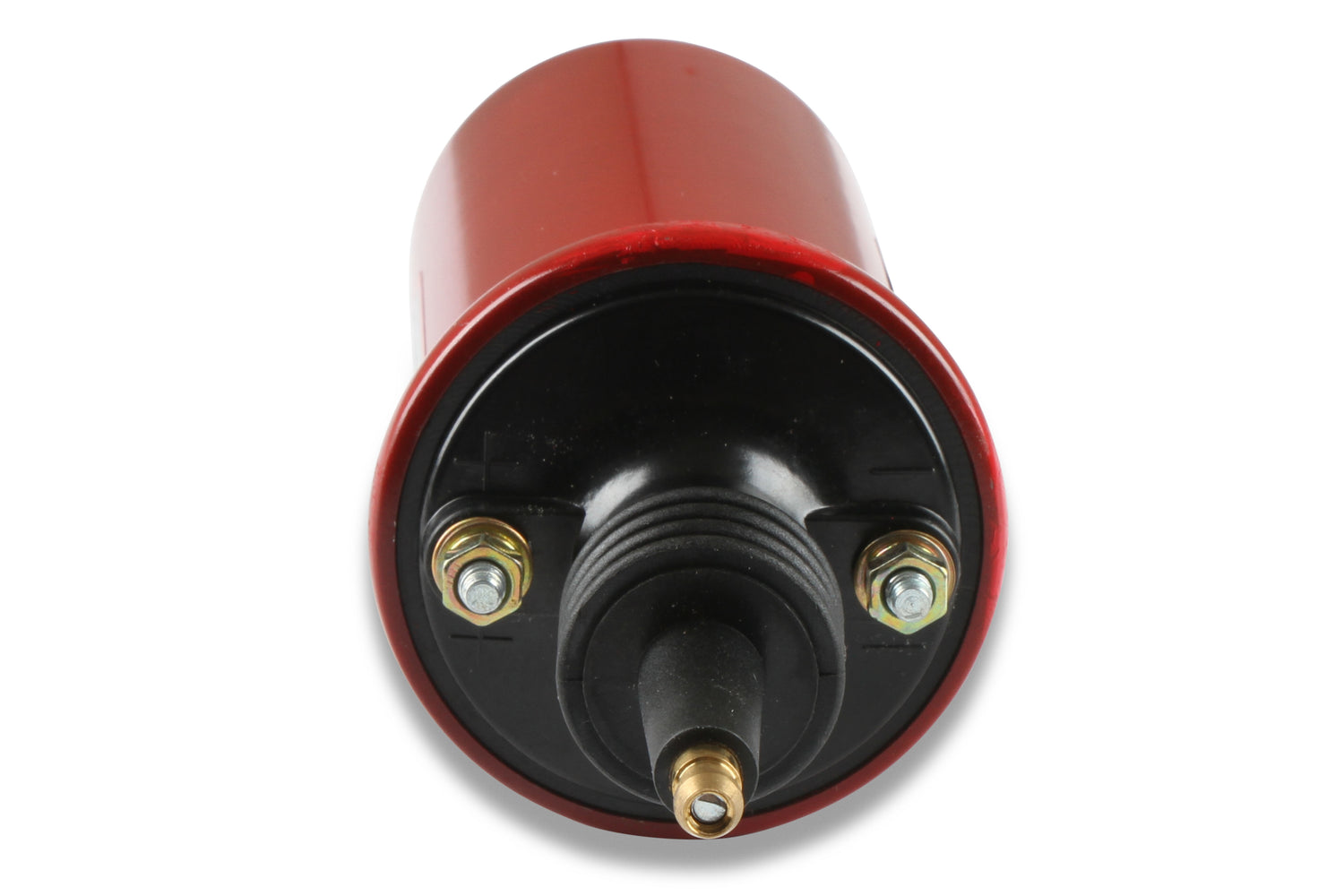

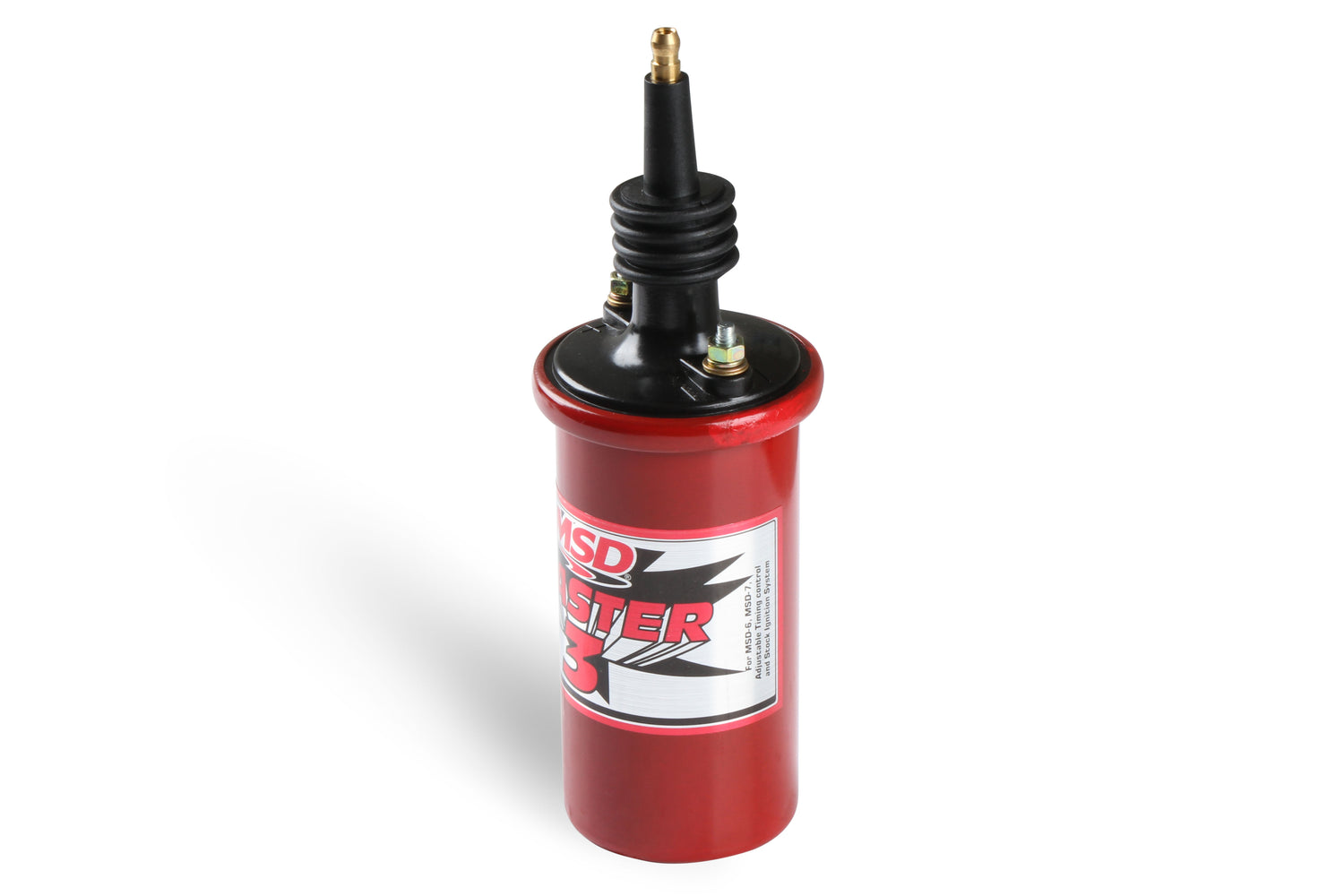

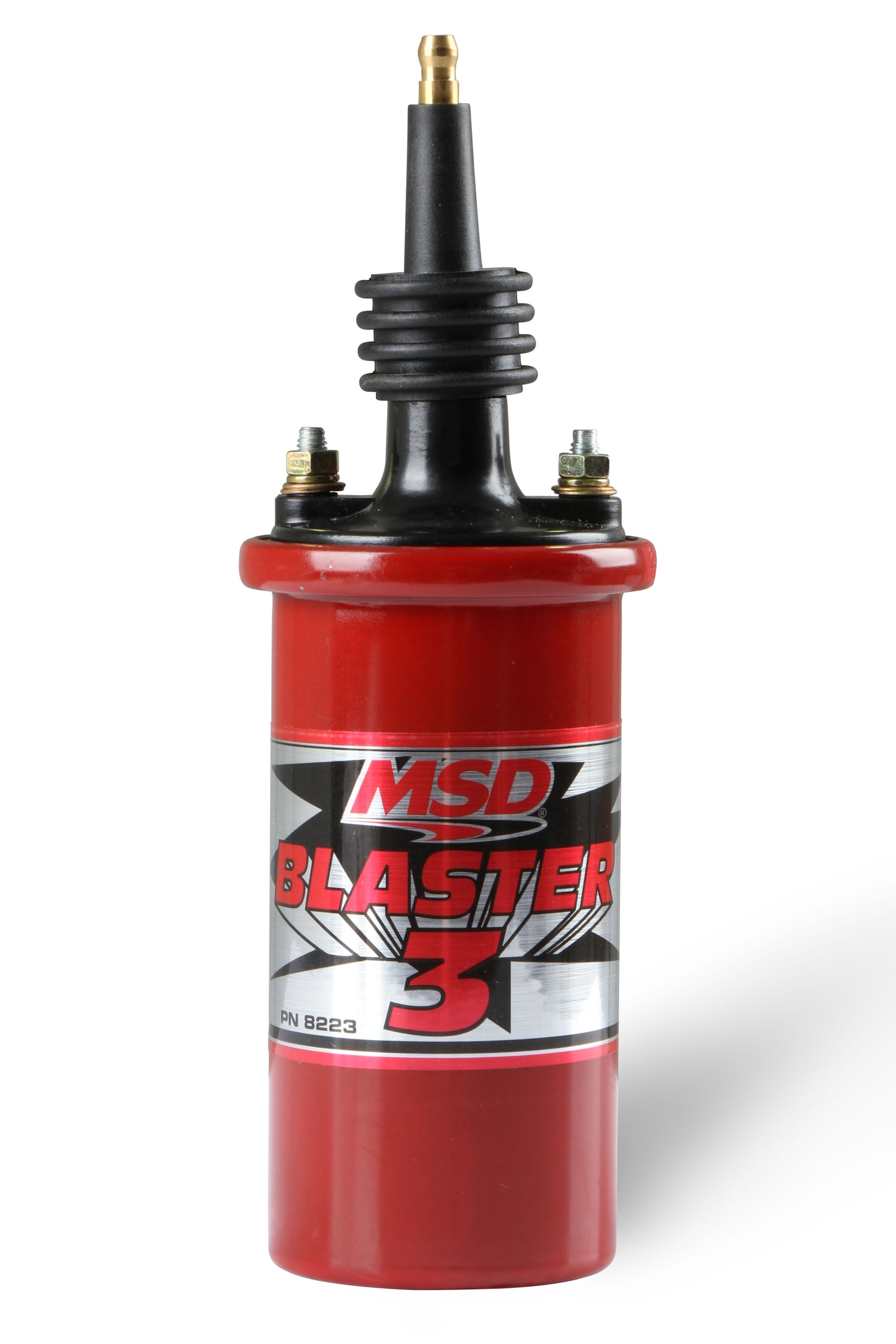

The Blaster 3 Coil features an extra-tall tower design to improve the coil wire attachment and spark isolation. Supplied with a 90-degree terminal and boot. If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6, or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister.
Features and Benefits

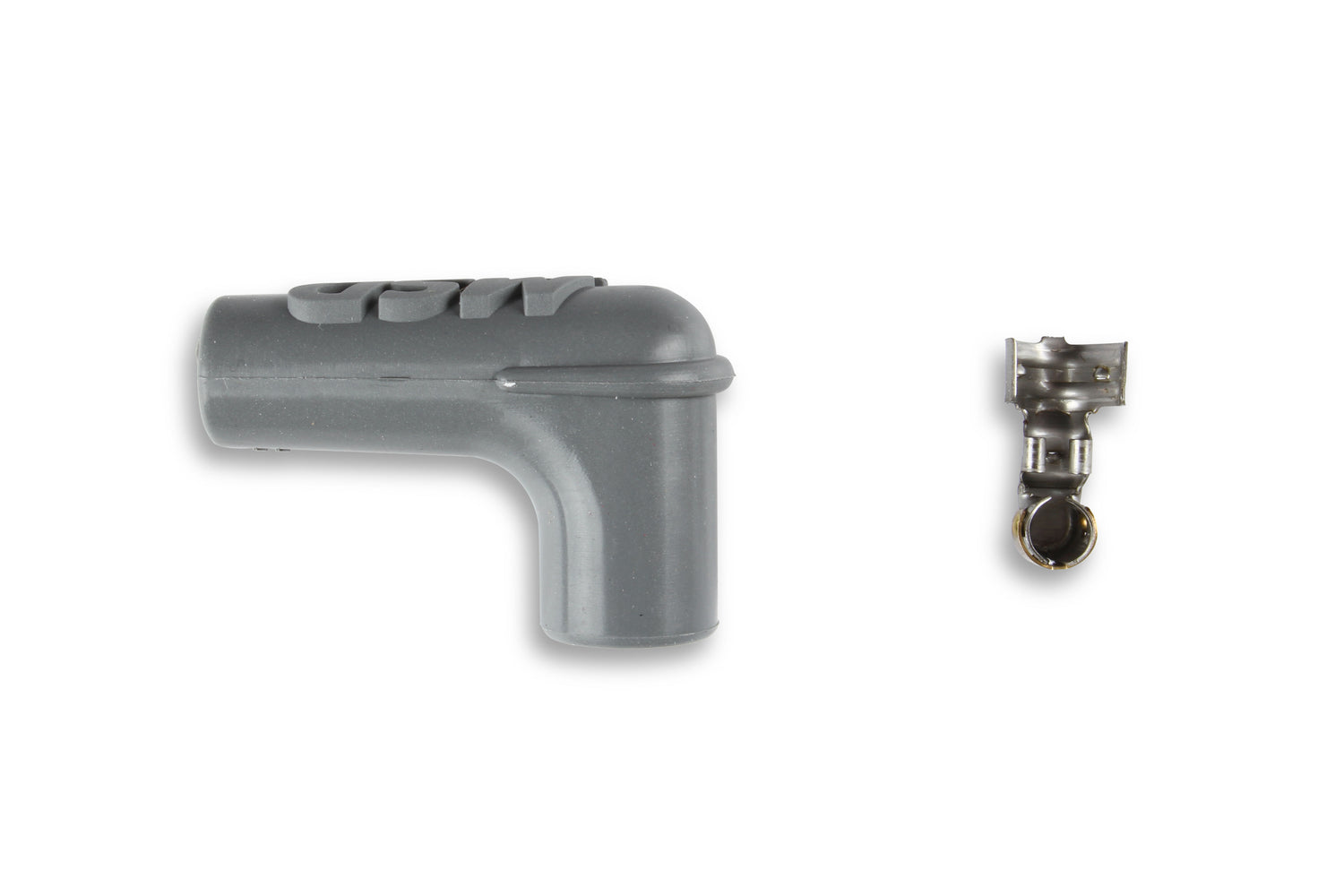

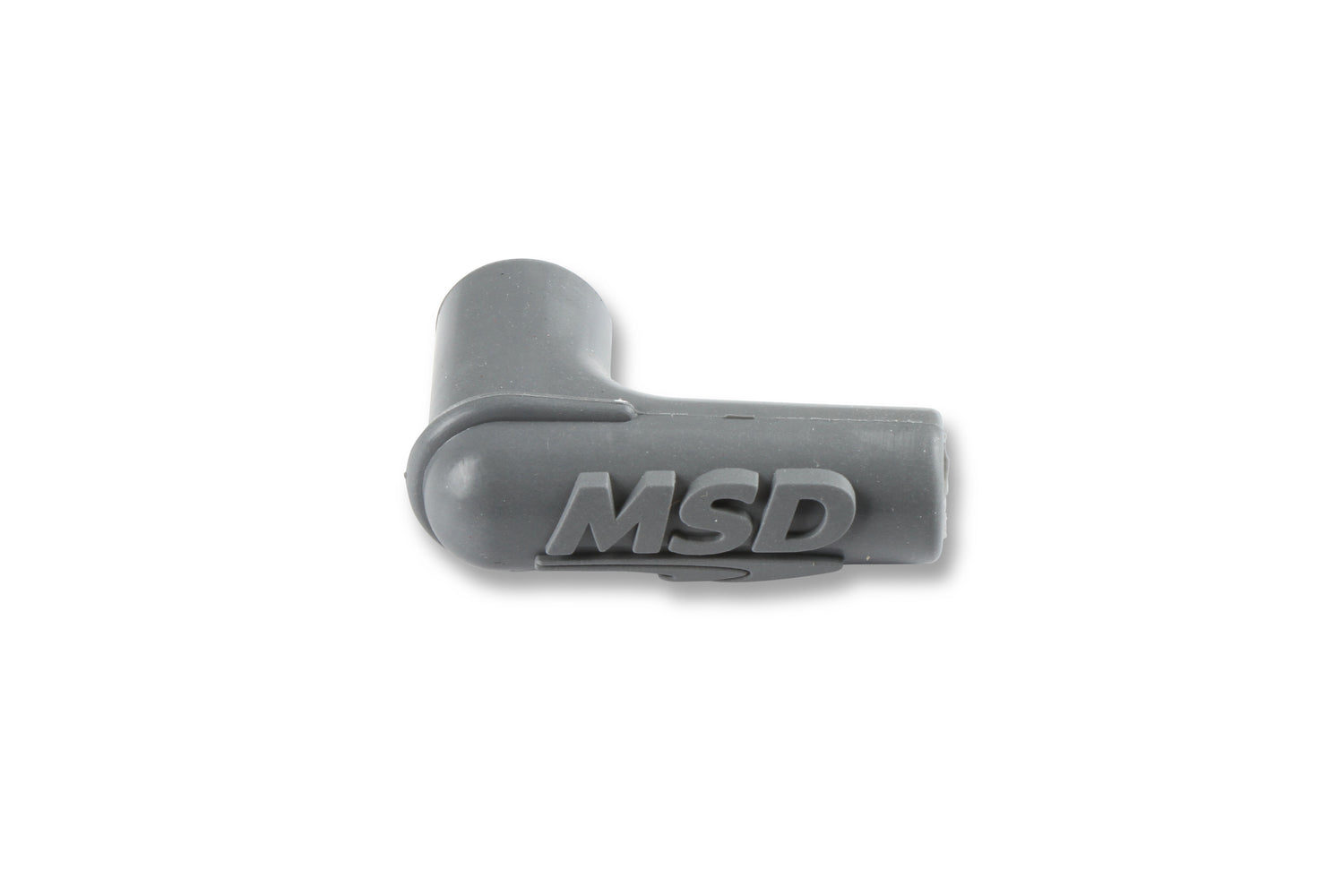

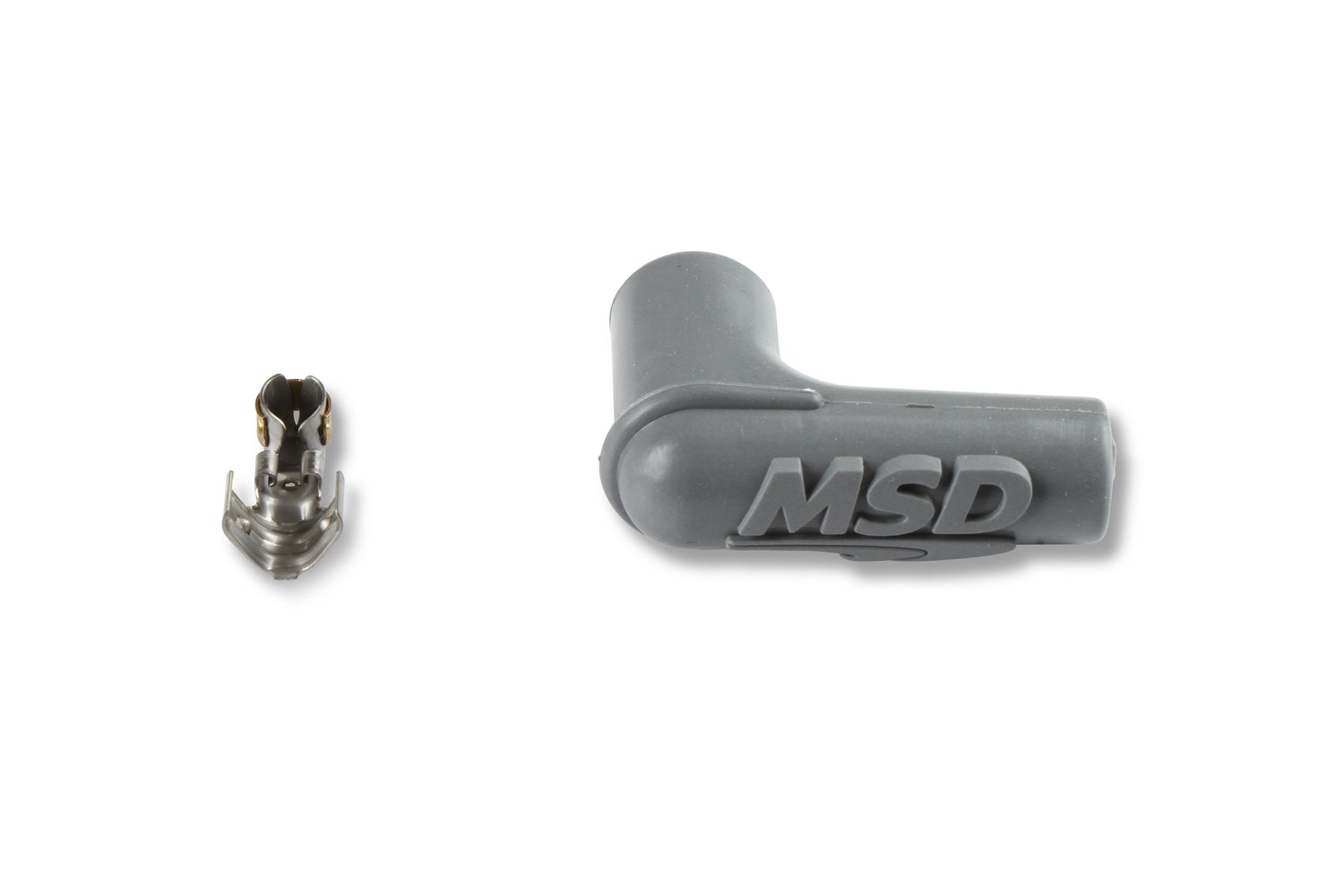

• Supplied with a 90° spark plug style terminal and boot
• CARB E.O. Approved

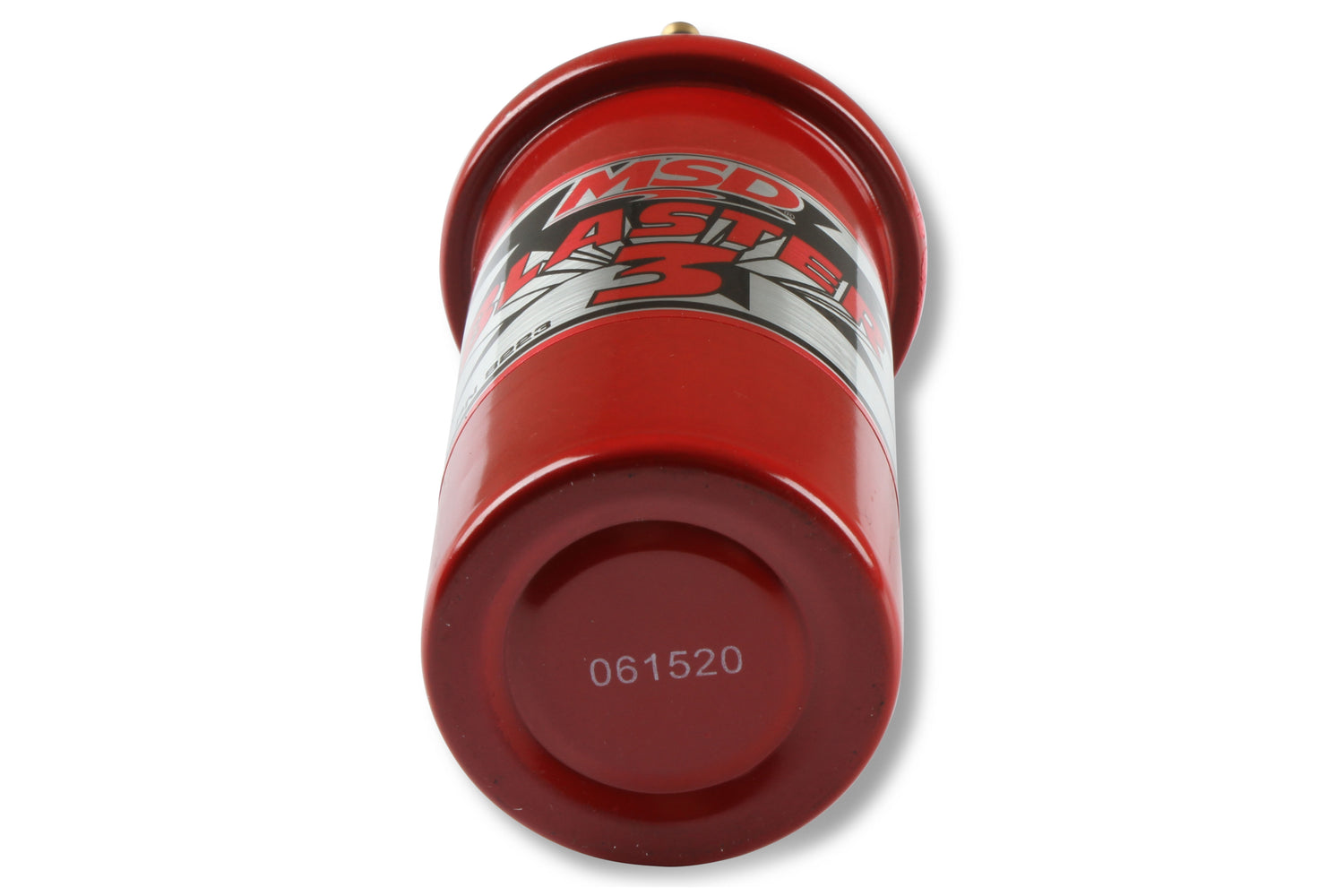

• MSD Red metal canister is filled with a premium grade oil for cooling
• Extra tall secondary tower for secure coil wire connection
• Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)• 100:1 turns ratio and lower primary resistance produce high voltage output
CARB EO: D-40-37
Part Number: 8223
The Blaster 3 Coil features an extra-tall tower design to improve the coil wire attachment and spark isolation. Supplied with a 90-degree terminal and boot. If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6, or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister.
Features and Benefits
• Supplied with a 90° spark plug style terminal and boot
• CARB E.O. Approved
• MSD Red metal canister is filled with a premium grade oil for cooling
• Extra tall secondary tower for secure coil wire connection
• Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)• 100:1 turns ratio and lower primary resistance produce high voltage output
CARB EO: D-40-37
Specifications
Specifications
-
Specifications
Brand MSD C.A.R.B. EO # D-40-37 Category Ignition Emission Code 1 Inductance (mH) 8 Maximum Voltage 45,000 part type Ignition Coil Peak Current 140 Primary Resistance 0.7 Product Type Coil Secondary Resistance 4.5K Spark Duration 0.35 Sub Category Ignition Coil Turns Ratio 4.17 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
Instructions
