MSD | SKU:
8479
MSD Ford 289/302 Street Pro-Billet - 8479
Small diameter distributor for 289/302 engines, includes iron gear and vacuum advance. Must be used with an MSD 6, 7 or 8-series ignition.
Regular price
$1,068.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Ford 289/302 Street Pro-Billet - 8479 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Small diameter distributor for 289/302 engines, includes iron gear and vacuum advance. Must be used with an MSD 6, 7 or 8-series ignition.
Part Number: 8479
The distributor relies on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance. Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance. MSD engineers fit all of their high performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing are 5/8" smaller than stock Ford distributors providing extra room in front of the engine. The new MSD cap features spark plug style terminals and is firmly screwed down to the housing.
Features and Benefits
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

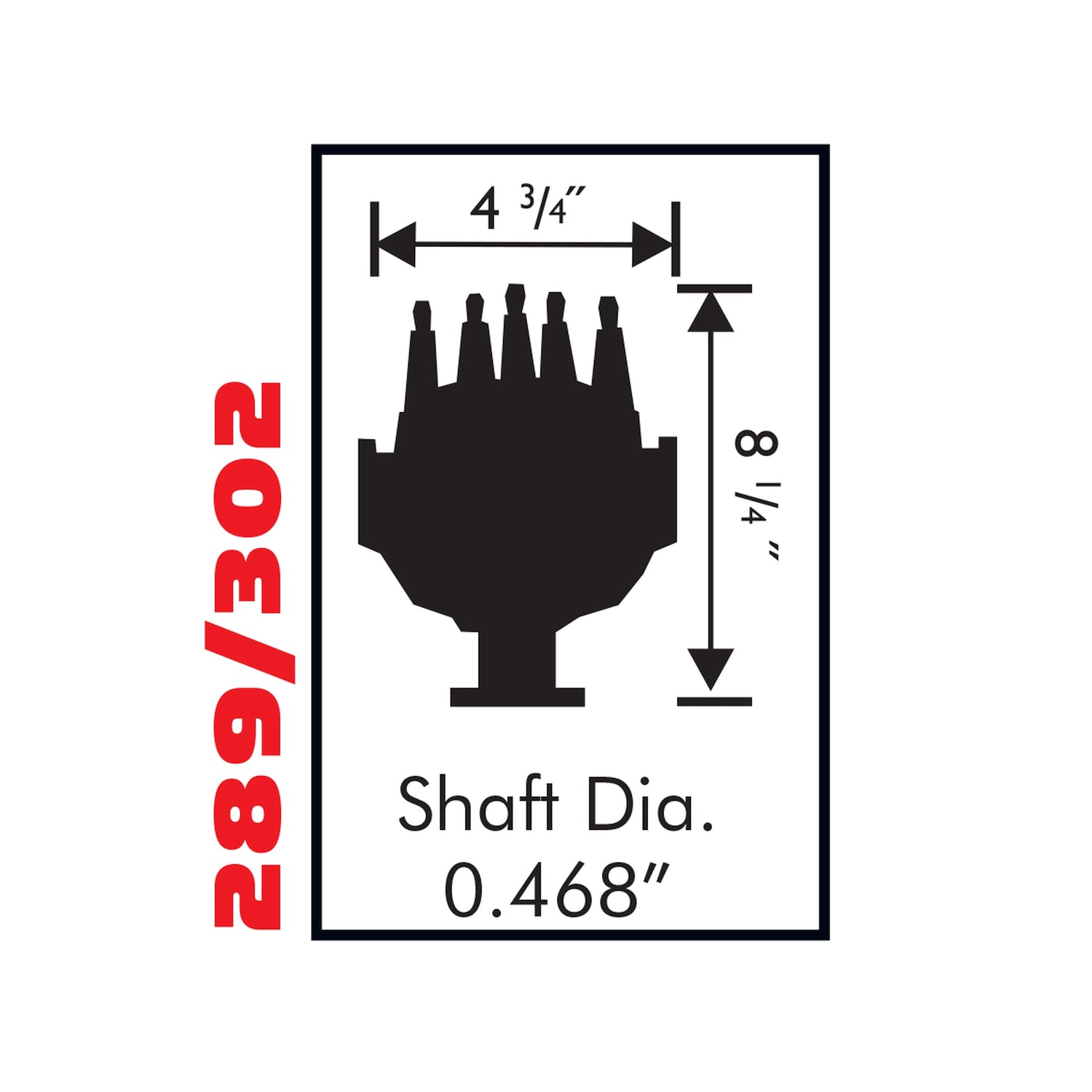

• Billet housing is 5/8” smaller in diameter than stock Ford distributors
• CNC machined billet aluminum housing and billet aluminum base
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Nylon pads ensure smooth operation of the advance weights
• Must be used with an MSD Ignition Control
• Vacuum advance canister for improved economy (can be locked out)
• CARB E.O. Approved

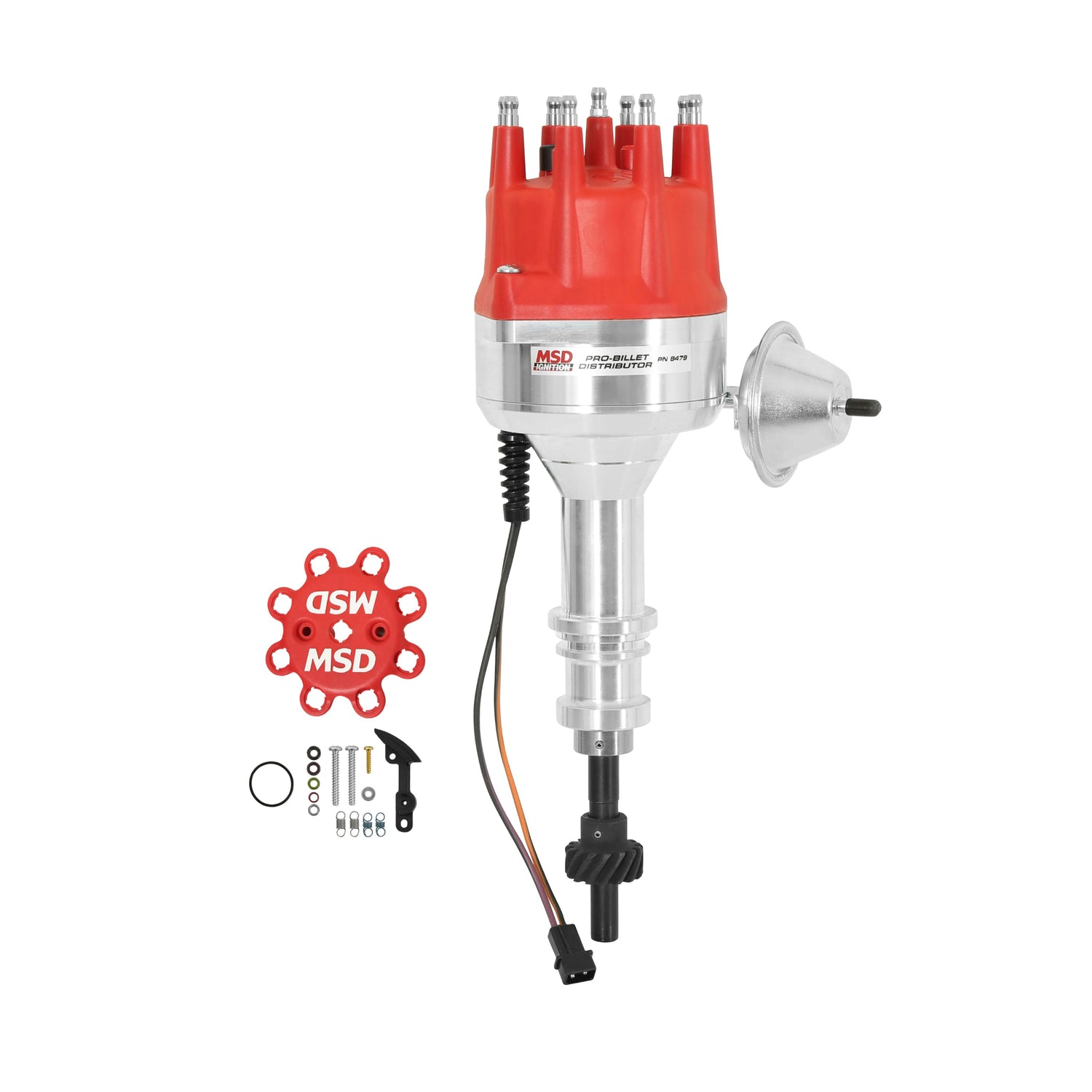

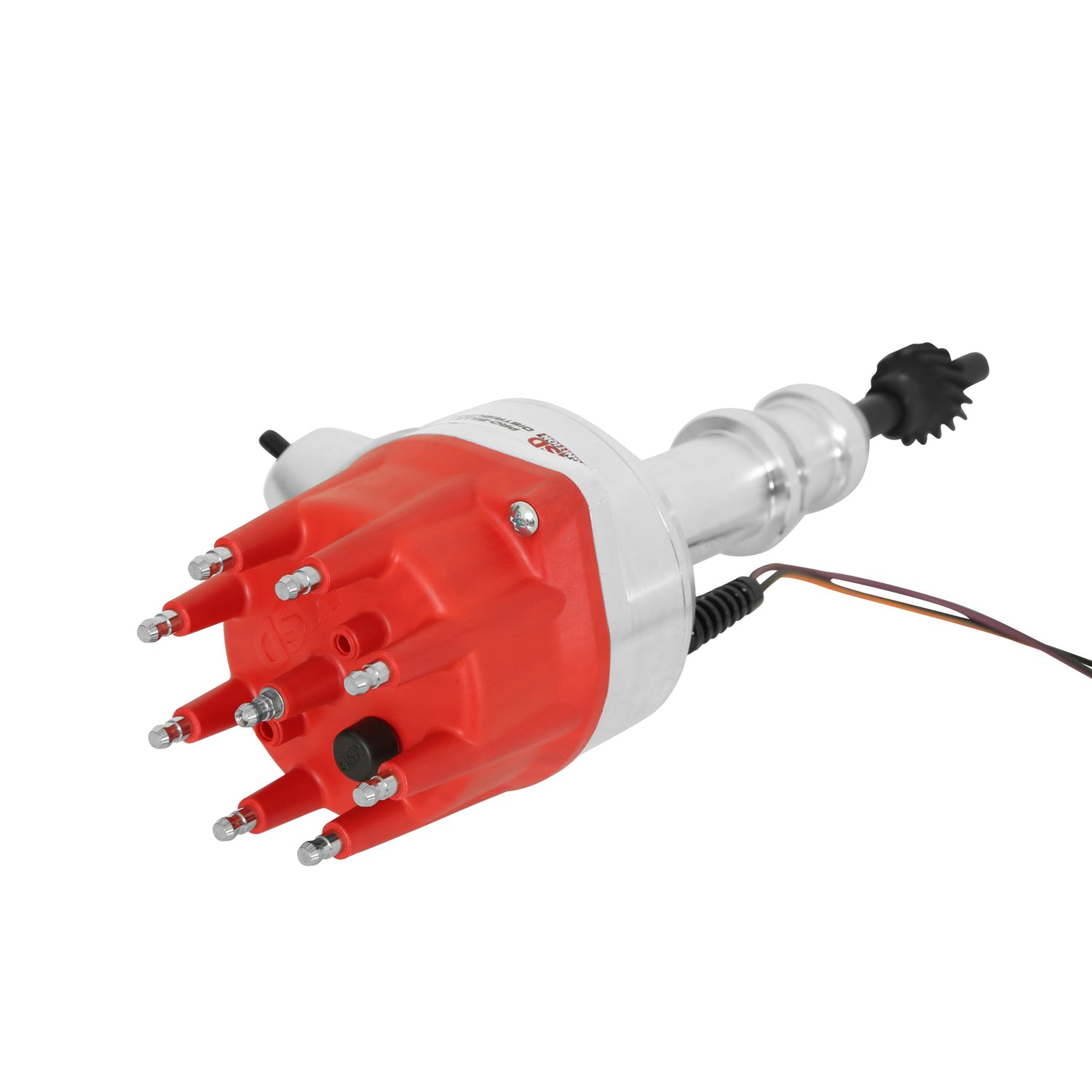

• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Mechanical advance assembly can be locked out for crank trigger systems
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance weight pins are staked and tig welded to the plate
Part Number: 8479
The distributor relies on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance. Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance. MSD engineers fit all of their high performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing are 5/8" smaller than stock Ford distributors providing extra room in front of the engine. The new MSD cap features spark plug style terminals and is firmly screwed down to the housing.
Features and Benefits
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Billet housing is 5/8” smaller in diameter than stock Ford distributors
• CNC machined billet aluminum housing and billet aluminum base
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Nylon pads ensure smooth operation of the advance weights
• Must be used with an MSD Ignition Control
• Vacuum advance canister for improved economy (can be locked out)
• CARB E.O. Approved
• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Mechanical advance assembly can be locked out for crank trigger systems
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance weight pins are staked and tig welded to the plate
Specifications
Specifications
-
Specifications
Brand MSD C.A.R.B. EO # D-40-39 Category Ignition Color Red Distributor Cap Included Yes Distributor Type Magnetic Pickup Emission Code 1 Engine Ford Small Block Gear Cast Iron Gear Material Cast Iron Melonized QPQ Coated Grade Type Performance Ignition Box Required Yes Ignition Coil Included No Ignition Rotor Included Yes part type Distributor Product Type Distributor Sub Category Distributor and Magneto Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
