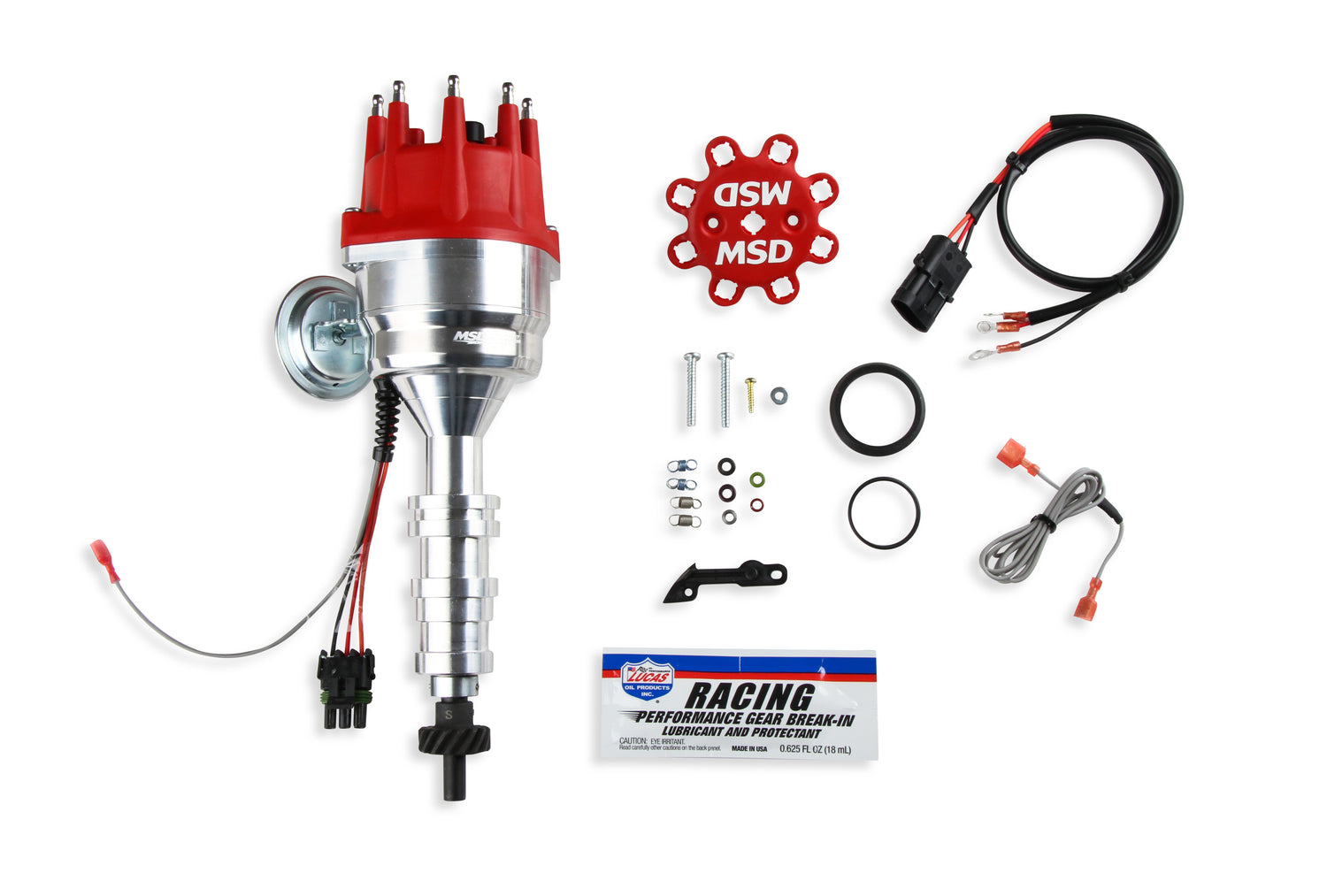

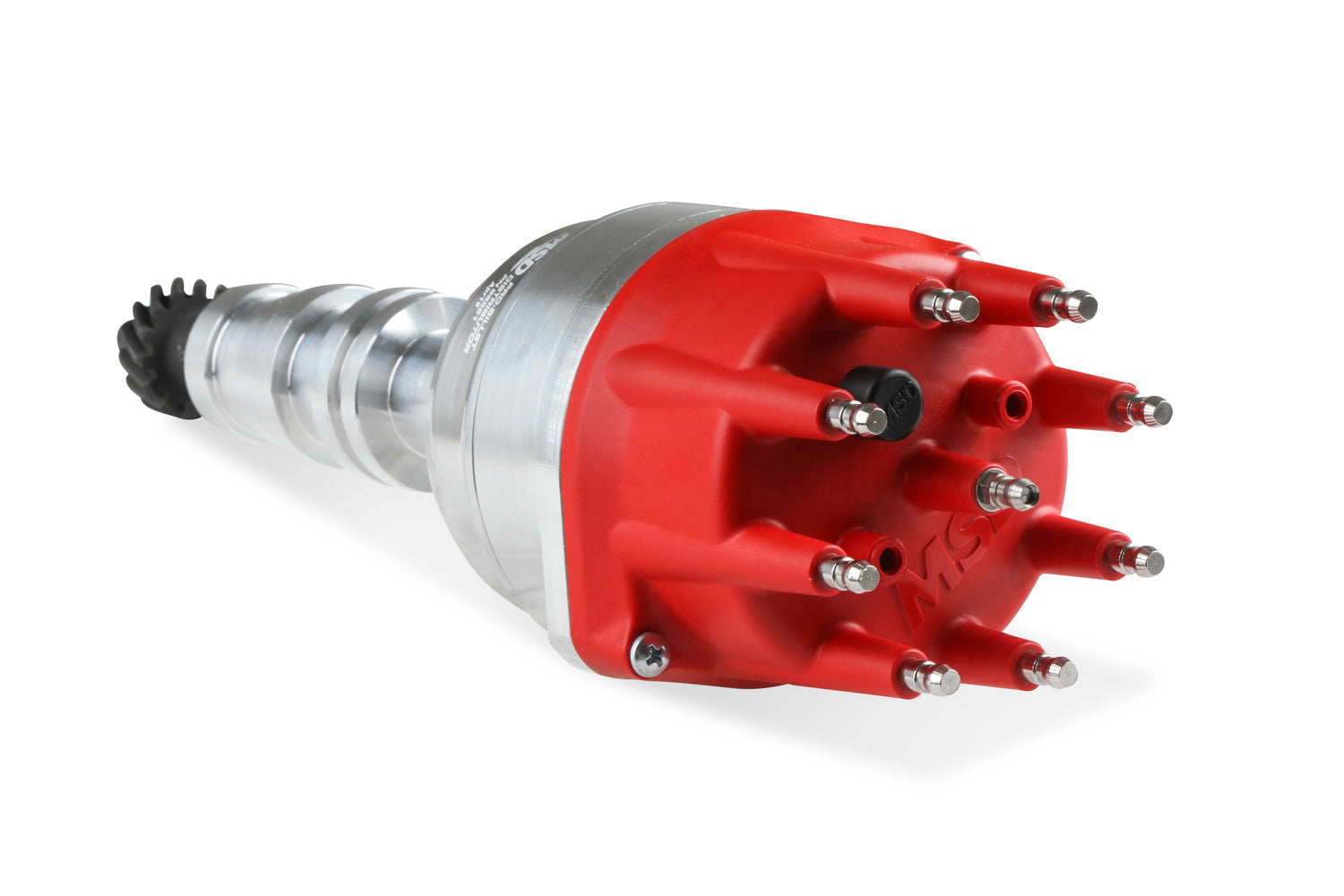

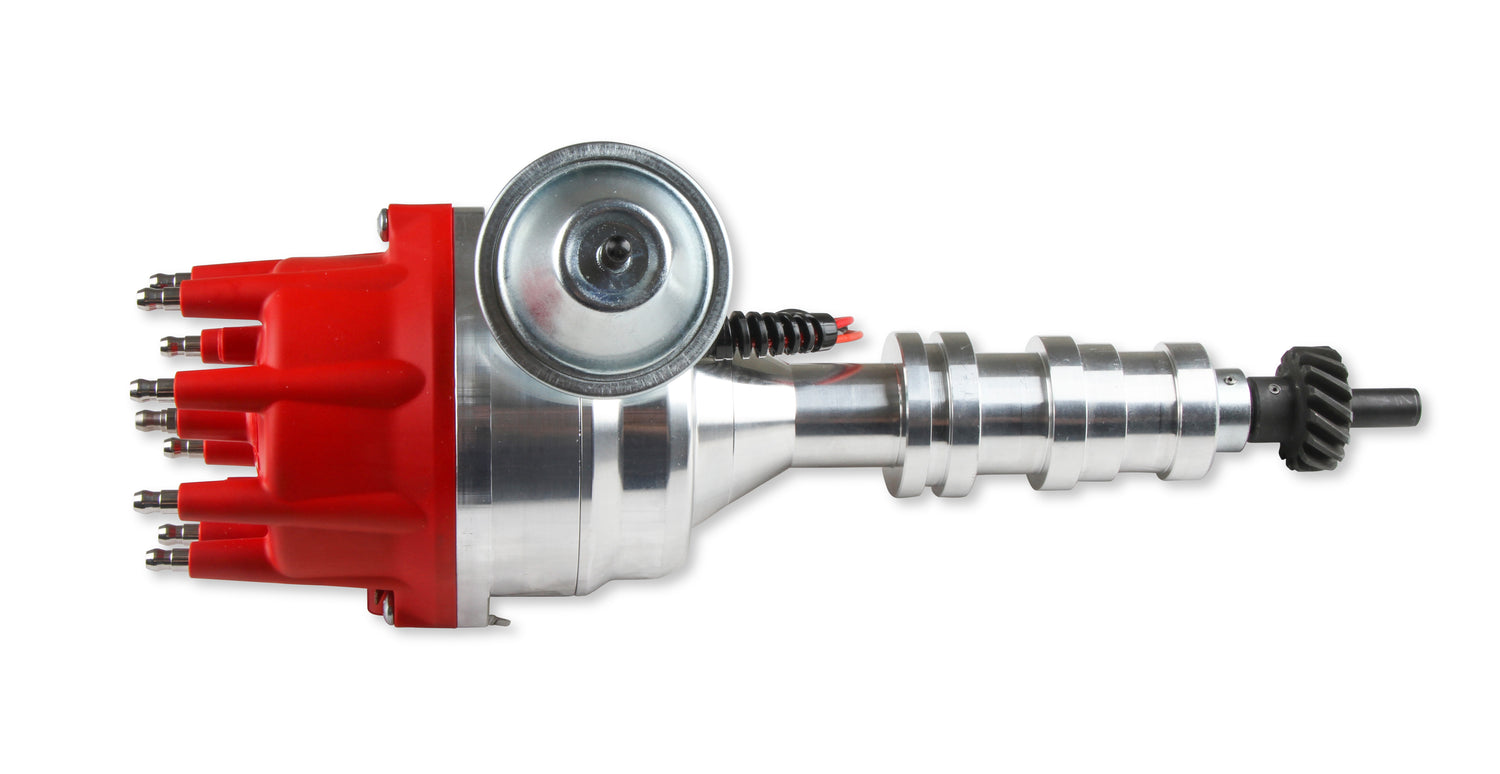

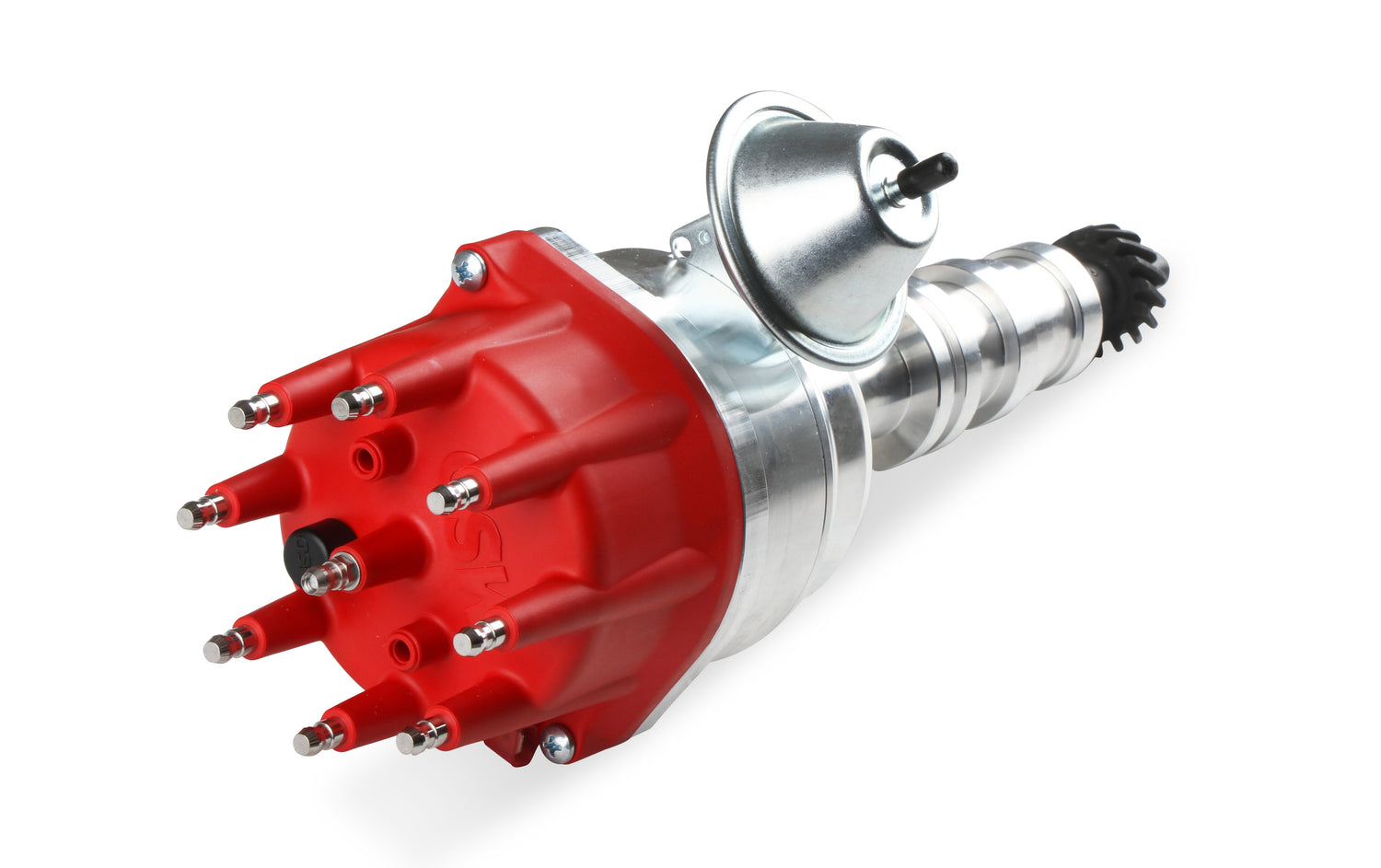

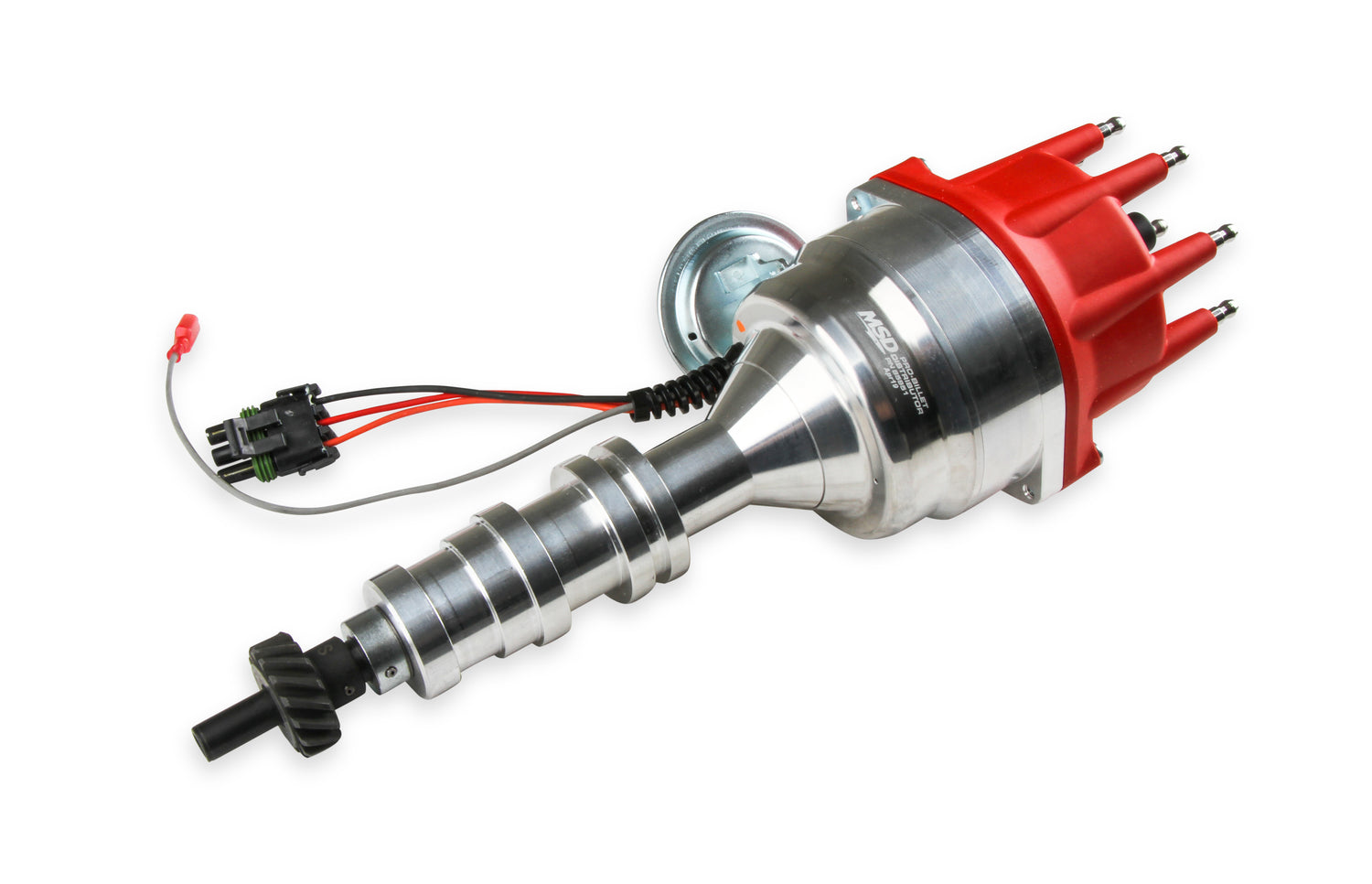

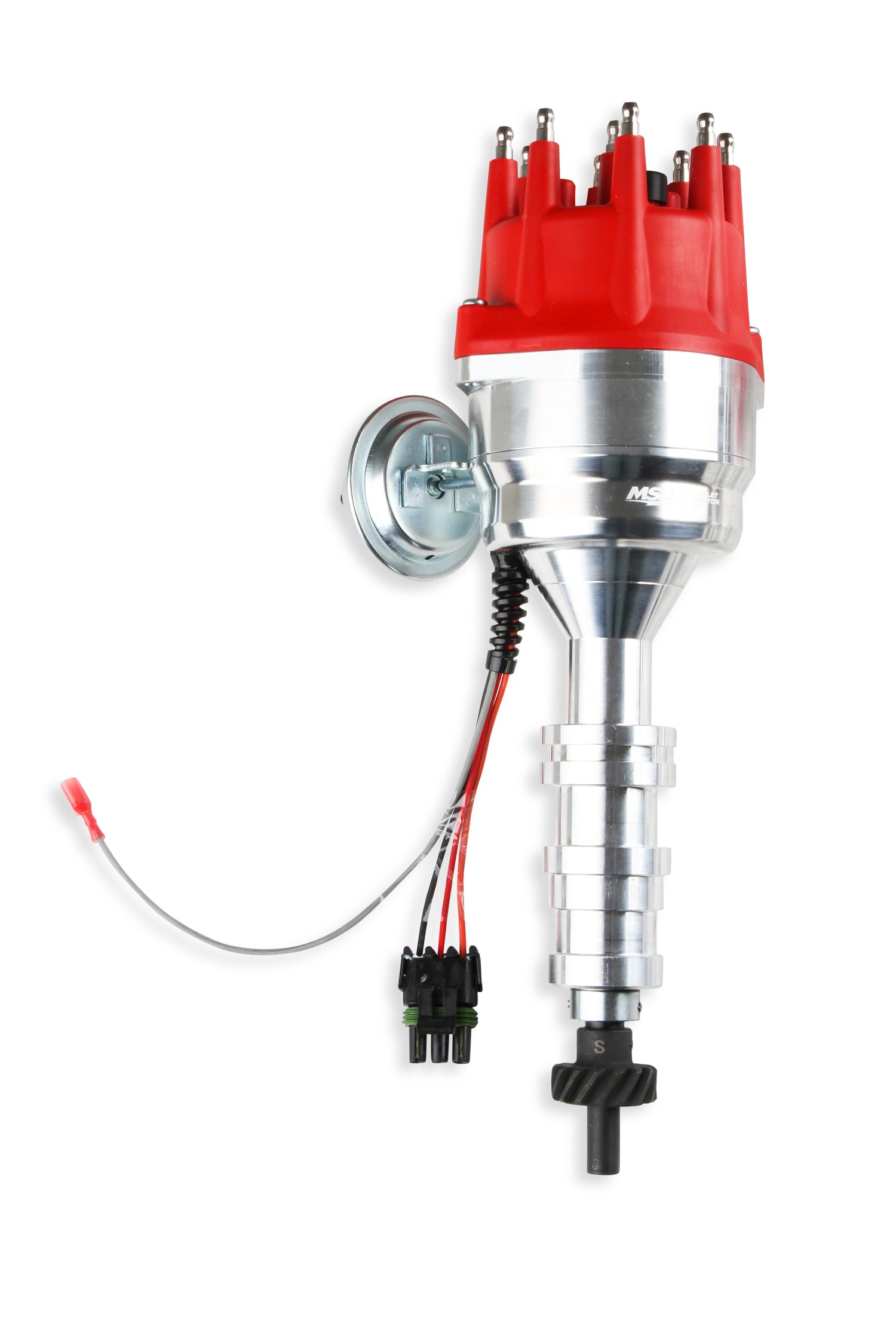

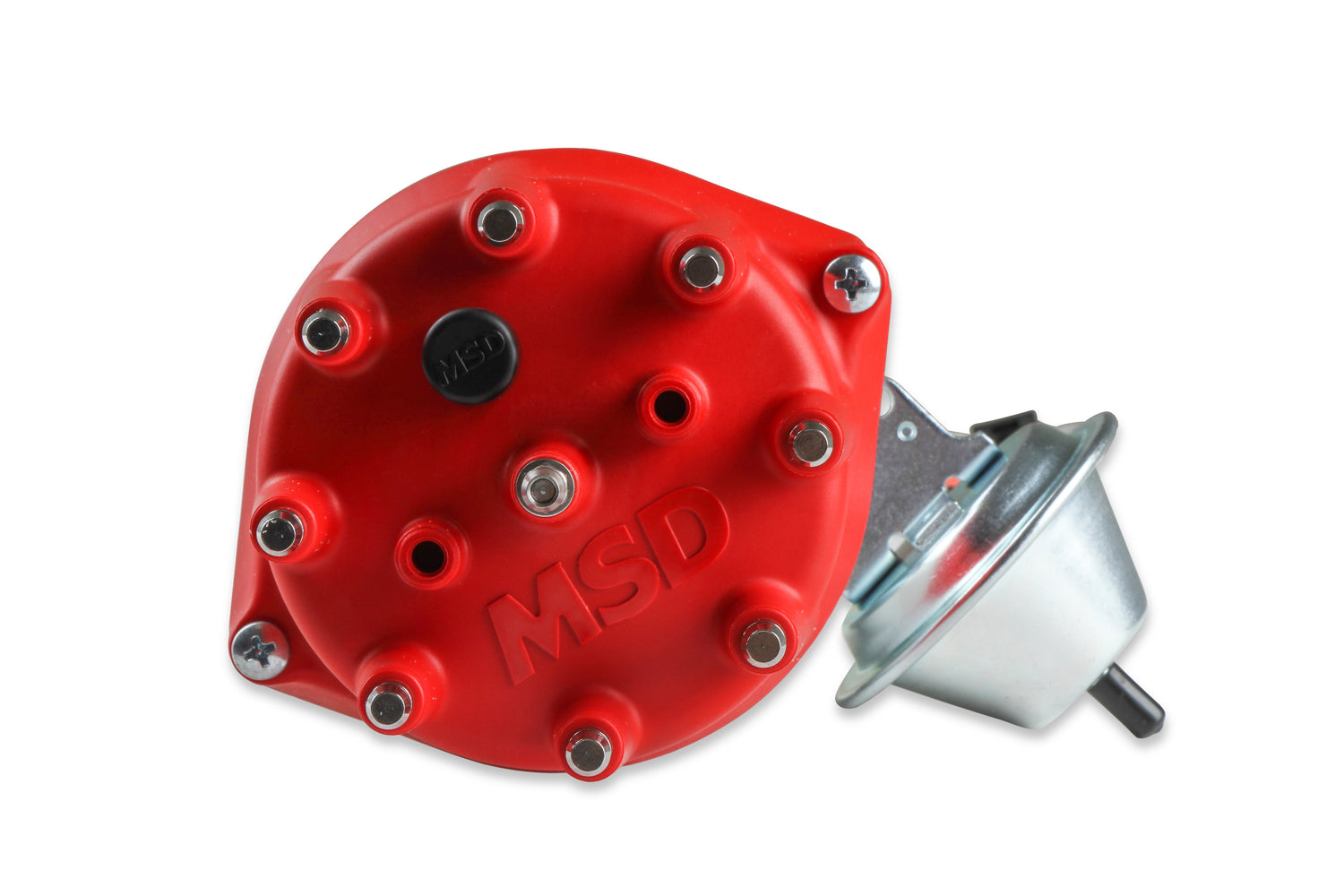

MSD Distributor, Ford FE, Ready-to-Run, Steel Gear - 85951

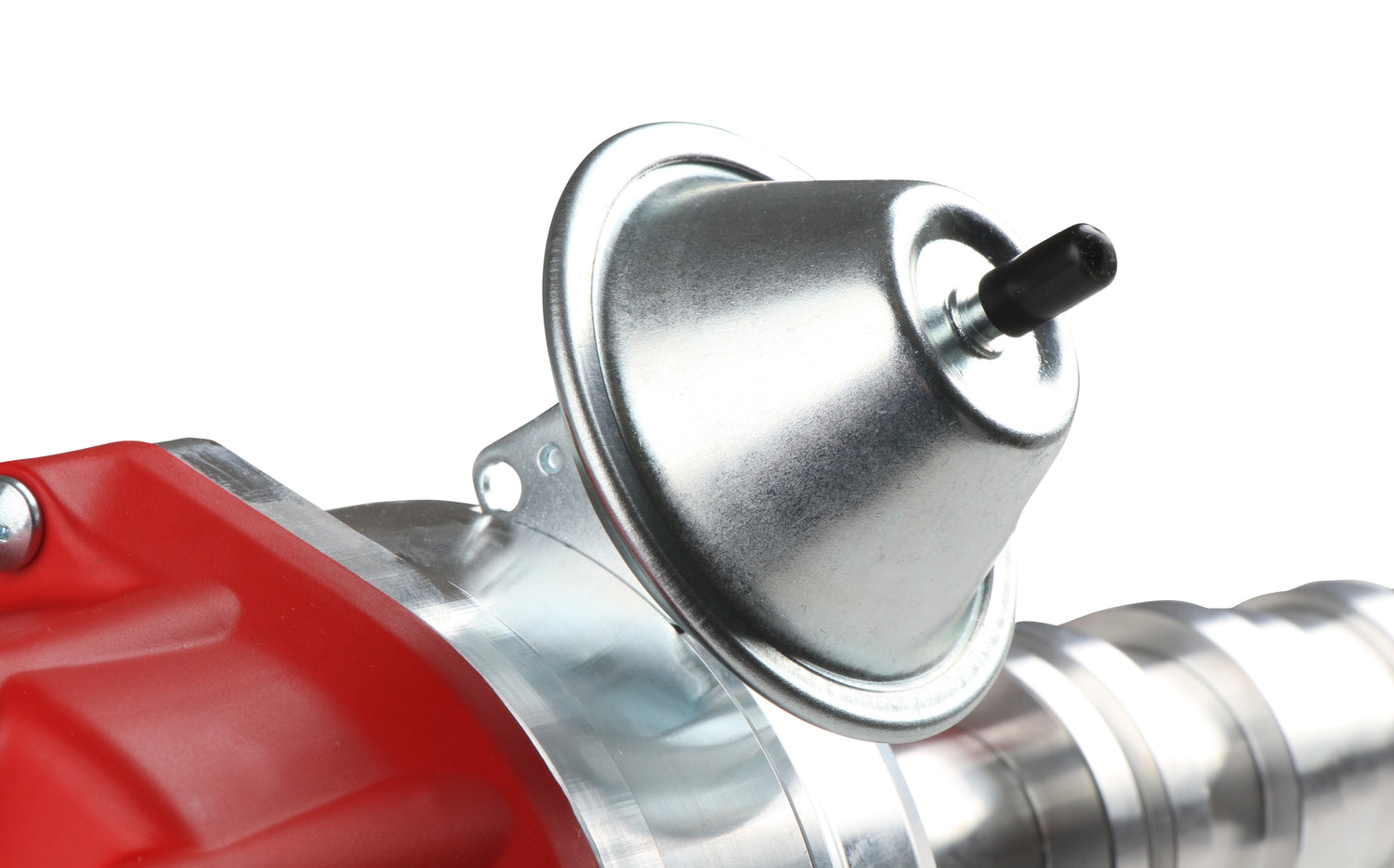

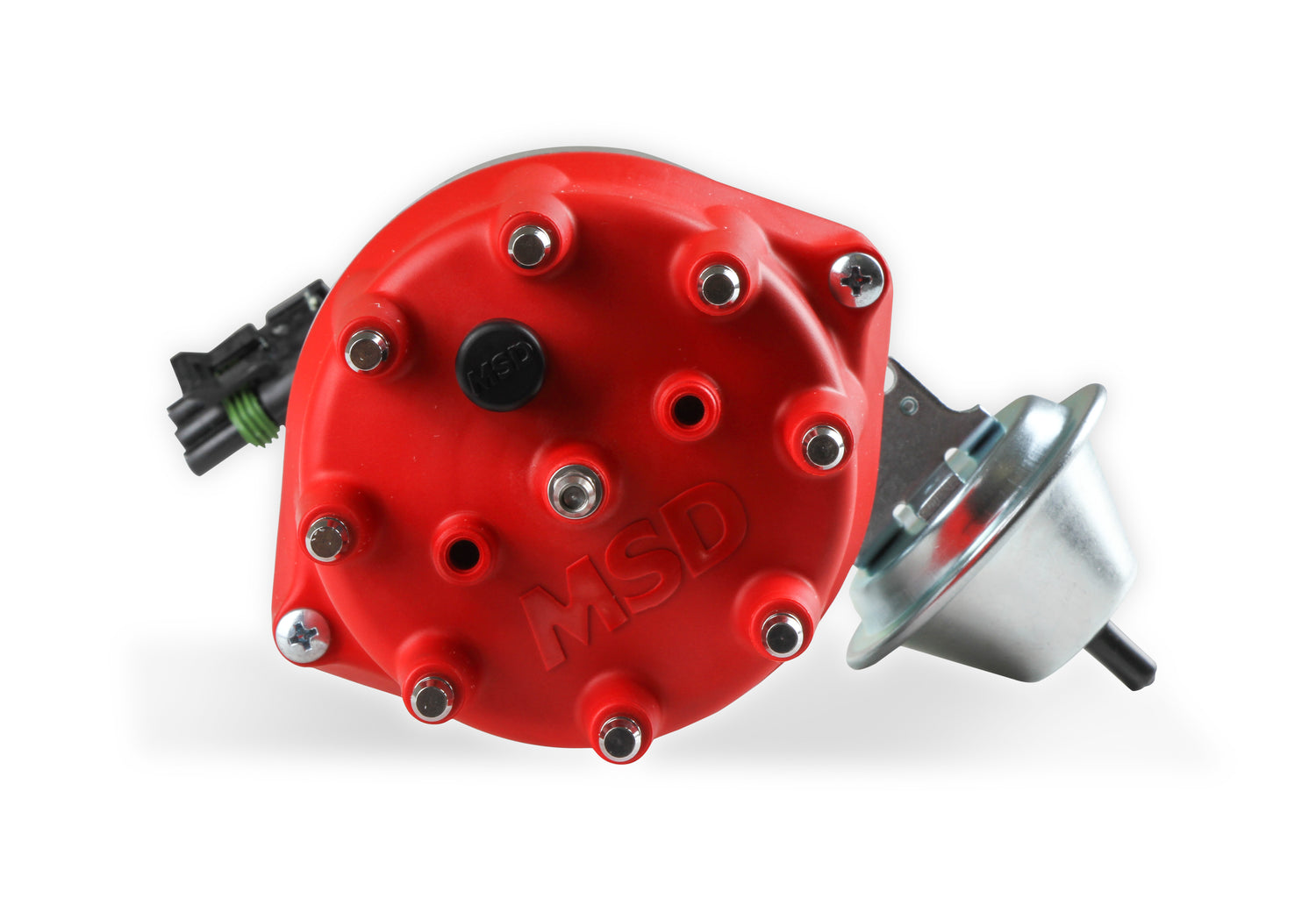

MSD's Pro-Billet Distributor with Small Diameter Red Cap and Ready to Run w/Vacuum Advance and Steel Gear, No Ignition Box needed.

Part Number: 85951

In the world of modern engine design, it's hard to beat a hydraulic roller camshaft for all-around performance. It's crucial to match the distributor gear with the cam material to prevent premature failure of the cam or distributor gear which can lead to engine damage. Ford distributors present a challenge when changing the distributor gear due to their pressed fit, the need to cross drill the distributor shaft and set the gear to a specific height. We've taken the trouble out of the mix with our line of popular Ford distributor applications that come with a steel gear installed ready for hydraulic roller cams. Whether you're working with a crate engine or building your own combination, MSD has the performance distributor ready. MSD now offers Ford distributors with steel gears for use with hydraulic roller cams.

Features and Benefits

• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance weight pins are staked and tig welded to the plate
• Mechanical advance assembly can be locked out for crank trigger systems
• Steel Gear Installed
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• CNC Machined Billet Aluminum Housing and Billet Aluminum Base

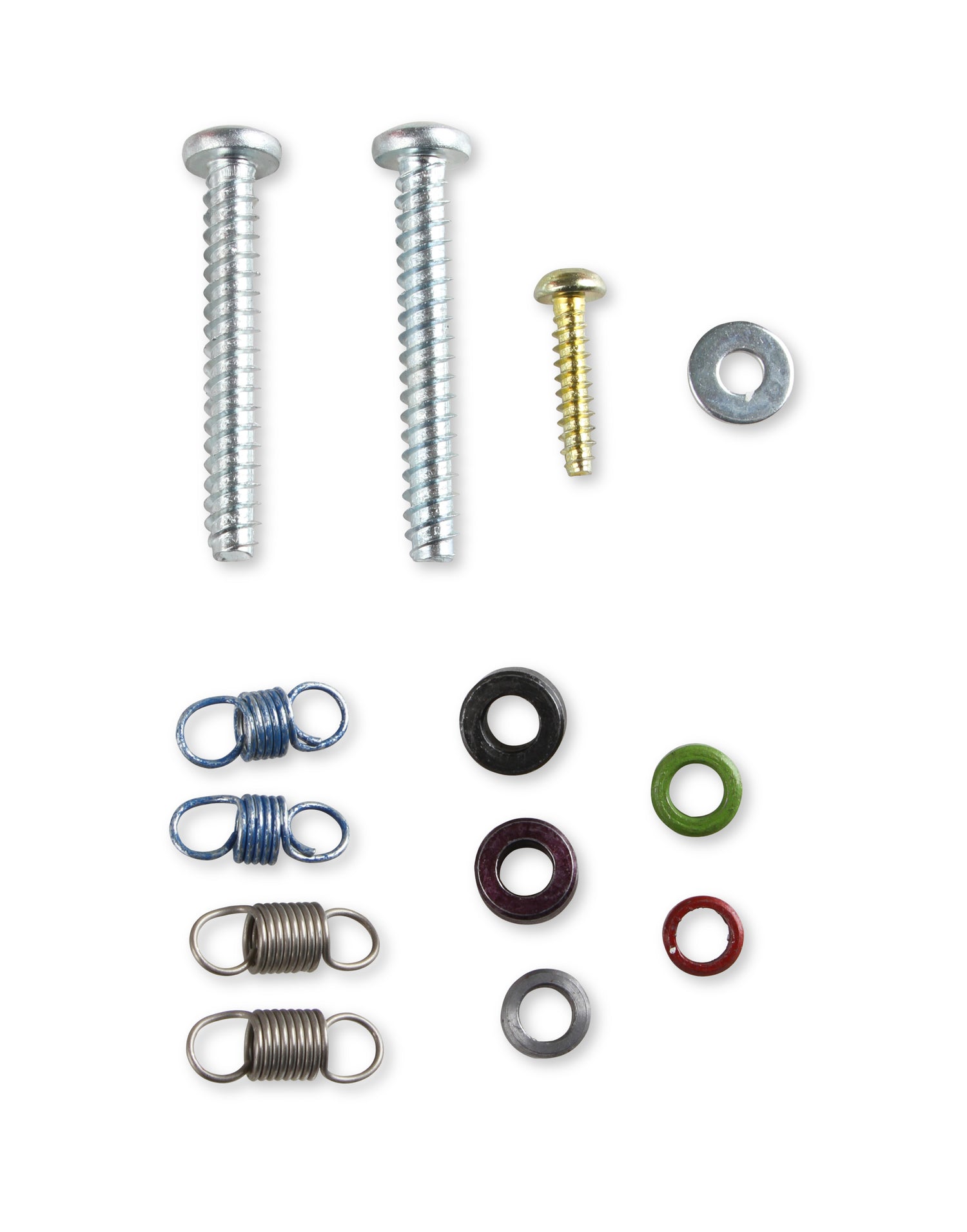

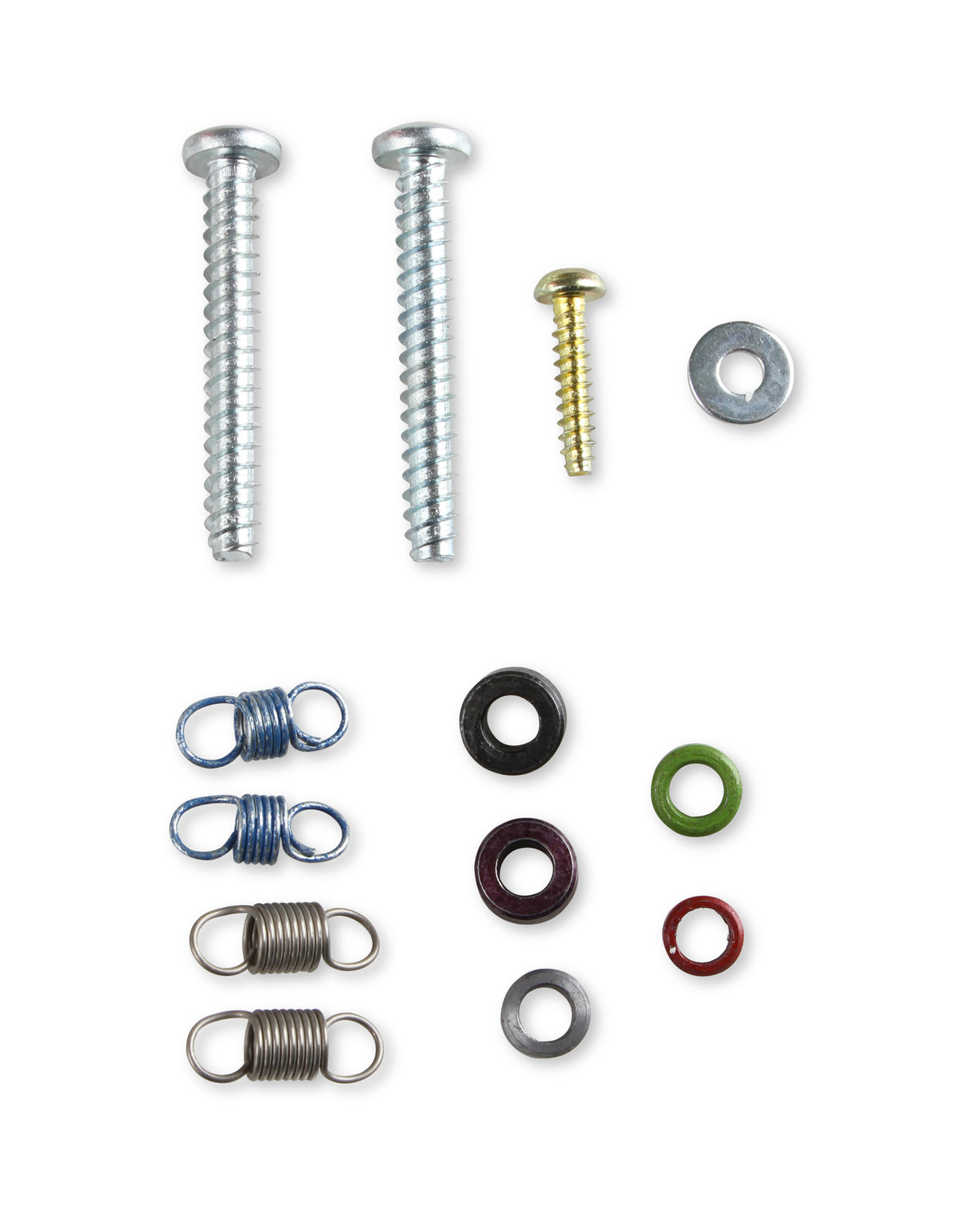

• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Nylon pads ensure smooth operation of the advance weights

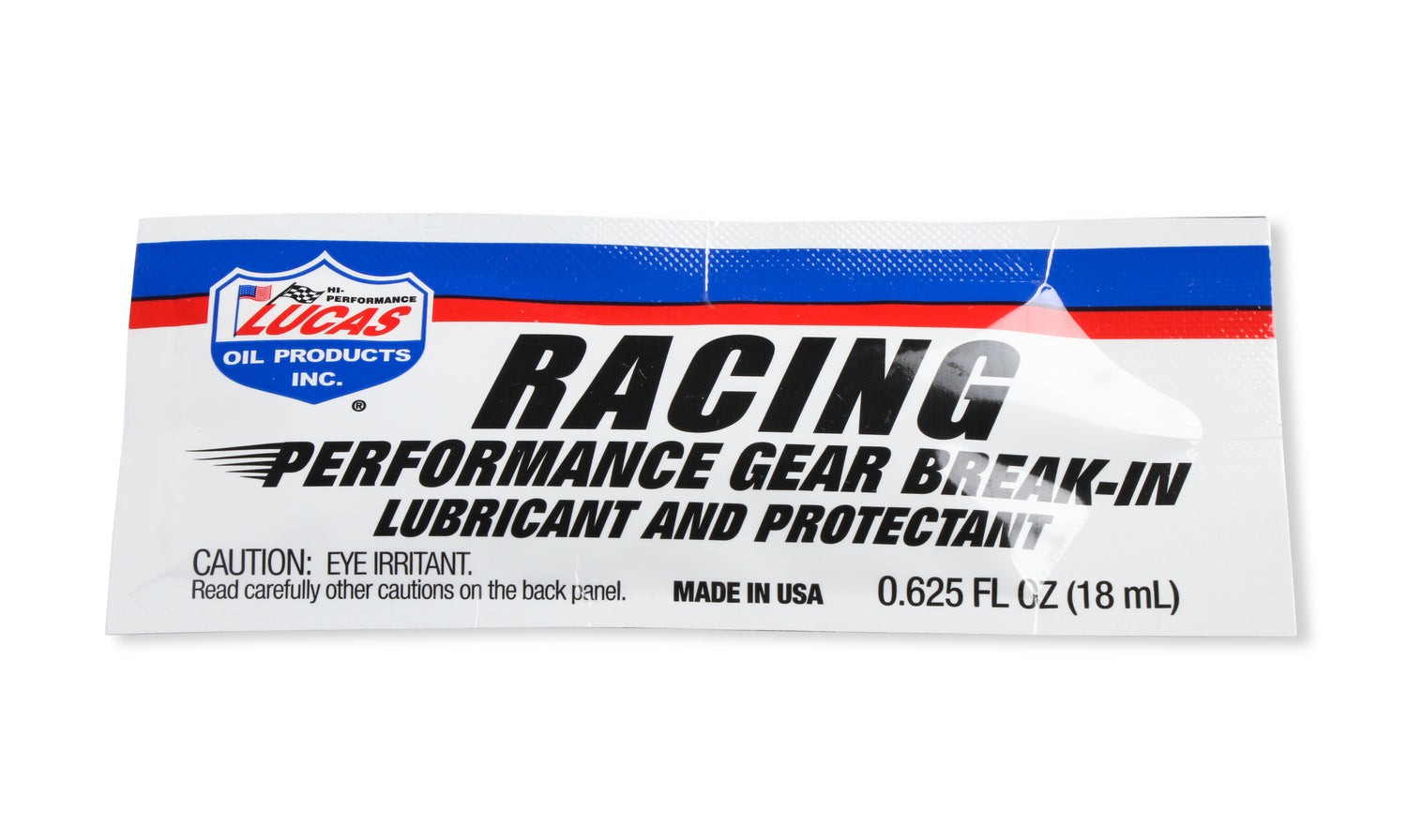

Refer to Supply Voltage Addendum, Rev Limiter Addendum and Gear Lube Addendum
