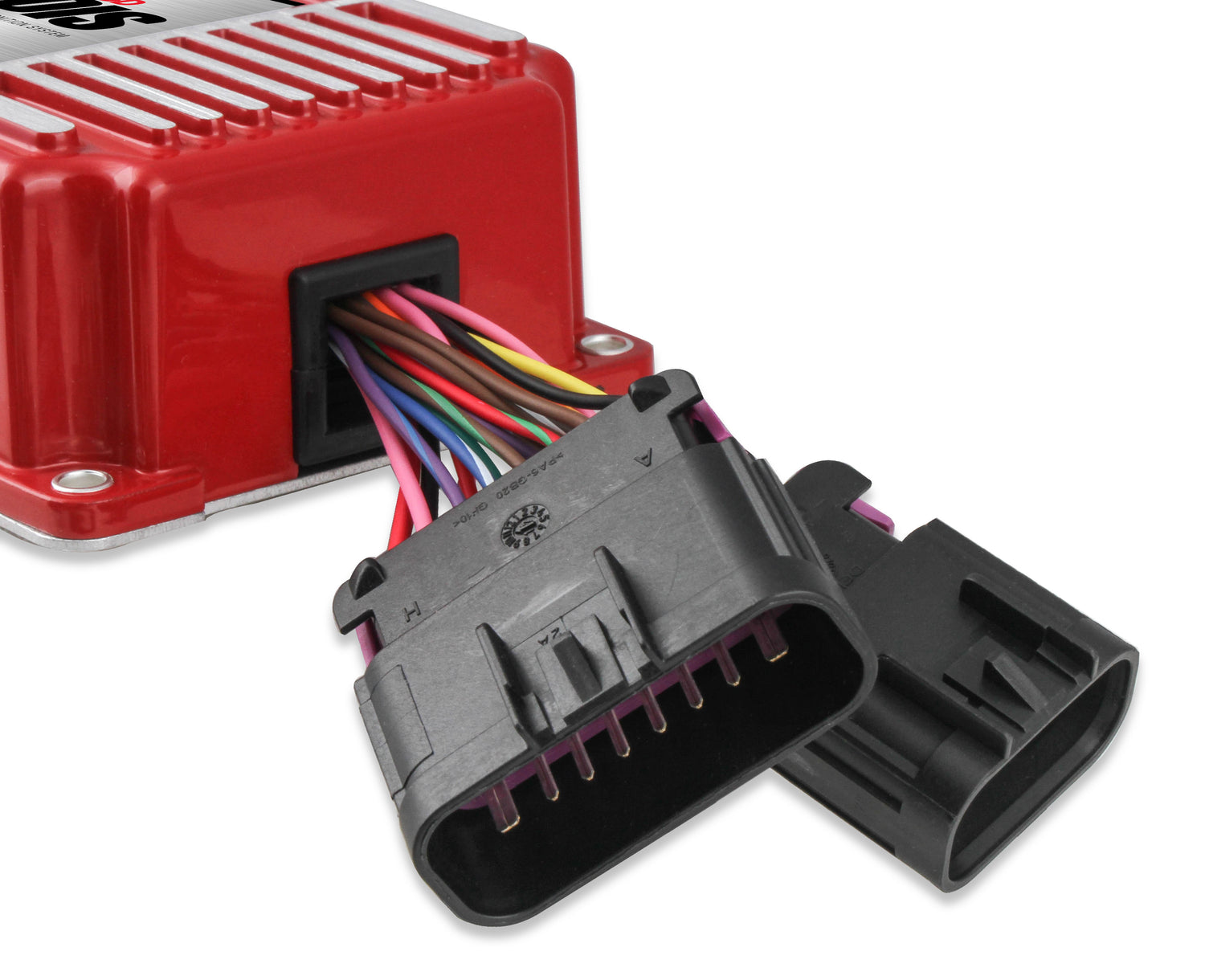

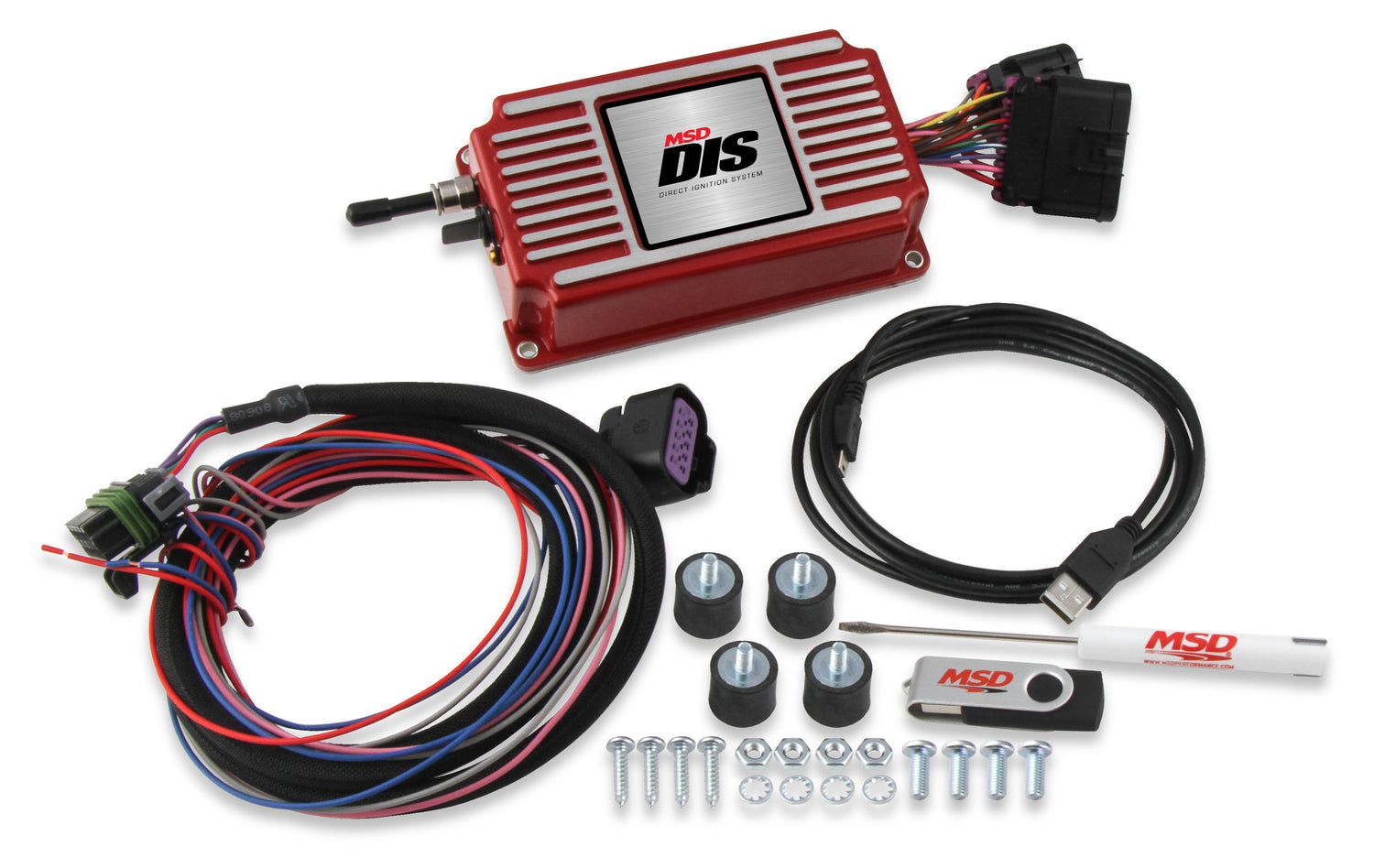

MSD DIS Direct Ignition System Control Box - Red - 6015MSD

GM/Ford/Dodge V8 Using MSD Dual Sync Distributor

Part Number: 6015MSD

Timing is digitally controlled ensuring precision accuracy at all RPM's and every firing. The DIS has advanced timing and rev-limiter functions for racers such as individual cylinder timing; timing retards for boosted and nitrous applications, a two-step rev-limiter, and launch control to get your car out of the hole and even data acquisition to keep everything in check. Modern Firepower for your classic - the MSD Direct Ignition System, or DIS, converts an early style engine from a conventional distributor and single coil setup to eight individual coils. One coil per cylinder means no moving parts in a distributor to control the timing and no cap and rotor to wear-out. Convert your early Chevy, Ford or Mopar by replacing the worn out distributor with an MSD Pro-Billet Dual Sync Distributor and blank cap. The Dual Sync plugs directly into the 6015MSD DIS Ignition control providing the cam and crank signals. The DIS then plugs into a set of GM smart coils, a.k.a. LS coils, and just like that, your early bullet has modern firepower.

Features and Benefits

• Preprogrammed timing maps
• Single Timing Step Retard ideal for pulling timing for nitrous applications
• Built-in 2.5 bar Manifold Absolute Pressure (MAP) sensor for boosted applications
• Programmable Max Rev and Launch RPM limiters provide engine protection
• Optional temperature sensor input to control timing based on temperature
• Consistent holeshots thanks to a Programmable Launch Timing Retard

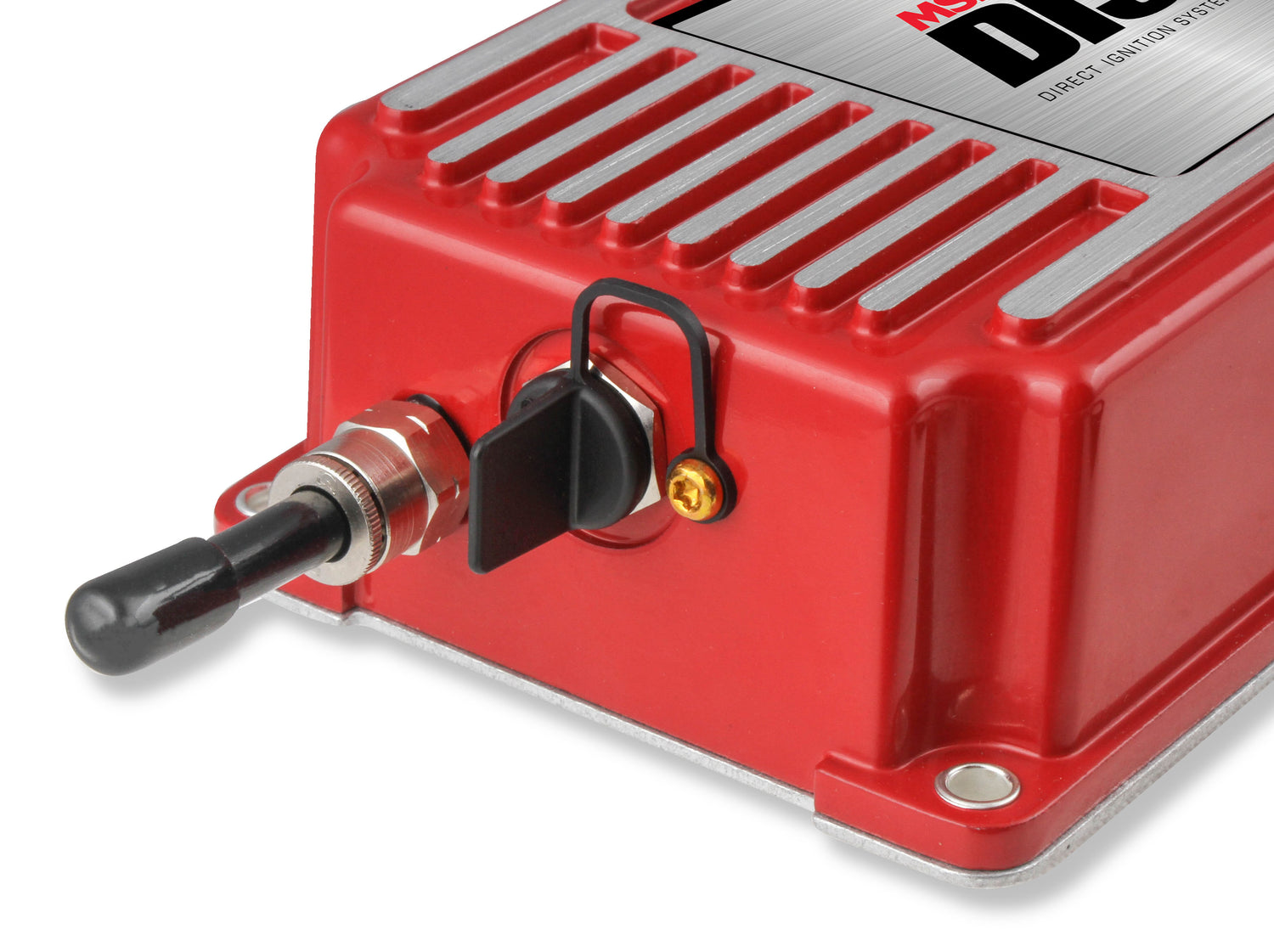

• Easily programmable through a Mini-USB communication port
• Individual Cylinder Timing (ICT) allows precise tuning
• Data acquisition allows you to keep an eye on all aspects of the ignition
• Fully Programmable 2D and 3D Timing maps provide complete timing control
• Easily convert to a Coil-Per-Plug ignition system
• Fully potted electronics and sealed connectors for maximum durability
• Complete kits with all required components available

Required Parts_x000D_ 1. MSD Pro-Billet Dual Sync Distributor_x000D_ 2. PN 84323 Blank Distributor Cap_x000D_ 3. LS coil harness (Recommended Holley PN 558-321)_x000D_ 4. GM Smart Coils (LS Coils) Recommend MSD PN 82658_x000D_ 5. LS Universal Spark Plug Wire Set_x000D_ Optional Accessories_x000D_ 1. Coolant Temperature Sensor, MSD PN 2934_x000D_ Recommended Parts_x000D_ 1. Coil Bracket Set, Holley PN 561-122
