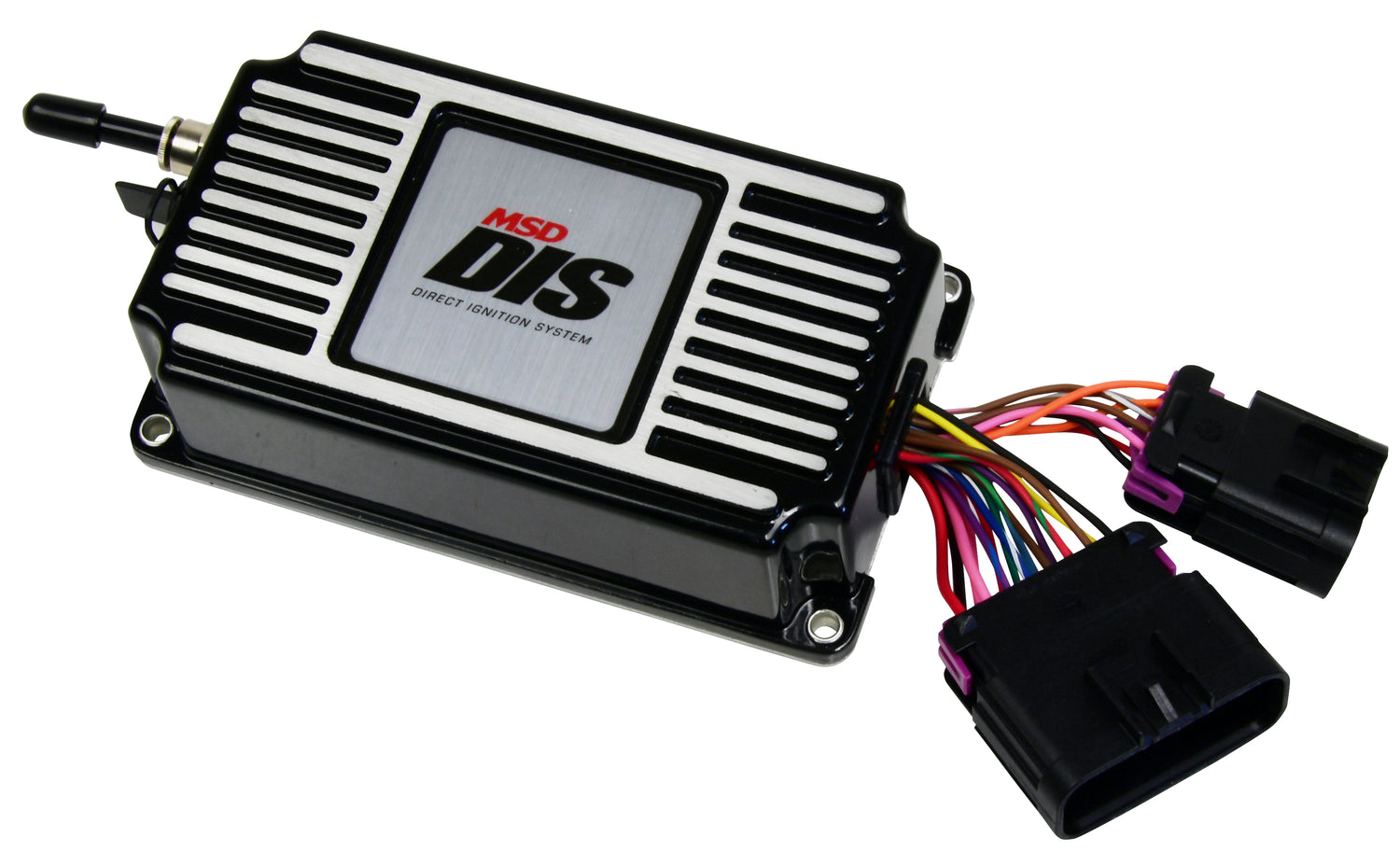

MSD DIS Direct Ignition System Control Box - Black - 60153MSD

GM/Ford/Dodge V8 Using MSD Dual Sync Distributor

Part Number: 60153MSD

Timing is digitally controlled ensuring precision accuracy at all RPM's and every firing. The DIS has advanced timing and rev-limiter functions for racers such as individual cylinder timing; timing retards for boosted and nitrous applications, a two-step rev-limiter, and launch control to get your car out of the hole and even data acquisition to keep everything in check. Convert your early Chevy, Ford or Mopar by replacing the worn out distributor with an MSD Pro-Billet Dual Sync Distributor and blank cap. The Dual Sync plugs directly into the 6015MSD DIS Ignition control providing the cam and crank signals. The DIS then plugs into a set of GM smart coils, a.k.a. LS coils, and just like that, your early bullet has modern firepower. Modern Firepower for your classic - the MSD Direct Ignition System, or DIS, converts an early style engine from a conventional distributor and single coil setup to eight individual coils. One coil per cylinder means no moving parts in a distributor to control the timing and no cap and rotor to wear-out.

Features and Benefits

• Complete kits with all required components available
• Preprogrammed timing maps
• Fully Programmable 2D and 3D Timing maps provide complete timing control

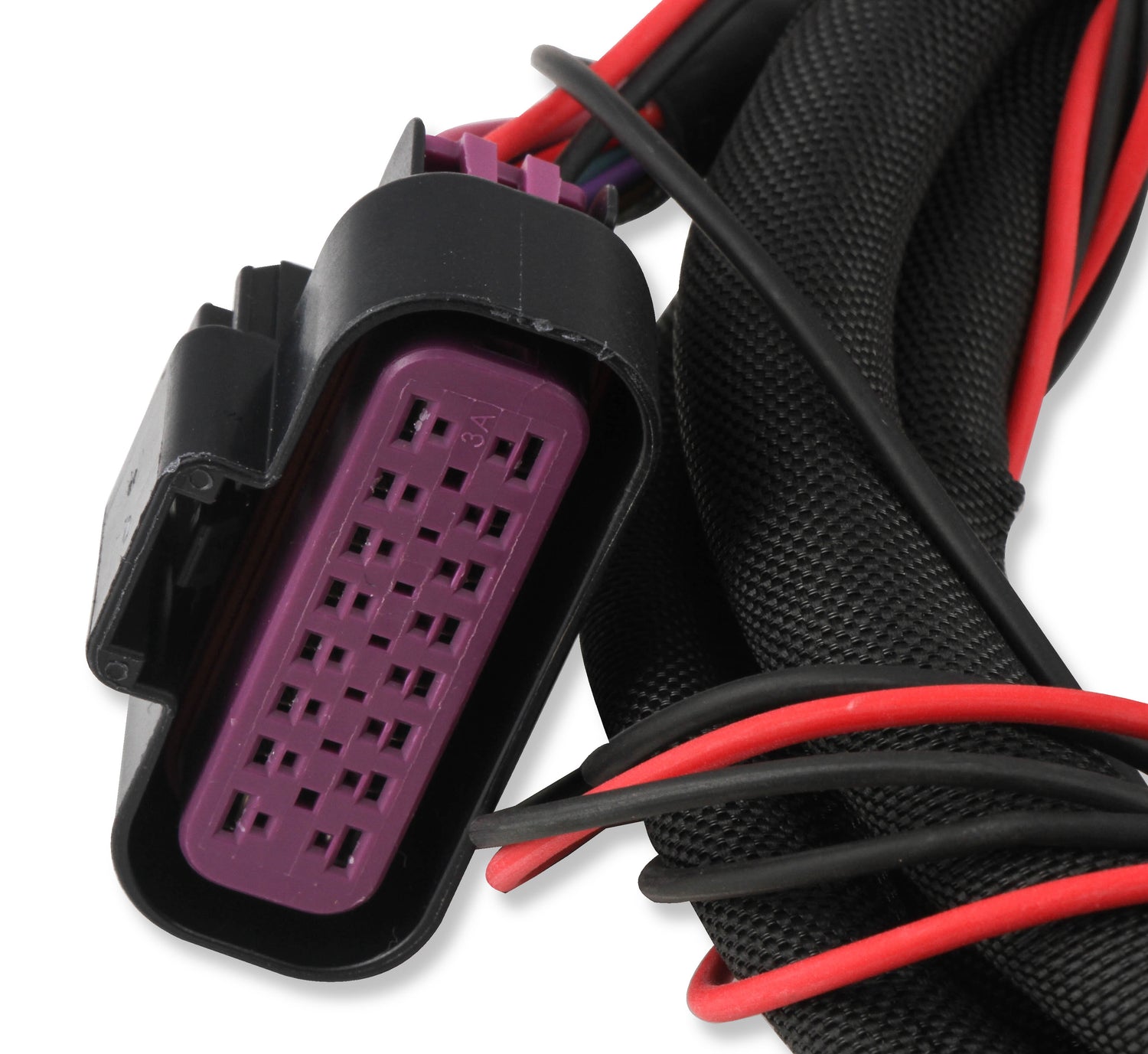

• Fully potted electronics and sealed connectors for maximum durability
• Easily programmable through a Mini-USB communication port
• Programmable Max Rev and Launch RPM limiters provide engine protection
• Data acquisition allows you to keep an eye on all aspects of the ignition
• Optional temperature sensor input to control timing based on temperature
• Built-in 2.5 bar Manifold Absolute Pressure (MAP) sensor for boosted applications
• Easily convert to a Coil-Per-Plug ignition system
• Single Timing Step Retard ideal for pulling timing for nitrous applications
• Consistent holeshots thanks to a Programmable Launch Timing Retard
• Individual Cylinder Timing (ICT) allows precise tuning

Required Parts_x000D_ 1. MSD Pro-Billet Dual Sync Distributor_x000D_ 2. PN 84323 Blank Distributor Cap_x000D_ 3. LS coil harness (Recommended Holley PN 558-312)_x000D_ 4. GM Smart Coils (LS Coils) Recommend MSD PN 82658_x000D_ 5. LS Universal Spark Plug Wire Set_x000D_ Optional Accessories_x000D_ 1. Coolant Temperature Sensor, MSD PN 2934_x000D_ Recommended Parts_x000D_ 1. Coil Bracket Set, Holley PN 561-122
