MSD | SKU:
8922

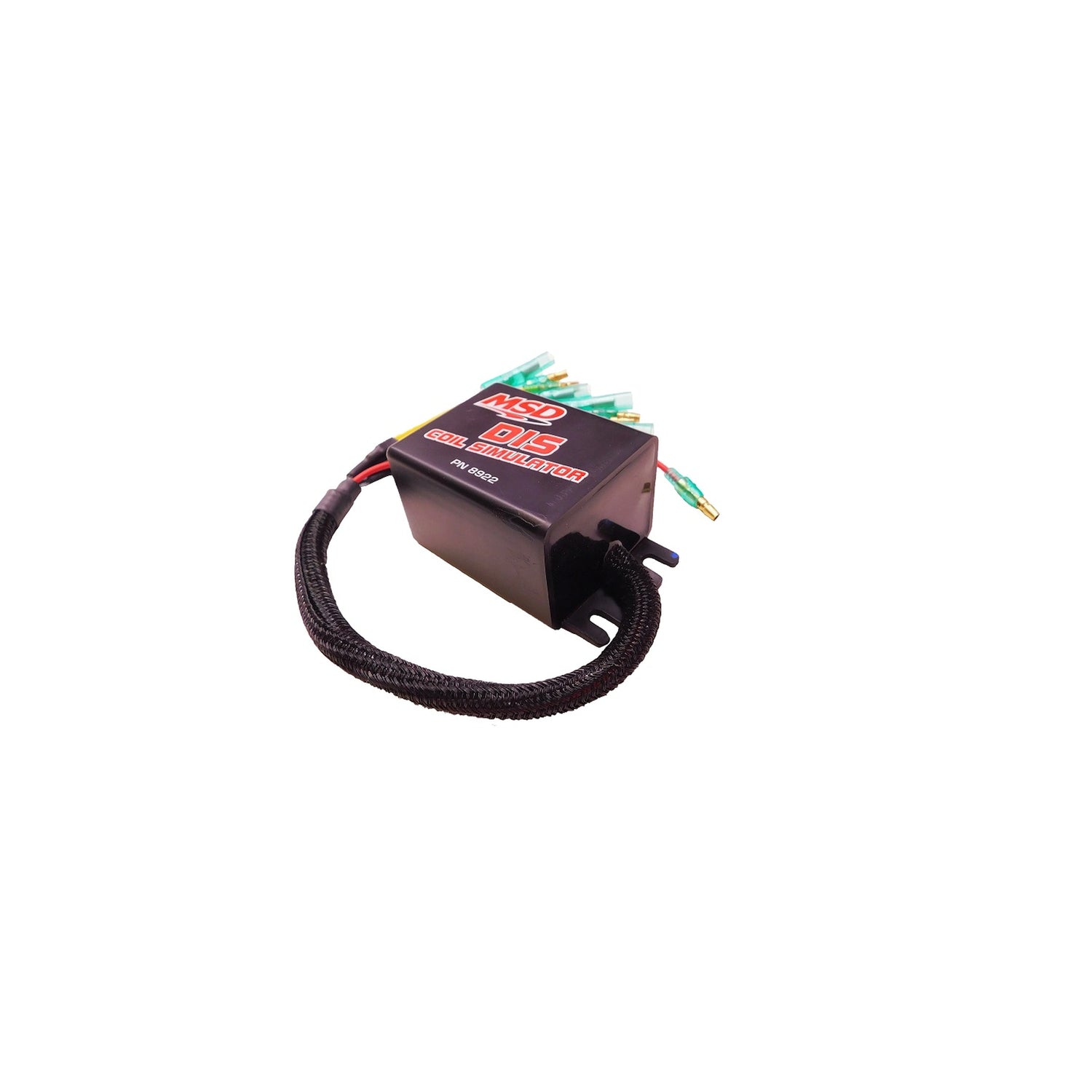

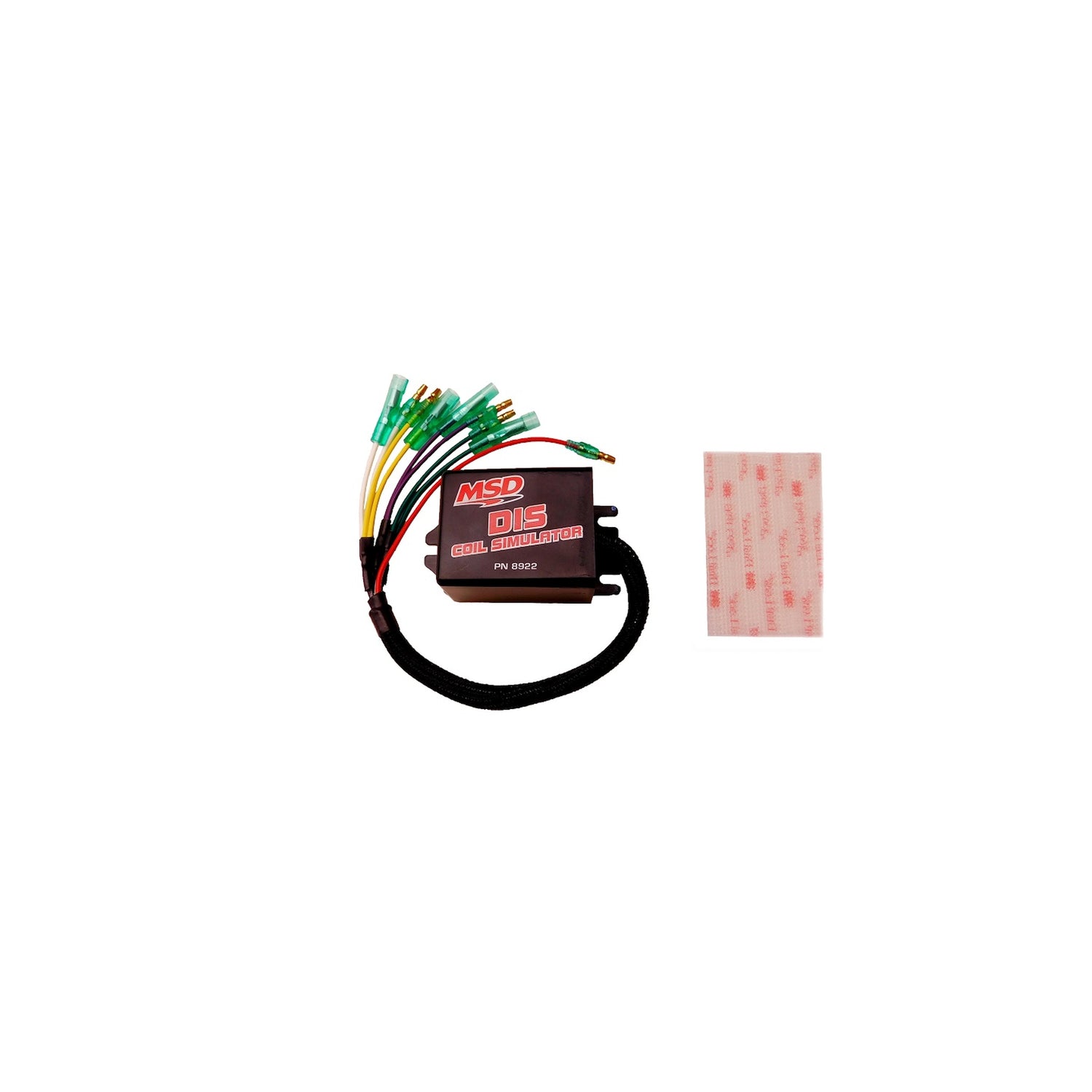

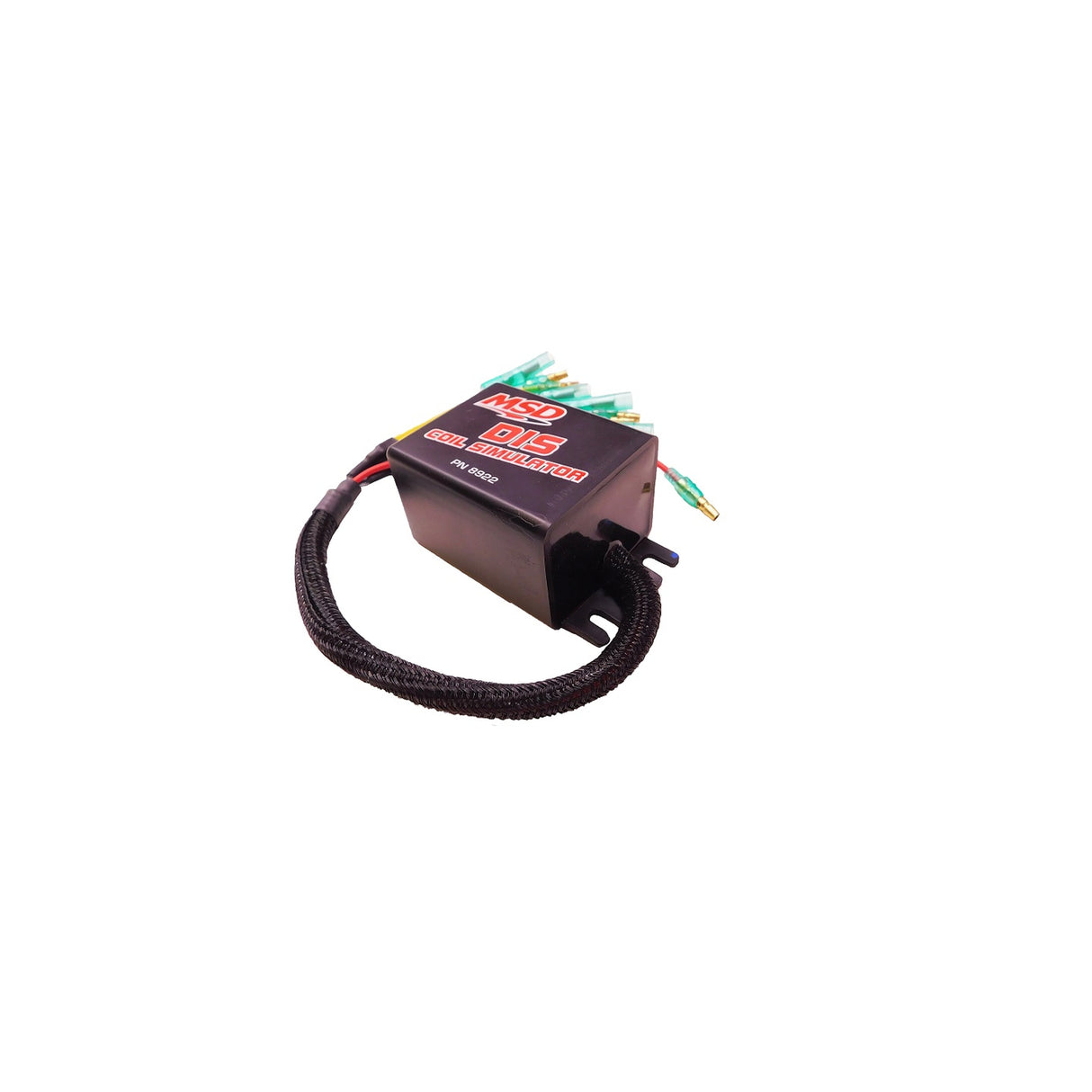

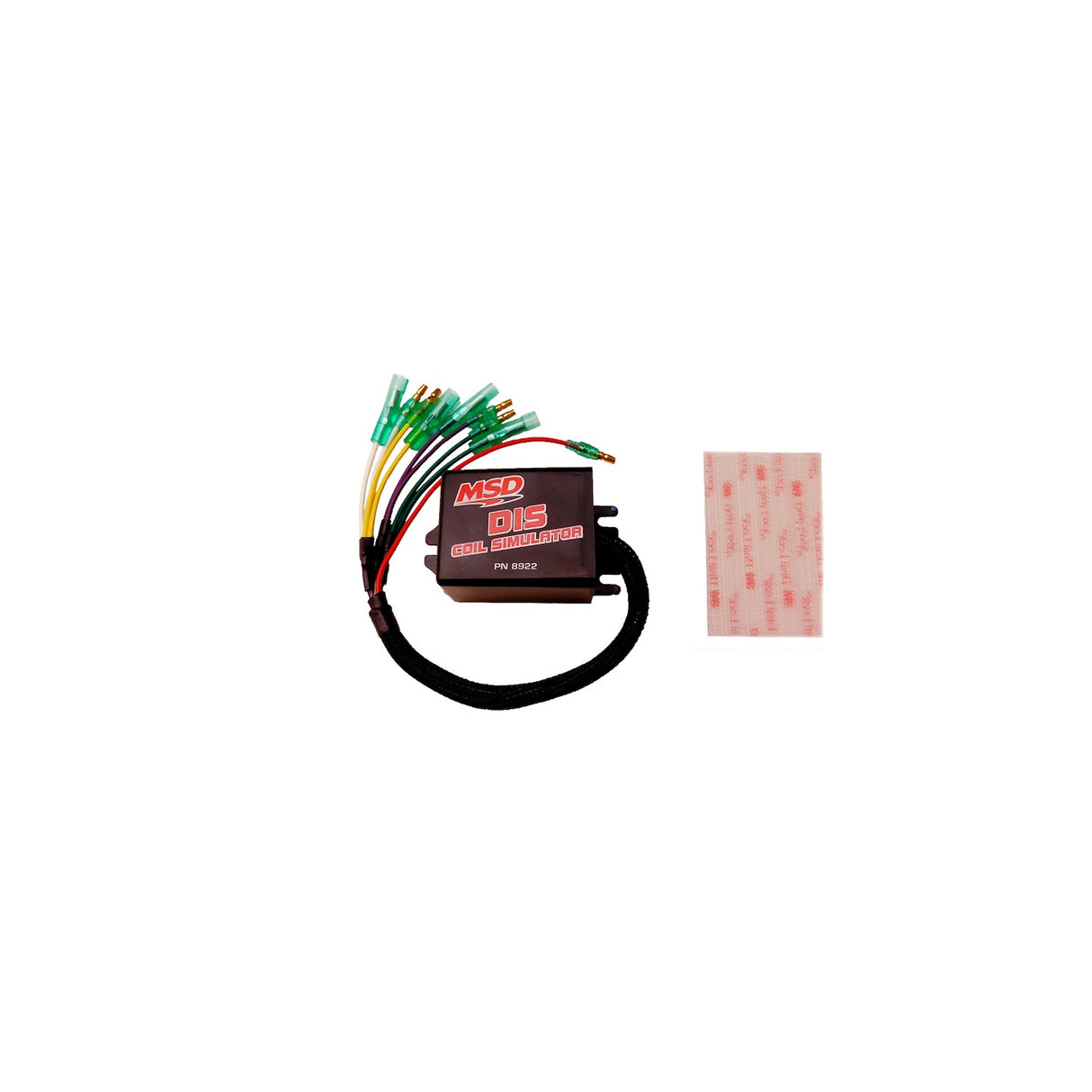

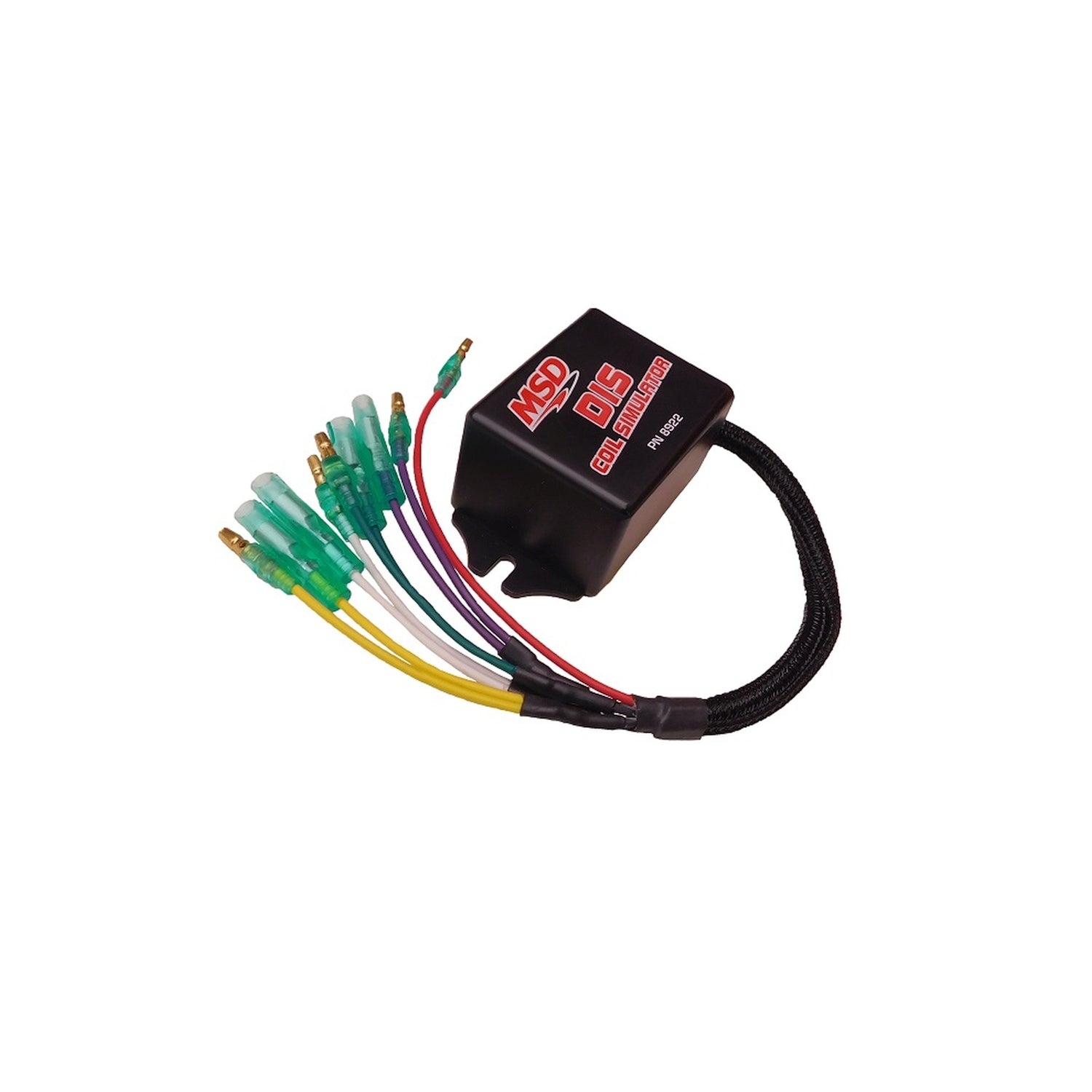

MSD DIS Coil Simulator - 8922
Works with Ford Modular Dual coil ignition systems and Late model Jeep with distributorless ignition systems, 1999 and later.
Regular price
$189.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD DIS Coil Simulator - 8922 is not in stock at Fast Lane Spares and will ship direct from supplier
ā Special Order Item ā ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7ā20 days shipping.
Stock Status:
Description
Description
Works with Ford Modular Dual coil ignition systems and Late model Jeep with distributorless ignition systems, 1999 and later.
Part Number: 8922
The Distributorless Coil Simulator simulates the original coil trigger signal thus allowing the ECU to properly trigger both the tach and fuel injection with the MSD DIS Ignition installed. In most cases, the Simulator plugs directly into the MSD's Harness. In some instances when you install a DIS-4 Plus Ignition, the factory ECU may not be able to distinguish when the coil fires. This is the signal that is also responsible for firing the injectors (or the tachometer), which may cause a no-run situation.
Features and Benefits
ā¢ Epoxy filled for protection against heat and vibration
ā¢ Bullet style connectors for easy plug-in to MSD DIS-4 Plus harness
ā¢ Compact housing is easy to mount
ā¢ Simulates factory ECU kick-back signal for factory fuel injection and tach signal
Used on DIS-4 Plus Ignition and plugs into harness using the bullet connectors._x000D_ **Will not work on Coil-on-Plug Ford applications**
Part Number: 8922
The Distributorless Coil Simulator simulates the original coil trigger signal thus allowing the ECU to properly trigger both the tach and fuel injection with the MSD DIS Ignition installed. In most cases, the Simulator plugs directly into the MSD's Harness. In some instances when you install a DIS-4 Plus Ignition, the factory ECU may not be able to distinguish when the coil fires. This is the signal that is also responsible for firing the injectors (or the tachometer), which may cause a no-run situation.
Features and Benefits
ā¢ Epoxy filled for protection against heat and vibration
ā¢ Bullet style connectors for easy plug-in to MSD DIS-4 Plus harness
ā¢ Compact housing is easy to mount
ā¢ Simulates factory ECU kick-back signal for factory fuel injection and tach signal
Used on DIS-4 Plus Ignition and plugs into harness using the bullet connectors._x000D_ **Will not work on Coil-on-Plug Ford applications**
Specifications
Specifications
-
Specifications
Brand MSD Category Body Emission Code 5 part type Tachometer Adapter Product Type Tach Adapter Sub Category Hardware, Fasteners and Fittings Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
