MSD | SKU:
62153

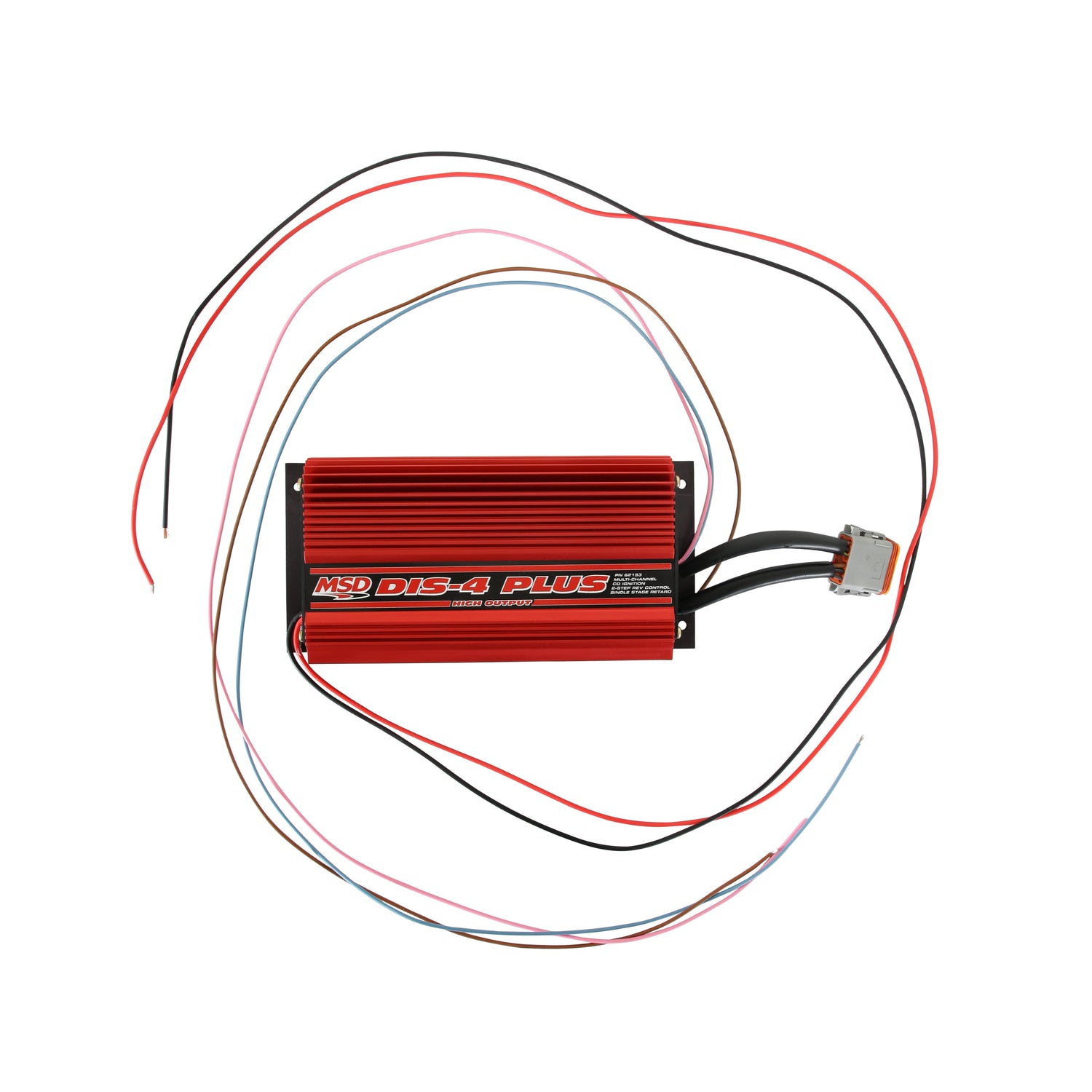

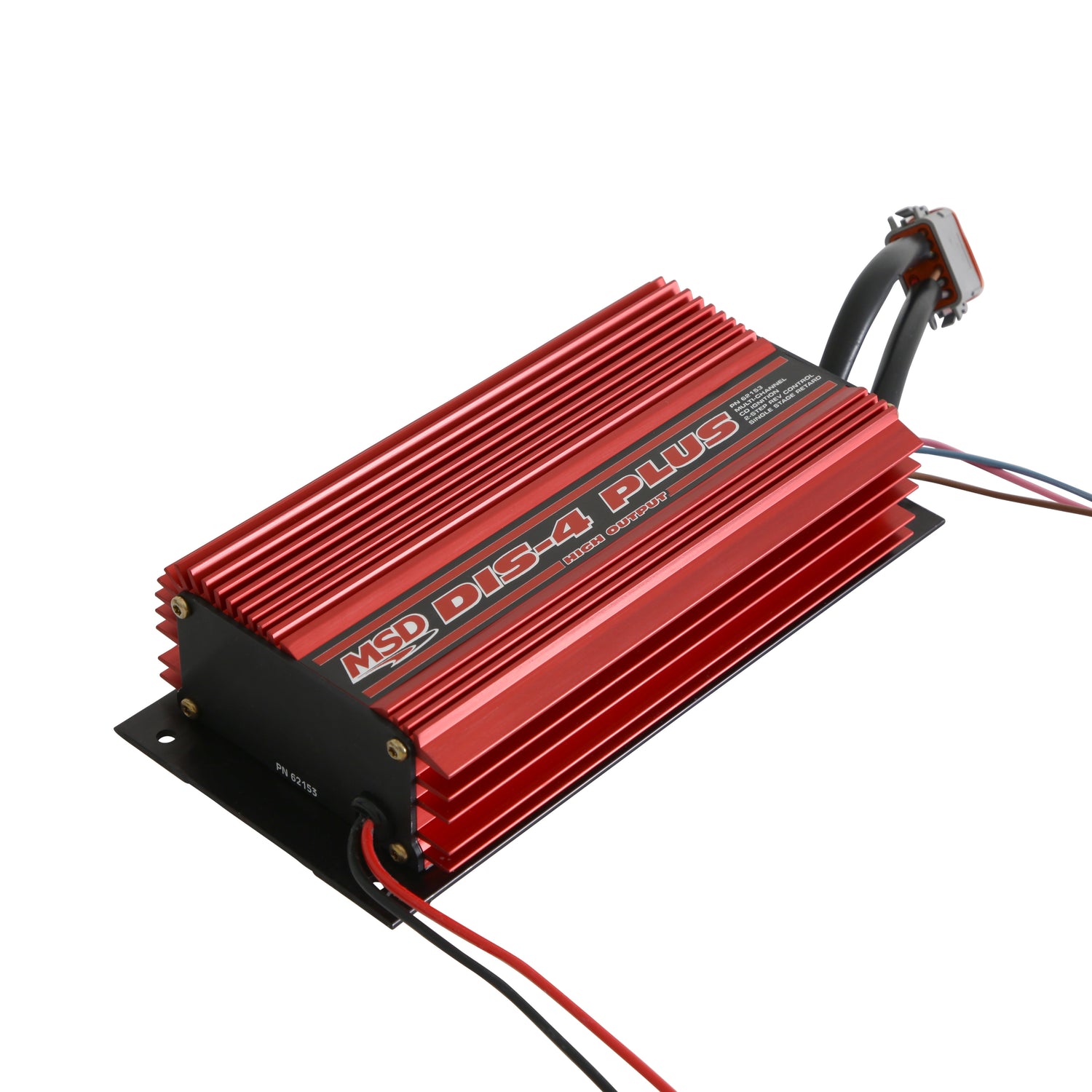

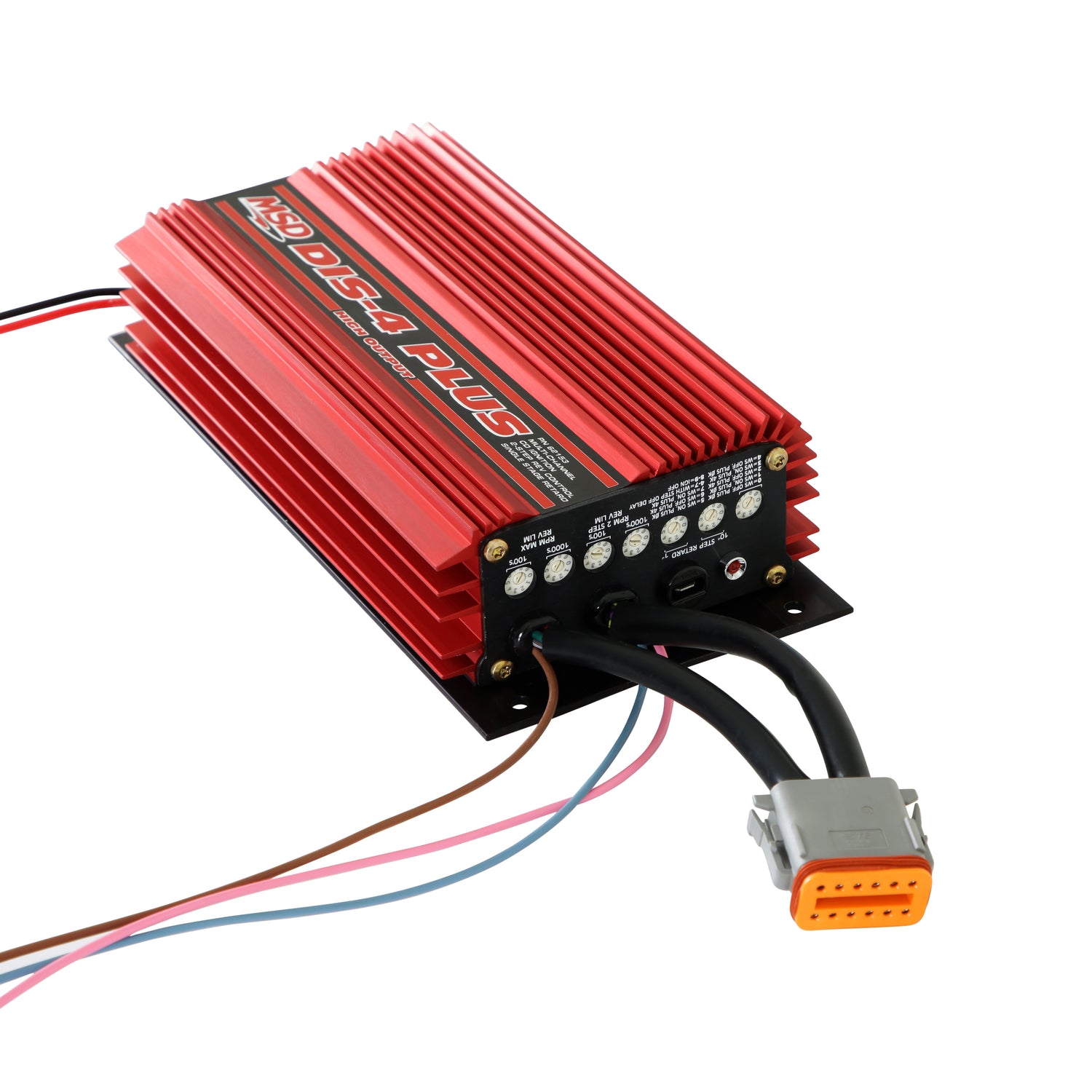

MSD DIS-4 Plus High Output - 62153
High output distributorless ignition. 2, 3 or 4-coil pack.
Regular price
$2,245.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD DIS-4 Plus High Output - 62153 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
High output distributorless ignition. 2, 3 or 4-coil pack.
Part Number: 62153
For full bred drag race engines running high boost pressures from turbos, blowers or nitrous we offer a Higher Output version of the DIS Ignition Control. The DIS-4 Plus HO Ignition produces an incredible 170 millijoules of spark energy with 470 primary volts. This increased output will light up fuel mixtures even under extreme cylinder pressures.
Features and Benefits
• Two adjustable Rev Limits
• 10-18 Volts, Negative Ground
• Adjustable retard stage
• Ignition Interrupt Circuit
• Diagnostic LED
• 14,000 RPM with 14.4 Volts
• 10 Amps at 10,000 RPM
Part Number: 62153
For full bred drag race engines running high boost pressures from turbos, blowers or nitrous we offer a Higher Output version of the DIS Ignition Control. The DIS-4 Plus HO Ignition produces an incredible 170 millijoules of spark energy with 470 primary volts. This increased output will light up fuel mixtures even under extreme cylinder pressures.
Features and Benefits
• Two adjustable Rev Limits
• 10-18 Volts, Negative Ground
• Adjustable retard stage
• Ignition Interrupt Circuit
• Diagnostic LED
• 14,000 RPM with 14.4 Volts
• 10 Amps at 10,000 RPM
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Black Connector Gender Male Connector Quantity 1 Current Draw 10000 Emission Code 3 Grade Type Performance Height 2.2 Ignition Type Performance Length 9.5 Maximum RPM 14,000 Mount Type Surface Mount Mounting Hardware Included Yes Primary Voltage 460-480 Product Type Ignition Secondary Voltage 43,000 Spark Energy (mJ per spark) 170 Spark Series Duration 20 Degree Crankshaft Rotation Sub Category Control Modules Terminal Gender Male Female Terminal Quantity 5 Voltage Required 10-18 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight and Size 3 lbs., 9.5L x 4.5W x 2.2H Width 4.5 -
