MSD | SKU:
65303

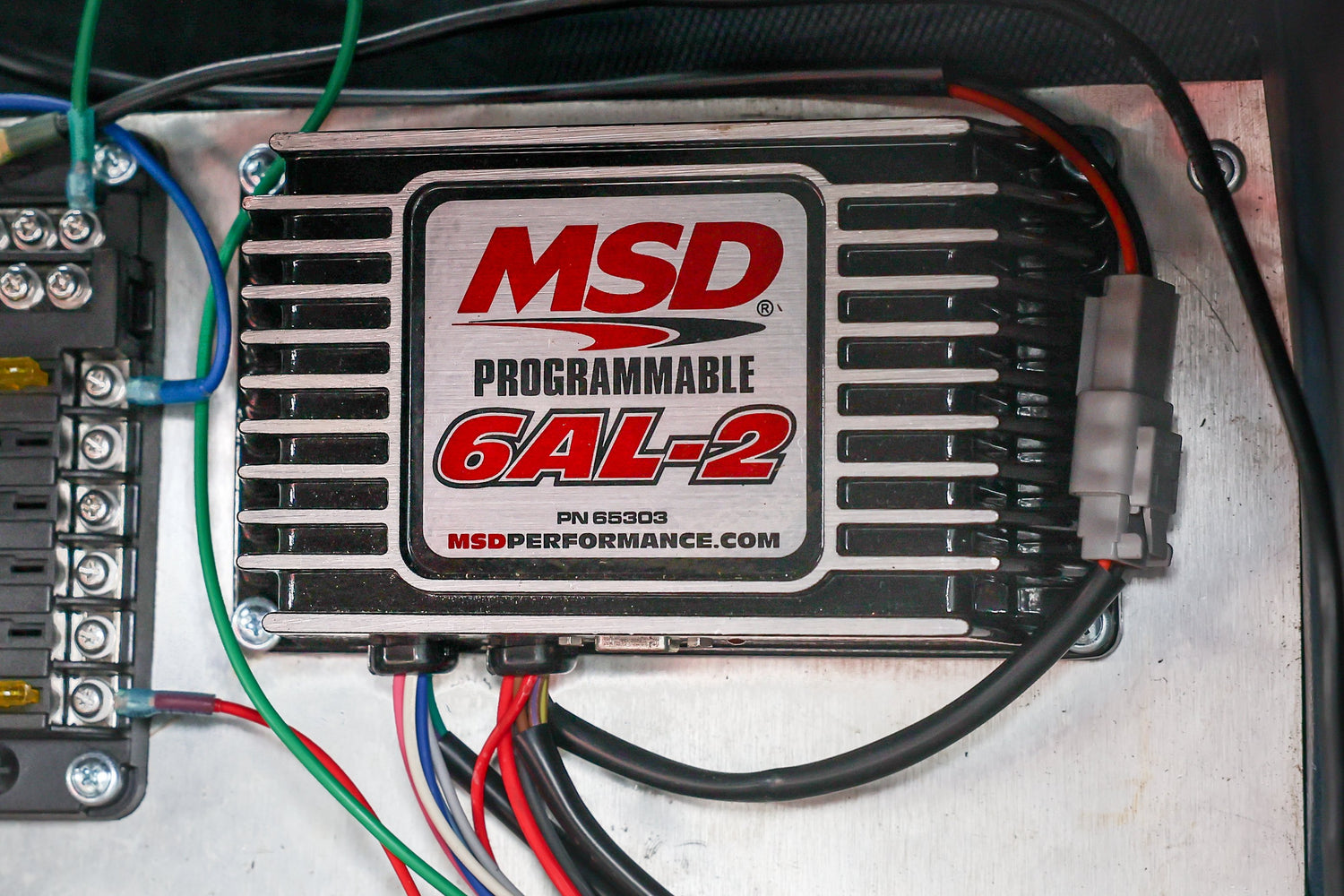

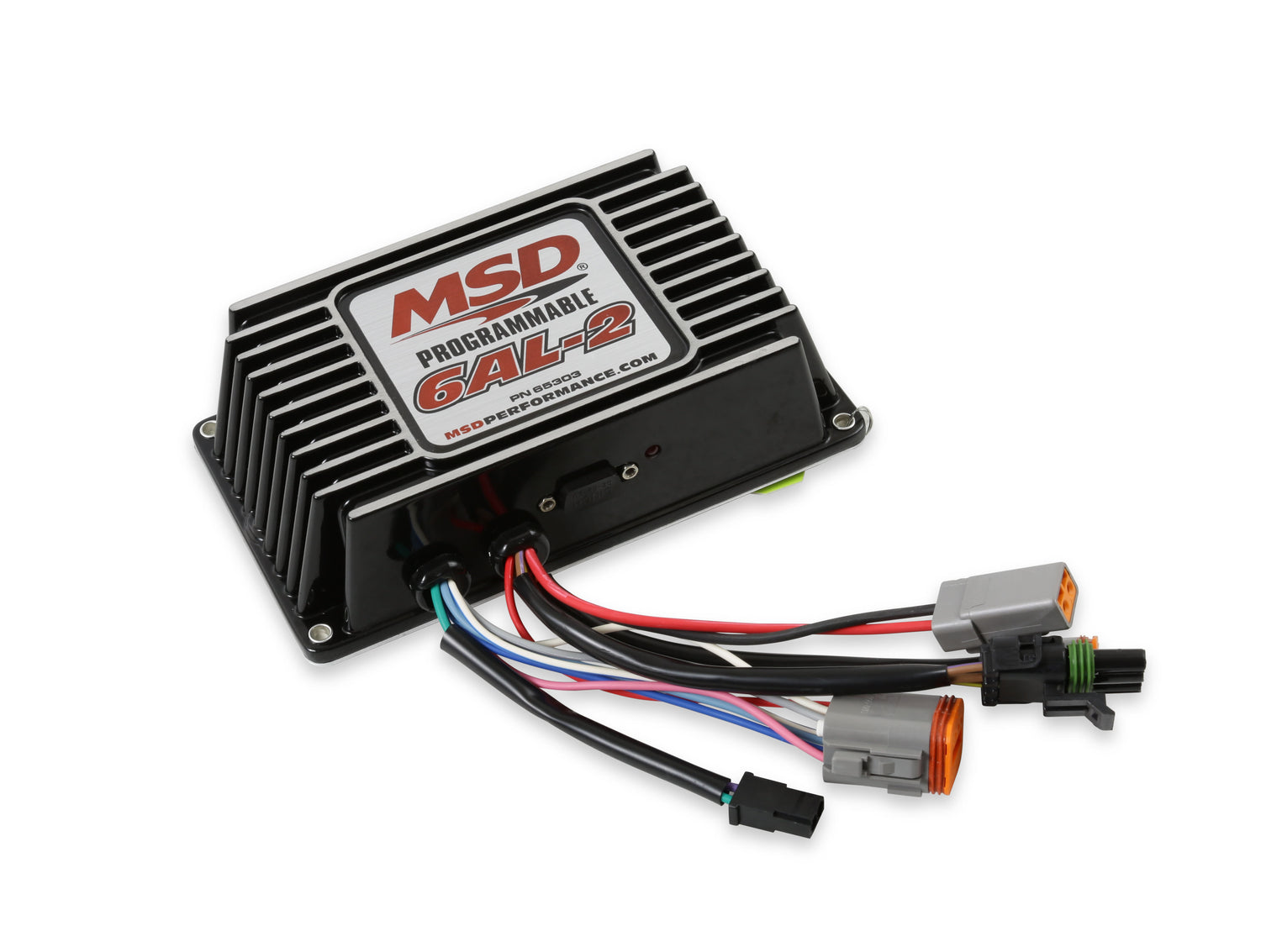

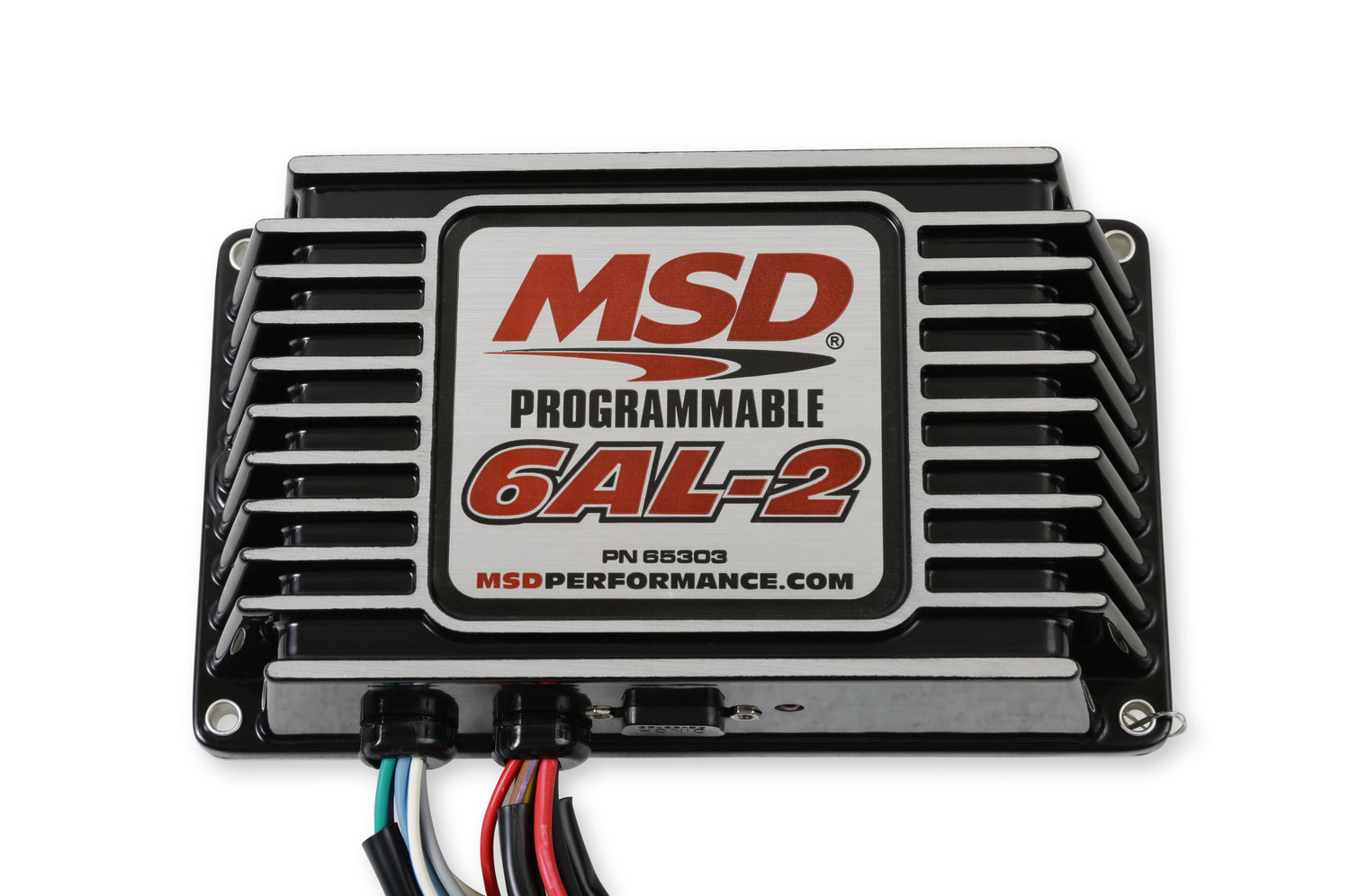

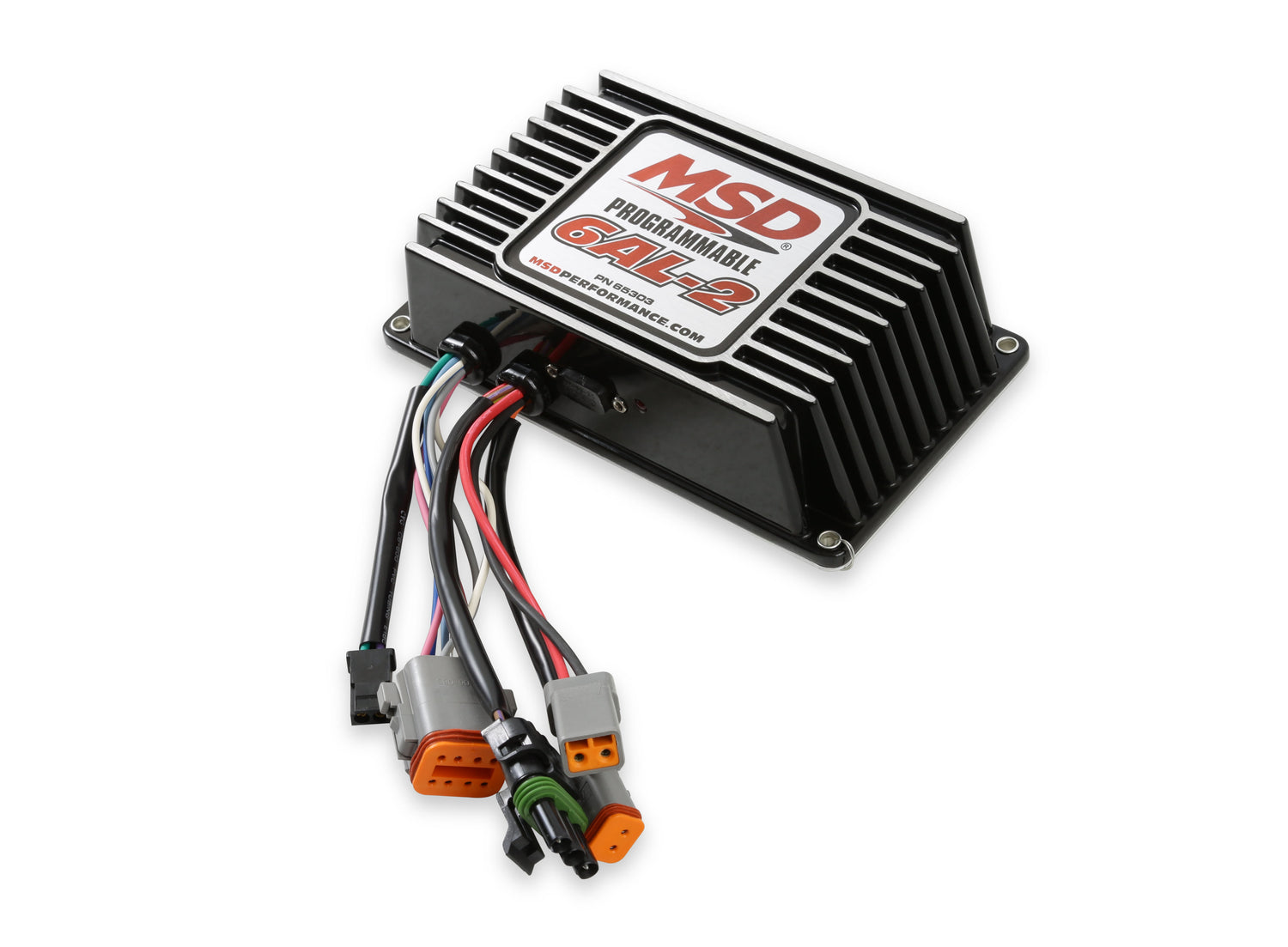

MSD Digital Programmable 6AL-2 - Black - 65303
Universal - Tune Ignition Curve or Boost Timing Map from PC
Regular price
$625.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Digital Programmable 6AL-2 - Black - 65303
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Universal - Tune Ignition Curve or Boost Timing Map from PC
Part Number: 65303

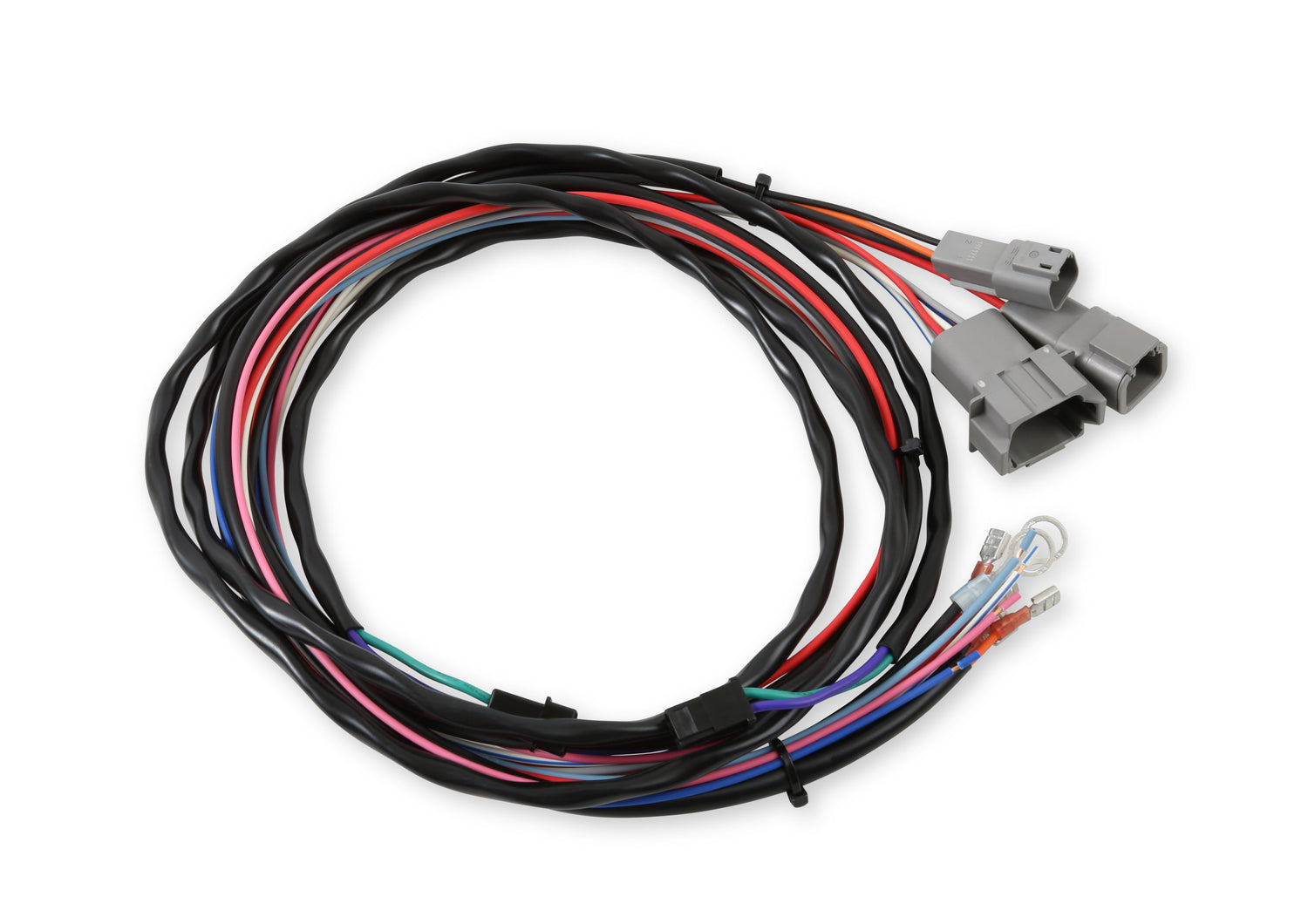

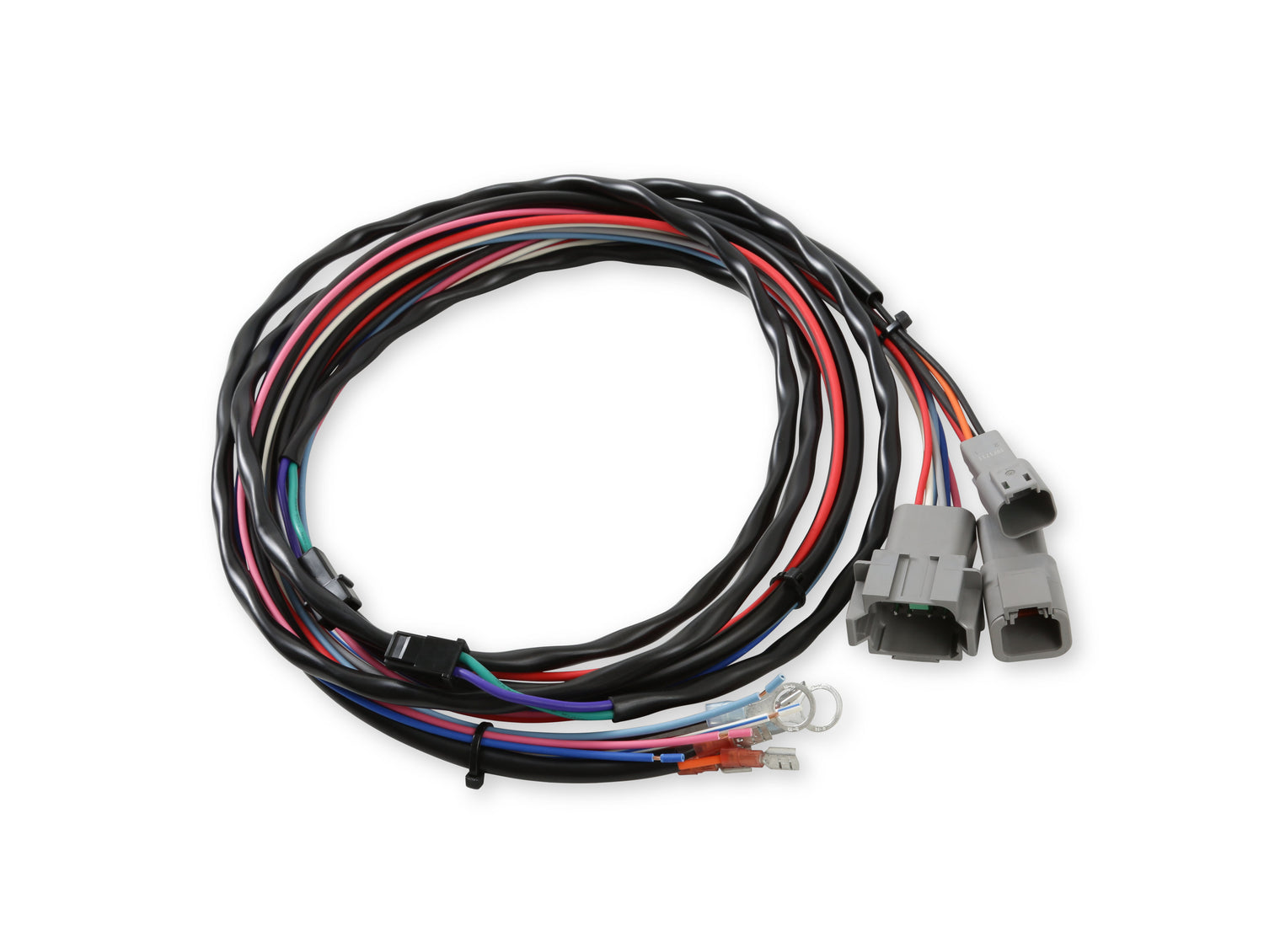

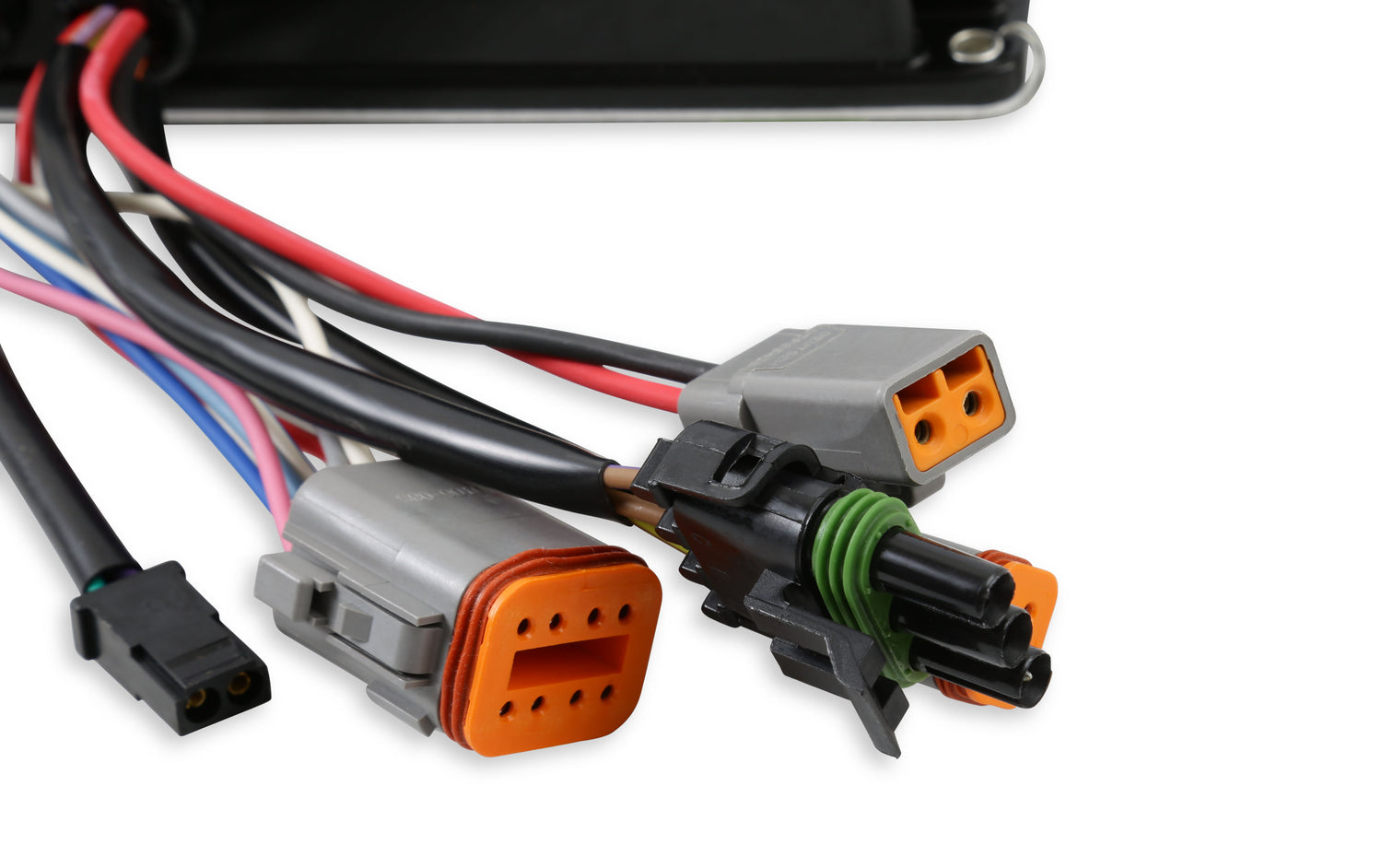

The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program. The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC. You'll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines!
Features and Benefits
• Plot a boost timing map with 0.1° per psi accuracy
• Step retard for nitrous applications plus a boost timing map
• .7 Amp per 1,000 RPM
• Advanced features allow for use in street and racing applications
• 12-18 Volts, Negative Ground
• EO # D-115-22
• Capacitive Discharge technology for fast rise time and maximum spark energy
• 12,500 RPM with 14.4 Volts
• Programmable 3-Step Rev Limiter (100 RPM increments)
• PC Programmable with easy-to-use Windows based Pro-Data +Software
CARB EO: D-115-22
Part Number: 65303
The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program. The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC. You'll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines!
Features and Benefits
• Plot a boost timing map with 0.1° per psi accuracy
• Step retard for nitrous applications plus a boost timing map
• .7 Amp per 1,000 RPM
• Advanced features allow for use in street and racing applications
• 12-18 Volts, Negative Ground
• EO # D-115-22
• Capacitive Discharge technology for fast rise time and maximum spark energy
• 12,500 RPM with 14.4 Volts
• Programmable 3-Step Rev Limiter (100 RPM increments)
• PC Programmable with easy-to-use Windows based Pro-Data +Software
CARB EO: D-115-22
Specifications
Specifications
-
Specifications
Brand MSD C.A.R.B EO # D-115-22 Category Ignition Color Black Current Draw 1000 Emission Code 1 Maximum RPM 12,500 part type Engine Ignition RPM Governor Primary Voltage 535 Product Type Digital Programmable 6AL-2 Secondary Voltage 45,000 Spark Energy (mJ per spark) 135 Sub Category Secondary Ignition Voltage Required 12-18 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight and Size 3 lbs., 7L x 4W x 2H -
