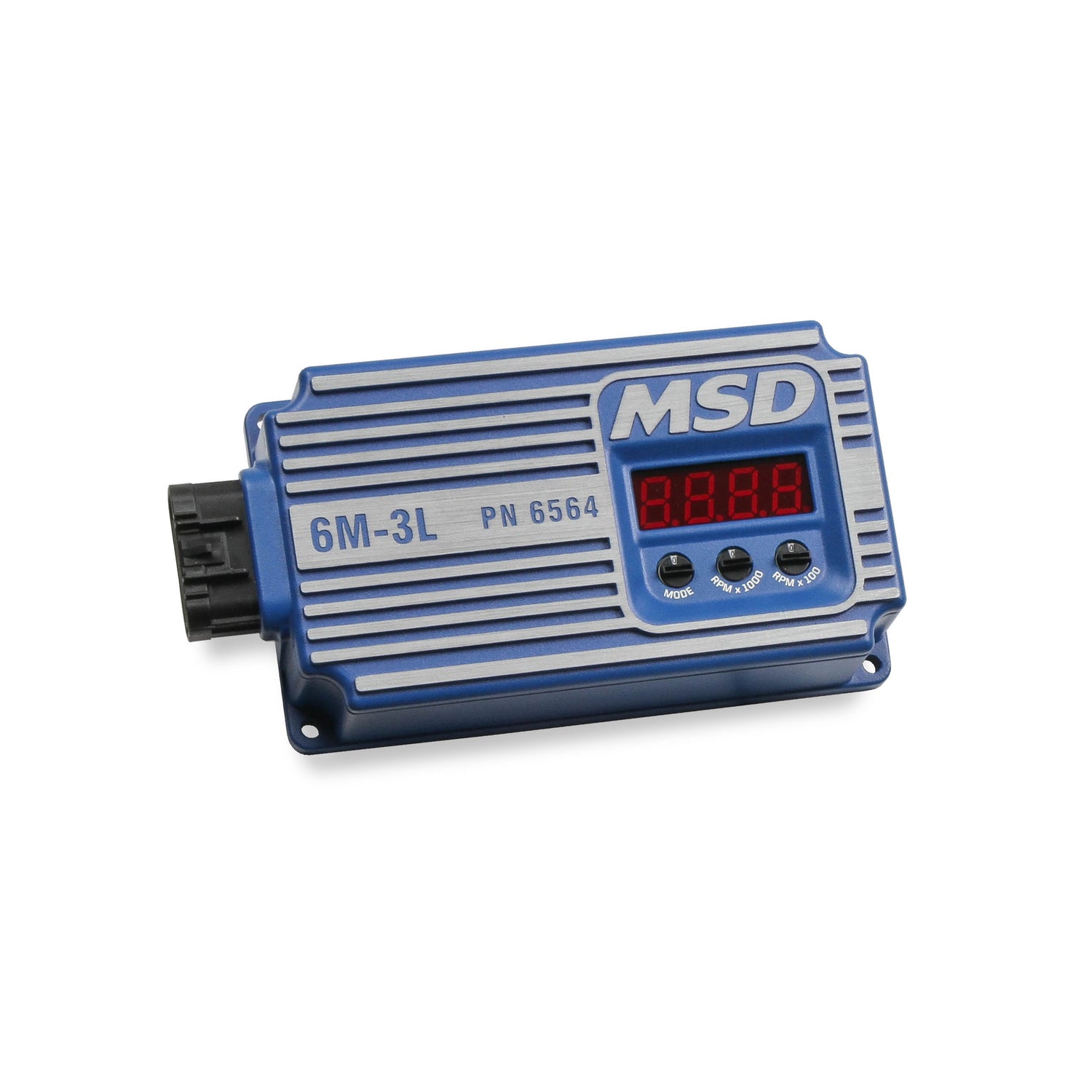

MSD Digital 6M-3L Marine Ignition - 6564
Marine certified, digital capacitive discharge ignition with built-in rev limiter and start retard.
Regular price
$1,248.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Digital 6M-3L Marine Ignition - 6564
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Marine certified, digital capacitive discharge ignition with built-in rev limiter and start retard.
Part Number: 6564

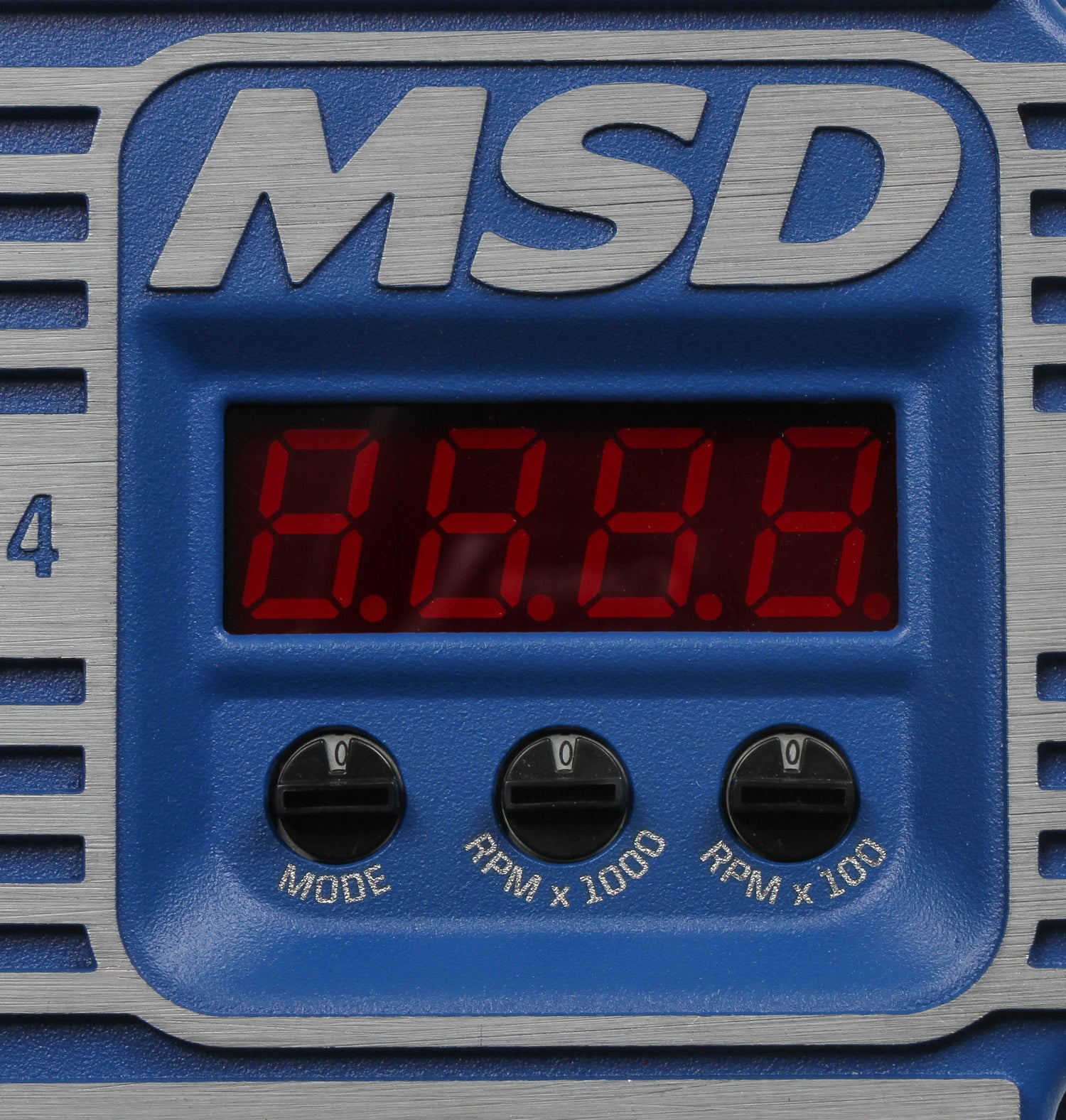

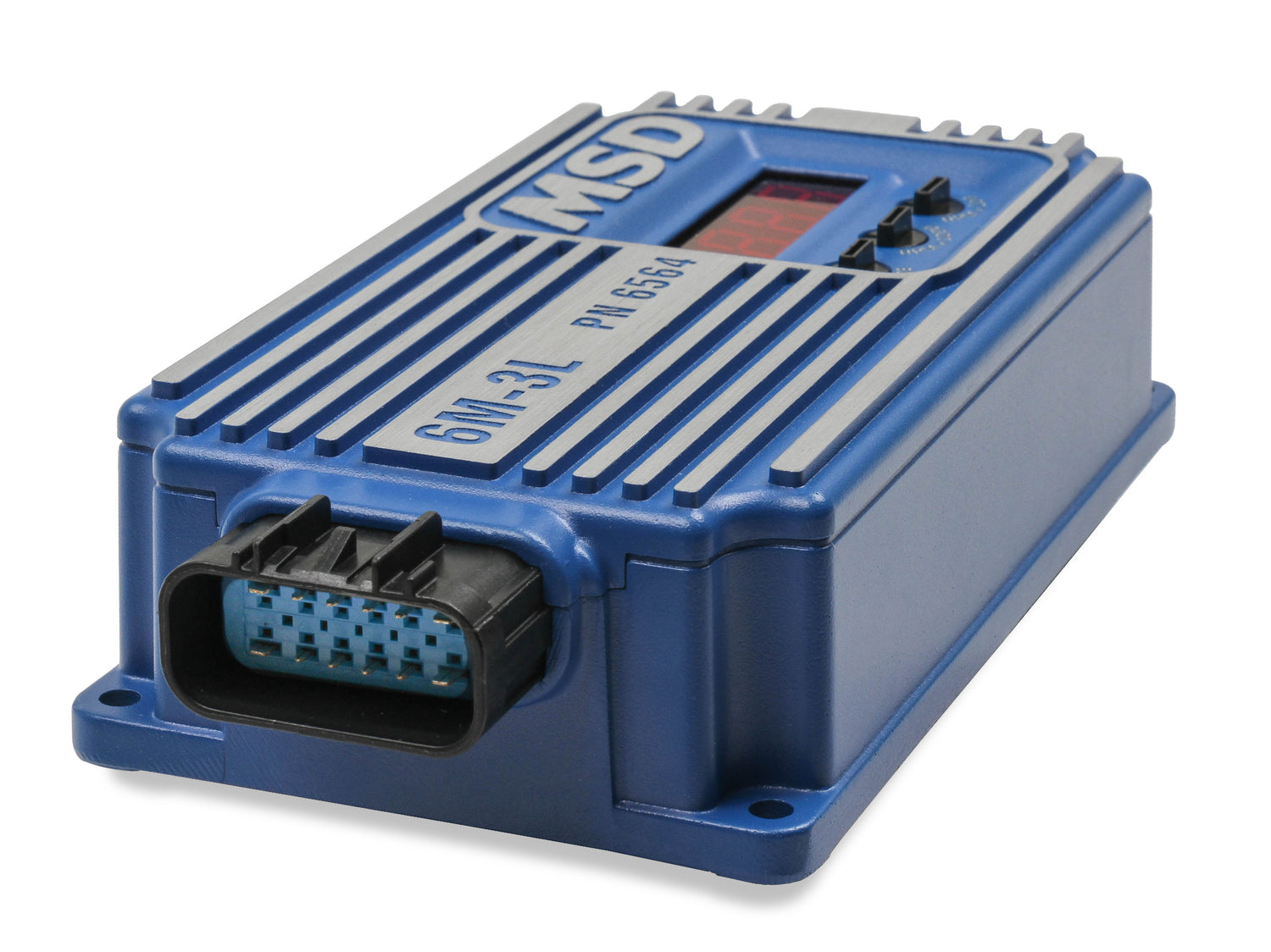

Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob. We've raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector makeing installation neat and easy. The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs!
Features and Benefits
• Highly efficient, low current draw for extended battery life
• Works on 4, 6 and 8 cylinder engines
• Large, easy to read LED display
• Easy setup of features with three rotary dials on the face of the unit
• Records highest RPM the engine turned for last 20 minutes of run time
• LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
• Can be triggered by magnetic pickup, amplifier, and points inputs
• 0.8 Amps per 1,000 RPM
• Reverse polarity and overheat protection provide ultimate reliability
• Shift interrupt feature eases shifting
• Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
• Sealed connector for clean wiring and trouble-free operation
• 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
• Fully potted housing to withstand demanding marine conditions
• Full delivery of spark energy and easy starting down to 6 volts battery supply
• MSD’s smoothest rev limiter yet, protecting parts and saving your engine
UL Certified
Part Number: 6564
Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob. We've raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector makeing installation neat and easy. The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs!
Features and Benefits
• Highly efficient, low current draw for extended battery life
• Works on 4, 6 and 8 cylinder engines
• Large, easy to read LED display
• Easy setup of features with three rotary dials on the face of the unit
• Records highest RPM the engine turned for last 20 minutes of run time
• LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
• Can be triggered by magnetic pickup, amplifier, and points inputs
• 0.8 Amps per 1,000 RPM
• Reverse polarity and overheat protection provide ultimate reliability
• Shift interrupt feature eases shifting
• Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
• Sealed connector for clean wiring and trouble-free operation
• 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
• Fully potted housing to withstand demanding marine conditions
• Full delivery of spark energy and easy starting down to 6 volts battery supply
• MSD’s smoothest rev limiter yet, protecting parts and saving your engine
UL Certified
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Blue Connector Gender Male Female Connector Quantity 1 Current Draw 1000 Emission Code 3 Features Start Retard Grade Type Marine Height 1.87 Ignition Type Performance Length 7.89 Maximum RPM 12,000 Mount Type Surface Mount Mounting Hardware Included Yes Primary Voltage 535-550 Product Type Ignition Secondary Voltage 45,000 Spark Energy (mJ per spark) 135 w/ Blaster Coil / 150 w/ HVC Coil PN 8250 Spark Series Duration 20° Crankshaft Rotation Sub Category Control Modules Terminal Gender Male Terminal Quantity 12 Voltage Required 6-18 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight and Size 2.5 lbs. 7.89L x 4.00W x 1.87H Width 4 -
