MSD | SKU:
6201

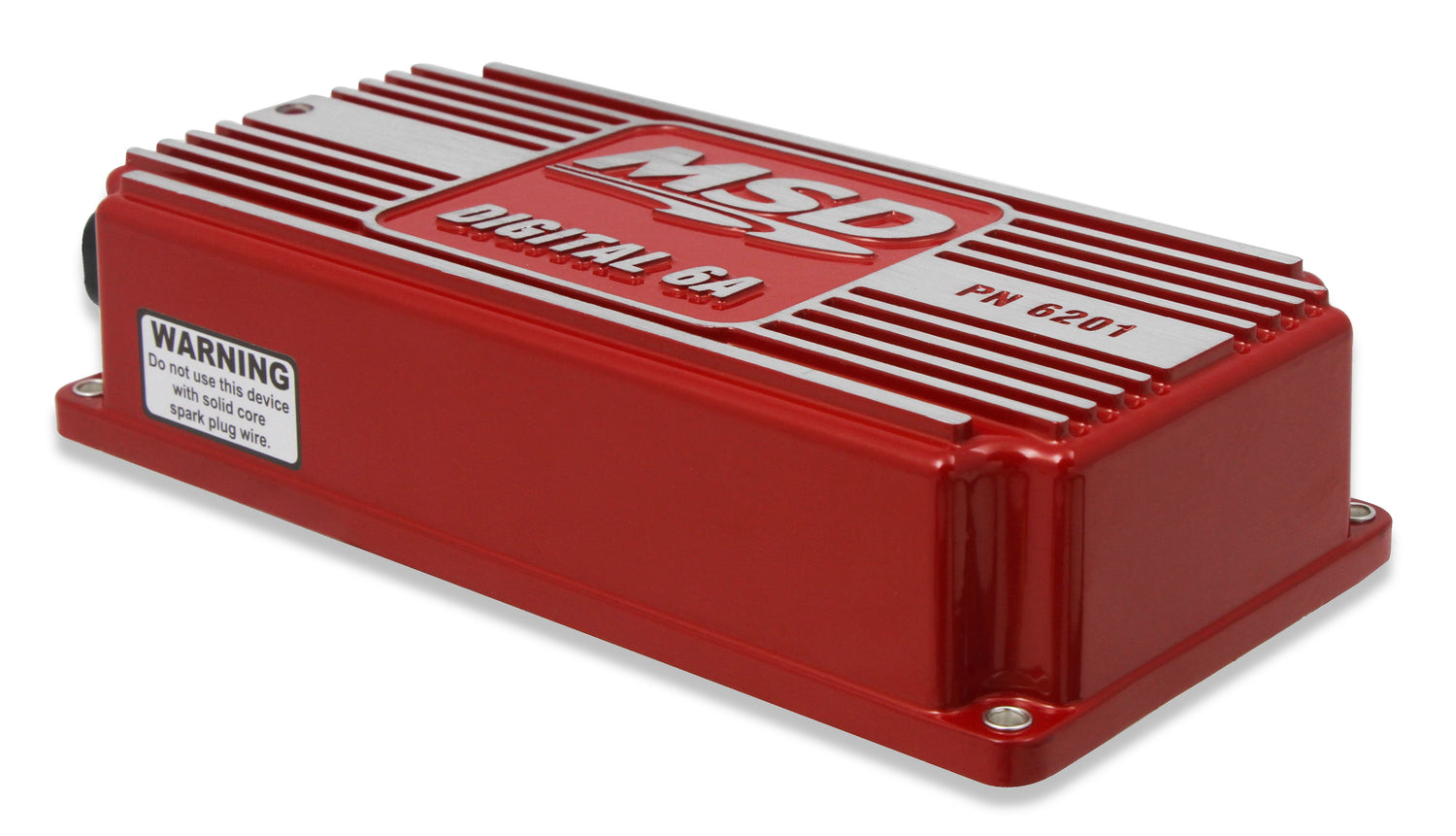

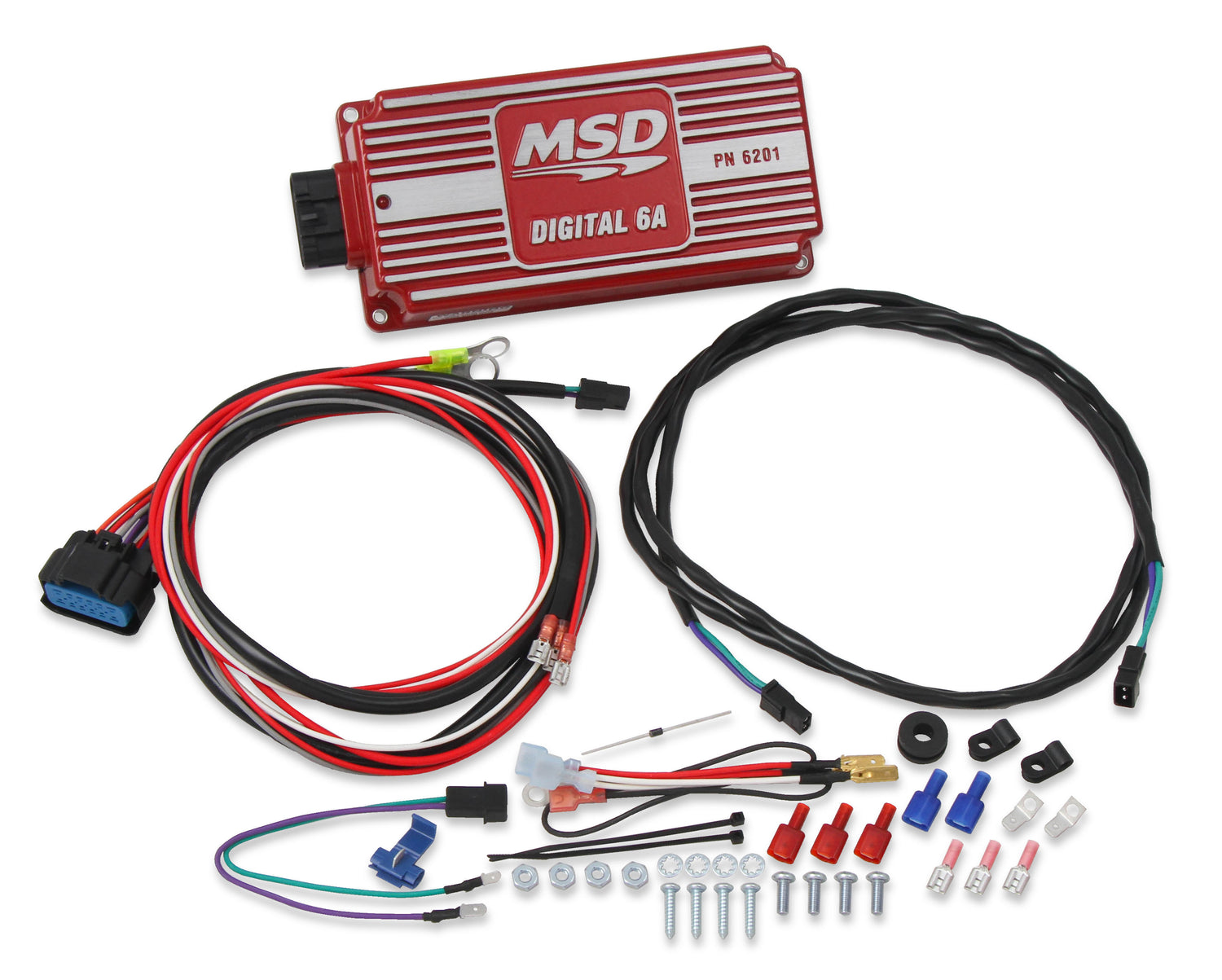

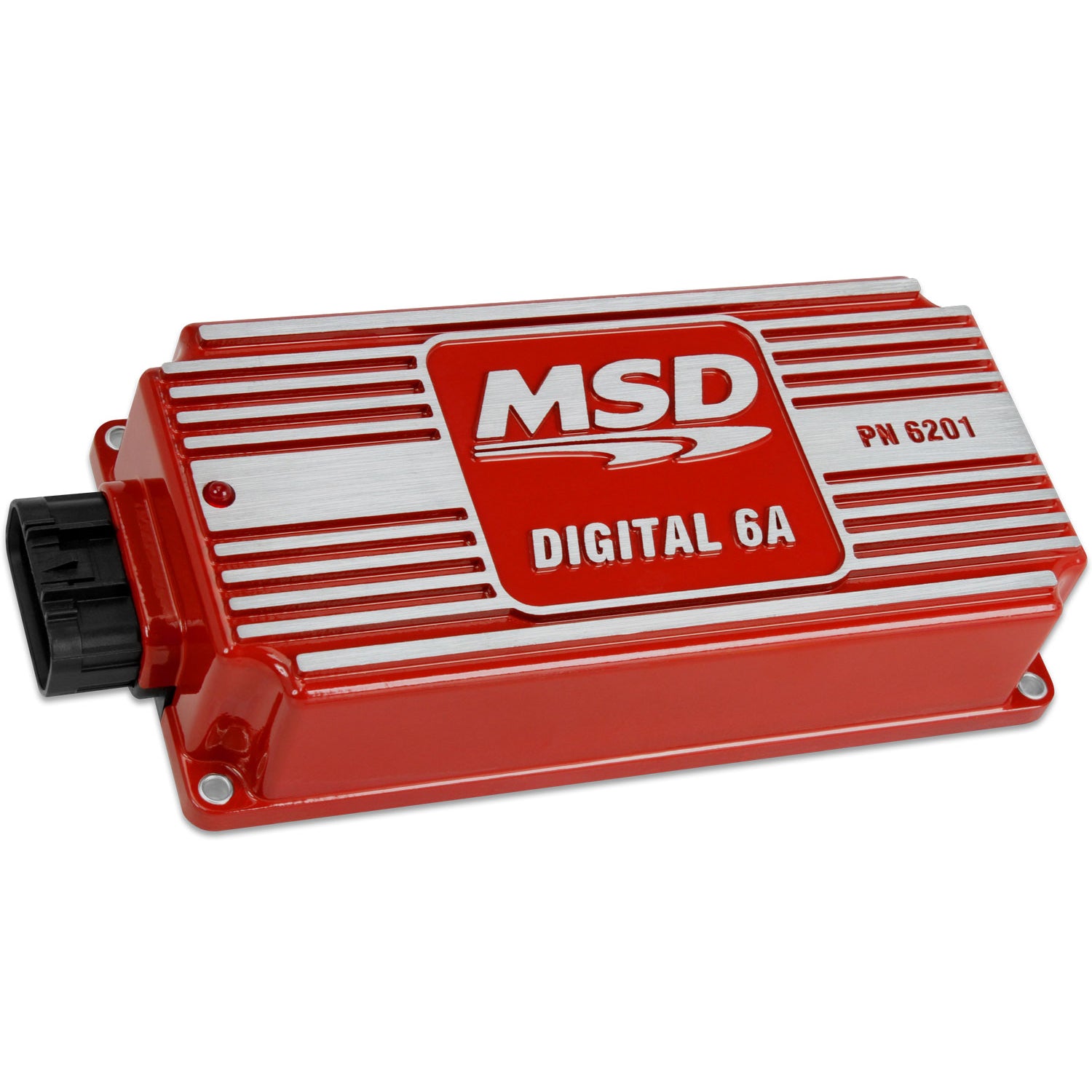

MSD Digital 6A Ignition Control - Red - 6201
Compatible with 4, 6, or 8 Cylinder Engines - Built-in LED for System Checks
Regular price
$487.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Digital 6A Ignition Control - Red - 6201
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Compatible with 4, 6, or 8 Cylinder Engines - Built-in LED for System Checks
Part Number: 6201

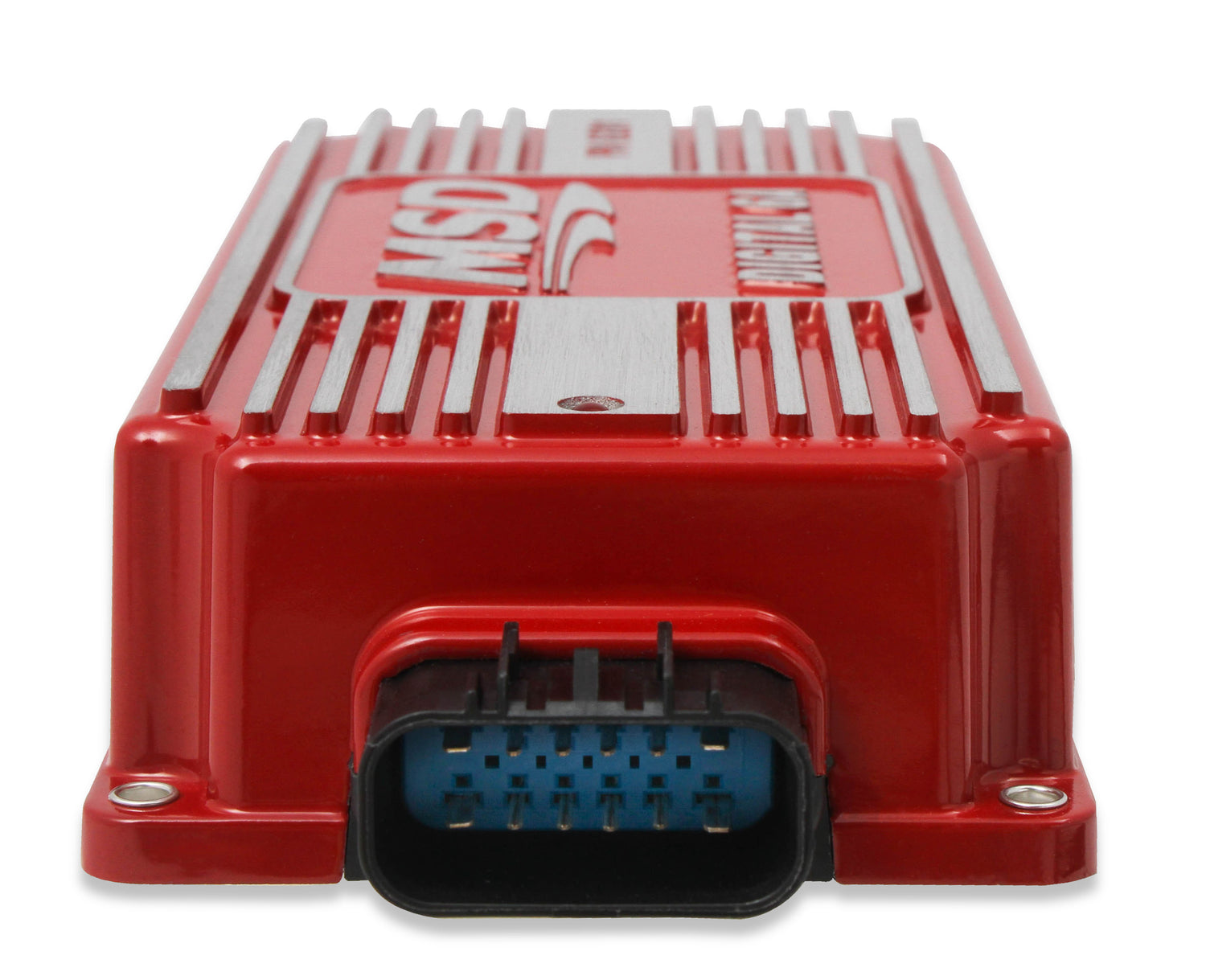

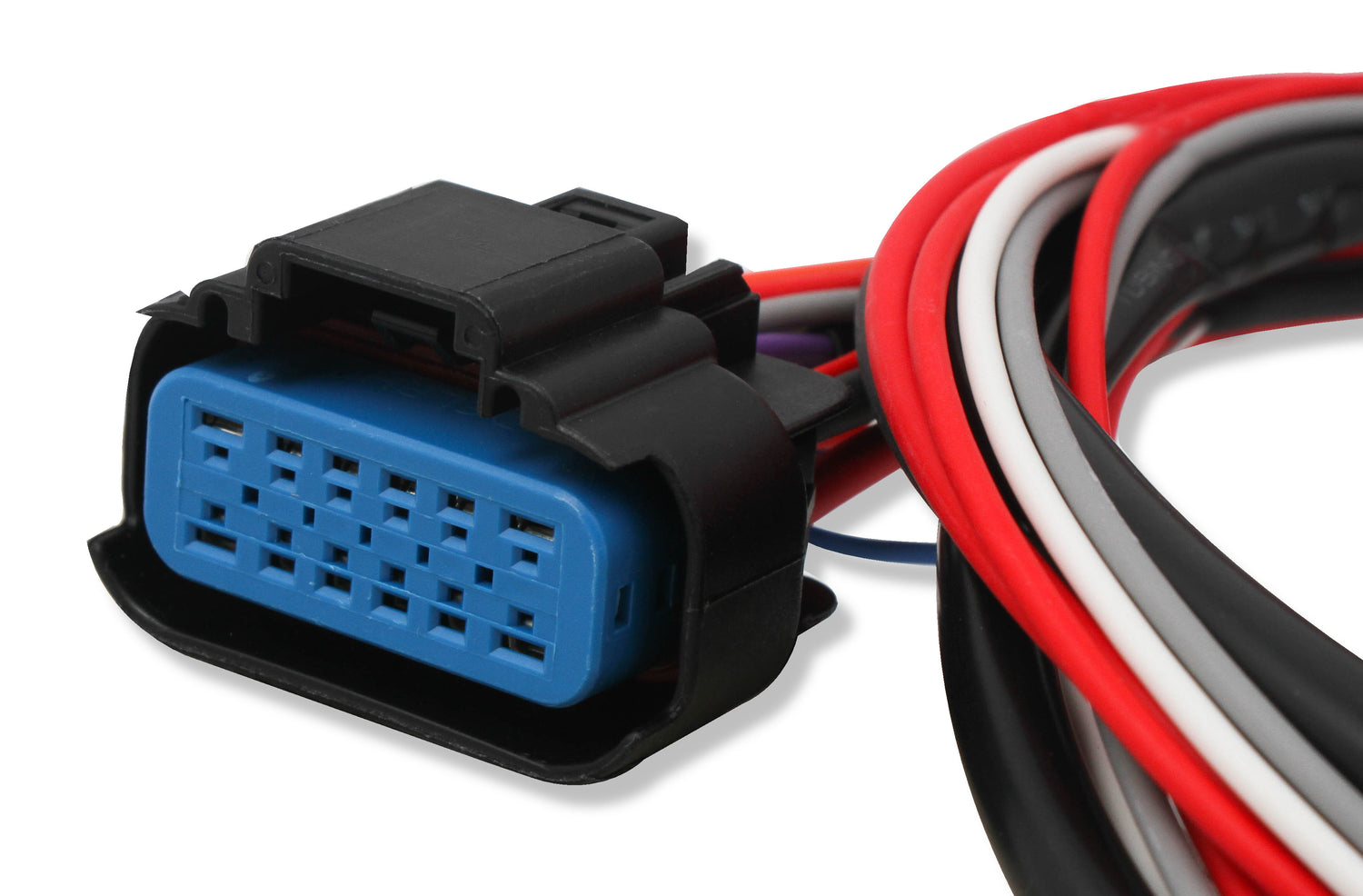

A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups. The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20⁰ of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder. If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.
Features and Benefits
• Built-in LED for system checks
• Smooth Idle
• Sealed, locking connector
• Full, capacitive discharge ignition power throughout the RPM range
• Easy Starts
• Tach output wire
• .7 Amp per 1,000 RPM
• Compatible with 4, 6 or 8 - cylinder engines
• Quick throttle response
• 12-15 Volts, 7 Volt Start
• 15,000 RPM with 14.4 Volts
CARB EO: D-40-43
Part Number: 6201
A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups. The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20⁰ of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder. If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.
Features and Benefits
• Built-in LED for system checks
• Smooth Idle
• Sealed, locking connector
• Full, capacitive discharge ignition power throughout the RPM range
• Easy Starts
• Tach output wire
• .7 Amp per 1,000 RPM
• Compatible with 4, 6 or 8 - cylinder engines
• Quick throttle response
• 12-15 Volts, 7 Volt Start
• 15,000 RPM with 14.4 Volts
CARB EO: D-40-43
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Red Connector Gender Female Connector Quantity 1 Current Draw 1000 Emission Code 1 Features No Rev Limiter Grade Type Performance Height 1.825 Ignition Type Performance Length 8 Maximum RPM 15,000 Mount Type Surface Mount Mounting Hardware Included Yes Primary Voltage 520-540 Product Type Digital 6A Ignition Control Box Secondary Voltage 45,000 Spark Energy (mJ per spark) 135-145 Sub Category Control Modules Terminal Gender Male Terminal Quantity 12 Voltage Required 12-15 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight and Size 1.7 lbs., 8L x 4W x 1.825H Width 4 -
