MSD | SKU:
62013

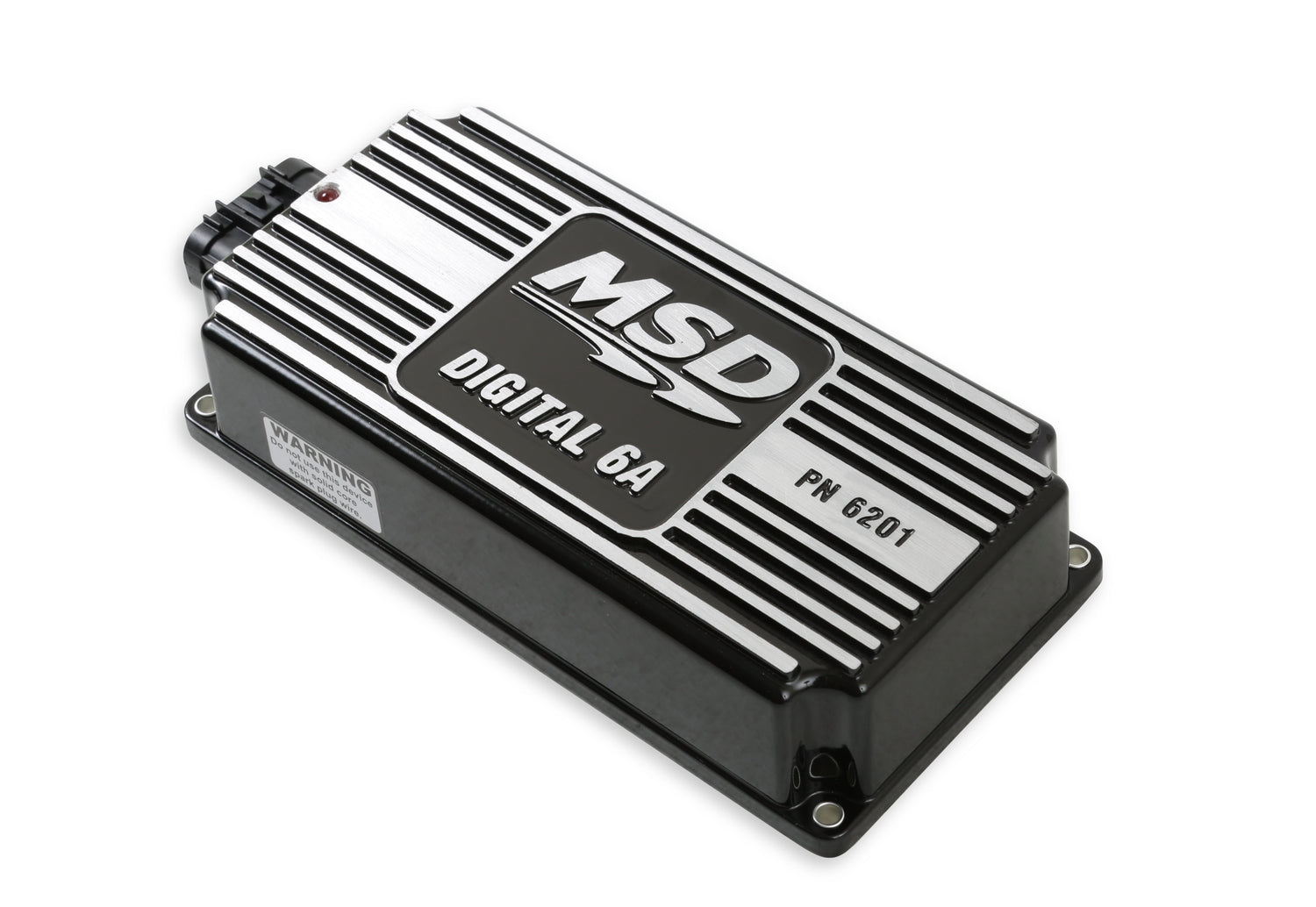

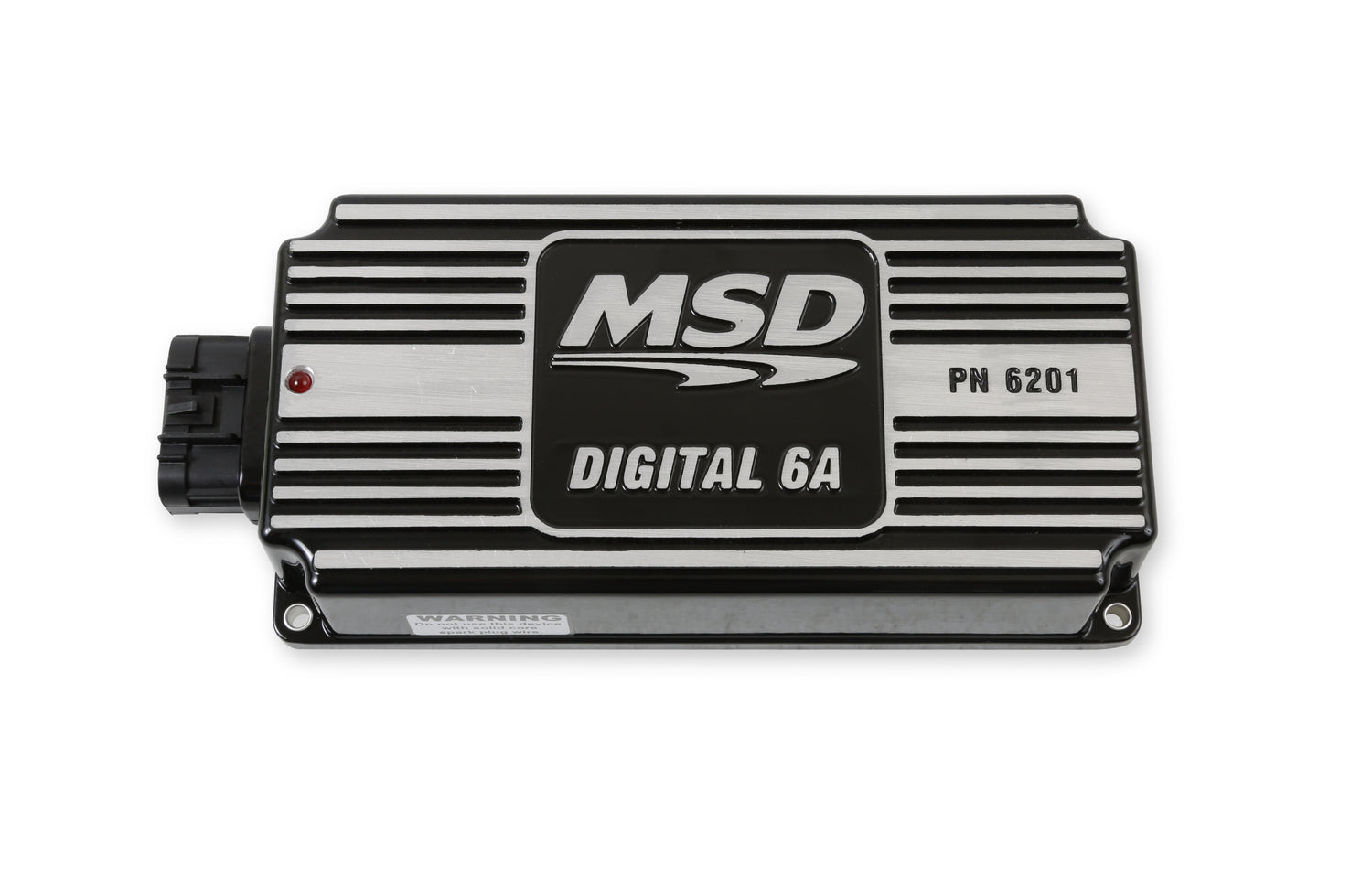

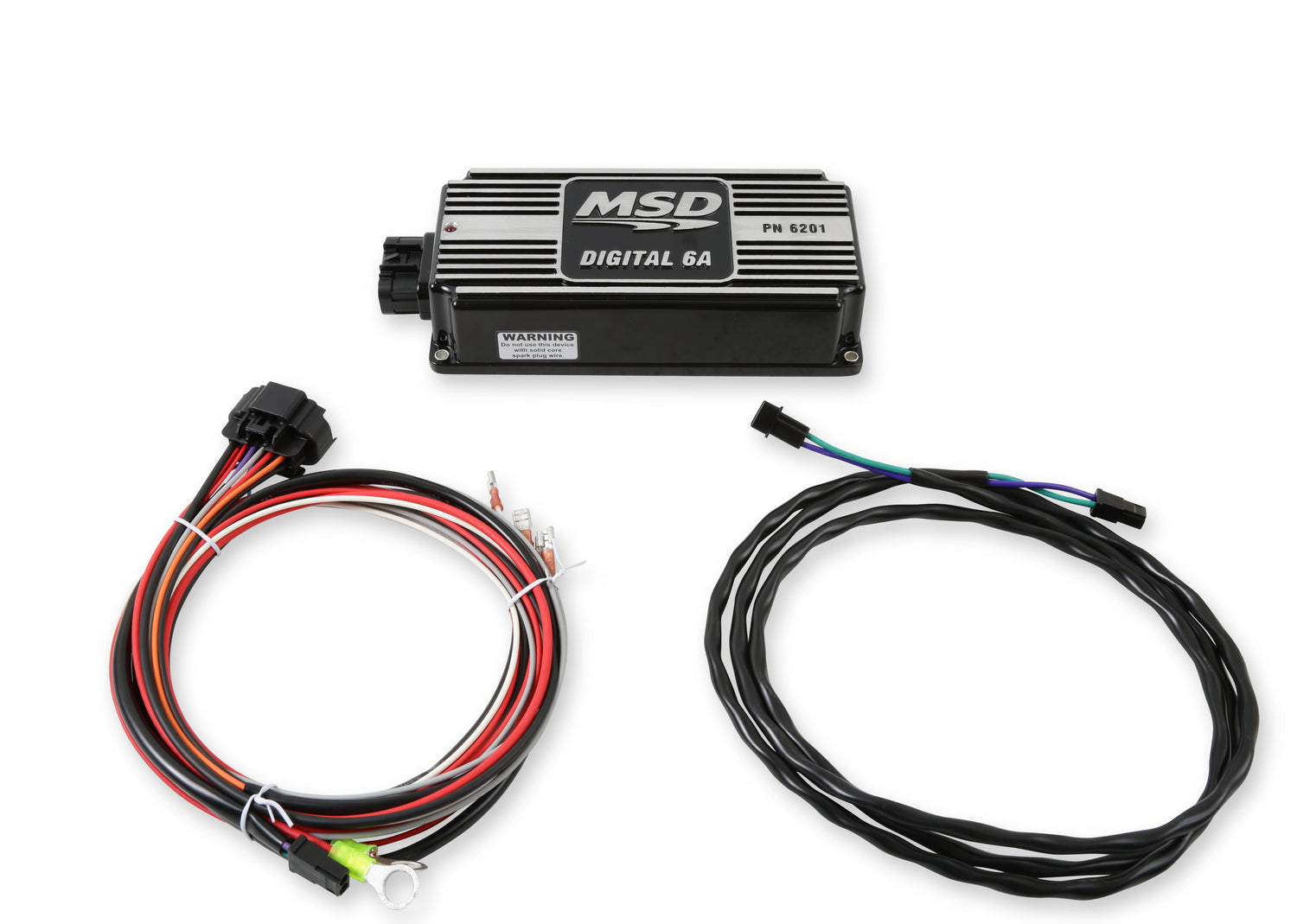

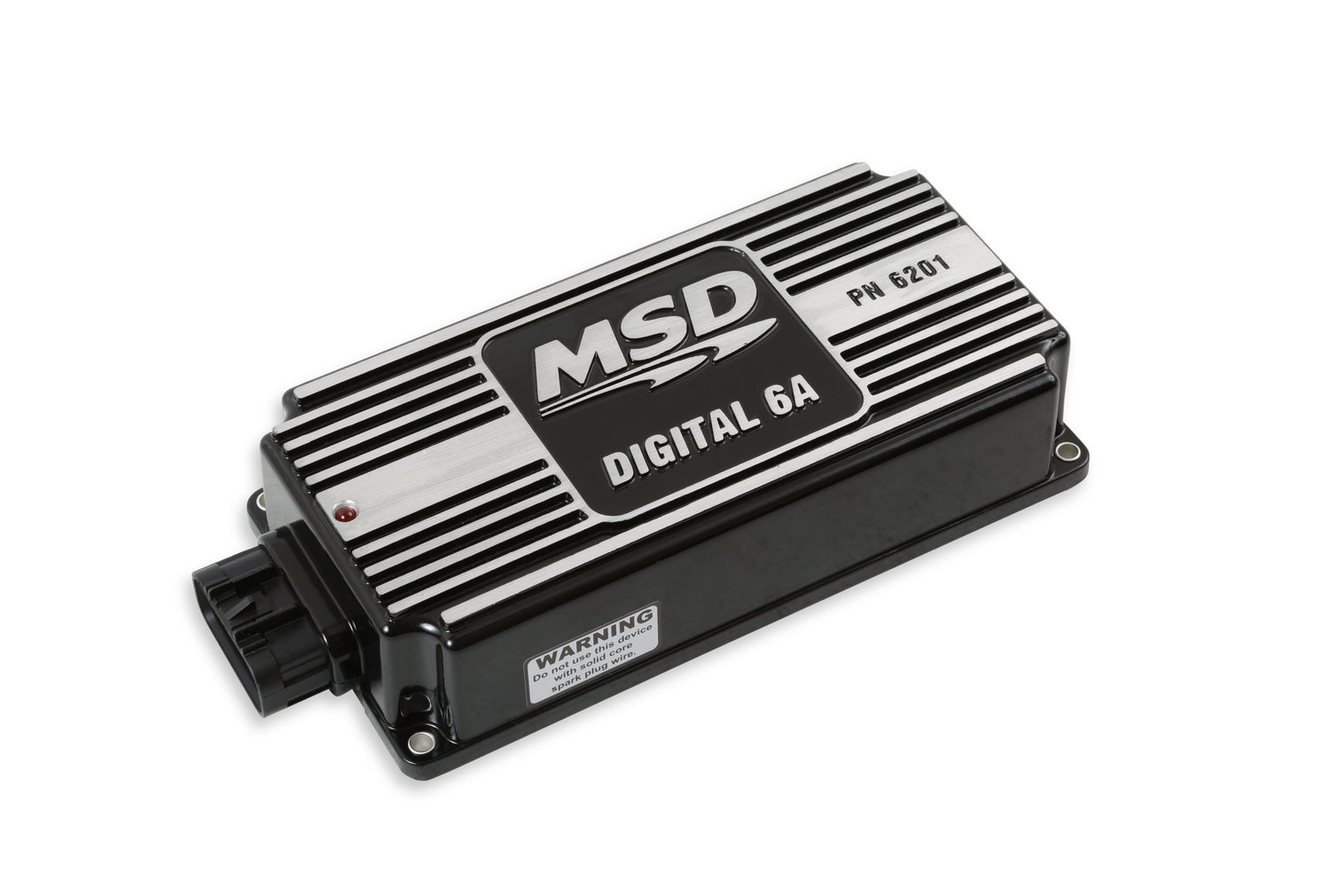

MSD Digital 6A Ignition Control - Black - 62013
Compatible with 4, 6, or 8 Cylinder Engines - Built-in LED for System Checks
Regular price
$483.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Digital 6A Ignition Control - Black - 62013 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Compatible with 4, 6, or 8 Cylinder Engines - Built-in LED for System Checks
Part Number: 62013
The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20⁰ of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder. A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups. If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.
Features and Benefits
• Tach output wire
• Built-in LED for system checks
• .7 Amp per 1,000 RPM
• 15,000 RPM with 14.4 Volts
• 12-15 Volts, 7 Volt Start
• Smooth idle
• Compatible with 4, 6 or 8 cylinder engines

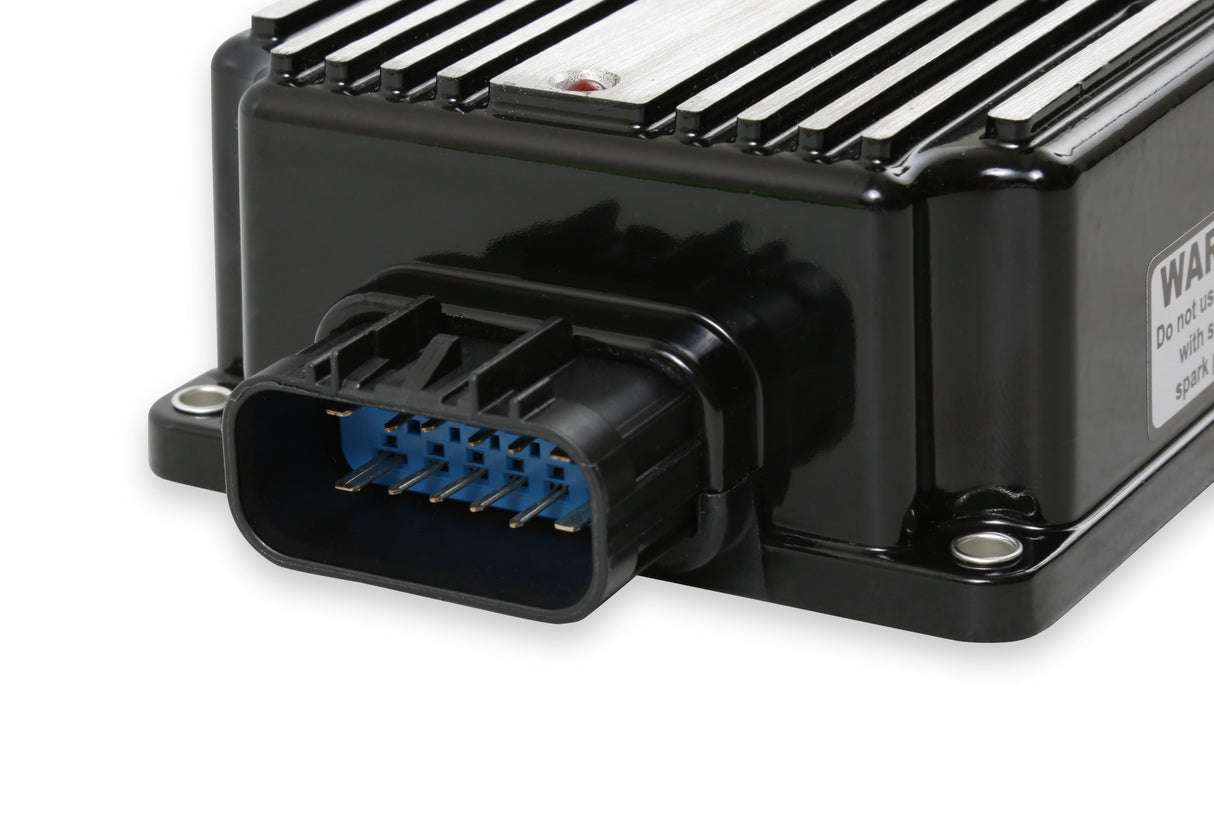

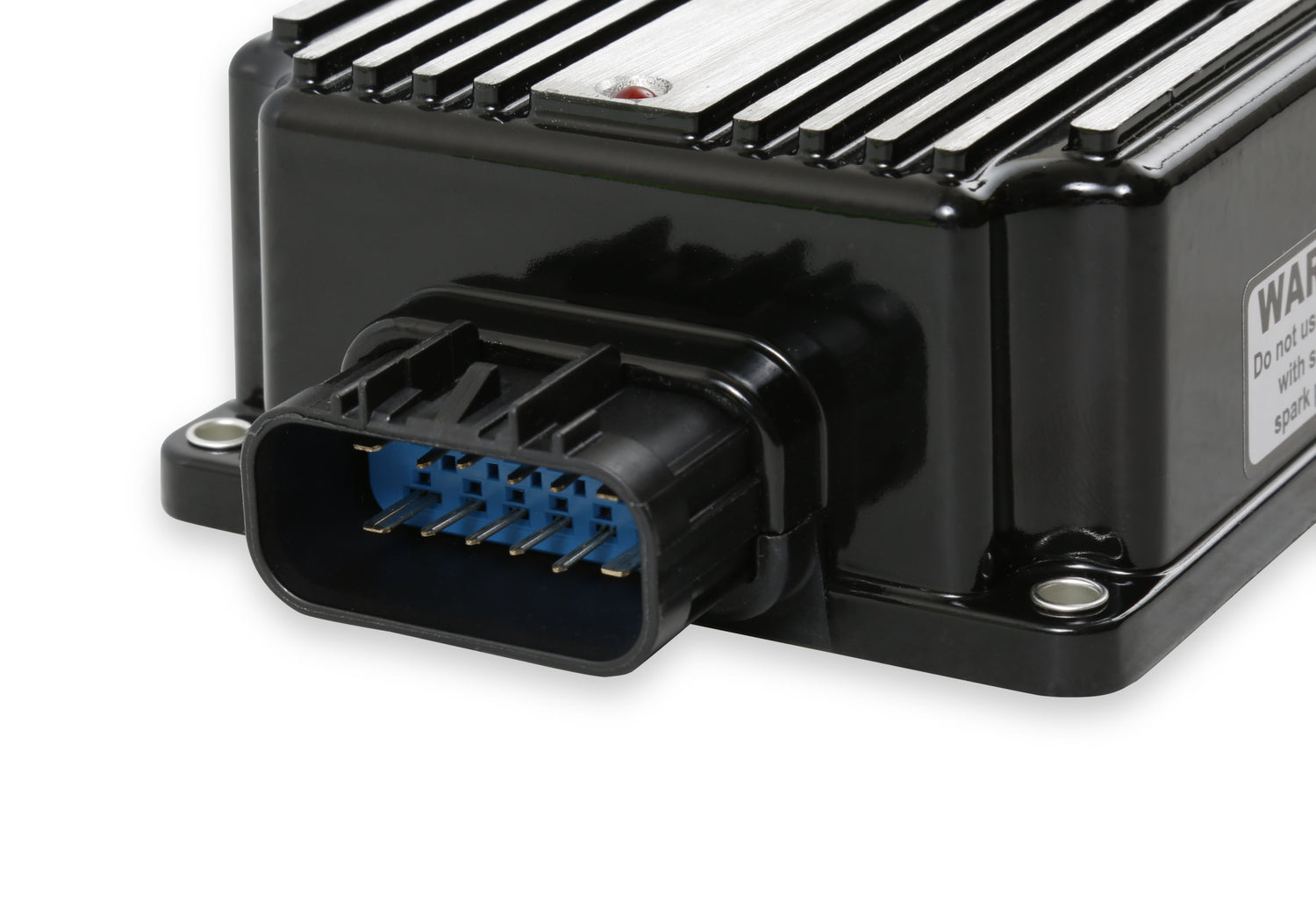

• Sealed, locking connector
• Full, capacitive discharge ignition power throughout the RPM range
• Easy starts
• Quick throttle response
CARB EO: D-40-43
Part Number: 62013
The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20⁰ of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder. A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups. If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.
Features and Benefits
• Tach output wire
• Built-in LED for system checks
• .7 Amp per 1,000 RPM
• 15,000 RPM with 14.4 Volts
• 12-15 Volts, 7 Volt Start
• Smooth idle
• Compatible with 4, 6 or 8 cylinder engines
• Sealed, locking connector
• Full, capacitive discharge ignition power throughout the RPM range
• Easy starts
• Quick throttle response
CARB EO: D-40-43
Specifications
Specifications
-
Specifications
Brand MSD C.A.R.B. EO # D-40-43 Category Ignition Color Black Connector Gender Female Connector Quantity 1 Current Draw 1000 Emission Code 1 Features No Rev Limiter Grade Type Performance Height 1.825 Ignition Type Performance Length 8 Maximum RPM 15,000 Mount Type Surface Mount Mounting Hardware Included Yes Primary Voltage 520-540 Product Type Digital 6A Ignition Control Box Secondary Voltage 45,000 Spark Energy (mJ per spark) 135-145 Sub Category Control Modules Terminal Gender Male Terminal Quantity 12 Voltage Required 12-15 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight and Size 1.7 lbs., 8L x 4W x 1.825H Width 4 -
