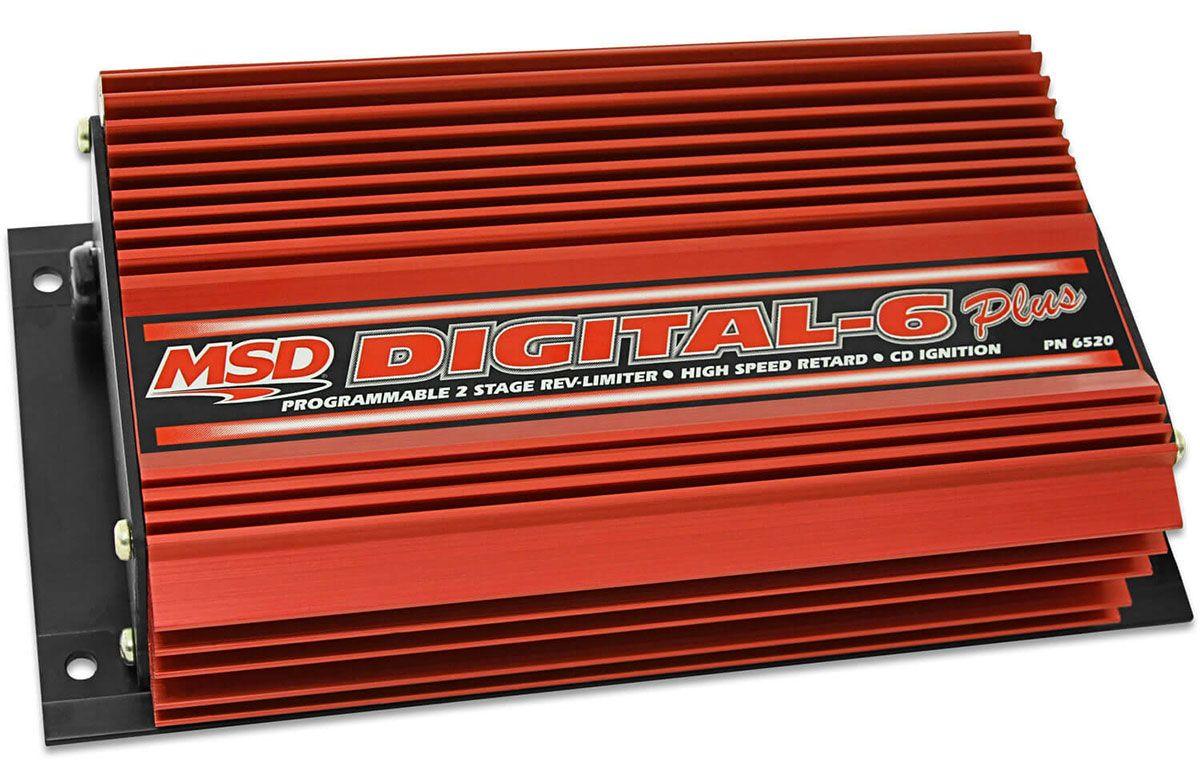

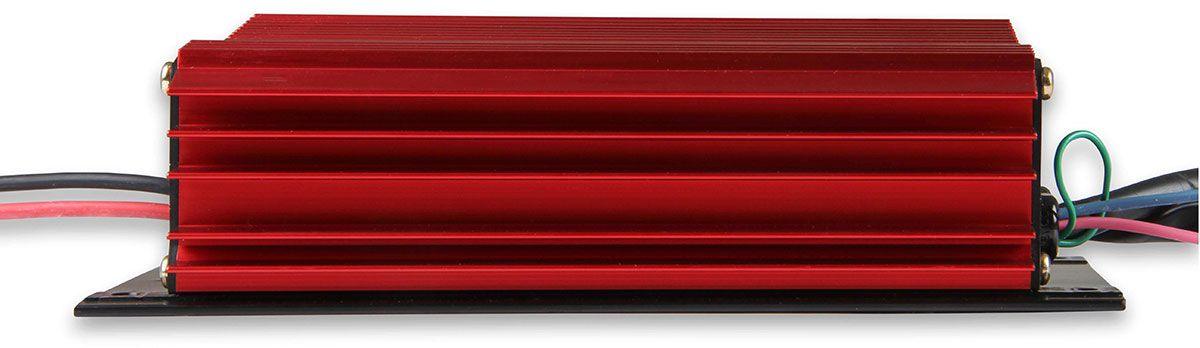

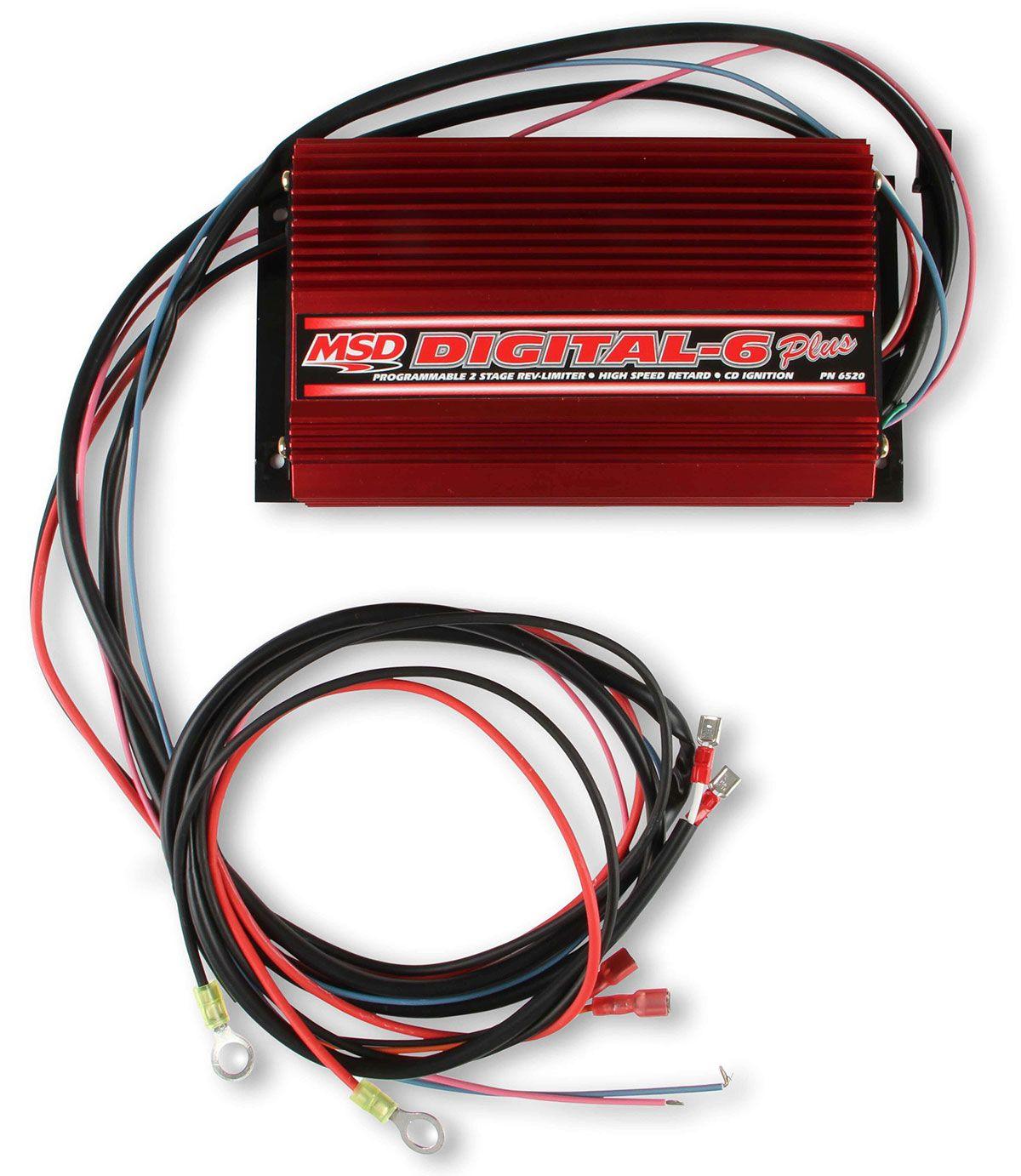

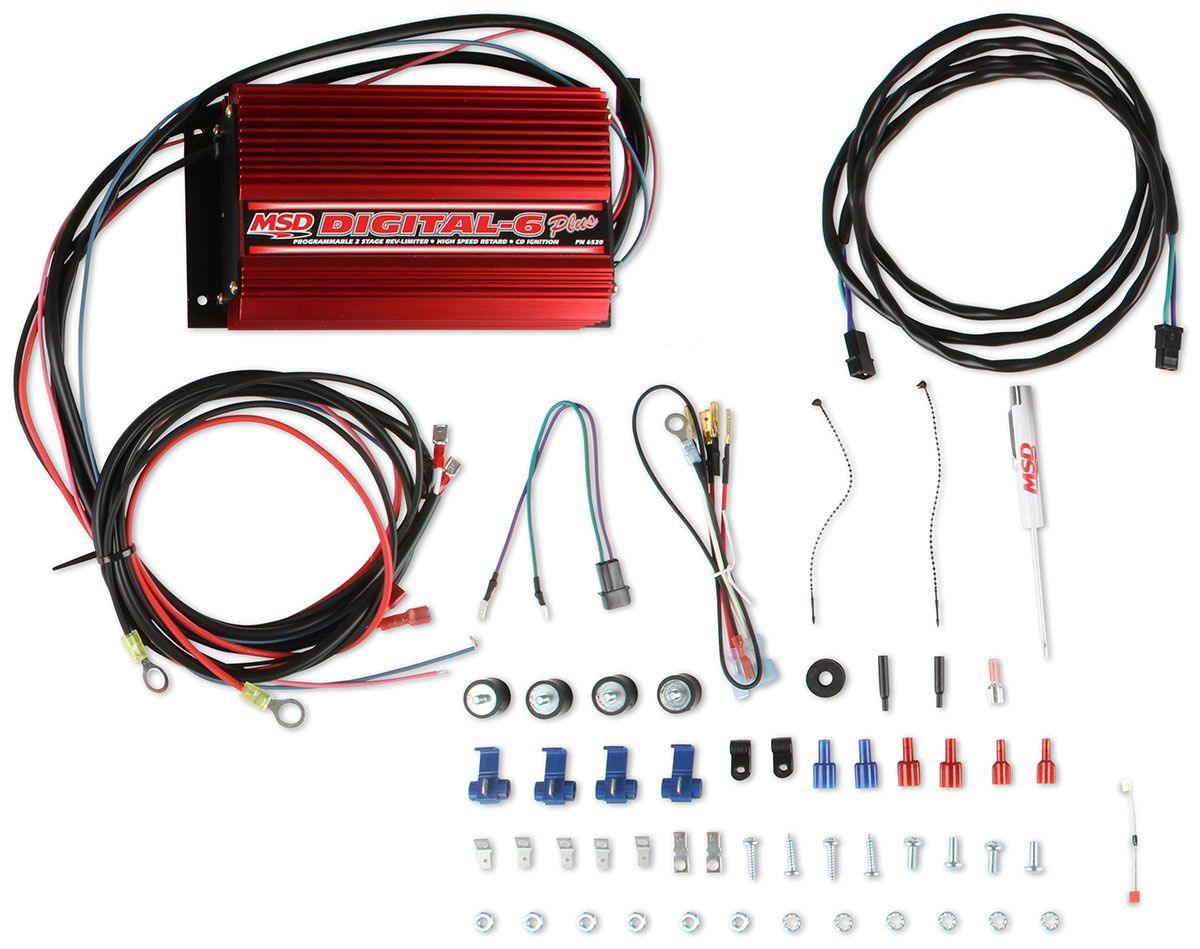

MSD Digital 6-Plus Ignition Control (MSD6520)

MSD6520 - DIGITAL-6 +, IGNITION CONTROL

Digital, Capacitive Discharge, Multiple Spark

Part Number: MSD6520

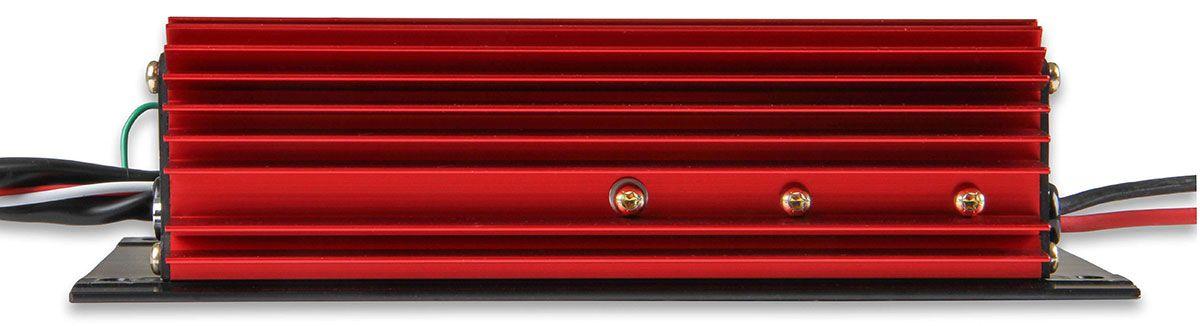

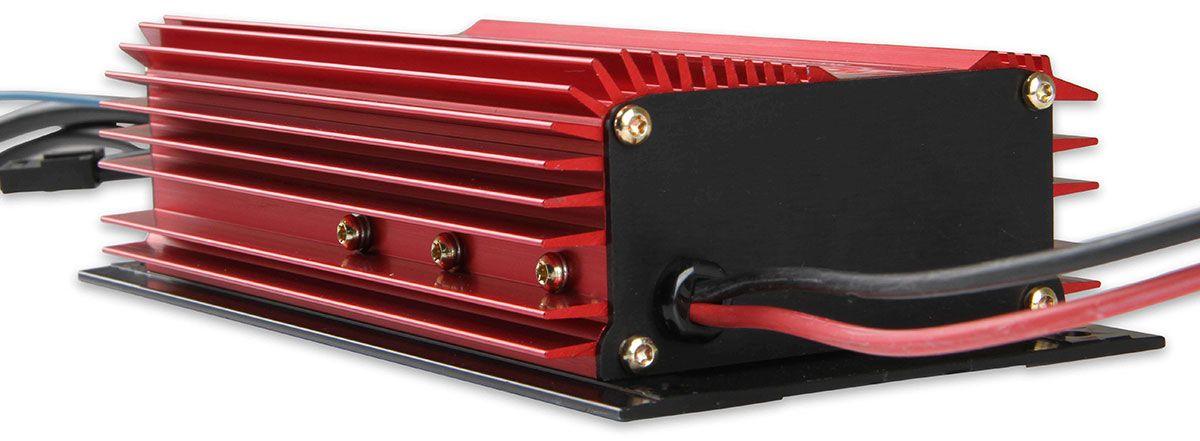

Switch between two rev limits that adjust with rotary switches in 100 rpm increments.
Single stage retard for nitrous and top end performance.
Start retard eases pressure on the starter, flywheel and engine.
Adjustable magnetic pickup compensation produces accurate trigger signals.
LED display warns of trigger signal problems or faulty charging system.
Fully potted with polyurethane for vibration and water protection.
The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy and great accessories making it ideal for street/strip applications. Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts. When used with the MSD Blaster HVC Coil, PN MSD8252, a spark with over 300 milliamp burns across the plug gap for 400 microseconds. Below 3,300 rpm the Digital-6 Plus produces s in the cylinder for up to 20 degrees of crankshaft rotation. This incredible heat ensures combustion to produce great power, quick throttle response, smooth idle and quick starts.

Operating Specifications:

Spark Energy
: 135 millijoules/Spark
Primary Voltage
: 535 Volts
Secondary Voltage
: 45,000 Volts
Spark Series Duration
: 20 Degrees Crankshaft Rotation
RPM Range
: 12,500 RPM with 14.4 Volts
Voltage Required
: 12 - 18 Volts, Negative Ground
Current Draw
: .7 Amp per 1,000 RPM
Weight and Size
: 3.7 lbs., 8.5"L x 4.5"W x 2.2"H
Tested with Blaster HVC Coil
