MSD | SKU:
8572

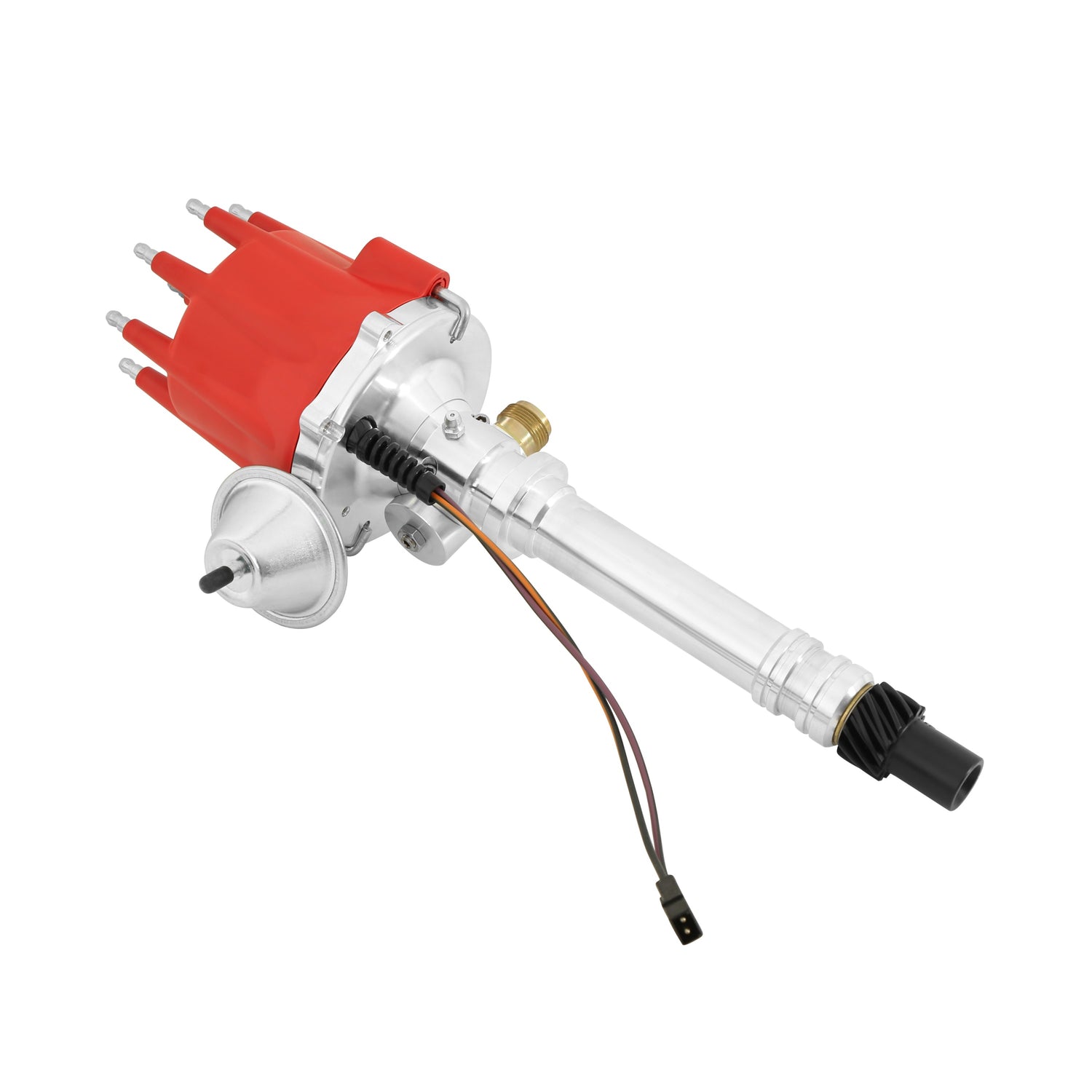

MSD Corvette V8 Tach Drive Distributor w/Vacuum Advance - 8572
Tach drive distributor for 63-74 Corvettes. Must be used with an MSD 6, 7 or 8-series ignition
Regular price
$1,297.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Corvette V8 Tach Drive Distributor w/Vacuum Advance - 8572 is not in stock at Fast Lane Spares and will ship direct from supplier.
ā Special Order Item ā ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7ā20 days shipping.
Stock Status:
Description
Description
Tach drive distributor for 63-74 Corvettes. Must be used with an MSD 6, 7 or 8-series ignition
Part Number: 8572
An adjustable mechanical advance assembly allows you to get the most performance out of your Vette's engine by custom tailoring a timing curve to fit your application. Corvette owners can now replace their worn out Magna-Pulse distributors with this precision Pro-Billet Tach Drive Distributor. Advantages such as an accurate magnetic pick-up, oversized shaft, vacuum advance and a billet aluminum housing are just a few of the MSD advantages. Inside the billet housing, a sealed ball bearing and long sintered bushing guide a 0.500" steel shaft for high rpm accuracy. A special reluctor is mounted to this shaft and is responsible for triggering the magnetic pick-up. The tach drive assembly is compact to clear the firewall and linkage. It can be repositioned easily to fit different applications plus has a grease fitting for lubrication.
Features and Benefits
ā¢ Same features as the PN 8571 with the addition of a vacuum advance
ā¢ CARB E.O. Approved
Part Number: 8572
An adjustable mechanical advance assembly allows you to get the most performance out of your Vette's engine by custom tailoring a timing curve to fit your application. Corvette owners can now replace their worn out Magna-Pulse distributors with this precision Pro-Billet Tach Drive Distributor. Advantages such as an accurate magnetic pick-up, oversized shaft, vacuum advance and a billet aluminum housing are just a few of the MSD advantages. Inside the billet housing, a sealed ball bearing and long sintered bushing guide a 0.500" steel shaft for high rpm accuracy. A special reluctor is mounted to this shaft and is responsible for triggering the magnetic pick-up. The tach drive assembly is compact to clear the firewall and linkage. It can be repositioned easily to fit different applications plus has a grease fitting for lubrication.
Features and Benefits
ā¢ Same features as the PN 8571 with the addition of a vacuum advance
ā¢ CARB E.O. Approved
Specifications
Specifications
-
Specifications
Brand MSD C.A.R.B. EO # D-40-39 Category Ignition Color Red Distributor Cap Included Yes Distributor Type Mechanical Tach Drive Emission Code 1 Gear Material Cast Iron Melonized QPQ Coated Grade Type Performance Ignition Box Required Yes Ignition Coil Included No Ignition Rotor Included Yes part type Distributor Product Type Distributor Sub Category Distributor and Magneto Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
