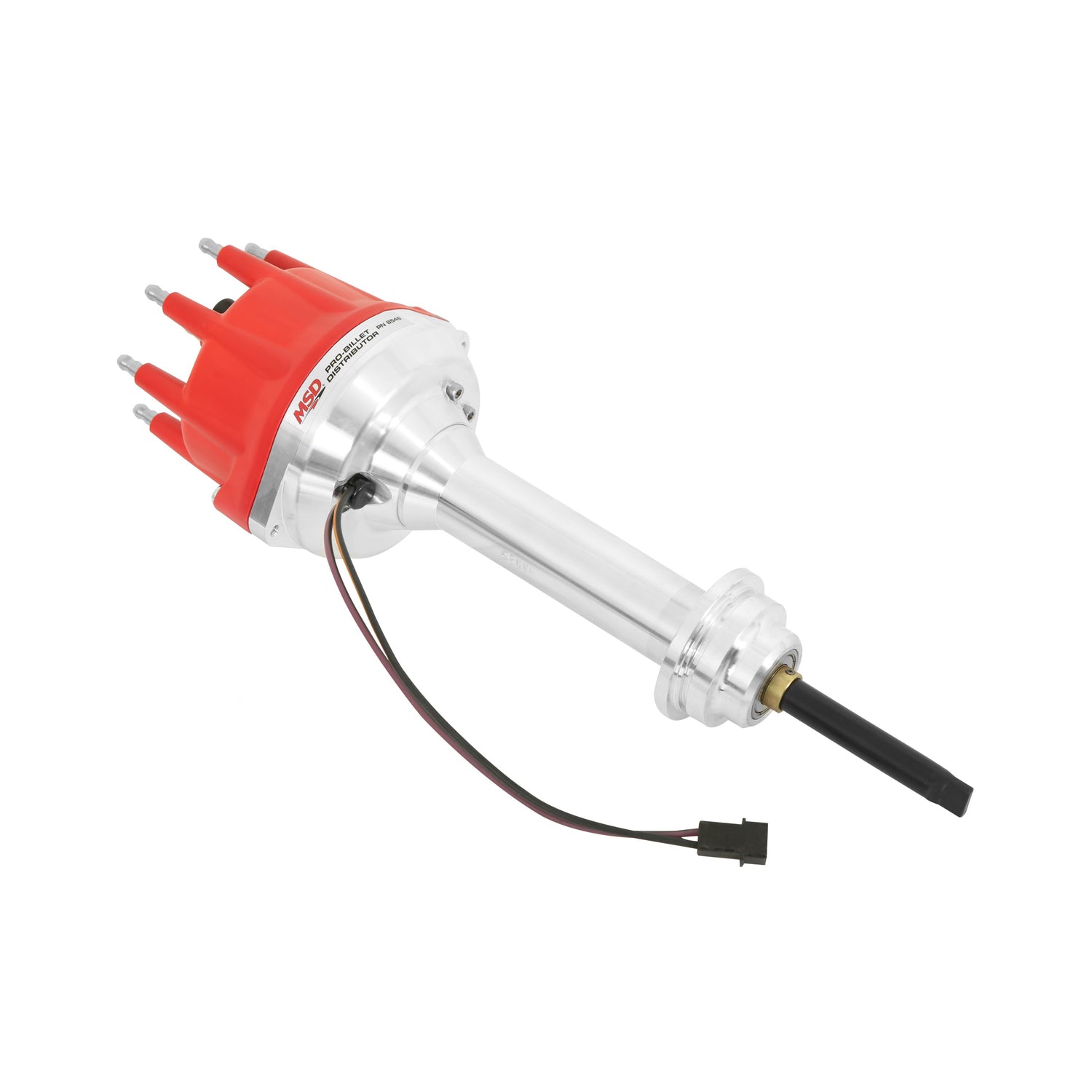

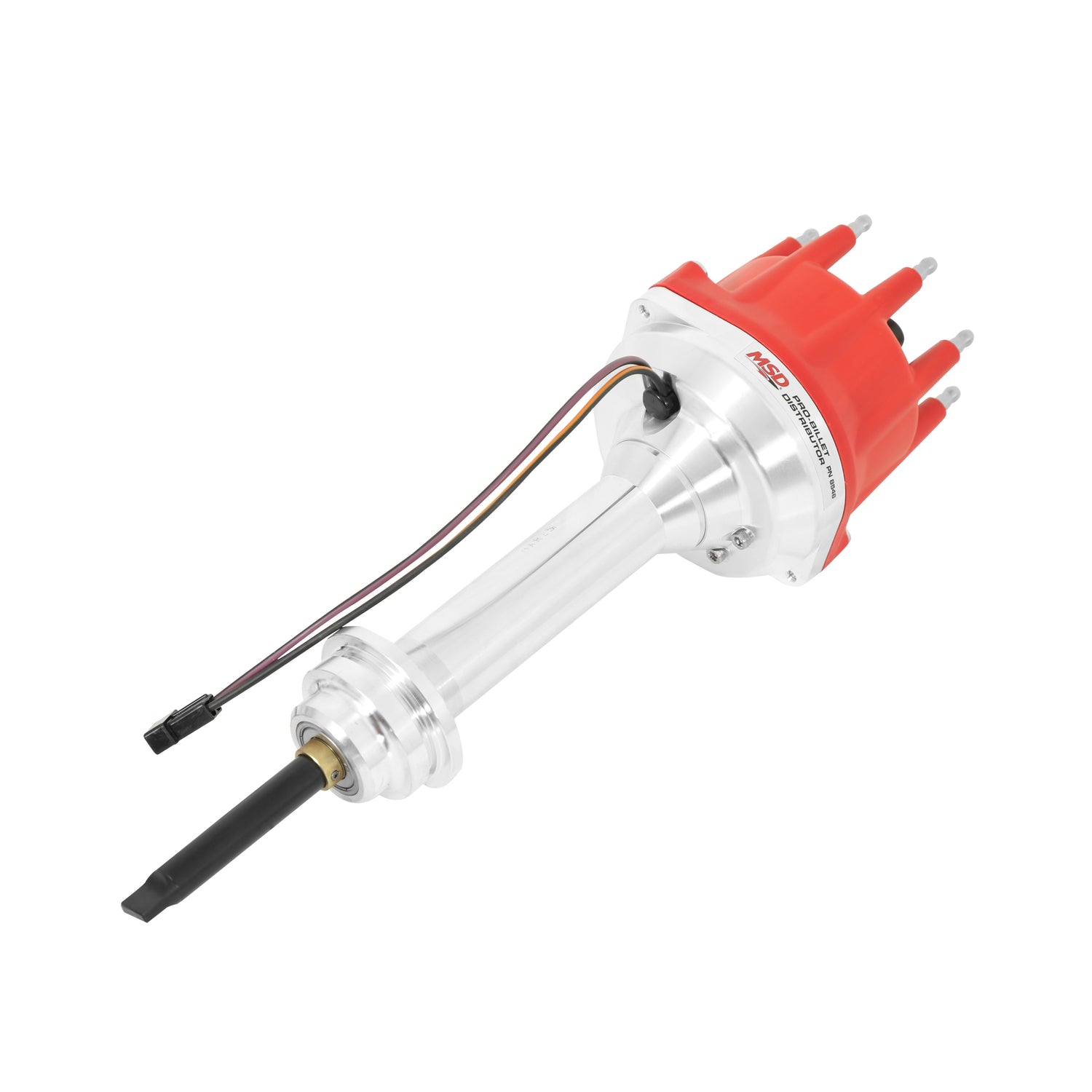

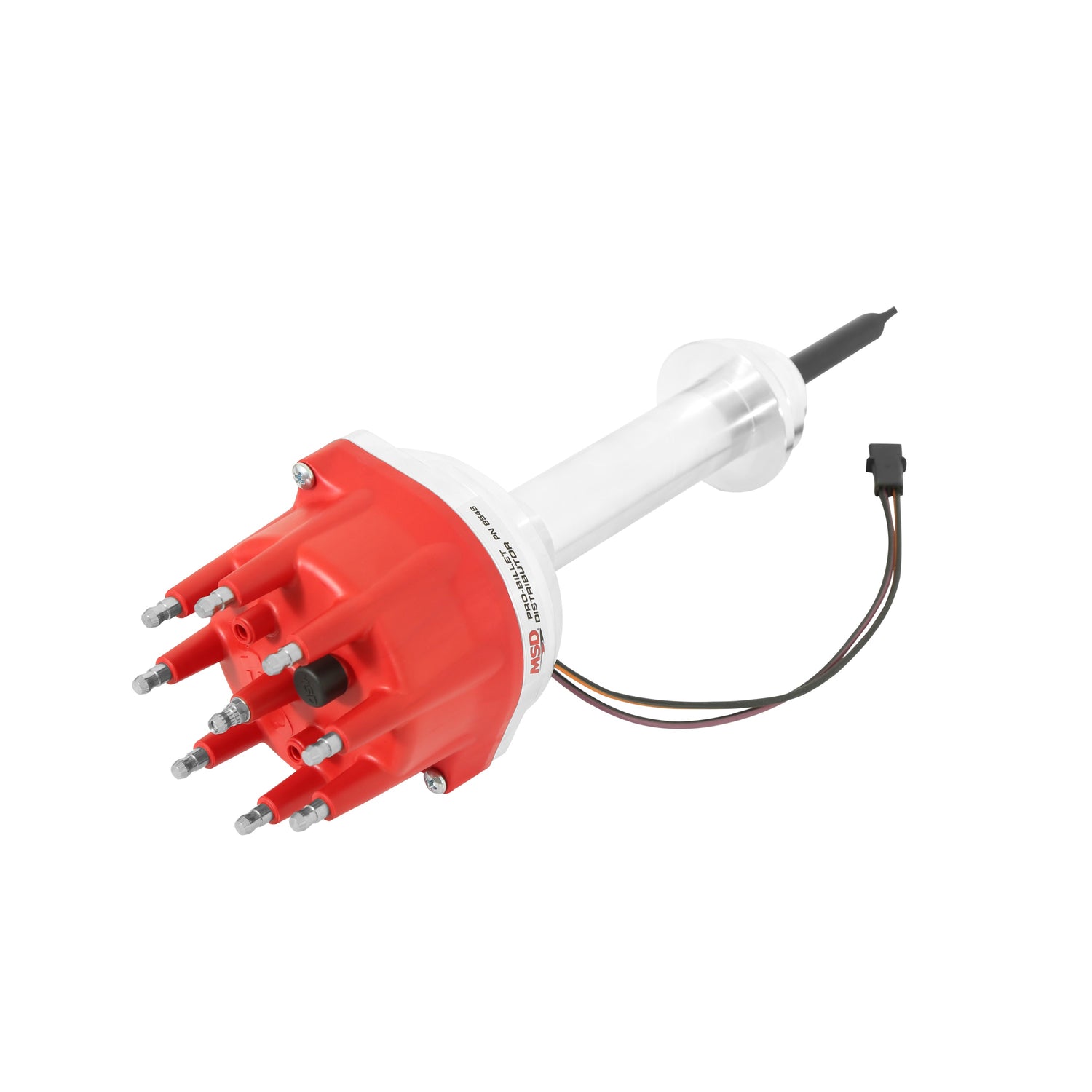

MSD Chrysler 426,440 Pro-Billet Distributor - 8546

Small diameter housing allows the distributor to fit tight block and head combinations.

Part Number: 8546

Since many Chrysler enthusiasts use the B1 head or aftermarket valve cov­ers, these Pro-Billet Chrysler Distributors have been designed with a small diameter housing.

Features and Benefits

• Smaller diameter CNC machined billet aluminum housing and billet aluminum base clears aftermarket heads and valve covers
• No CARB Exemption Order Number
• Advance weight pins are staked and tig welded to the plate
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Must be used with an MSD Ignition Control

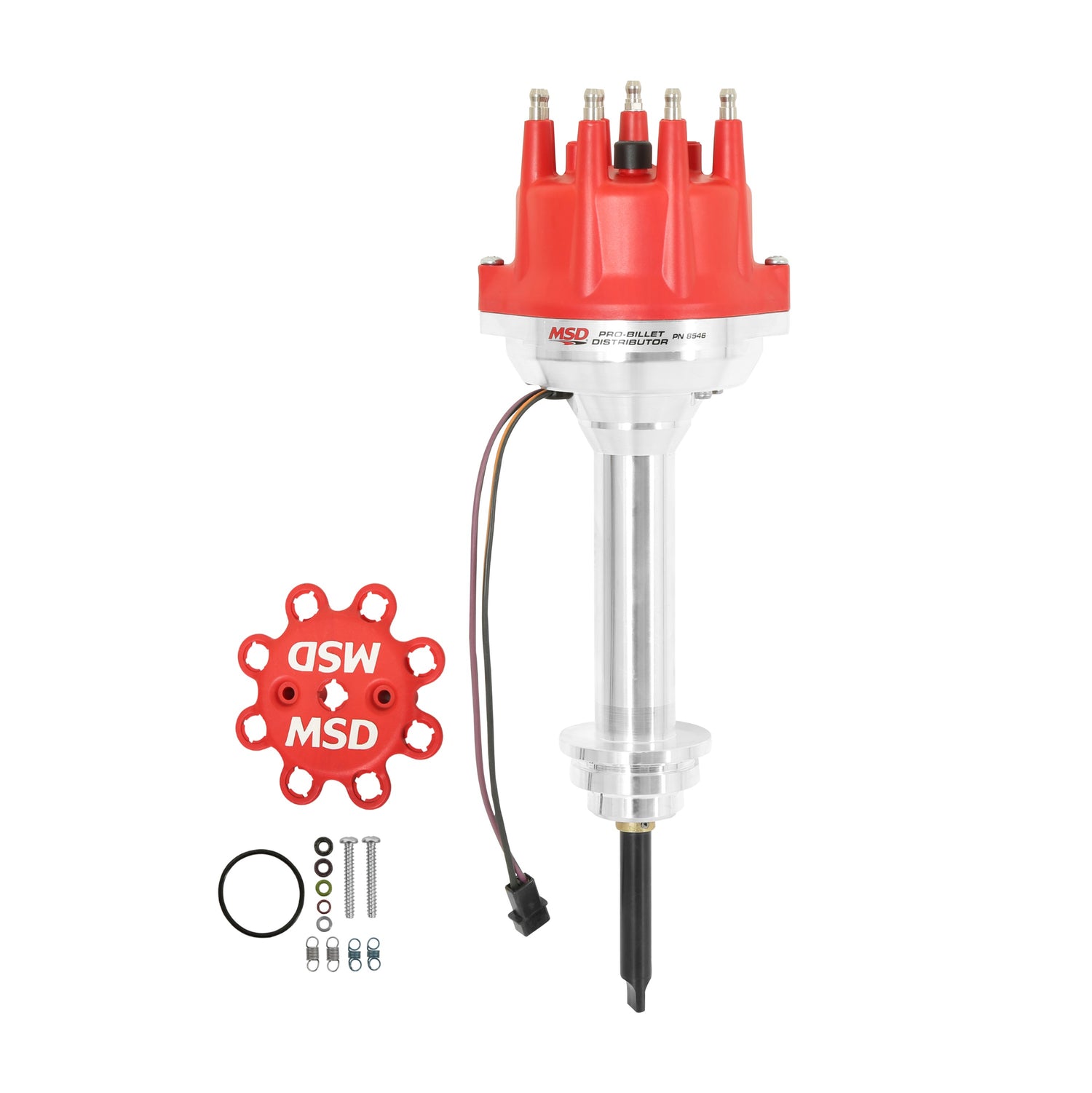

• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Easy-to-adjust mechanical advance with supplied springs and stop bushings

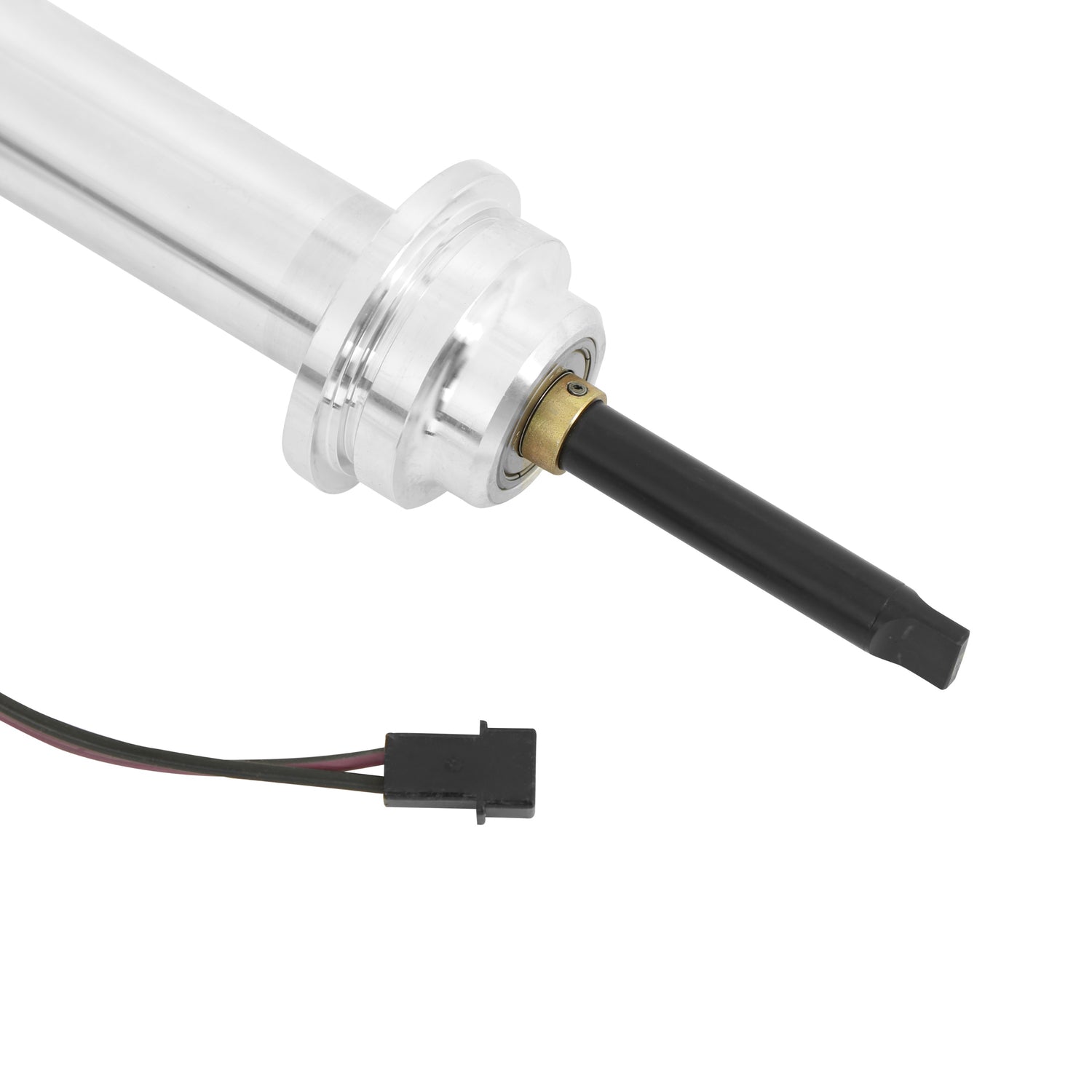

• Polished steel shaft is QPQ coated and guided by two sealed ball bearings
• Nylon pads ensure smooth operation of the advance weights
