MSD | SKU:
85561

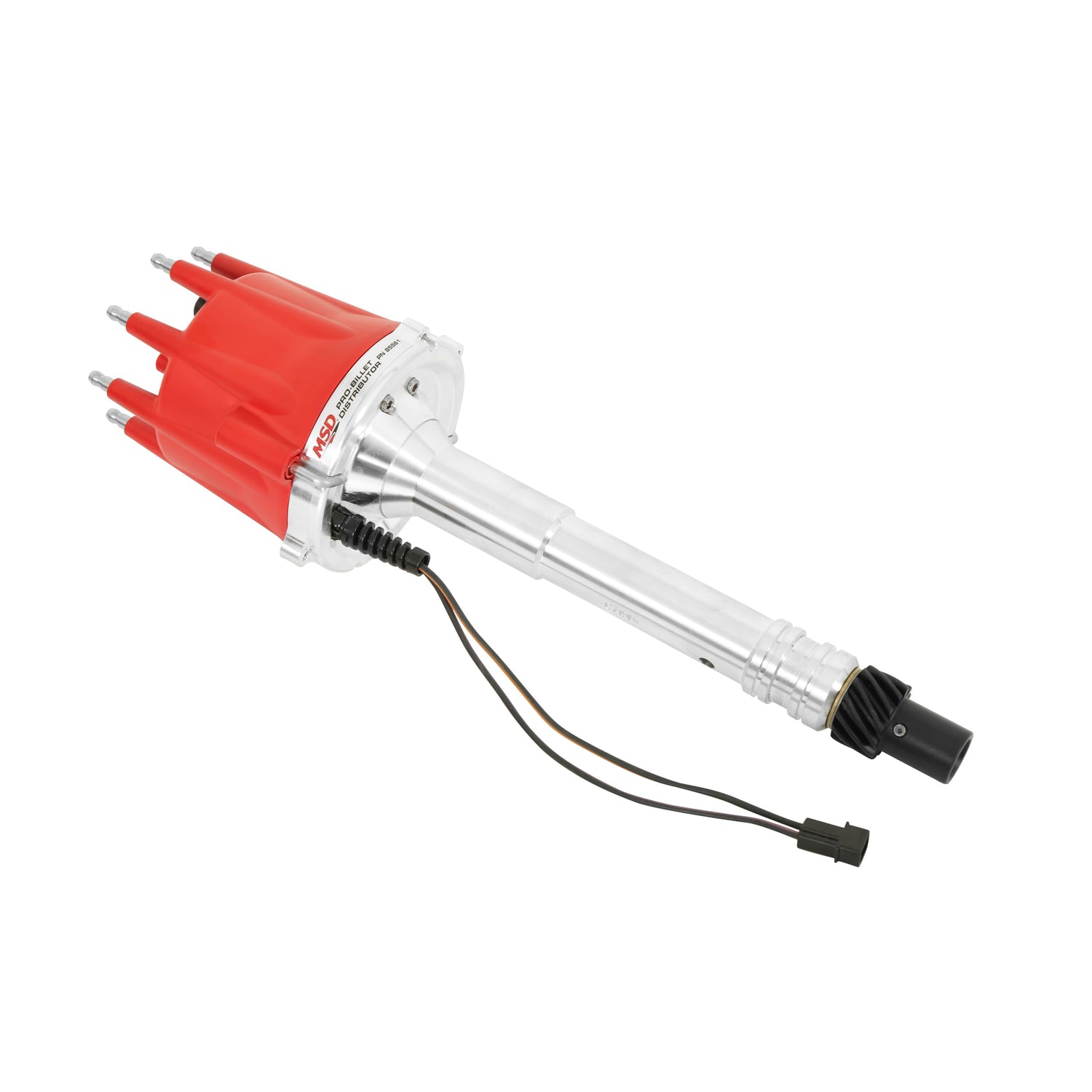

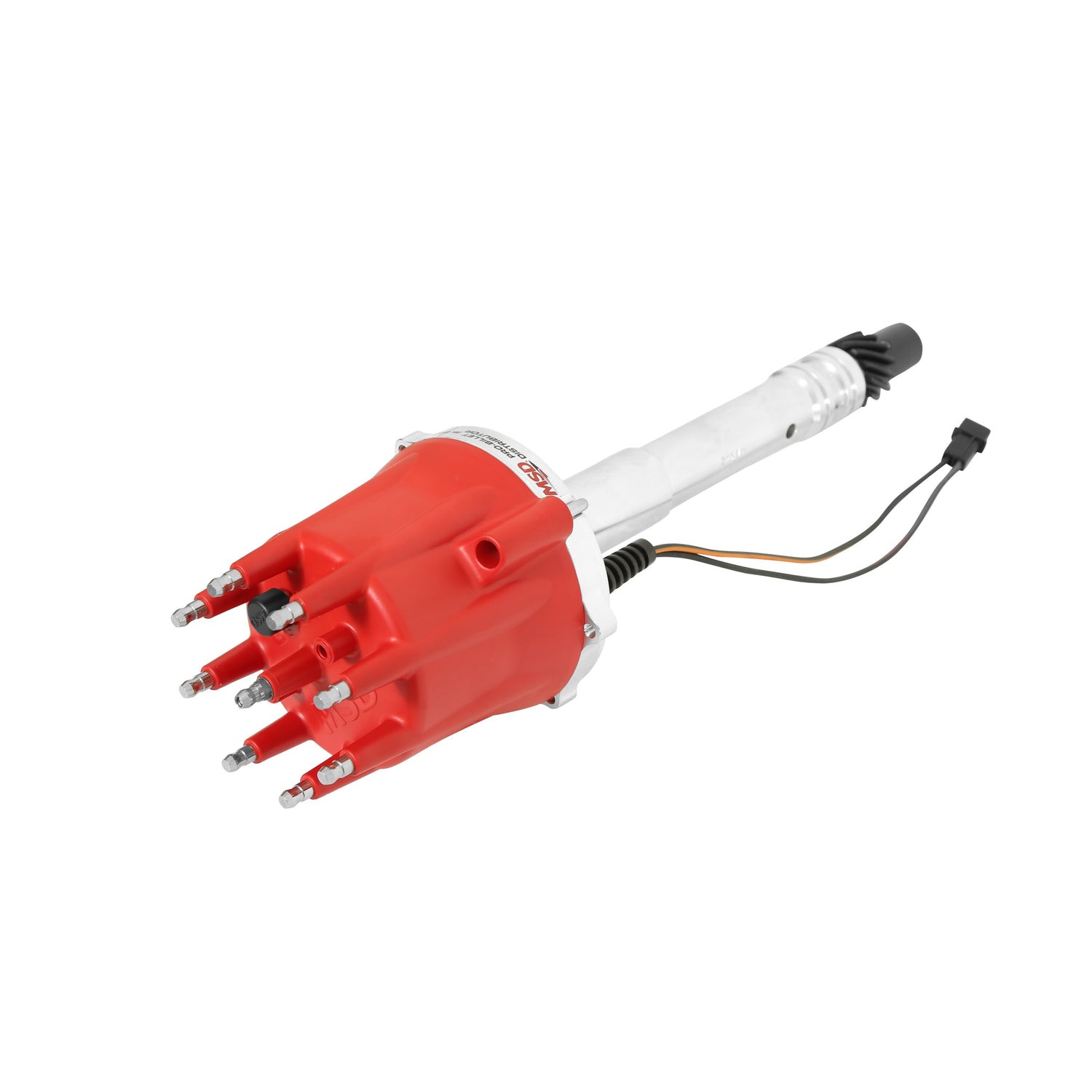

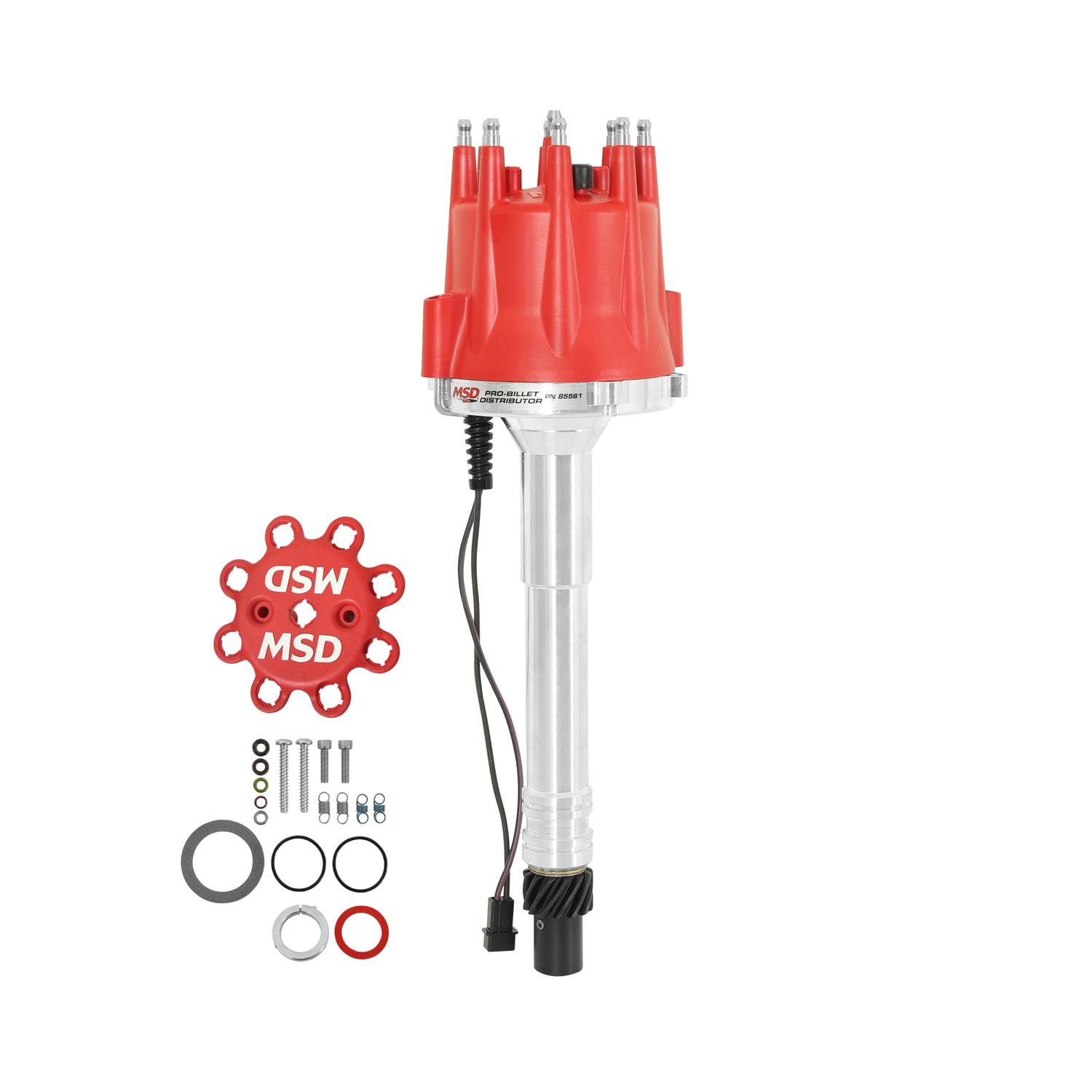

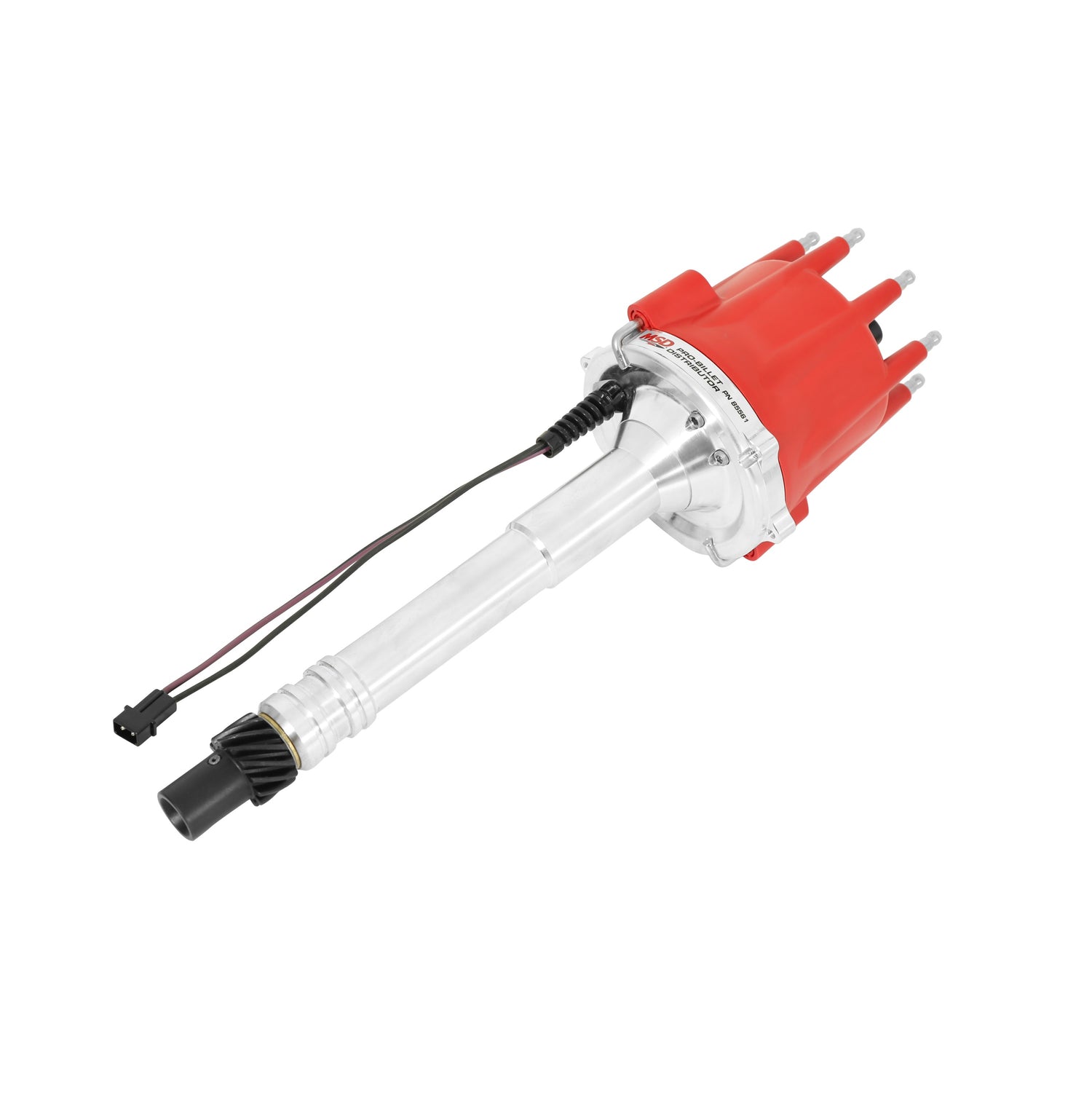

MSD Chevy V8 w/Slip Collar Distributor - 85561
For taller blocks or decked heads. Must be used with an MSD 6, 7 or 8-series ignition.
Regular price
$769.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Chevy V8 w/Slip Collar Distributor - 85561 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
For taller blocks or decked heads. Must be used with an MSD 6, 7 or 8-series ignition.
Part Number: 85561

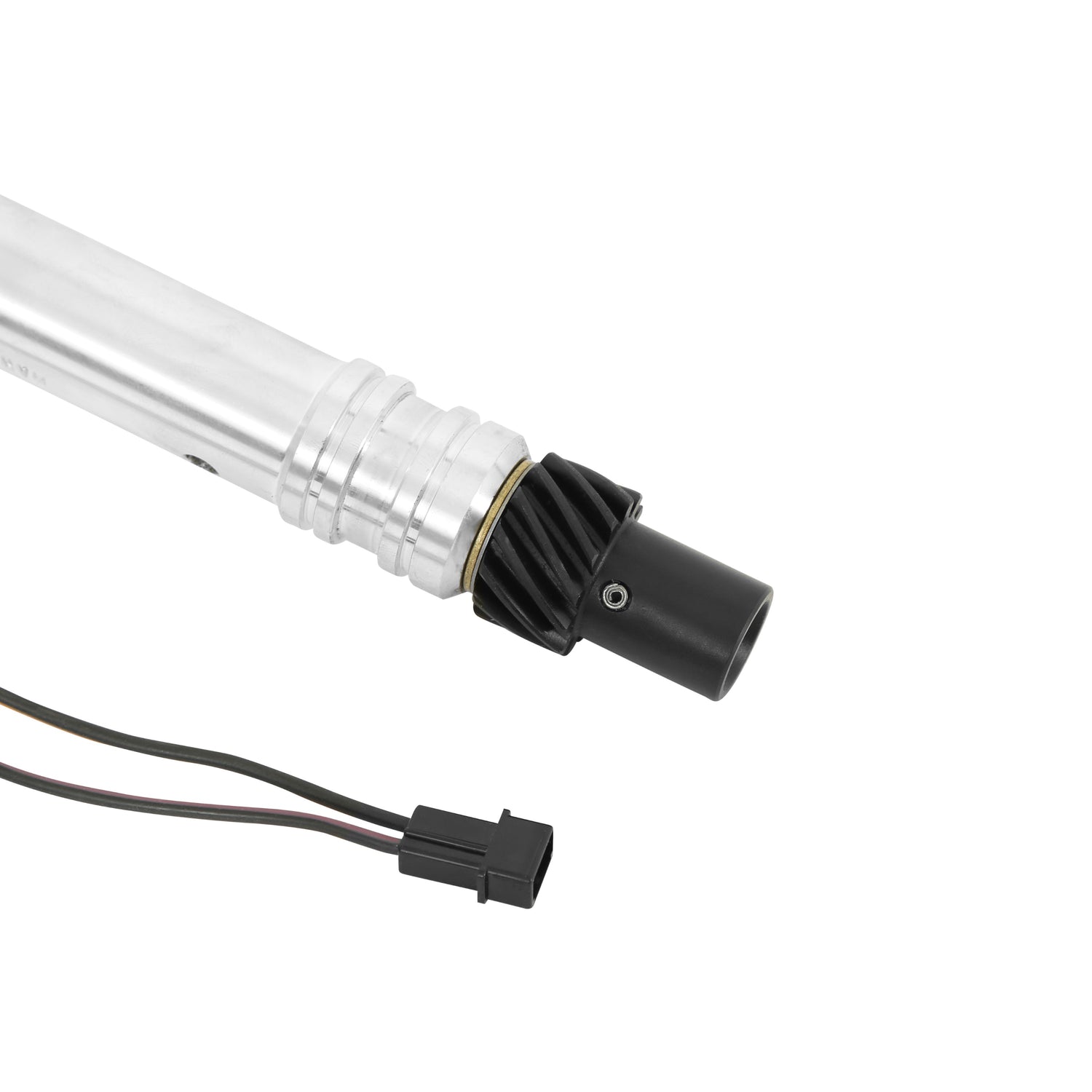

If you have a slightly taller block or have decked the heads, the distance between the distributor mounting pad and the cam gear/oil pump drive may be different. MSD offers these Distributor with an adjustable slip collar with 1.5" of adjustment so you can be sure the distributor is installed correctly. The distributor shares the same features of the standard Pro-Billet Chevrolet model including a ball bearing guide, long sintered lower bushing and an oil seal. To trigger the MSD Ignition a maintenance-free magnetic pick-up is secured in the billet base of the distributor. Just above this pick-up assembly is an adjustable mechanical advance assembly.
Features and Benefits
• Same features as the PN 85551 Distributor with the addition of an adjustable slip collar for engines with modified deck heights
***Slip Collar adjustment is .750" from Standard collar height***
Part Number: 85561
If you have a slightly taller block or have decked the heads, the distance between the distributor mounting pad and the cam gear/oil pump drive may be different. MSD offers these Distributor with an adjustable slip collar with 1.5" of adjustment so you can be sure the distributor is installed correctly. The distributor shares the same features of the standard Pro-Billet Chevrolet model including a ball bearing guide, long sintered lower bushing and an oil seal. To trigger the MSD Ignition a maintenance-free magnetic pick-up is secured in the billet base of the distributor. Just above this pick-up assembly is an adjustable mechanical advance assembly.
Features and Benefits
• Same features as the PN 85551 Distributor with the addition of an adjustable slip collar for engines with modified deck heights
***Slip Collar adjustment is .750" from Standard collar height***
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Red Distributor Cap Included Yes Distributor Type Magnetic Pickup Emission Code 3 Gear Material Cast Iron Melonized QPQ Coated Grade Type Performance Ignition Box Required Yes Ignition Coil Included No Ignition Rotor Included Yes Product Type Distributor Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
