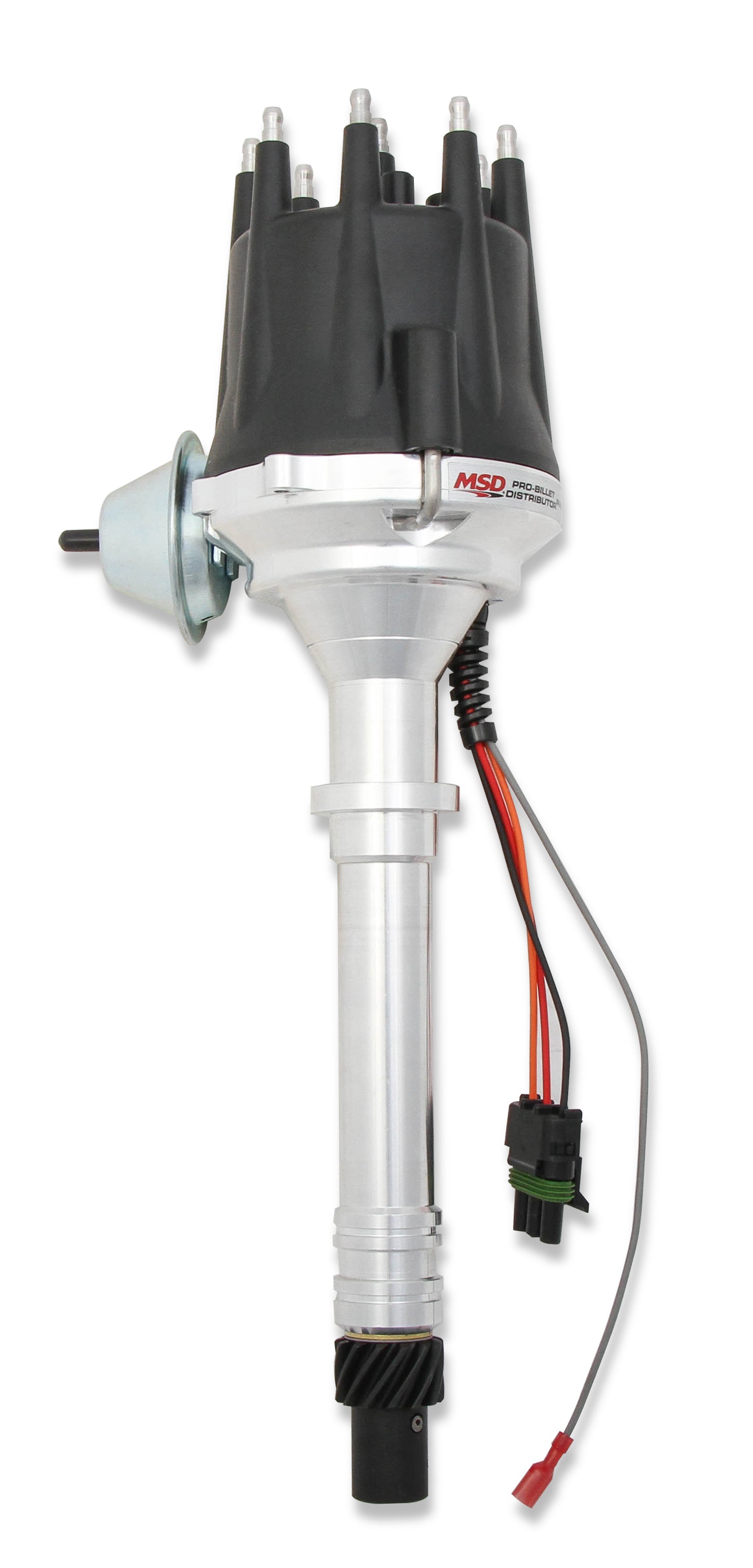

MSD Chevy V8 w/Internal Module Distributor and Black Cap - 83605

Ready-to-run distributors include a built-in ignition module so no MSD Ignition control required and supplied with Black Cap.

Part Number: 83605

A maintenance-free magnetic pick-up accurately triggers the module. The increased output of the amplifier easily outperforms stock ignitions and will smooth out the engines idle, improve starting and provide a much higher rpm range. The Ready-to-Run features MSD's adjustable mechanical advance that allows you to custom tailor an ignition curve to match your engine's needs. There is also a vacuum advance canister to help improve economy. For positive street performance, the Ready-to-Run is the best choice. Includes a separate tach circuit that is ideal to trigger an aftermarket EFI such as an Atomic EFI system. The Pro-Billet Ready-to-Run distributor is the perfect upgrade for outdated points distributors or bulky HEIs. Simply install the distributor in the engine, connect three wires, the coil and fire it up!

Features and Benefits

• O-ring seals can be added to modified blocks to improve oil pressure control
• Special oil tract improves lubrication to the distributor and cam gear
• Advance weight pins are staked and tig welded to the plate
• Powerful built-in module produces a 7.5 amp single spark through high rpm

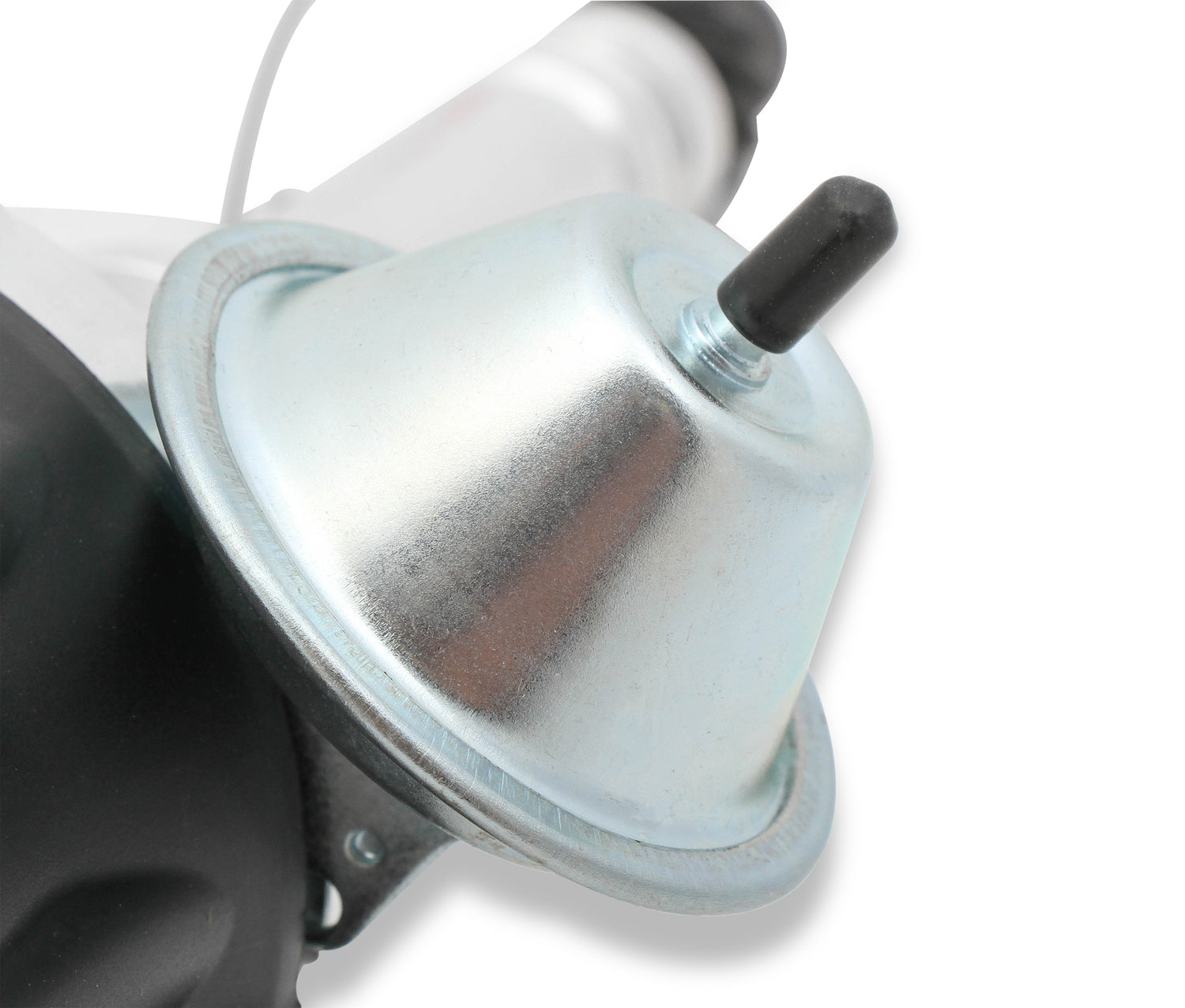

• Vacuum advance canister for improved economy (can be locked out)

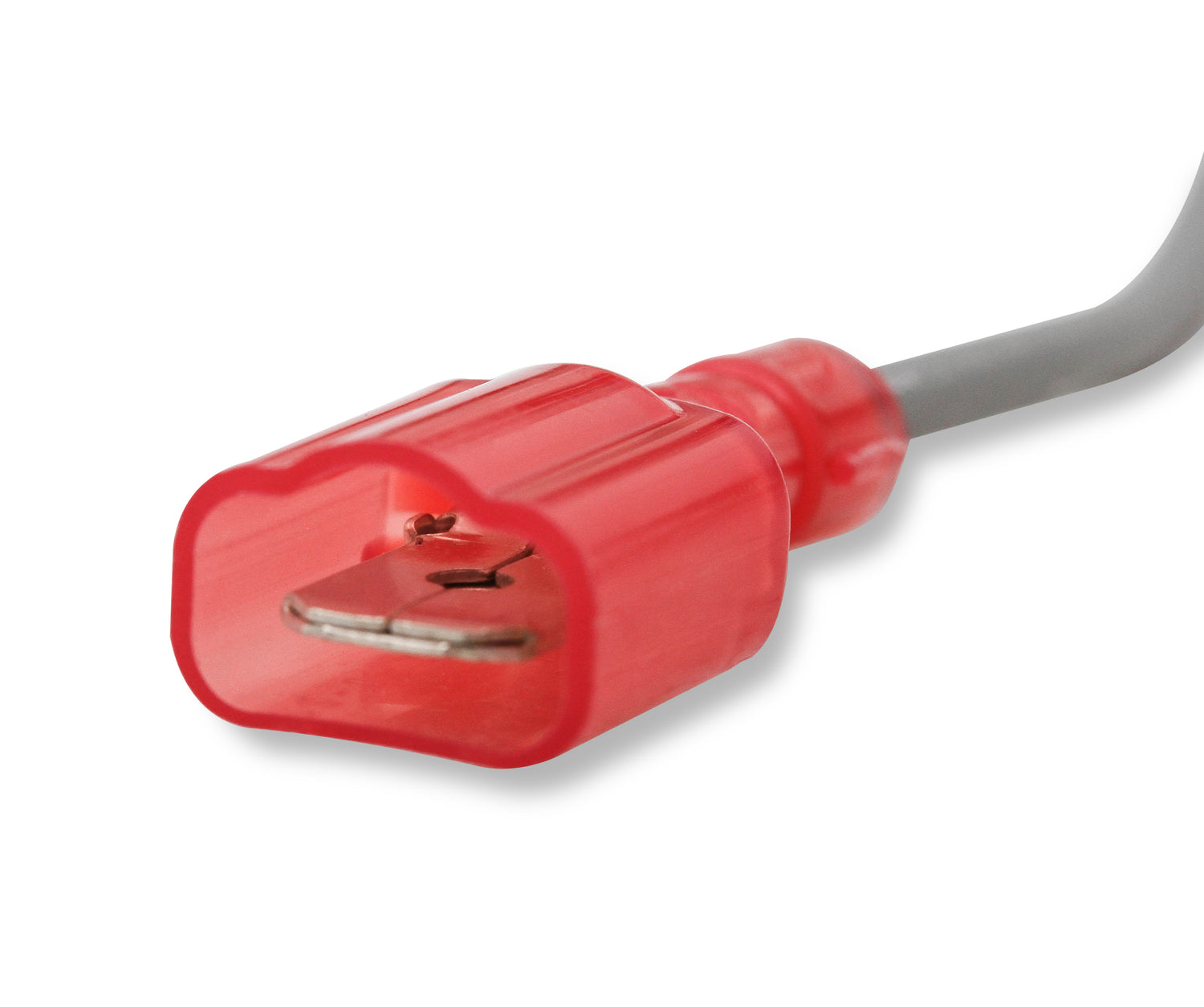

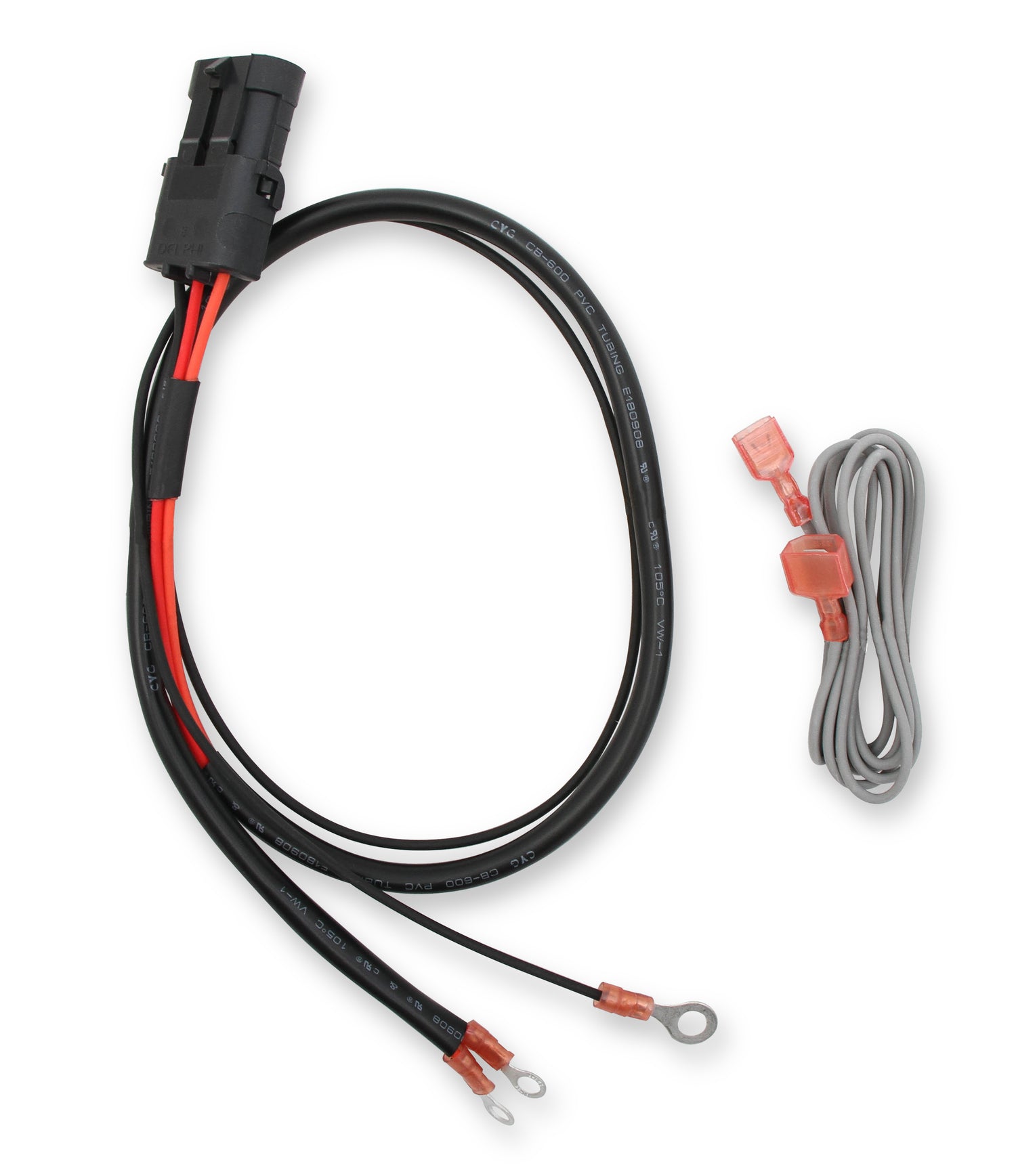

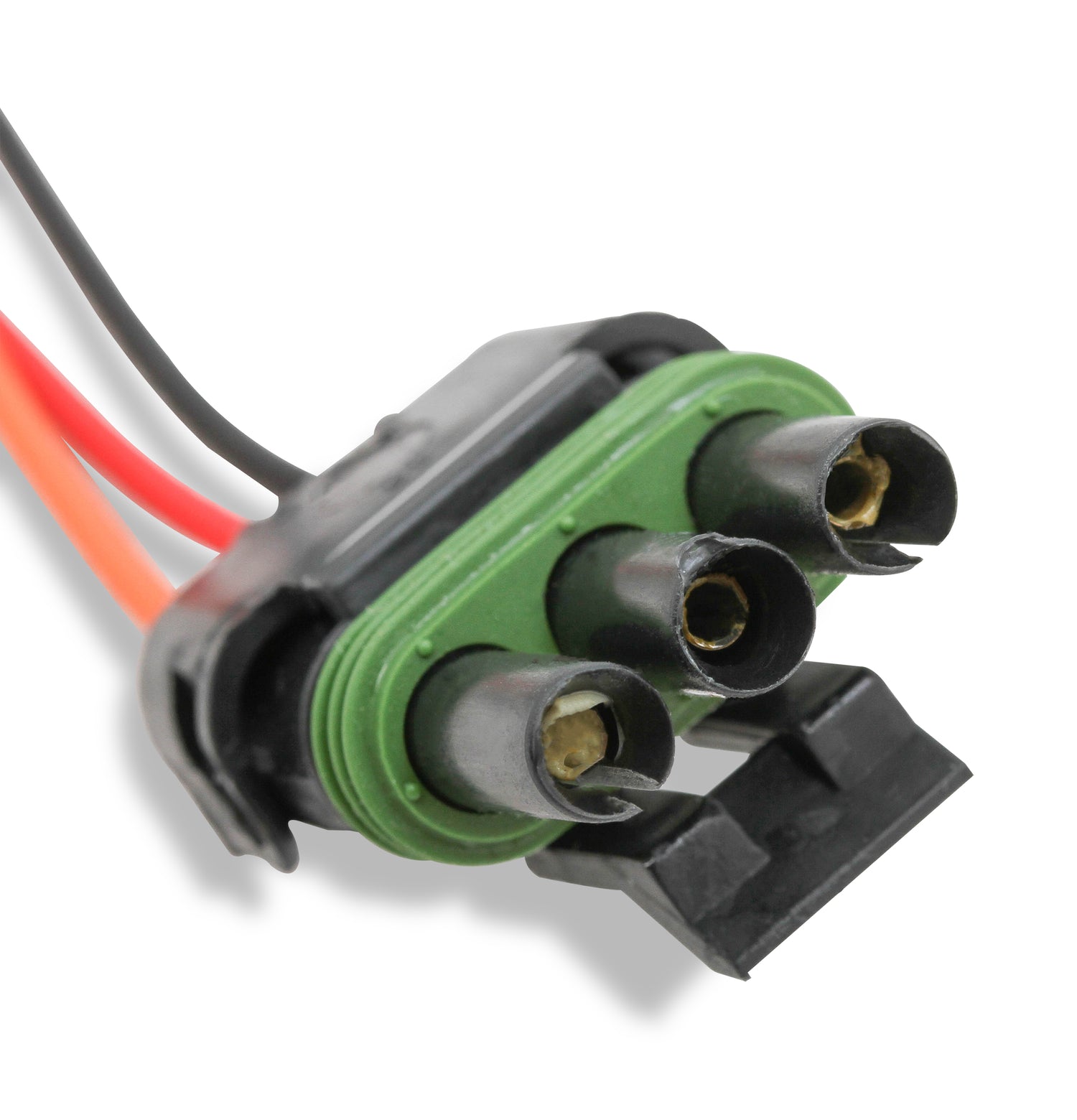

• Simple and clean installation with only three wires to connect

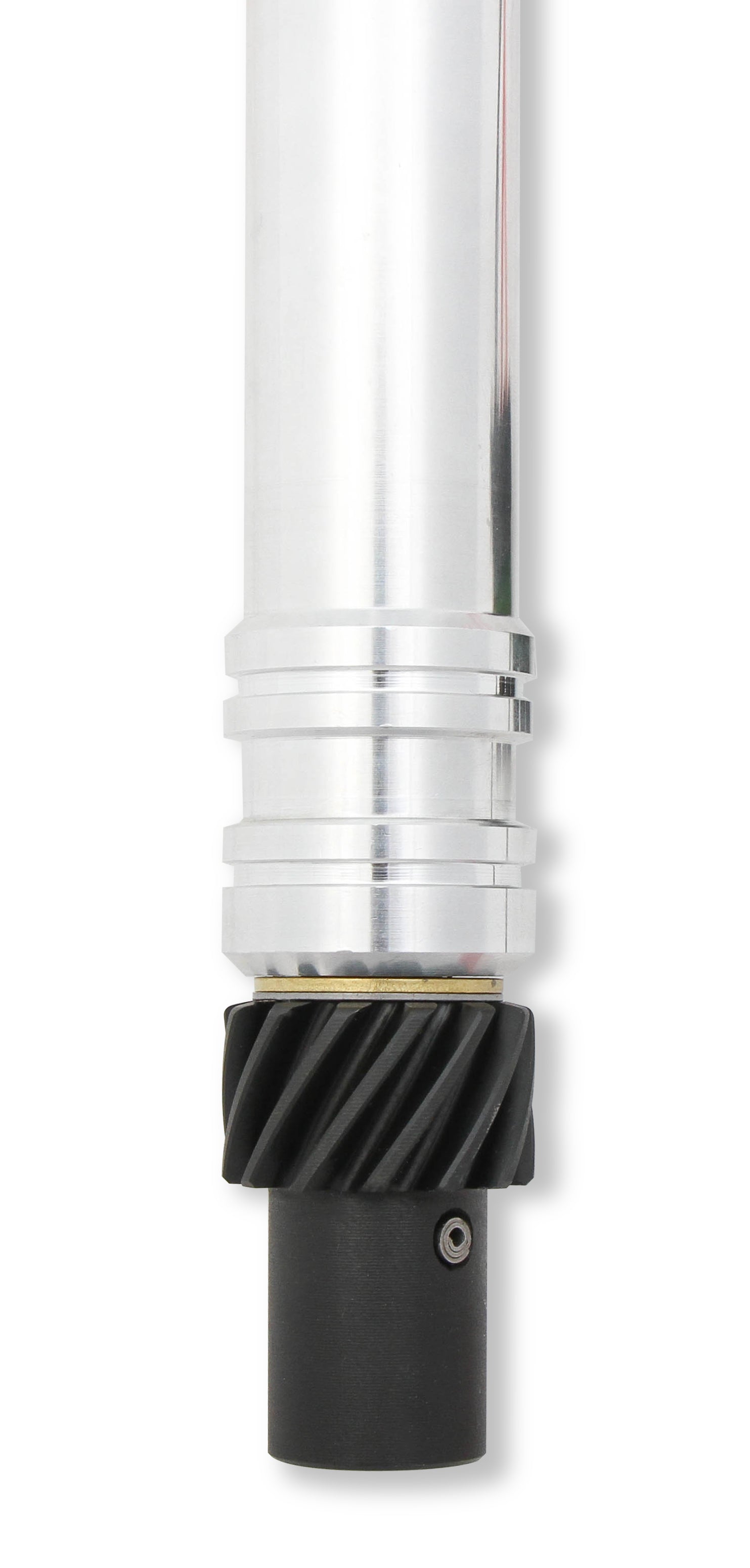

• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Does not require an MSD Ignition Control
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Nylon pads ensure smooth operation of the advance weights

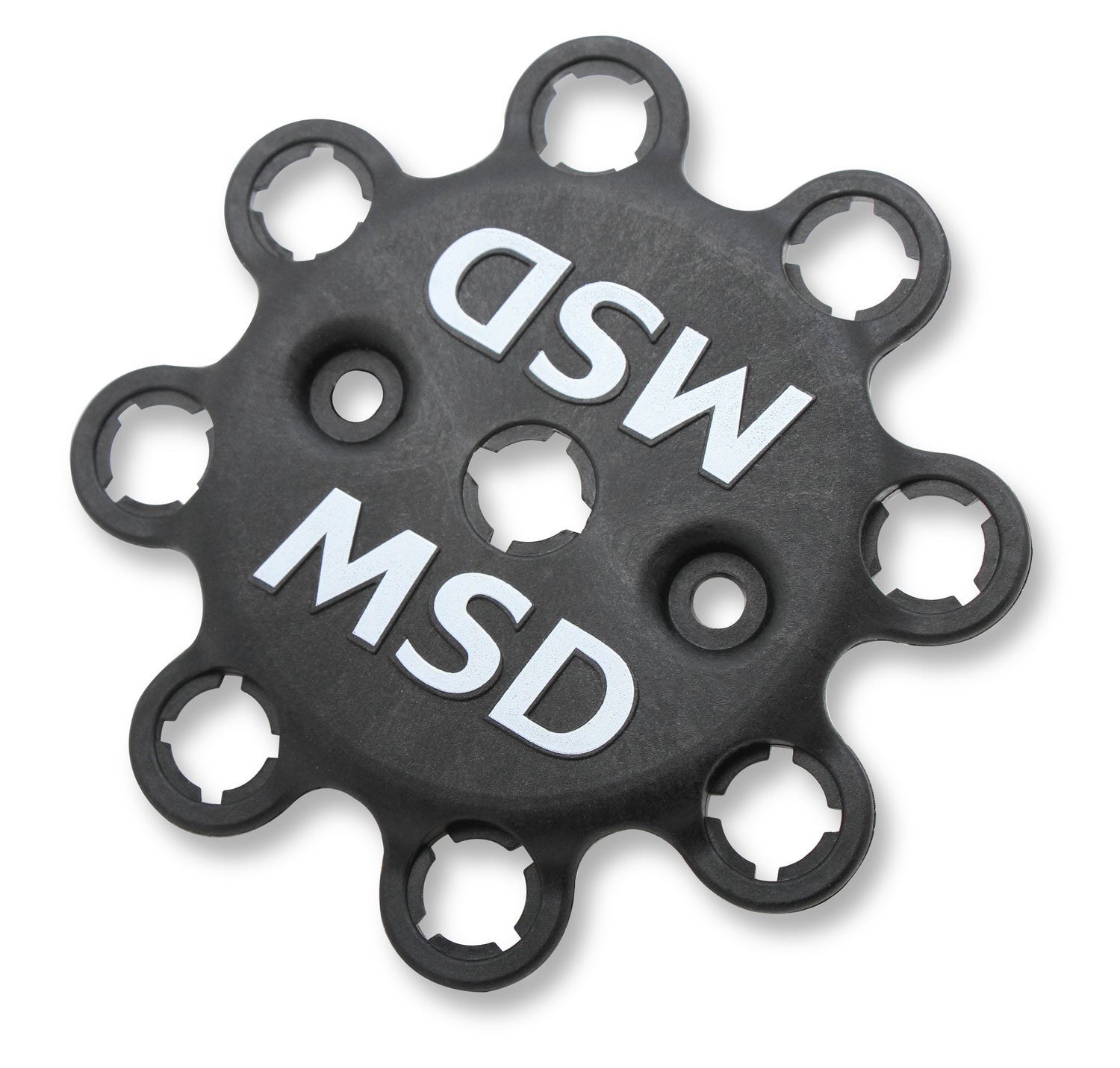

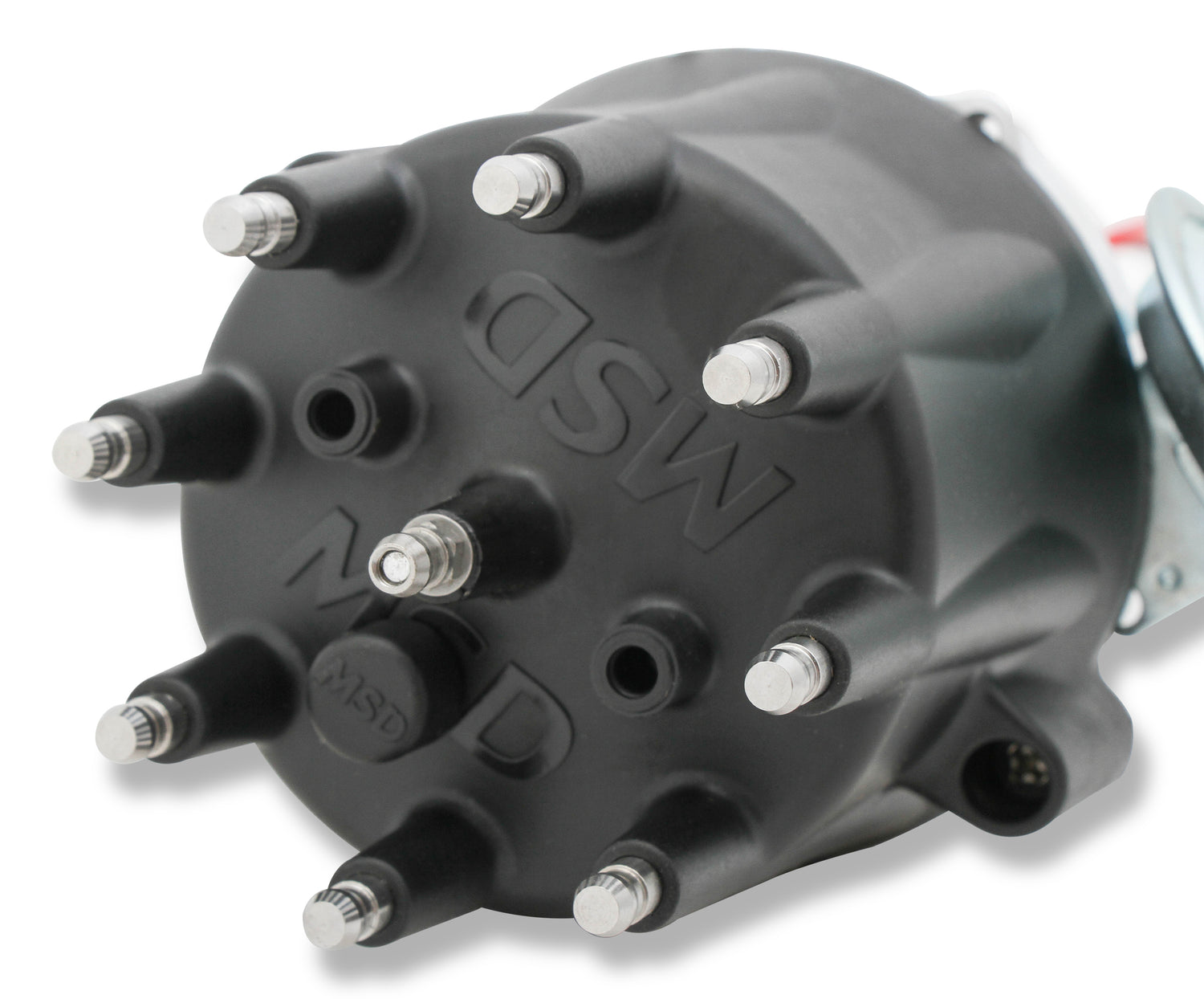

• Supplied with a black HEI style distributor cap and rotor (accepts Cap-A-Dapts)
• Mechanical advance assembly can be locked out for crank trigger systems
• Now includes build-in rev limiter!
• CNC machined billet aluminum housing and billet aluminum base

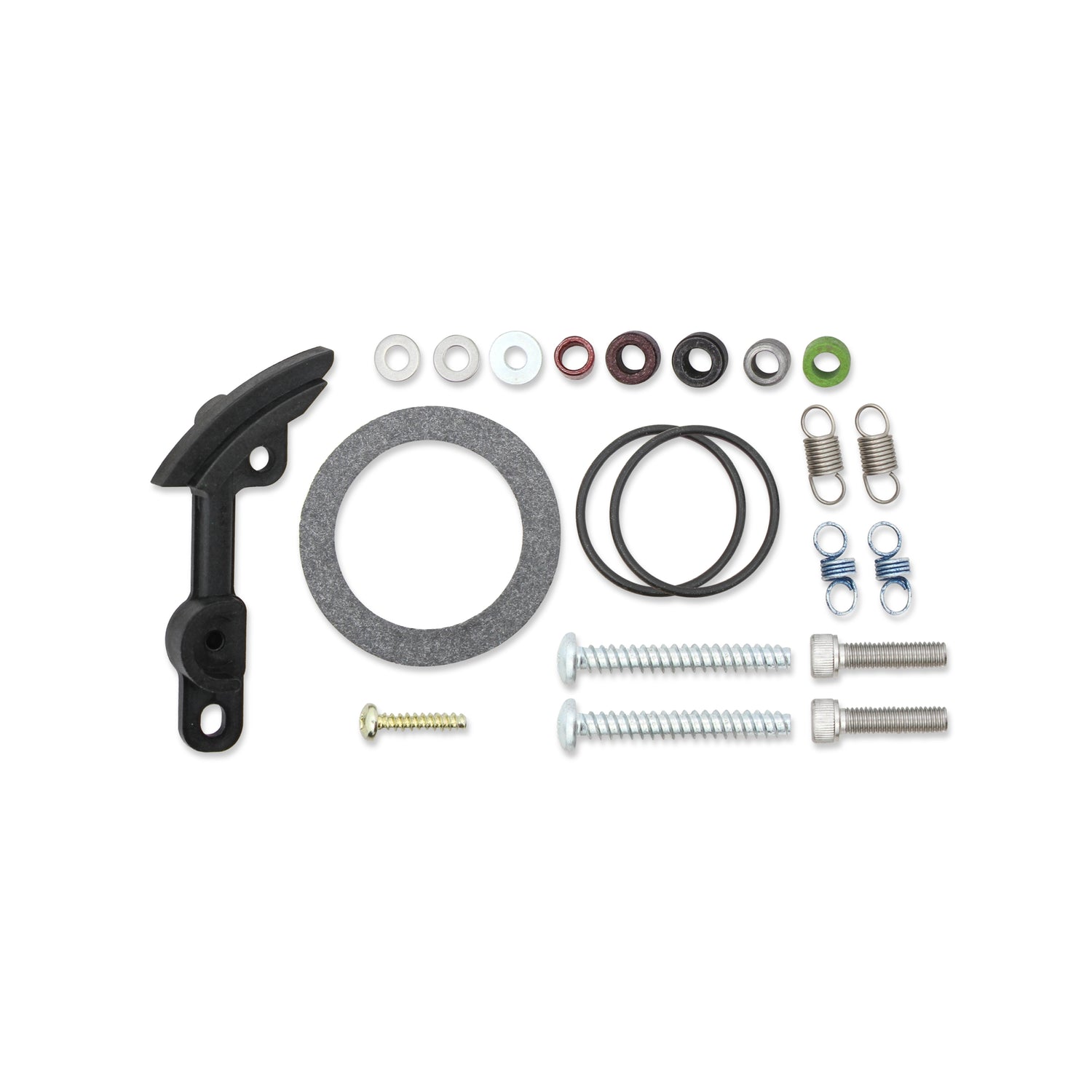

• Easy-to-adjust mechanical advance with supplied springs and stop bushings
