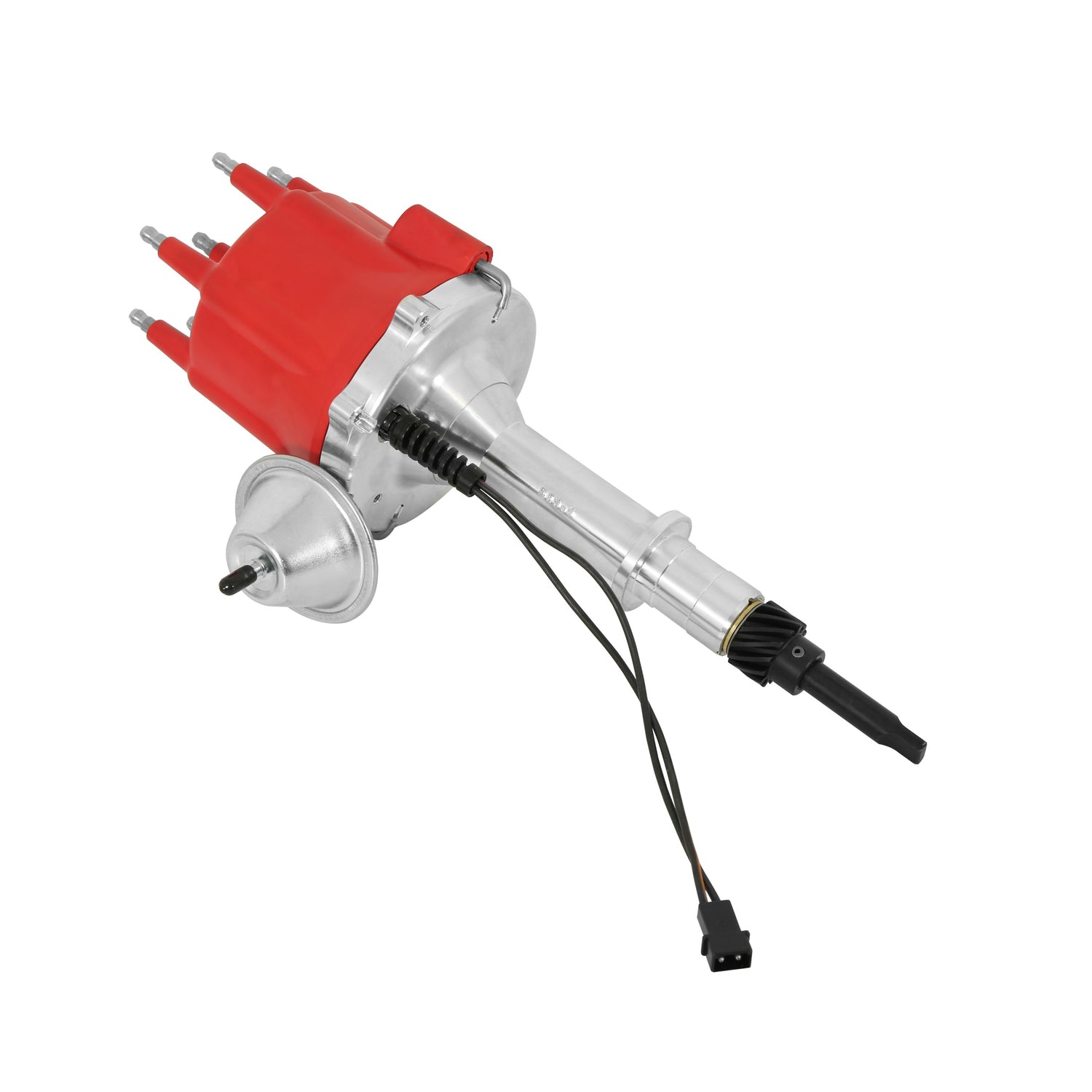

MSD Chevy In-line 6 Cylinder Distributor - 8515

For 194, 230, 250, 292 Inline-6 engines. Must be used with an MSD 6, 7 or 8-series ignition.

Part Number: 8515

A maintenance-free magnetic pick-up provides accurate trigger signals to your MSD Ignition Control. A precision-manufactured reluctor that is connected to the shaft is responsible for triggering the pick-up. The distributor is topped off with a high quality MSD red cap and Race Rotor. Starting on the inside, a 0.500" oversized steel shaft spins in a sealed ball bearing and sintered bushing for long endurance and accurate spark delivery throughout the entire rpm range. Mounted on top of the shaft is an easy-to-adjust chromoly mechanical advance assembly. Different advance springs and stop bushings are supplied so you can choose from a variety of curves.

Features and Benefits

• Designed for street/performance use with a mechanical and vacuum advance
• Must be used with an MSD Ignition Control
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Advance weight pins are staked and tig welded to the plate
• O-ring seals can be added to modified blocks to improve oil pressure control
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Will not fit 235 and 261 engines
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Vacuum advance canister for improved economy (can be locked out)
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Special oil tract improves lubrication to the distributor and cam gear
• CARB E.O. Approved
• Nylon pads ensure smooth operation of the advance weights

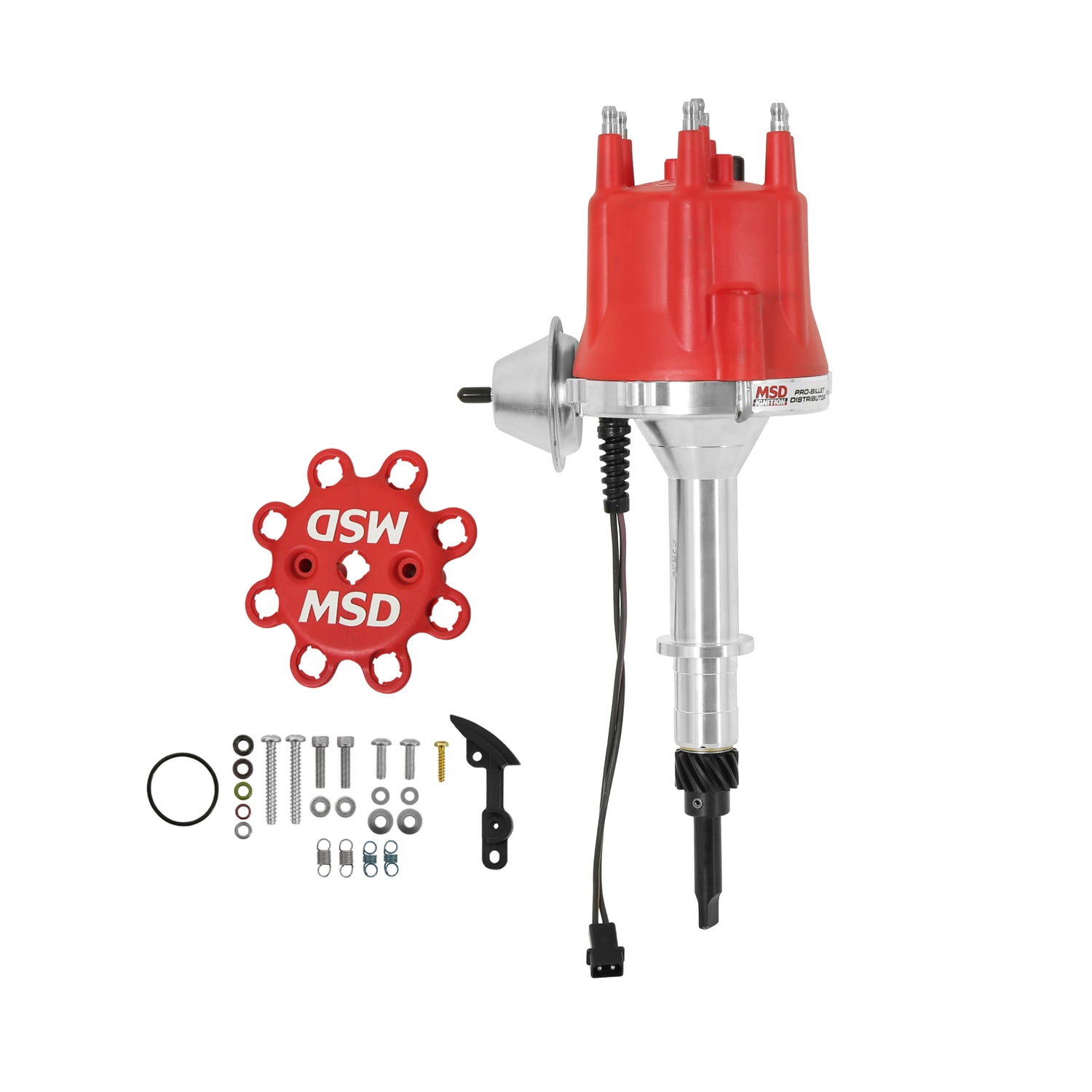

• Supplied with a socket style distributor cap and rotor
• CNC machined billet aluminum housing and billet aluminum base
