MSD | SKU:
85555

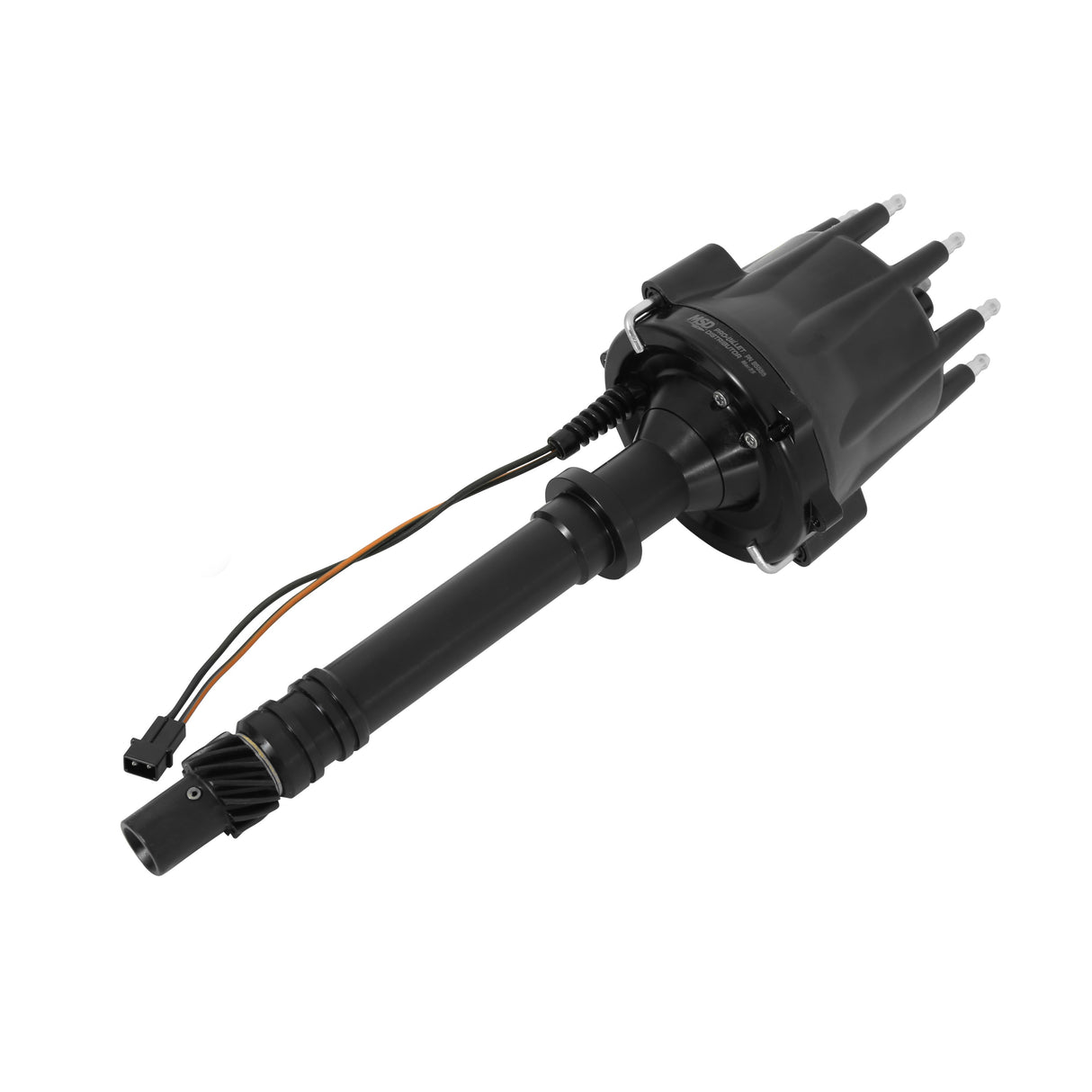

MSD Chevy Black V8 Pro-Billet Distributor - 85555
This is our most popular performance distributor! Must be used with an MSD 6, 7 or 8-series ignition. Now in Black!
Regular price
$815.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Chevy Black V8 Pro-Billet Distributor - 85555
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
This is our most popular performance distributor! Must be used with an MSD 6, 7 or 8-series ignition. Now in Black!
Part Number: 85555
The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.
Features and Benefits
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Mechanical advance assembly can be locked out for crank trigger systems
• Will not accept a vacuum advance canister
• O-ring seals can be added to modified blocks to improve oil pressure control
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
• Must be used with an MSD Ignition Control
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
• No CARB Exemption Order Number
• Nylon pads ensure smooth operation of the advance weights
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Advance weight pins are staked and tig welded to the plate
• CNC machined billet aluminum housing and billet aluminum base
• Special oil tract improves lubrication to the distributor and cam gear
Part Number: 85555
The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.
Features and Benefits
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Mechanical advance assembly can be locked out for crank trigger systems
• Will not accept a vacuum advance canister
• O-ring seals can be added to modified blocks to improve oil pressure control
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
• Must be used with an MSD Ignition Control
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
• No CARB Exemption Order Number
• Nylon pads ensure smooth operation of the advance weights
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Advance weight pins are staked and tig welded to the plate
• CNC machined billet aluminum housing and billet aluminum base
• Special oil tract improves lubrication to the distributor and cam gear
Specifications
Specifications
-
Specifications
Advance Type Mechanical Brand MSD C.A.R.B. EO # D-40-39 Cap Color Black Category Ignition Coil Wire Included No Color Black Distributor Cap Included Yes Distributor Gear Included Yes Distributor Type Magnetic Pickup Emission Code 1 Gear Material Melonized QPQ Coated Gear Material Cast Iron Melonized QPQ Coated Grade Type Performance Housing Color Black Housing Finish Anodized Housing Material 6061-T6 Billet Aluminum Ignition Box Required Yes Ignition Coil Included No Ignition Rotor Included Yes Length Standard Product Type Distributor Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
