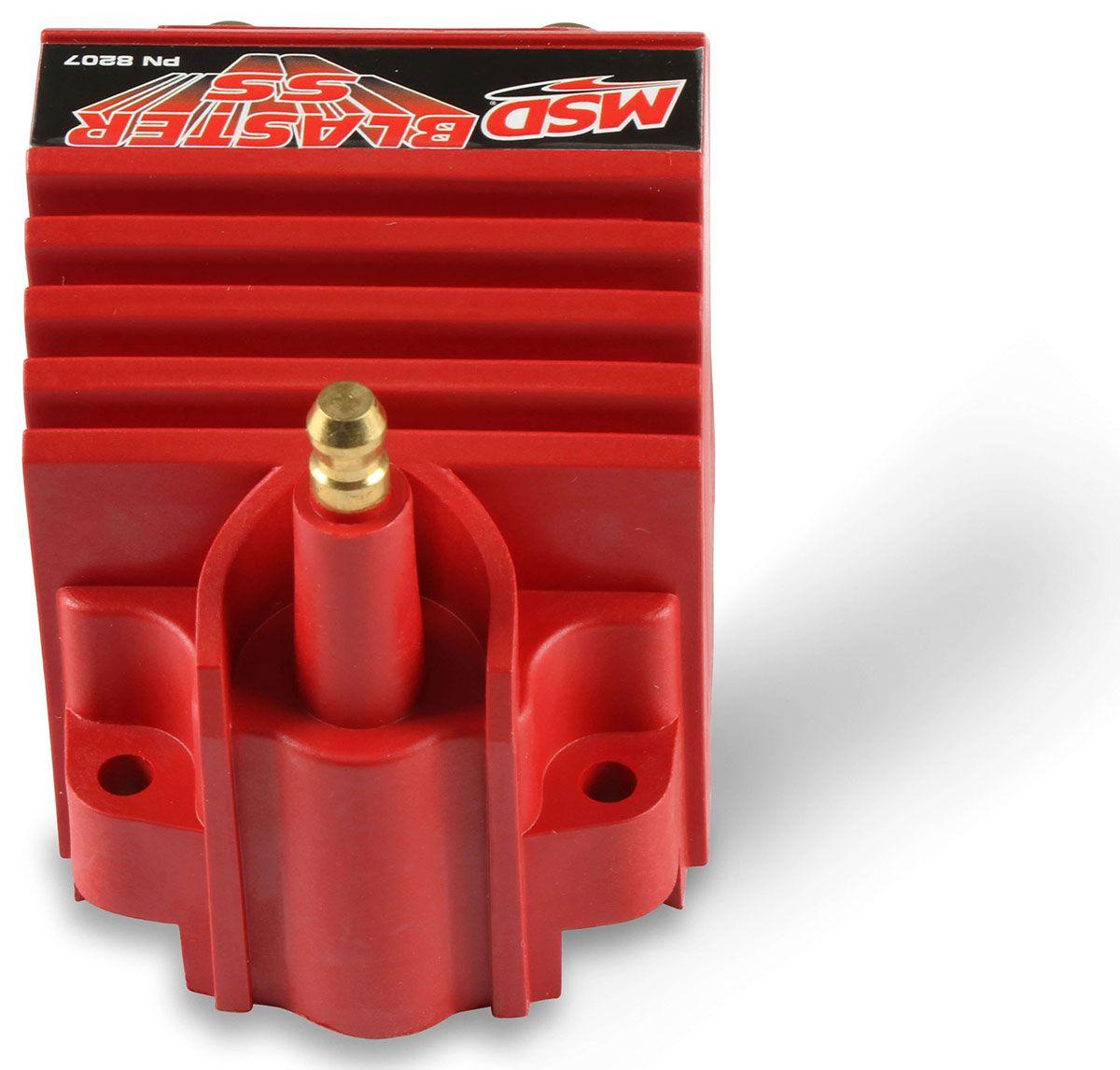

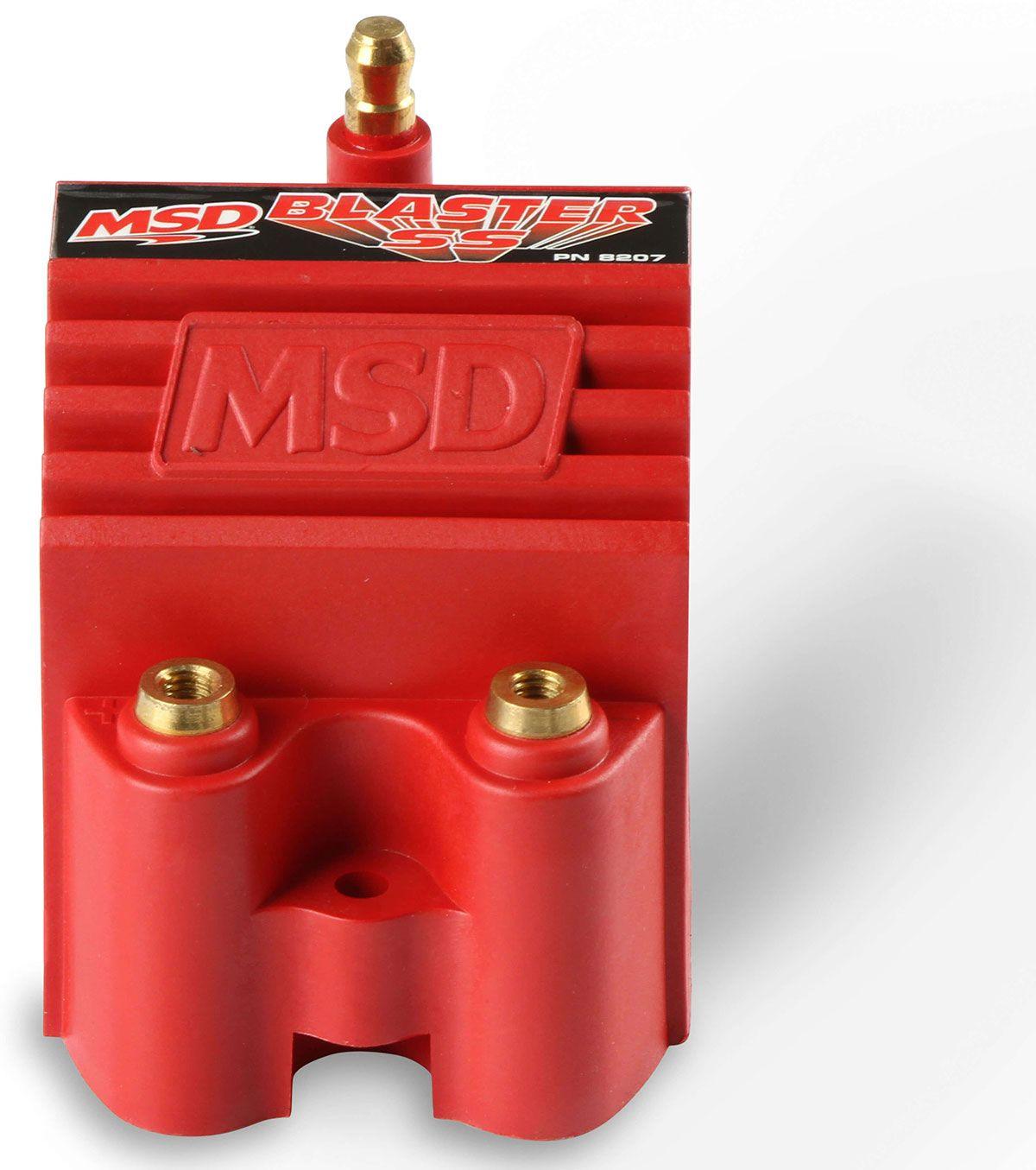

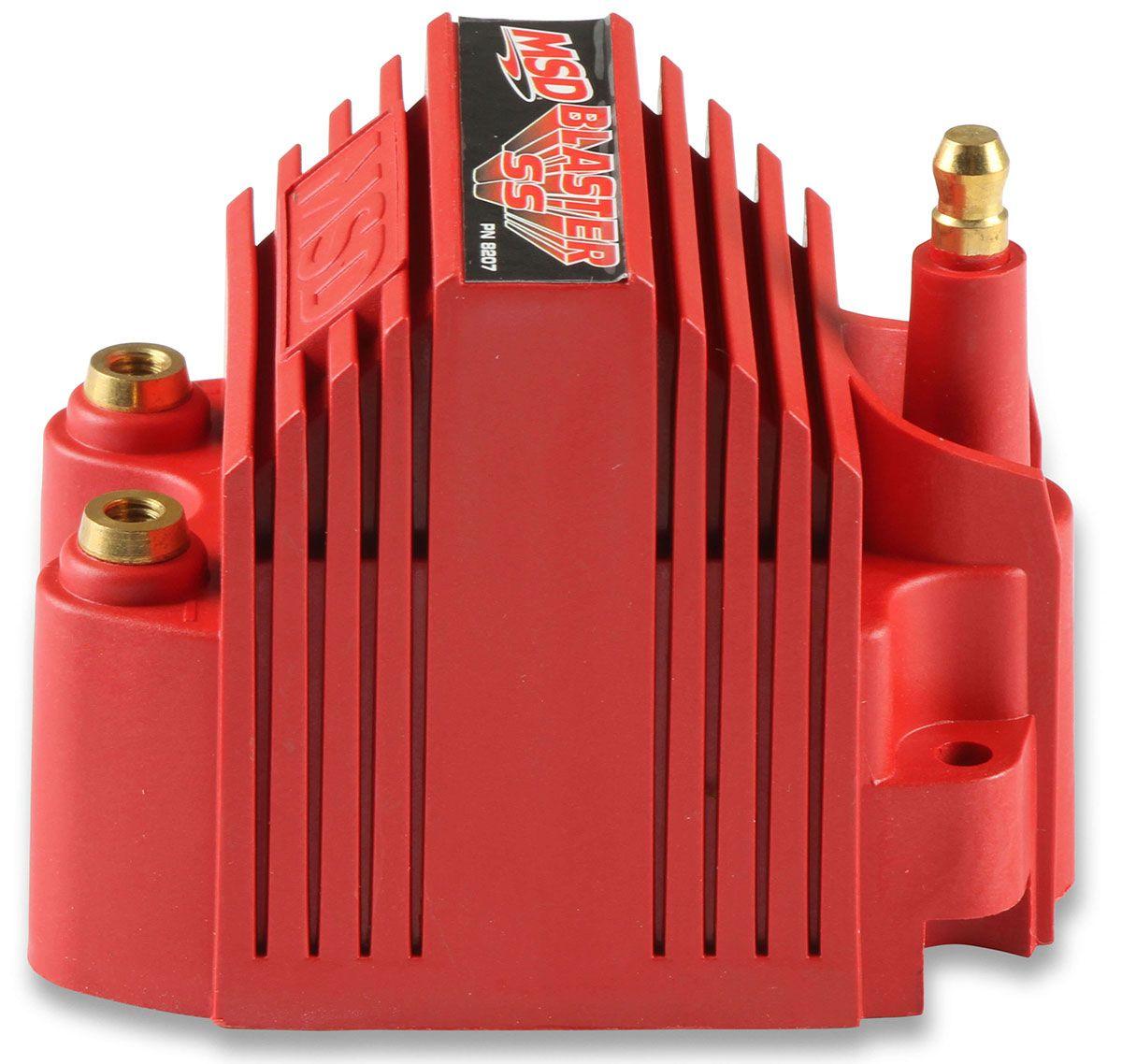

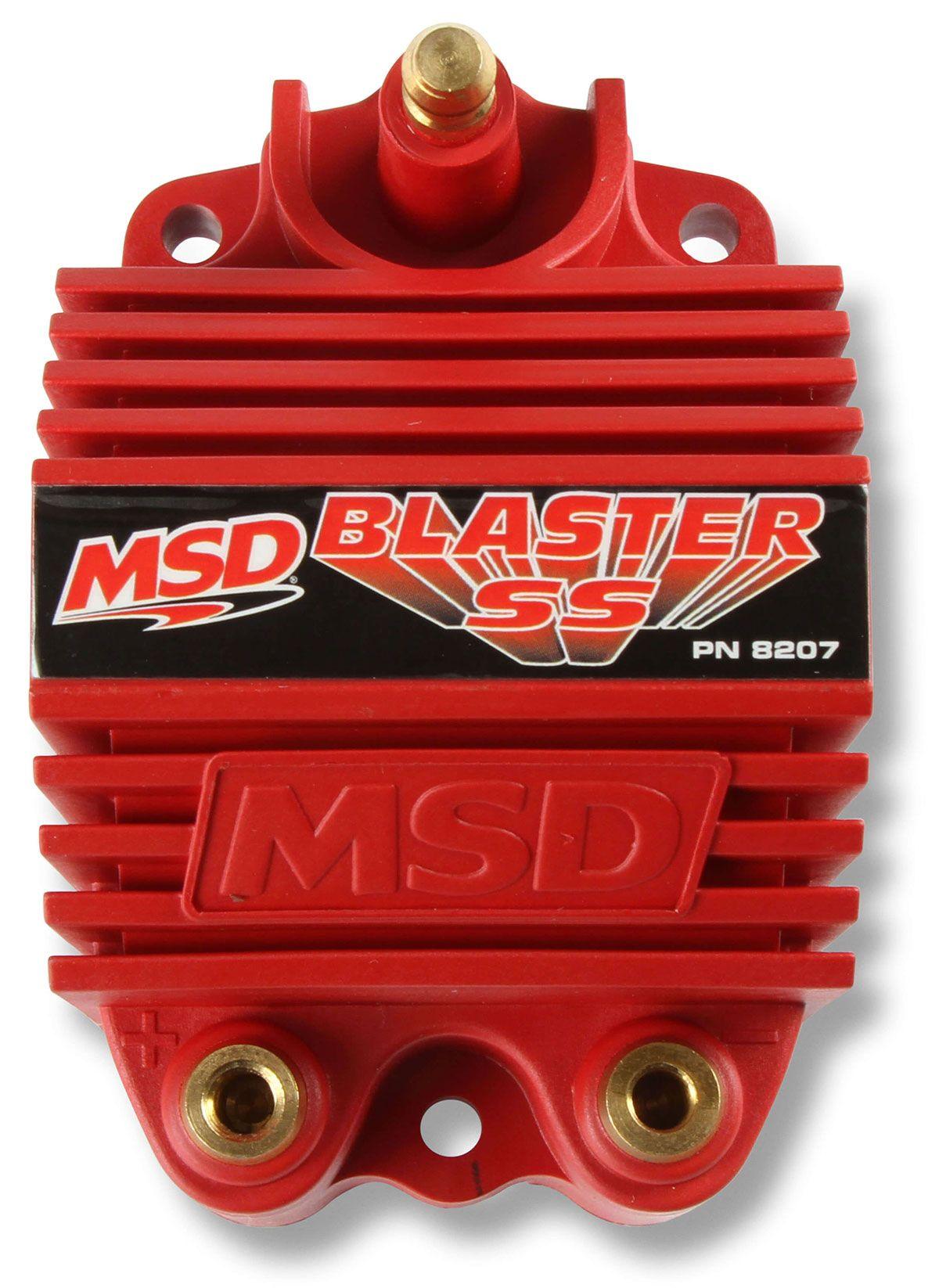

MSD Blaster SS Coil (MSD8207)

Don't let the compact size of the Blaster SS Coil fool you, because it is packed withperformance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 SeriesIgnition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts!

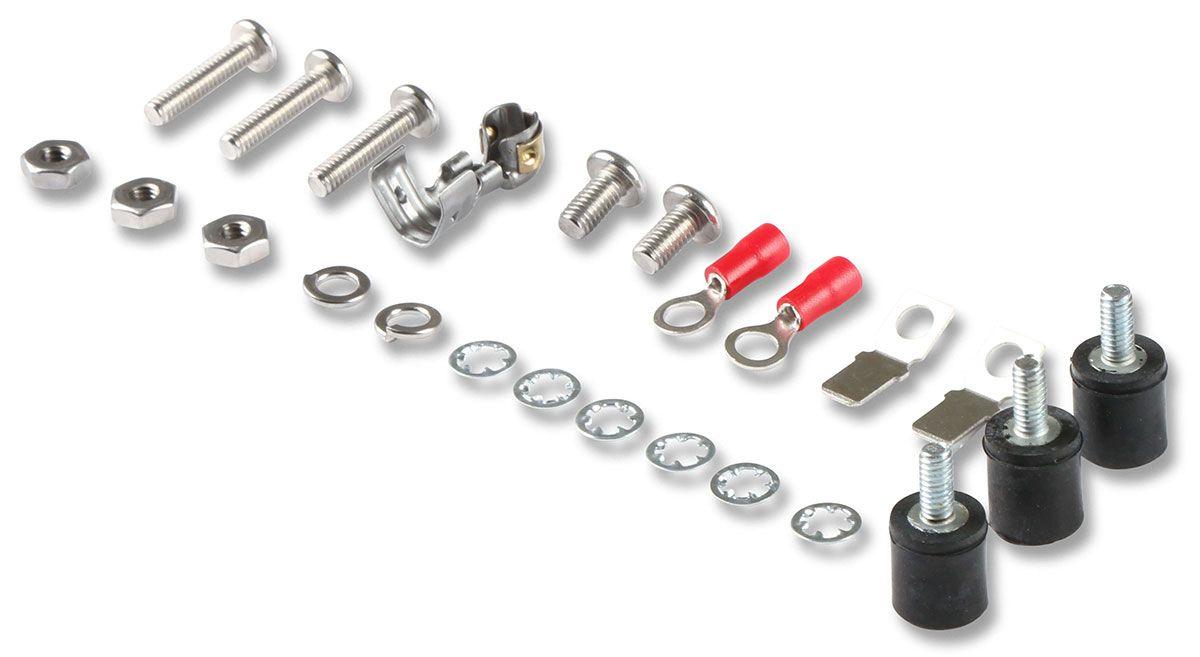

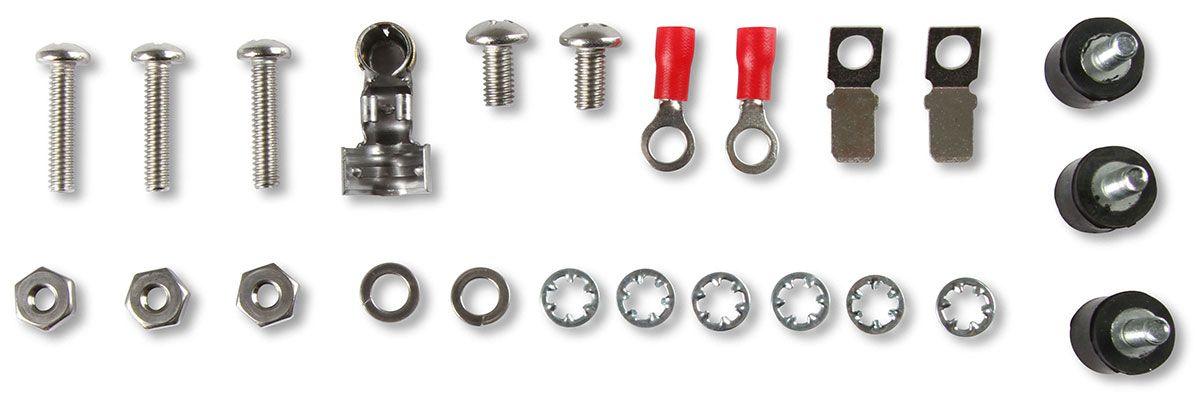

The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The Blaster SS features brass terminals and asturdy Rynite housing. It is supplied with a 90° boot, terminal and vibration mounts.A great addition to CD Ignitions and some stock applications.

Features:

• Improved output coil for electronic ignitions, and MSD Ignitions
• Efficient winding design and assembly creates a compact housing
• Primary and secondary windings are encasedin Ciba polyurethane
• 70:1 turns ratio and lower primary resistance produce high voltage output
• Dupont Rynite housing with a tall tower and brass primary terminals
