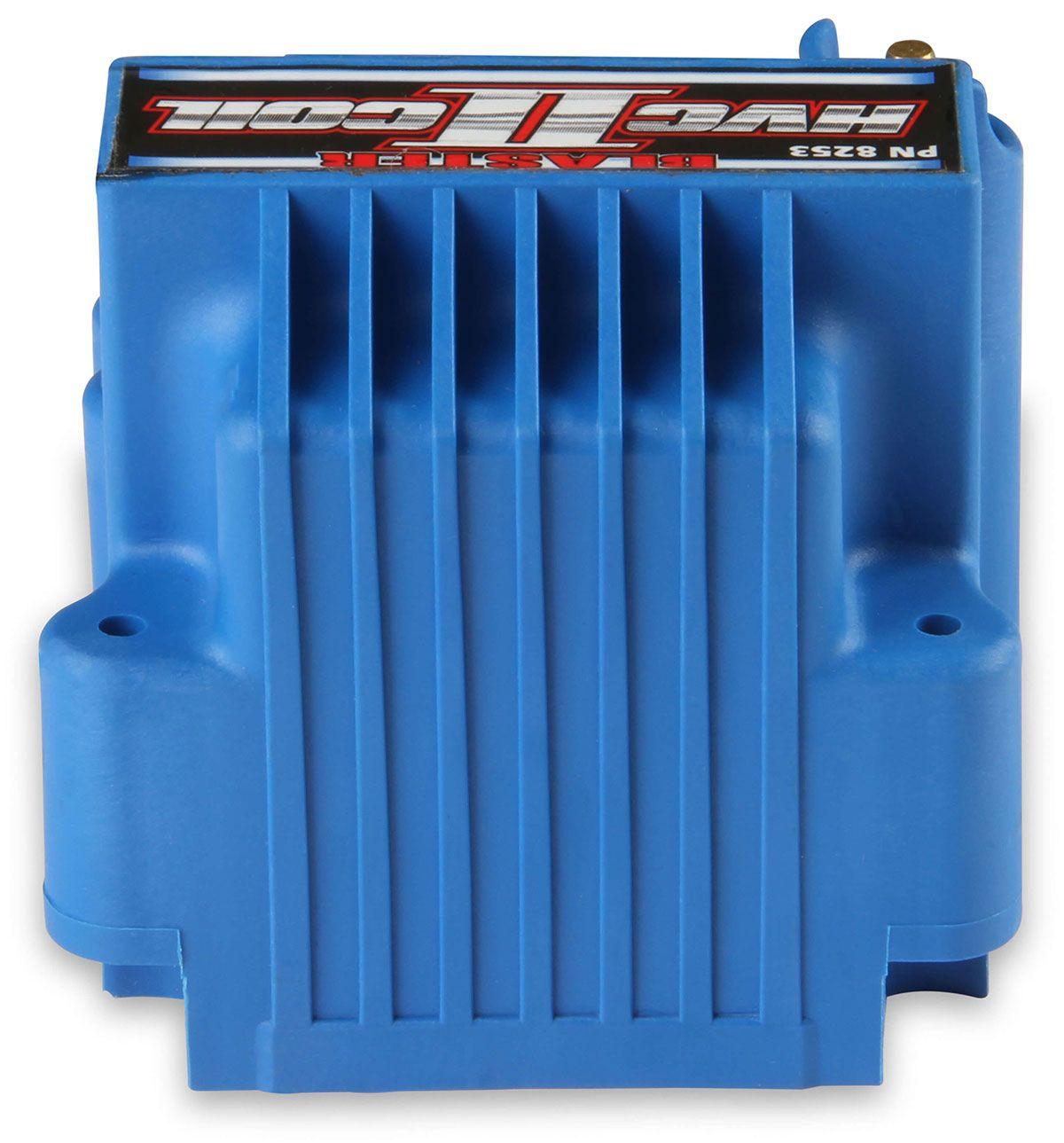

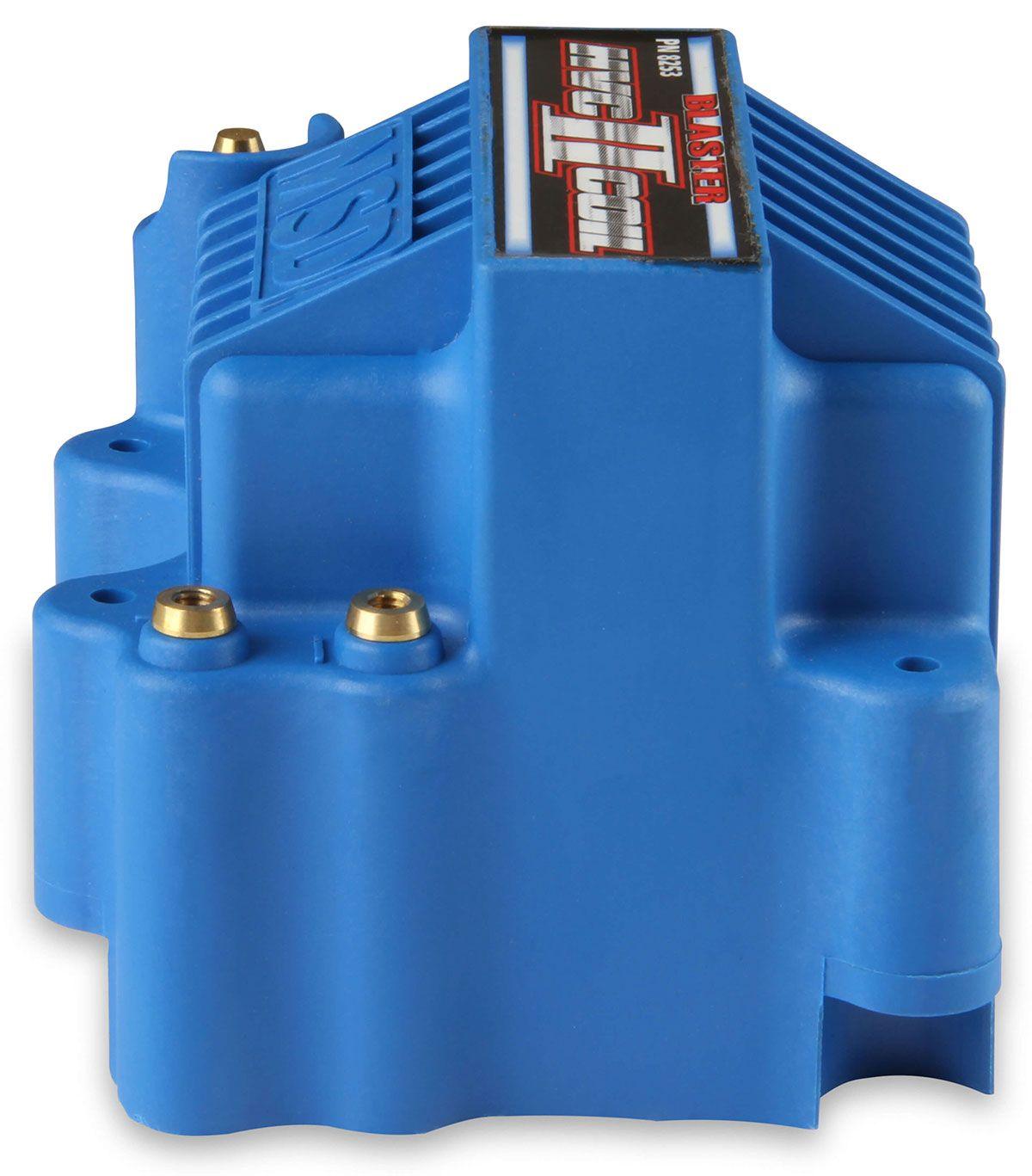

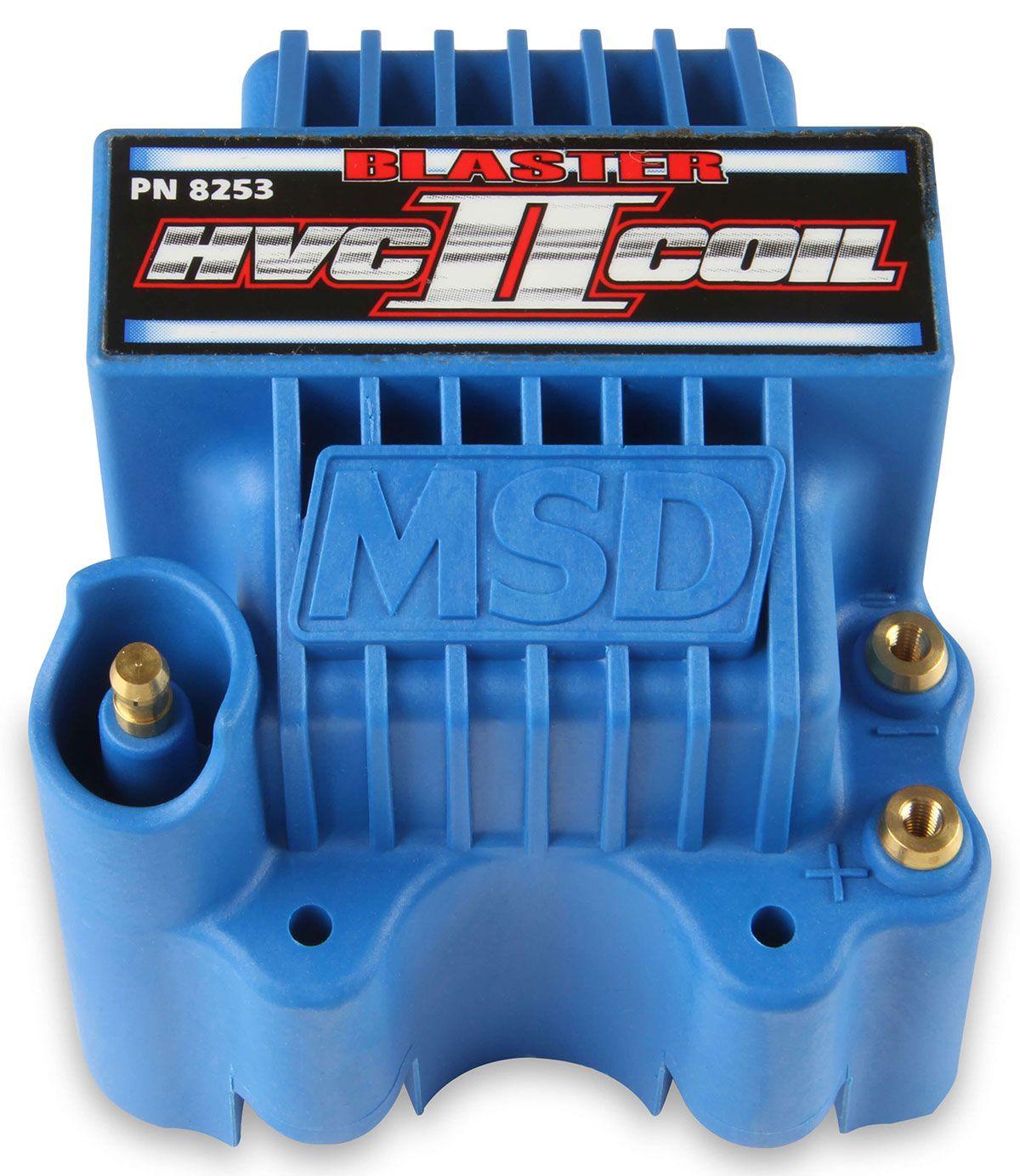

MSD Blaster HVC-2 Coil (MSD8253)

• Designed for high rpm, long duration applications using MSD 6 Series Ignitions
• New U-core winding design produces more voltage and current
• 100:1 turns ratio and lower primary resistance produce high voltage output

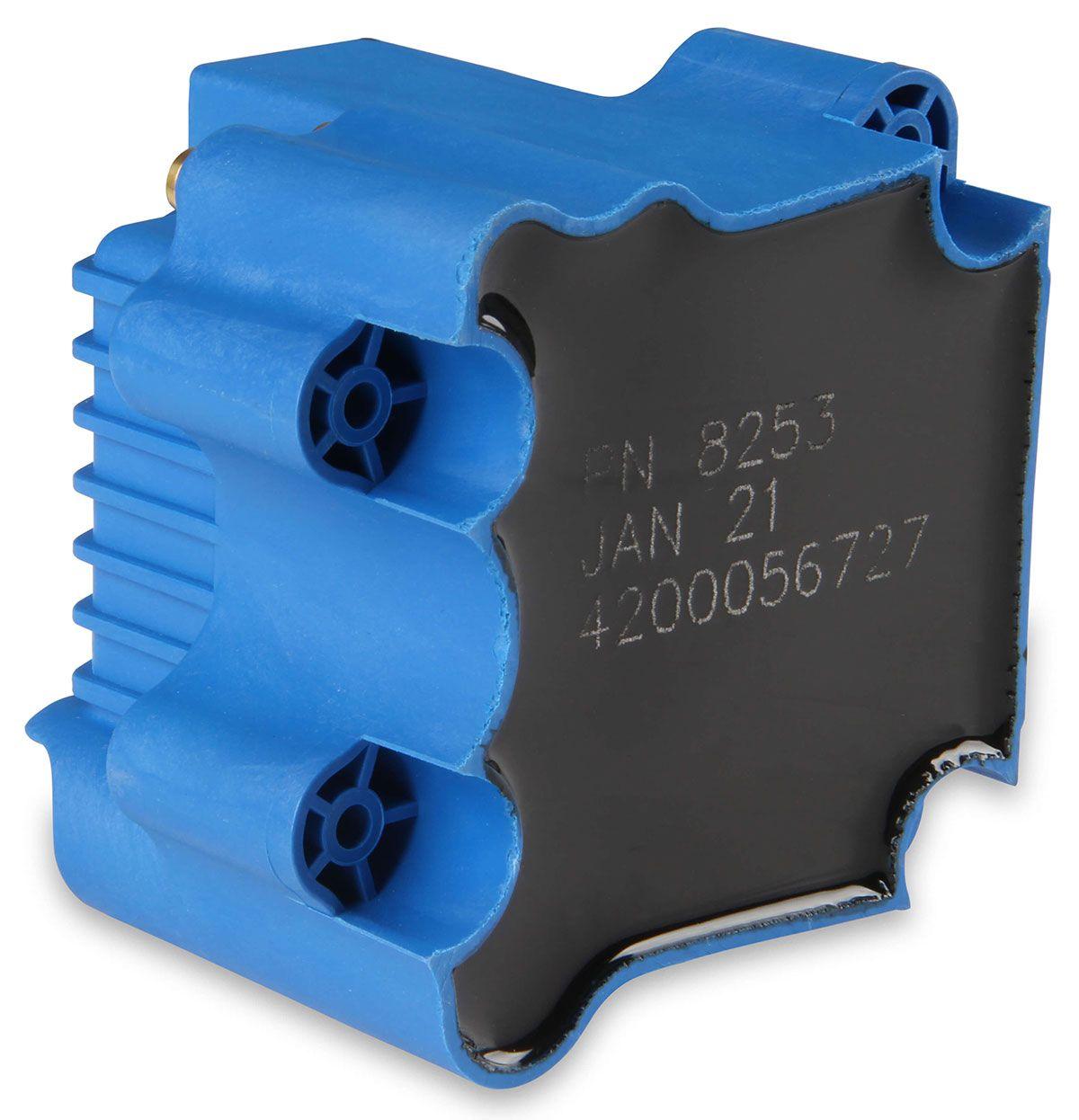

• Windings are encased in fracture resistant compound for vibration resistance
• Dupont Rynite housing with isolated tower and brass primary terminals

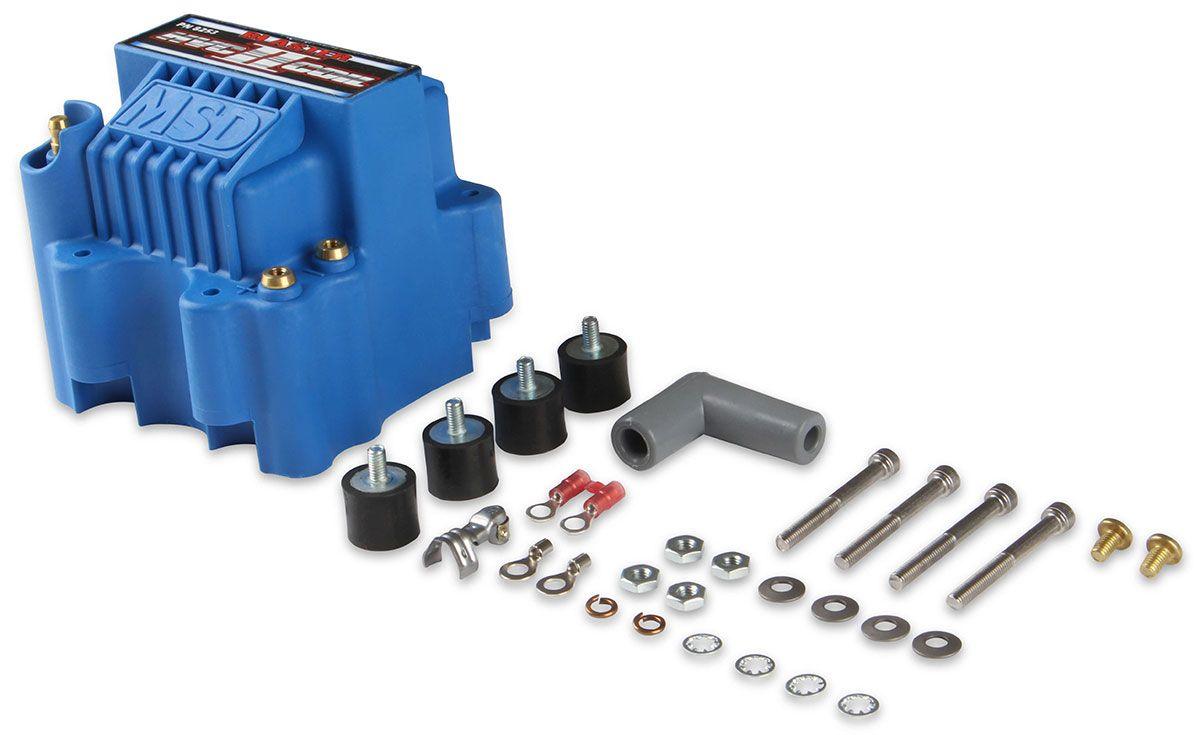

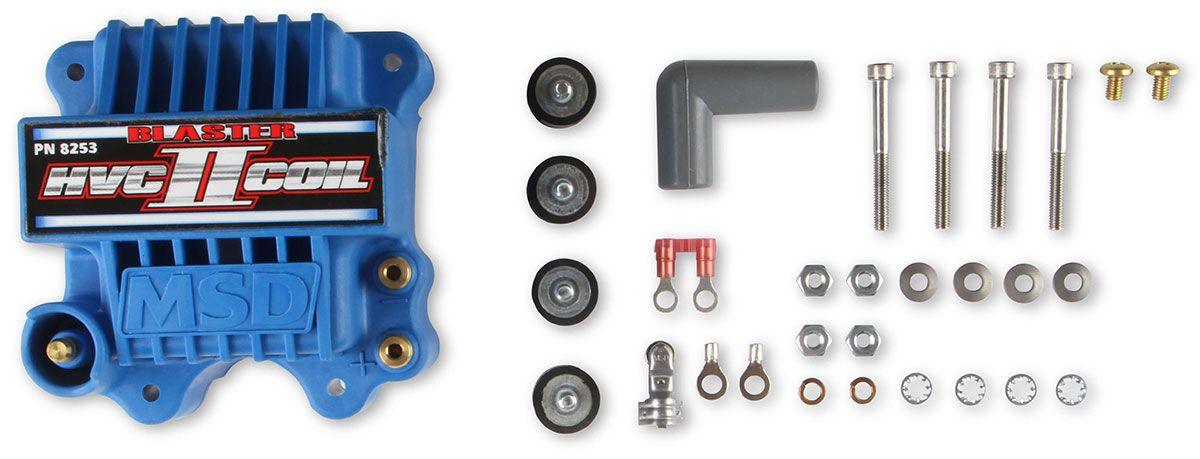

• Supplied with rubber shock mounts

The latest coil to be built entirely in-house at MSD is designed to be used with MSD 6 and SCI Series Ignition Controls. This coil utilises an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is moulded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time. The blue housing is also moulded from high dielectric Rynite material. The brass primar y terminals are spaced rt and the secondary tower is well protected for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts.
