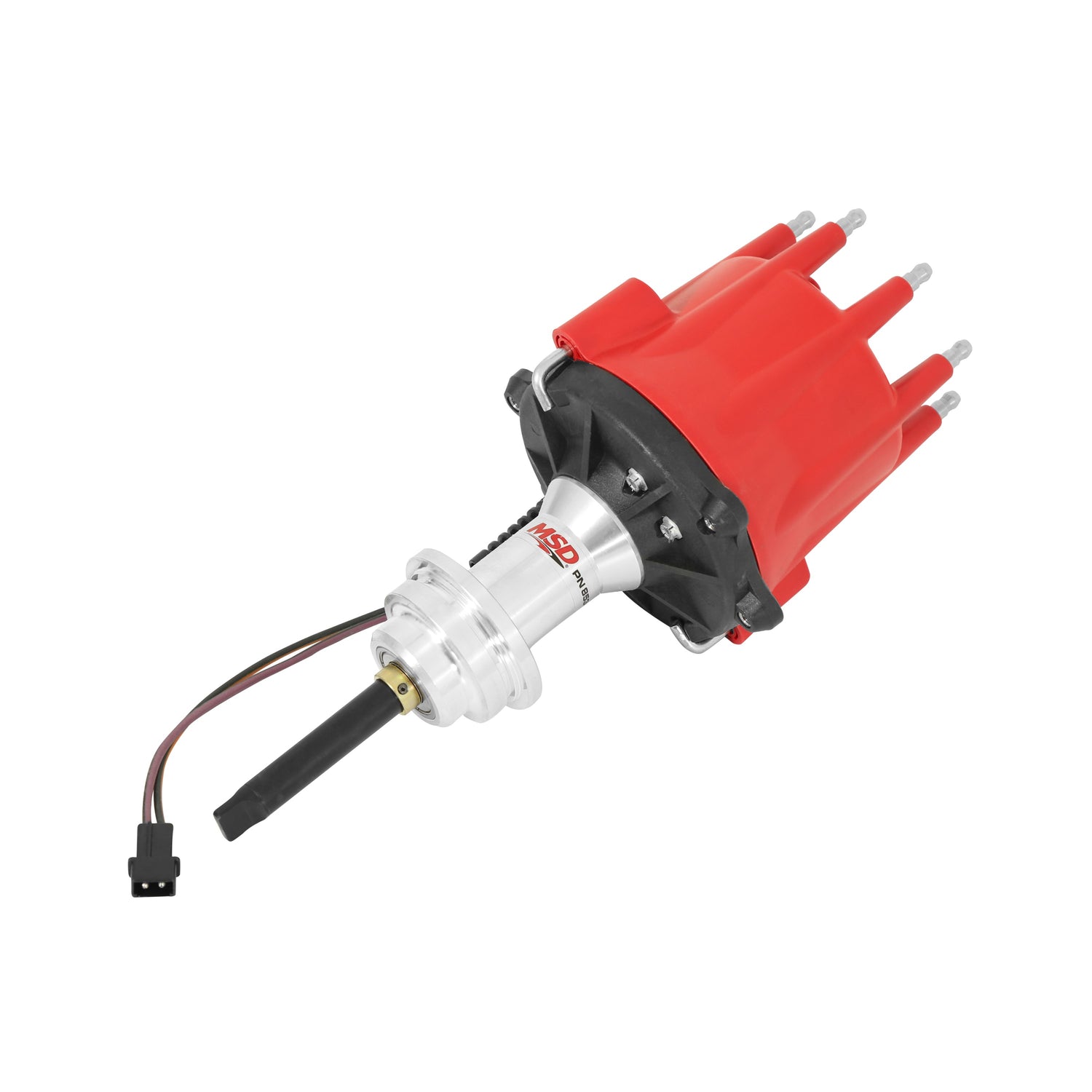

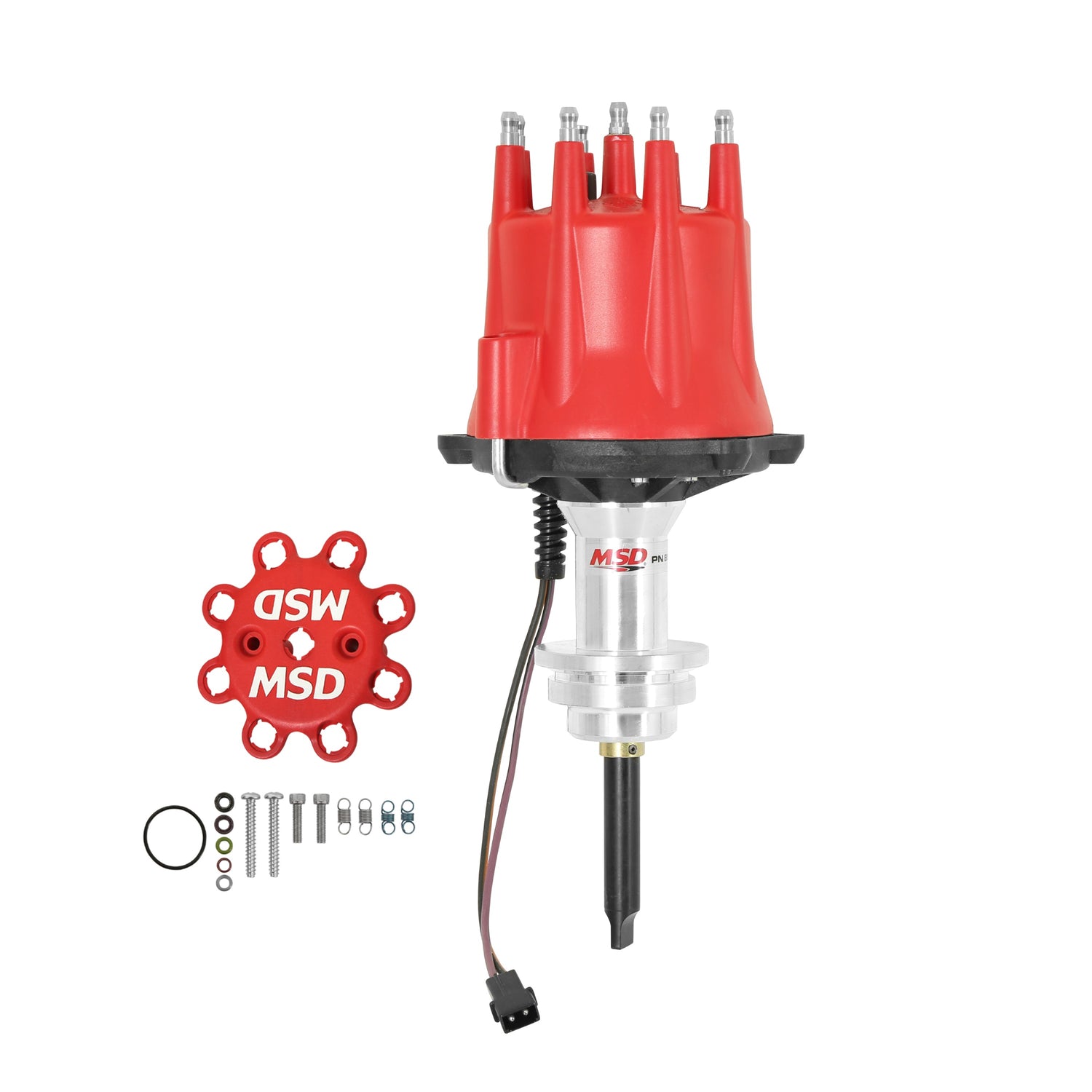

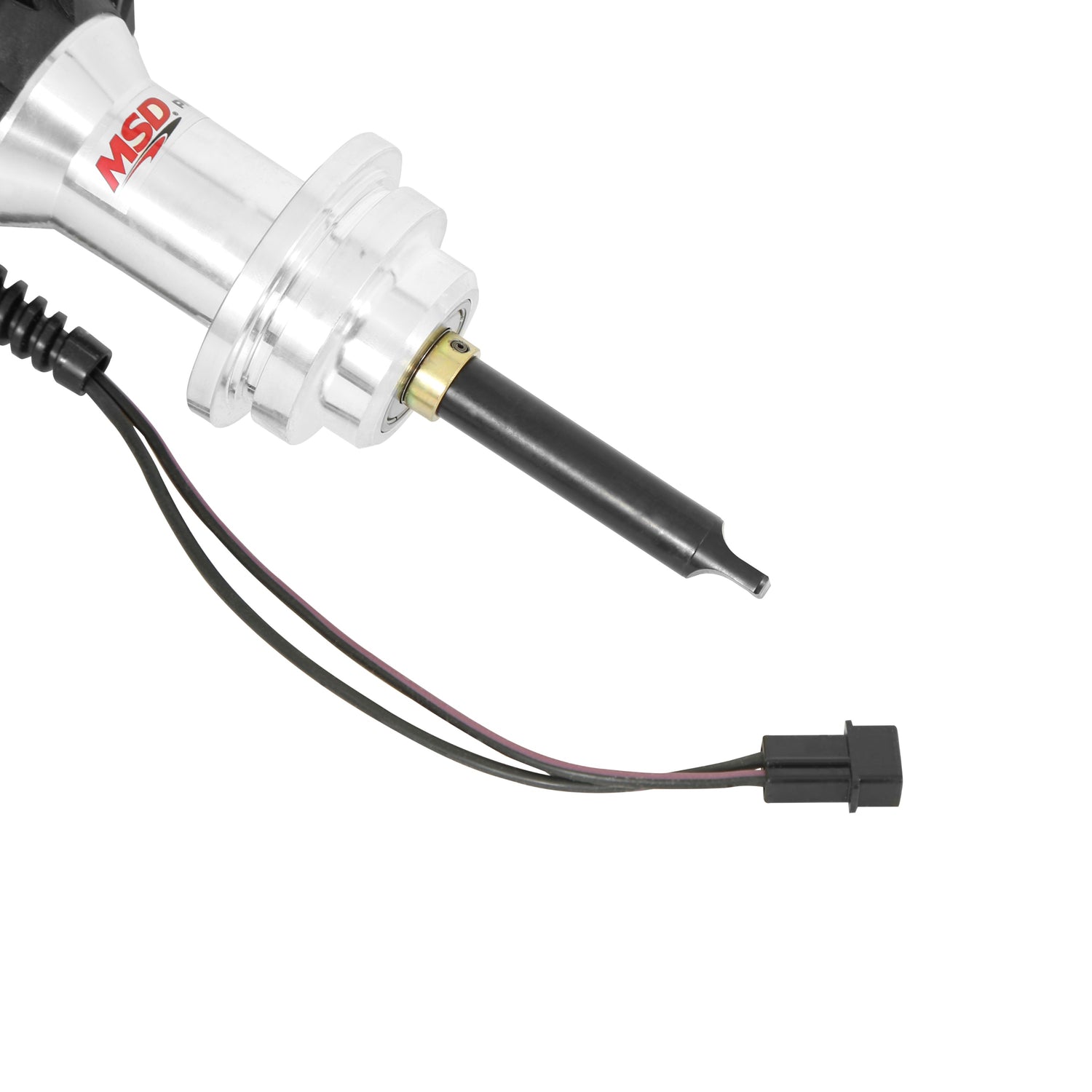

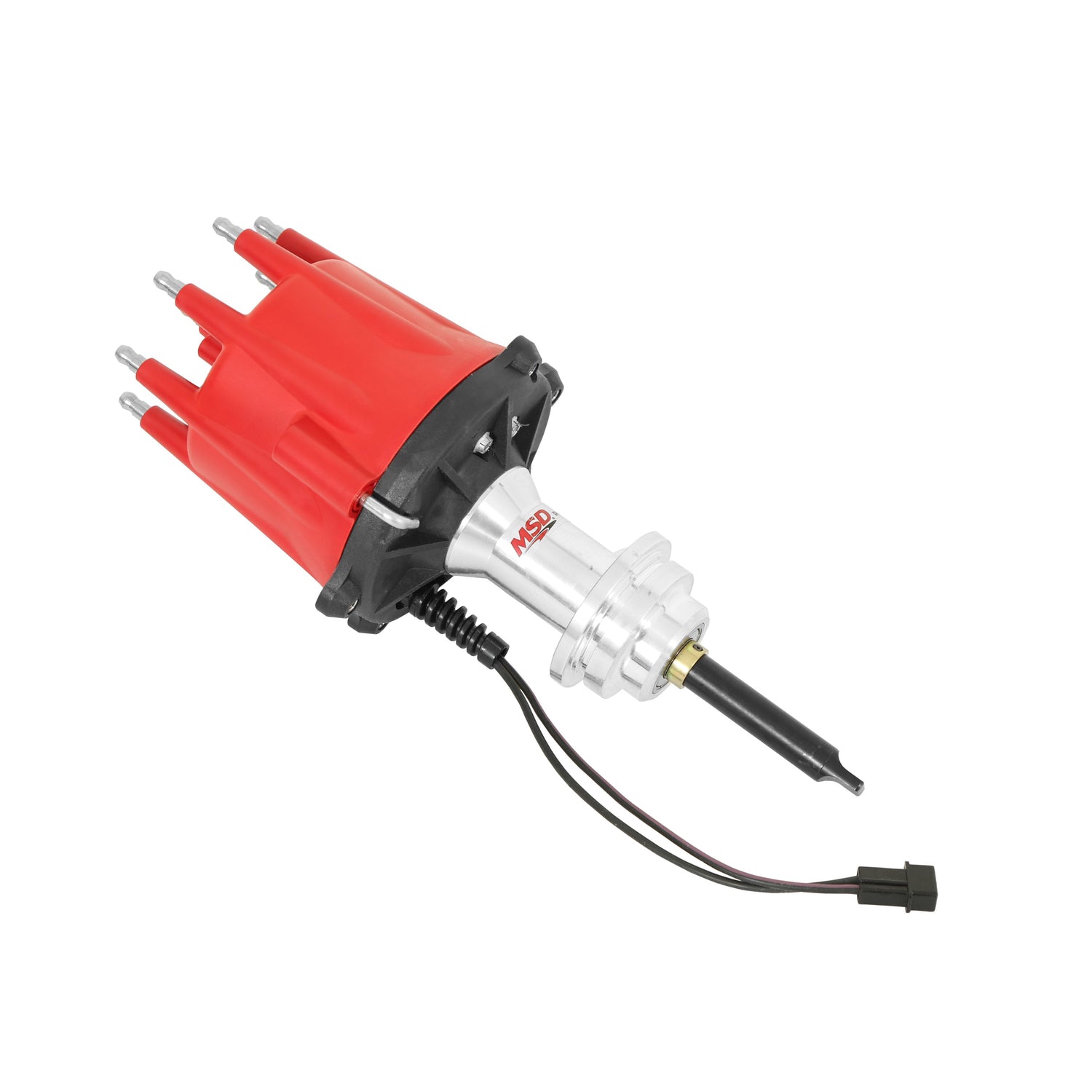

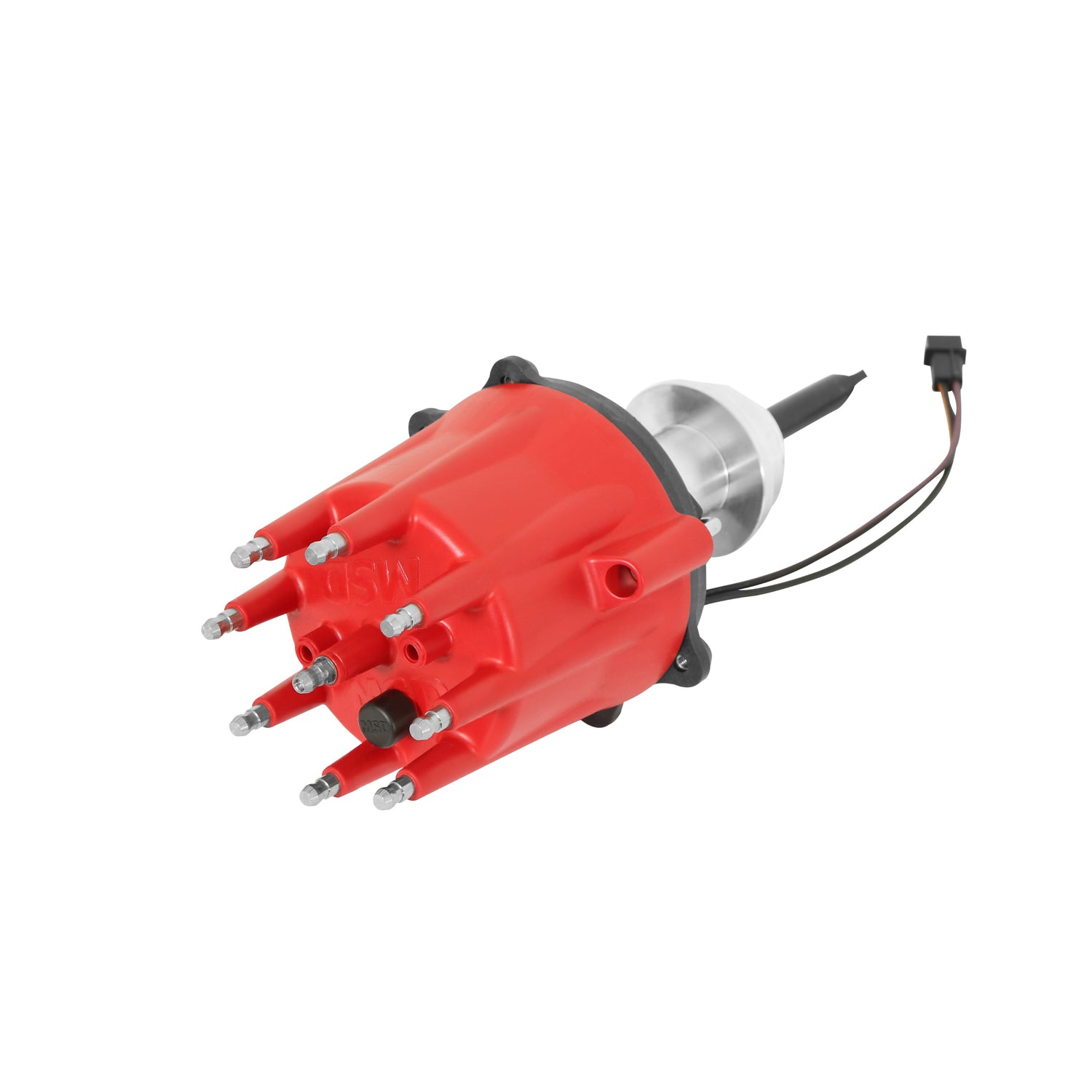

MSD Billet Chrysler Small Block Distributor - 8534
Chrysler Small Block LA - 273/318/340/360 - Must Be Used With MSD 6, 7, or 8 Series Ignition
MSD Billet Chrysler Small Block Distributor - 8534 is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
Part Number: 8534
Supporting the advance assembly is a hardened, polished steel shaft. Two ball pickup creating a trigger signal that tells the MSD to fire. bearing guides are used to support the shaft producing incredible stability. Precision paddles of a zinc-plated reluctor pass a maintenance-free magnetic Get your Mopar fired up with billet accuracy and performance. Remove the MSD cap and Race Rotor and you'll find easy access to the adjustable mechanical advance assembly for easy adjustments. This advance is designed for accuracy and strength with TIG-welded weight pins, nylon pads for smooth movement of the weights and a QPQ coating for friction reduction. Different advance springs and stop bushings are supplied so you can custom tailor a timing curve to fit your Chrysler's needs.
Features and Benefits
⢠Polished steel shaft is QPQ coated and guided by two sealed ball bearings
⢠Must be used with an MSD Ignition Control
⢠CNC machined billet aluminum housing and Dupont Rynite base
⢠Mechanical advance assembly can be locked out for crank trigger systems
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Red Distributor Cap Included Yes Distributor Type Magnetic Pickup Emission Code 3 Engine Chrysler Small Block LA Grade Type Performance Ignition Box Required Yes Ignition Coil Included No Ignition Rotor Included Yes part type Distributor Product Type Distributor Sub Category Distributor and Magneto Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
Instructions
