MSD | SKU:
2702

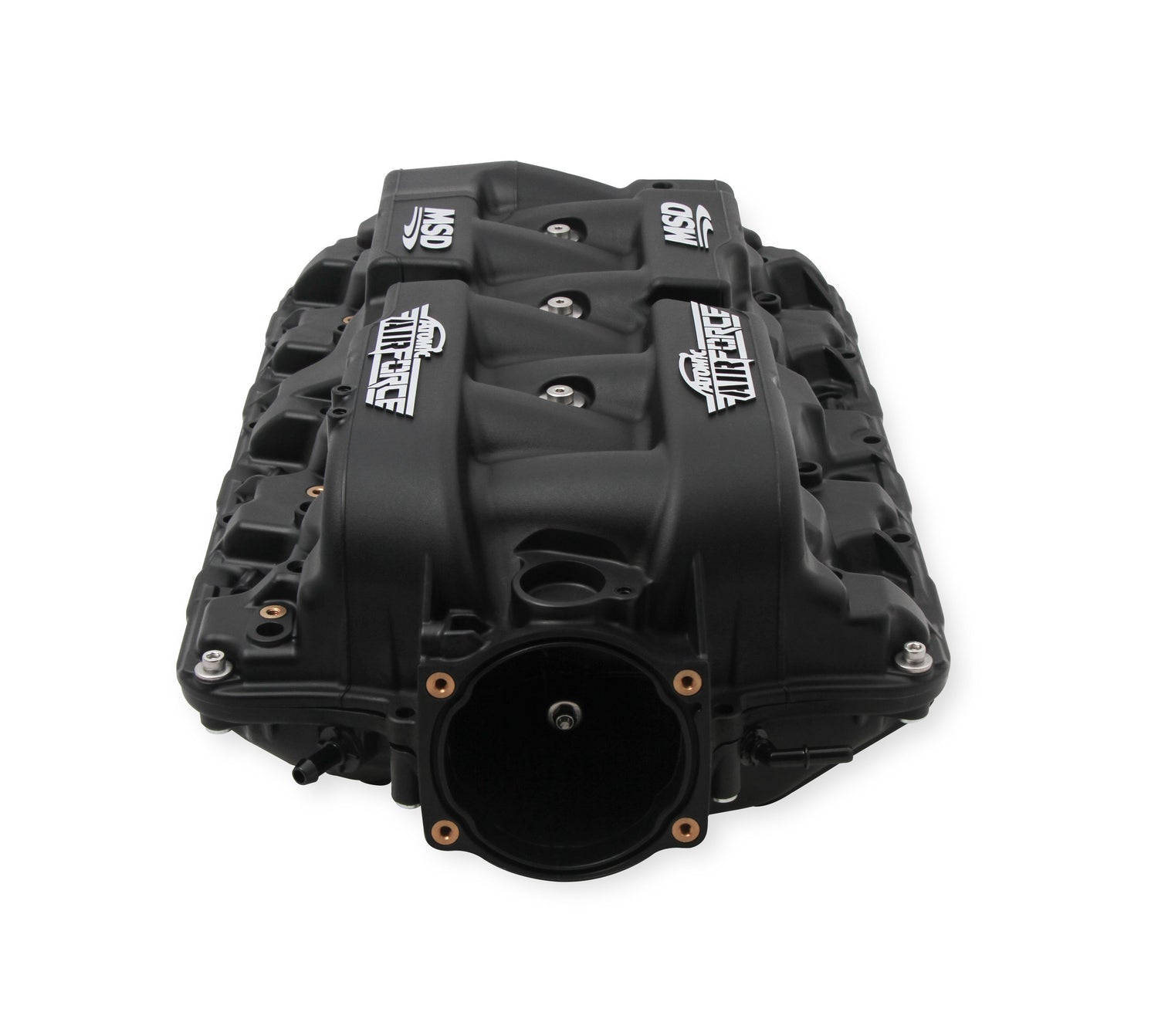

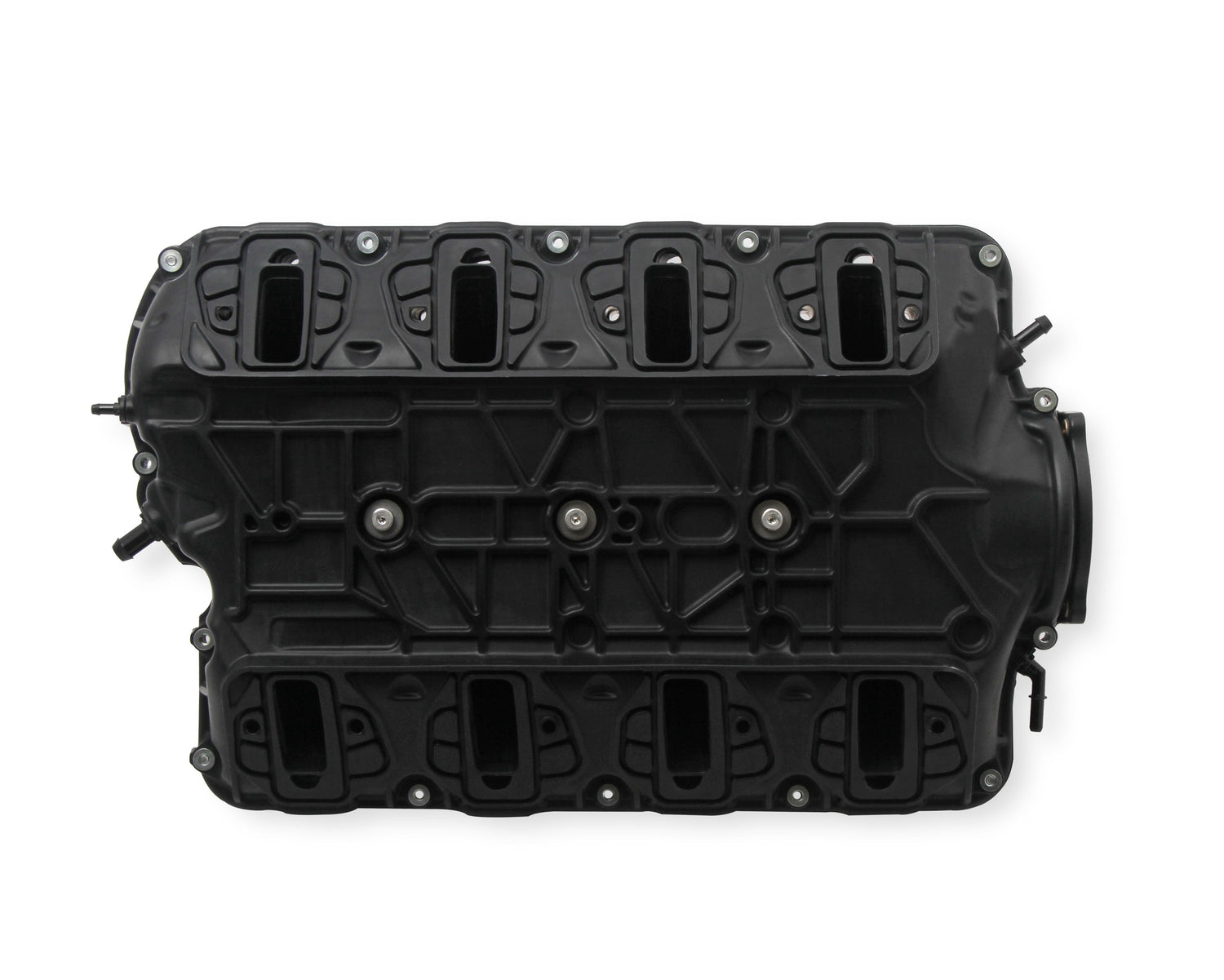

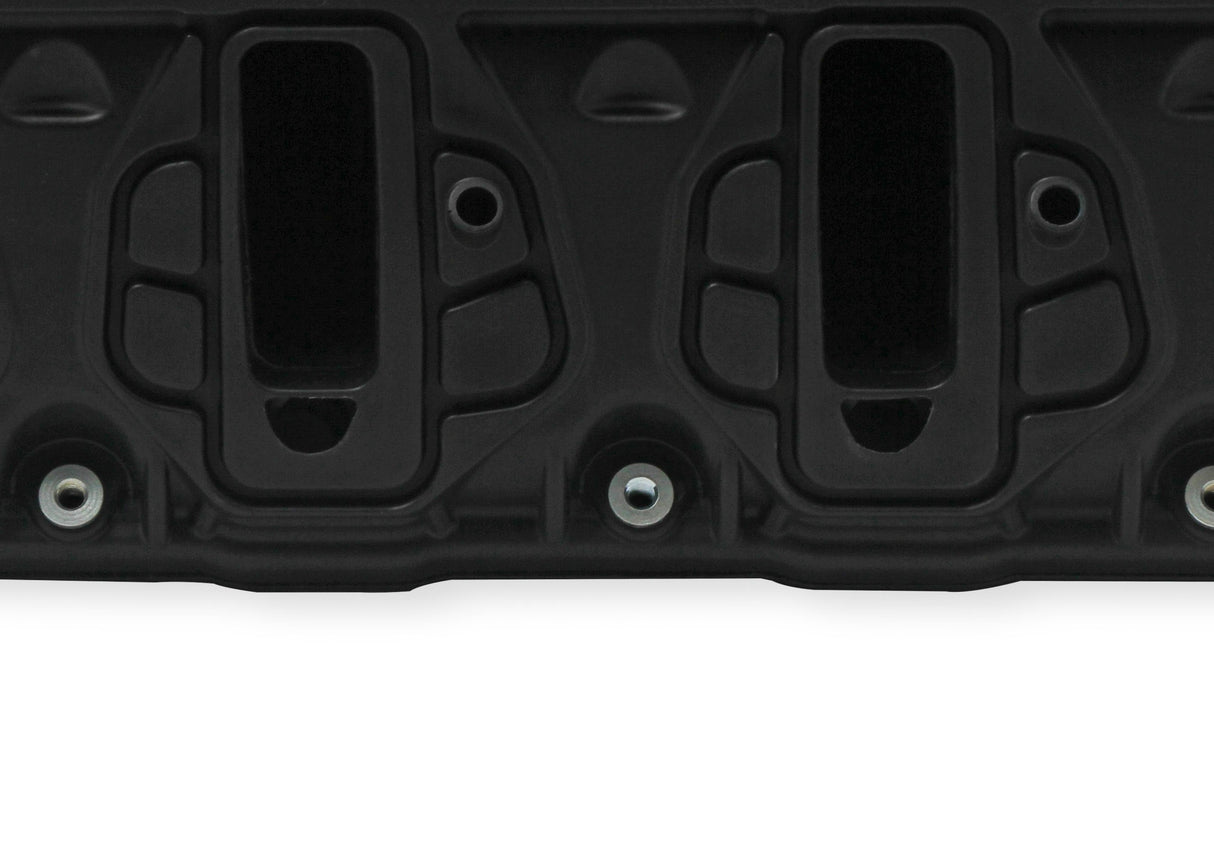

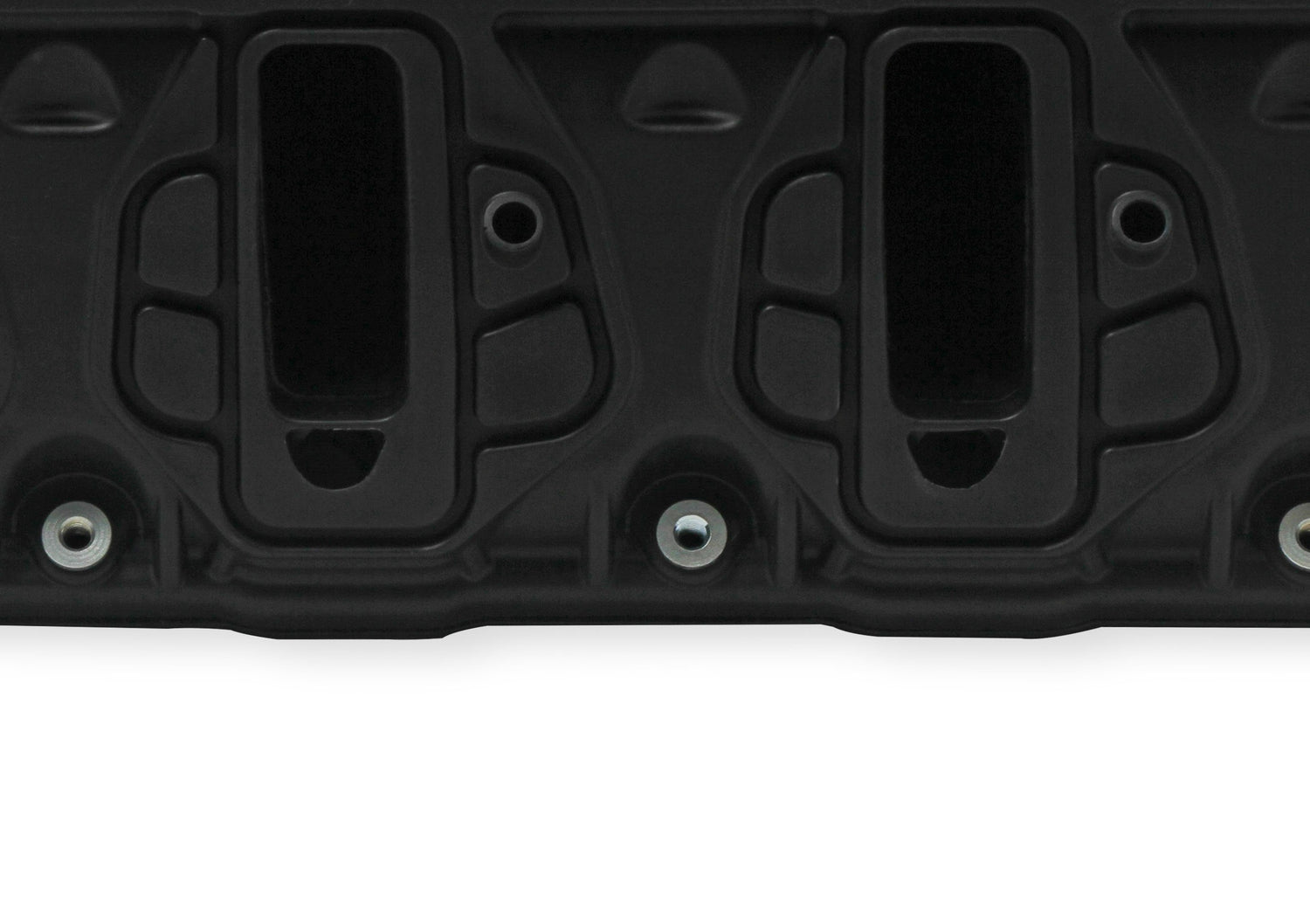

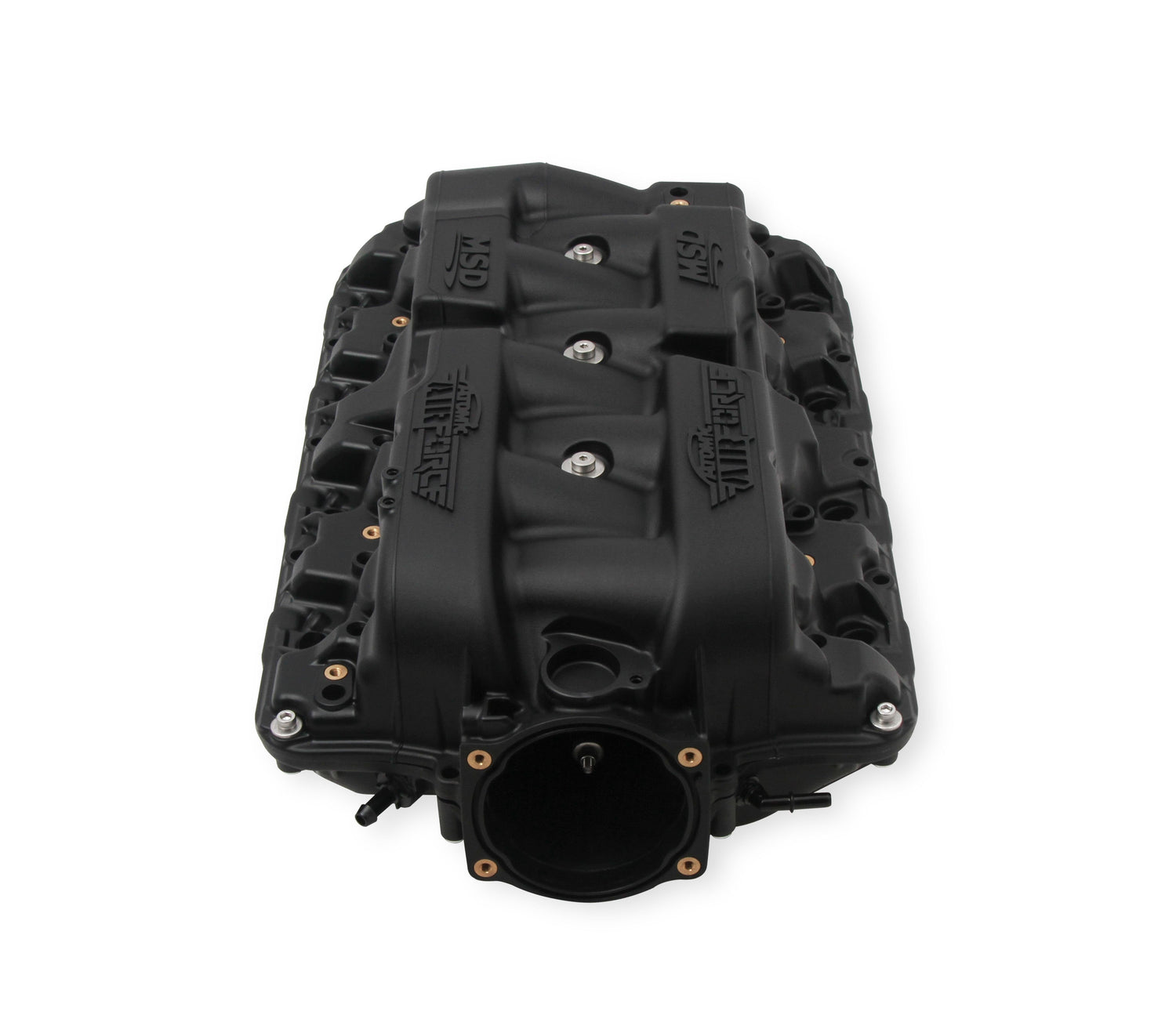

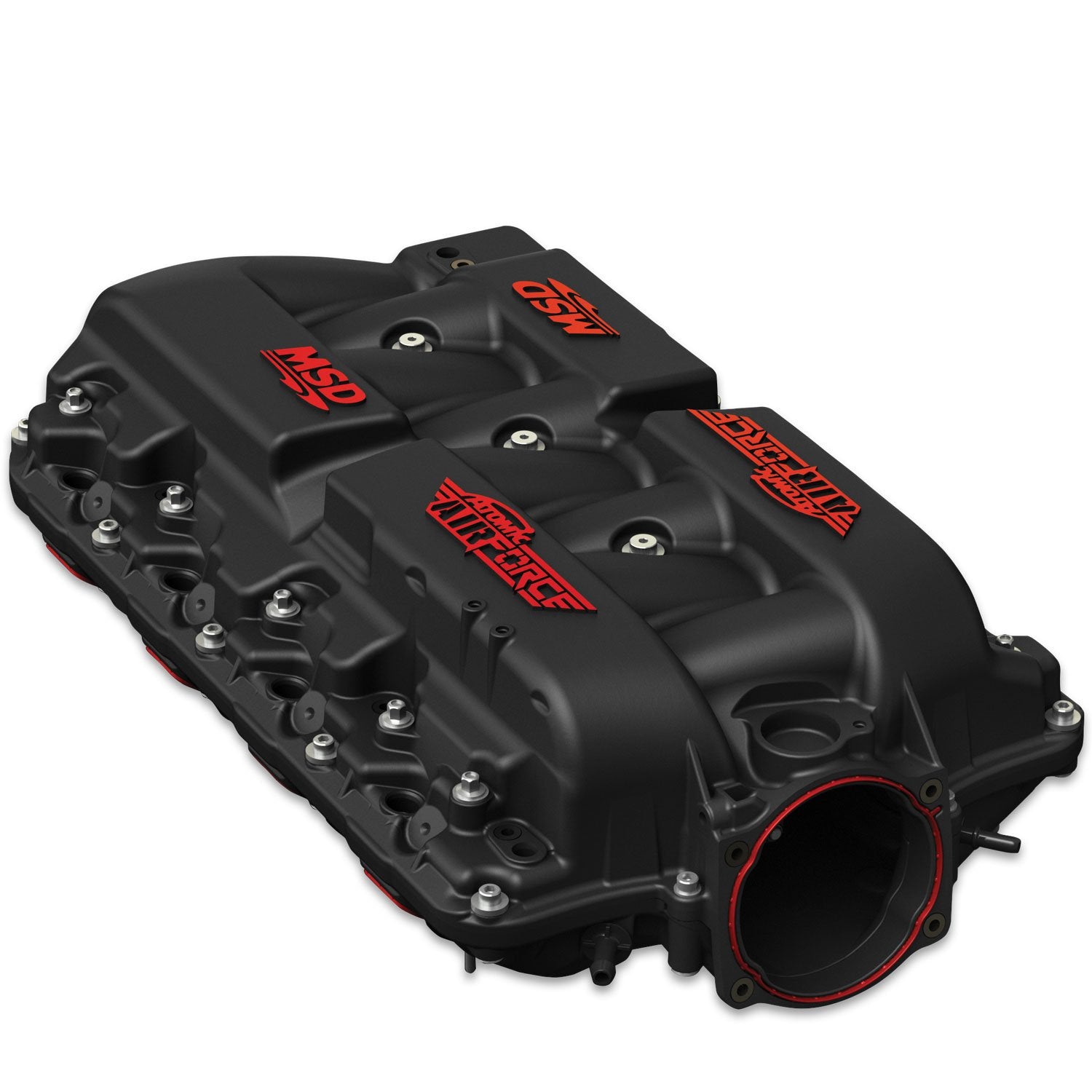

MSD Atomic AirForce LS Cathedral Port Intake Manifold - Red - 2702
Performance Polymer Intake Manifold for GM LS1, LS2, and LS6 Engines
Regular price
$2,650.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Atomic AirForce LS Cathedral Port Intake Manifold - Red - 2702 is not in stock at Fast Lane Spares and will ship direct from supplier
ā Special Order Item ā ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7ā20 days shipping.
Stock Status:
MSD Atomic AirForce LS Cathedral Port Intake Manifold - Red - 2702
Regular price
$2,650.80 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Performance Polymer Intake Manifold for GM LS1, LS2, and LS6 Engines
Part Number: 2702

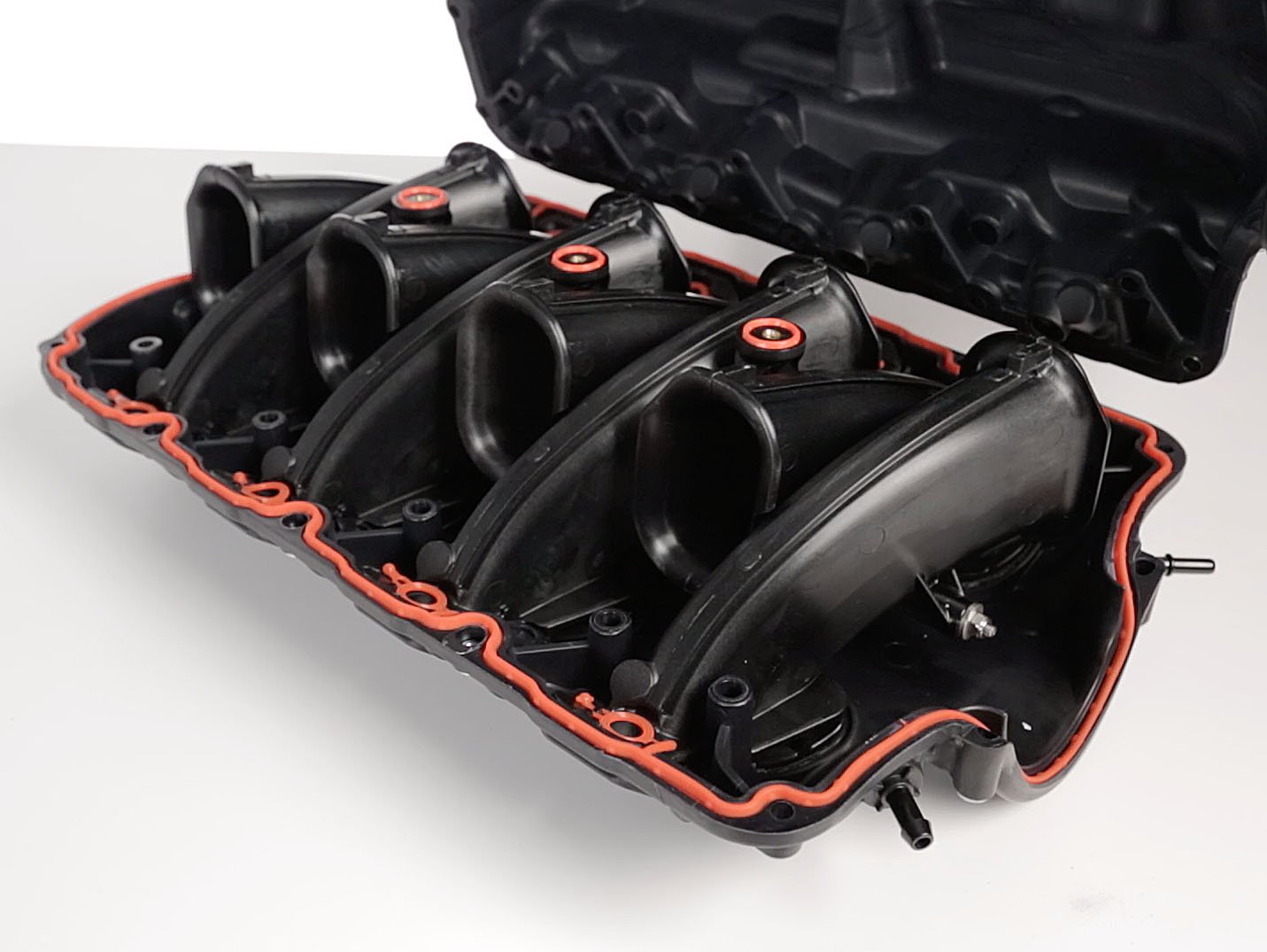

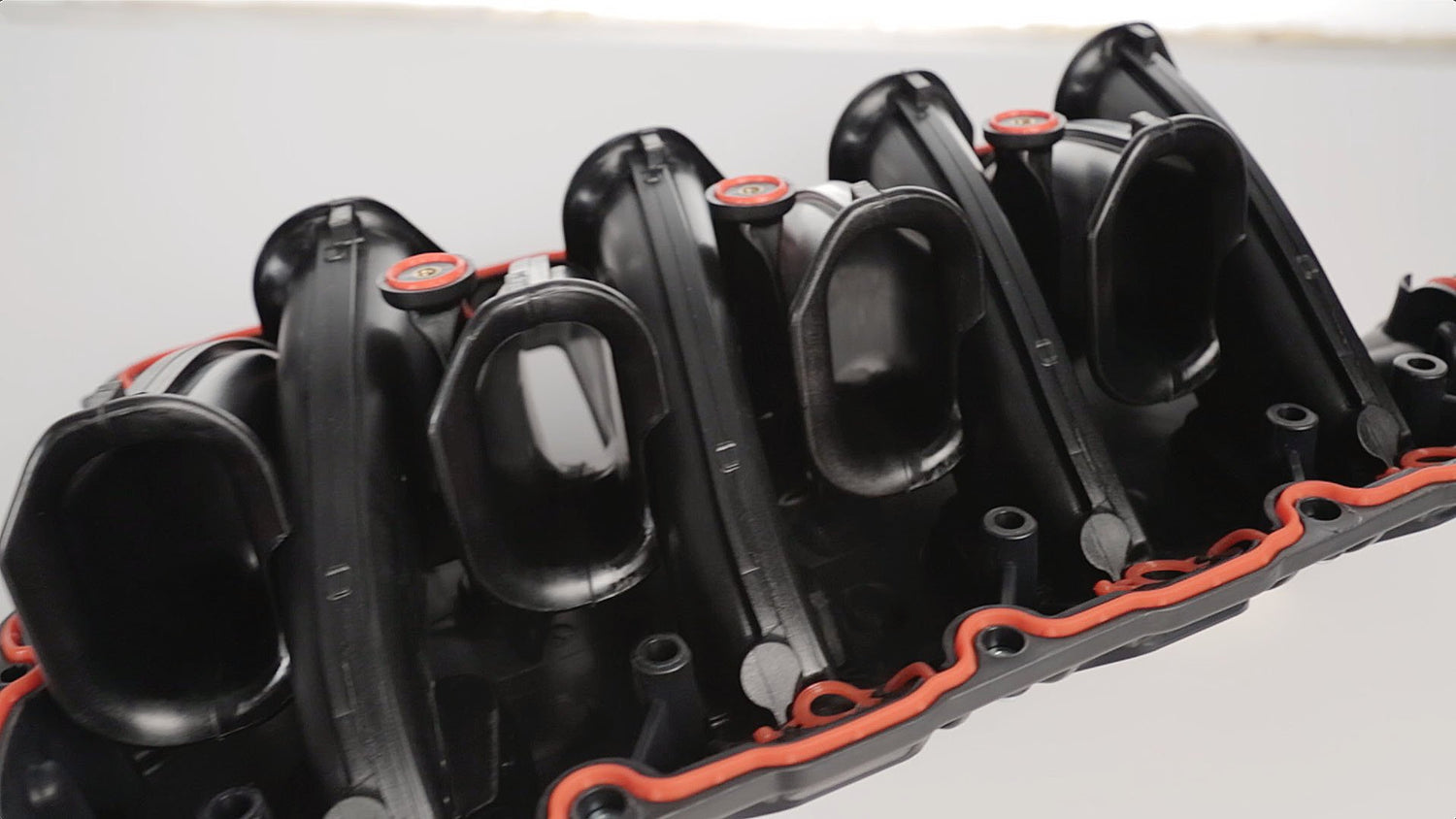

The MSD Atomic AirForce intake manifold delivers improved airflow and distribution to improve the performance of stock and modified engines. _x000D_ _x000D_ The unique bell-mouthed runner entrances maximize airflow and minimize shrouding - all while optimizing the available plenum volume for an unobstructed flow path over opposing runners. The polymer molded 2-piece design allows for easy access to the runners for porting._x000D_ _x000D_ Atomic AirForce accepts an OEM or 103mm throttle body as well as stock or aftermarket fuel rails* including MSD's Atomic LS EFI system. The intake bolts on and is supplied with new gaskets and hardware for a direct bolt-on package._x000D_ _x000D_ *Note: Use of aftermarket rails may require the use of customer-supplied spacers and hardware.
Features and Benefits
ā¢ Available with Red, Black or Silver logos
ā¢ 4500-7500 RPM
ā¢ Deck Height: 9.24in
ā¢ 105 MM Throttle Body Bore Diameter
Note: Will interfere with stock LS1/LS6 water pump. Requires modification to top water pump bolt or use of LS2 water pump. See page 8 of the instructions.
Part Number: 2702
The MSD Atomic AirForce intake manifold delivers improved airflow and distribution to improve the performance of stock and modified engines. _x000D_ _x000D_ The unique bell-mouthed runner entrances maximize airflow and minimize shrouding - all while optimizing the available plenum volume for an unobstructed flow path over opposing runners. The polymer molded 2-piece design allows for easy access to the runners for porting._x000D_ _x000D_ Atomic AirForce accepts an OEM or 103mm throttle body as well as stock or aftermarket fuel rails* including MSD's Atomic LS EFI system. The intake bolts on and is supplied with new gaskets and hardware for a direct bolt-on package._x000D_ _x000D_ *Note: Use of aftermarket rails may require the use of customer-supplied spacers and hardware.
Features and Benefits
ā¢ Available with Red, Black or Silver logos
ā¢ 4500-7500 RPM
ā¢ Deck Height: 9.24in
ā¢ 105 MM Throttle Body Bore Diameter
Note: Will interfere with stock LS1/LS6 water pump. Requires modification to top water pump bolt or use of LS2 water pump. See page 8 of the instructions.
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 4500-7500 Brand MSD Category Engine CNC Ported No Color Black Construction Molded Cylinder Head Port Shape Cathedral Deck Height 9.24 EGR Port No Emission Code 1 Engine GM LS1, LS2, LS6 Fuel Injectors Included No Fuel Rail(s) Included No Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Material Polymer Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Black Removable Runners No Removable Top/Lid Yes Single Or Dual Plane Type Single Sub Category Cylinder Block Components Throttle Body Bore Diameter 105 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 -
Instructions
