MSD | SKU:
7805

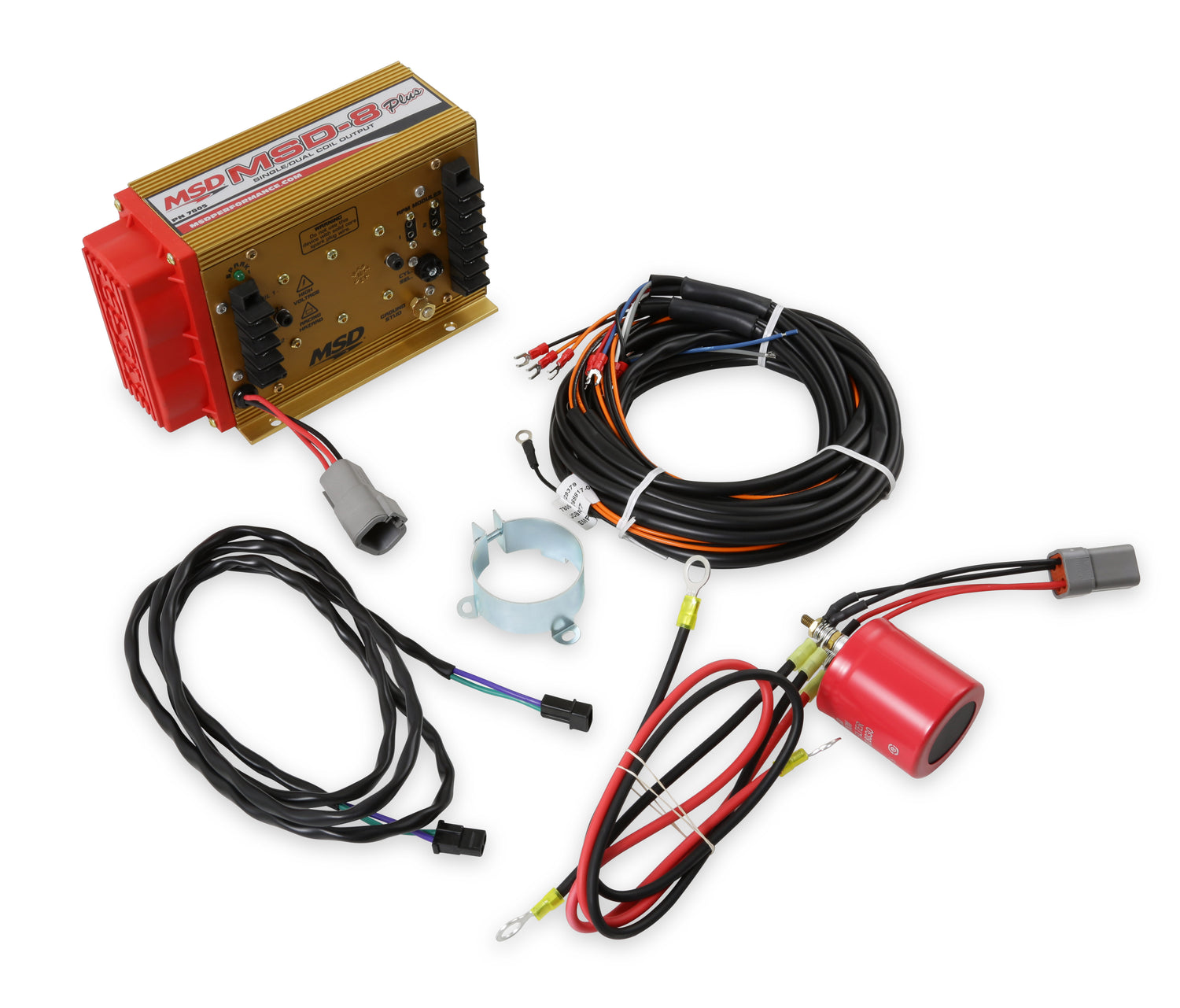

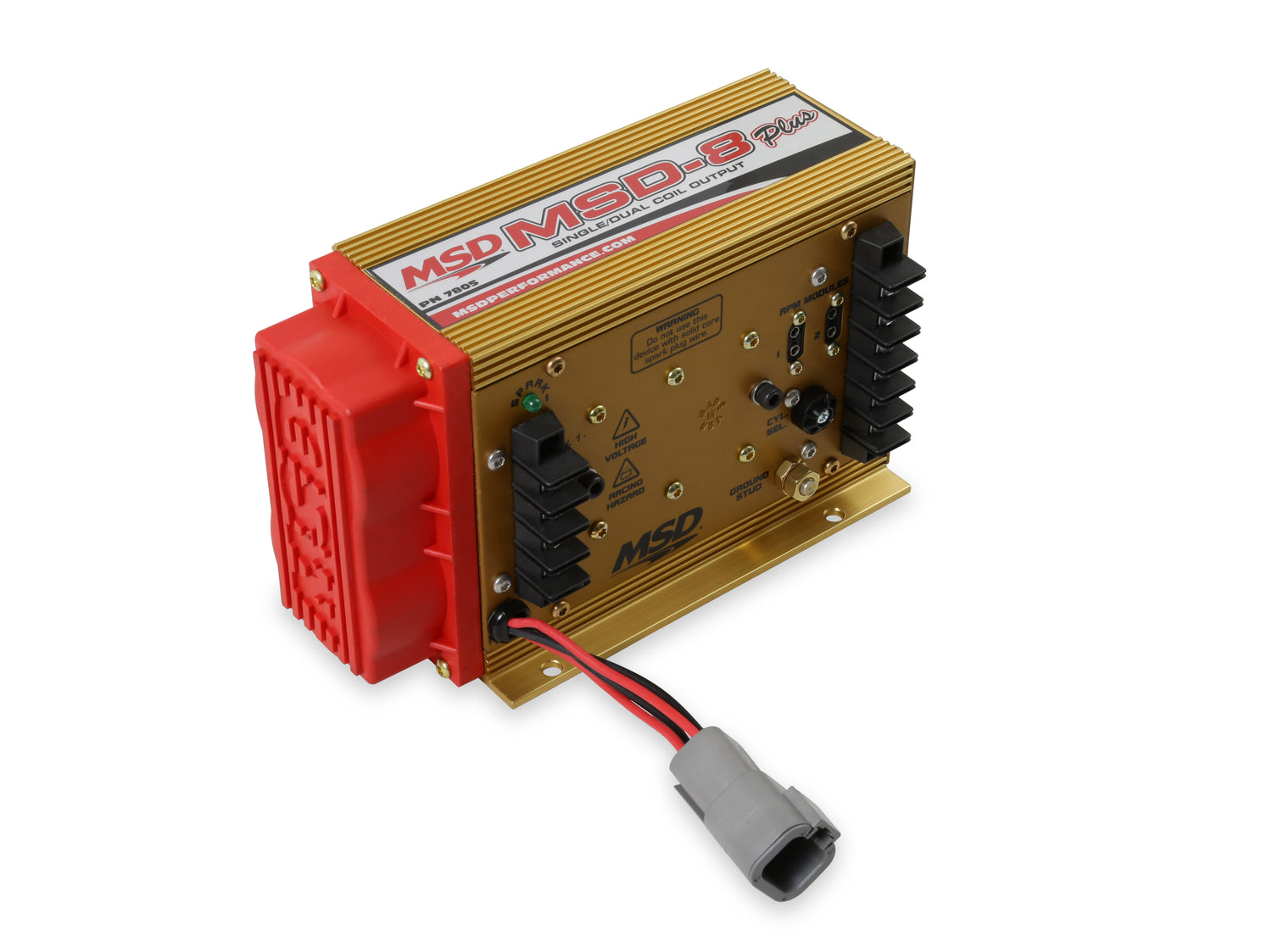

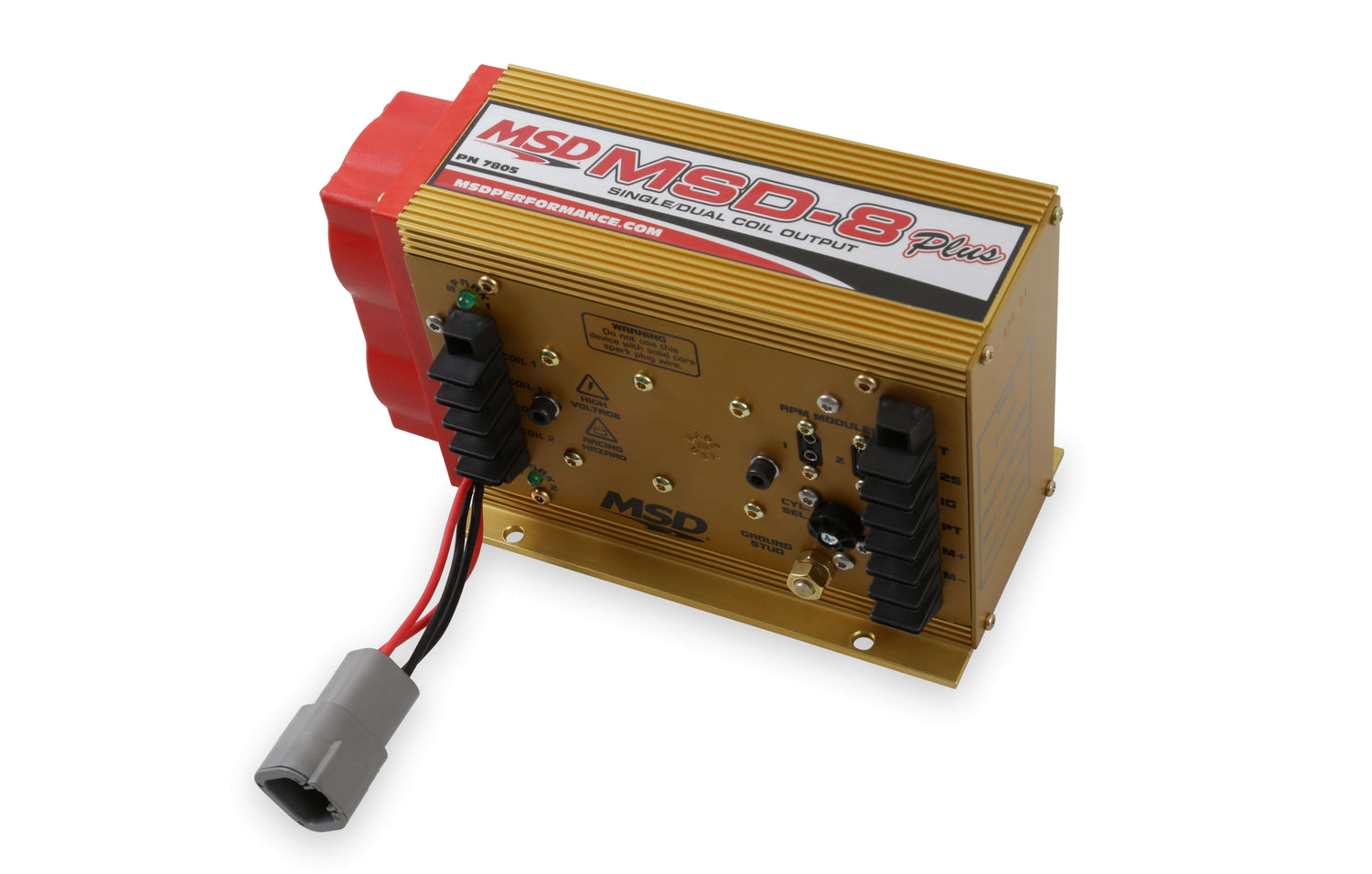

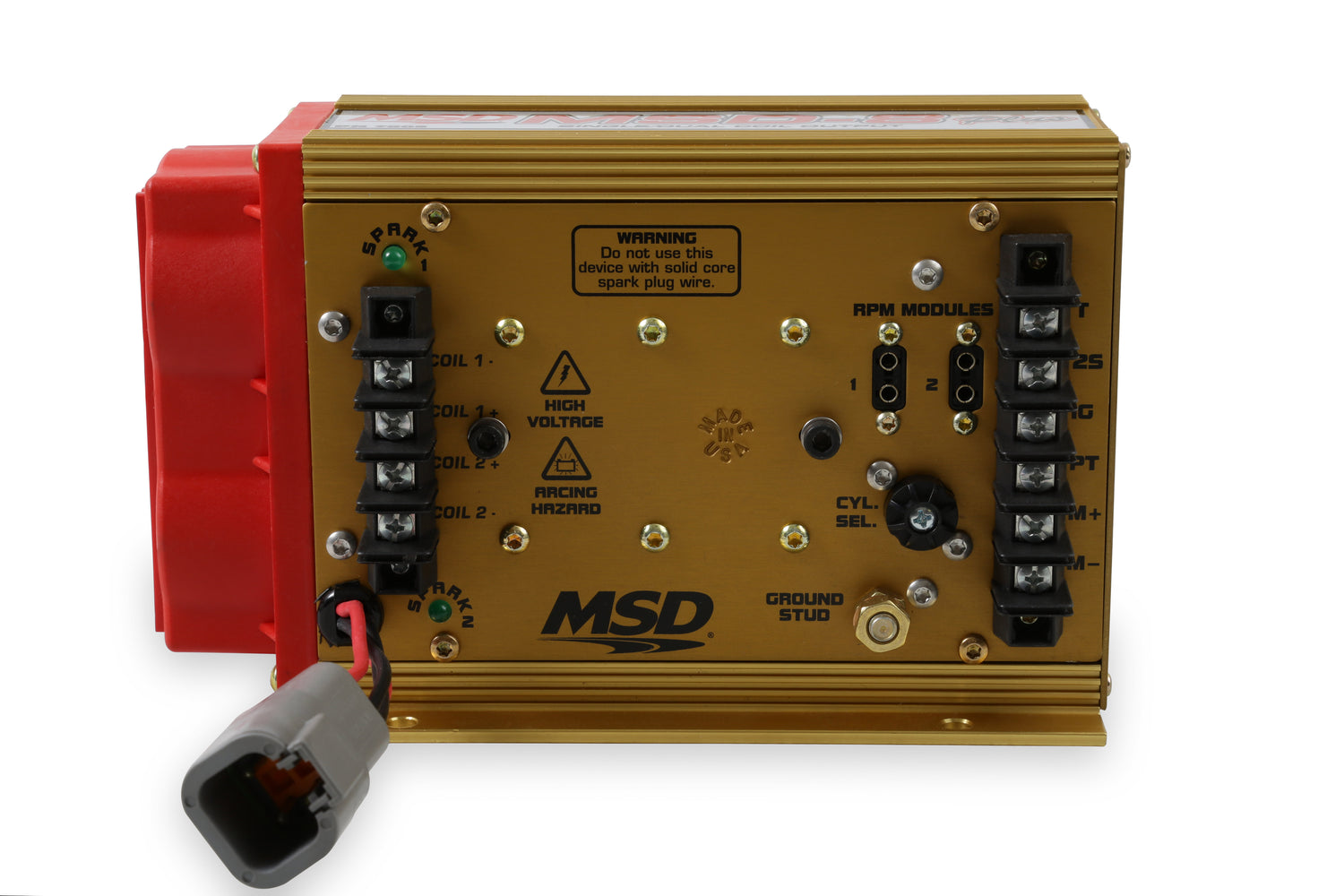

MSD 8-Plus Ignition Control - 7805
If your running alcohol and high compression and/or a turbo/blower this one can ignite it all.
Regular price
$3,798.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD 8-Plus Ignition Control - 7805 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
MSD 8-Plus Ignition Control - 7805
Regular price
$3,798.60 NZD
+ GST
Unit price
/
Unavailable
Description
Description
If your running alcohol and high compression and/or a turbo/blower this one can ignite it all.
Part Number: 7805
For those that are looking for a dual fire MSD 8, the new 8-Plus is all you need. Our engineers were able to deliver an ignition that is capable of firing two coils at once for those extreme racers using dual plug race setups. The MSD 8-Plus Ignition produces the same extreme output of the original 8-Series, yet is now in a smaller housing with improved efficiency and internal components. One distinct change is now a built-in 2-Step Rev Control. Now you can switch between two rev limits without extra wiring or housings. There has always been a niche group of hardcore racers and pullers that run nothing but the MSD 8 Ignition Series. If you liked it then, you're going to like it even better now!
Features and Benefits
• Compatible for 4, 6 and 8-cylinders
• Built-in 2-step rev control
• 12-18 Volts, Negative Ground
• Extreme spark output
• 36 Amps at 12,000 RPM
• Single or dual coil output
• 15,000 RPM with 14.4 Volts
Part Number: 7805
For those that are looking for a dual fire MSD 8, the new 8-Plus is all you need. Our engineers were able to deliver an ignition that is capable of firing two coils at once for those extreme racers using dual plug race setups. The MSD 8-Plus Ignition produces the same extreme output of the original 8-Series, yet is now in a smaller housing with improved efficiency and internal components. One distinct change is now a built-in 2-Step Rev Control. Now you can switch between two rev limits without extra wiring or housings. There has always been a niche group of hardcore racers and pullers that run nothing but the MSD 8 Ignition Series. If you liked it then, you're going to like it even better now!
Features and Benefits
• Compatible for 4, 6 and 8-cylinders
• Built-in 2-step rev control
• 12-18 Volts, Negative Ground
• Extreme spark output
• 36 Amps at 12,000 RPM
• Single or dual coil output
• 15,000 RPM with 14.4 Volts
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Gold Connector Gender Terminal Strip Connector Quantity 1 Current Draw 12 Emission Code 4 Features Extreme Cylinder Pressure Grade Type Race Height 5.75 Ignition Type Performance Length 8.25 Maximum RPM 15,000 Mount Type Surface Mount Mounting Hardware Included Yes Primary Voltage 480 Product Type Ignition Box Secondary Voltage 50,000+ Spark Energy (mJ per spark) 315-345 Spark Series Duration 20 Degree Crankshaft Rotation Sub Category Control Modules Terminal Gender Terminal Strip Terminal Quantity 14 Voltage Required 12-18 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight and Size 4.85 lbs., 8.25L x 3.75W x 5.75H Width 3.75 -
