MSD | SKU:
7222

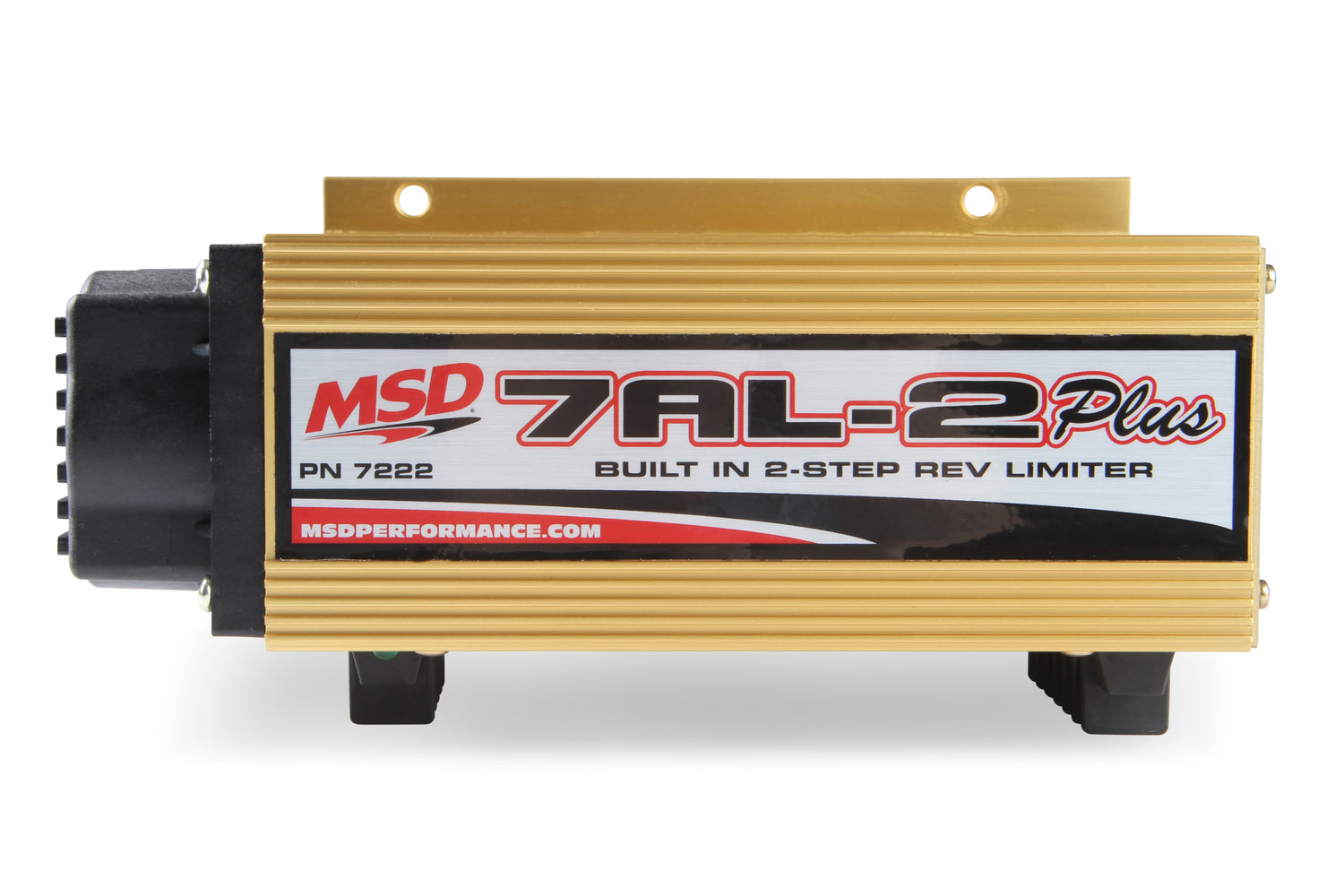

MSD 7AL-2 Ignition Control - 7222
A staple in the drag race community, features a built-in 2 step rev control and its famous high output spark energy.
Sold out
Regular price
$1,623.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD 7AL-2 Ignition Control - 7222 is not in stock at Fast Lane Spares and will ship direct from supplier.
Stock Status:
Description
Description
A staple in the drag race community, features a built-in 2 step rev control and its famous high output spark energy.
Part Number: 7222

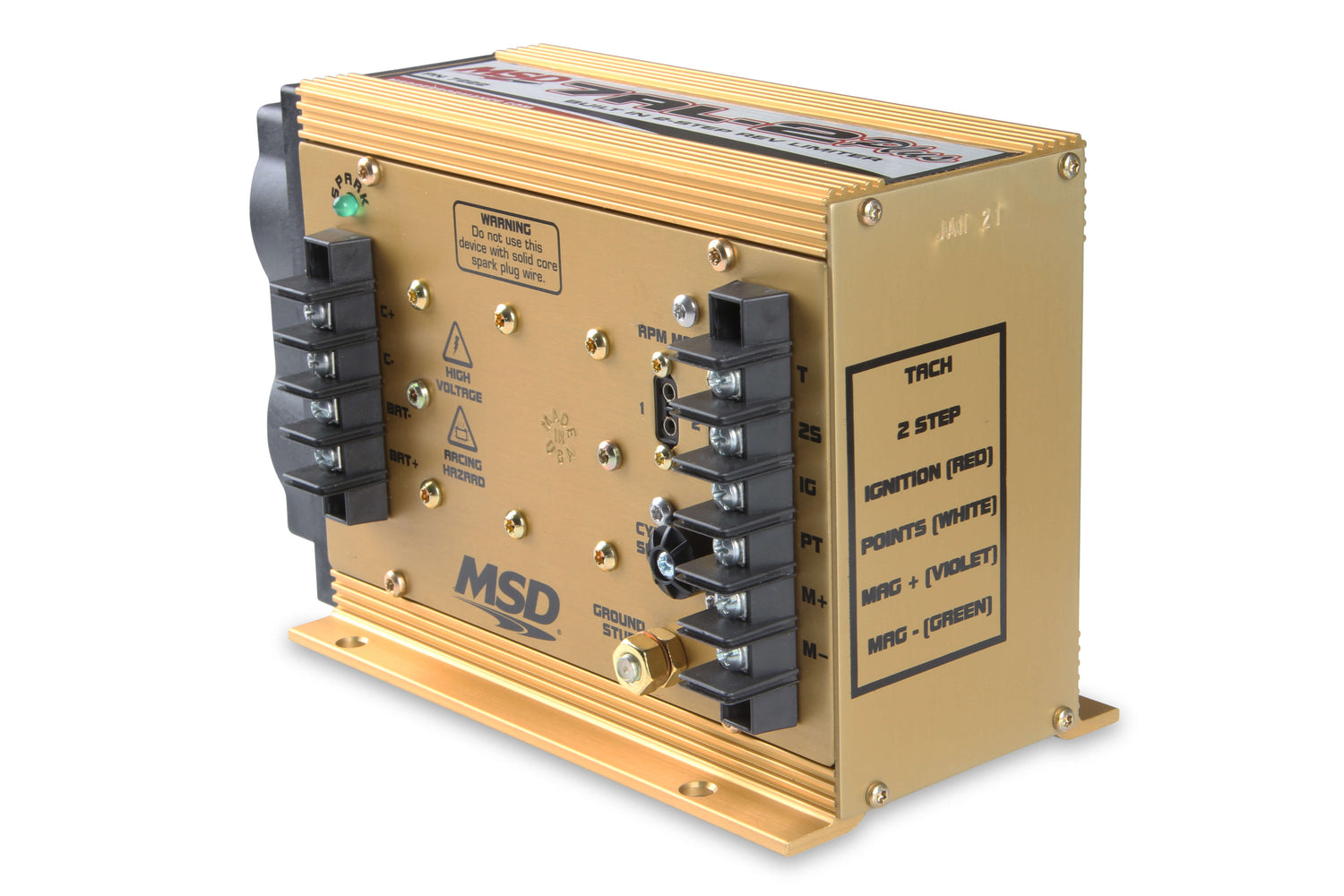

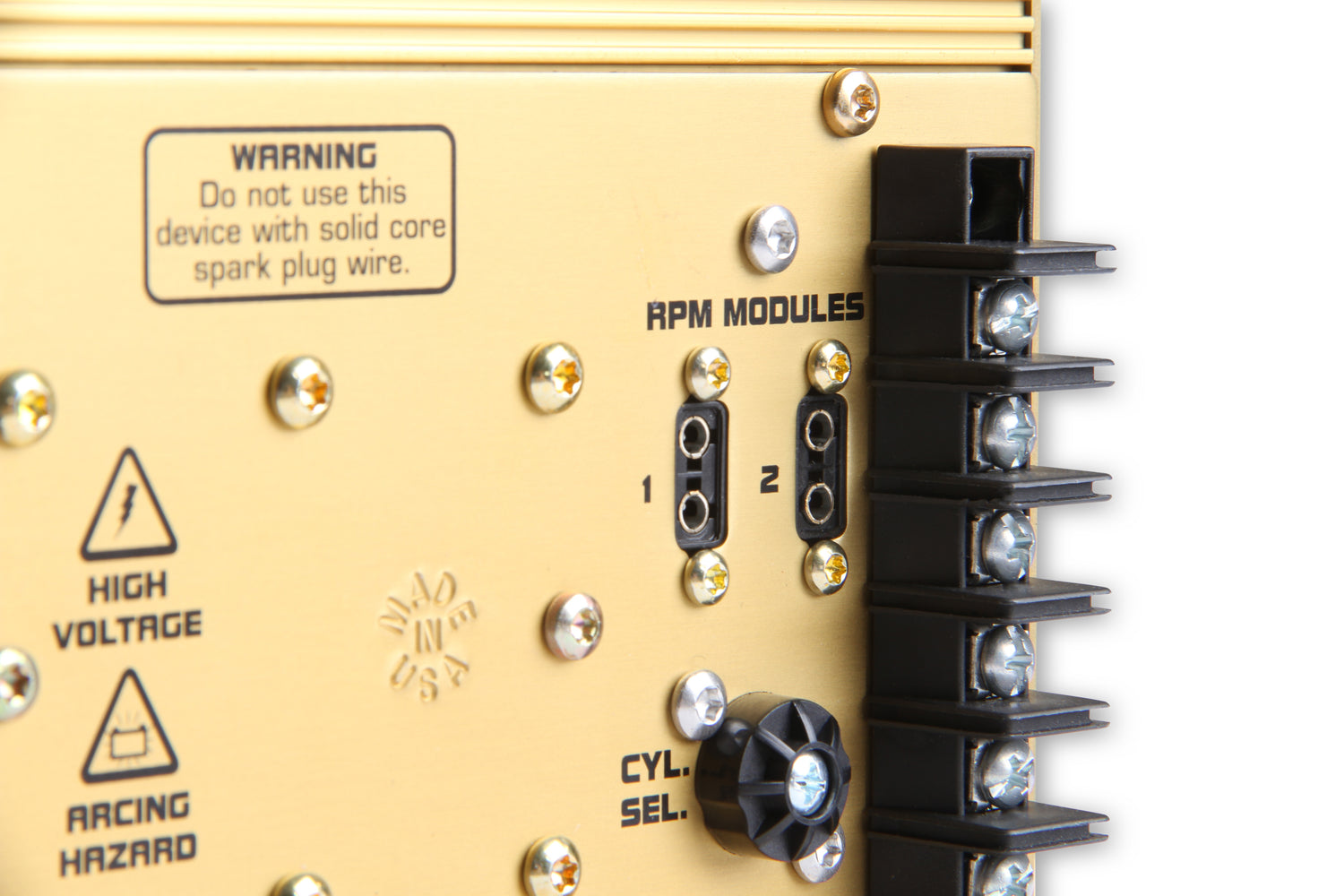

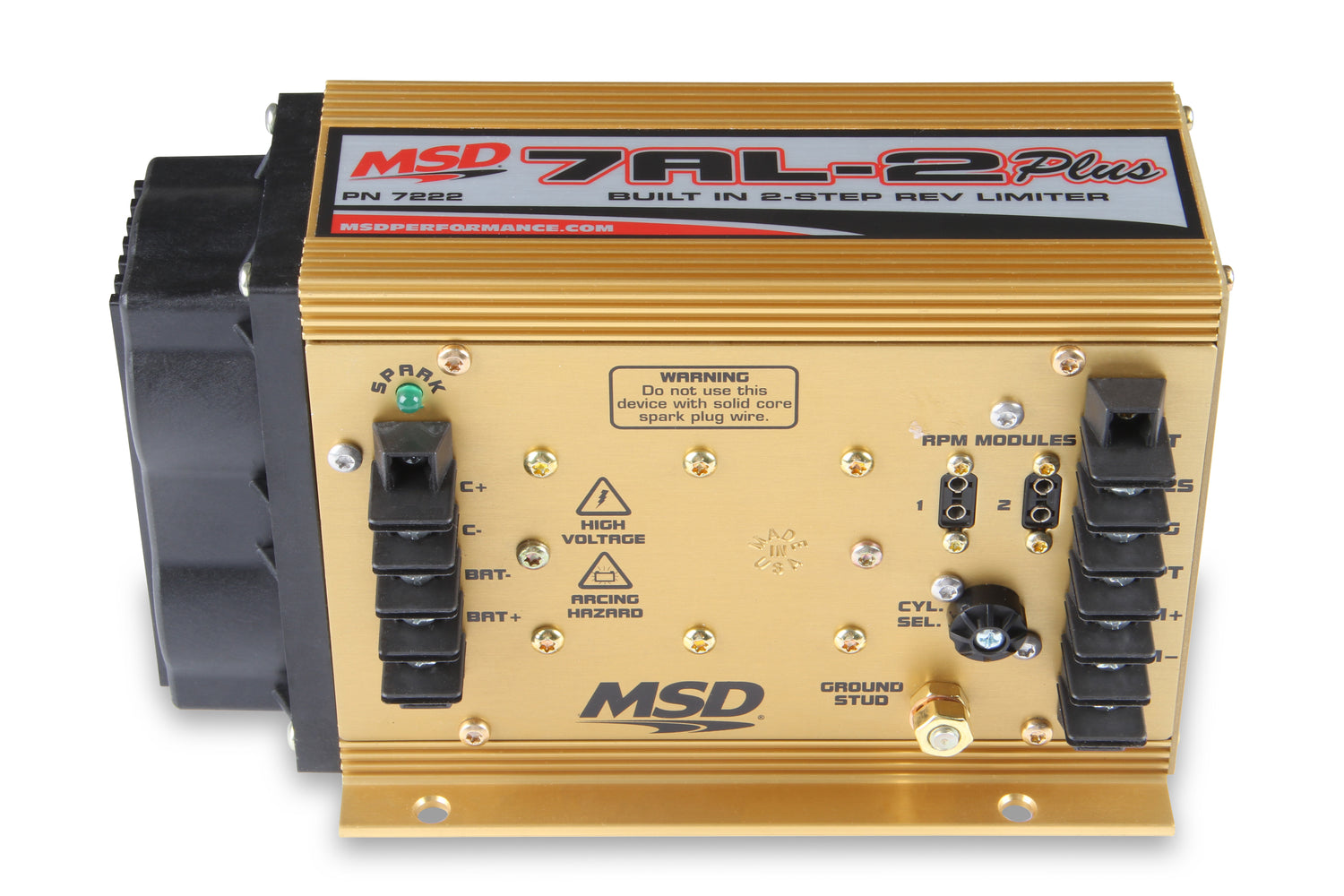

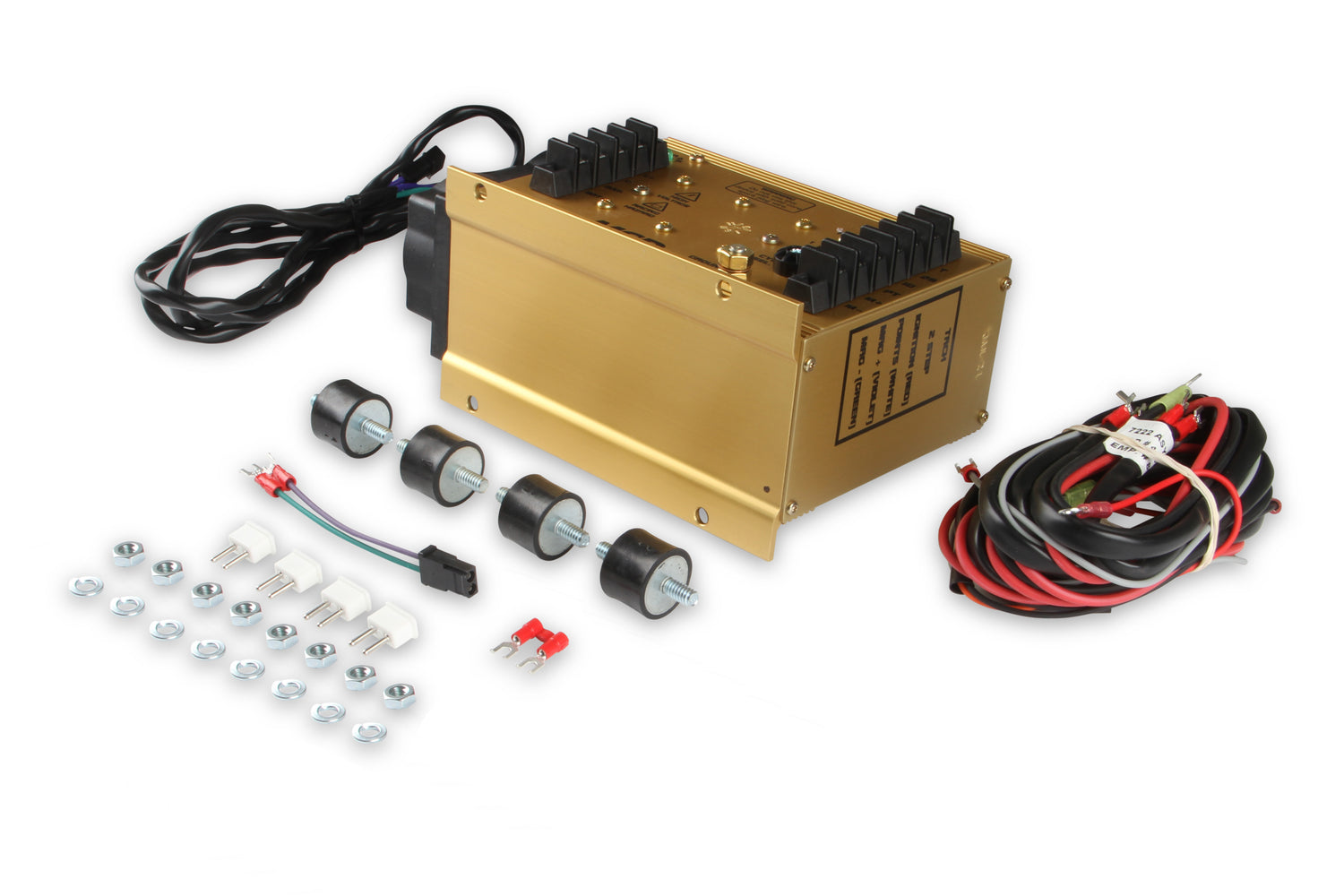

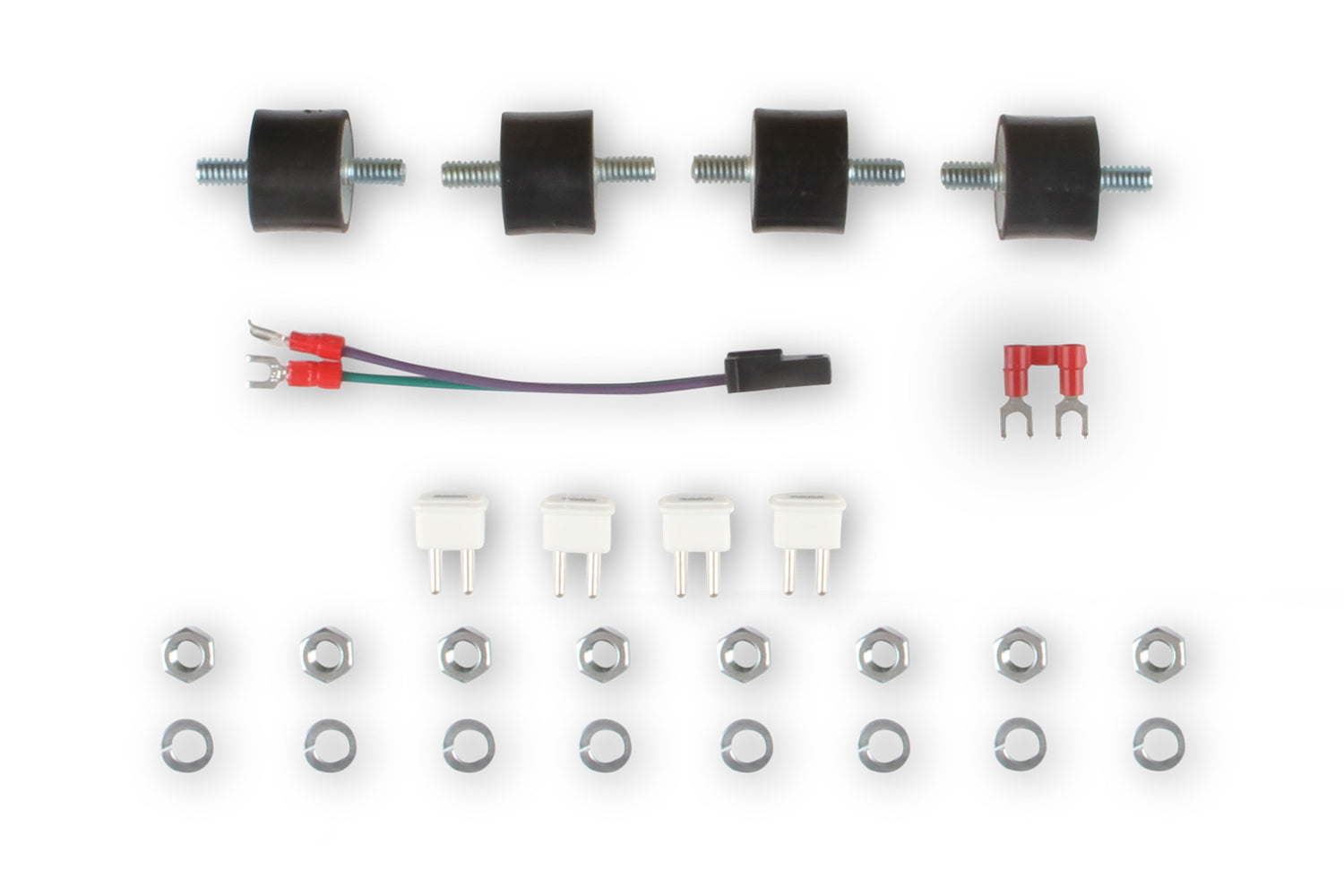

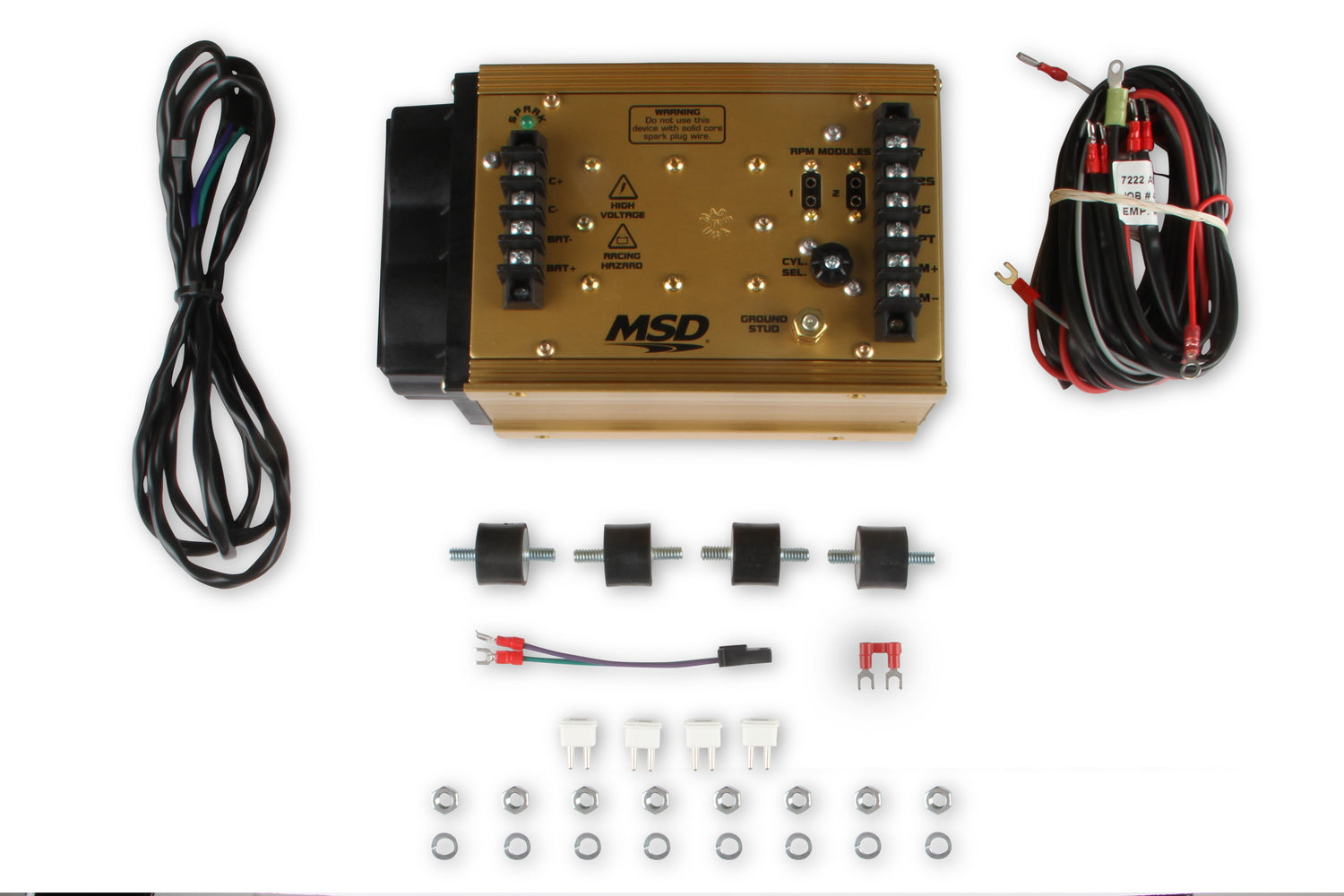

You'll recognize the 7AL-2 Plus Ignition Control, as its predecessor is the most popular ignition control used in drag racing. The "Plus" model updates the original 7AL-2 with improved internal components plus our engineers added a 2-Step Rev Control and a useful diagnostic LED. Racers will be happy to see that the updated components up the voltage output and spark energy! Over 40% more spark energy in fact! Visually, you'll notice the two terminal strips that allow for easier wiring in your race car. The LED over the power connections will come in handy for troubleshooting as it flashes only when the coil fires. That way you know that the coil, the trigger source and ignition are all functioning properly. The mounting pattern is the same as the 7AL-2 and is supplied with vibration mounts and a few rpm modules.
Features and Benefits
• 14,000 RPM with 14.4 Volts
• Built-in 2-Step rev control
• Operates on 4, 6 or 8-cylinder engines
• Supplied with 3000, 7000, 8000, 9000 RPM Chips
• Diagnostic Troubleshooting LED
• 12-18 Volts, Negative Ground
• Terminal strips for convenient hookup
• 6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM
Part Number: 7222
You'll recognize the 7AL-2 Plus Ignition Control, as its predecessor is the most popular ignition control used in drag racing. The "Plus" model updates the original 7AL-2 with improved internal components plus our engineers added a 2-Step Rev Control and a useful diagnostic LED. Racers will be happy to see that the updated components up the voltage output and spark energy! Over 40% more spark energy in fact! Visually, you'll notice the two terminal strips that allow for easier wiring in your race car. The LED over the power connections will come in handy for troubleshooting as it flashes only when the coil fires. That way you know that the coil, the trigger source and ignition are all functioning properly. The mounting pattern is the same as the 7AL-2 and is supplied with vibration mounts and a few rpm modules.
Features and Benefits
• 14,000 RPM with 14.4 Volts
• Built-in 2-Step rev control
• Operates on 4, 6 or 8-cylinder engines
• Supplied with 3000, 7000, 8000, 9000 RPM Chips
• Diagnostic Troubleshooting LED
• 12-18 Volts, Negative Ground
• Terminal strips for convenient hookup
• 6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Gold Connector Gender Terminal Strip Connector Quantity 2 Current Draw 6000 Current Draw 12,000 Emission Code 4 Features Rev Limiter Grade Type Race Height 5.75 Ignition Type Performance Length 8.25 Maximum RPM 14,000 Mount Type Surface Mount Mounting Hardware Included Yes Primary Voltage 570 Product Type Ignition Box Secondary Voltage 47,000 Spark Energy (mJ per spark) 160 Sub Category Control Modules Terminal Gender Terminal Strip Terminal Quantity 10 Voltage Required 12-18 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight and Size 4.85 lbs., 8.25L x 3.75W x 5.75H Width 3.75 -
