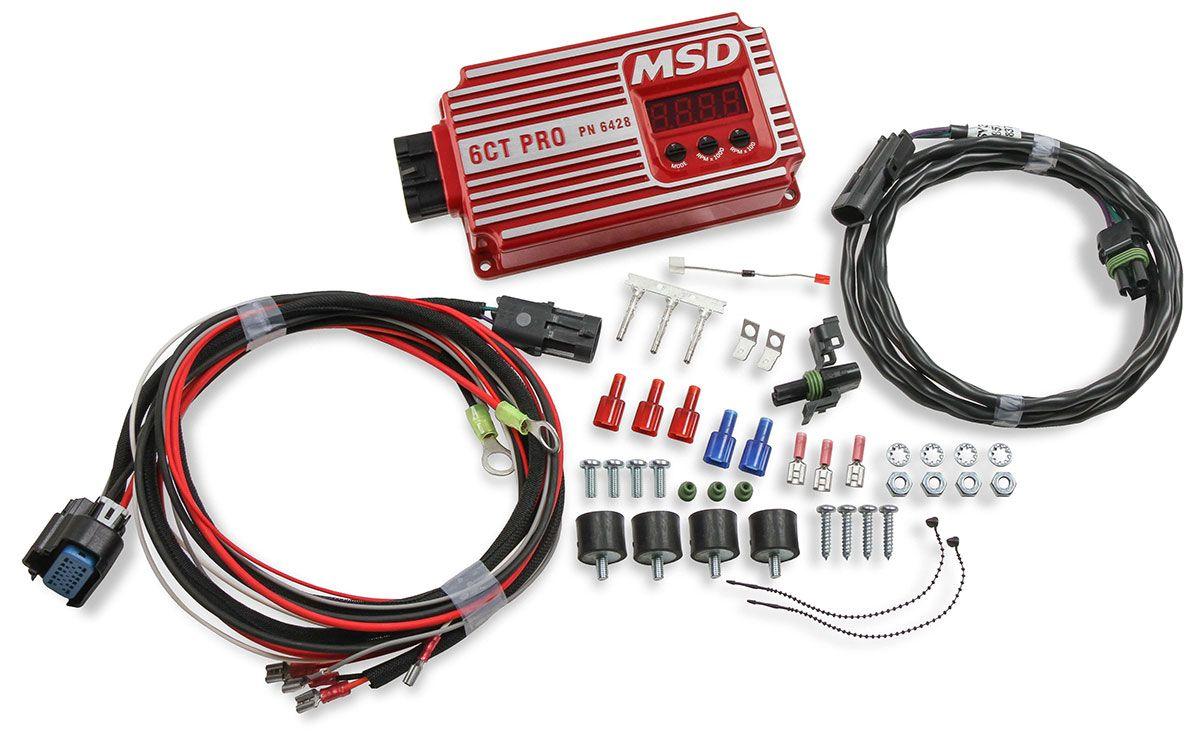

MSD 6CT Pro Ignition Control (MSD6428)

MSD6428 - MSD 6CT PRO IGNITION CONTROL

Digital Capacitive Discharge With Rev Limiter

Part Number: MSD6428

Based on the superior design of the MSD 6CT, the 6CT PRO adds another offering to MSD's line of technologically advanced ignitions for circle track racing. Packed with legendary MSD Ignition power, the 6CT PRO offers a slew of features. A large digital LED display makes it easier than ever to see the rev limiter setting when dialing it in using the laser etched rotary dials on the face of the unit.
Rev limiting is controlled via microprocessor making it so smooth the chassis is virtually undisturbed when charging into turns. The rotary dials are also used to set cylinder select for 4, 6, and 8 cylinder engines, and to adjust the built-in start retard providing options of 0°, 10° or 20° of timing retard for quick starts. As an added bonus, the LED display can be used as a live tach or will display your racecars battery voltage.
Like the 6CT, the 6CT PRO records the highest RPM turned by the engine for the last 20 minutes of run time. However, the RPM recording can be quickly reset with a momentary push button (customer supplied) instead of having to leave the unit powered up for 20 minutes straight. The 6CT PRO offers all this and more in a fully potted housing that utilizes a single connector to keep wiring tidy.
Features:
MSD's smoothest rev limiter yet! Won't upset the chassis and easy on parts

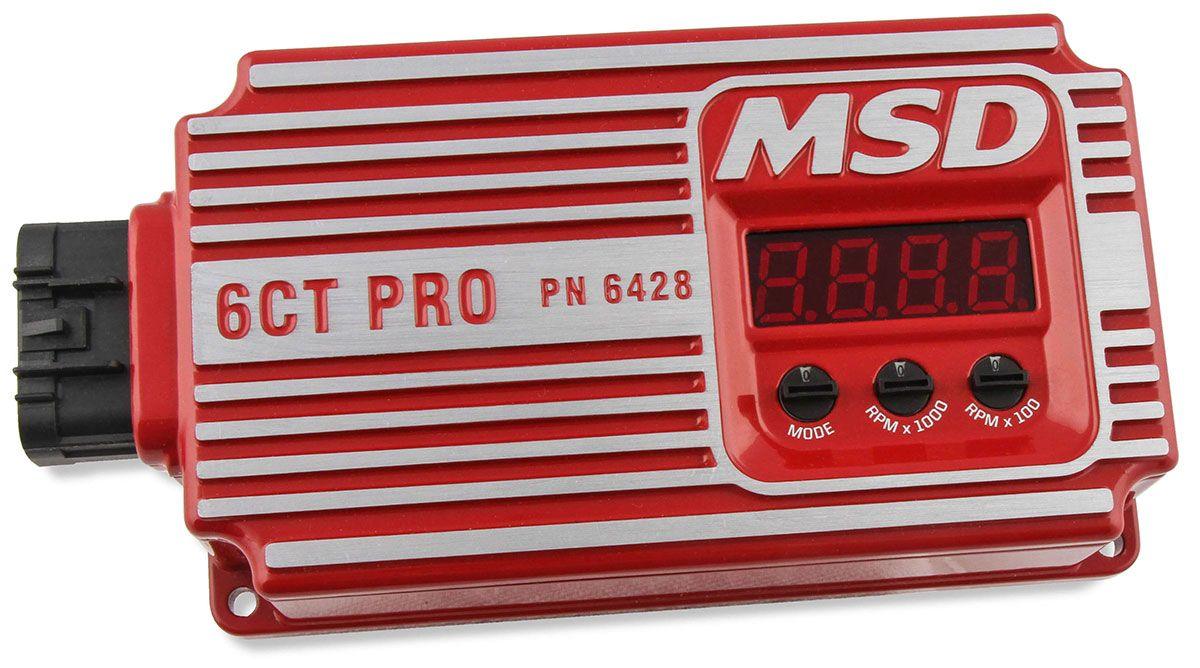

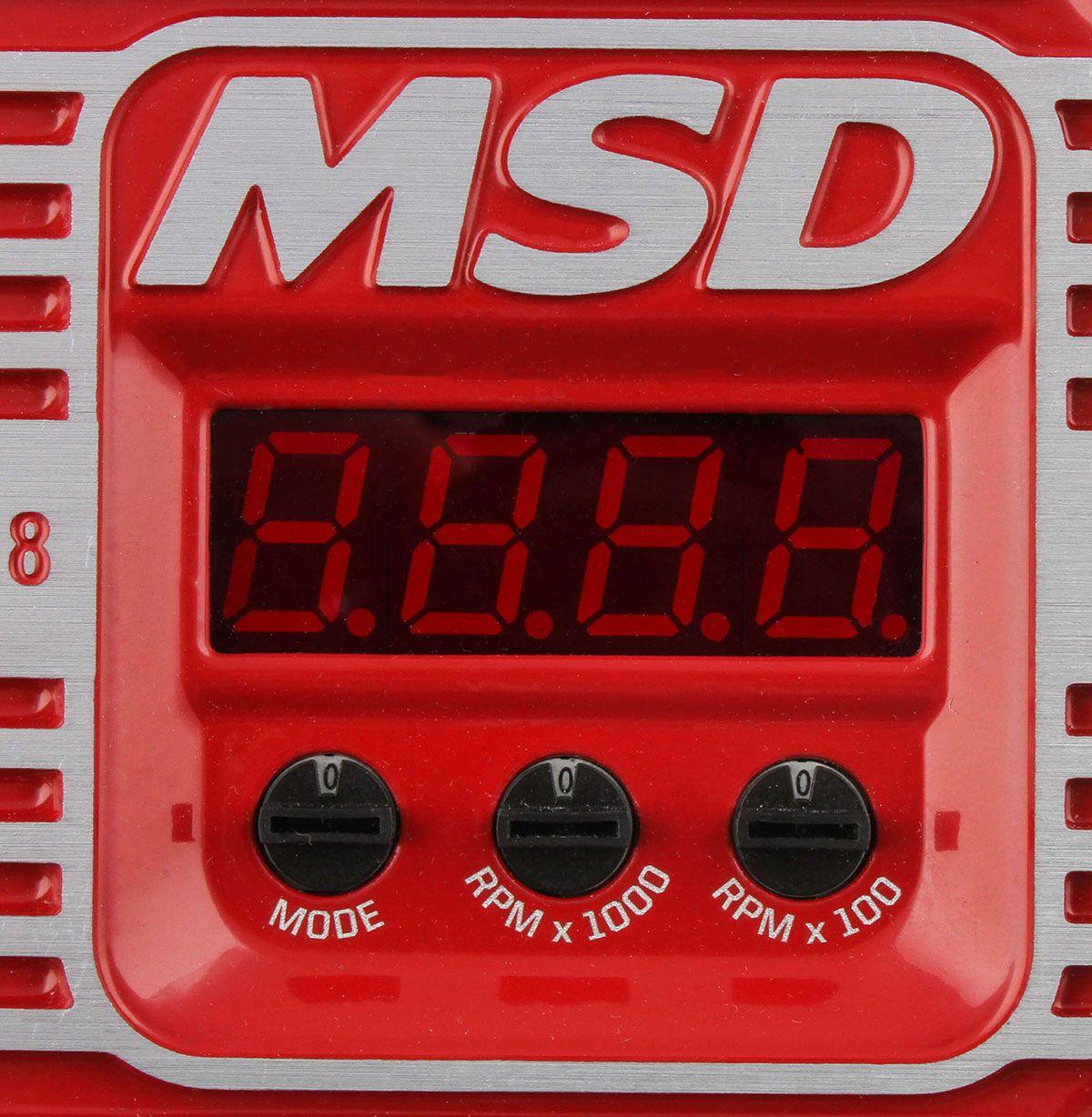

Large, easy to read LED display
Records highest RPM the engine turned for last 20 minutes of run time
Highest RPM recording can quickly be reset with an external momentary switch
Easy setup of features with three rotary dials on the face of the unit
Built-in Start Retard adjustable in 0°, 10° or 20° increments for quick, easy starts and extend starter life
LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
Full delivery of spark energy down to 6 volts battery supply
Highly efficient, low current draw for extended battery life
Fully potted housing to stand up to demanding race conditions

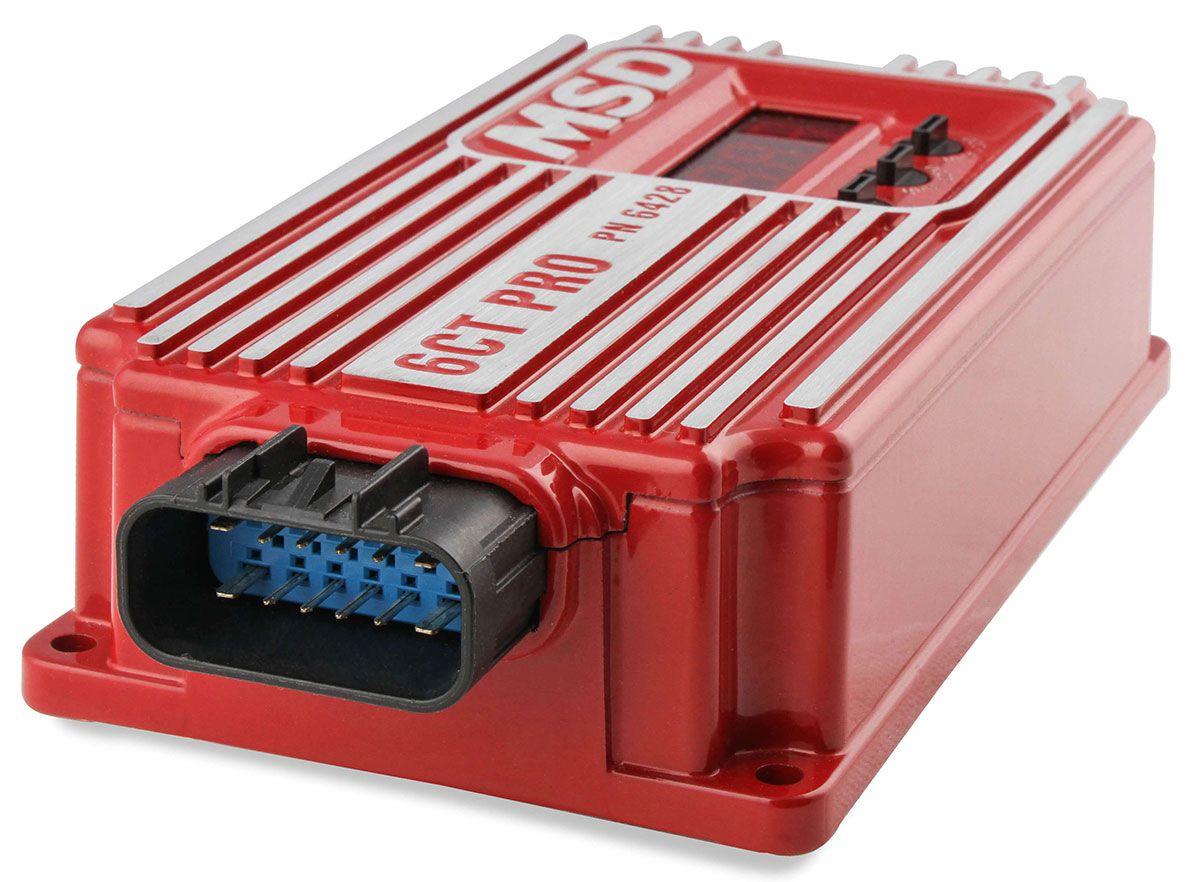

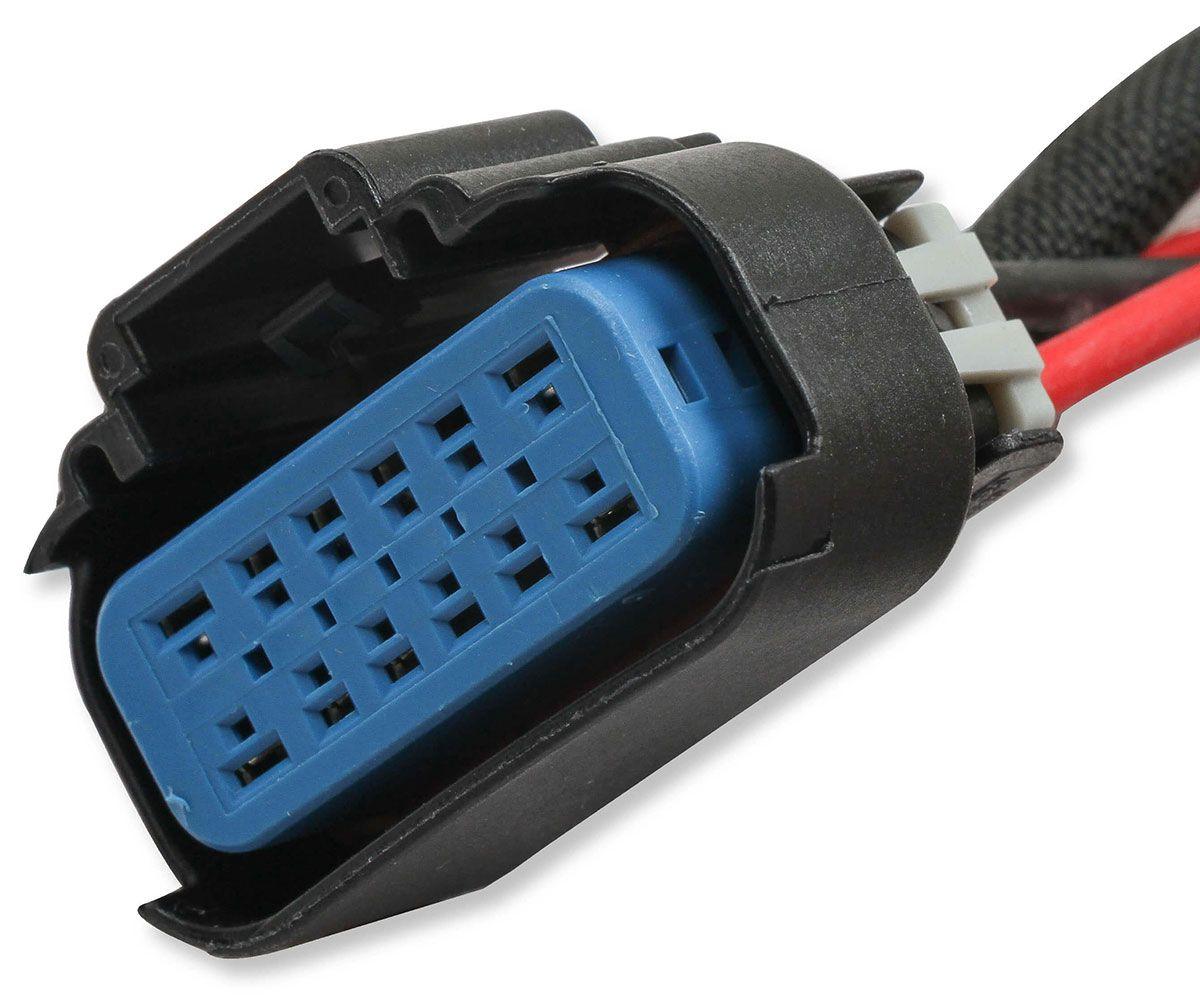

Single plug-in connector for clean wiring
Works on 4, 6 and 8 cylinder engines
Reverse polarity and overheat protection provide ultimate reliability
