MSD | SKU:
64213

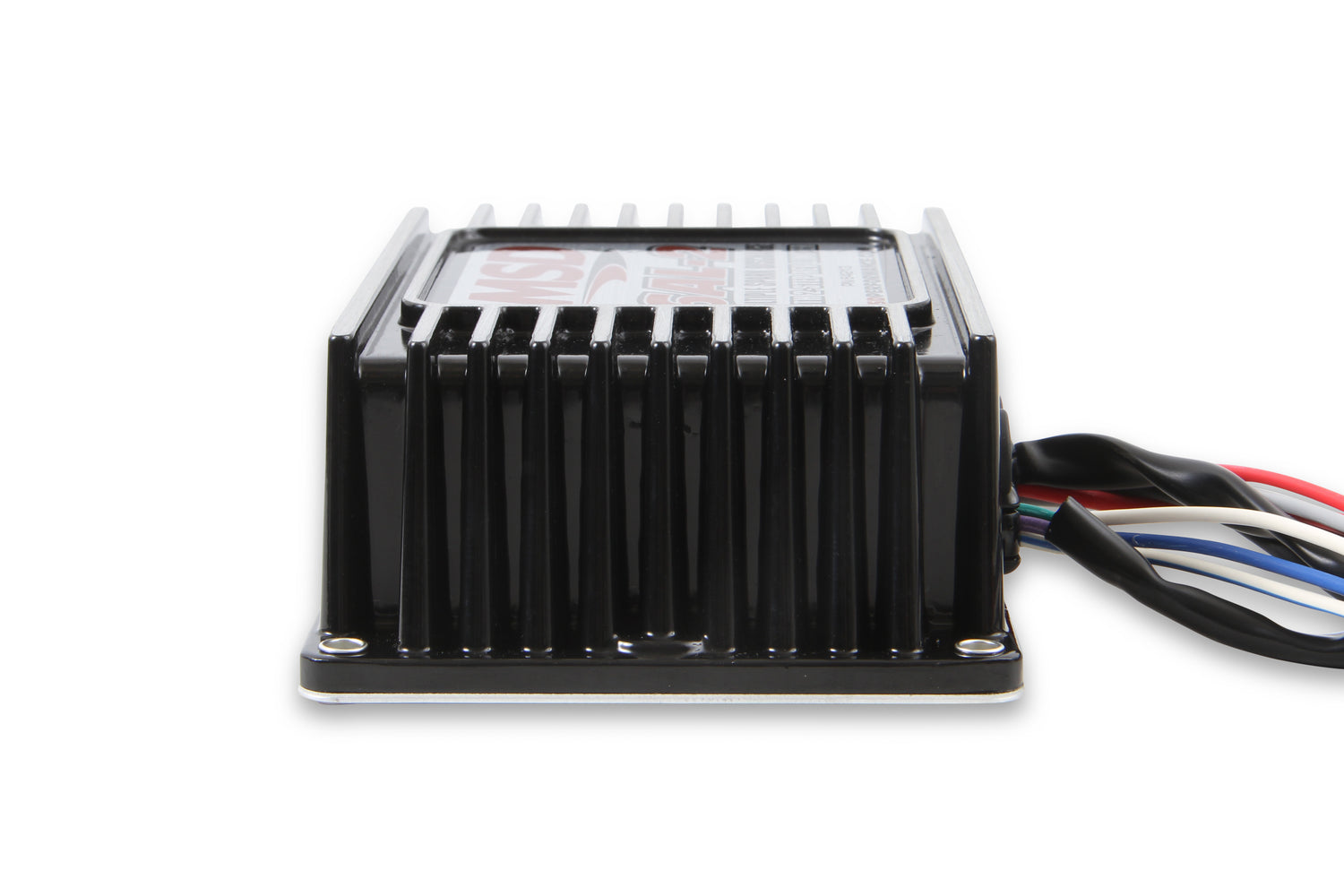

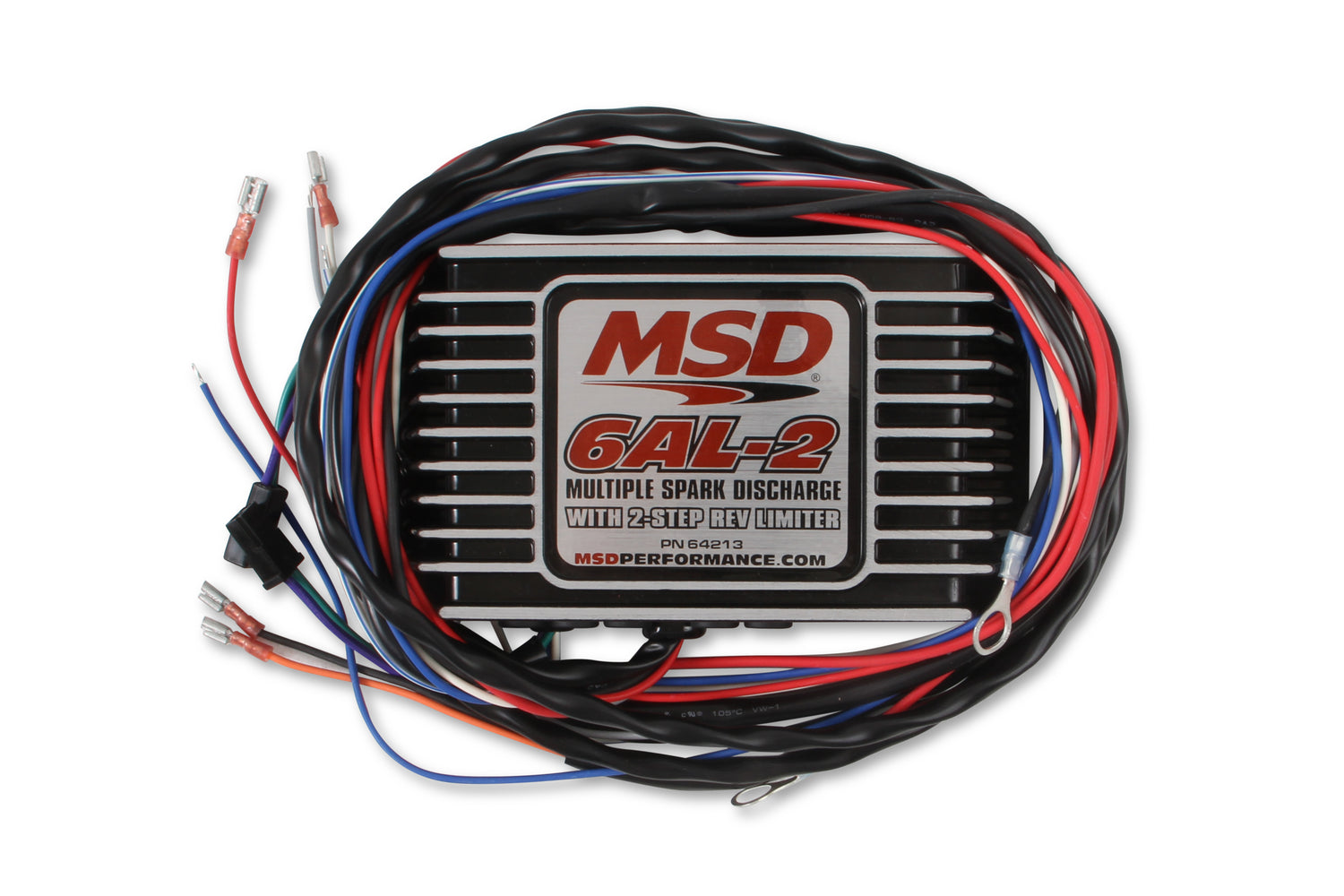

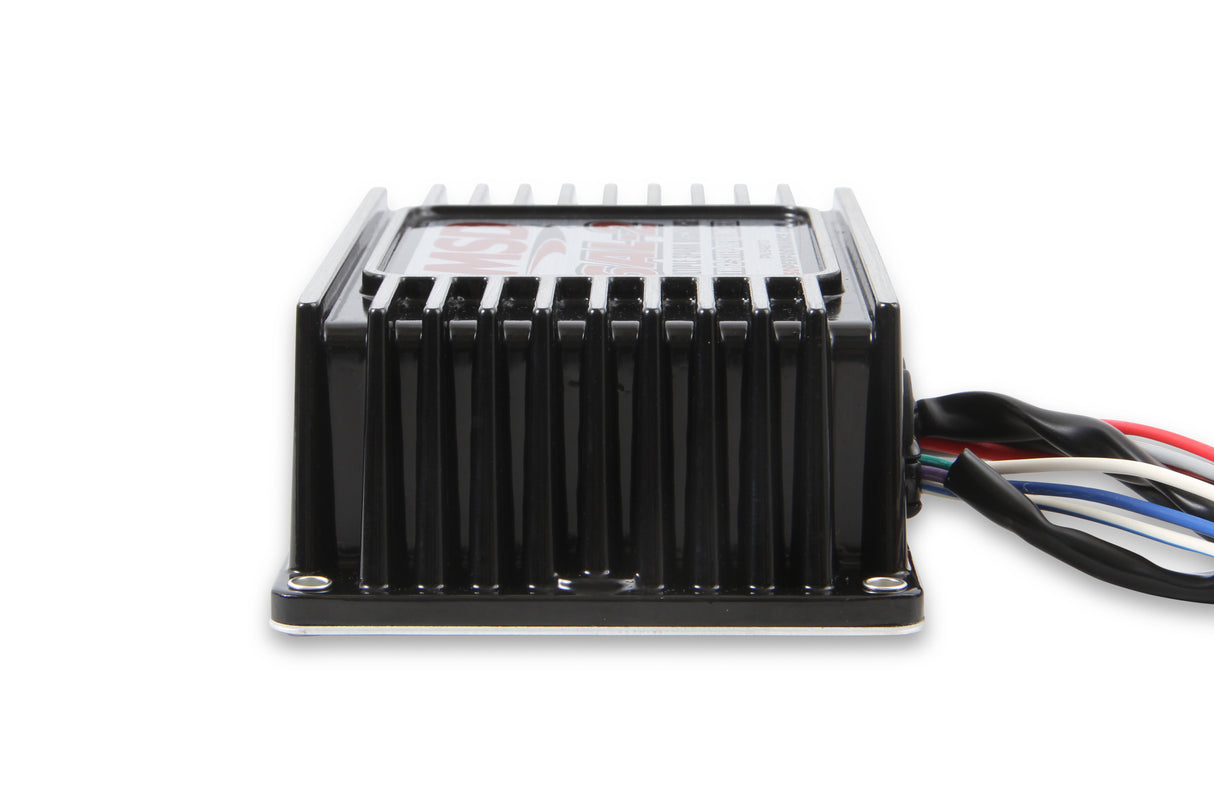

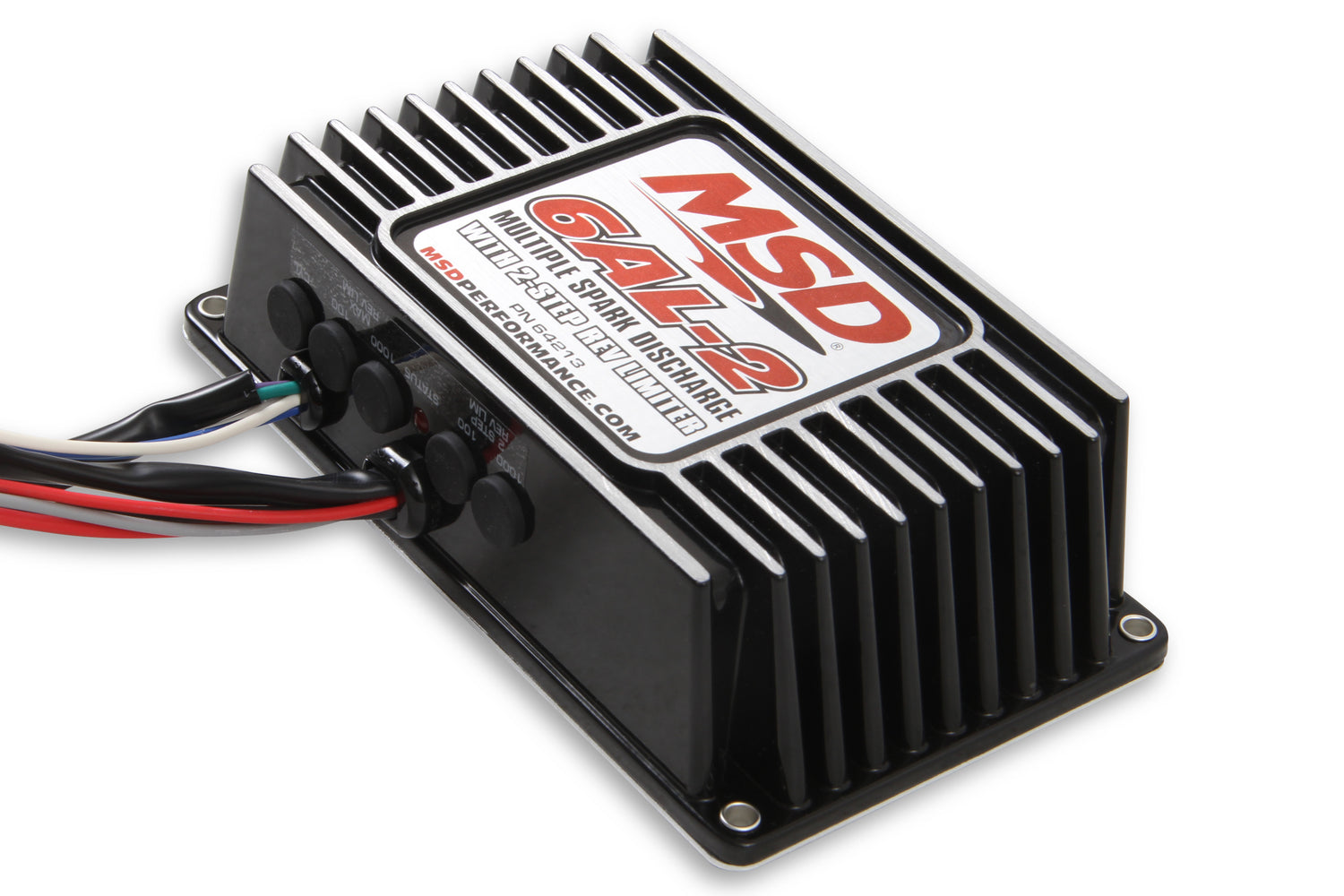

MSD 6AL-2 Ignition Control - Black - 64213
Universal - Built-in 2 Step Rev-Limiter - Rotary Dials
Regular price
$885.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD 6AL-2 Ignition Control - Black - 64213 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Universal - Built-in 2 Step Rev-Limiter - Rotary Dials
Part Number: 64213
MSD is excited to announce the next generation of 6-Series ignition controls - the 6AL-2! The ignition control combines a new housing, new digital controls, and more power in a sleek package. Inside the new cast aluminum housing, you'll find an advanced micro-controller that manages the built-in two-step rev-limiter. The spark output of the new box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135 millijoules! The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion. The all-new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system. Two more great features are the rev limits! There are two rev limiters, one for high-end overrev protection and another you can activate off a clutch or trans-brake to set a launch limit. This feature will help your car blast off the starting line! Adjustments are made via four rotary dials for 100 rpm increment control!
Features and Benefits
• All new housing, same reliable digital circuitry and performance
• 12-18 Volts, Negative Ground
• 12,500 RPM with 14.4 Volts
• .7 Amp per 1,000 RPM
• Accepts Hall-effect, Points and Mag pickup triggers

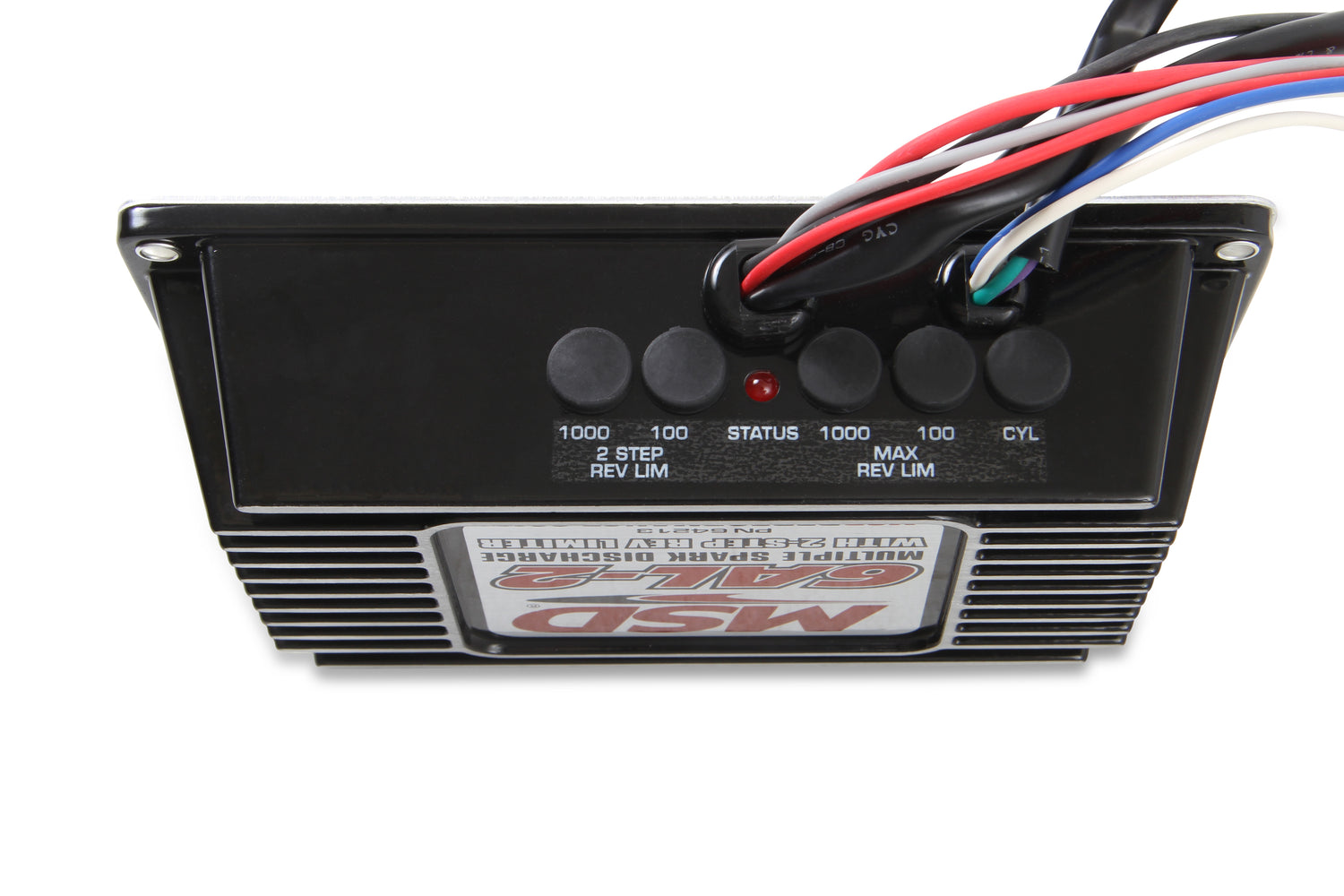

• Built-in 2-Step rev control adjustable with rotary dials
• Higher output with up to 135mJ of spark energy
• Managed by an efficient digital processor
CARB EO D-722-2
Part Number: 64213
MSD is excited to announce the next generation of 6-Series ignition controls - the 6AL-2! The ignition control combines a new housing, new digital controls, and more power in a sleek package. Inside the new cast aluminum housing, you'll find an advanced micro-controller that manages the built-in two-step rev-limiter. The spark output of the new box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135 millijoules! The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion. The all-new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system. Two more great features are the rev limits! There are two rev limiters, one for high-end overrev protection and another you can activate off a clutch or trans-brake to set a launch limit. This feature will help your car blast off the starting line! Adjustments are made via four rotary dials for 100 rpm increment control!
Features and Benefits
• All new housing, same reliable digital circuitry and performance
• 12-18 Volts, Negative Ground
• 12,500 RPM with 14.4 Volts
• .7 Amp per 1,000 RPM
• Accepts Hall-effect, Points and Mag pickup triggers
• Built-in 2-Step rev control adjustable with rotary dials
• Higher output with up to 135mJ of spark energy
• Managed by an efficient digital processor
CARB EO D-722-2
Specifications
Specifications
-
Specifications

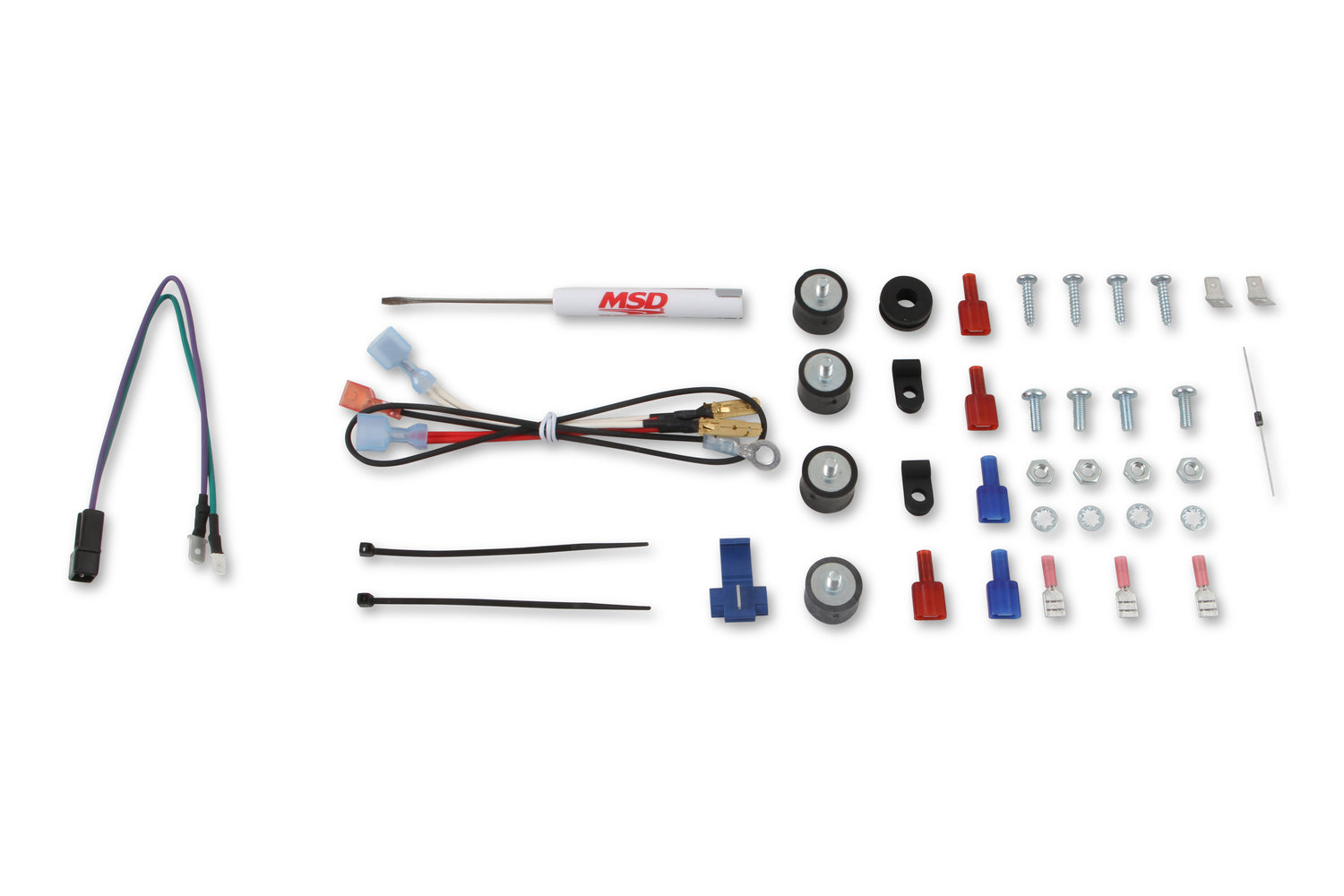

Brand MSD C.A.R.B. EO # D-722-2 Category Ignition Color Black Connector Gender Male Connector Quantity 1 Current Draw 1000 Emission Code 1 Features Rev Limiter Grade Type Performance Height 2 Ignition Type Performance Length 7 Maximum RPM 12,500 Mount Type Surface Mount Mounting Hardware Included Yes Primary Voltage 535 Product Type 6AL-2 Ignition Control Box Secondary Voltage 45,000 Spark Energy (mJ per spark) 135 Sub Category Control Modules Terminal Gender Male Female Terminal Quantity 5 Voltage Required 12-18 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight and Size 3 lbs., 7L x 4W x 2H Width 4 -
