MSD | SKU:
6631

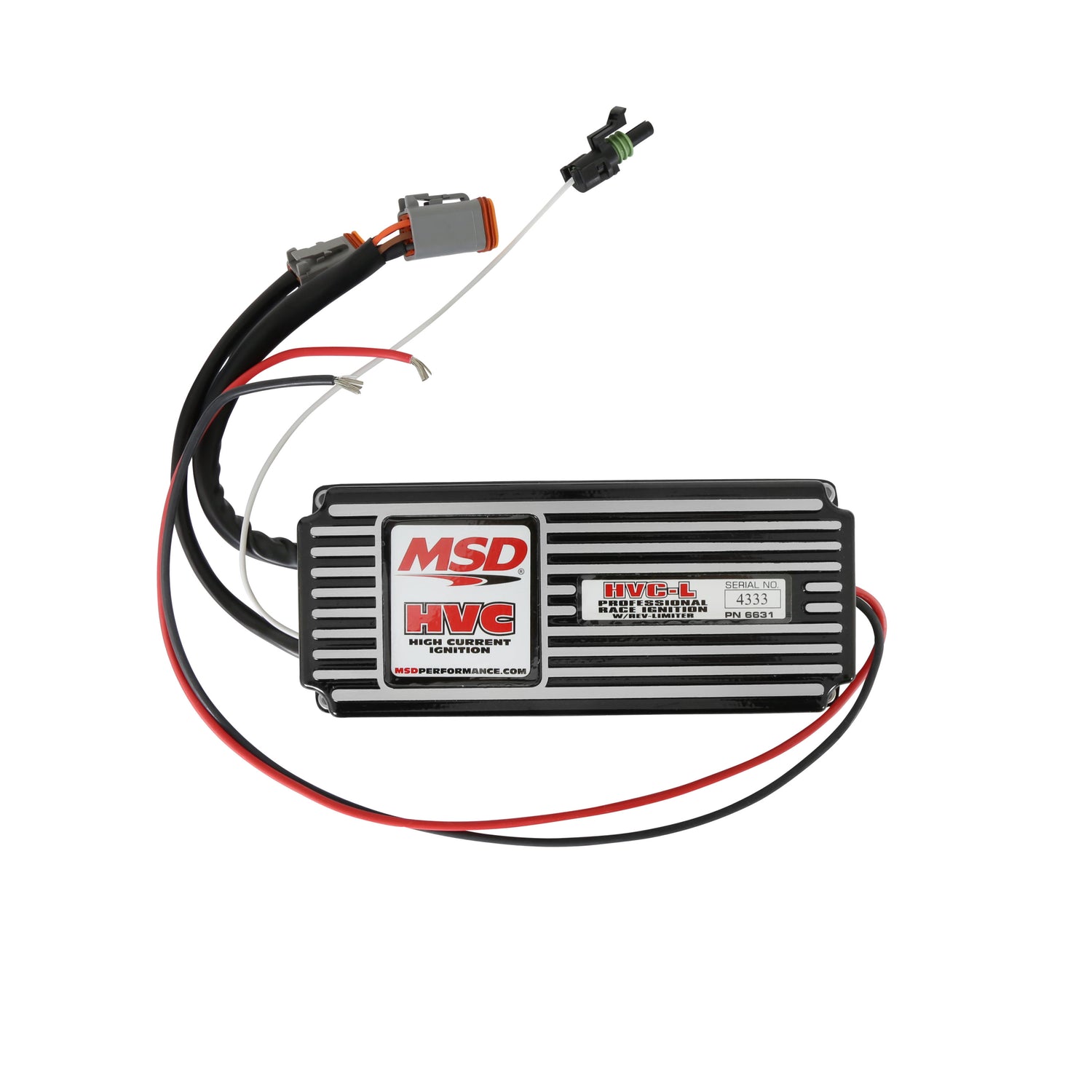

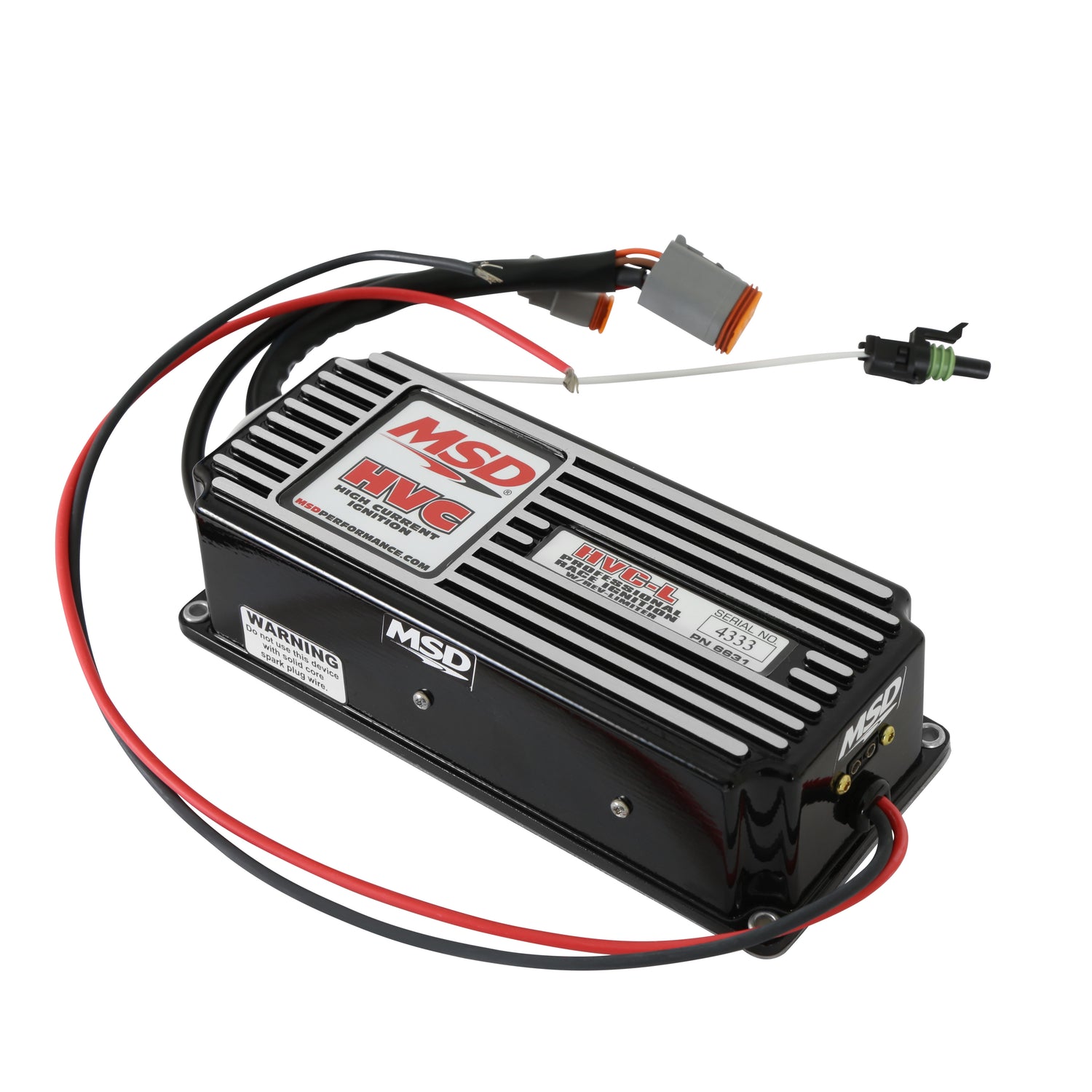

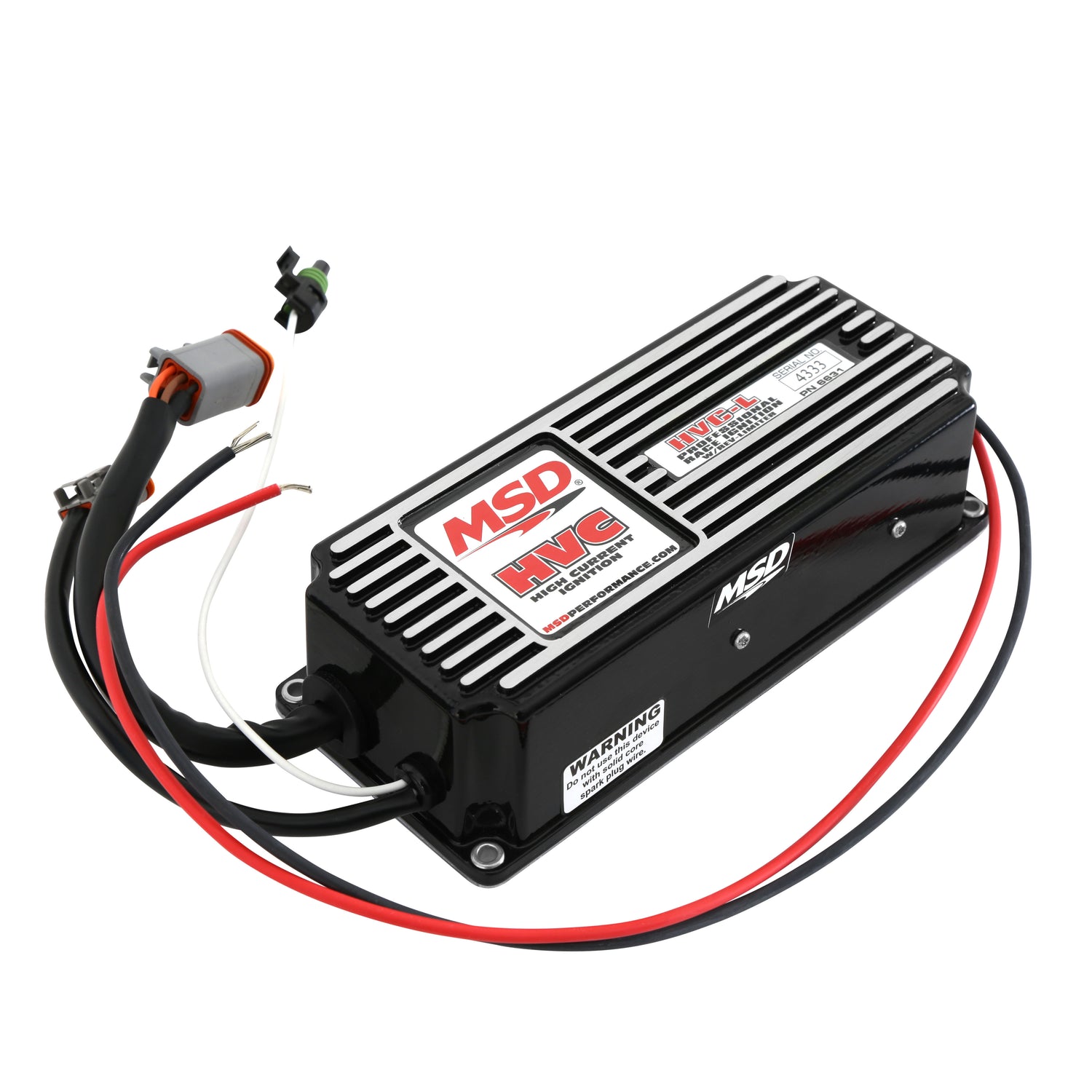

MSD 6 HVC, Professional Race with Fast Rev Limiter - 6631
For use in Circle Track and Professional Racing, with Fast Rev Limiter
Sold out
Regular price
$1,726.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD 6 HVC, Professional Race with Fast Rev Limiter - 6631 is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
For use in Circle Track and Professional Racing, with Fast Rev Limiter
Part Number: 6631

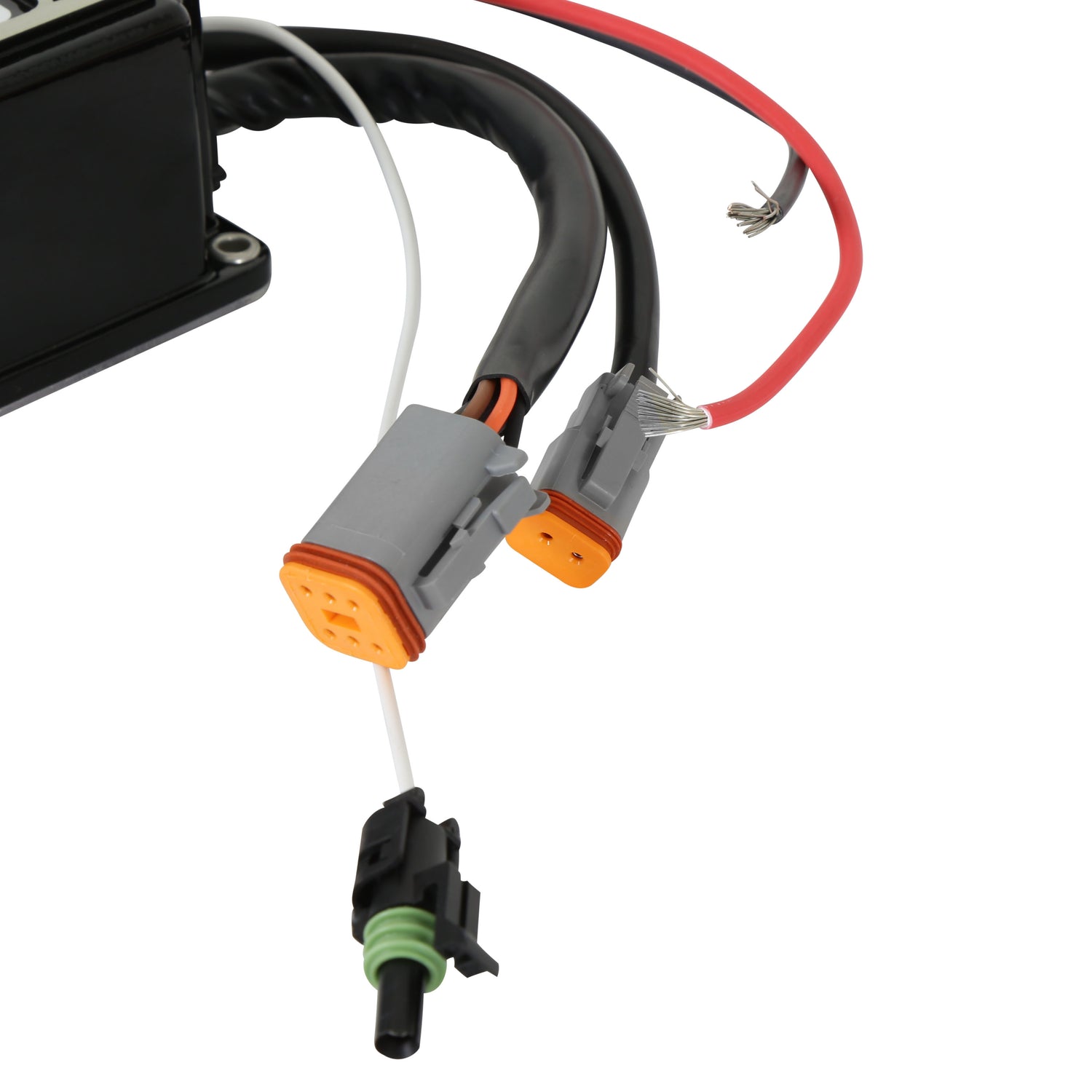

The Fast Rev limiter is very quick and accurate compared to our Soft Touch Rev limiter. Professional race teams have been relying on the power and endurance of our 6 HVC Ignition Control. The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.
Features and Benefits
• 150 millijoules per spark up to 15,000 RPM
• Built-in reverse polarity protection circuit
• Must be used with HVC Coil PN 8250
• Accepts breaker points, amplifier and magnetic pickup trigger inputs
• 6-pin Weathertight connector, mandatory for NASCAR use
• No CARB Exemption Order Number
• 15,000 RPM with 14.4 Volts
• Multiple sparks for 20 degrees of crankshaft rotation
• Includes built-in Fast rev limiter
• 12-18 Volts, Negative Ground

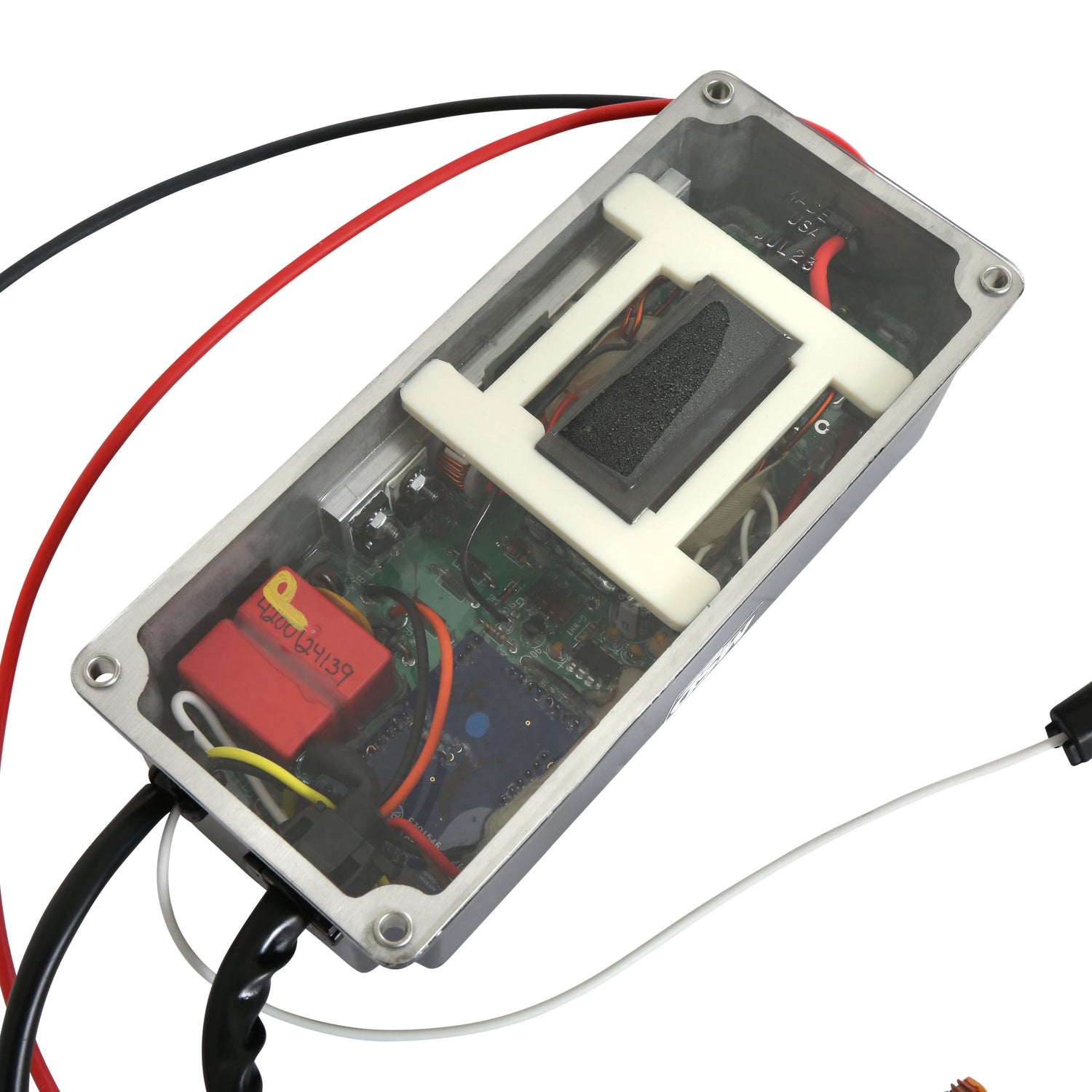

• Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
• 550 primary voltage output to coil
Designed for professional racing applications that demand high rpm for long periods of time
Part Number: 6631
The Fast Rev limiter is very quick and accurate compared to our Soft Touch Rev limiter. Professional race teams have been relying on the power and endurance of our 6 HVC Ignition Control. The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.
Features and Benefits
• 150 millijoules per spark up to 15,000 RPM
• Built-in reverse polarity protection circuit
• Must be used with HVC Coil PN 8250
• Accepts breaker points, amplifier and magnetic pickup trigger inputs
• 6-pin Weathertight connector, mandatory for NASCAR use
• No CARB Exemption Order Number
• 15,000 RPM with 14.4 Volts
• Multiple sparks for 20 degrees of crankshaft rotation
• Includes built-in Fast rev limiter
• 12-18 Volts, Negative Ground
• Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
• 550 primary voltage output to coil
Designed for professional racing applications that demand high rpm for long periods of time
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Black Connector Gender Male Female Connector Quantity 3 Emission Code 4 Grade Type Performance Height 2.25 Ignition Type Performance Length 8 Maximum RPM 15,000 Mount Type Surface Mount Mounting Hardware Included Yes Primary Voltage 550 Product Type Ignition Box Secondary Voltage 40,000 Spark Energy (mJ per spark) 150 Spark Series Duration 20 Degree Crankshaft Rotation Sub Category Control Modules Terminal Gender Male Female Terminal Quantity 11 Voltage Required 12-18 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight and Size 5.1 lbs.,8L x 4W x 2.25H Width 4 -
