MSD | SKU:
6632

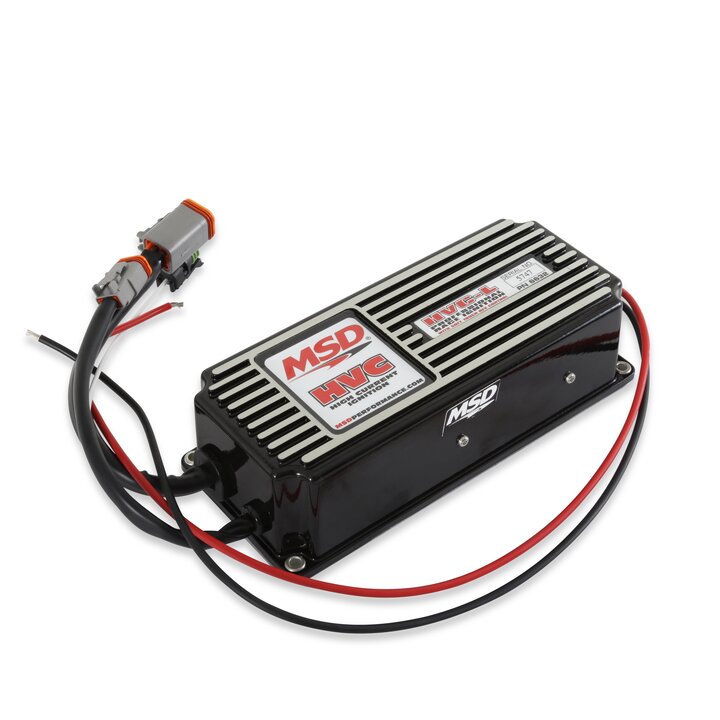

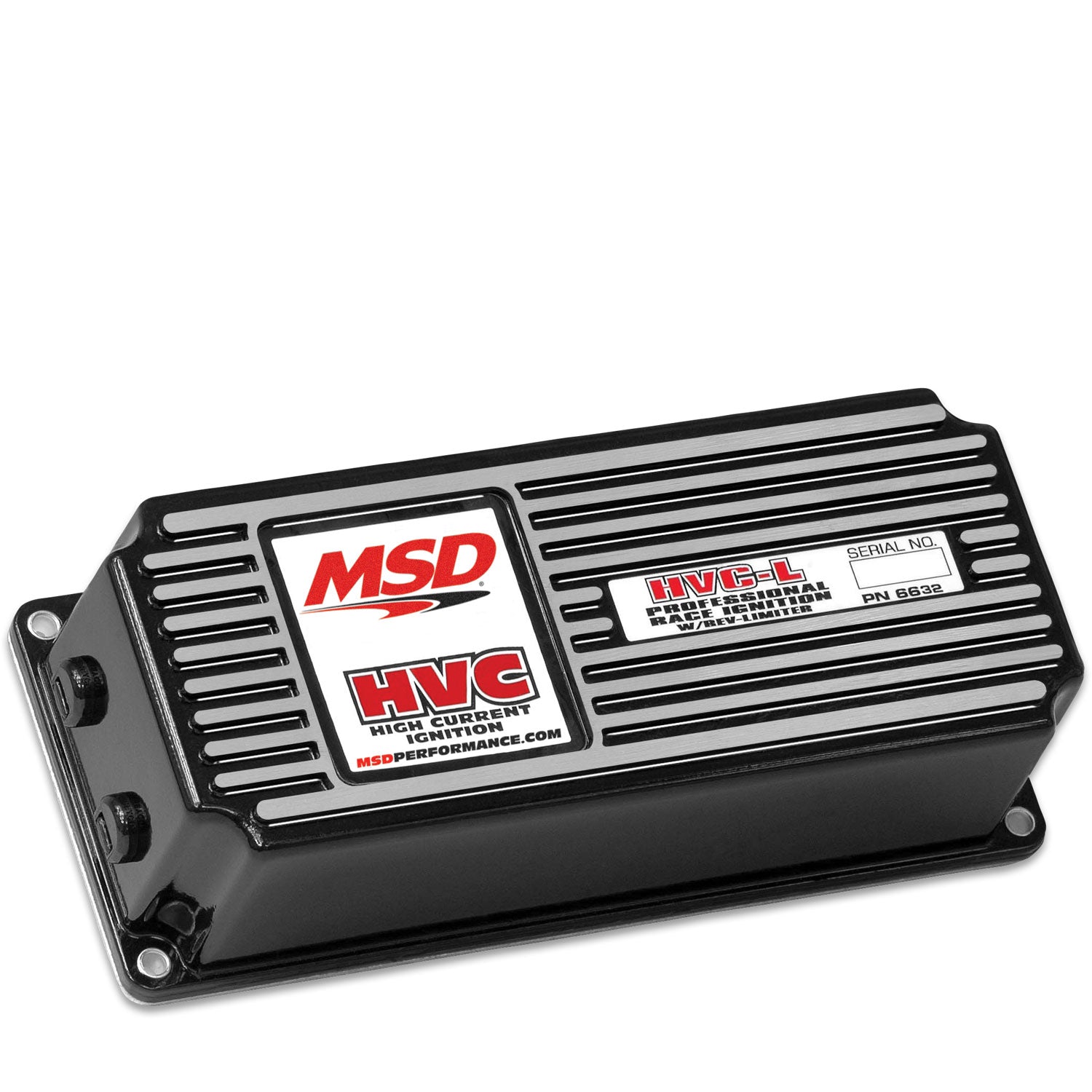

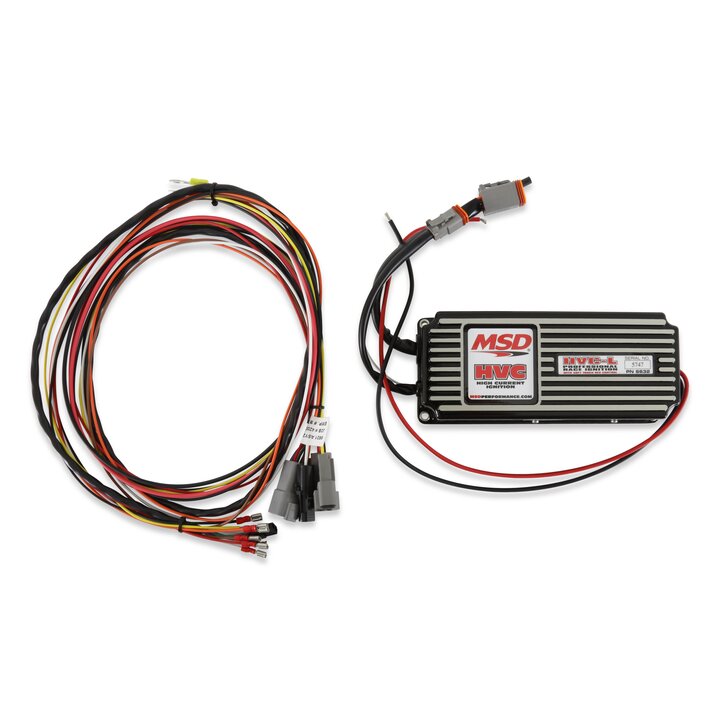

MSD 6 HVC-L with Soft Touch Rev Limiter - 6632
For use in Circle Track and Professional Racing includes built-in Soft Touch Rev limiter
Regular price
$1,518.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD 6 HVC-L with Soft Touch Rev Limiter - 6632 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
For use in Circle Track and Professional Racing includes built-in Soft Touch Rev limiter
Part Number: 6632
The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors. The 6 HVC-L Ignition has a built-in rev limiter that will save the engine from overrev damaged caused by spins, missed shifts or driver misfortune. This means there is no need to mount an external rev control (i.e., less wiring and reduced weight)!
Features and Benefits
• 12-18 Volts, Negative Ground
• 15,000 RPM with 14.4 Volts

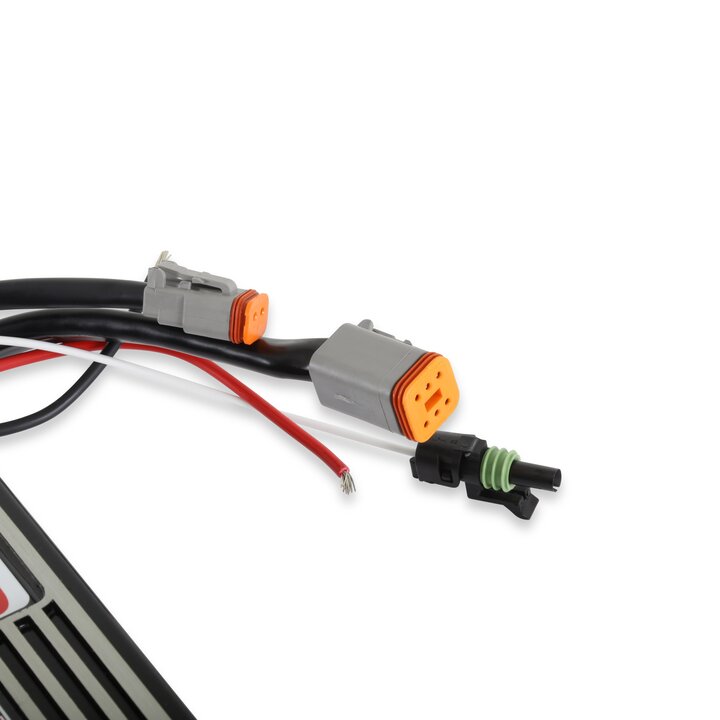

• 6-pin Weathertight connector, mandatory for NASCAR use
• Accepts breaker points, amplifier and magnetic pickup trigger inputs
• Multiple sparks for 20 degrees of crankshaft rotation
• Includes built-in Soft Touch rev limiter
• 550 primary voltage output to coil
• 150 millijoules per spark up to 15,000 RPM
• No CARB Exemption Order Number
• Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
• Must be used with HVC Coil PN 8250
Designed for professional racing applications that demand high rpm for long periods of time
Part Number: 6632
The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors. The 6 HVC-L Ignition has a built-in rev limiter that will save the engine from overrev damaged caused by spins, missed shifts or driver misfortune. This means there is no need to mount an external rev control (i.e., less wiring and reduced weight)!
Features and Benefits
• 12-18 Volts, Negative Ground
• 15,000 RPM with 14.4 Volts
• 6-pin Weathertight connector, mandatory for NASCAR use
• Accepts breaker points, amplifier and magnetic pickup trigger inputs
• Multiple sparks for 20 degrees of crankshaft rotation
• Includes built-in Soft Touch rev limiter
• 550 primary voltage output to coil
• 150 millijoules per spark up to 15,000 RPM
• No CARB Exemption Order Number
• Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
• Must be used with HVC Coil PN 8250
Designed for professional racing applications that demand high rpm for long periods of time
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Color Black Connector Gender Male Female Connector Quantity 3 Emission Code 4 Grade Type Performance Height 2.25 Ignition Type Performance Length 8 Maximum RPM 15,000 Mount Type Surface Mount Mounting Hardware Included Yes Primary Voltage 550 Product Type Ignition Box Secondary Voltage 40,000 Spark Energy (mJ per spark) 150 Spark Series Duration 20 Degree Crankshaft Rotation Sub Category Control Modules Terminal Gender Male Female Terminal Quantity 11 Voltage Required 12-18 Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty Weight and Size 5.1 lbs.,8L x 4W x 2.25H Width 4 -
