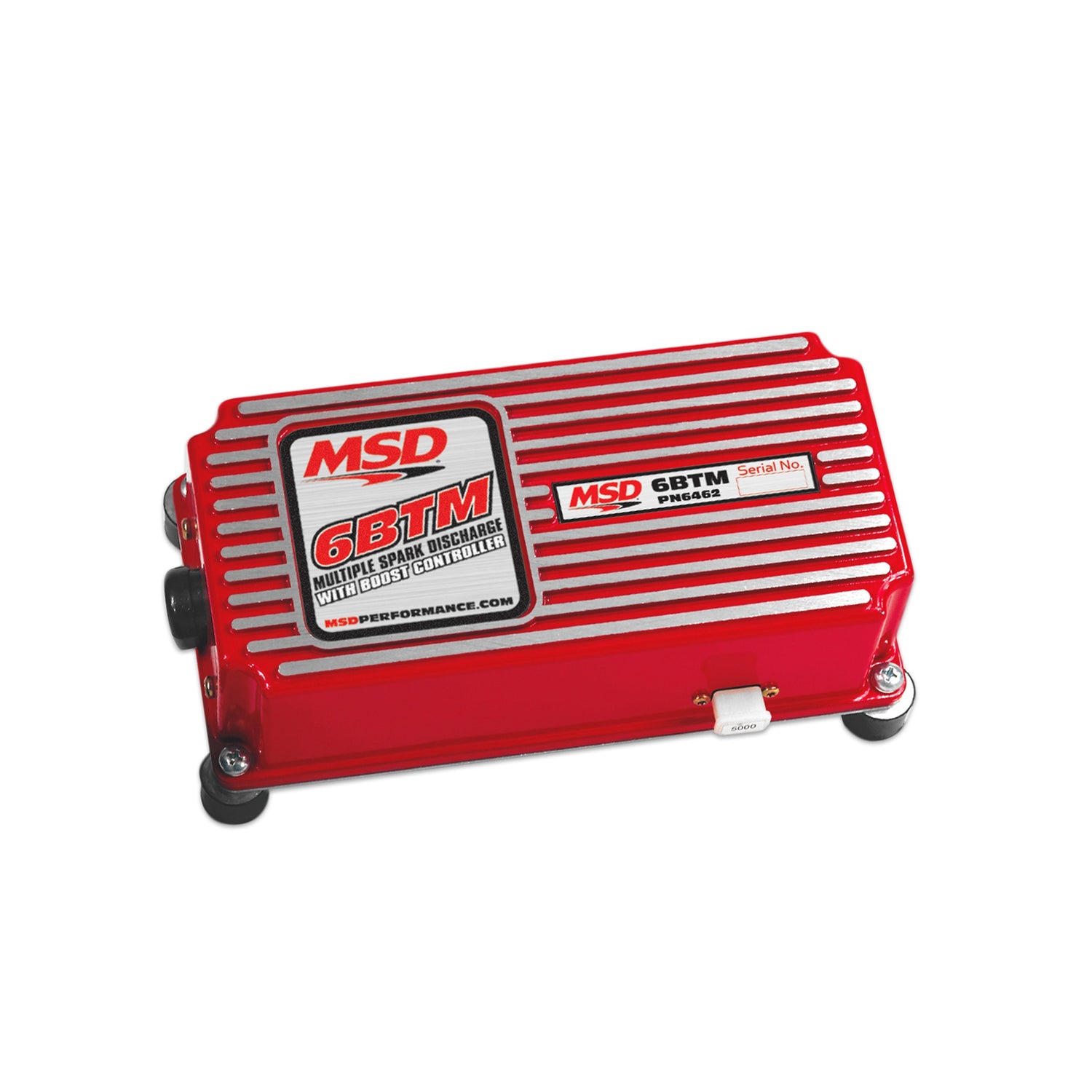

MSD 6-BTM Boost Timing Master - 6462

Universal - Manual Boost-Referenced Timing Control

Part Number: 6462

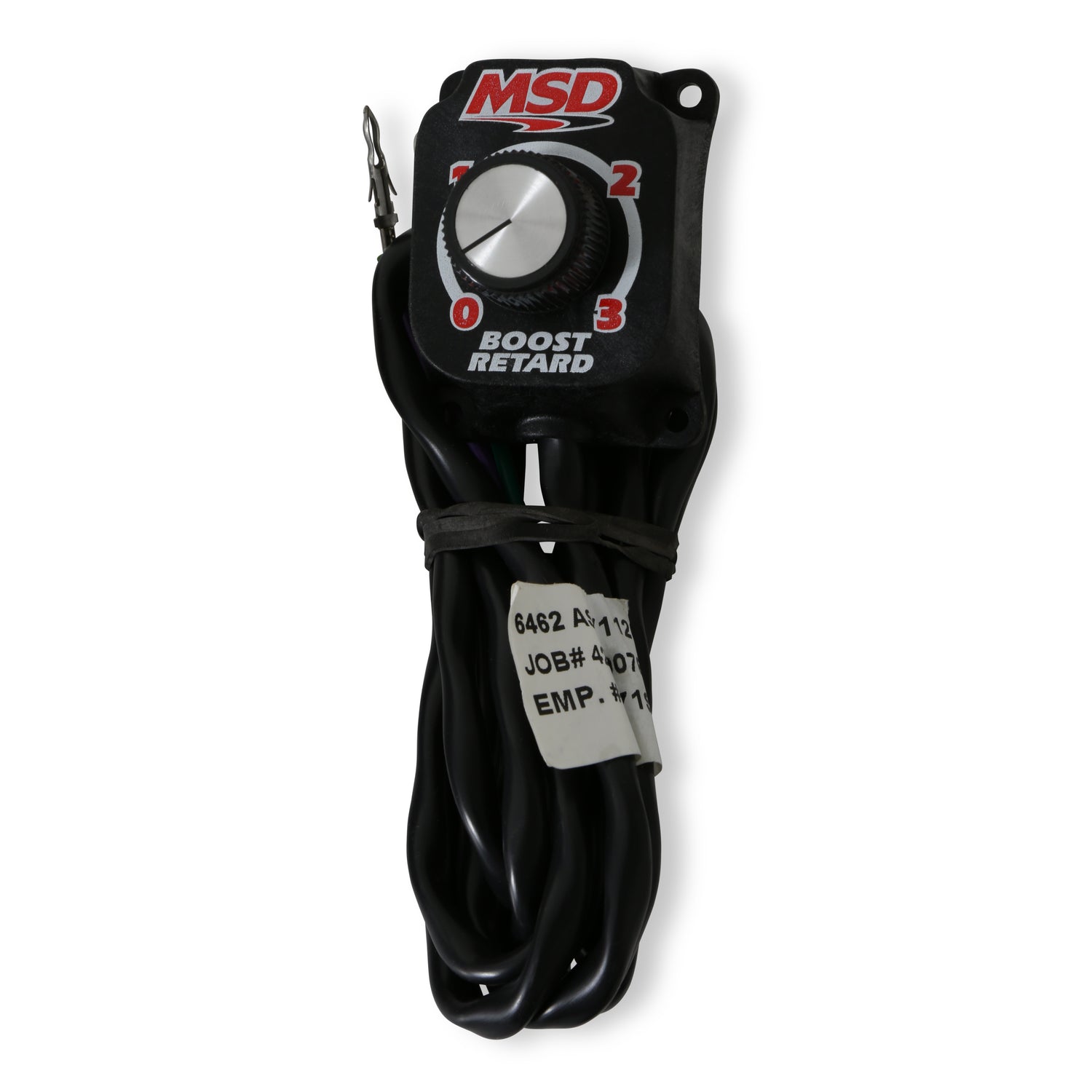

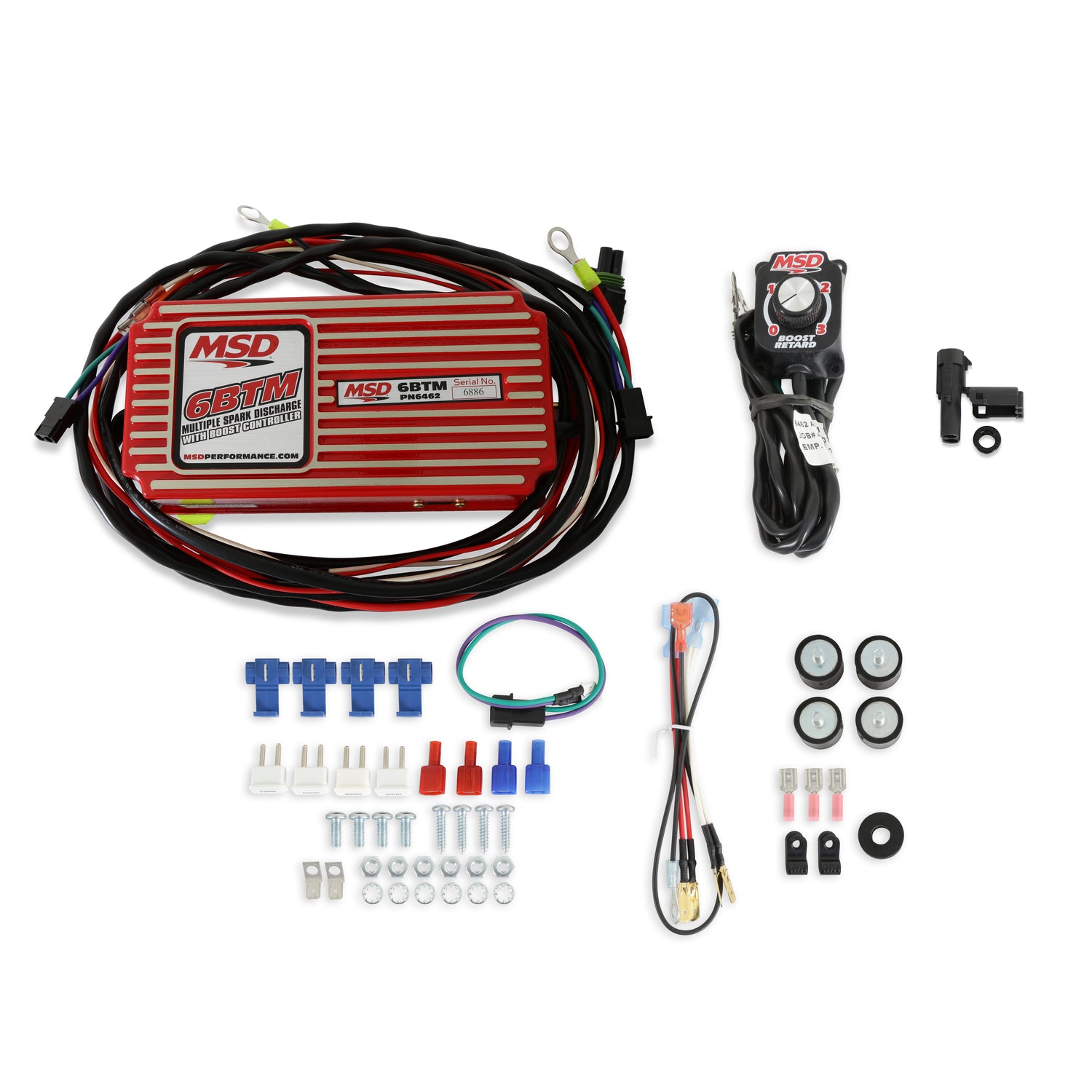

A dash-mounted control knob lets you adjust the amount of timing retard. It can be adjusted from 0 degrees per pound of boost to 3 degrees per pound (up to 15 degrees). The 6 BTM also shares the Soft Touch Rev Control of the 6AL Ignition for overrev protection. The BTM is supplied with rubber shock mounts and rpm modules for 3,000, 6,000, 7,000, and 8,000 rpm. The 6 BTM is ideal for engines with a turbo or supercharger. Not only will the engine benefit from MSD's full power CD sparks, but there is also an adjustable boost/timing retard circuit to prevent detonation. When your turbo or blower forces the air/fuel mixture into the engine, the cylinder pressure inside the combustion chamber increases. The result is a great increase in power but this can also lead to detonation that can result in severe engine damage. The 6 BTM lets you dial away detonation by retarding the timing in relation to the boost pressure.

Features and Benefits

• Retard the ignition timing 1 degrees-3 degrees per pound of boost, maximum of 15 degrees, with dash mounted adjustable control knob
• 110 millijoules per spark up to 15,000 RPM
• 470 primary voltage output to coil
• 12-15 Volts, 7 Volt Start
• CARB E.O. Approved
• Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
• Accepts breaker points, amplifier and magnetic pickup trigger inputs
• Built-in Soft Touch Rev Control is adjustable with RPM Modules

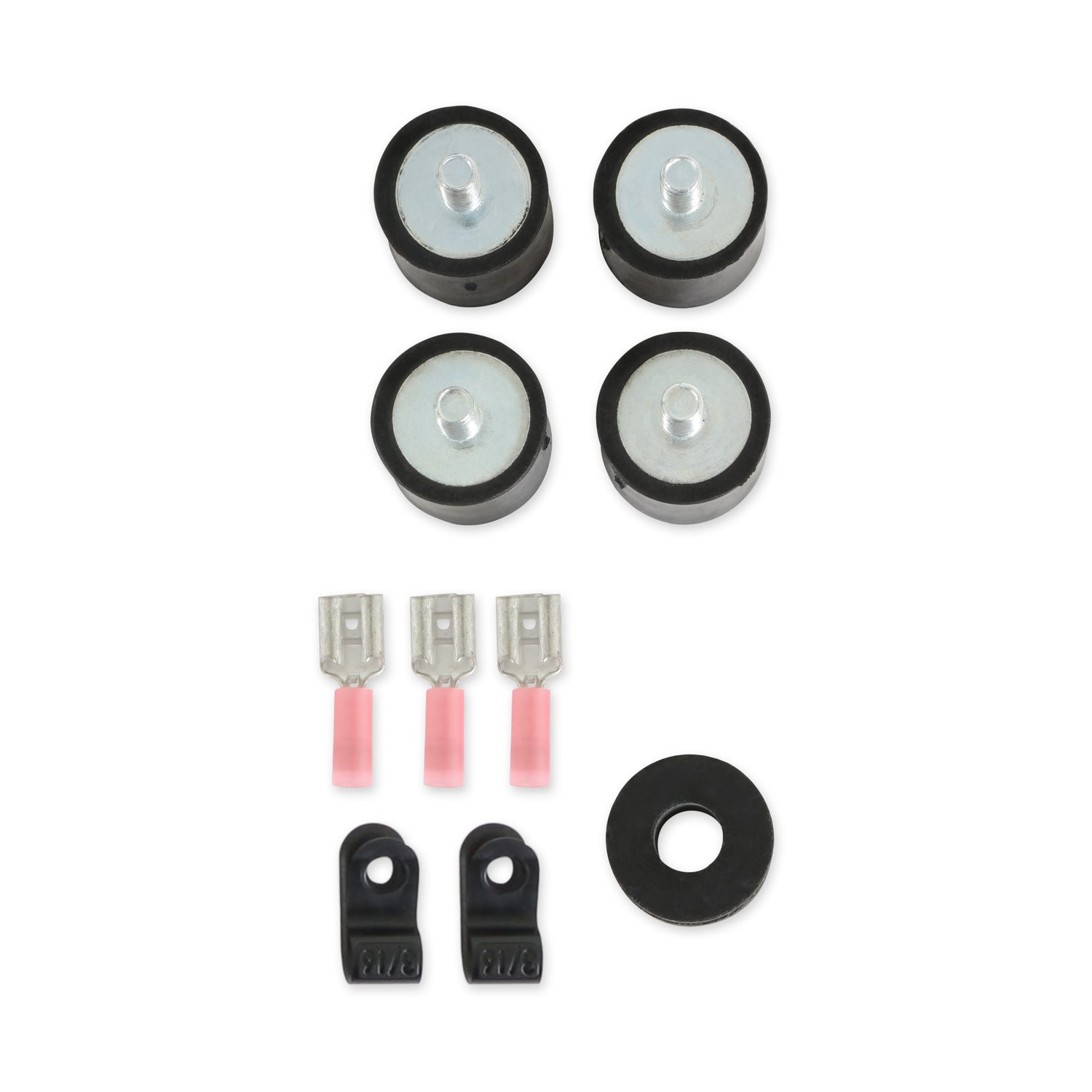

• Supplied with rubber shock mounts

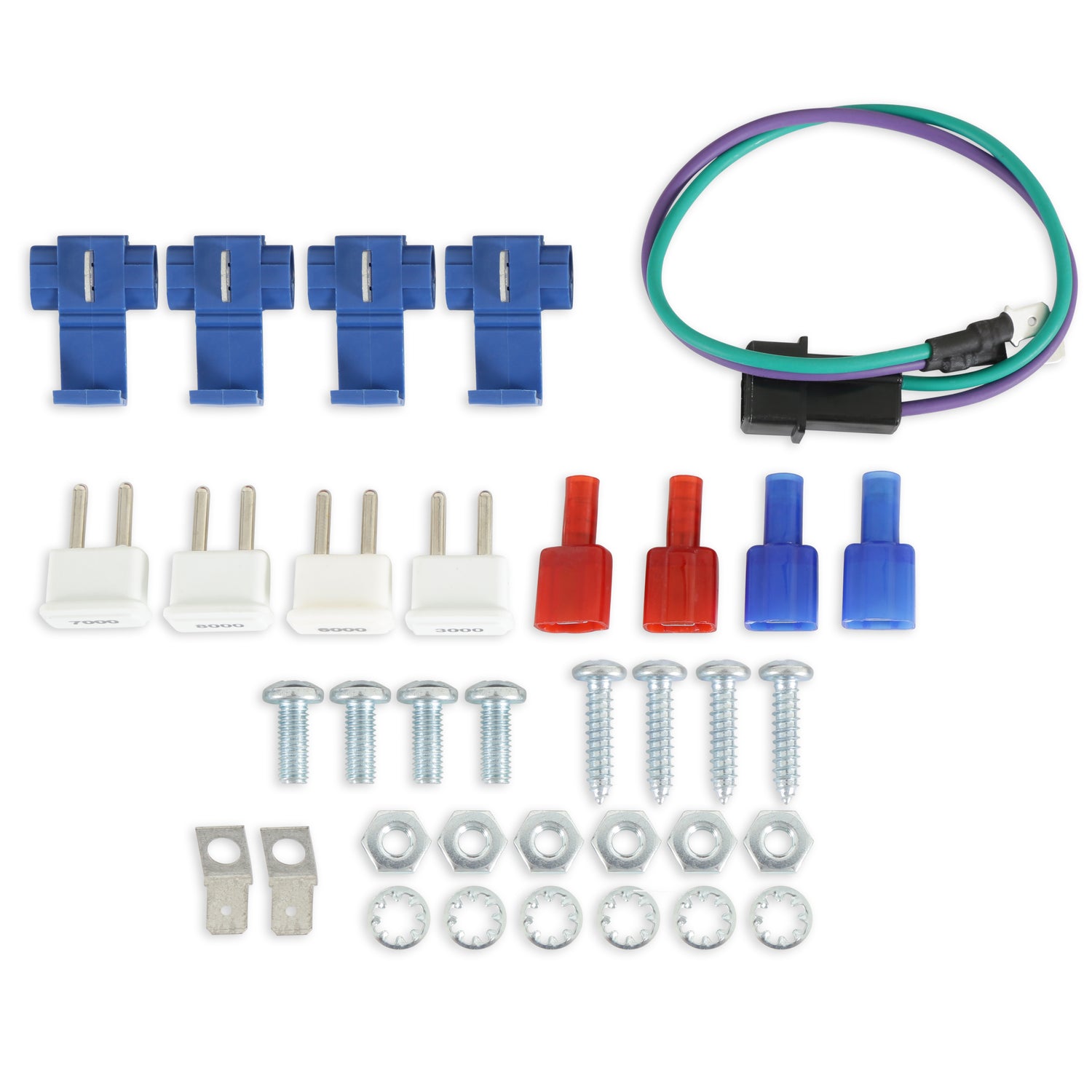

• Supplied with 3,000, 6,000, 7,000 & 8,000 RPM Module
• Works on 12 - 18 volt electrical system
• Multiple spark, capacitive discharge ignition control
• Multiple sparks for 20° of crankshaft rotation
