Mr Gasket | SKU:
5959

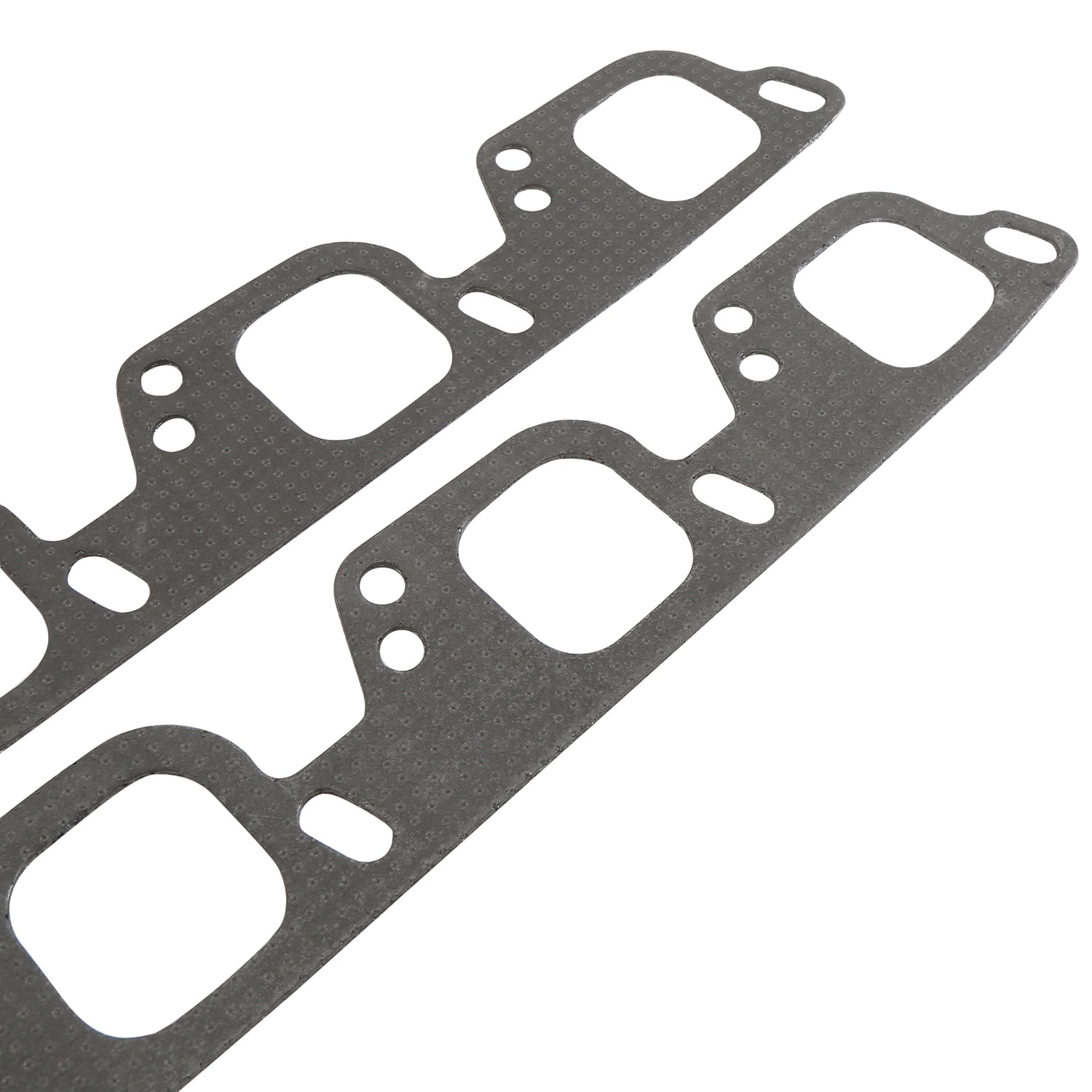

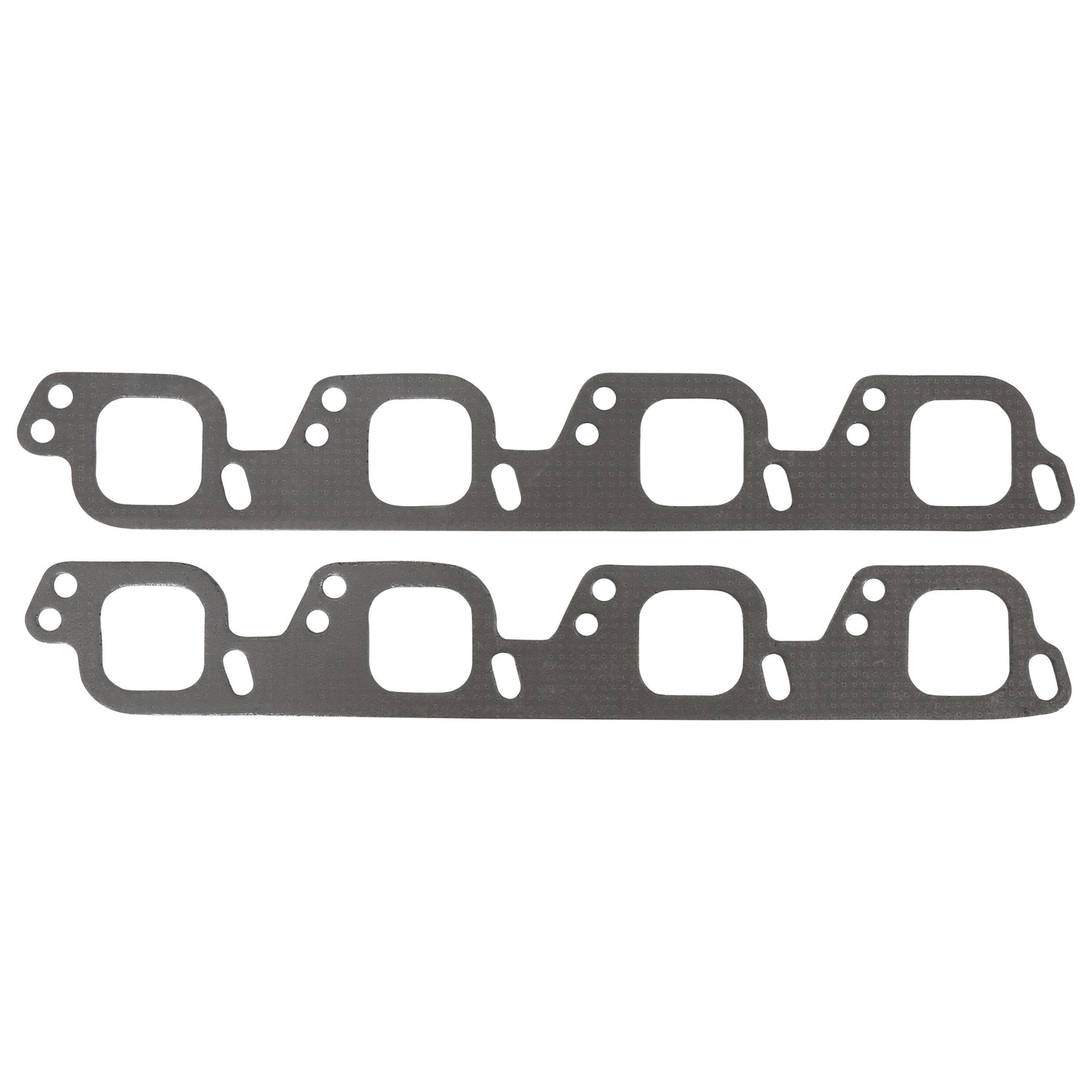

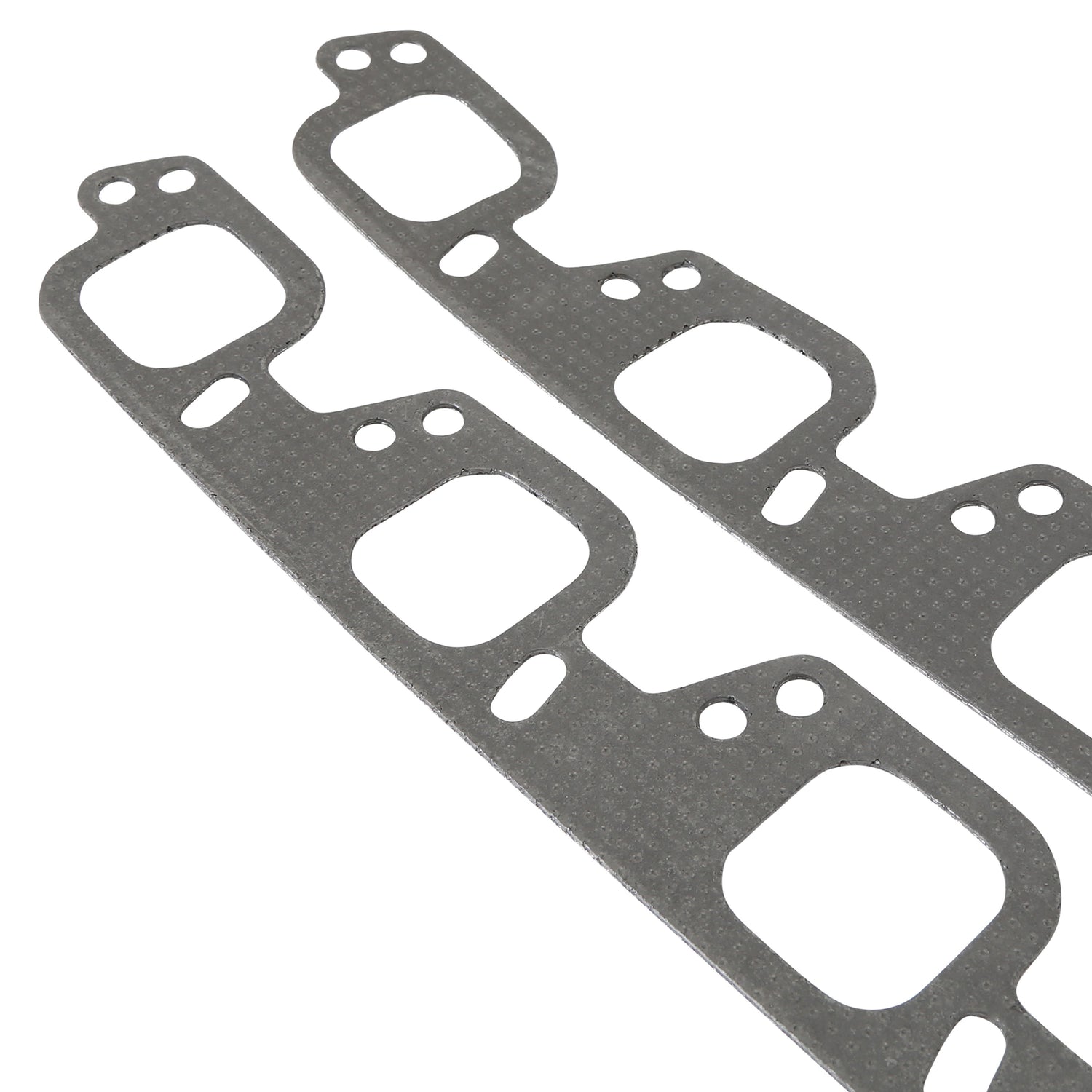

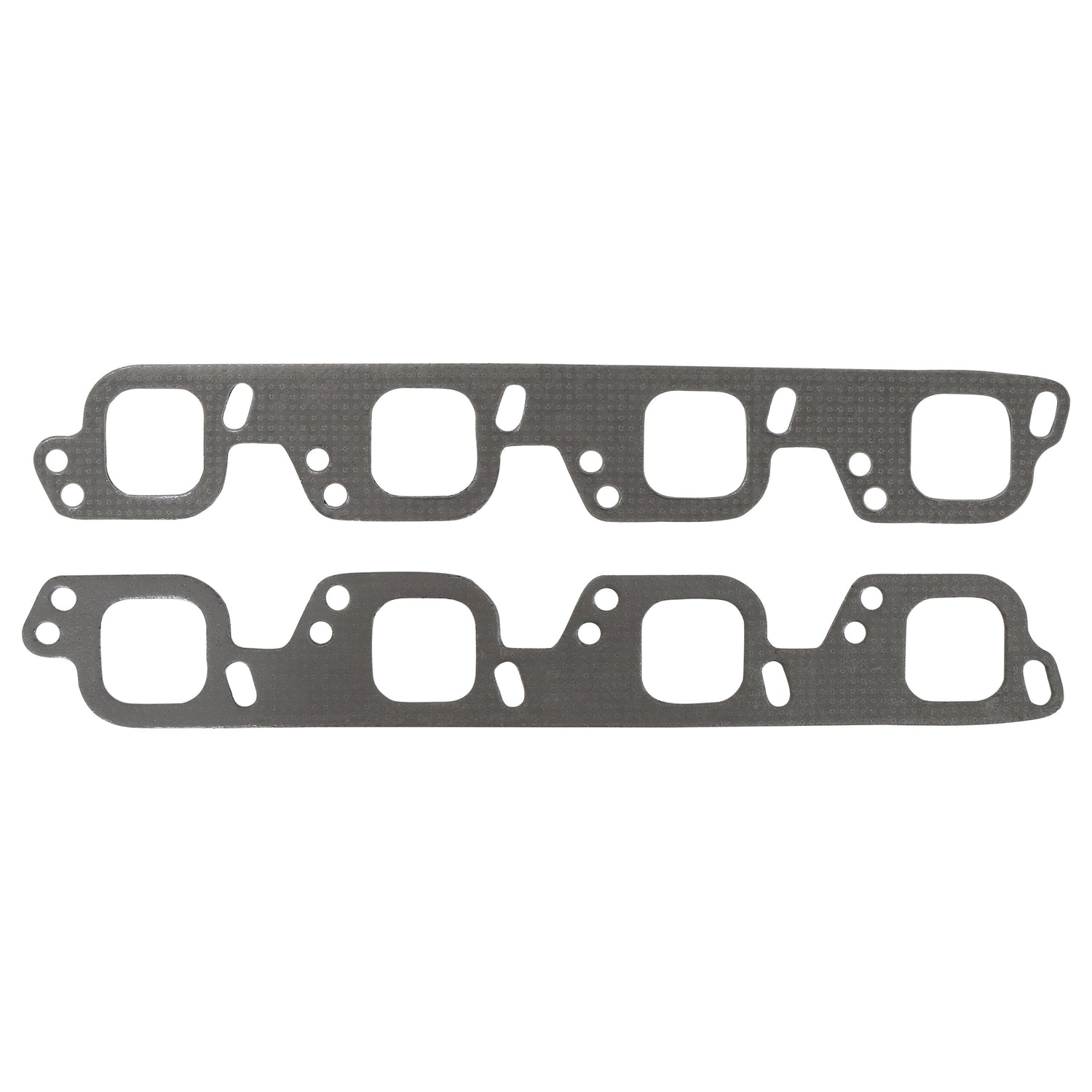

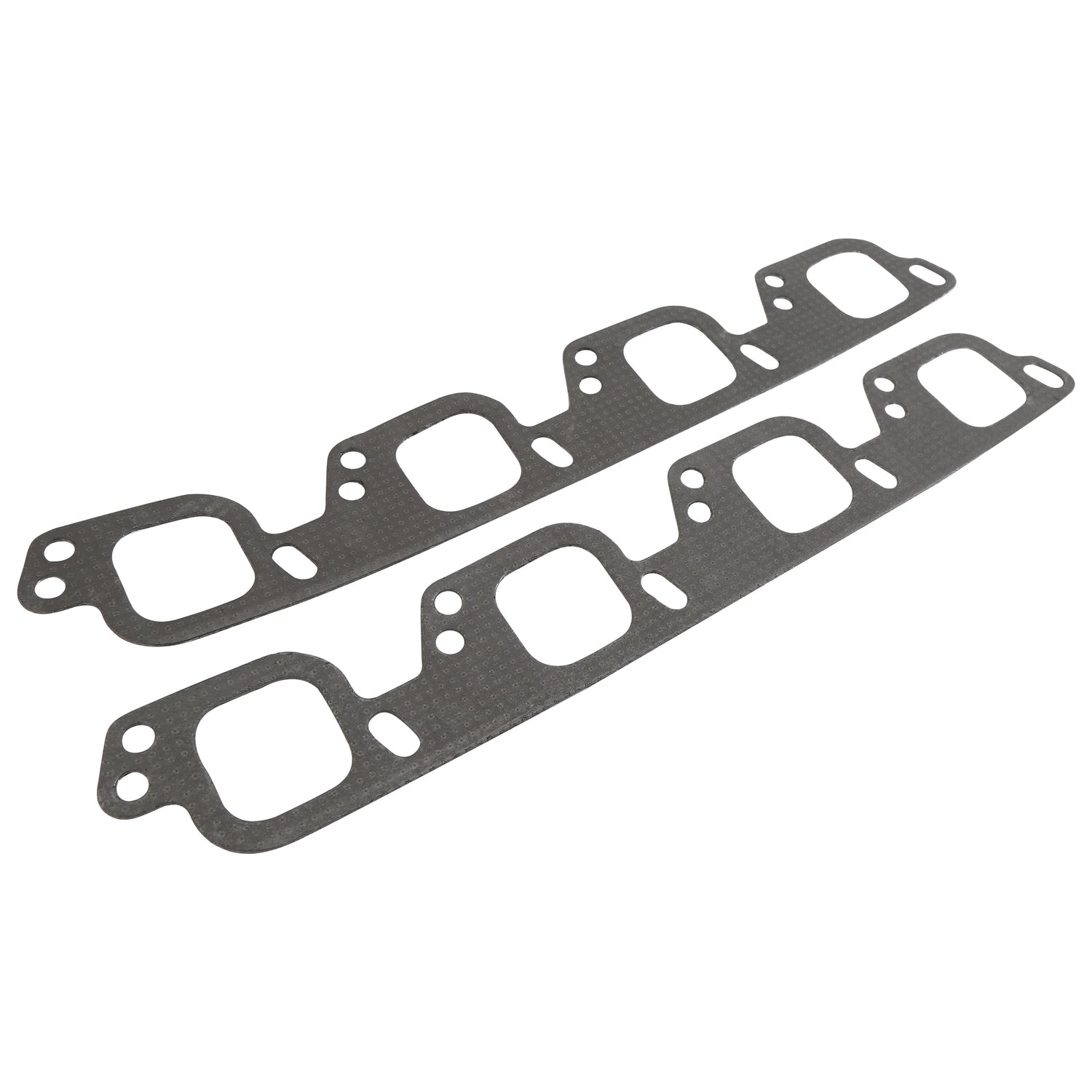

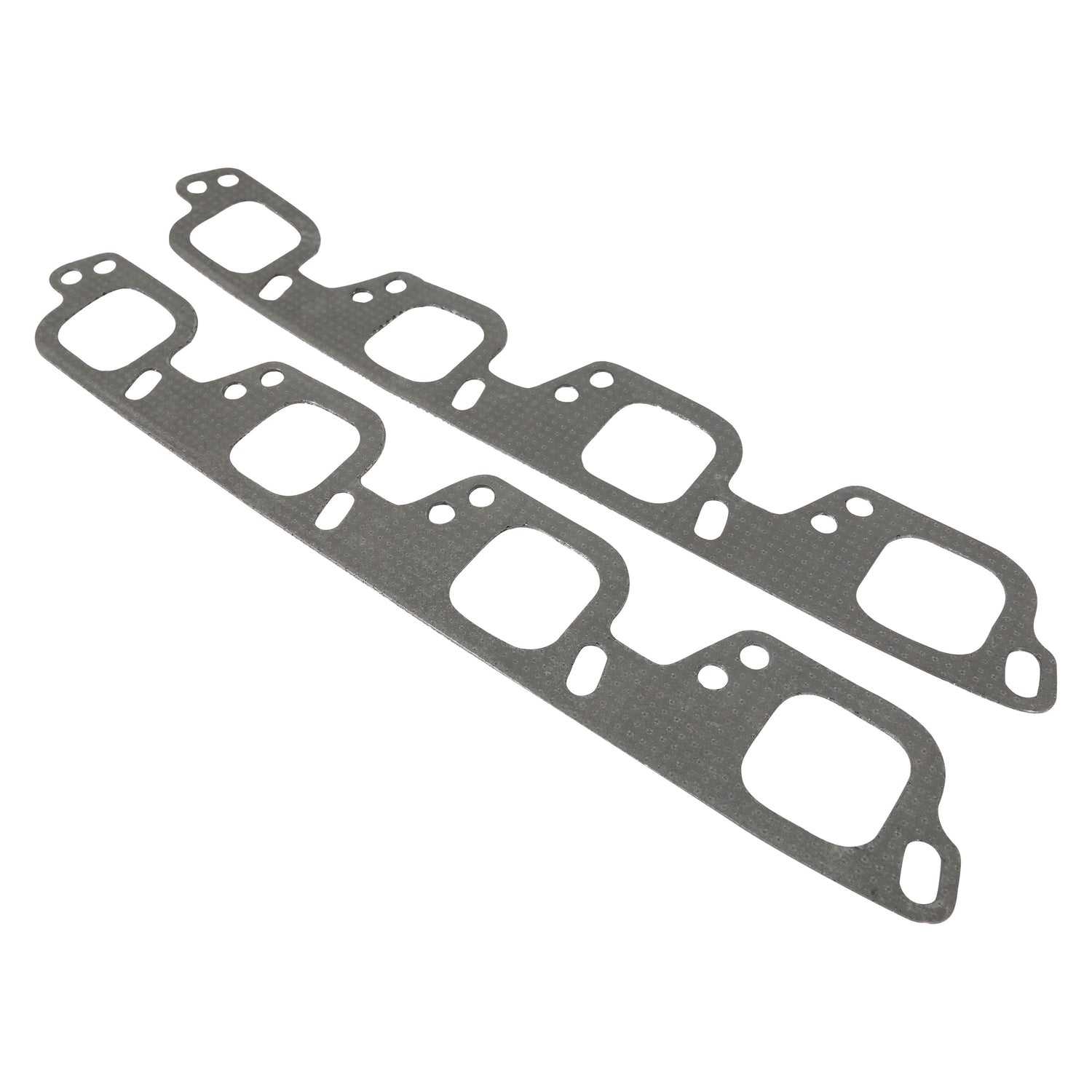

Mr Gasket Ultra-Seal Header Gaskets - 5959
Fits Ford 460 Big Block SVO Square Ports, 1.85 Inch x 1.91 Inch
Regular price
$134.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Mr Gasket Ultra-Seal Header Gaskets - 5959 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Fits Ford 460 Big Block SVO Square Ports, 1.85 Inch x 1.91 Inch
Part Number: 5959
Manufactured from high-temperature steel core/graphite faced exhaust material. Expanded steel core provides stability and maximum torque retention to eliminate gasket failure. Graphite facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head. Conforms to and seals minor surface irregularities. High recovery material allows header or manifold flange to stay sealed if flange loses clamp-load. Can be trimmed if necessary for modified port applications. For original equipment replacement, high performance street, drag race and oval track use.
Features and Benefits
• Manufactured from high-temperature steel core/graphite faced exhaust material
• Expanded steel core provides stability and maximum torque retention to eliminate gasket failure
• Graphite impregnated facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head
• Conforms to and seals minor surface irregularities
• Can be trimmed if necessary for modified port applications
• For OE replacement, high performance street, drag race and oval track use
• For use with SVO square port cylinder heads
Part Number: 5959
Manufactured from high-temperature steel core/graphite faced exhaust material. Expanded steel core provides stability and maximum torque retention to eliminate gasket failure. Graphite facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head. Conforms to and seals minor surface irregularities. High recovery material allows header or manifold flange to stay sealed if flange loses clamp-load. Can be trimmed if necessary for modified port applications. For original equipment replacement, high performance street, drag race and oval track use.
Features and Benefits
• Manufactured from high-temperature steel core/graphite faced exhaust material
• Expanded steel core provides stability and maximum torque retention to eliminate gasket failure
• Graphite impregnated facing provides excellent heat resistance and thermal conductivity to transfer heat away from the cylinder head
• Conforms to and seals minor surface irregularities
• Can be trimmed if necessary for modified port applications
• For OE replacement, high performance street, drag race and oval track use
• For use with SVO square port cylinder heads
Specifications
Specifications
-
Specifications
Brand Mr. Gasket Category Gaskets Collector Gaskets Included No Emission Code 5 Engine Ford Big Block Gasket Line Ultra-Seal Material Ultra-seal Port Shape Square Port Size 1.85 x 1.91 Product Type Header Gaskets Thickness .062 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Weight 0.44
