Mr Gasket Street Scoop - 6650G

Fits Single & Dual 4-Barrel Carburetors with 5-1/8 Inch Neck

Part Number: 6650G

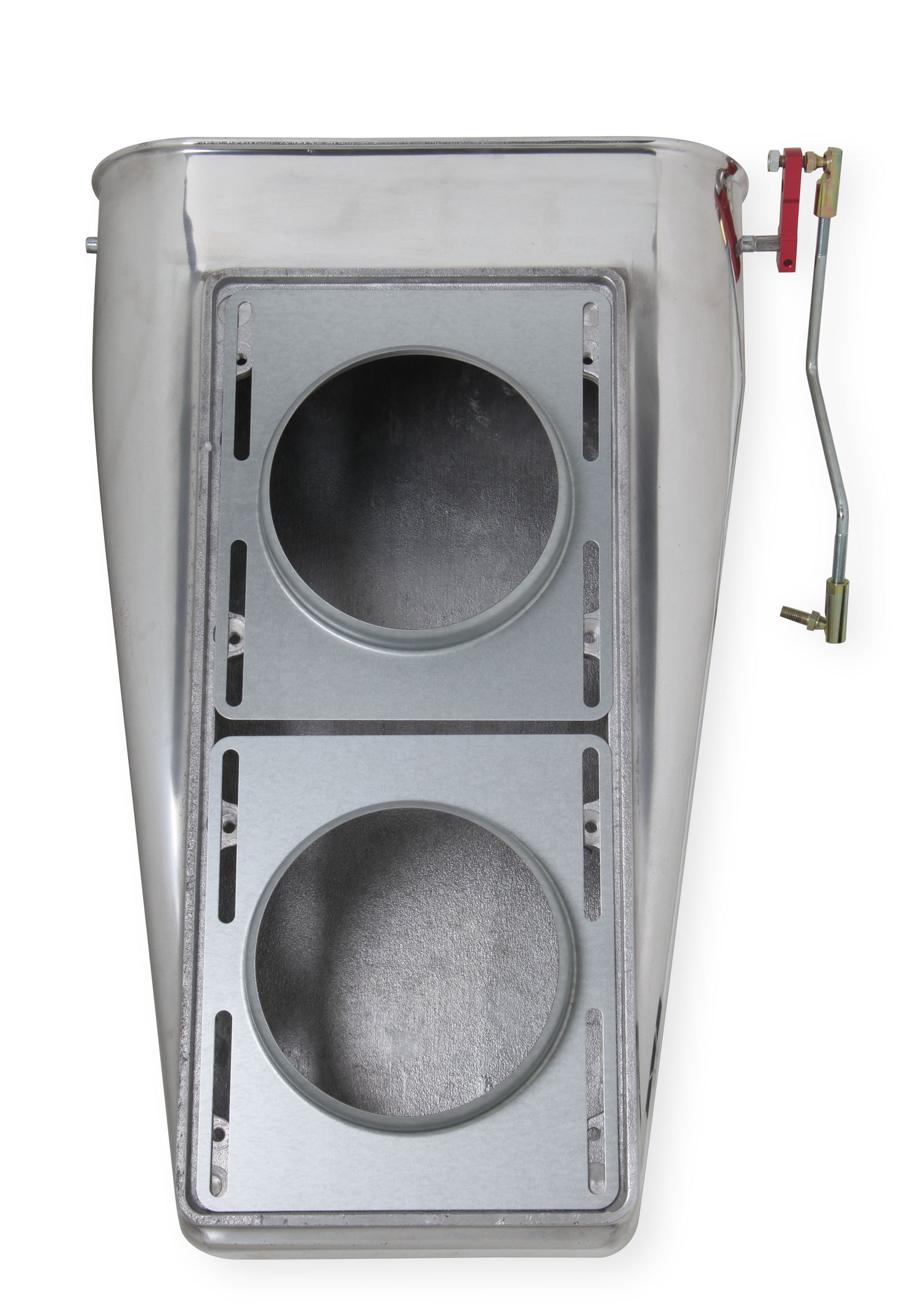

Mr. Gasket Street Scoop provides the competition look of an Enderle style fuel injection air scoop used on nostalgia Top Fuel and Funny Cars. Designed to bolt-on most aftermarket tunnel ram intake manifolds and superchargers utilizing two in-line 4-barrel carburetors with 5-1/8 inch diameter necks, and 7-3/4 inch to 9-1/4 inch center line spacing via adjustable plates. Plates are also included to allow for use on a single 4-barrel as well.

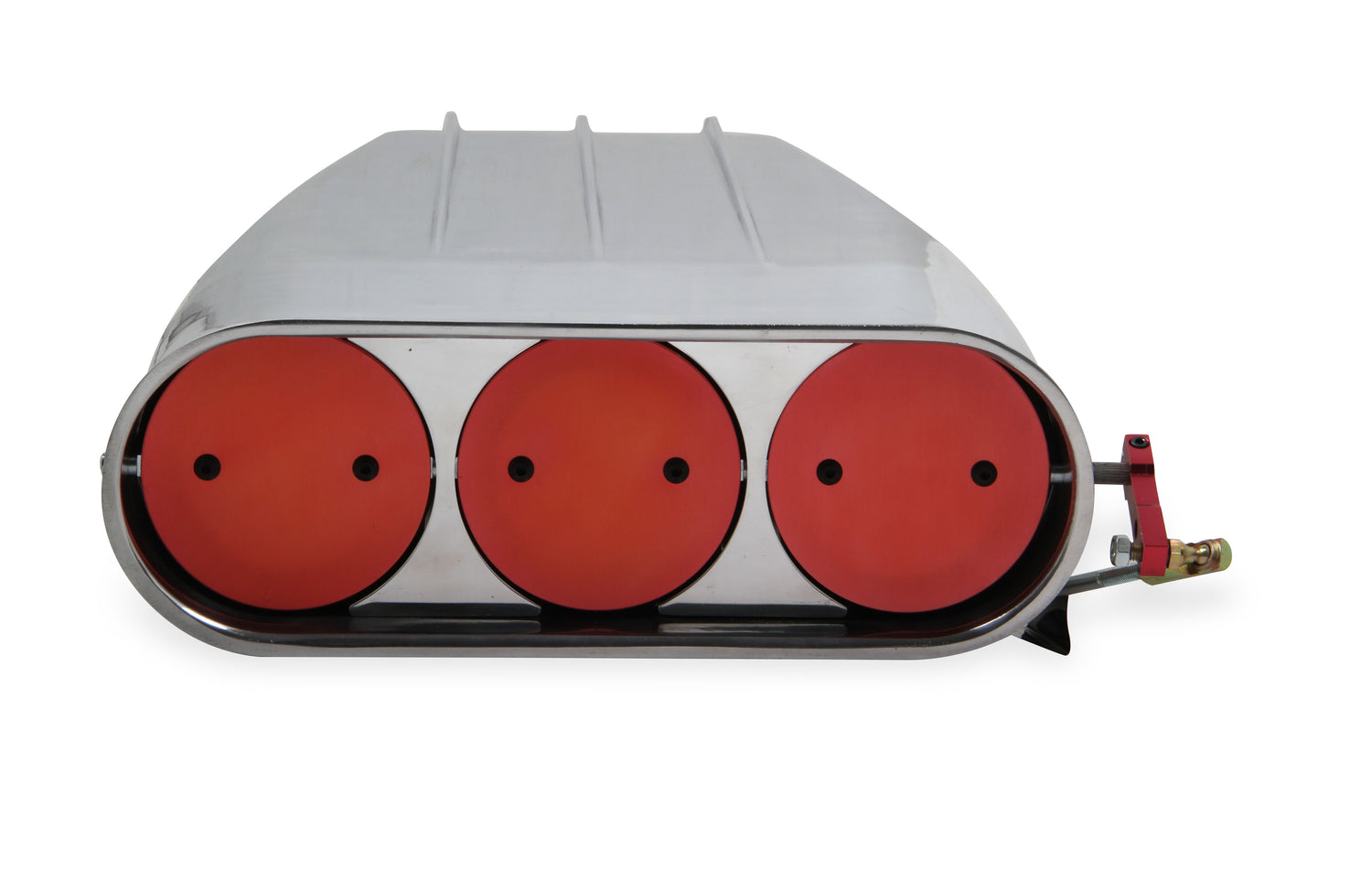

The Street Scoop is a die-cast aluminum air scoop that is fully machined and polished to a high luster. It featuers three large red anodized butterflies that off the carburetor linkage. Being a fully functional scoop the large frontal area can provide an increase in the air intake charge. Comes complete with paper element air filters and all hardware needed.

Width is 12-3/4 inch in front & 7 inch in back and an overall length of 20 inches. Height is approximately 5 inches.

Features and Benefits

• Gives the competition look of nostalgia fuel injection
• Polished die-cast aluminum
• Fits both single & dual 4-barrel set ups
• Adjustable center-to-center carburetor base spacing
• Incudes air cleaners and mounting hardware
• Increases air intake charge with greater frontal area
• Filter elements are 6.5" x 2.5"
• Approximate Dimensions: 5" Height, 12.75" Wide, 20" Long
