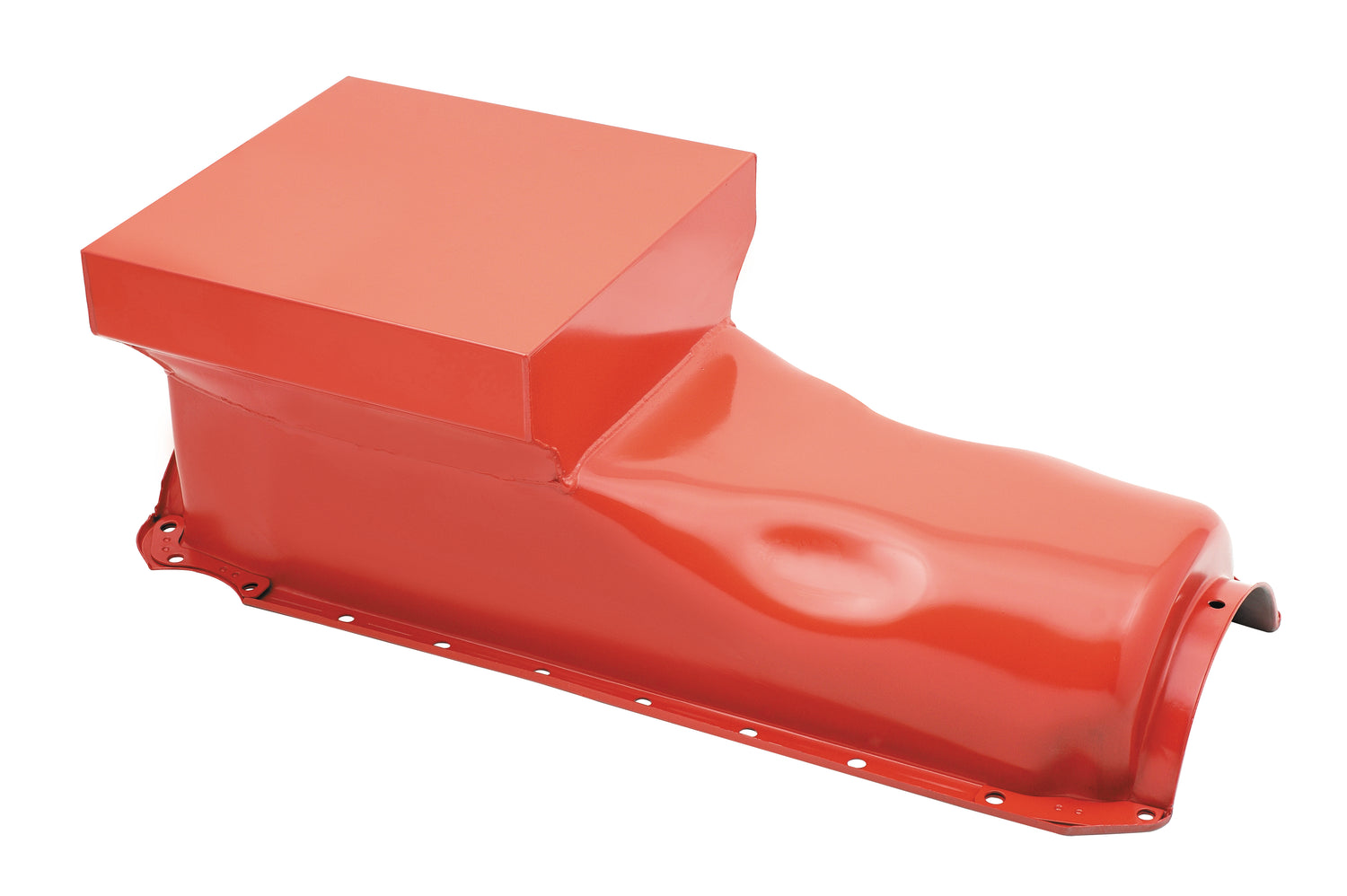

Mr Gasket Low Profile Oil Pan - Orange - 7606G

Fits 1965-1990 Chevrolet 396-454 Big Block

Part Number: 7606G

Designed for most big block Chevrolet applications, the low profile sump design allows increased oil capacity without restricting ground clearance. Specially designed internal trap door baffling, combined with custom oil pump pick-ups, keep oil pressure fluctuation to a minimum. These oil pan measure 8-1/4 inch deep from the top side rail to bottom sump, and feature bright orange paint finish. For both street and racing applications. Oil pan capacity is 6 quarts.

Features and Benefits

• Additional oil capacity - 6 Quarts
• Superior oil control due to internal trap door baffle
• Good ground clearance
• Prepainted bright orange
• Depth of Oil Pan: 8-1/4"
• Width of Oil Pan: 8-3/8"
• Length of Oil Pan: 22-3/4"

Note: 1964-1967 Chevelles may need crossmember modification or taller/shimmed motor mounts for clearance. Will not fit stroker engine applications. Does not include oil pump pickup, use 5808WND.
