Mr Gasket | SKU:
105P

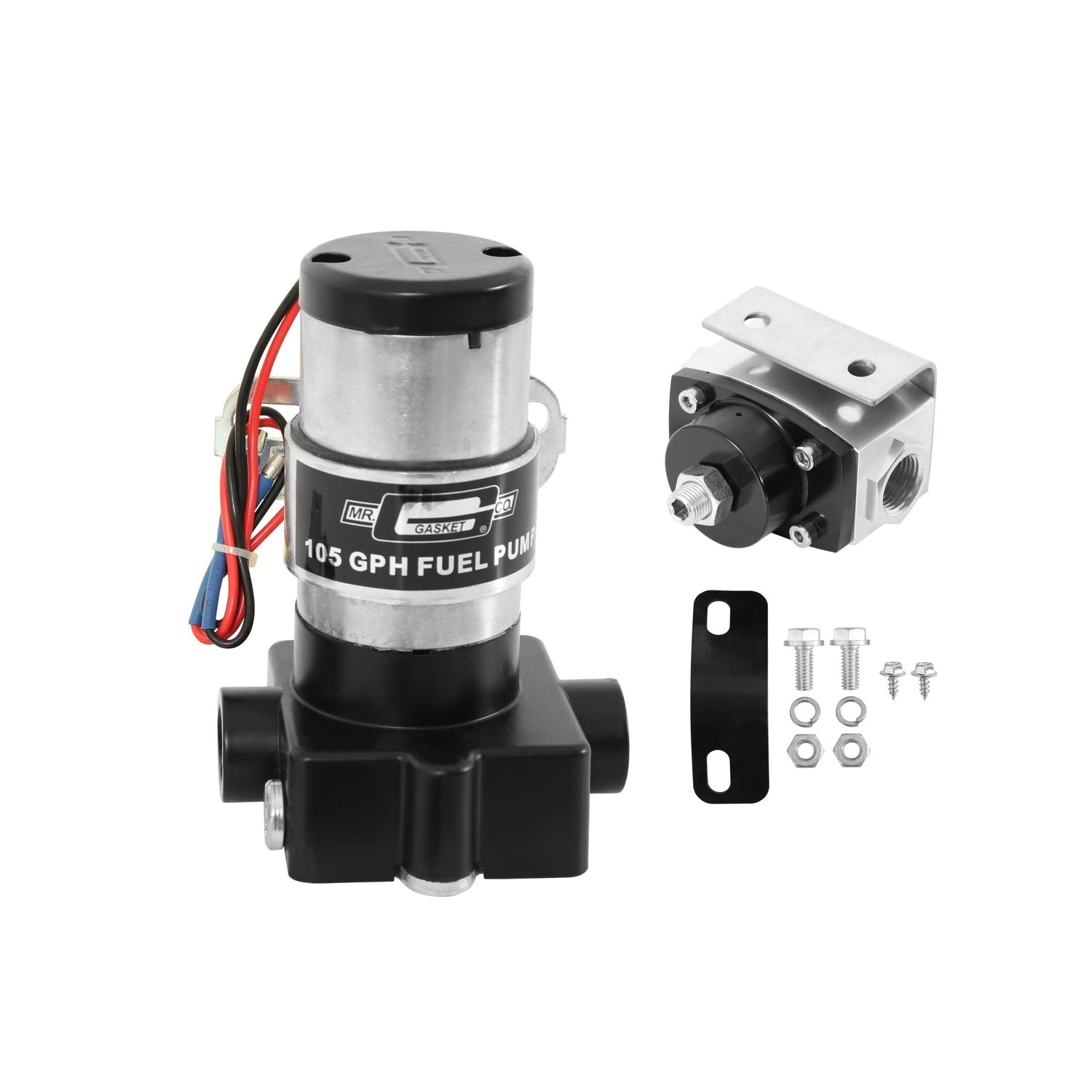

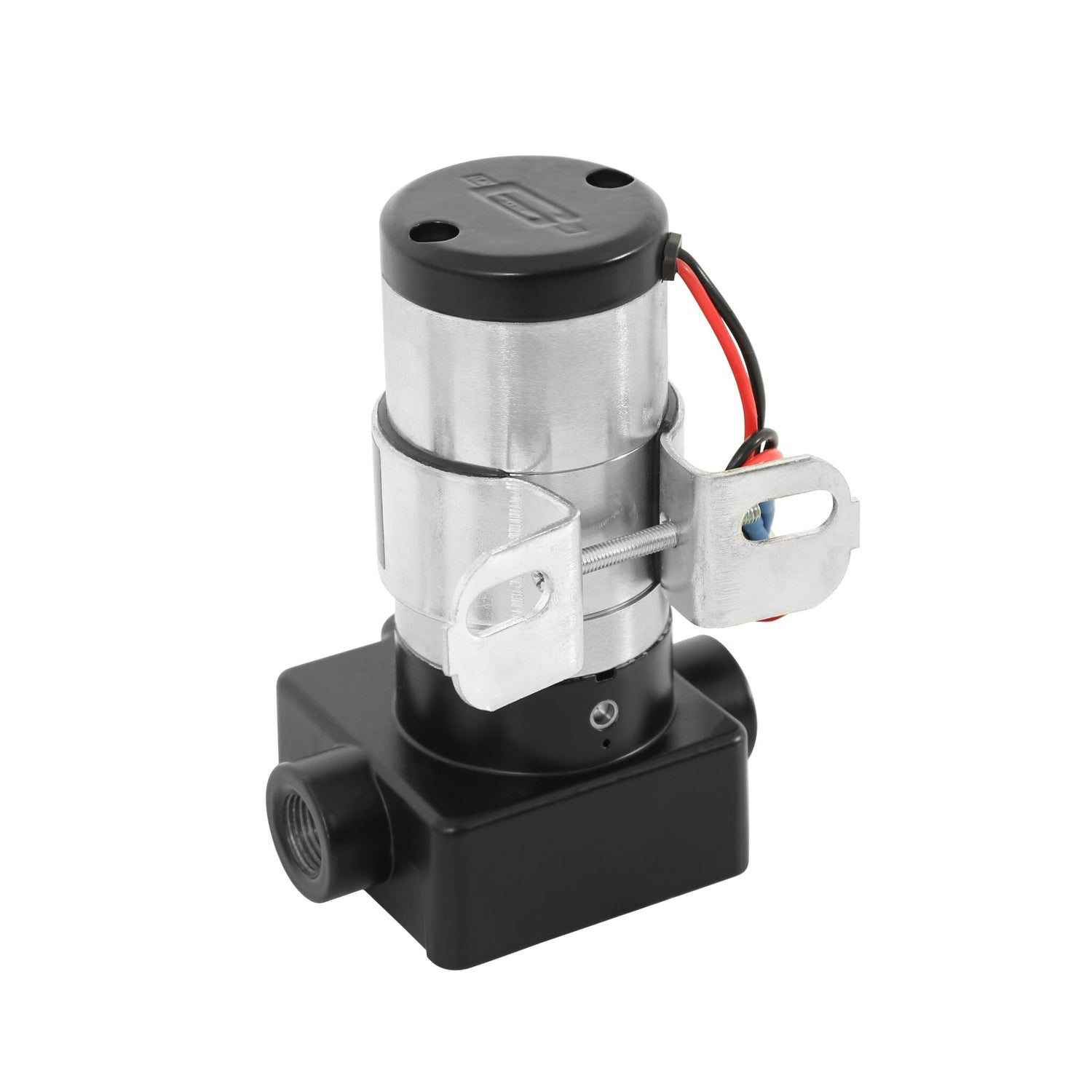

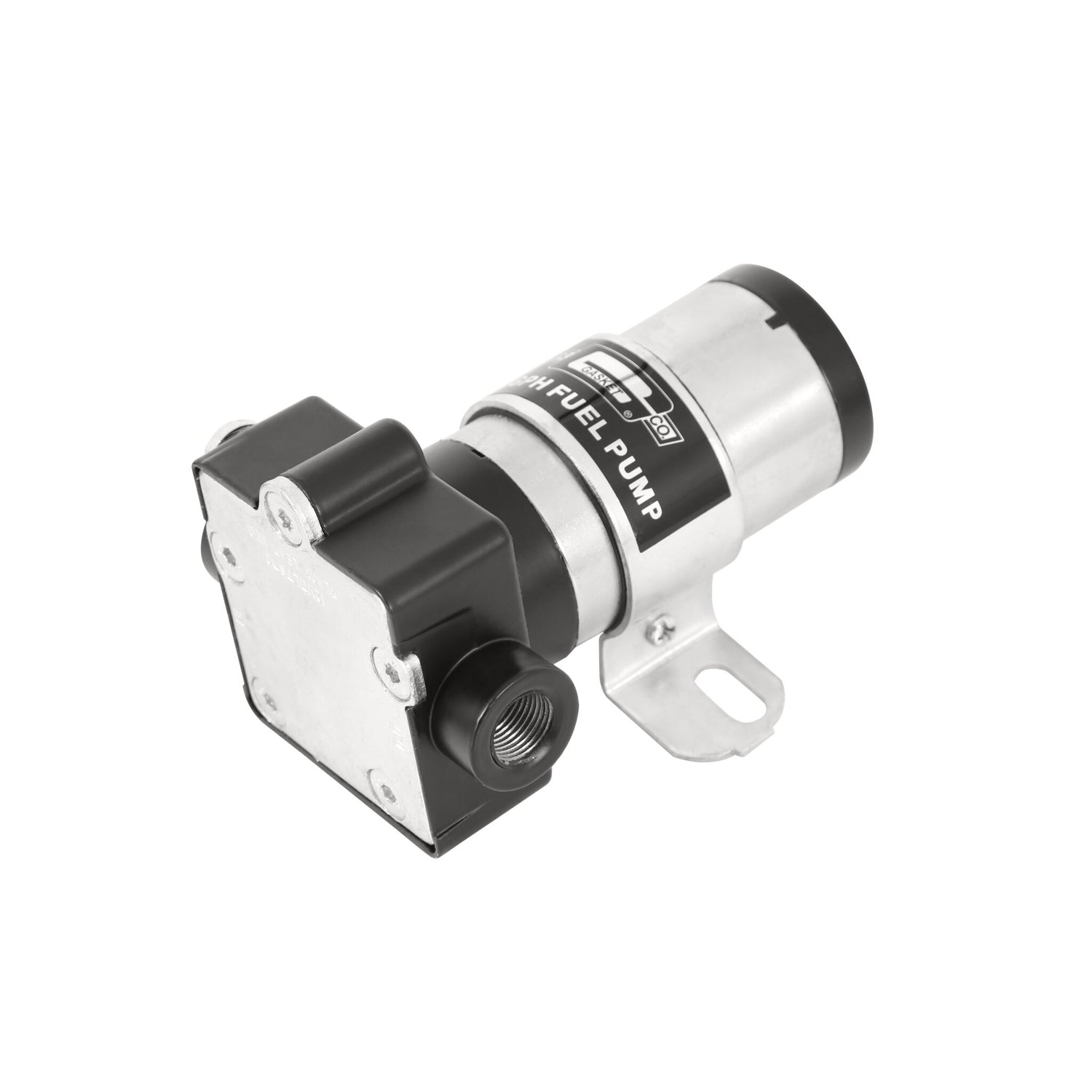

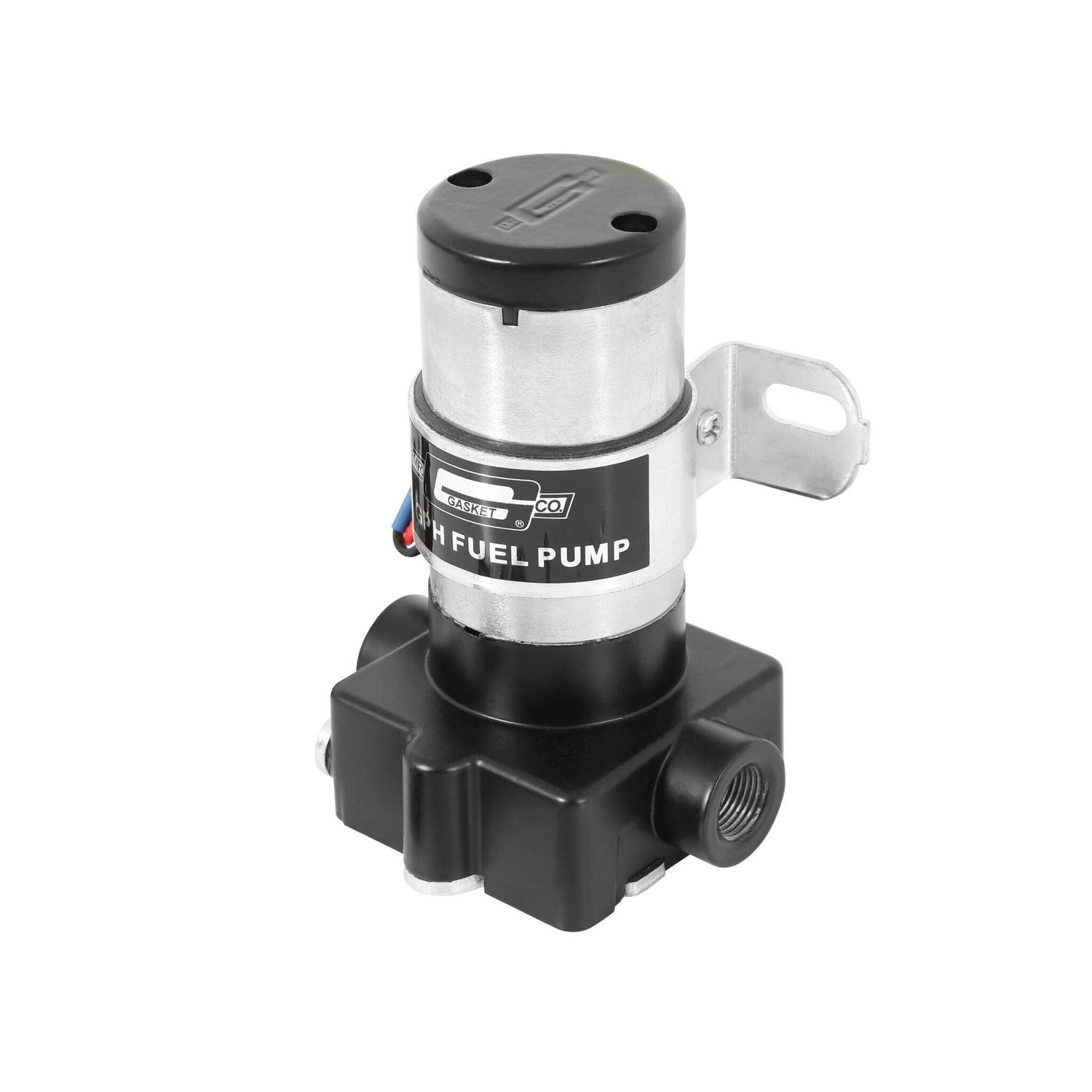

Mr Gasket Electric Fuel Pump with Regulator - 105 GPH - 105P
For Carbureted Gasoline Applications Only.
Regular price
$243.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Mr Gasket Electric Fuel Pump with Regulator - 105 GPH - 105P is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
For Carbureted Gasoline Applications Only.
Part Number: 105P

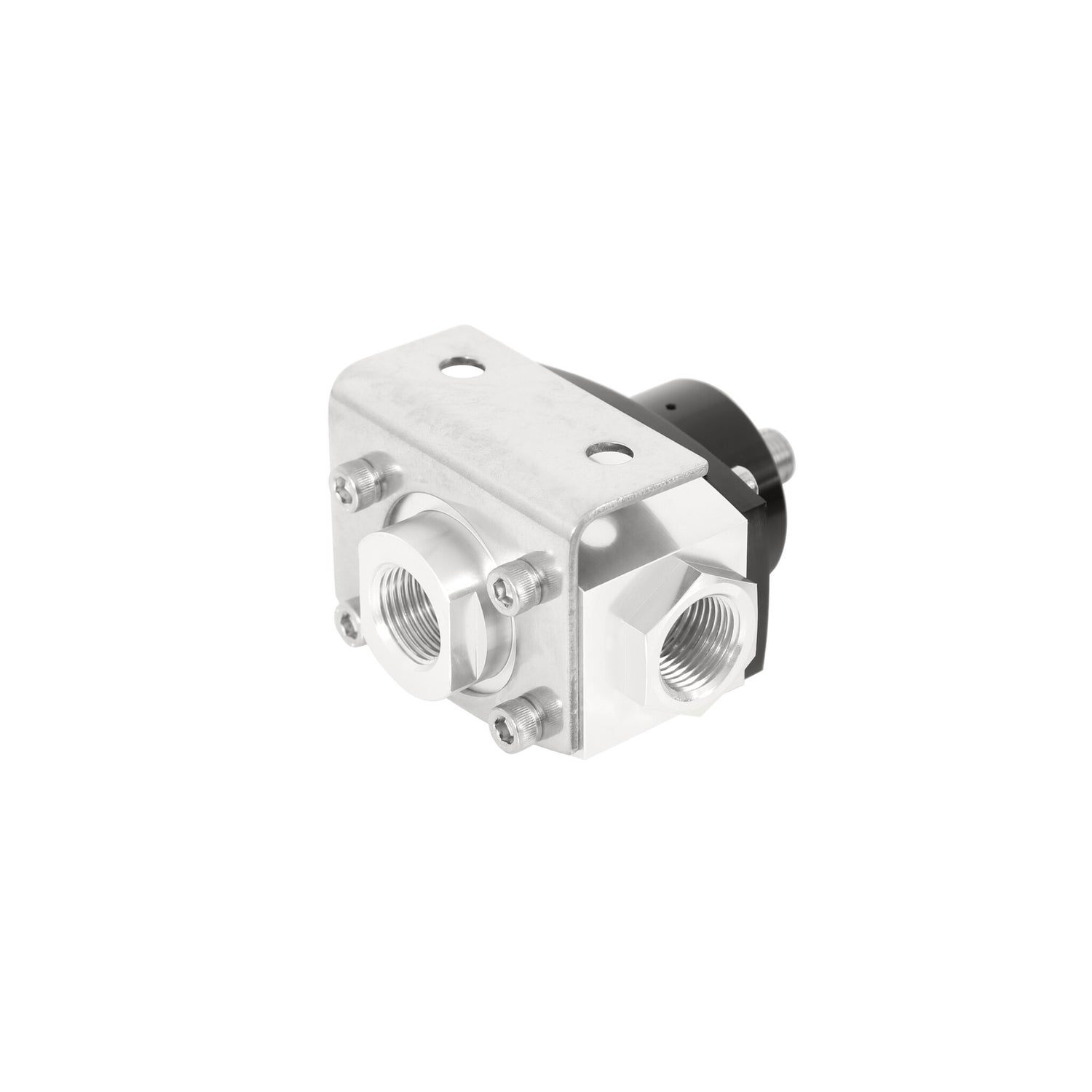

This high performance electric fuel pump has a free flow rate of 105 GPH (gallons per hour) with a maximum pressure of 14 psi (pounds per square inch). It is a gravity fed vane/rotor type high volume low pressure pump designed for street/strip applications. The operating fuel pressure is factory is set at 14 psi and is adjustable to as low as 4 through the included regulator. This pump must be used with included fuel pressure regulator. A 3/8 inch i.d. (inner diameter) hose is recomended with this fuel system. The fuel return line should be as large or larger than the fuel line between the fuel pump and the regulator. Free flows at 105 GPH and 70 GPH at 9 PSI.
Features and Benefits
• Rotor/vane style
• 100% Pressure Tested For Perf And Reliability
• 3/8 in NPT Inlet/Outlet For Easy Installation
• Universal Fit - Includes Mounting Bracket
• Return Style Regulator Eliminates Vapor Lock
• Improved Pump Design For A Longer Extended Life
Note: Not compatible with alcohol or methanol fuels and is not for fuel injected engines.
Part Number: 105P
This high performance electric fuel pump has a free flow rate of 105 GPH (gallons per hour) with a maximum pressure of 14 psi (pounds per square inch). It is a gravity fed vane/rotor type high volume low pressure pump designed for street/strip applications. The operating fuel pressure is factory is set at 14 psi and is adjustable to as low as 4 through the included regulator. This pump must be used with included fuel pressure regulator. A 3/8 inch i.d. (inner diameter) hose is recomended with this fuel system. The fuel return line should be as large or larger than the fuel line between the fuel pump and the regulator. Free flows at 105 GPH and 70 GPH at 9 PSI.
Features and Benefits
• Rotor/vane style
• 100% Pressure Tested For Perf And Reliability
• 3/8 in NPT Inlet/Outlet For Easy Installation
• Universal Fit - Includes Mounting Bracket
• Return Style Regulator Eliminates Vapor Lock
• Improved Pump Design For A Longer Extended Life
Note: Not compatible with alcohol or methanol fuels and is not for fuel injected engines.
Specifications
Specifications
-
Specifications
Application Universal Brand Mr. Gasket Category Air and Fuel Delivery Color Silver Emission Code 5 Free Flow GPH 105 Fuel Sending Unit Included No Fuel System Carbureted Fuel Type Gasoline Gasket Or Seal Included No Grade Type Performance Inlet Size 3/8 inch NPT Material Steel Mounting Hardware Included Yes Outlet Size 3/8 inch NPT part type Electric Fuel Pump Product Type Fuel Pump Strainer Included No Sub Category Fuel Pumps and Related Components Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Weight 4 Wiring Harness Included No
