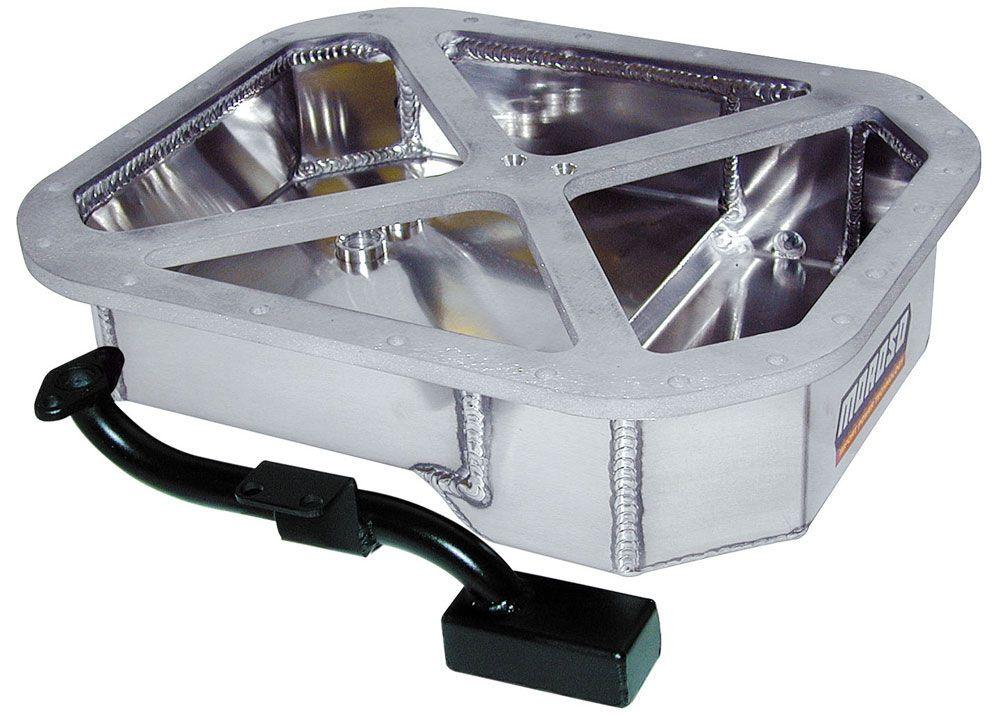

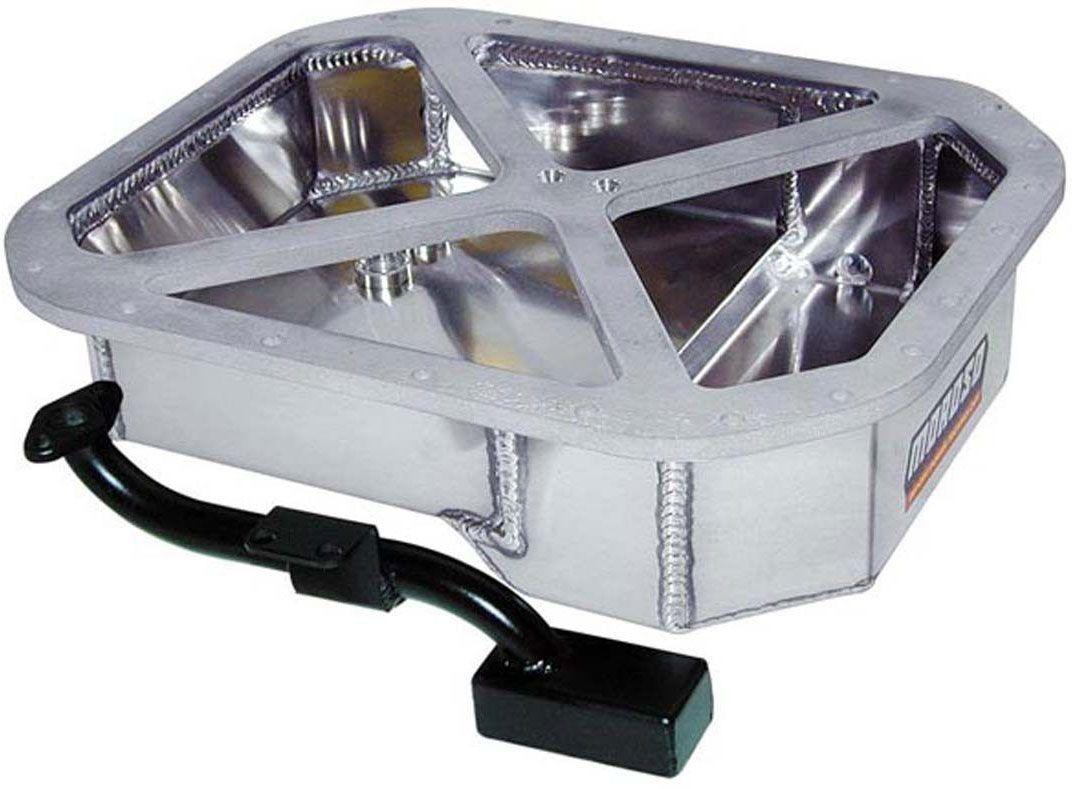

Moroso West Sump Oil Pan, 4" Deep (MO20940)

Fits: Tube chassis cars andother cars without a cross-member located under engine (check dimensions for clearance). Oil Pan, Aluminum,Rear Sump. Engine Application:13B Rotary (Non FD or Renesis)

• Fully fabricated
• 3/8"-thic kbillet rail with integral X-brace greatly strengthens engine assembly to reduce twisting and axial deflection
• Includes .080"-thick aluminum Baffle Plate to de-aerate and cool return oil (other baffles are only .060" thick)
• Includes an oilpump pickup specially designedfor this pan; access holes in pan facilitate mounting pickupto the front cover
• ForDrag Race & Street
• Includes magnetic drain plug with extracopper washer and pan mountingkit with hex-drive steel studsto eliminate stripping the engine block and serrated-faceflare nuts to withstand vibration
• Accommodatesstock pan gasket and dipstick with existing oil level marks
