MOROSO REMOTE OIL FILTER MOUNT

$258.00

Moroso 23766 Details

Billet Aluminum

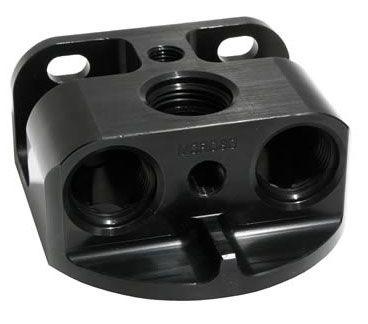

The mount is machined from 6061-T6 billet aluminum for exceptional strength and weight reduction (1.3 lbs without fittings). Its compact, low-profile design (.750" body height) facilitates installation in crowded areas. Unit includes two 3/8"-16 threaded holes on backside for mounting. Anodized finish resists corrosion and maintains brilliance over time

Features:
  • Includes two screw-in adapters to accept a wide range of large-diameter filters
  • Inlet and outlet threaded ports are positioned vertically to improve flow
  • Requires -12AN threaded fittings with O-rings
  • Accepts following filters: Moroso 710-22465, Fram 410-HP6, Motorcraft 037-FL784, K&N 599-HP-5001 and WIX 51222R.



  •

    Specifications:

    Bracket Finish: Black
    Inlet Attachment: Female Threads
    Outlet Attachment: Female Threads
    Quantity: Sold individually
    Remote Oil Filter Bracket Style: Single
    Outlet Quantity: One
    Inlet Size: -12 AN O-ring
    Outlet Size: -12 AN O-ring
    Bracket Material: Billet aluminum
    Inlet Quantity: One
    Manufacturer's Part Number: 23766
