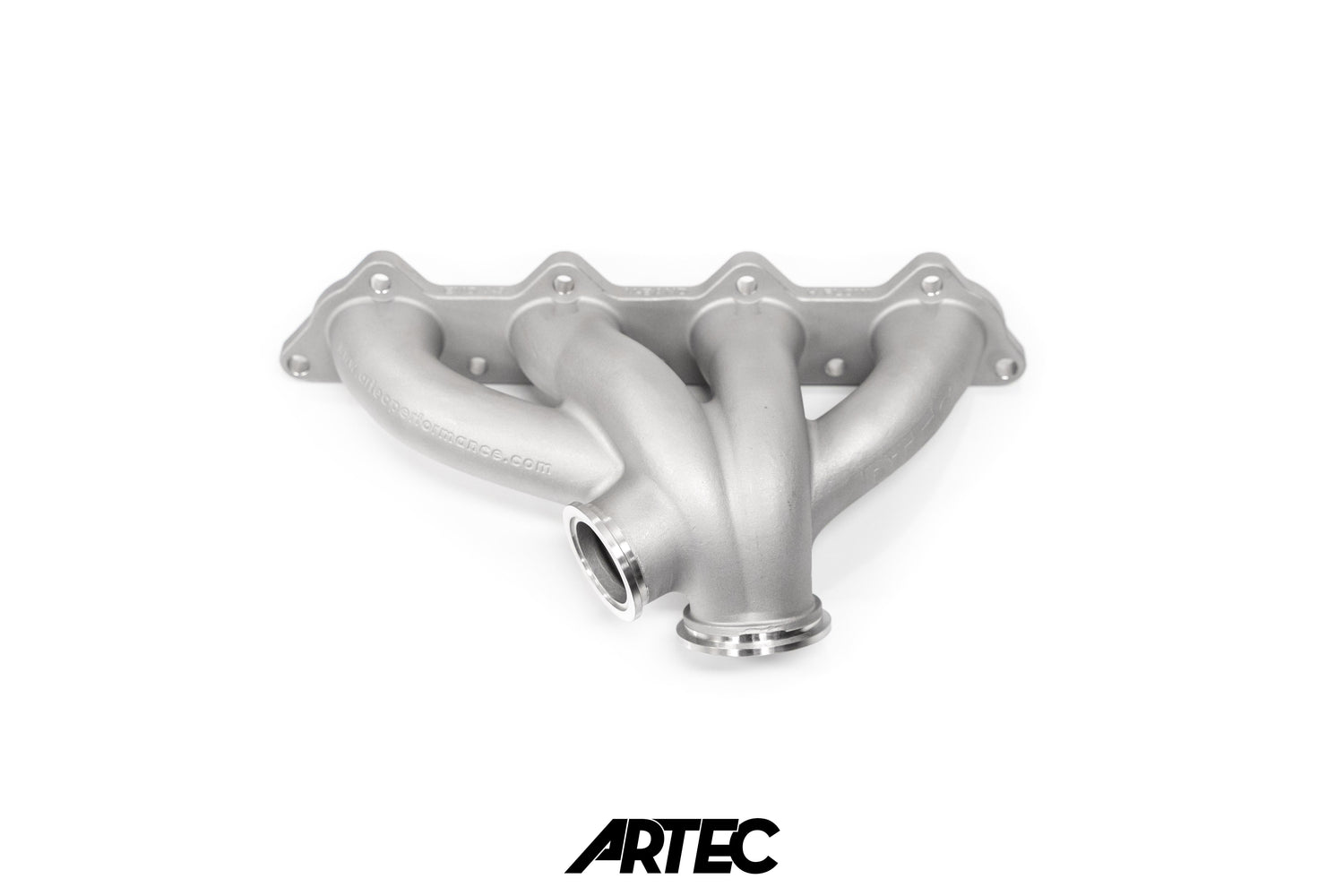

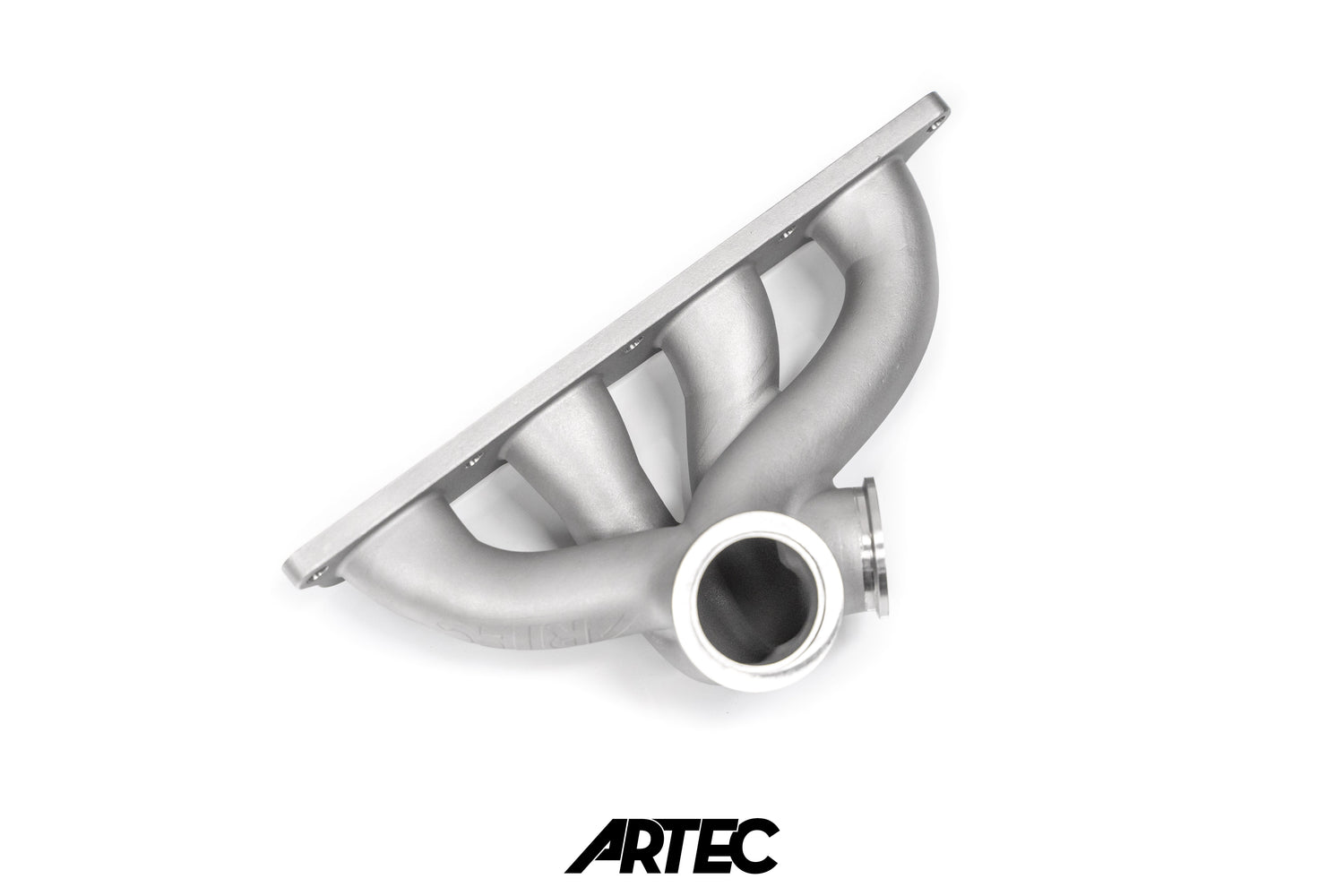

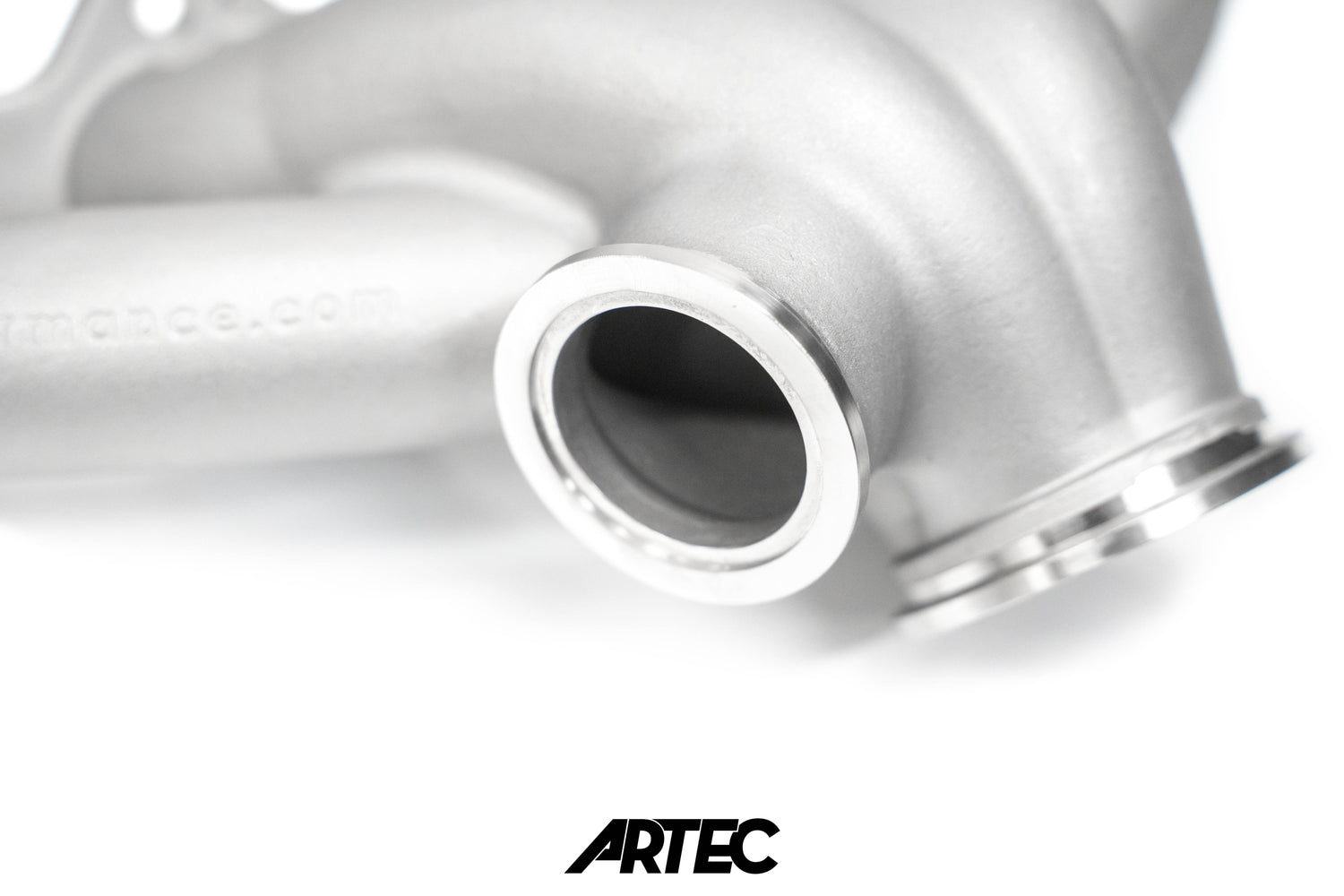

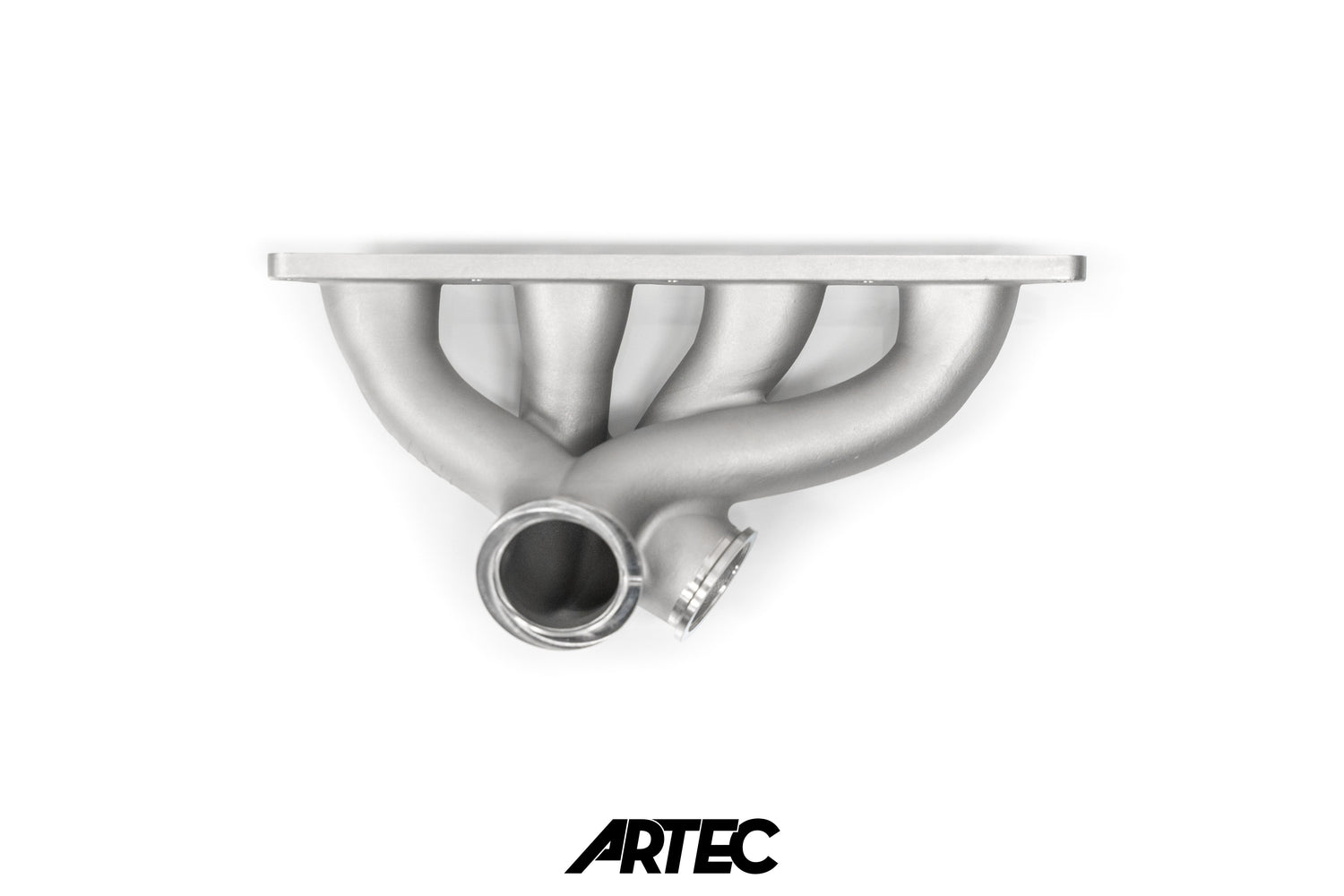

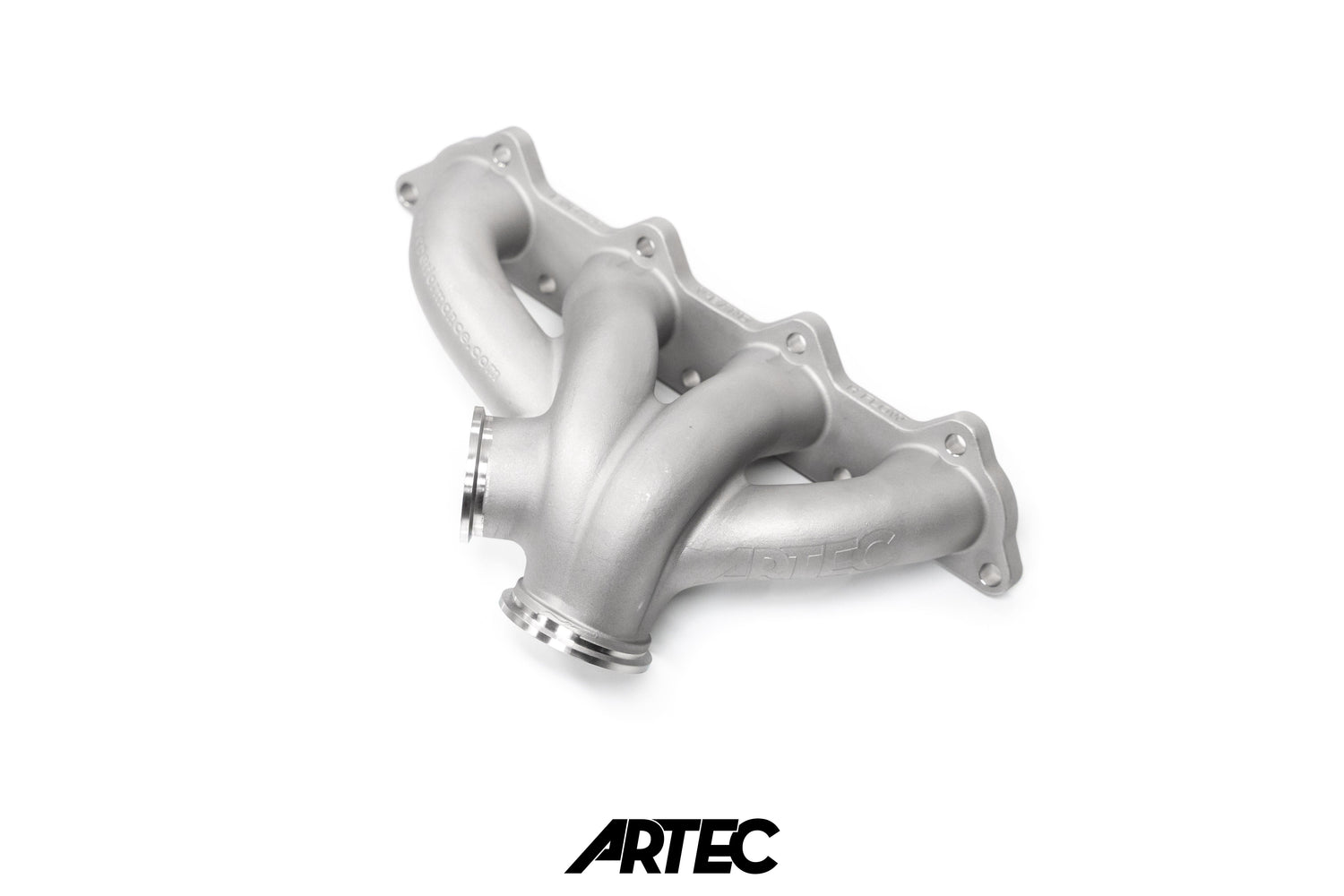

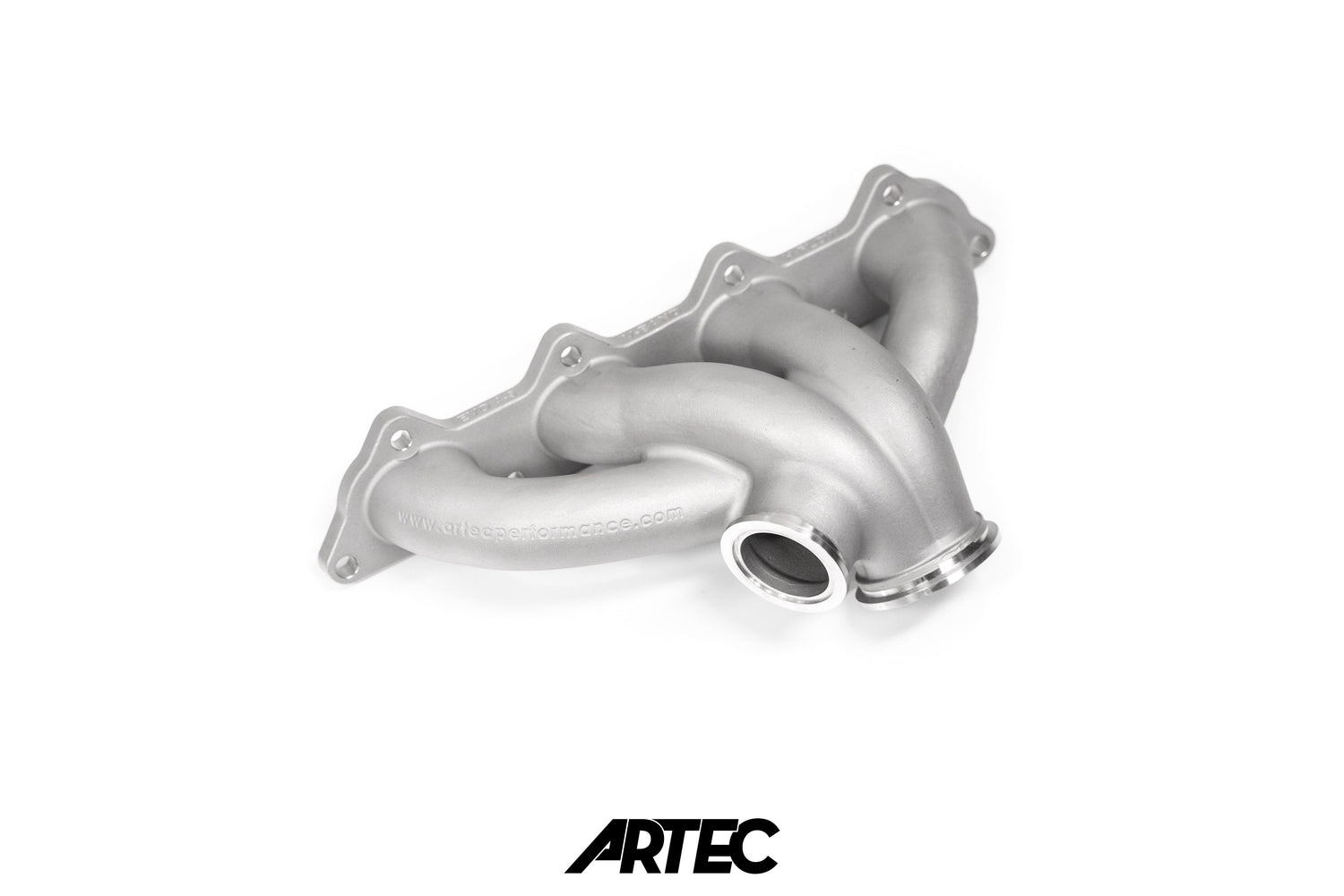

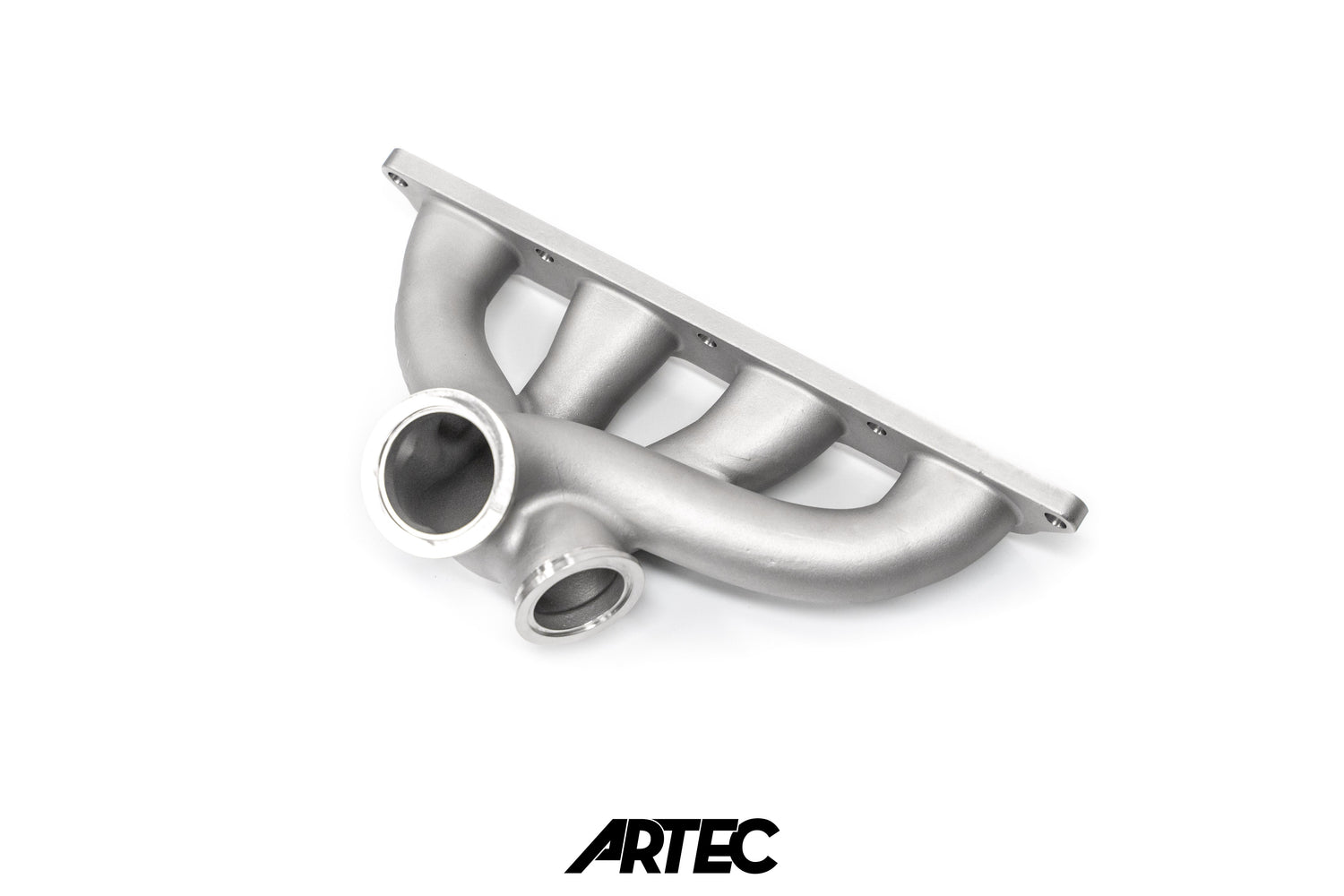

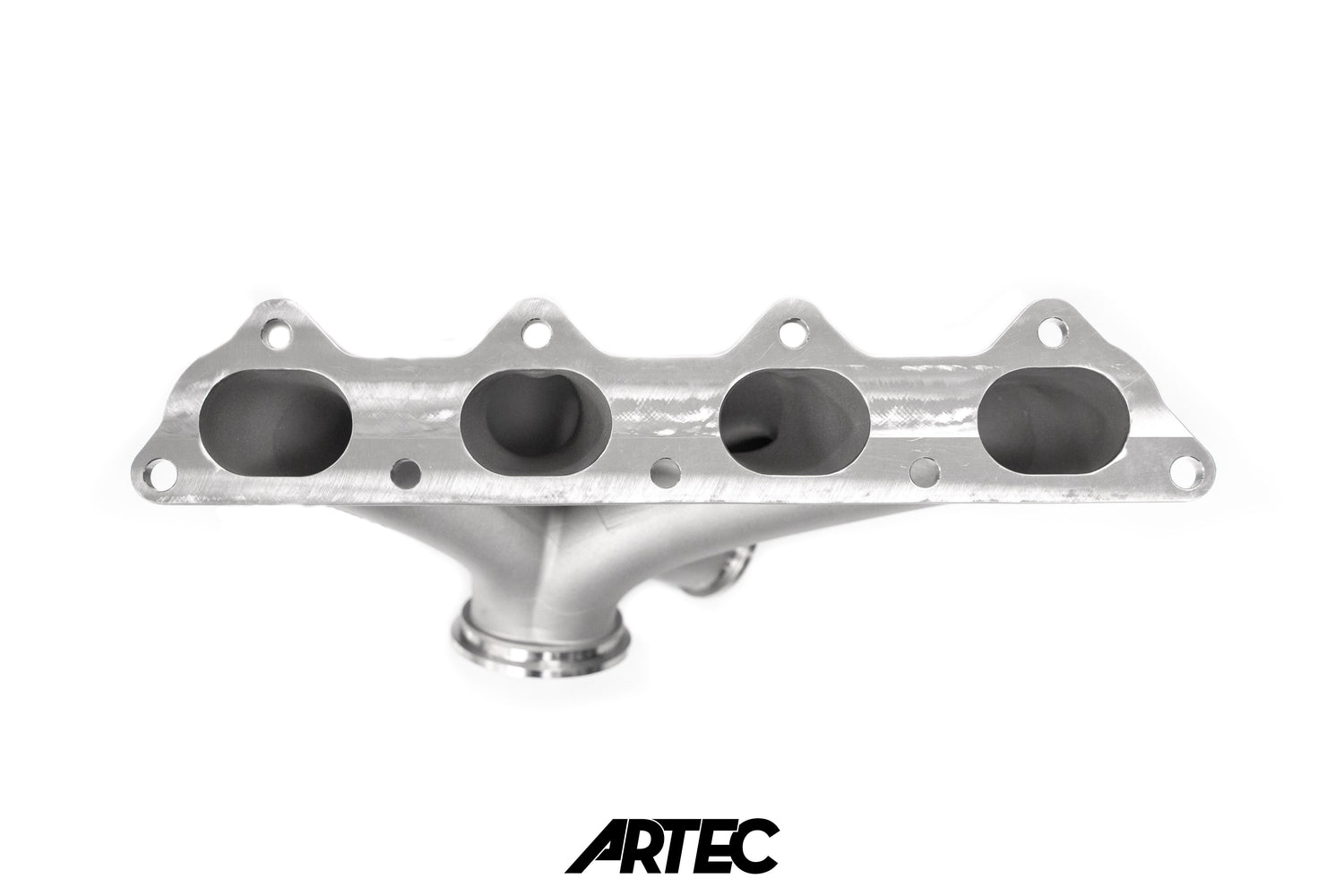

ARTEC Mitsubishi Evo 4-9 4G63 High Flow V-Band Exhaust Manifold (Reverse Rotation)

Features:

• The High Flow Manifold Series is designed with enlarged runners and a 55mm outlet flange to optimise performance on 98 octane gasoline setups and offers more top end performance for the high power ethanol setups in the same compact design as our High Response Series
• 37% increased total flow compared to our High Response Series
• Suited for:
  • 98 Octane Gasoline applications over 400whp
  • E85 Ethanol applications over 600whp
• Compatible with Mitsubishi Evo 4-9 Dump Pipe Adapter (Garrett G25-G35 only)
• Retains OEM air con

Turbocharger Compatibility

• REQUIRES REVERSE ROTATION TURBO
• The ARTEC High Flow V-Band Ring System allows you to install turbos from all of the big brands without having to chop and change flanges or manifolds!
• Features a High Flow 55mm turbo V-band flange and supports the following turbochargers by using the appropriate locating rings:
• Garrett G25 to G40 (using the ARTEC G40C Turbine Housing)
• Precision 6266 to 6466 & 6870 compact
• Turbosmart 6266 to 6870 compact
• NOTE: Designed to fit Garrett, Precision and Turbosmart turbochargers, however turbochargers from other manufacturers may fit provided they use the same flange diameters and profiles

Wastegate Compatibility

• Features a single 44mm / 45mm / 46mm wastegate flange. Tested and proven at 40+ psi with nitrous, maintaining stable and precise boost control
• NOTE: Designed around Turbosmart 45mm wastegate actuator, however wastegate actuators from other manufacturers may fit provided they use the same flange diameters and profiles

Specifications:

• Material: SUS347 Stainless Steel Investment Cast Construction

Package Contents:

• 1x Mitsubishi Evo 4-9 4G63 High Flow V-Band Exhaust Manifold
• 1x ARTEC 55mm V-Band Locating Ring for Garrett / Turbosmart
• 1x ARTEC 55mm V-Band Locating Ring for Precision Turbo

Notes:

• Designed in Australia with Lifetime Warranty*
