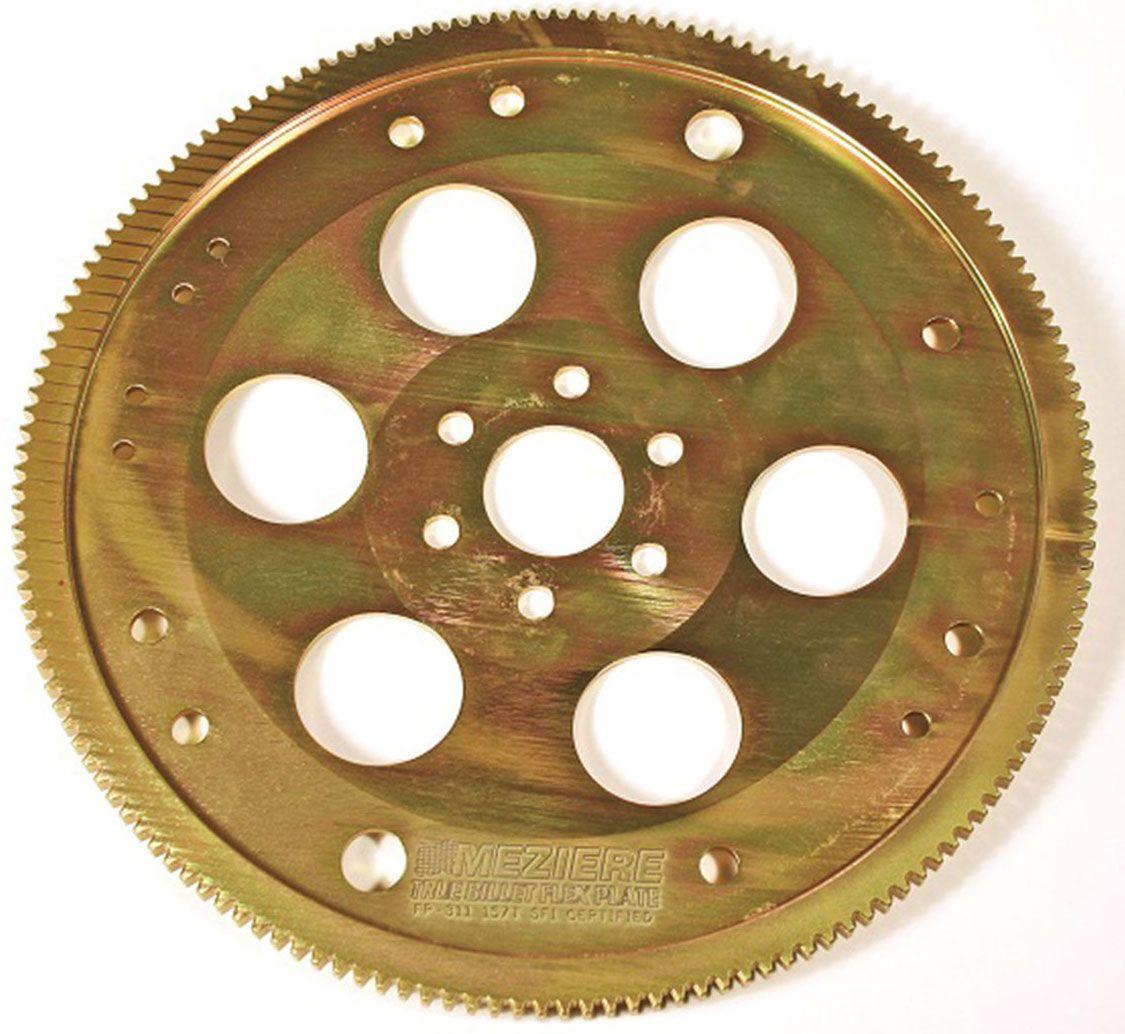

Meziere True Billet Flexplate - SFI (MZFP311)

Meziere True Billet Flexplates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout and the best longevity on the market. All of our flexplates are certified to SFI spec 29.2

Features:

• Concentric machined to .005".
• One piece design - 100% machined.
• Proprietary heat treating process.
• Chamfered gear tooth provides better engagement.

Application information:

• Fits small block Ford Windsor and 5.0.
• 157 tooth ring gear.
• 12 pitch tooth profile.
• Weighs 6.95 pounds.
• Converter pattern 1 - 4 holes 7/16" diameter on 10.50" bolt circle.
• Converter pattern 2 - 3 holes 7/16" diameter on 10.75" bolt circle.
