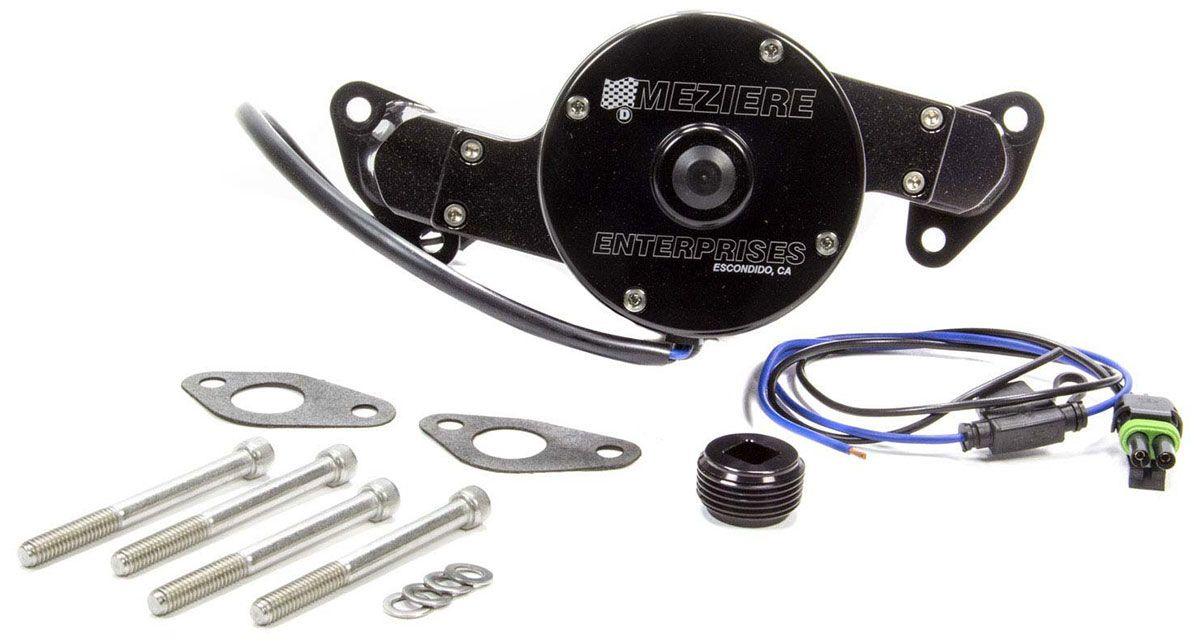

Meziere Small Block Ford Electric Water Pump, Black Finish (MZWP111SHD)
42GPM, heavy duty motorMZWP111SHD - ELECTRIC WATER PUMP SBF BLACK
42GPM, heavy duty motor
Part Number: MZWP111SHD
American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. We say what we mean and mean what we say.
This water pump model features:
Fits small block Ford Windsor, Cleveland and 5.0 models before 1994
Suitable for street or drag strip use - 3000 hour life expectancy
Show quality polished finish
Heavy duty motor provides 42 gallons per minute free flow rating
All stainless steel hardware included
Light weight. Complete standard small block Ford unit weighs only 5.7 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal
Pump will clear cam belt drives and most blower drives
1"e; NPT inlet adapters are available for #12AN, #16AN, #20AN, 1-1/4" 1-1/2"e; or 1-3/4"e; slip hose
Technical Specifications:
Belt Drives: Standard SBF design will clear Jesel belt drives and comparable belt drive systems.
NOTE: If you are running a cam belt drive on your small block Ford, you will most likely need the WP173 pump. This pump will not fit Yates, Danny B, Jesel, or Race Master belt drives.
Distributor Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting and optional back plate. The fitting needs to be ordered according to the size of the lower radiator hose. A back plate will be required in all applications using a stock style timing cover.
Amperage draw: Under normal use the pump will draw 6-7 amps.
Overall Height Dimension: The heavy duty pump is 6.60"e; long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 5.7 lbs.
16 volt systems: When purchasing a pump for a 16 volt system we recommend the 16 volt optional motor on our pump. The 12 volt pump will work for limited use applications.
Additional Notes:
The standard 42 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard. These may be added at the factory for an additional cost. Please call for details.
The small block Ford engine has gone through several design changes at the factory since its inception. There are two different 42 GPM pump models that may be right for your engine. For more information regarding small block Ford applications and how to tell which pump is correct for you, please see our SB Ford addendum sheet.
Accessories for Small Ford:
Water Pump Spacers:
Thickness .9" WPS111
Relay Wiring Kit upgrade WIK346
