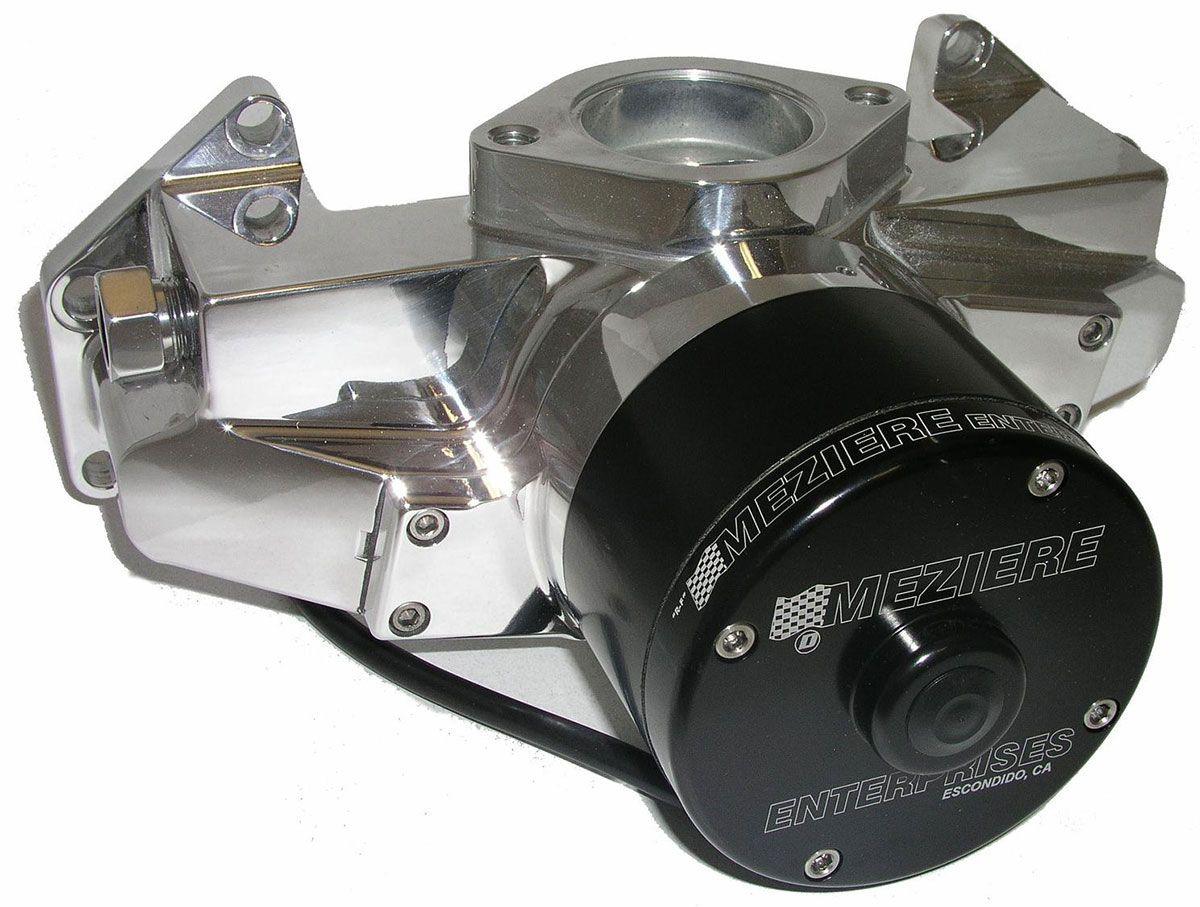

![Meziere Big Block Chrysler Electric Water Pump, Polished Finish (MZWP106UHD)](http://fastlanespares.co.nz/cdn/shop/products/MZWP106UHD_927x700.jpg?v=1688047690)
Meziere Big Block Chrysler Electric Water Pump, Polished Finish (MZWP106UHD)
42GPM, heavy duty motorMZWP106UHD - ELECTRIC WATER PUMP BIG BLOCK
42GPM, heavy duty motor
Part Number: MZWP106UHD
Electric water pump, fits big block Mopar with stock housing, 42GPM, heavy duty motor, black
American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. We say what we mean and mean what we say.
This water pump model features:
Fits big block Mopar B, RB, and Hemi
Suitable for street or drag strip use - 3000 hour life expectancy
Show quality polished finish
Heavy duty motor provides 42 gallons per minute free flow rating
All stainless steel hardware included
Light weight. Complete standard big block Mopar unit weighs only 7.2 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal
Pump will clear cam belt drives and most blower drives
1" NPT inlet adapters are available for #12AN, #16AN, #20AN, 1-1/4", 1-1/2" or 1-3/4" slip hose
Technical Specifications:
Belt Drives: Standard BBM design will clear Jesel belt drives and comparable belt drive systems.
Distributor Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. The fitting needs to be ordered according to the size of the lower radiator hose.
Amperage draw: Under normal use the pump will draw 6-7 amps.
Overall Height Dimension: The standard pump is 7.30" long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 7.2 lbs.
16 volt systems: When purchasing a pump for a 16 volt system we recommend the 16 volt optional motor on our pump. The 12 volt pump will work for limited use applications.
Additional Notes:
The standard 42 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
Accessories for Big Mopar:
Water Pump Spacers:
Thickness .9" WPS106
Relay Wiring Kit upgrade WIK346
