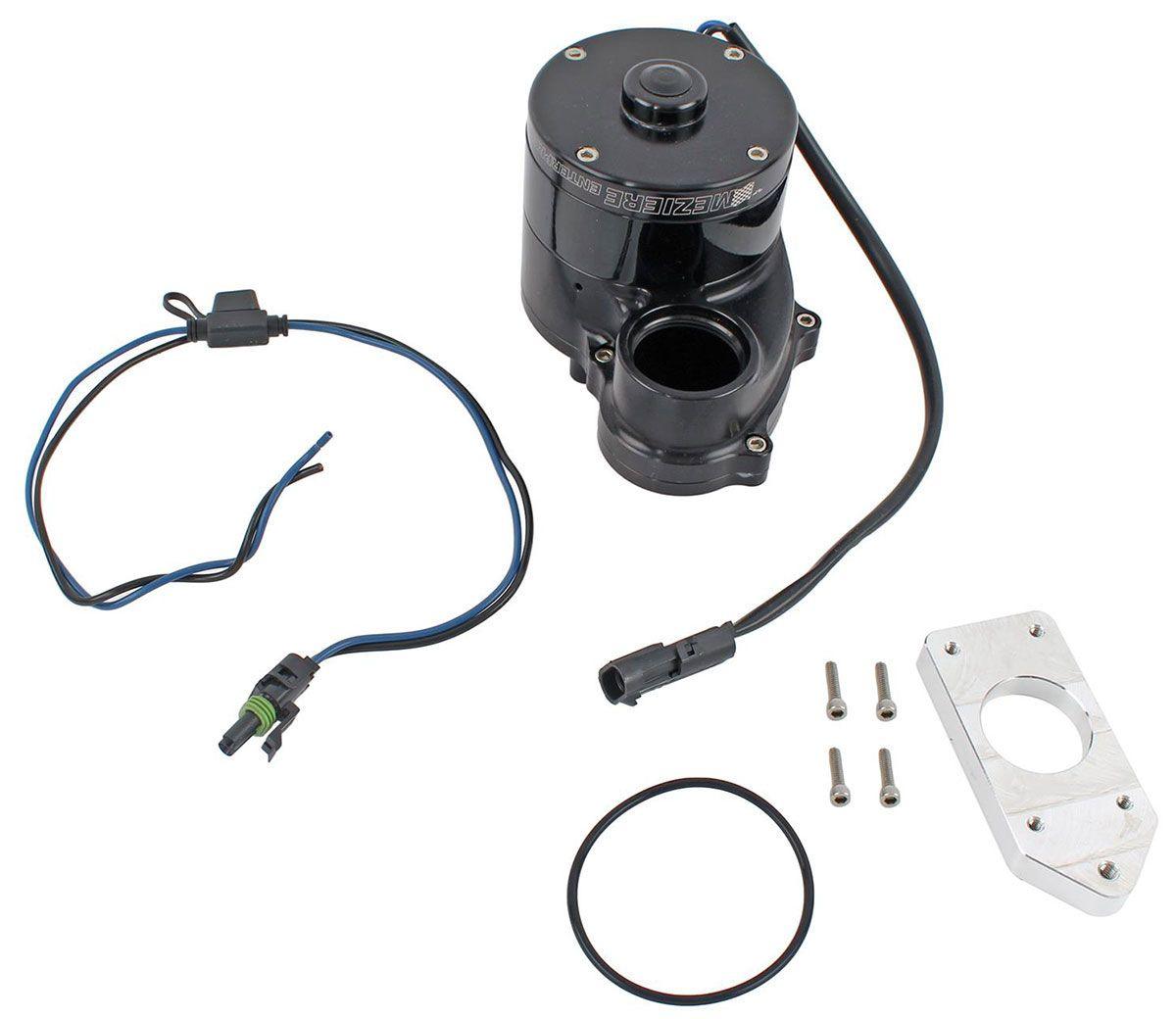

Meziere Big Block Chrysler Electric Water Pump, Black Finish (MZWP105SHD)
42GPM, with stock housing, heavy duty motorMZWP105SHD - ELECTRIC WATER PUMP CHRYS
42GPM, with stock housing, heavy duty motor
Part Number: MZWP105SHD
American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. We say what we mean and mean what we say.
This water pump model features:
Fits big block Mopar as an insert into the factory pump housing
Suitable for street or drag strip use - 3000 hour life expectancy
Show quality black anodised finish
Heavy duty motor provides 42 gallons per minute free flow rating
All stainless steel hardware included
Light weight. Complete unit weighs only 3.7 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal
Technical Specifications:
Finishing The System: This pump is supplied complete with gaskets and hardware. There are no other necessary items.
Amperage draw: Under normal use the pump will draw 6-7 amps.
Overall Height Dimension: The standard pump is 4.00" long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 3.7 lbs.
16 volt systems: When purchasing a pump for a 16 volt system we recommend the 16 volt optional motor on our pump. The 12 volt pump will work for limited use applications.
Additional Notes:
The 42 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only.
Accessories for Mopar:
Relay Wiring Kit upgrade WIK346
