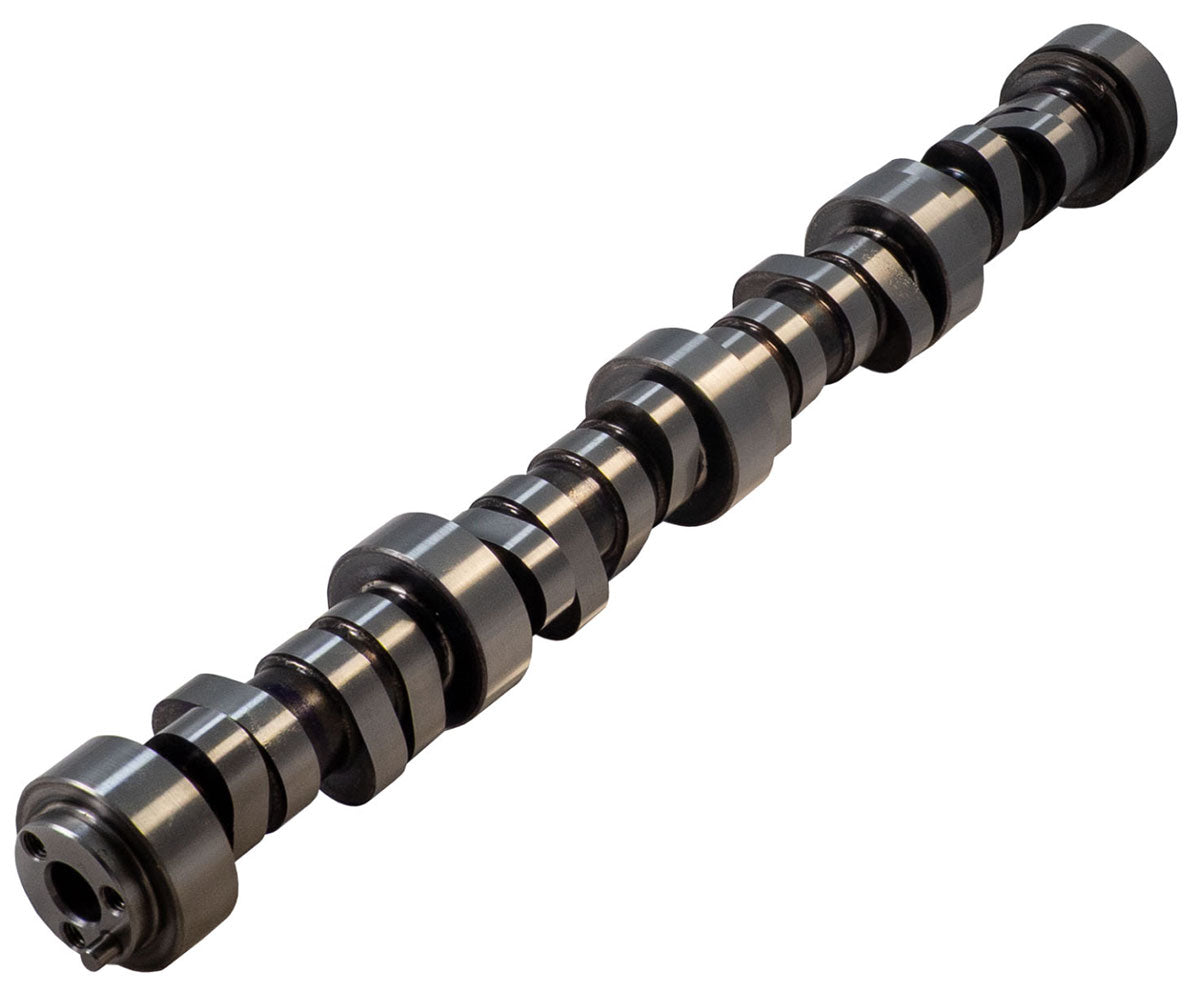

Melling Class 5 High Performance Hydraulic Roller Camshaft suit GM LS 3-Bolt - ME22503
239?/237? Dur @.050", .625"/.610" Valve Lift, 120.5? Lobe Separation, Non VVT
Melling Class 5 High Performance Hydraulic Roller Camshaft suit GM LS 3-Bolt - ME22503 is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
HYD ROLLER CAM, GM LS 3-BOLT
239?/237? Dur @.050", .625"/.610" Valve Lift, 120.5? Lobe Separation, Non VVT
Part Number: ME22503
Melling offers a full line of high performance camshafts for domestic cars, light trucks, import vehicles, marine and high performance engines. Melling offers specific high performance camshaft choices for street, RV, strip and circle track racing applications. Melling camshafts supply the performance to suit your horsepower and torque requirements wherever and whenever you want it. Melling high performance camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials.
Rough idle. Lower vacuum than stock. Good midrange to high RPM power and torque. Stall converter or manual transmission recommended. May require additional engine modifications. Will require computer upgrades for proper operation
Specifications:
RPM Range: 2950-6400
Advertised Exhaust Duration: 291 degÂ
Advertised Intake Duration: 292 degÂ
Basic Operating RPM Range: 5650 RPMÂ
Cam Type: Hydraulic RollerÂ
Camshaft Gear Attachment: 1Â
Exhaust Duration at .050 inch Lift: 237 degÂ
Exhaust Lobe Lift: 9.12 mmÂ
Exhaust Lobe Lift: 0.359 inÂ
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.61 inÂ
Exhaust Valve Lift with Factory Rocker Arm Ratio: 15.49 mmÂ
Grade Type: PerformanceÂ
Intake Duration at .050 Inch Lift: 239 degÂ
Intake Lobe Lift: 0.368 inÂ
Intake Lobe Lift: 9.35 mmÂ
Intake Valve Lift with Factory Rocker Arm Ratio: 15.88 mm.Â
Intake Valve Lift with Factory Rocker Arm Ratio: 0.625 inÂ
Lifter Type: Hydraulic RollerÂ
Lobe Separation: 120.5 degÂ
Material: Billet SteelÂ
Valve Springs equired: Yes
