Melling  |  SKU: ME22405

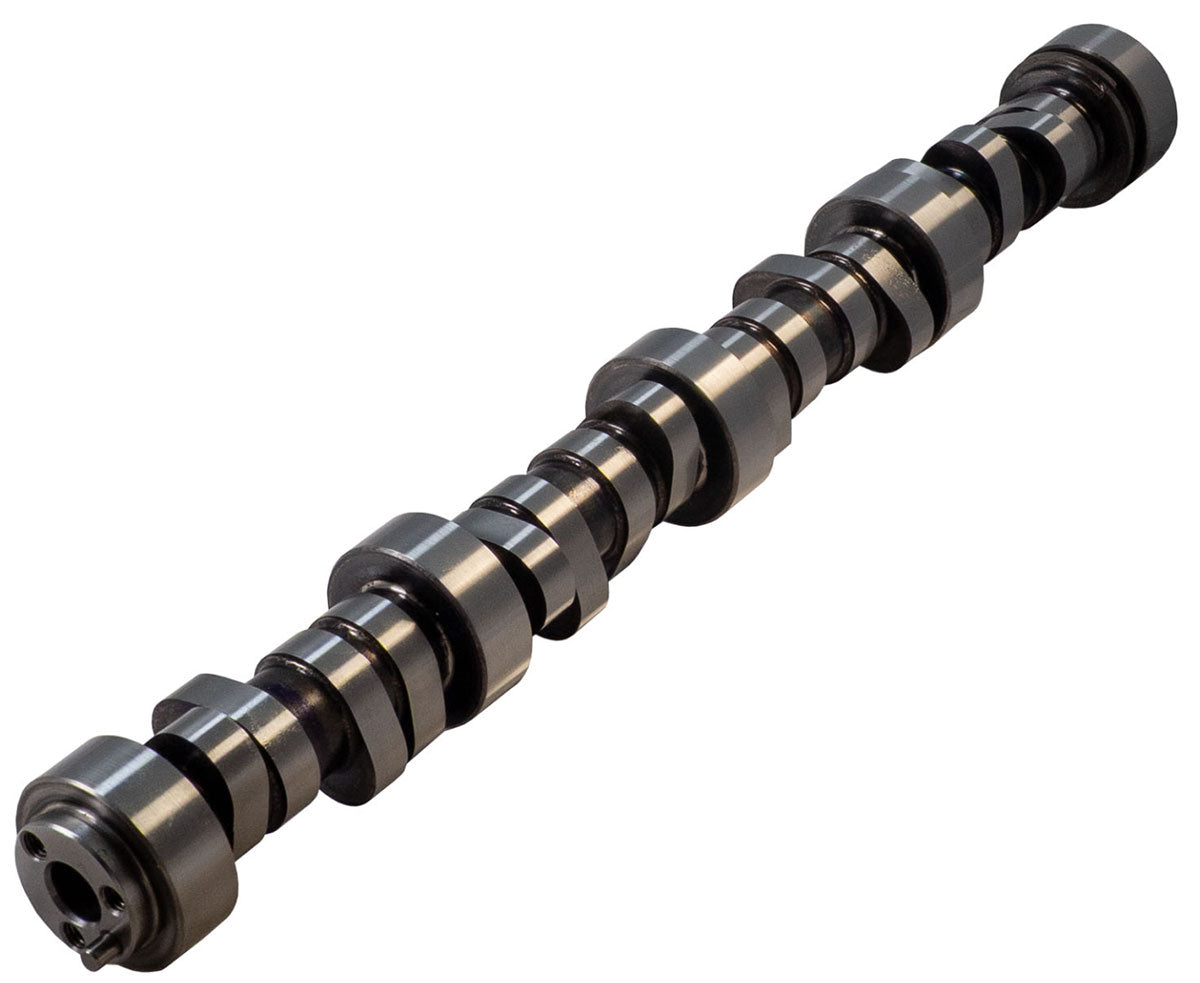

Melling Class 4 High Performance Hydraulic Roller Camshaft suit GM LS 3-Bolt - ME22405

231?/233? Dur @.050", .625"/.610" Valve Lift, 117.5? Lobe Separation, Non VVT

Regular price $794.20 NZD + GST
Shipping calculated at checkout.

Description

HYD ROLLER CAM, GM LS 3-BOLT

231?/233? Dur @.050", .625"/.610" Valve Lift, 117.5? Lobe Separation, Non VVT

Part Number: ME22405

Melling offers a full line of high performance camshafts for domestic cars, light trucks, import vehicles, marine and high performance engines. Melling offers specific high performance camshaft choices for street, RV, strip and circle track racing applications. Melling camshafts supply the performance to suit your horsepower and torque requirements wherever and whenever you want it. Melling high performance camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials.

Rough idle. Lower vacuum than stock. Good midrange to high RPM power and torque. Stall converter or manual transmission recommended. May require additional engine modifications. Will require computer upgrades for proper operation.

Specifications:

RPM Range: 2550-6050
Advertised Exhaust Duration: 287 deg
Advertised Intake Duration: 284 deg
Cam Type: Hydraulic Roller
Camshaft Gear Attachment: 1
Exhaust Duration at .050 inch Lift: 233 deg
Exhaust Lobe Lift: 9.12 mm
Exhaust Lobe Lift: 0.359 in
Exhaust Valve Lift with Factory Rocker Arm Ratio: 15.49 mm
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.61 in
Grade Type: Performance
Intake Duration at .050 Inch Lift: 231 deg
Intake Lobe Lift: 0.368 in
Intake Lobe Lift: 9.35 mm
Intake Valve Lift with Factory Rocker Arm Ratio: 0.625 in
Intake Valve Lift with Factory Rocker Arm Ratio: 15.88 mm
Lifter Type: Hydraulic Roller Lobe Separation: 117.5 deg
Material: Billet Steel
Valve Springs Required: Yes
